Intellinet

1-Fan Ventilation Unit for 19" Wallmount Cabinets

Roof-mount, Built-in Power Cable with Open Wiring, 220 - 240 VAC, Earthing Kit Included, Black

Highlights

Roof-mount ventilation unit for reliable, energy efficient cooling in wallmount cabinets
Built-in power cable with open wiring for flexible connection (e.g., to a C13/C14 PDU or C19/C20 UPS)
Efficient heat dissipation for a wide operating temperature up to 50°C (122°F)

SKU: 716079

[ view high resolution images ]

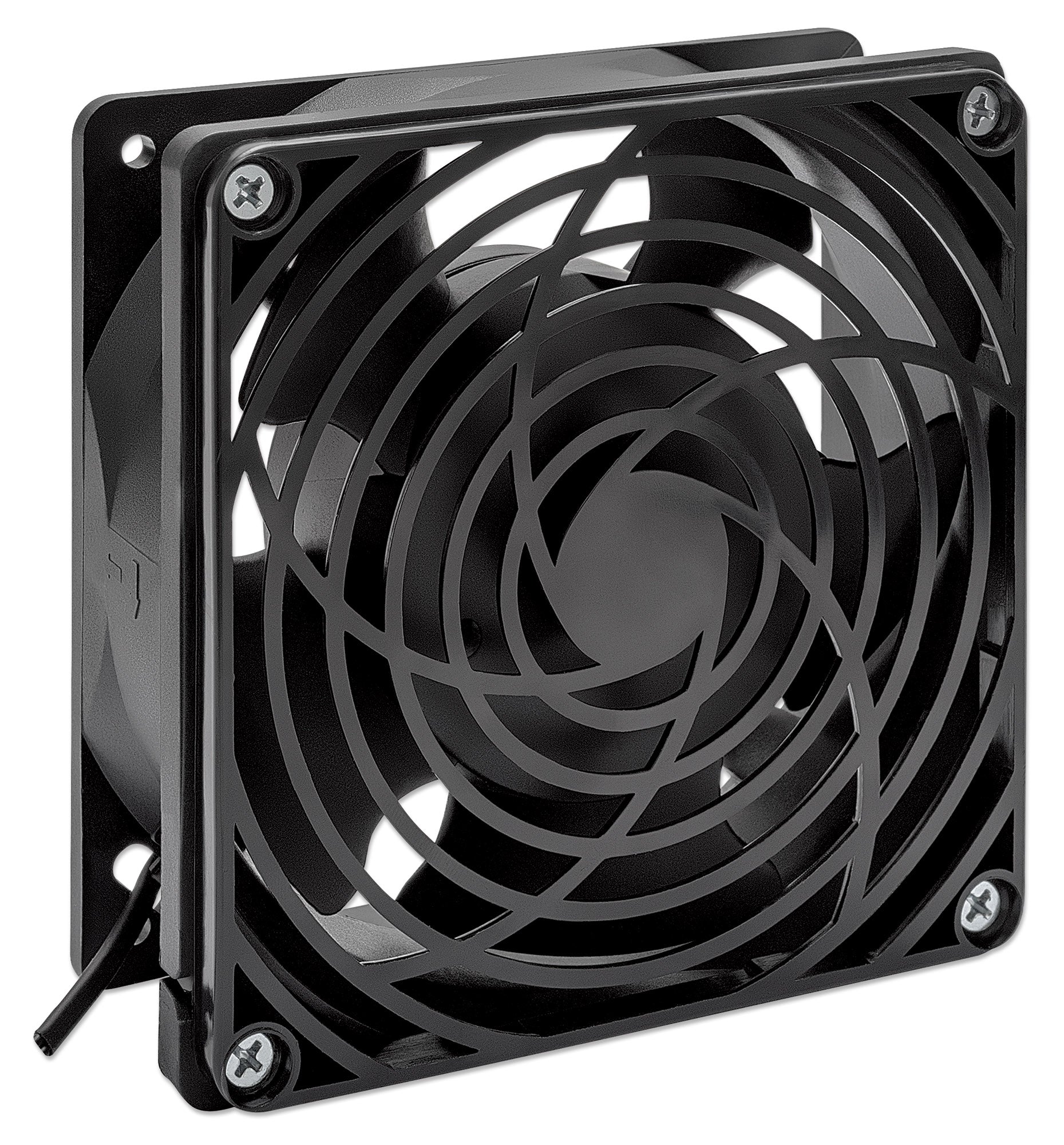

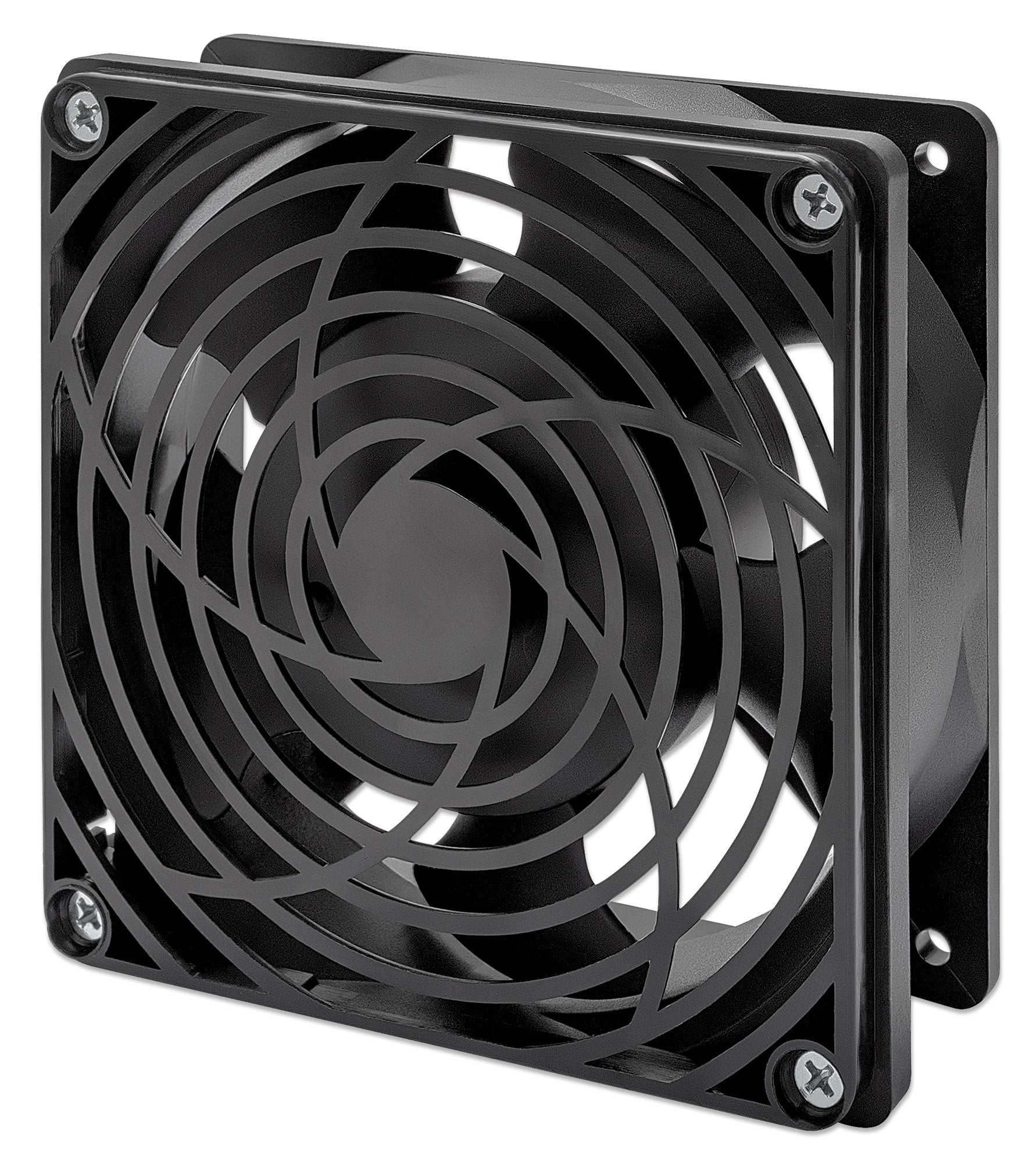

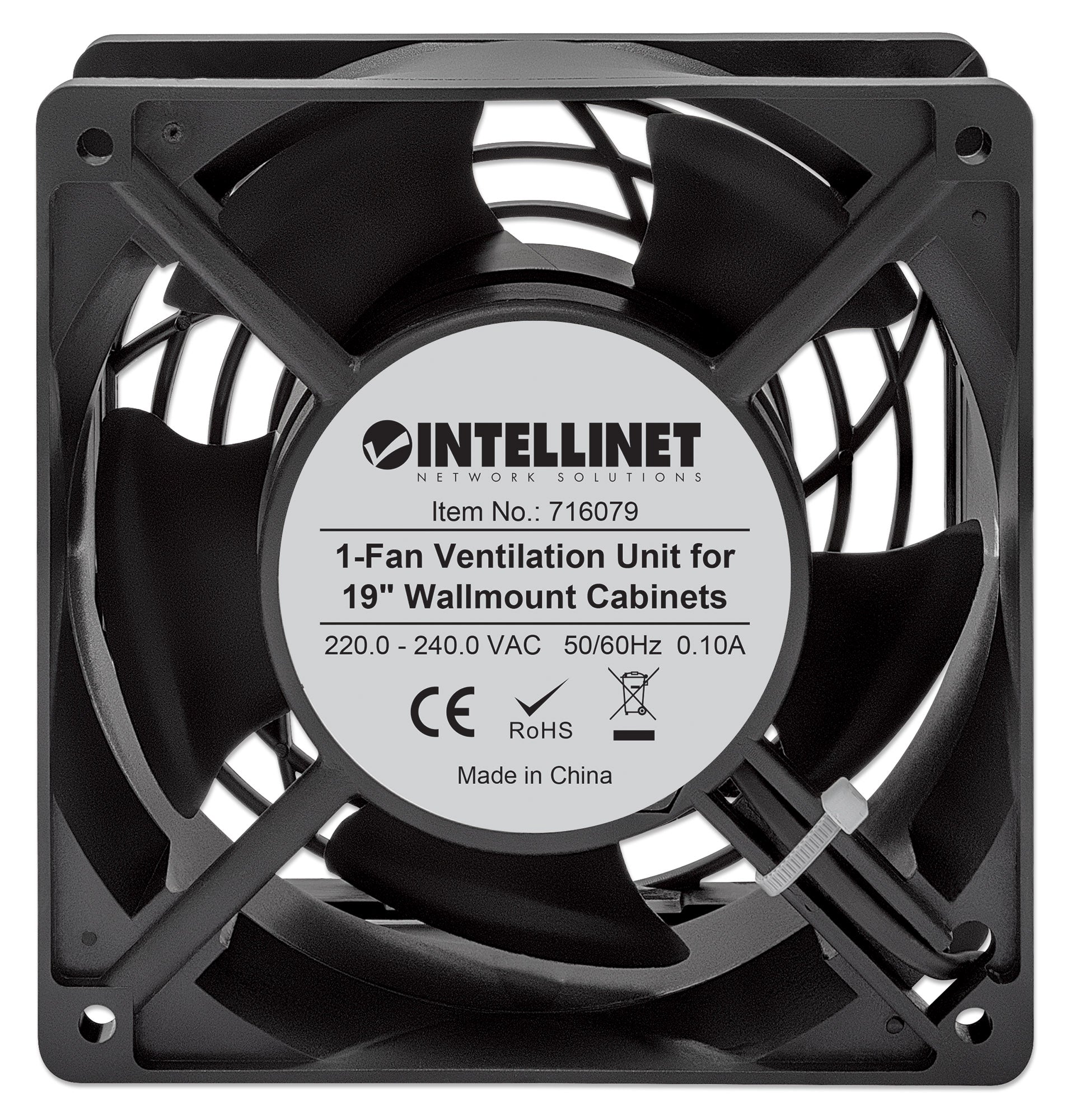

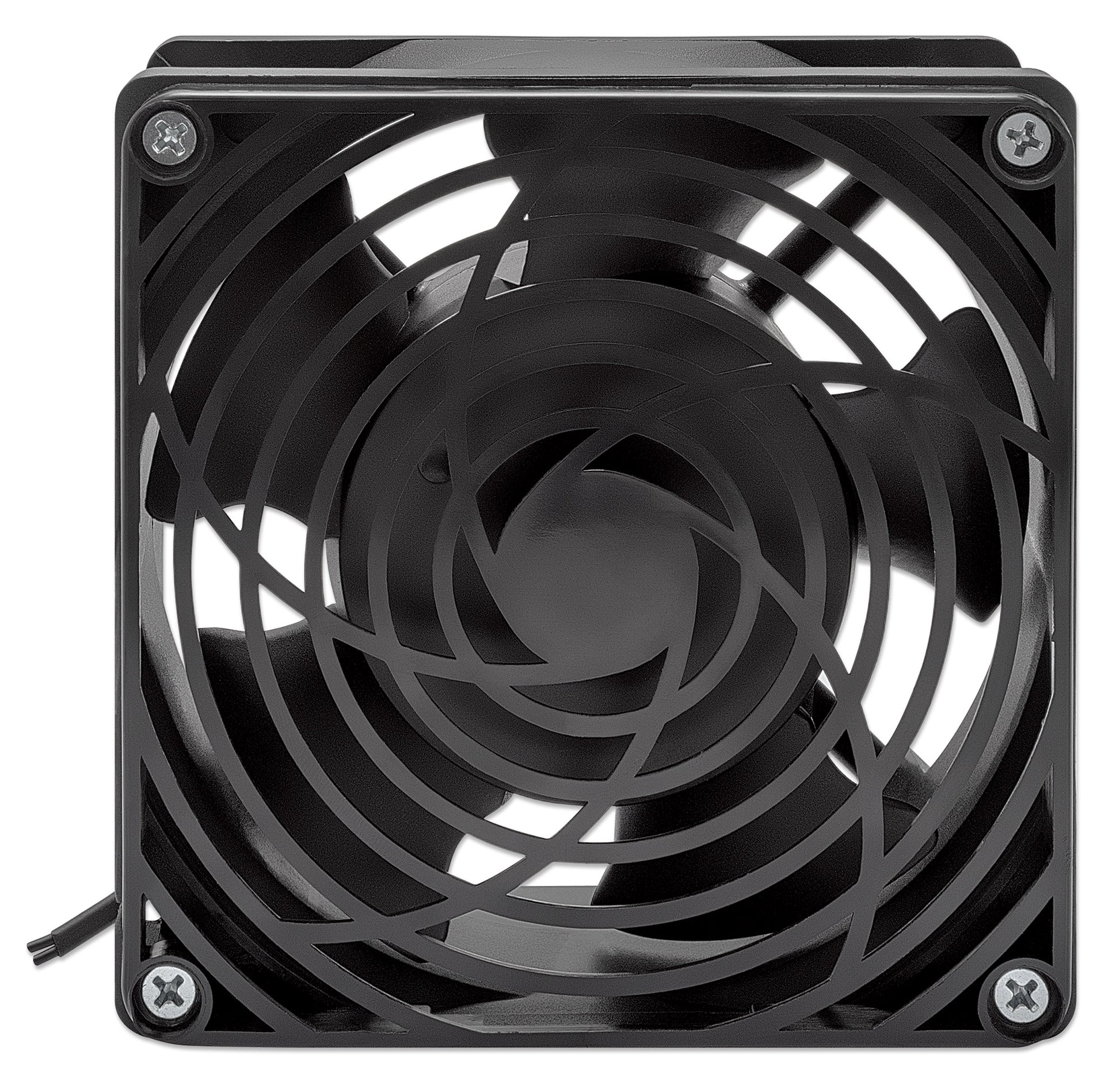

Keep Equipment Cool with our 19" Wallmount Cabinet Fan

This 1-Fan Ventilation Unit for 19" Wallmount Cabinets from Intellinet Network Solutions provides reliable cooling and ideal air circulation in 19″ wallmount cabinets, providing improved performance and longer life to your networking components. It is mounted on one of the standard cut-outs in the roof of the cabinet where it helps damaging heat to dissipate. The built-in power cable has open wiring for flexible connection options (e.g., through a C13/C14 PDU [available from Intellinet Network Solutions] or a C19/C20 UPS). For more cabinet cooling options, check out our rail-mount versions for wallmount cabinets or our roof-mount ventilation units for standing server and network cabinets.

Roof-mount ventilation unit for reliable, energy efficient cooling in wallmount cabinets
Built-in power cable with open wiring for flexible connection (e.g., to a C13/C14 PDU or C19/C20 UPS)
Efficient heat dissipation for a wide operating temperature up to 50°C (122°F)
Quiet, single fan with a noise level of only 24.9 db (A)
Earthing kit included
Operating voltage of 220 - 240 VAC at 50 - 60 Hz
Three-year warranty

CE
RoHS
Air flow: 85 m³/h (50 cfm)
Noise level: 24.9 db (A)
Temperature range: -10 - 50°C (14 - 122°F)
Operating voltage: 220.0 - 240.0 VAC, 50 - 60 Hz, 0.1 A
Dimensions: 120 x 120 x 38 mm (4.72 x 4.72 x 1.5 in.)
Power cable length: 1.5 m (5 ft.)
Weight: 500 g (17.63 oz.)
1-Fan Ventilation Unit for 19" Wallmount Cabinets

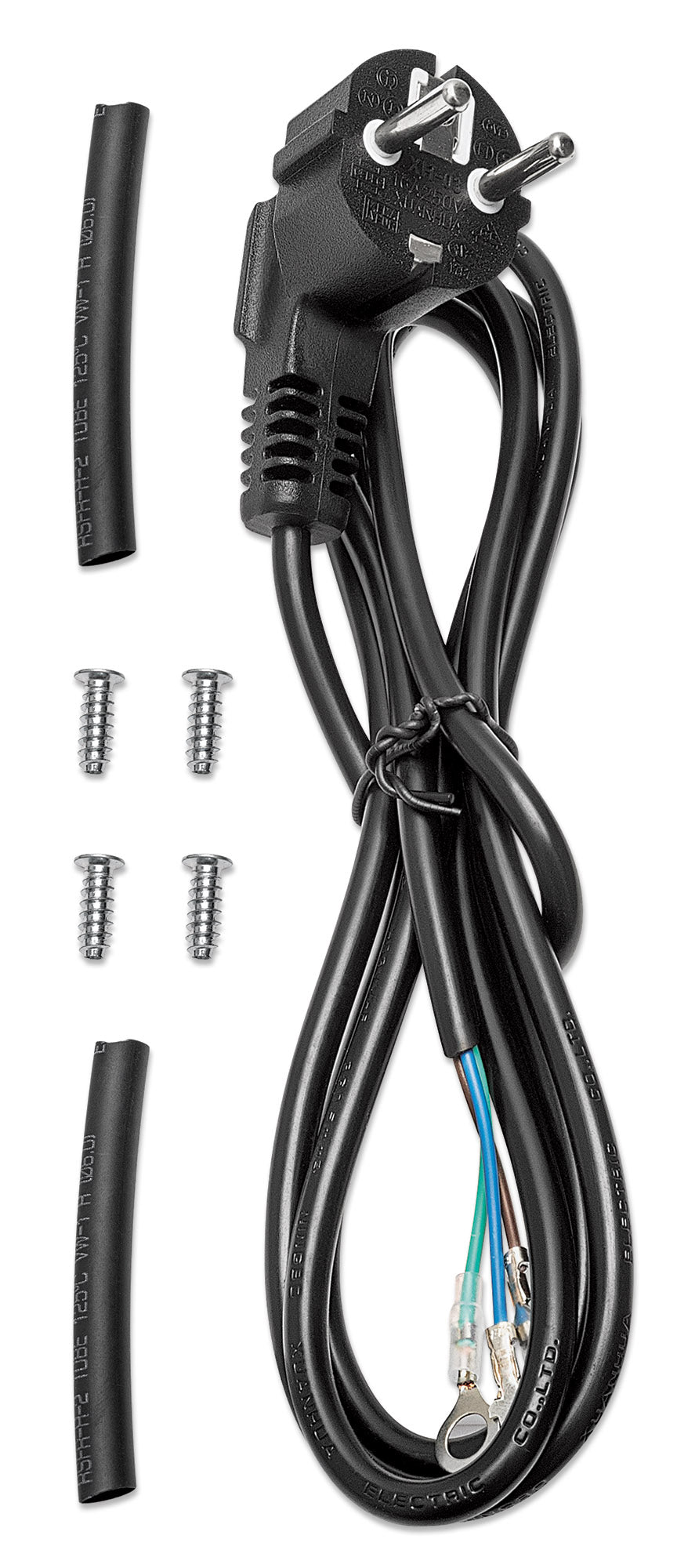

Earthing kit
Built-in power cable with open wiring, 1.5 m (5 ft.)
Instructions
