Intellinet

10" 1U Rackmount 4-Outlet Power Distribution Unit (PDU) with Switch

Four EU CEE 7/3 Sockets, Built-in 2 m Power Cord with EU CEE 7/7 Plug, 16 A, Horizontal Mount, Aluminum, Black/Silver

Highlights

Built-in 2 m power cord with universal CEE 7/7 hybrid plug fits both European type F and French type E sockets
Illuminated two-pole on/off safety switch with protective cover to prevent accidental shutdown
Sockets with increased touch protection through contact shutters

SKU: 716628

[ view high resolution images ]

Compact Rack-Mounted Power Strip with 4 EU Sockets for 10-inch Racks

Designed for space-sensitive rack environments, this 10" 1U Rackmount PDU from Intellinet Network Solutions delivers safe and efficient power distribution for small-scale networking, telecom, security, and AV installations. With four EU CEE 7/3 (Type F) outlets, it offers a reliable power source for rack-mounted equipment in compact cabinets.

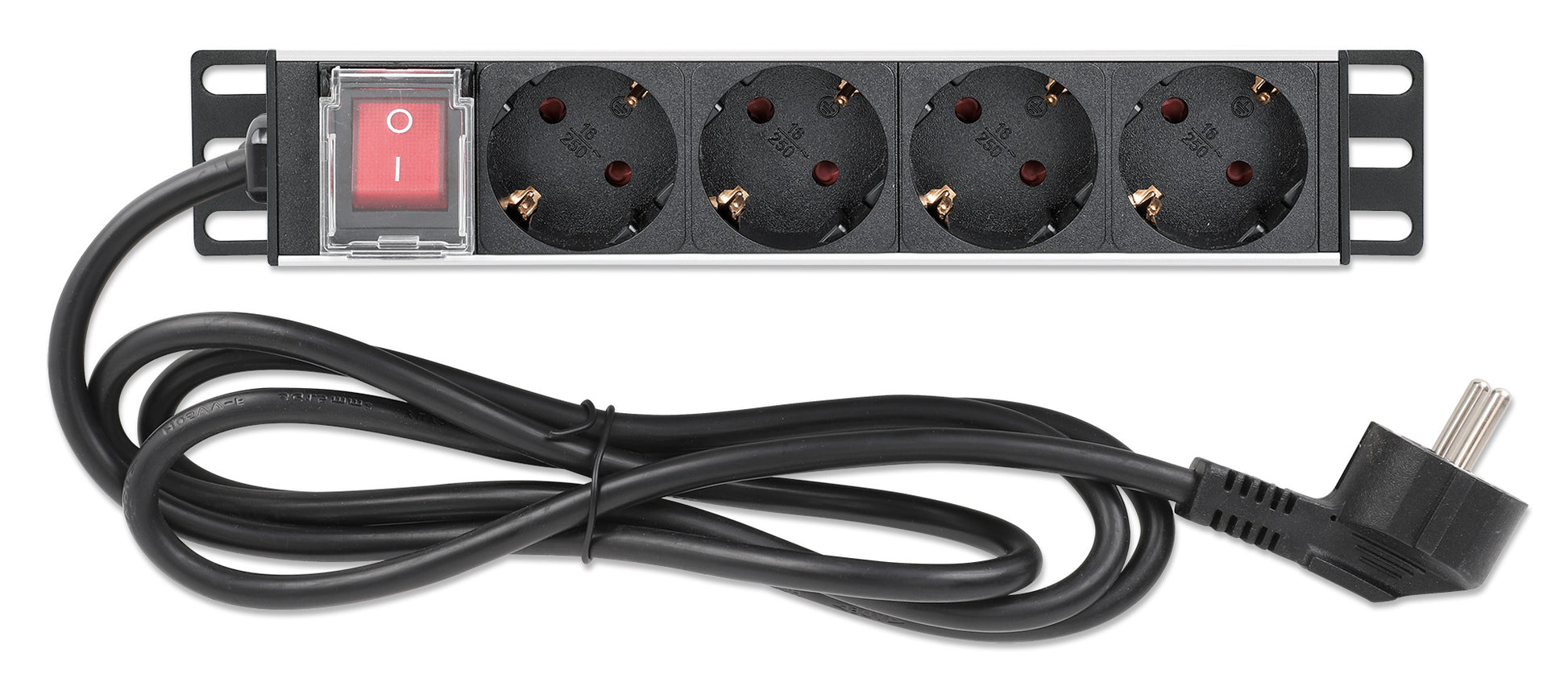

Ready-to-Use with Built-In Power Cord

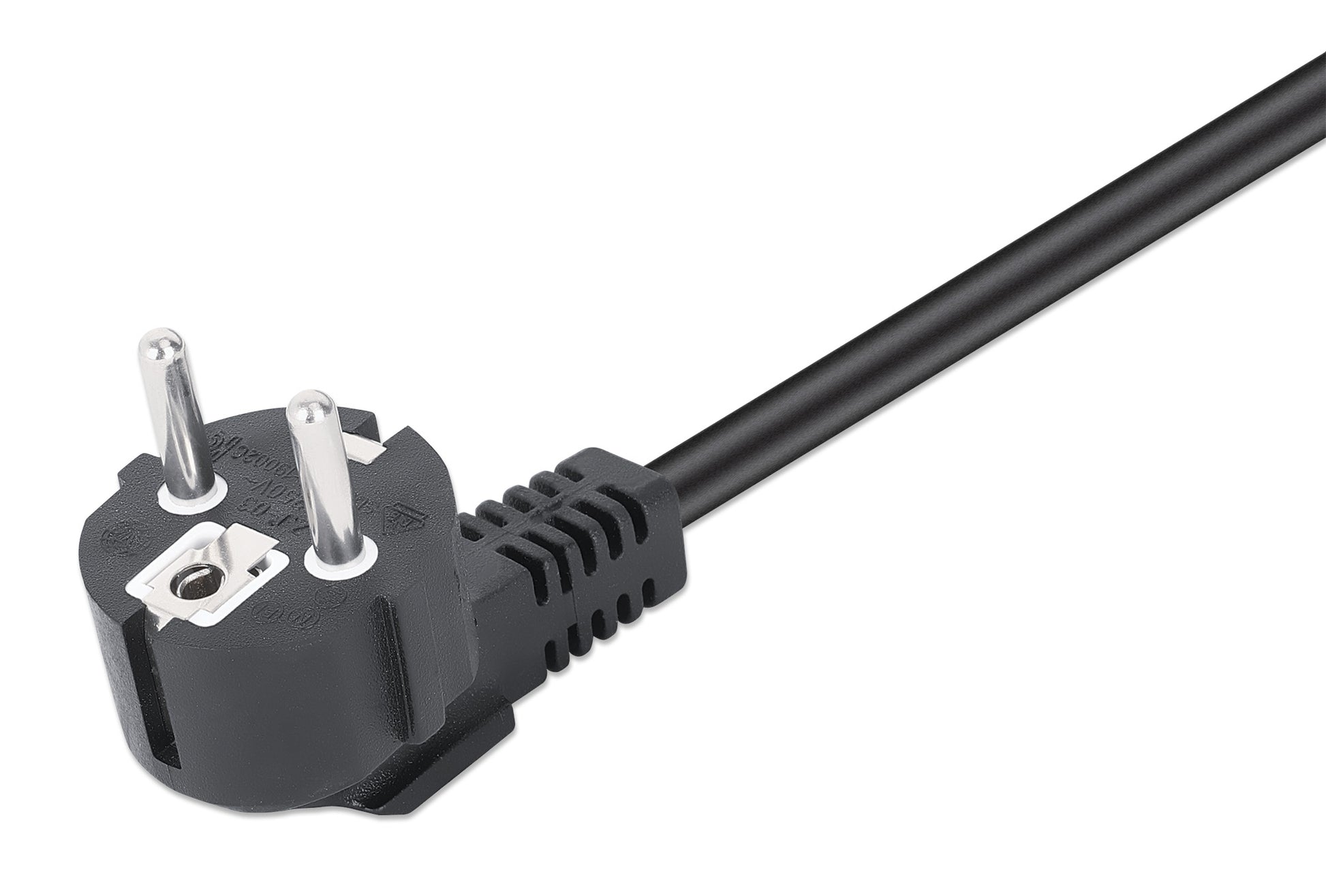

The integrated 2-meter power cord with a CEE 7/7 plug (compatible with both Type E and F sockets) ensures immediate usability in a wide range of European electrical systems. Supporting up to 16 A, it’s ideal for devices with moderate to high power demands.

Safety First with On/Off Switch

An illuminated two-pole safety switch with a protective cover prevents accidental power-offs, while contact-shuttered sockets provide increased touch protection. This makes the unit a safe and dependable choice for professional installations.

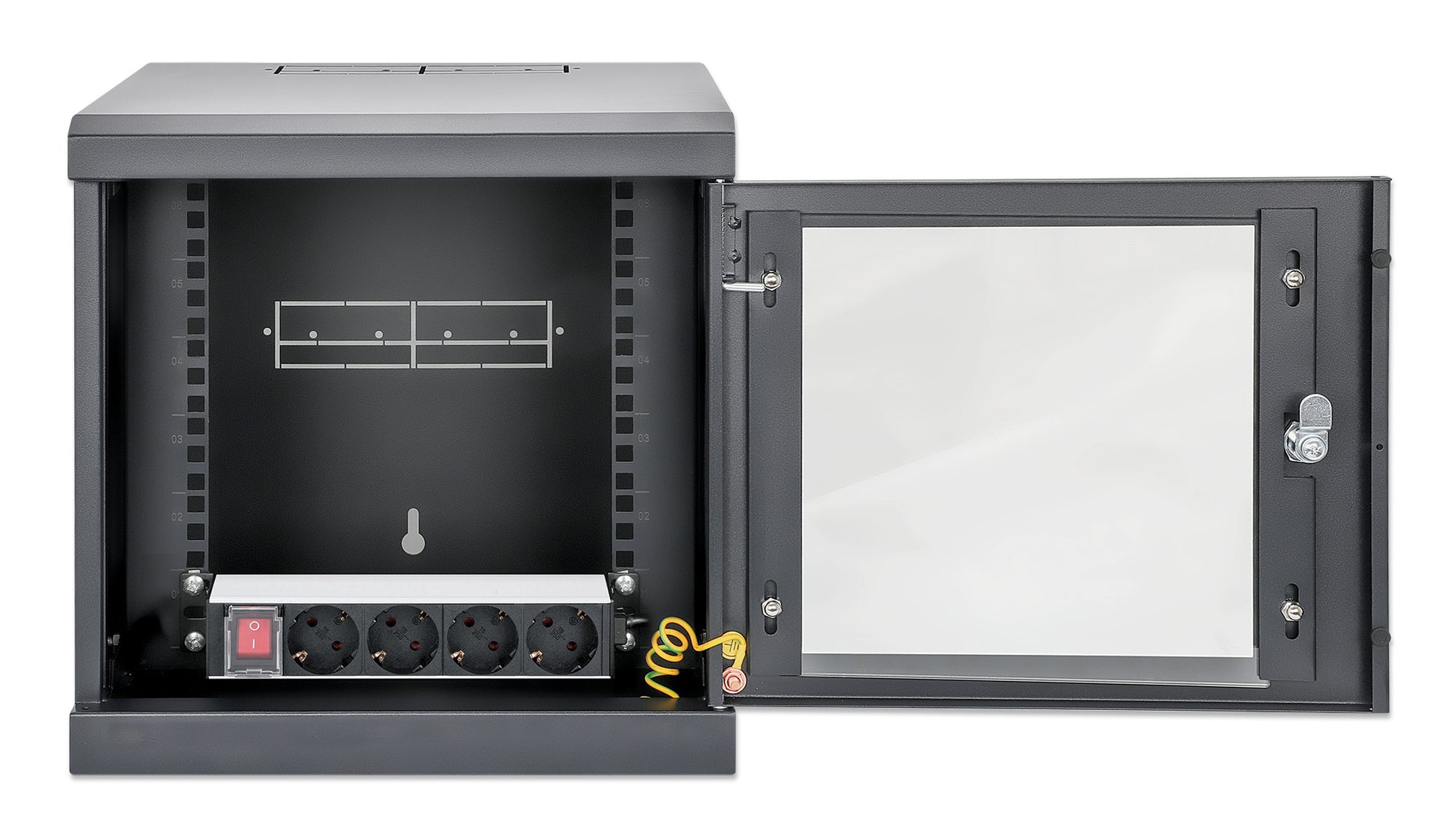

Optimized for 10" Rack Integration

Designed specifically for horizontal 1U mounting in 10-inch racks, this PDU includes angled socket orientation for improved cable management - especially useful in tight rack spaces. Front-facing mounting brackets offer simple and secure installation.

Durable Construction for Professional Use

The rugged aluminum housing with IP20 protection ensures long-lasting durability, while the integrated grounding point helps protect connected equipment from external electrical surges. Its sleek black/silver finish complements modern rack systems.

Built-in 2 m power cord with universal CEE 7/7 hybrid plug fits both European type F and French type E sockets
Illuminated two-pole on/off safety switch with protective cover to prevent accidental shutdown
Sockets with increased touch protection through contact shutters
Horizontal 1U 10" rack-mount installation
Angled outlet orientation for easier cable management in tight rack environments
Durable aluminum construction with IP20-rated housing
Grounding point to protect equipment from external electrical surges
Bracket installation style: frontal
For indoor use only
Three-year warranty

CE
RoHS
REACH
UKCA
IEC 60320
IEC 60884
AC input: 220.0 - 250.0 V; 50 - 60 Hz
Operating voltage: 230.0 V
Plug standard: EU CEE 7/7 (Type E/F); IEC 60320
Socket/outlet standard: EU CEE 7/3 (Type F); IEC 60884
Maximum load: 4,000.0 W
Overload protection: 16.0 A maximum load current
Dimensions (L x W x H): 45 x 256.1 x 45 mm
1U rack mount (10-in.)
Cable length: 2 m
Cable type: H05VV-F 3G 1.5 mm²
Socket angle: 35°
Net weight: 540 g
Gross weight: 660 g
Housing: aluminum
10-inch 1U 4-Way PDU with On/Off Switch
