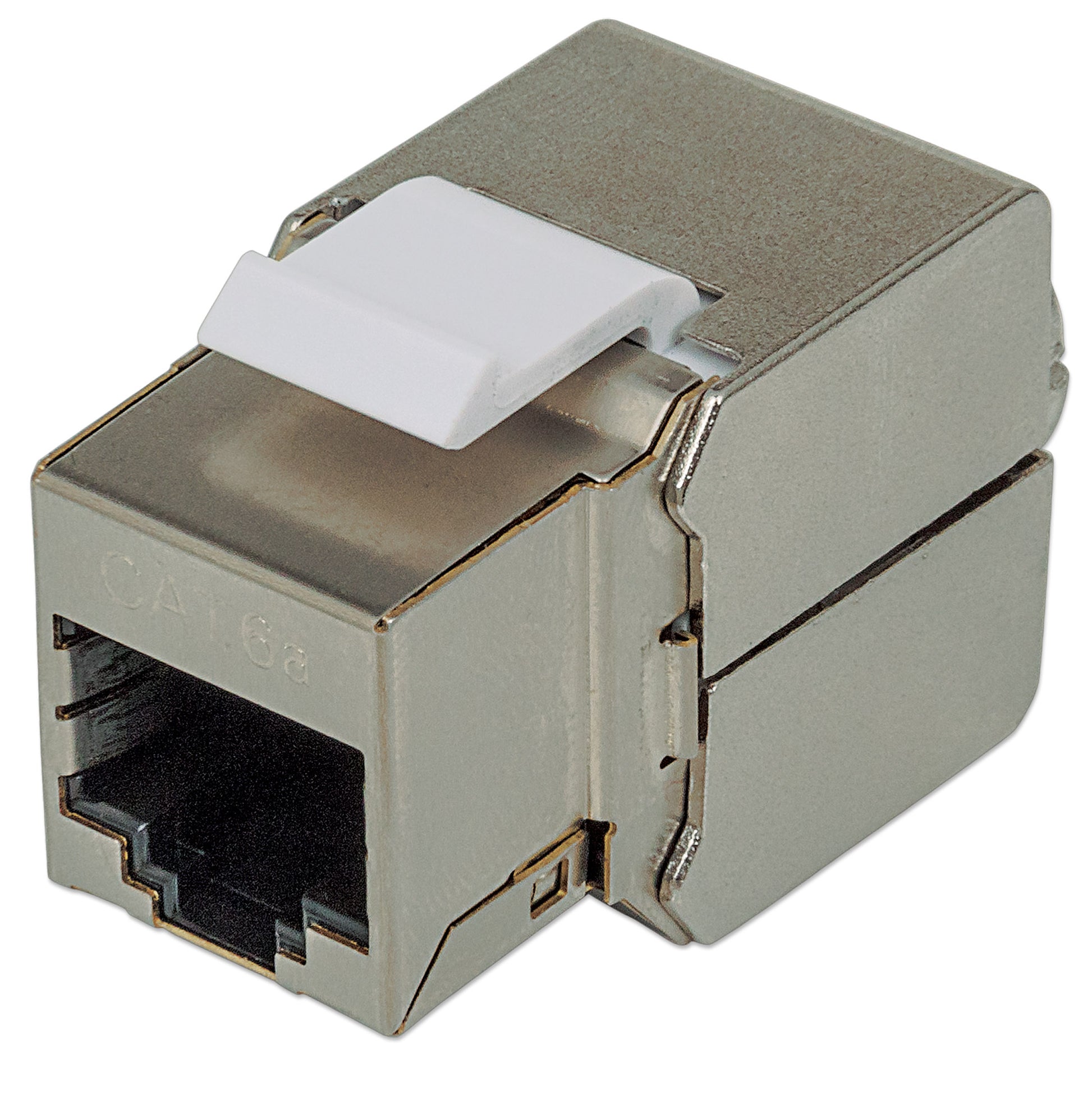

10 Gigabit Cat6A SSTP 180° Keystone Jack Image 1

10 Gigabit Cat6A SSTP 180° Keystone Jack

180°, Silver

SKU: 517546 [IKJ-C6AS-PD-SI]

Highlights

  • TIA/EIA-568-B.2-10, IEEE802.3an for 10GBASE-T requirement
  • 3P verified for 10G Cat. 6A 2-Connector Unshielded Cabling Solution
  • ISO 11801, EN 50173-1 Class EA Specification

Manufacturer

Intellinet Network Solutions

  • TIA/EIA-568-B.2-10, IEEE802.3an for 10GBASE-T requirement
  • 3P verified for 10G Cat. 6A 2-Connector Unshielded Cabling Solution
  • ISO 11801, EN 50173-1 Class EA Specification
  • Complies with CISPR/FCC Class A
  • Flame retardant rating: UL94V-0
  • RoHS compliant
  • Applications：10GBASE-T Ethernet, 1000Base-Tx Gigabit Ethernet, 100Base-Tx Fast Ethernet, analog and digital voice, analog and digital video


  • 3P certified Category 6A Channel Testing Performance Requirement
  • UL/cUL listed
  • 8pin contact in PCB jack: 50µ inch gold plating over nickel plating in contact area
  • IDC contacts: 100µ inch nickel plating over phosphor bronze

  • Other Part Numbers

    • EAN: 0766623517546
    • UPC: 766623517546

  • Physical Specifications

    • Weight: 0.02 kg
    • Carton Quantity: 500
    • Carton Weight: 12.60 kg

  • Datasheet
