Intellinet

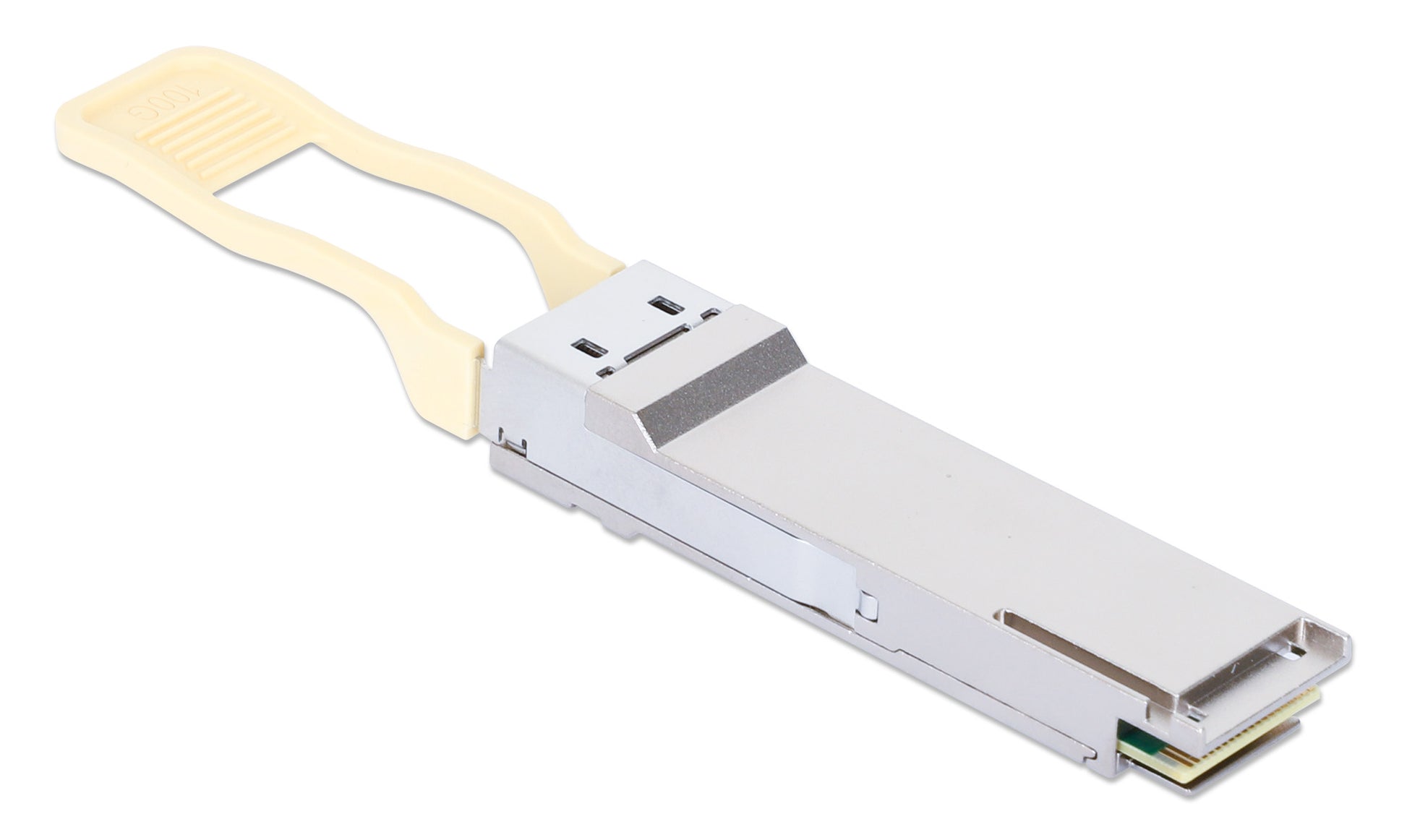

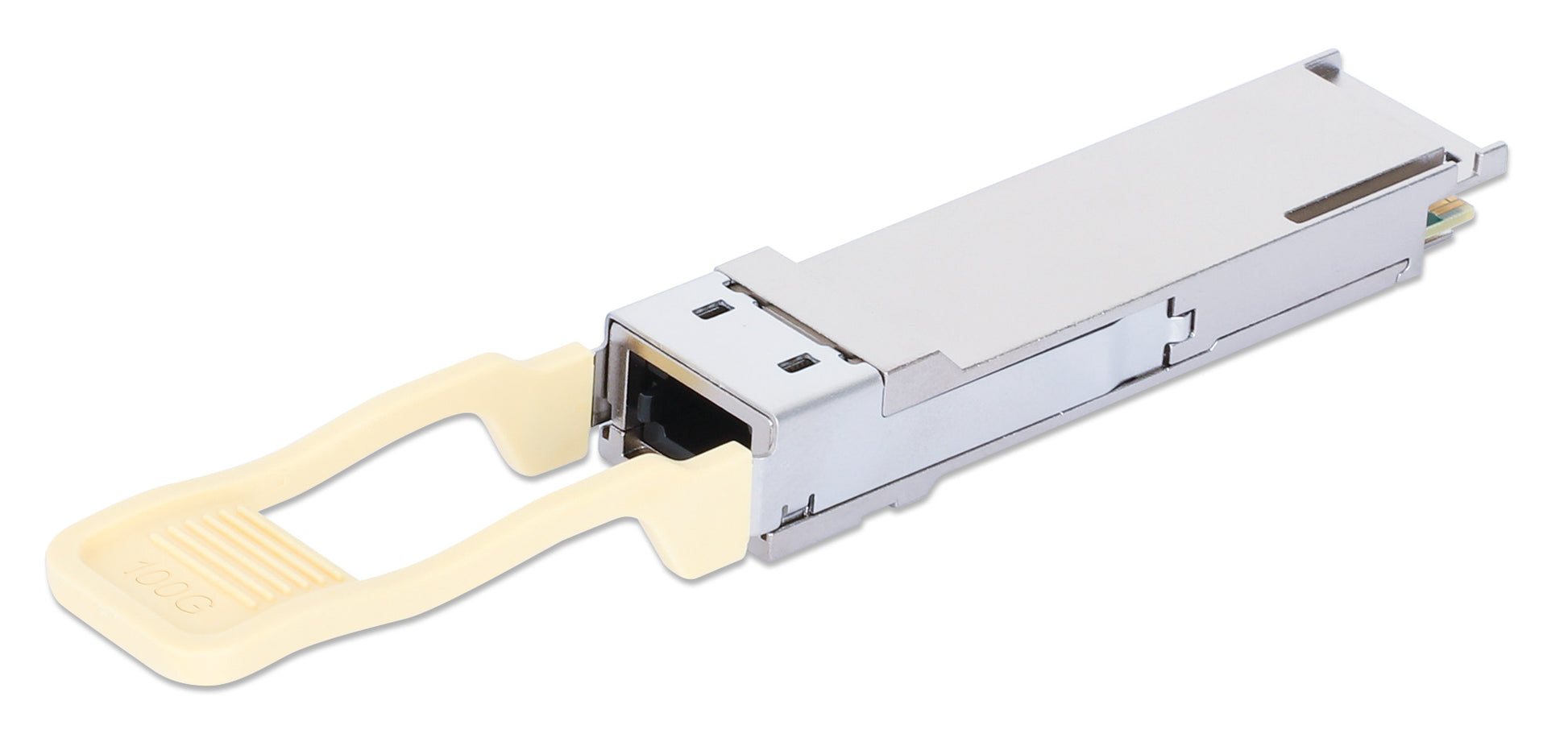

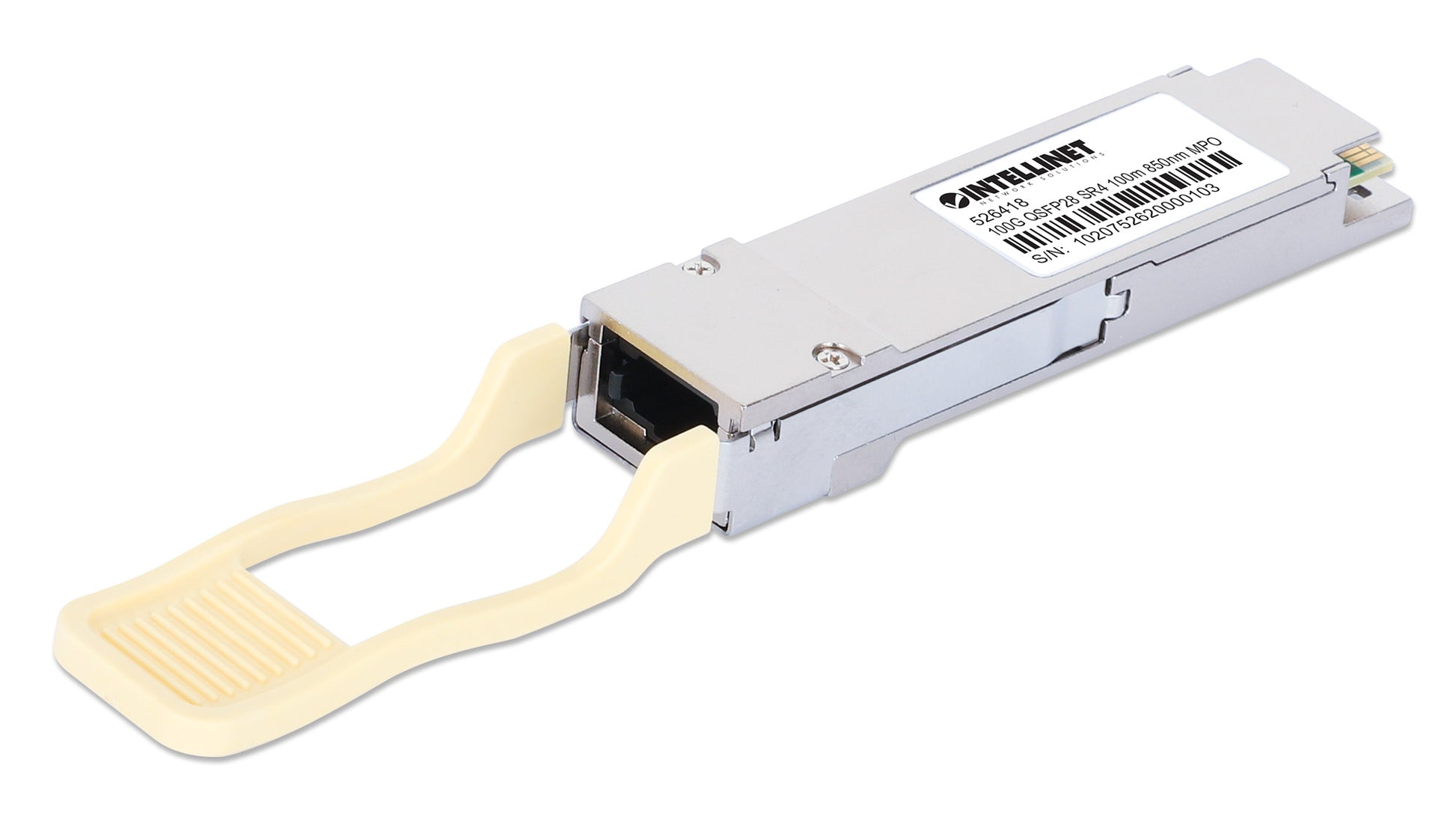

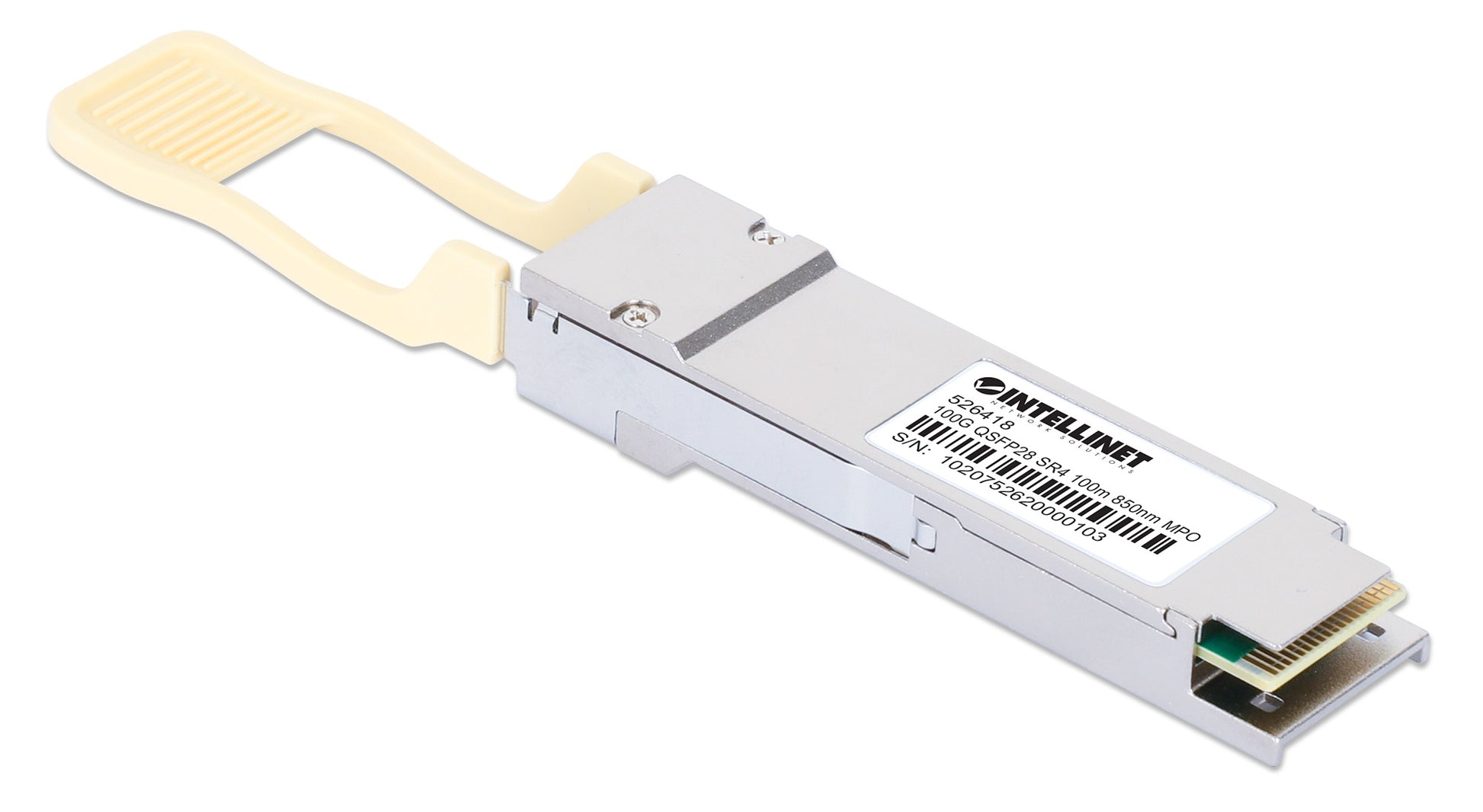

100G QSFP28 Optical Transceiver Module, Multi-Mode 100 m

100GBASE-SR4 (MPO) Multimode Port (MMF), 100 m (328 ft.), Wavelength 850 nm, Cisco Compatible, MSA-compliant for Maximum Compatibility

Highlights

Supports IEEE 802.3ba 100GBASE-SR4 Ethernet with data rates up to 100 Gbps
One MPO multimode fiber port
MSA-compliant for compatibility with leading switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and more (see specifications)

SKU: 526418

[ view high resolution images ]

QSFP28 100G MMF Optical Transceiver for Short-Range Multimode Fiber Networks - Compatible with Cisco and MSA

The 100G QSFP28 Optical Transceiver Module from Intellinet Network Solutions is designed to deliver reliable high-speed connectivity for modern enterprise, datacenter, and cloud network environments. Supporting the IEEE 802.3ba 100GBASE-SR4 Ethernet standard, it enables data transfer rates up to 100 Gbps over multimode fiber connections with transmission distances of up to 100 m (328 ft.) using OM4 fiber. Its compact QSFP28 form factor makes it ideal for high-density network infrastructures requiring scalable and efficient 100G connectivity.

Optimized for High-Speed 100G Datacenter Connectivity

Featuring one MPO multimode fiber port and operating at a wavelength of 850 nm, the transceiver is engineered for stable short-range optical communication in high-bandwidth networking environments. The SR4 design uses four parallel optical lanes to support ultra-fast data transmission over multimode fiber, making it ideal for backbone, aggregation, and switch-to-switch connectivity in datacenters, server rooms, and cloud computing infrastructures.

Broad Compatibility with Leading Network Platforms

The module is MSA-compliant to ensure seamless interoperability with a wide range of switches, routers, and networking equipment from leading manufacturers including Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, and more. Equivalent to the Cisco QSFP-100G-SR4-S transceiver model, it provides a reliable and cost-effective solution for expanding or upgrading existing 100G network deployments while maintaining compatibility with established hardware ecosystems.

Advanced Monitoring and Reliable Operation with DDM / DOM

Integrated digital diagnostics monitoring (DDM) and digital optical monitoring (DOM) functions provide real-time access to critical operating parameters such as temperature, voltage, and optical signal levels. This allows administrators to monitor transceiver performance and simplify network maintenance and troubleshooting in demanding enterprise and datacenter environments.

Durable Design for Enterprise and Datacenter Environments

A fully metallic housing minimizes electromagnetic interference (EMI) and enhances durability for stable operation in high-performance networking applications. Hot-plug support allows the transceiver to be installed or replaced without shutting down connected equipment, reducing maintenance downtime and improving service continuity in mission-critical network infrastructures.

Supports IEEE 802.3ba 100GBASE-SR4 Ethernet with data rates up to 100 Gbps
One MPO multimode fiber port
MSA-compliant for compatibility with leading switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and more (see specifications)
Supports fiber transmission distances up to 100 m (328 ft.) over OM4 multimode fiber and 70 m (230 ft.) over OM3 multimode fiber
Wavelength: 850 nm
Equivalent to Cisco transceiver model QSFP-100G-SR4-S
Supports digital diagnostics monitoring (DDM) / digital optical monitoring (DOM)
Low EMI due to fully metallic housing
Suitable for high operating temperatures up to 70°C (158°F)
Supports hot-plugging
Ideal for enterprise, datacenter, and cloud network deployments including high-density backbone and aggregation networks
Fully NDAA-compliant
Three-year warranty

CE
UKCA
FCC
RoHS
REACH
NDAA
IEEE 802.3ba
SFF-8636
MSA
CAUI-4
Form factor: QSFP28
Max. data rate: 103.125 Gbps (4 × 25.78 Gbps)
Wavelength: 850 nm
Max. transmission distance: 100 m (328 ft.) over OM4 MMF / 70 m (230 ft.) over OM3 MMF
Connector: MPO
Media: MMF
Transmitter type: 4 × 850 nm VCSEL
Receiver type: PIN
TX power: -8.4 to 2.4 dBm
Minimum receiver power: -10.3 dBm
Power budget: 2.1 dB
Receiver overload: 2.4 dBm
Power consumption: 3.5 W (max.)
Power requirement: 3.3 V
Extinction ratio: >3 dB
DDM/DOM: supported
Modulation (electrical): 4 × 25G NRZ
Modulation (optical): 4 × 25G NRZ
CDR (Clock and Data Recovery): TX & RX Built-in CDR
Bit Error Ratio (BER): 5E-5
Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more
Dimensions (L x W x H): 72 x 18 x 14 mm (2.83 x 0.71 x 0.47 in.)
Net weight: 40 g (1.41 oz.)
Gross weight: 56 g (1.98 oz.)
Operating temperature: 0 to 70°C (32 - 158°F)
Operating humidity: 0 to 85% RH, non-condensing
Storage temperature: -40 to 85°C (-40 to 185°F)
100G QSFP28 Optical Transceiver Module
