Intellinet

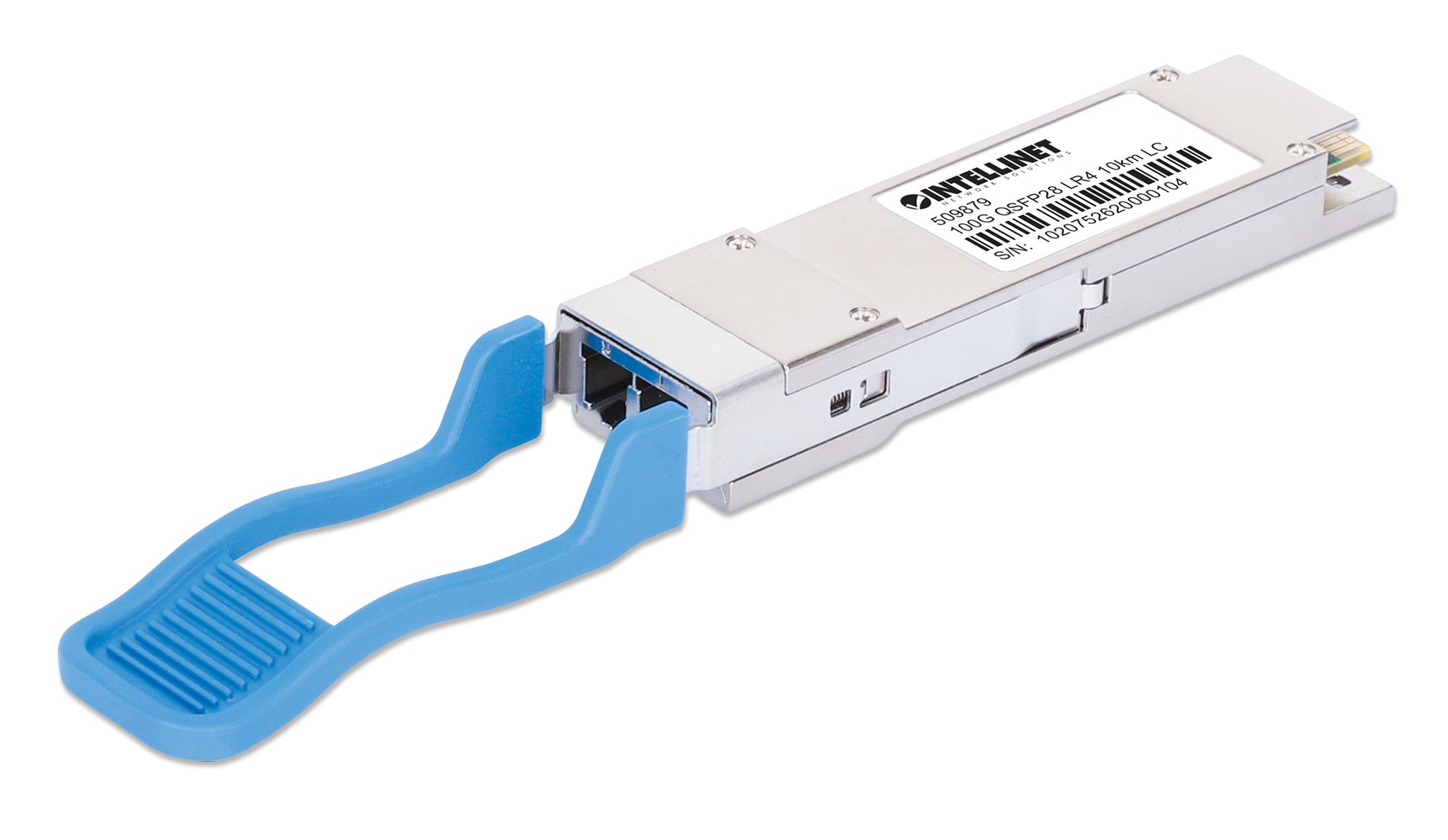

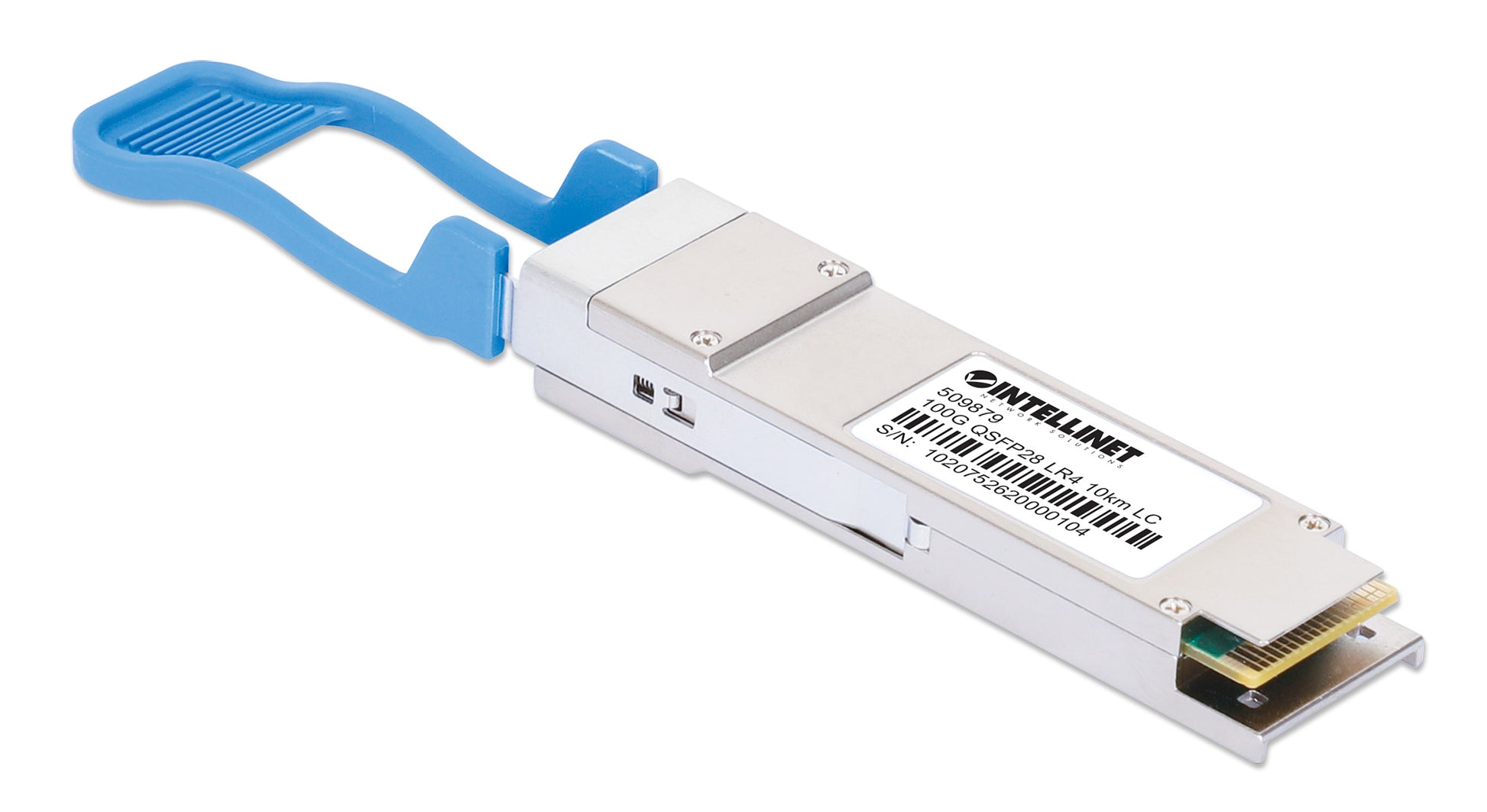

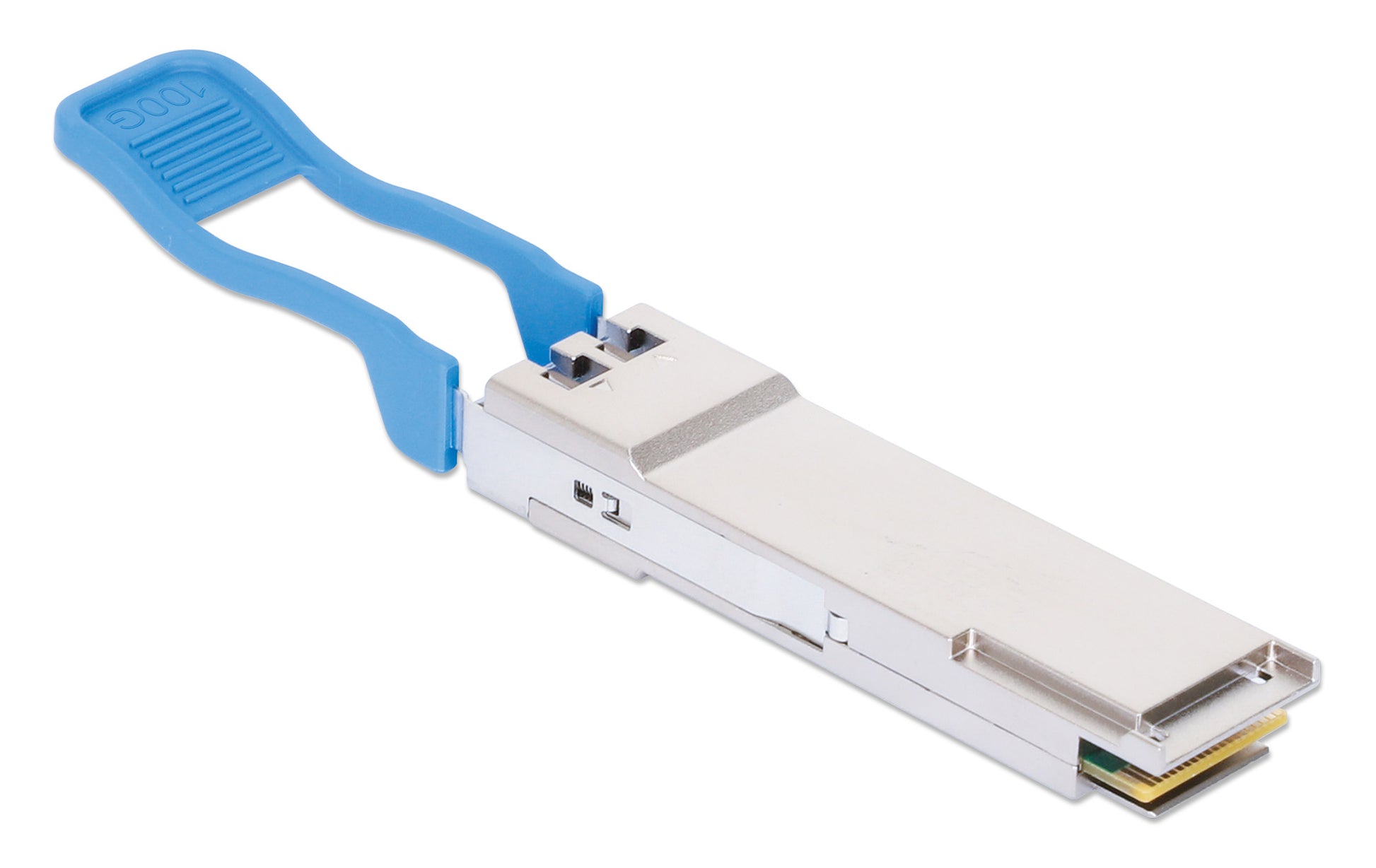

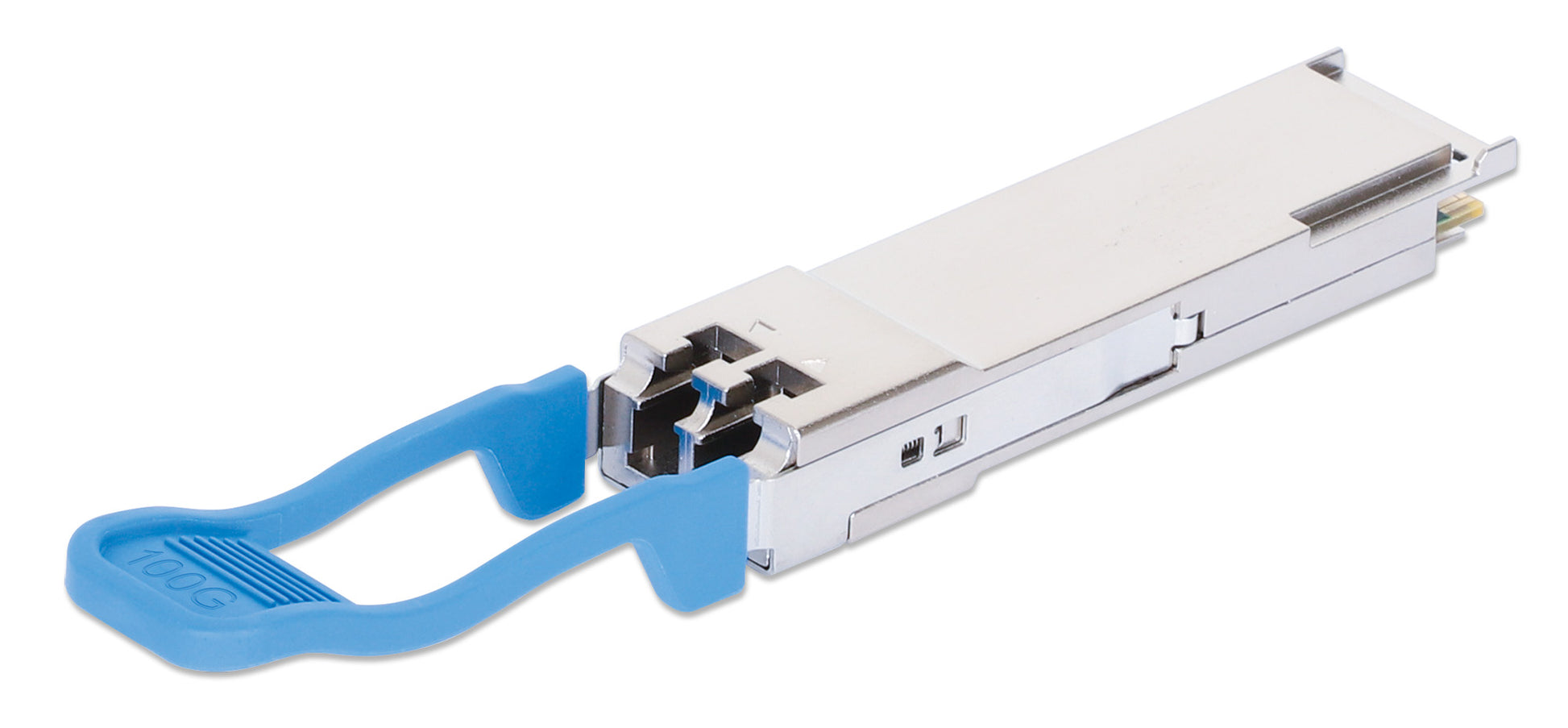

100G QSFP28 Optical Transceiver Module, Single-Mode 10 km

100GBASE-LR4 (LC) Single-Mode Port (SMF), 10 km (6.2 mi.), Wavelength 1310 nm, Cisco Compatible, MSA-compliant for Maximum Compatibility

Highlights

Supports IEEE 802.3ba 100GBASE-LR4 Ethernet with data rates up to 100 Gbps
One LC duplex single-mode fiber port
MSA-compliant for compatibility with leading switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and more (see specifications)

SKU: 509879

[ view high resolution images ]

QSFP28 100G SMF Optical Transceiver for Long-Range Single-Mode Fiber Networks - Compatible with Cisco and MSA

The 100G QSFP28 Optical Transceiver Module from Intellinet Network Solutions is designed to deliver reliable high-speed connectivity for modern enterprise, campus, telecom, and cloud network environments. Supporting the IEEE 802.3ba 100GBASE-LR4 Ethernet standard, it enables data transfer rates up to 100 Gbps over single-mode fiber connections with transmission distances of up to 10 km (6.2 mi.). Its compact QSFP28 form factor makes it ideal for high-density network infrastructures requiring scalable and efficient 100G connectivity.

Optimized for Long-Distance 100G Ethernet Connectivity

Featuring one LC duplex single-mode fiber port and operating at a wavelength of 1310 nm, the transceiver is engineered for stable long-distance optical communication. The LR4 design uses advanced wavelength multiplexing technology to support high-bandwidth data transmission over standard duplex single-mode fiber, making it suitable for backbone, aggregation, and core network applications across large campuses, datacenters, and telecom infrastructures.

Broad Compatibility with Leading Network Platforms

The module is MSA-compliant to ensure seamless interoperability with a wide range of switches, routers, and networking equipment from leading manufacturers including Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, and more. Equivalent to the Cisco QSFP-100G-LR4-S transceiver model, it provides a reliable and cost-effective solution for expanding or upgrading existing 100G network deployments while maintaining compatibility with established hardware ecosystems.

Advanced Monitoring and Reliable Operation with DDM / DOM

Integrated digital diagnostics monitoring (DDM) and digital optical monitoring (DOM) functions provide real-time access to critical operating parameters such as temperature, voltage, and optical signal levels. This allows administrators to monitor transceiver performance and simplify network maintenance and troubleshooting in demanding enterprise and datacenter environments.

Durable Design for Enterprise and Datacenter Environments

A fully metallic housing minimizes electromagnetic interference (EMI) and enhances durability for stable operation in high-performance networking applications. Hot-plug support allows the transceiver to be installed or replaced without shutting down connected equipment, reducing maintenance downtime and improving service continuity in mission-critical network infrastructures.

Supports IEEE 802.3ba 100GBASE-LR4 Ethernet with data rates up to 100 Gbps
One LC duplex single-mode fiber port
MSA-compliant for compatibility with leading switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and more (see specifications)
Supports fiber transmission distances up to 10 km (6.2 mi.)
Wavelength: 1310 nm
Equivalent to Cisco transceiver model QSFP-100G-LR4-S
Supports digital diagnostics monitoring (DDM) / digital optical monitoring (DOM)
Low EMI due to fully metallic housing
Suitable for high operating temperatures up to 70°C (158°F)
Supports hot-plugging
Ideal for enterprise, campus, telecom, datacenter and cloud network deployments including backbone and aggregation networks
Fully NDAA-compliant
Three-year warranty

CE
UKCA
FCC
RoHS
REACH
NDAA
IEEE 802.3ba
SFF-8636
MSA
CAUI-4
Form factor: QSFP28
Max. data rate: 103.125 Gbps (4 × 25.78 Gbps)
Lane center wavelengths range: 1295 to 1310 nm
Max. transmission distance: 10 km (6.2 mi.)
Connector: duplex LC
Media: SMF
Transmitter type: 4 × LAN-WDM EML
Receiver type: PIN
TX power: -4.3 to 4.5 dBm
Minimum receiver power: -10.6 dBm
Power budget: 6.3 dB
Receiver overload: 4.5 dBm
Power consumption: 4.5 W (max.)
Power requirement: 3.3 V
Extinction ratio: >4 dB
DDM/DOM: supported
Modulation (electrical): 4 × 25G NRZ
Modulation (optical): 4 × 25G NRZ
CDR (Clock and Data Recovery): TX & RX Built-in CDR
Bit Error Ratio (BER): 1E-12
Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more
Dimensions (L x W x H): 72 x 18 x 14 mm (2.83 x 0.71 x 0.47 in.)
Net weight: 40 g (1.41 oz.)
Gross weight: 56 g (1.98 oz.)
Operating temperature: 0 to 70°C (32 - 158°F)
Operating humidity: 0 to 85% RH, non-condensing
Storage temperature: -40 to 85°C (-40 to 185°F)
100G QSFP28 Optical Transceiver Module
