Intellinet

12U 19" Swing Out Wall Mount Network Cabinet, 600 mm (23.6 in.) Depth, Black

Flat Pack, Double-Section Rack Enclosure, Free-Standing or Wall-Mount, Reversible Glass Door, Hinged Back, Installation Depth 279 to 359 mm (11 to 14.13 in.)

Highlights

Ideal for 19" rackmount applications
Maximum static load of 30 kg
Installation depth (distance between front and rear mounting rails): 279 mm (10.98 in.) to 359 mm (14.13 in.), adjustable

SKU: 713863

[ view high resolution images ]

Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. Since they ship flat-pack (unassembled)*, they save you space and money. High quality features include a 4MM toughened glass door and cold-rolled galvanized steel. The rear door access to the back of the cabinet makes cabinet and component exchange a breeze.

*Completely assembled versions are available in certain countries.

Ideal for 19" rackmount applications
Maximum static load of 30 kg
Installation depth (distance between front and rear mounting rails): 279 mm (10.98 in.) to 359 mm (14.13 in.), adjustable
Cable entry via rear or top panel
4MM toughened glass door

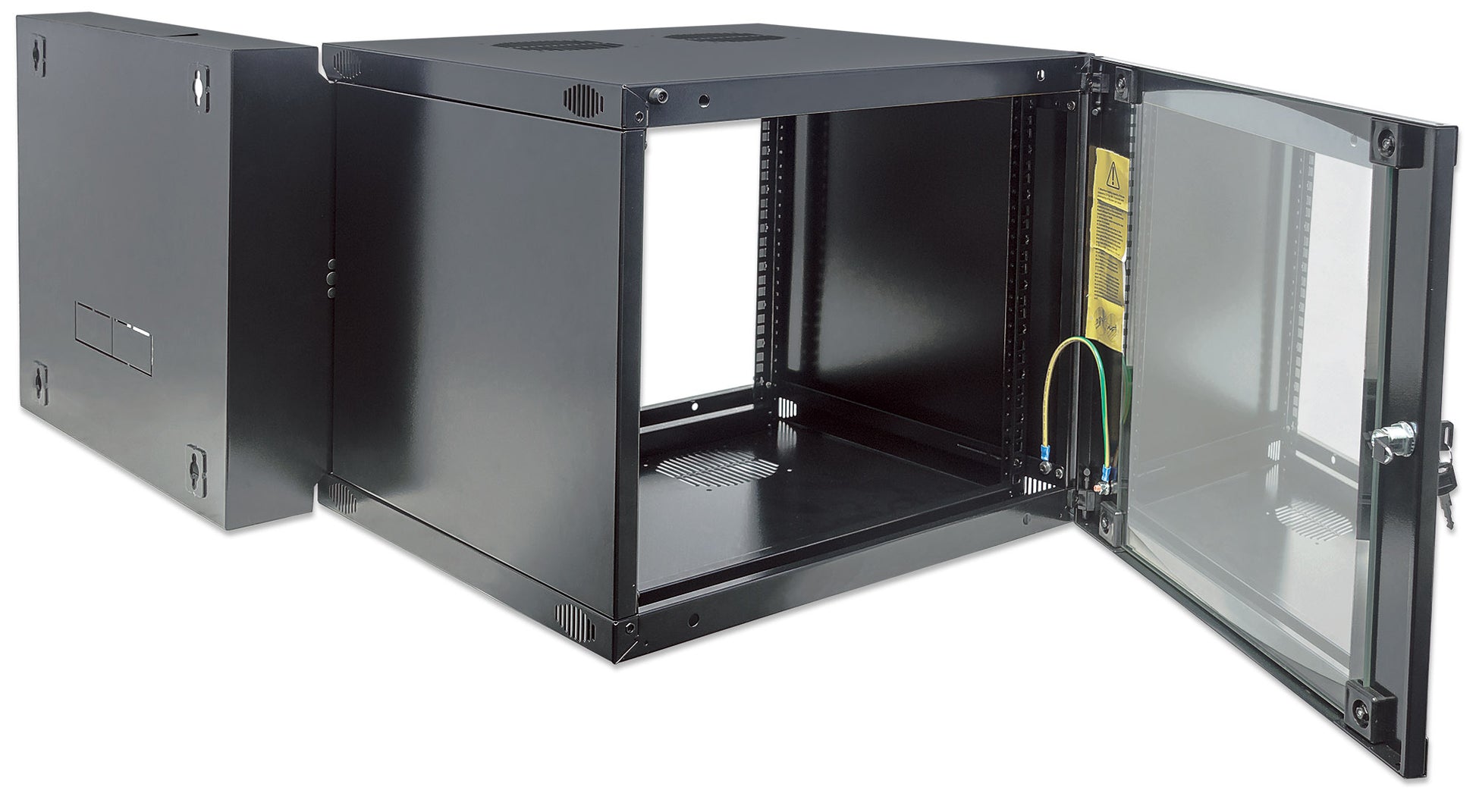

Rear door for easy access to back of cabinet
Reversible Front door
Cold-rolled, galvanized SPCC steel with up to 1.5 mm thickness

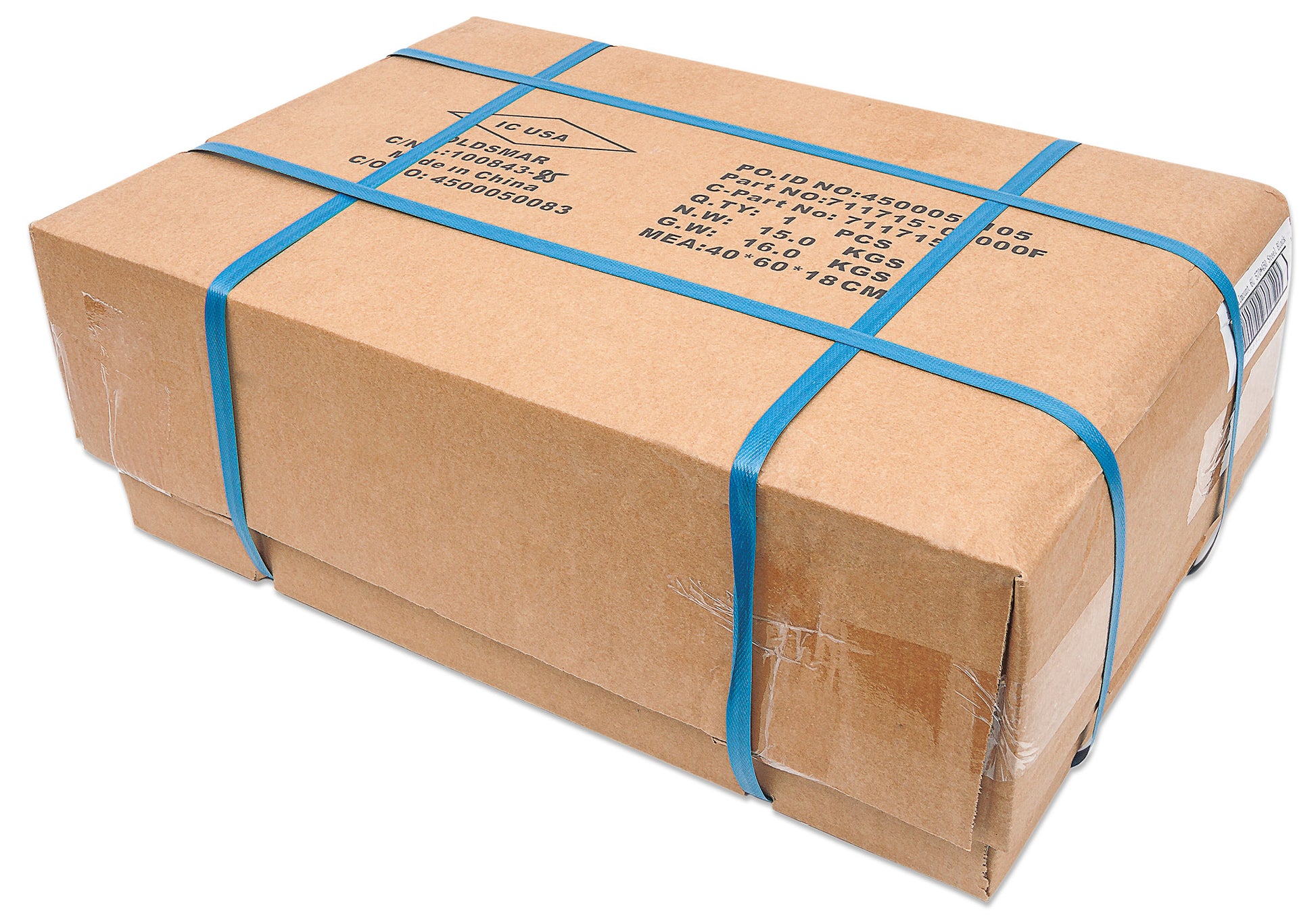

Ships Flatpacked
Three-Year Warranty

19"
Height: 12U
Color: Black RAL 9004
Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
593 (h) x 540 (w) x 600 (d) mm
23.35 (h) x 21.26 (w) x 23.62 (d) in.
Usable depth: 279 mm (10.98 in.) to 359 mm (14.13 in.)
Maximum static load: 30 kg (66 lbs.)
2 Rail frames
Top, Bottom, Front, Back & Side Panels
Installation hardware including 10x M6 Sets and 2x Keys
