Intellinet

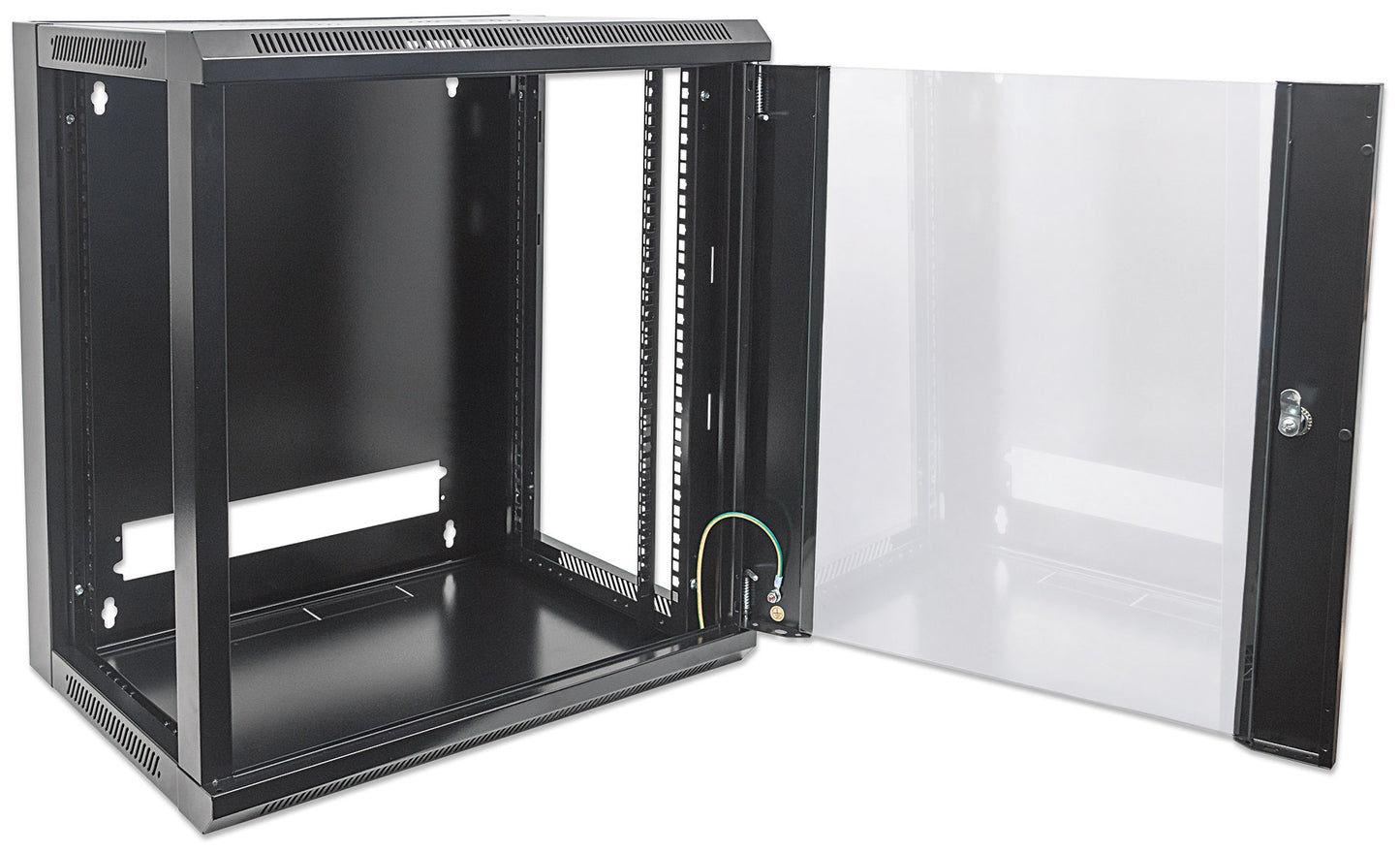

12U Wall Mount Network Cabinet, Standard Line, 600 mm (23.6 in.) Depth, Black

Flat Pack, Free-Standing or Wall-Mount, Reversible Glass Door, Installation Depth 410 mm (16.1 in.)

Highlights

Ideal for 19" rackmount applications
Maximum static load of 60 kg
Usable depth: 410 mm (16.14 in.)

SKU: 711883

[ view high resolution images ]

The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL 9004) & gray (RAL7035).
We offer you a solution for every need.

Various options include:

Removable side panels (some lockable).

Tempered/Toughened glass doors.

Double Section, making cabling and component exchange simple.

Ideal for 19" rackmount applications
Maximum static load of 60 kg
Usable depth: 410 mm (16.14 in.)
Tempered-glass door can be opened more than 180°
Cable entry via rear or top panel
Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
Reversible Front door
Easily removable side panels
Ships flatpacked
Three-Year Warranty

19"
Height: 12U
Color: Black RAL 9004
Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
635 (h) x 570 (w) x 600 (d) mm
25 (h) x 22.4 (w) x 23.6 (d) in.
Usable depth: 410 mm (16.14 in.)
2 depth-adjustable mounting rails
Installation hardware including tool, 10x M6 Sets and 6x Keys
#712453
