Intellinet

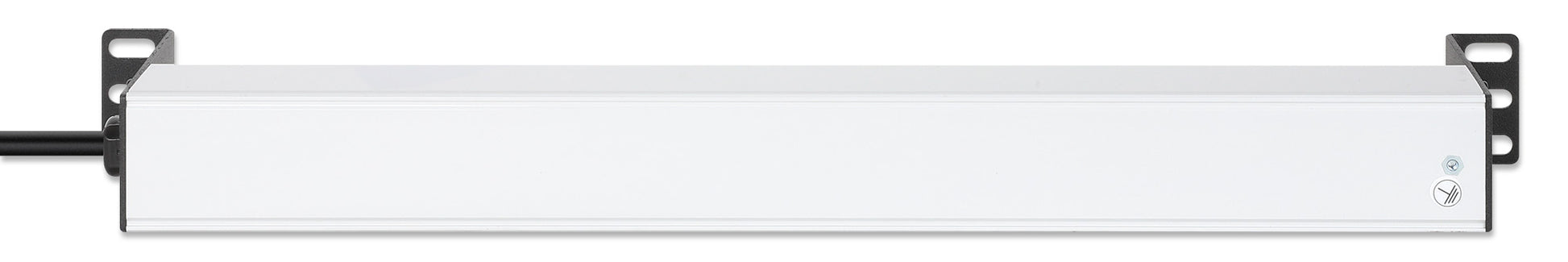

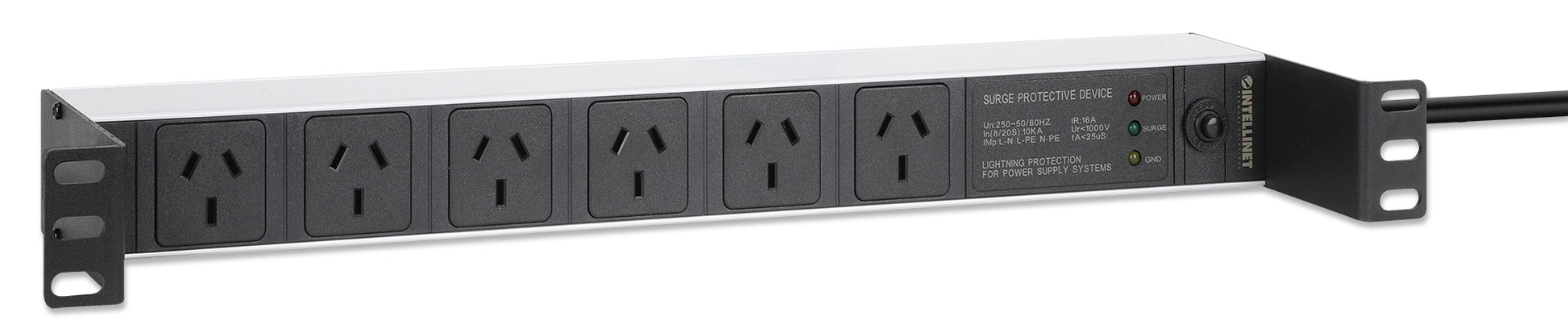

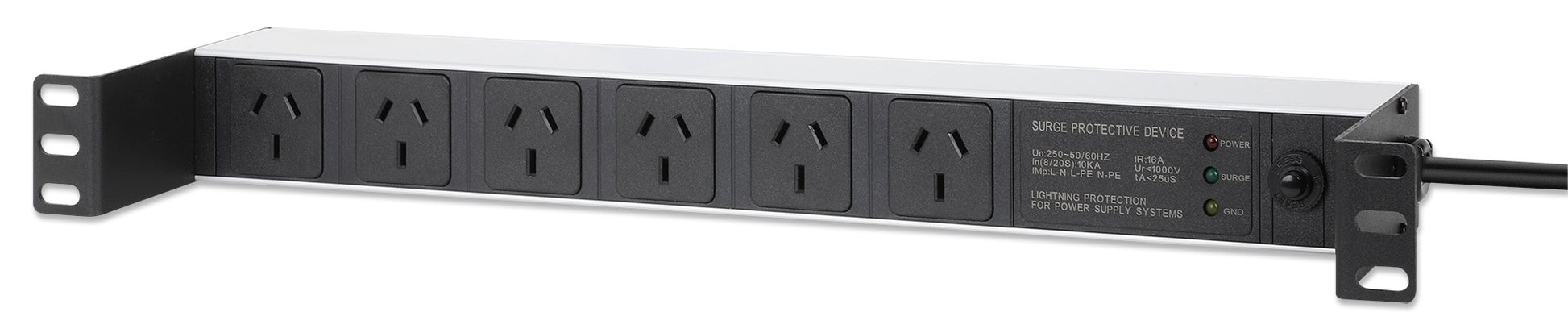

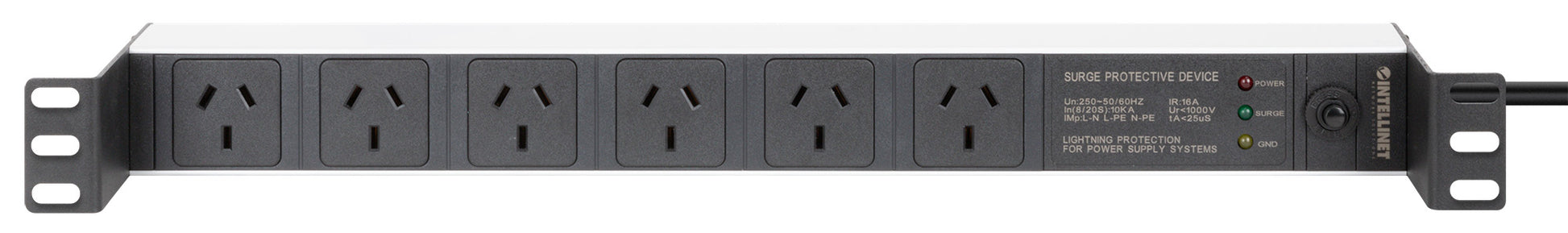

19" 1U Rackmount 6-Outlet PDU with Surge Protector

Recessed Power Distribution Unit with 3-Pin AU/NZ Sockets, 10 A, 500 Joule/19,500 A Surge Protection, Built-in 2 m Power Cord with Type I Plug, Horizontal Mount, Aluminium, Black/Silver

Highlights

6-way single-phase PDU with Australia/New Zealand Type I sockets for electrical equipment, ideal for networking, telecom, security and audio/video
500 joule surge protection and 19,500 A surge current against dangerous power surges, line noise and spikes
Recessed design allows front mounting with 50 mm extra clearance for plugs and cables to prevent interfering with rack door

SKU: 716840

[ view high resolution images ]

19-inch Rack Mount 6-Way PDU with AU / NZ Sockets, Surge Protection and Recessed Design

This 19 in. 1U Rackmount 6-Outlet PDU from Intellinet Network Solutions is designed to deliver reliable and efficient power distribution in professional rack environments across Australia and New Zealand. Featuring 12 Type I (AS/NZS 3112) outlets, this single-phase unit is ideal for networking, telecommunications, security systems, and audio/video installations, ensuring dependable power delivery for critical equipment.

Enhanced Equipment Safety

With built-in surge protection rated at 500 joules and a maximum surge current of 19,500 A, this PDU safeguards connected devices against harmful power surges, spikes, and line noise. This added layer of protection helps prevent damage to sensitive electronics and ensures long-term system reliability in demanding environments. Additional safety is provided by socket contact shutters, which offer increased touch protection during everyday use. A dedicated grounding point provides protection against external electrical surges, helping to maintain system stability and safeguard connected devices.

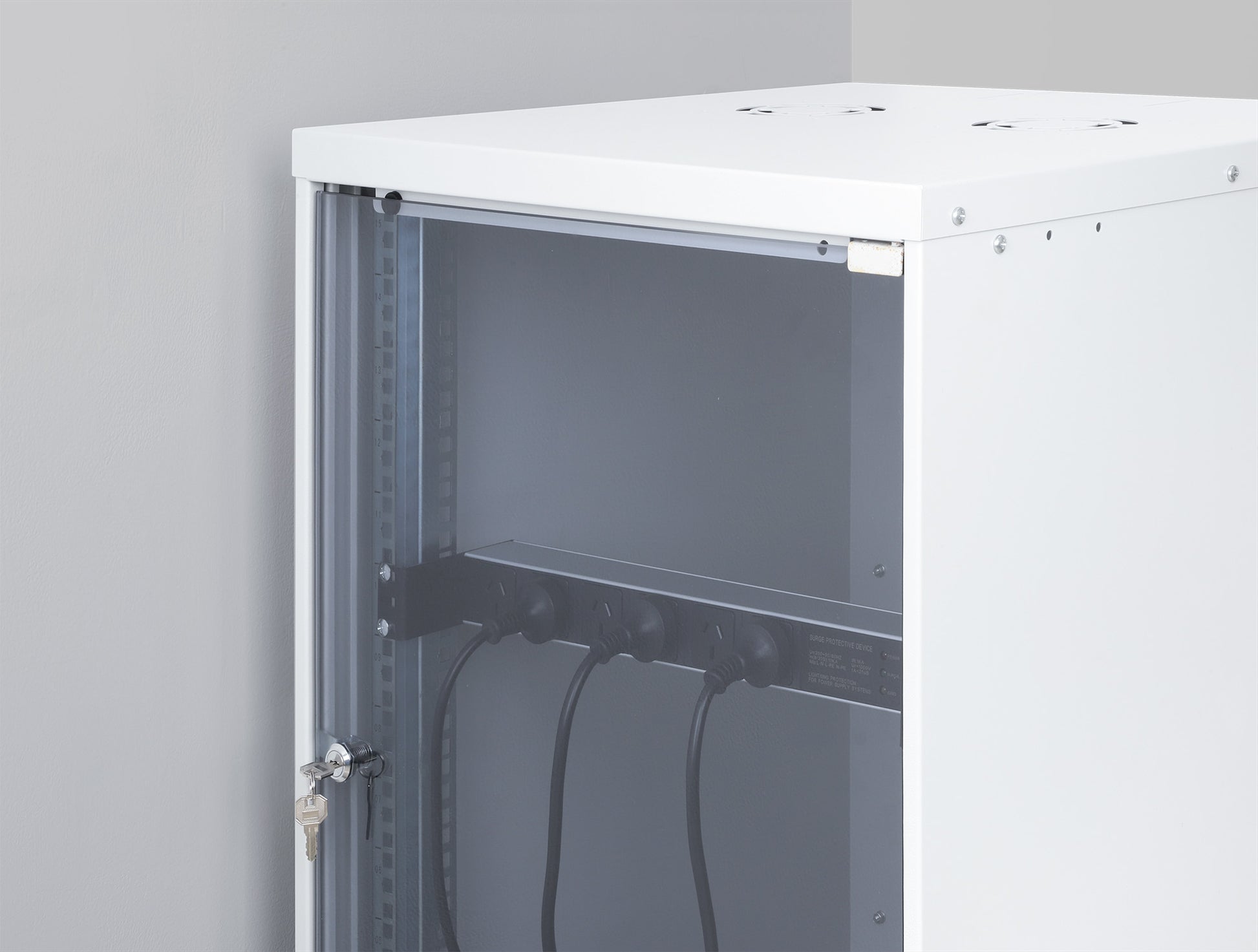

Recessed Design Optimised for Front Rack Installation with Extra Clearance

The recessed housing design makes this PDU particularly suitable for front mounting in 19" racks and cabinets. By positioning the outlets slightly behind the mounting plane, it provides extra clearance for plugs and cables, preventing interference with rack doors and allowing for cleaner, more organized cable routing.

Durable Construction for Professional Environments

Constructed from high-quality aluminum with an IP20-rated housing, the unit offers long-lasting durability and protection in professional settings. Compliance with IEC 60297 and EIA 310 standards guarantees compatibility with all standard 19" (482.6 mm) racks, making it a versatile choice for a wide range of installations. The built-in 2-meter power cord with AS/NZS 3112 plug ensures straightforward connection to local power sources, reducing installation complexity and eliminating the need for additional accessories.

6-way single-phase PDU with Australia/New Zealand Type I sockets for electrical equipment, ideal for networking, telecom, security and audio/video
500 joule surge protection and 19,500 A surge current against dangerous power surges, line noise and spikes
Recessed design allows front mounting with 50 mm extra clearance for plugs and cables to prevent interfering with rack door

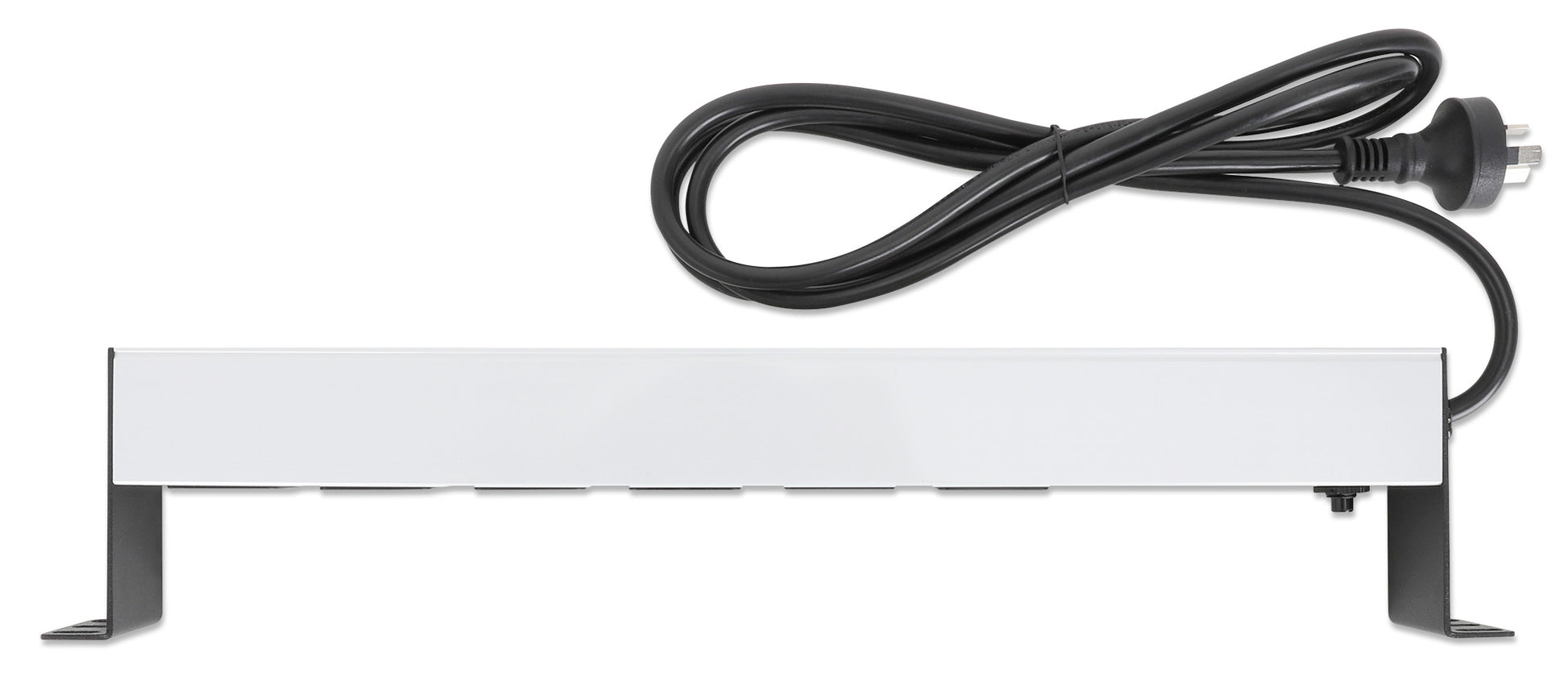

Built-in 2 m power cord with AS/NZS 3112 plug
Horizontal 1U 19-inch rack-mount installation
Sockets with increased touch protection through contact shutters
IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm racks
Durable aluminum construction with IP20-rated housing
Grounding point to protect equipment from external electrical surges
Bracket installation style: frontal
For indoor use only
Three-year warranty

RCM
AS/NZS 3112
AS/NZS 62368.1
IEC 60297
IP20
AC input: 220.0 - 250.0 V; 50 Hz
Rated voltage: 230.0 V
Rated current: 10.0 A
Plug standard: AS/NZS 3112 (Type I)
Socket/outlet standard: AS/NZS 3112 (Type I)
Maximum load: 2,500.0 W

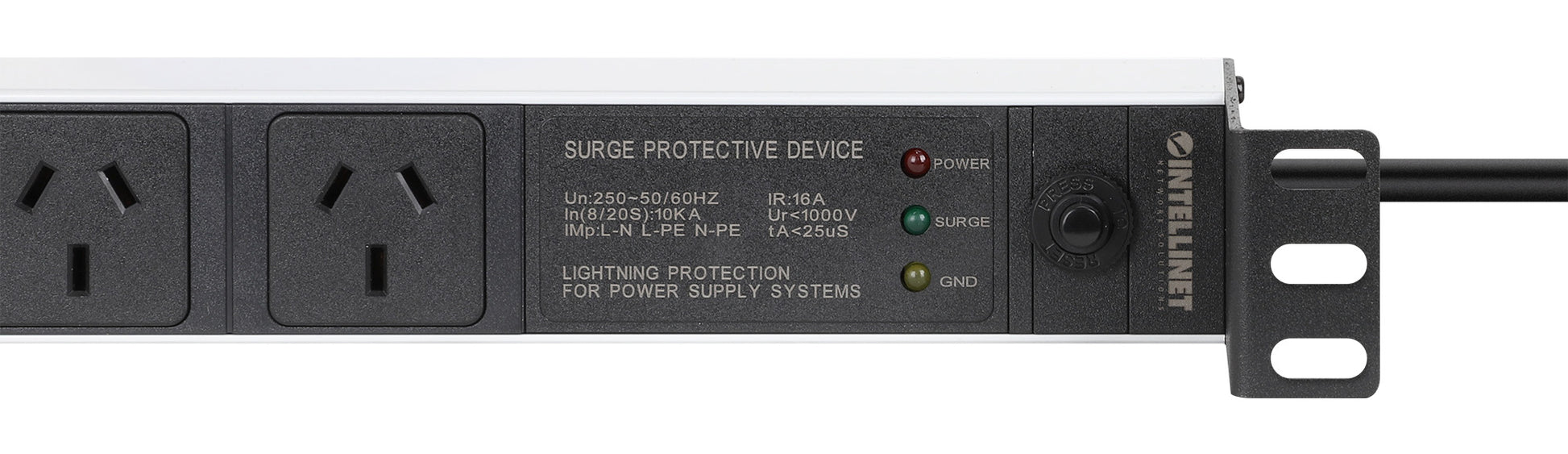

Surge protection: AC suppression with 500 joules and 19,500 A surge current
Green "SURGE” LED
Yellow “GND” LED
Red “POWER” LED
Dimensions (L x W x H): 89.2 x 485.9 x 95 mm
1U rack mount
Cable length: 2 m
Cable type: compliant with AS/NZS 3191 (3-core, 1.5 mm²)
Net weight: 970 g
Gross weight: 1.1 kg
Housing: aluminum
Recessed design: brackets with 50 mm setback for additional plug and cable clearance
Operating Temperature: 0 to 50 °C
Storage Temperature: -20 to 60 °C
Humidity: 0 to 80% RH (non-condensing)
19" 1U Rackmount 6-Outlet PDU with Surge Protector with 2 m power cable
