Intellinet

19" 1U Rackmount 6-Output Power Distribution Unit (PDU)

EU CEE 7/3 Outlets, Built-in 2 m Power Cord with EU CEE 7/7 Plug, 16 A, On/Off Switch, Horizontal Mount, Aluminum, Black

Highlights

6-way single-phase PDU for electrical equipment, ideal for networking, telecom, security and audio/video
Built-in 2 m power cord with EU CEE 7/7 (Type E/F) plug

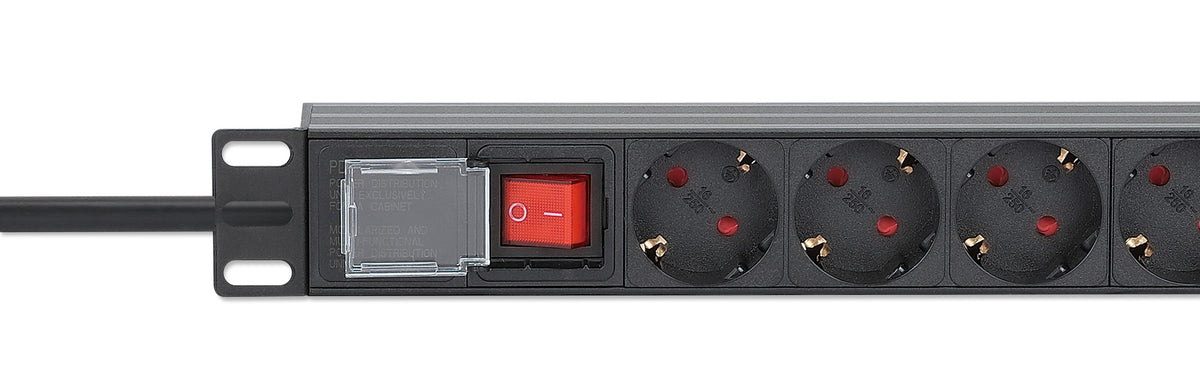

Illuminated two-pole on/off safety switch with protective cover to prevent accidental shutdown

SKU: 714914

[ view high resolution images ]

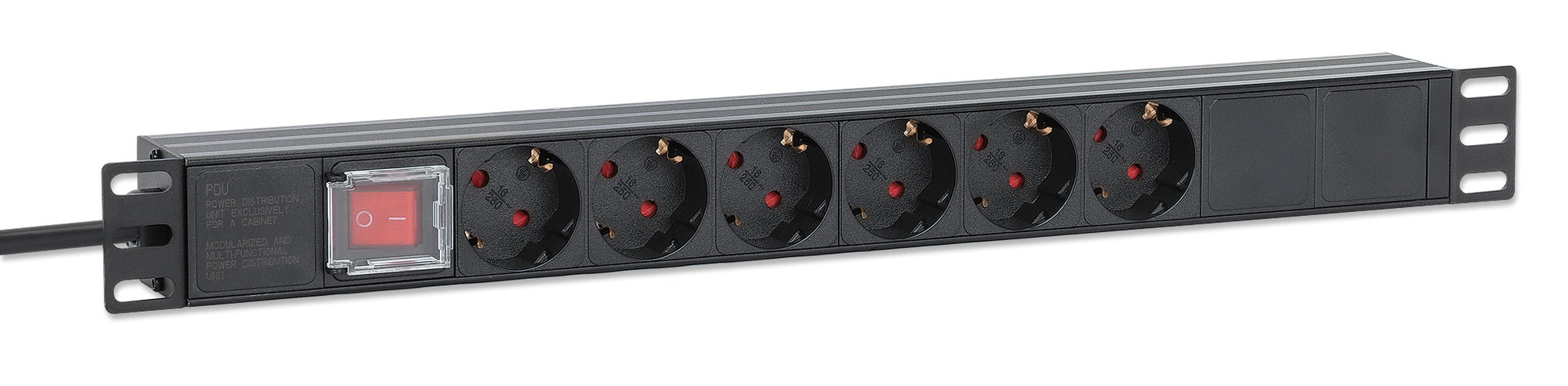

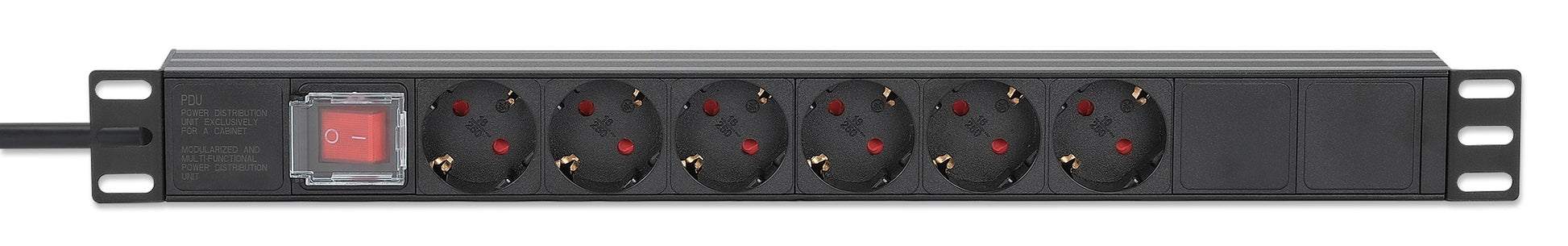

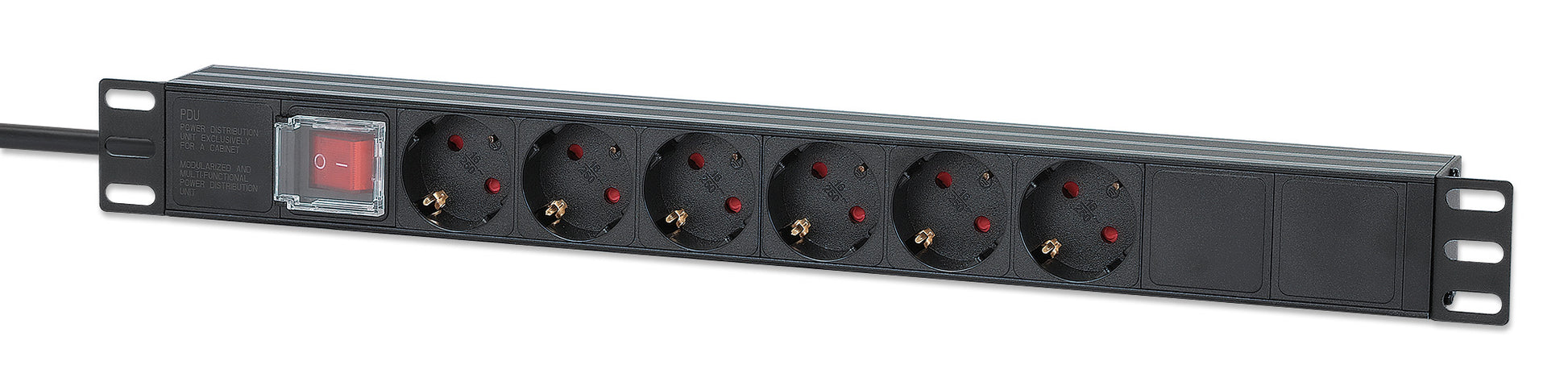

Rack mount 6-way 19" power strip - Power up to six devices in your network

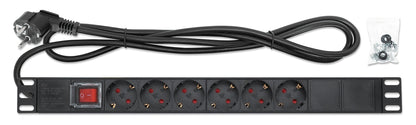

Plug your networking, telecom, surveillance, AV or other electronics into this 6-outlet 19” PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features six EU Type E/F outlets in a durable black aluminum housing. This PDU mounts in 1U of space in 19-inch racks. The illuminated on/off switch provides one-touch control over all connected devices and has a protective hinged cover to prevent accidental shutdown.

6-way single-phase PDU for electrical equipment, ideal for networking, telecom, security and audio/video

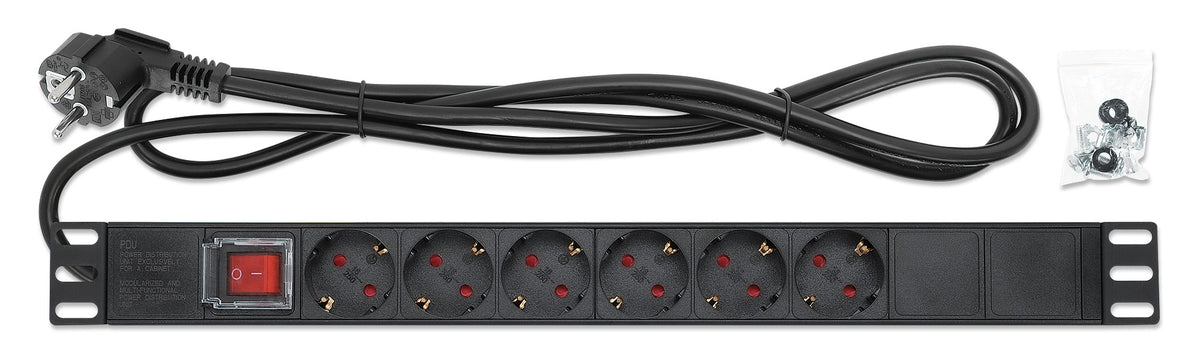

Built-in 2 m power cord with EU CEE 7/7 (Type E/F) plug
Illuminated two-pole on/off safety switch with protective cover to prevent accidental shutdown
Sockets with increased touch protection through contact shutters

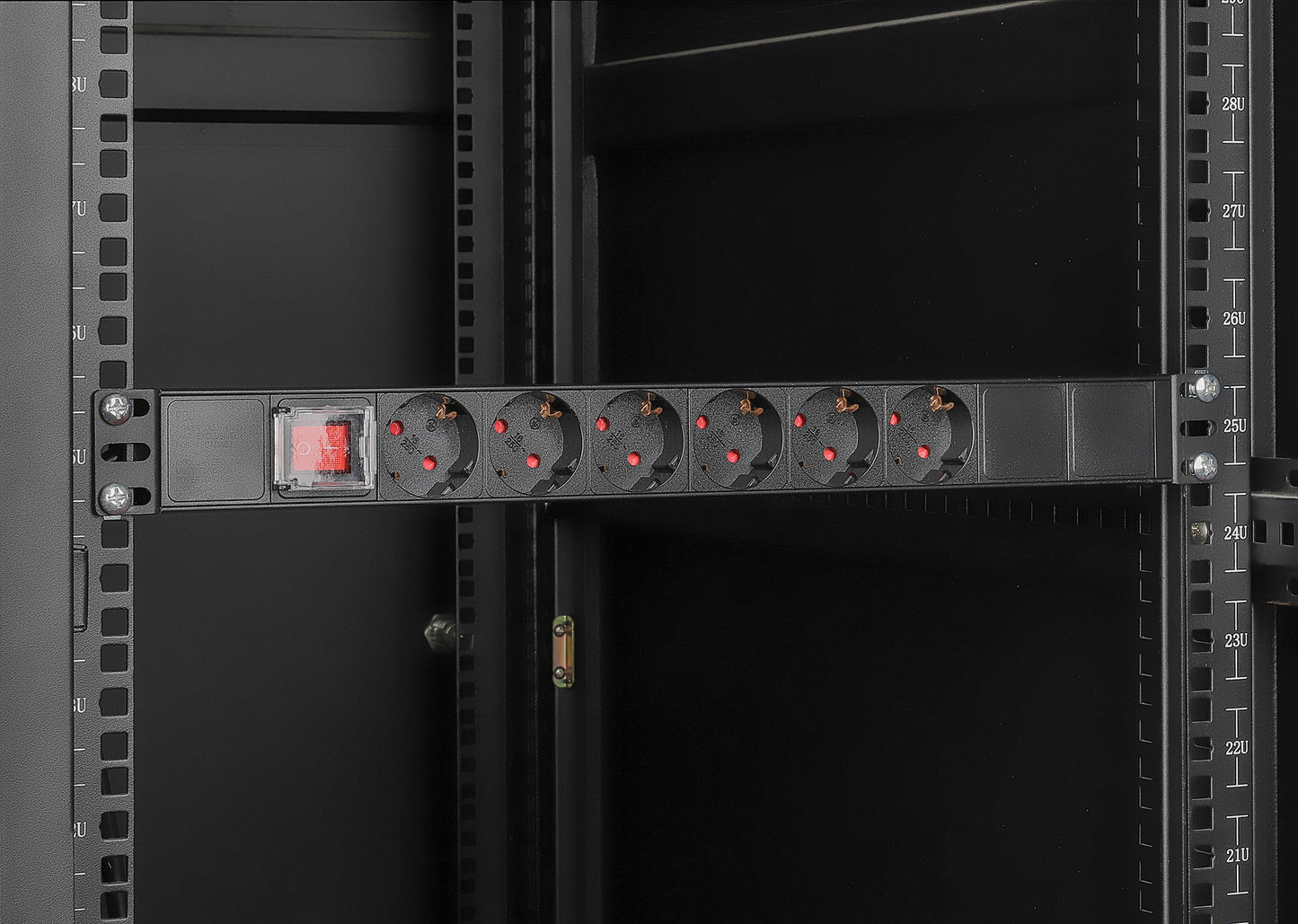

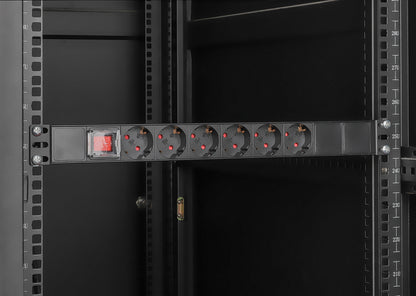

Horizontal 1U 19" rack-mount installation
Angled outlet orientation
Durable aluminum construction
Grounding point to protect equipment from external electrical surges
Bracket installation style: frontal
For indoor use only
Three-year warranty

CE
RoHS
REACH
IEC 60297
IEC 60884
AC input: 220.0 - 250.0 V; 50 - 60 Hz
Operating voltage: 230.0 V
Plug standard: EU CEE 7/7 (Type E/F); IEC 60884
Socket/outlet standard: EU CEE 7/3 (Type F); IEC 60884
Maximum load: 4,000.0 W
Overload protection: 16.0 A maximum load current
MTBF: >100,000 hours
Dimensions (L x W x H): 45 x 484 x 45 mm
1U rack mount
Cable length: 2 m
Cable type: H05VV-F 3G 1.5 mm²
Socket angle: 35°
Net weight: 750 g
Gross weight: 850 g
Housing: aluminum
19" 1U Rack Mount 6-Output Power Distribution Unit (PDU)
