Intellinet

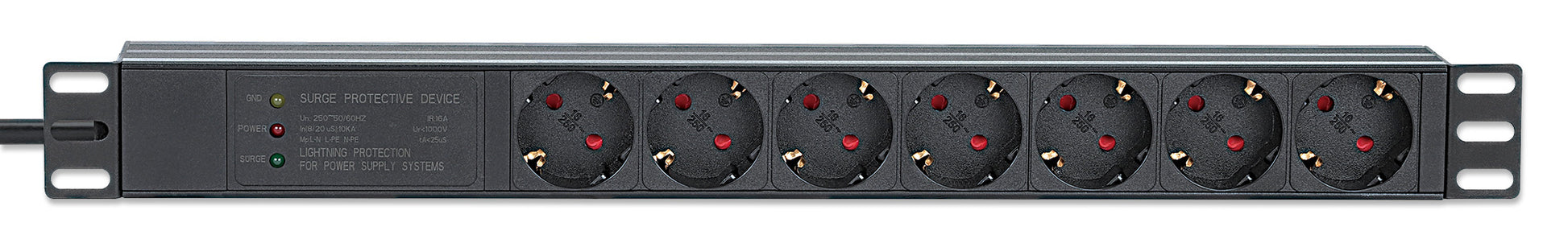

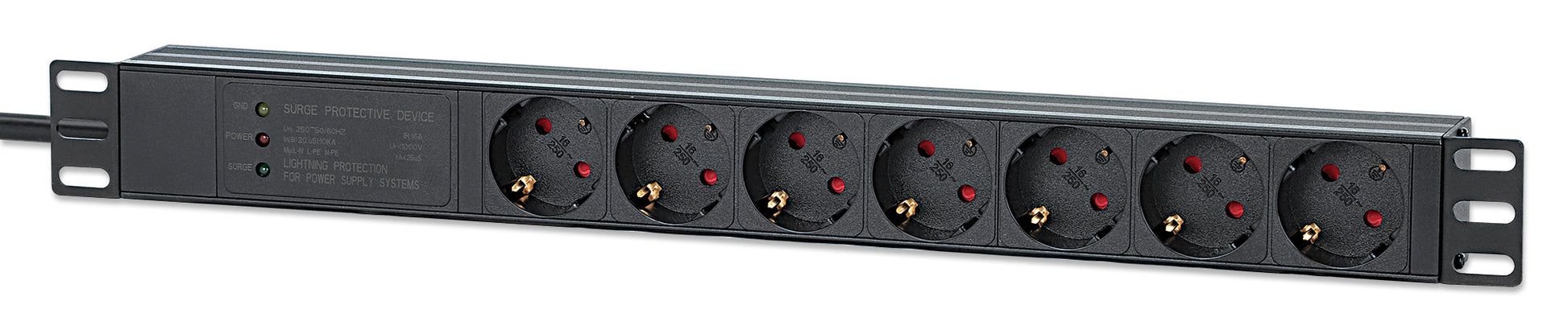

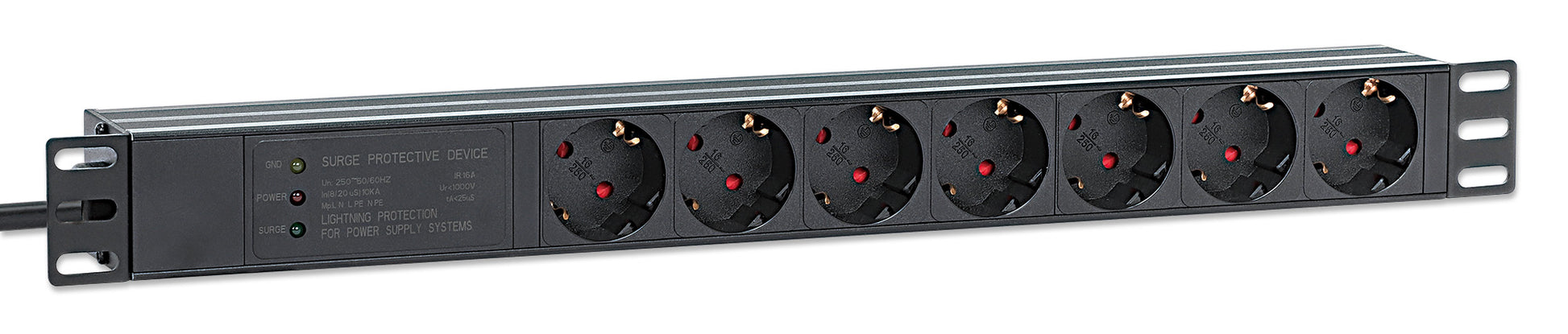

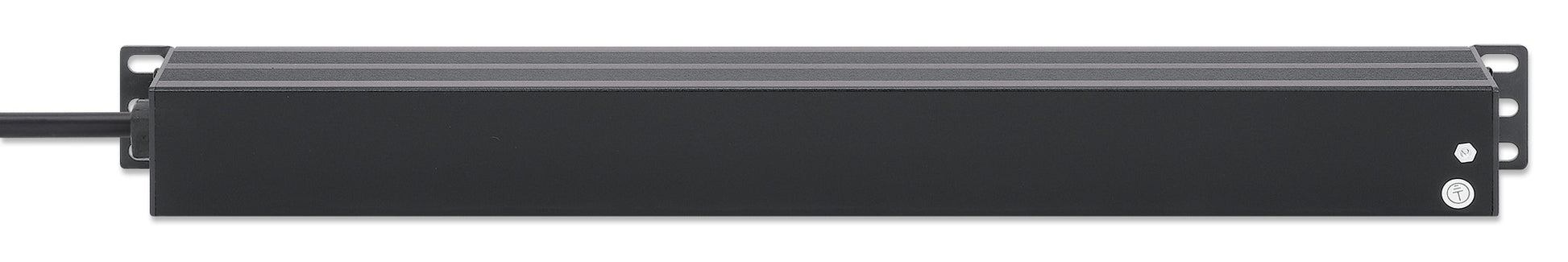

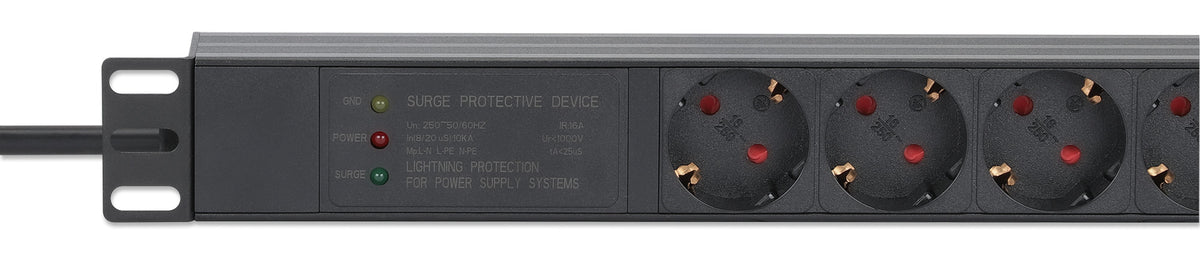

19" 1U Rackmount 7-Output Power Distribution Unit (PDU) / Surge Protector

EU CEE 7/3 Outlets, 500 Joule/19,500 A Surge Protection, Built-in 3 m Power Cord with EU CEE 7/7 Plug, 16 A, Horizontal Mount, Aluminum, Black

Highlights

7-way single-phase PDU for electrical equipment, ideal for networking, telecom, security and audio/video
500 joule surge protection and 19,500 A surge current against dangerous power surges, line noise and spikes
Built-in 3 m power cord with EU CEE 7/7 (Type E+F) plug

SKU: 715140

[ view high resolution images ]

Rack mount 7-way 19" surge protector power strip - power up to seven devices in your network

Plug your networking, telecom, surveillance, AV or other electronics into this 7-outlet 19” PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features seven EU Type E+F outlets in a durable black aluminum housing. This PDU mounts in 1U of space in 19-inch racks. For even more safety, it features a surge suppression rating of 500 joules and 19,500 A surge current.

7-way single-phase PDU for electrical equipment, ideal for networking, telecom, security and audio/video
500 joule surge protection and 19,500 A surge current against dangerous power surges, line noise and spikes

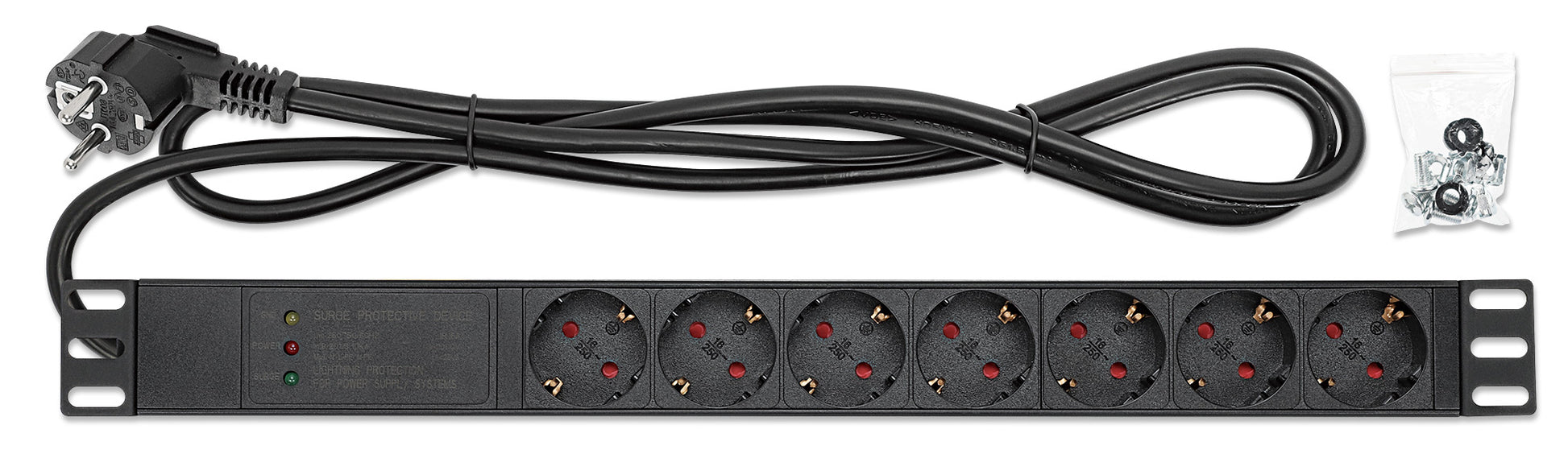

Built-in 3 m power cord with EU CEE 7/7 (Type E+F) plug
Sockets with increased touch protection through contact shutters

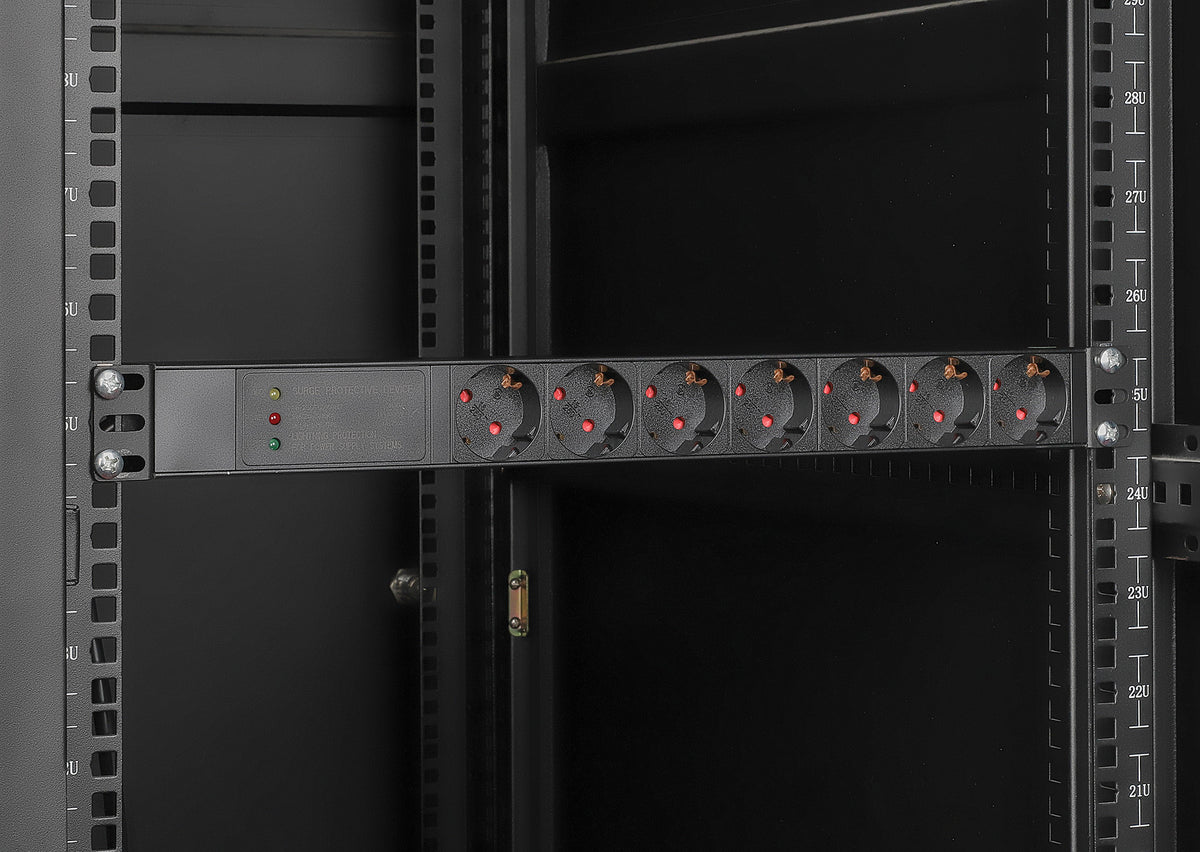

Horizontal 1U 19" rack-mount installation
Angled outlet orientation
Durable aluminum construction
Grounding point to protect equipment from external electrical surges
Bracket installation style: frontal
For indoor use only
Three-year warranty

CE
RoHS
REACH
IEC 60297
IEC 60884
AC input: 220.0 - 250.0 V; 50 - 60 Hz
Operating voltage: 230.0 V
Plug standard: EU CEE 7/7 (Type E+F); IEC 60884
Socket/outlet standard: EU CEE 7/3 (Type F); IEC 60884
Maximum load: 4,000.0 W
Overload protection: 16.0 A maximum load current
Surge protection: AC suppression with 500 joules and 19,500 A surge current
MTBF: >100,000 hours
Dimensions (L x W x H): 45 x 483 x 45 mm
1U rack mount
Cable length: 3 m
Cable type: H05VV-F 3G 1.5 mm²
Socket angle: 35°
Net weight: 950 g
Gross weight: 1.05 kg
Housing: aluminum
19" 1U Rack Mount 7-Output Power Distribution Unit (PDU) / Surge Protector

Warning

This product can expose you to chemicals including Bisphenol-A, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
