Intellinet

19" 1U Rackmount 8-Outlet Power Distribution Unit (PDU) with C14 Plug and Switch

Eight EU CEE 7/3 Sockets, Built-in 2 m Power Cord with C14 Plug, 10 A, On/Off Switch, Horizontal Mount, Aluminum, Black/Silver

Highlights

8-way single-phase PDU with European type F sockets for electrical equipment, ideal for networking, telecom, security and audio/video

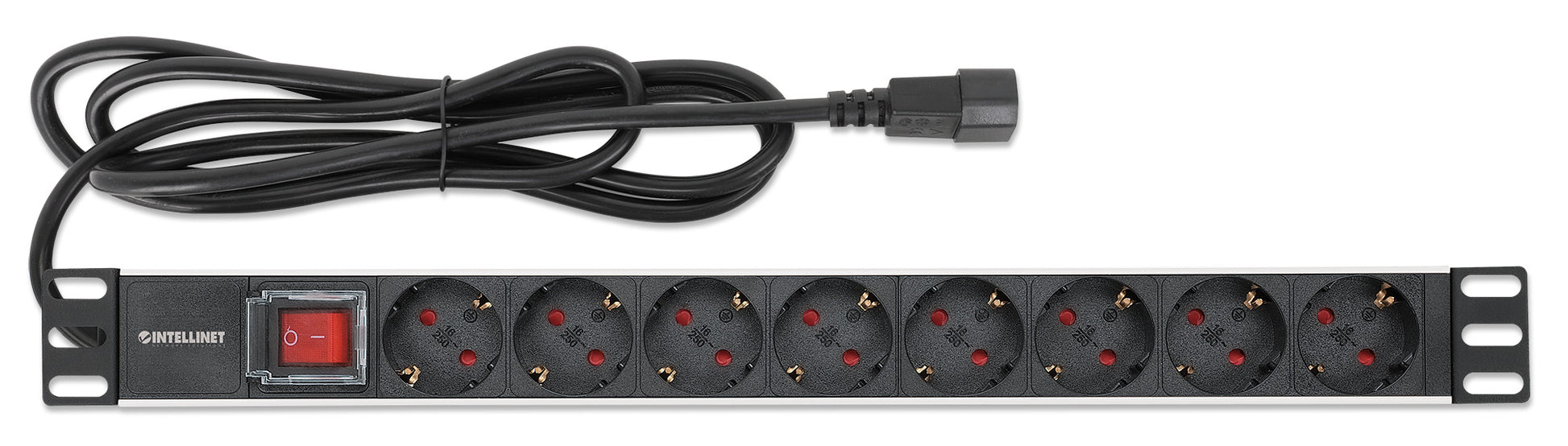

Built-in 2 m power cord with universal C14 plug, compatible with any regional C13 to AC mains cable, C13 PDU or UPS
Illuminated two-pole on/off safety switch with protective cover to prevent accidental shutdown

SKU: 716635

[ view high resolution images ]

Reliable Rack-Mounted Power Strip with 8 EU Sockets, Convenient On/Off Switch, and Universal C14 Plug for Your Network

Engineered for professional environments, this 19" 1U Rackmount 8-Output PDU from Intellinet Network Solutions delivers safe and efficient power distribution for network, telecom, security, and AV equipment. Featuring eight EU CEE 7/3 (Type F) outlets, it ensures consistent power supply in data centers, server rooms, or control cabinets.

Flexible Power Input with C14 Plug

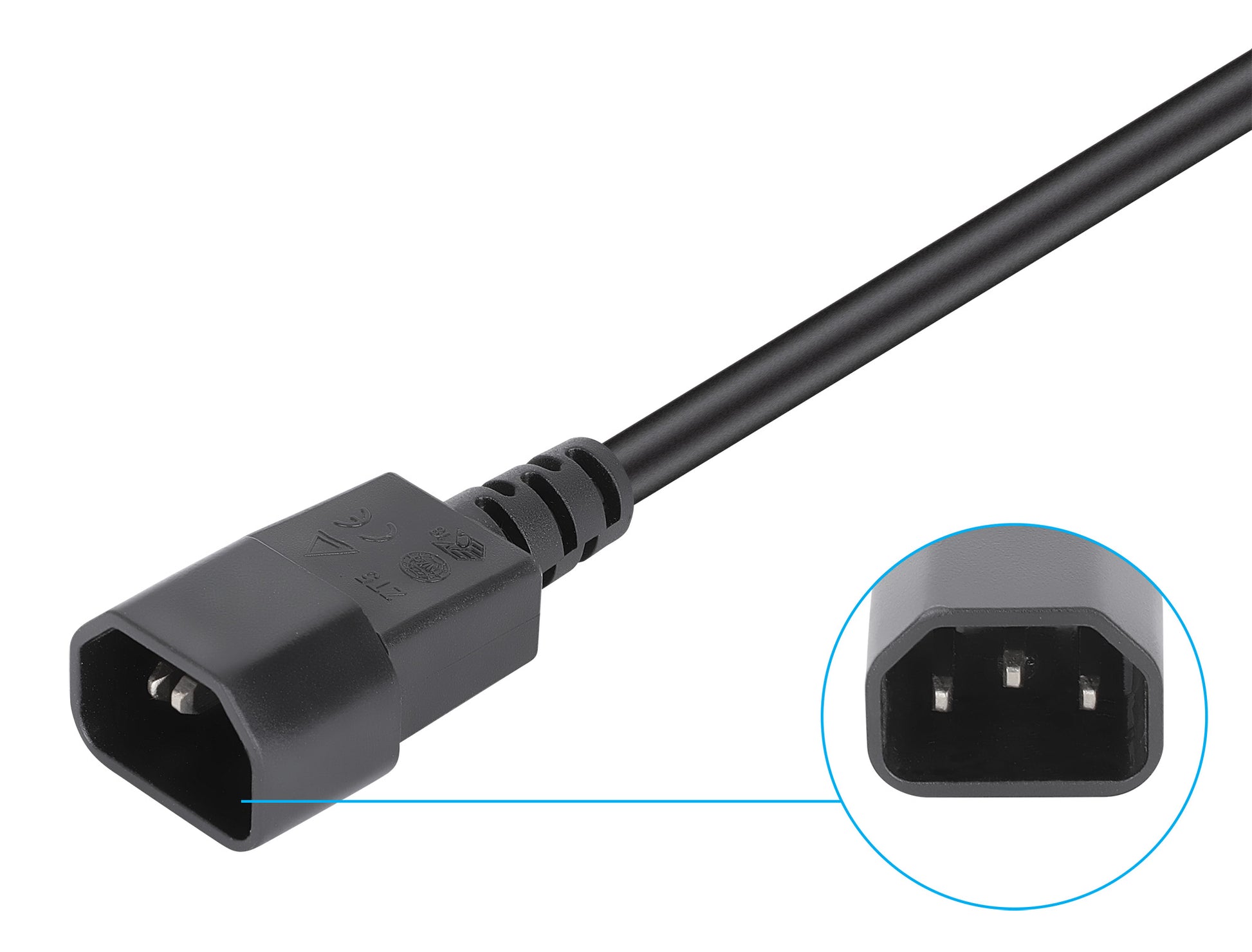

The built-in 2 m power cord with a universal C14 plug allows easy connection to any C13 PDU, UPS, or C13 to AC mains cable, offering maximum flexibility across different regions and setups.

Safety First with On/Off Switch

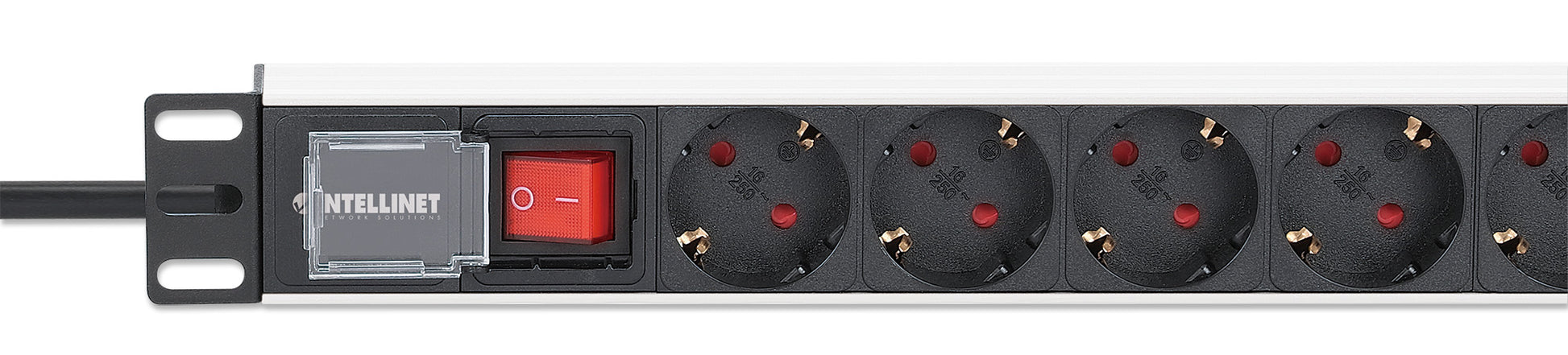

A two-pole illuminated on/off switch with a protective cover prevents accidental shutdowns, while contact-shuttered outlets add an extra layer of safety by limiting direct access to live parts.

Optimized for Rack Integration

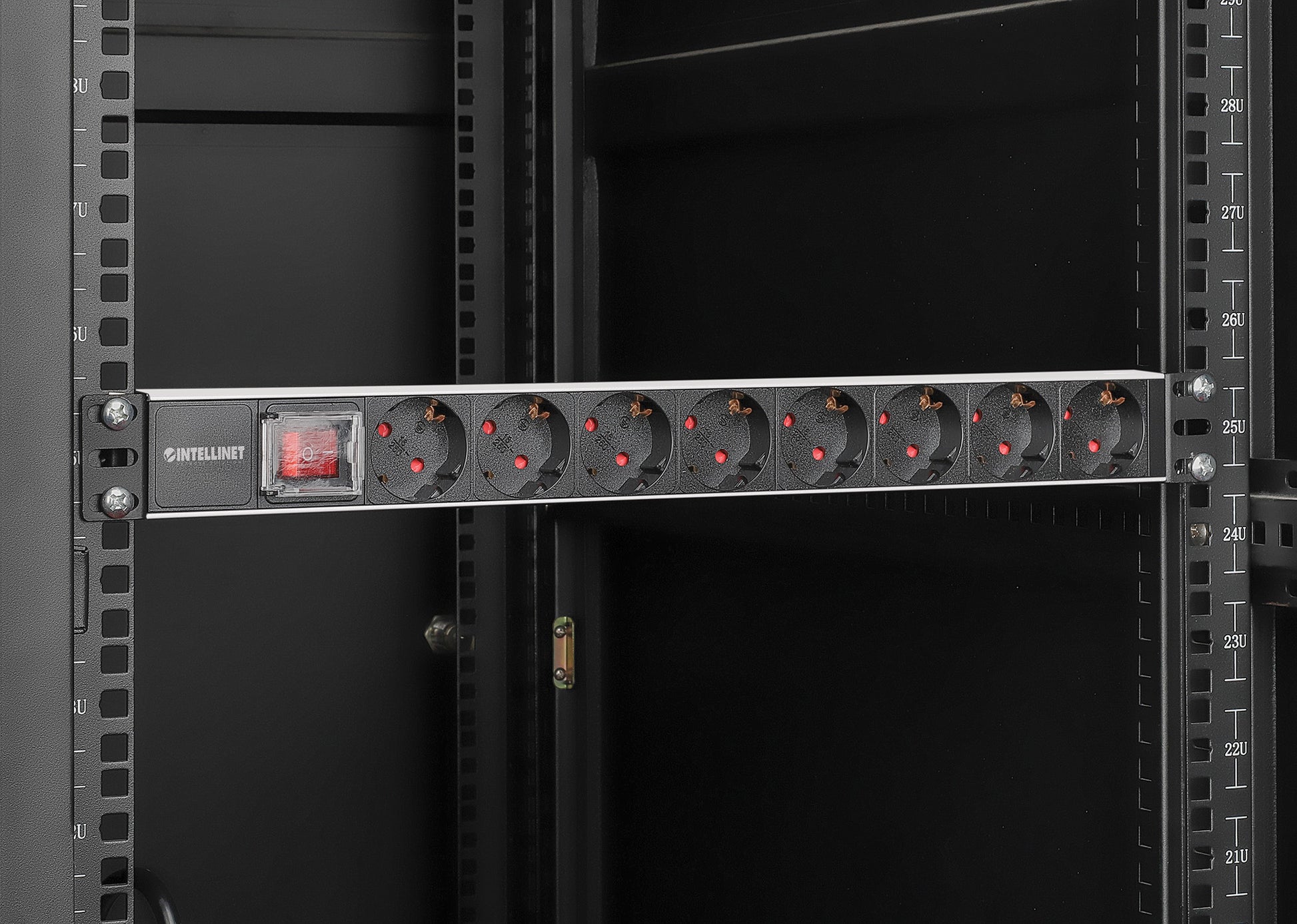

Designed for seamless integration into standard 19-inch racks, the PDU supports horizontal 1U mounting with front-facing brackets. Its angled outlet orientation provides better cable management in tight rack environments.

Durable and Built for Daily Use

Constructed from black anodized aluminum, the PDU is built to last in demanding settings. The IP20-rated housing offers protection against solid objects, while a grounding point safeguards connected devices from electrical surges.

8-way single-phase PDU with European type F sockets for electrical equipment, ideal for networking, telecom, security and audio/video
Built-in 2 m power cord with universal C14 plug, compatible with any regional C13 to AC mains cable, C13 PDU or UPS
Illuminated two-pole on/off safety switch with protective cover to prevent accidental shutdown
Sockets with increased touch protection through contact shutters
Horizontal 1U 19" rack-mount installation
IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm racks
Angled outlet orientation for easier cable management in tight rack environments
Durable aluminum construction with IP20-rated housing
Grounding point to protect equipment from external electrical surges
Bracket installation style: frontal
For indoor use only
Three-year warranty

CE
RoHS
REACH
UKCA
IEC 60884
IEC 60297
IP20
AC input: 220.0 - 250.0 V; 50 - 60 Hz
Operating voltage: 230.0 V
Plug standard: C14
Socket/outlet standard: EU CEE 7/3 (Type F); IEC 60884
Maximum load: 2,500.0 W
Overload protection: 10.0 A maximum load current
Dimensions (L x W x H): 45 x 482.2 x 45 mm
1U rack mount
Cable length: 2 m
Cable type: H05VV-F 3G 1.5 mm²
Socket angle: 35°
Net weight: 800 g
Gross weight: 900 g
Housing: aluminum
19-inch 1U 8-Way PDU with On/Off Switch and C14 power cable
