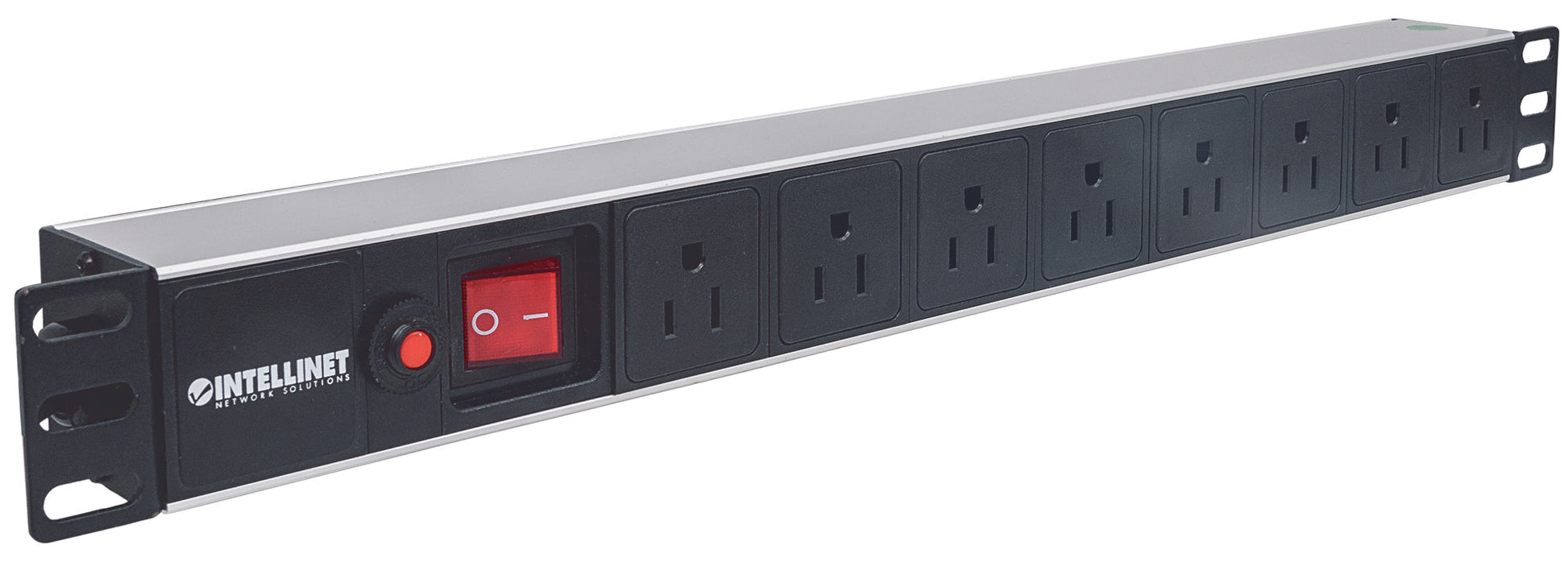

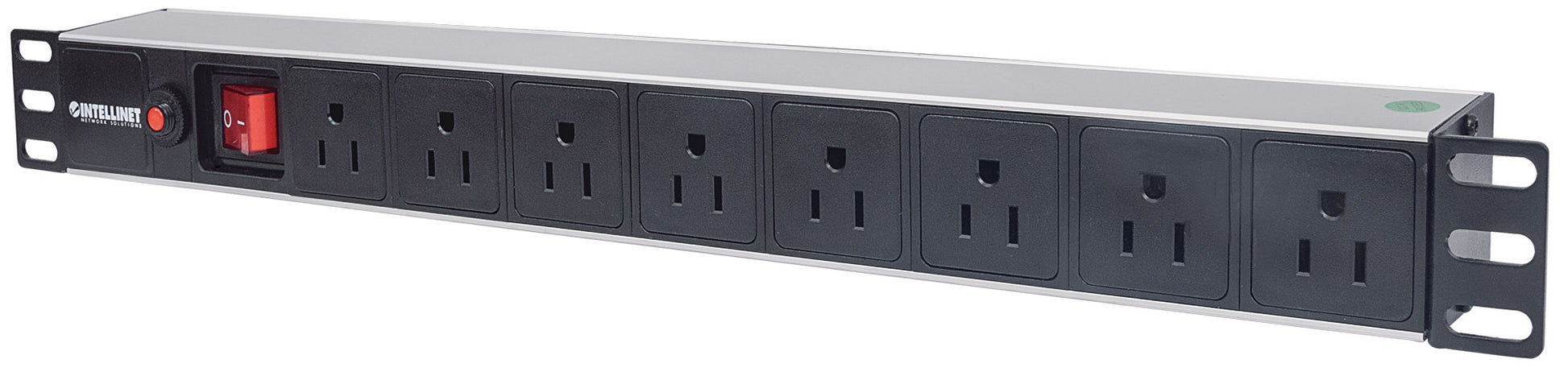

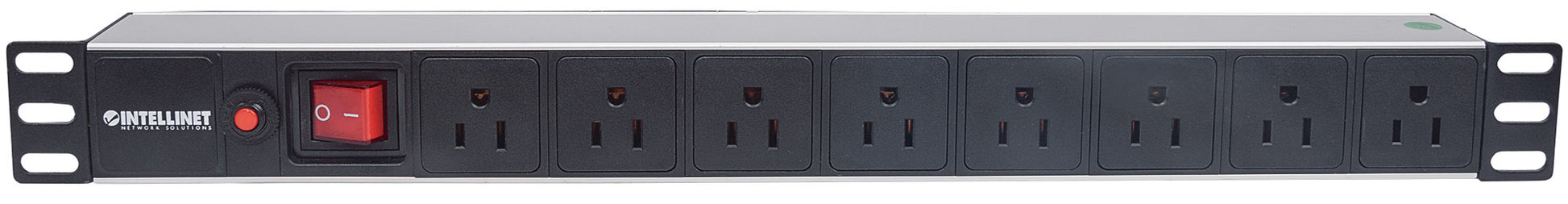

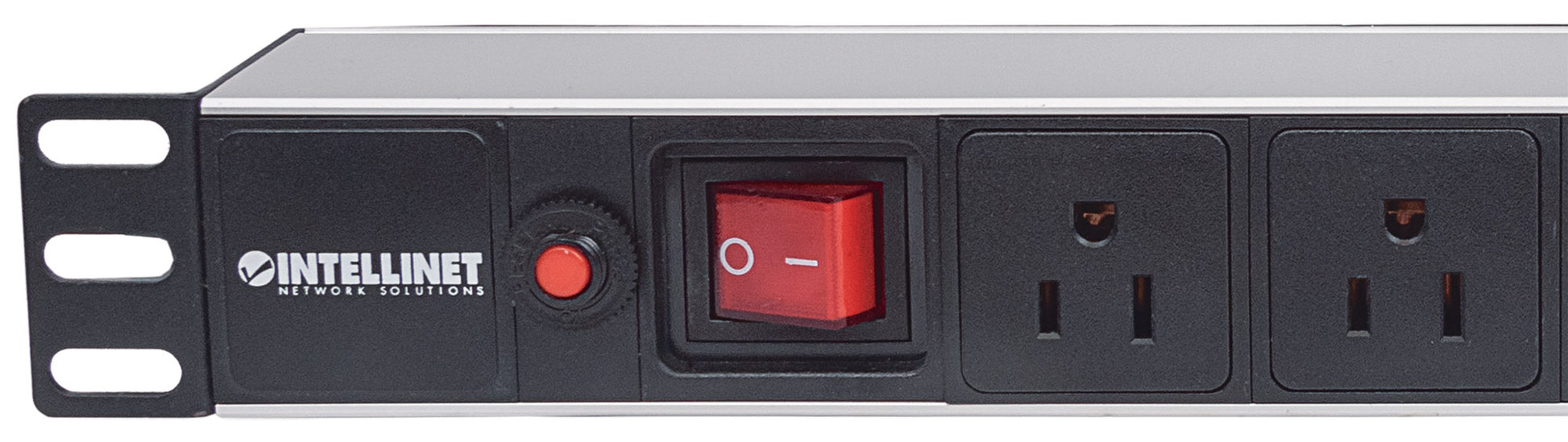

19" 1U Rackmount 8-Output Power Distribution Unit (PDU)

With On/Off Switch and Overload Protection, 3 m (10 ft.) Power Cord

SKU: 713993

Highlights

  • Outlets: 8
  • Power input style: left-end single input
  • Bracket installation style: frontal

Manufacturer

Intellinet Network Solutions


Intellinet Network Solutions basic rack PDUs (Power Distribution Units) provide reliable power distribution via a single input with multiple output receptacles. Our current range is designed to distribute power from low amperage single phase electrical circuits.

  • Outlets: 8
  • Power input style: left-end single input
  • Bracket installation style: frontal
  • 1U Compact space saving size
  • Cable plug: IEC60906
  • Control functions: with switch
  • Protection functions: Overload Protection
  • Shell color & material: black aluminum
  • Relative humidity: 10 - 90%
  • Three-year warranty

  • 1U Rackmount
  • Socket/outlet standard: IEC60906
  • Outlets: 8
  • Cable specification: standard 3 m (10 ft.) power cord
  • Size: 482.6 (L) x 44.4 (W) x 44.5 (H) [mm] / 19 (L) x 1.75 (W) x 1.75 (H) [in]
  • Electrical rating: 125 V AC
  • Maximum load current: 15 A

California Proposition 65 WarningWarning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


  • Other Part Numbers

    • Amazon ASIN: B01MXRVKB5
    • EAN: 0766623713993
    • UPC: 766623713993

  • Datasheet

    • Datasheet     » Download

    • Rackmount PDU Guide USA Market
      A short guide to our PDU range.     » Download


  • Manual

    • Quick Instruction Guide     » Download
