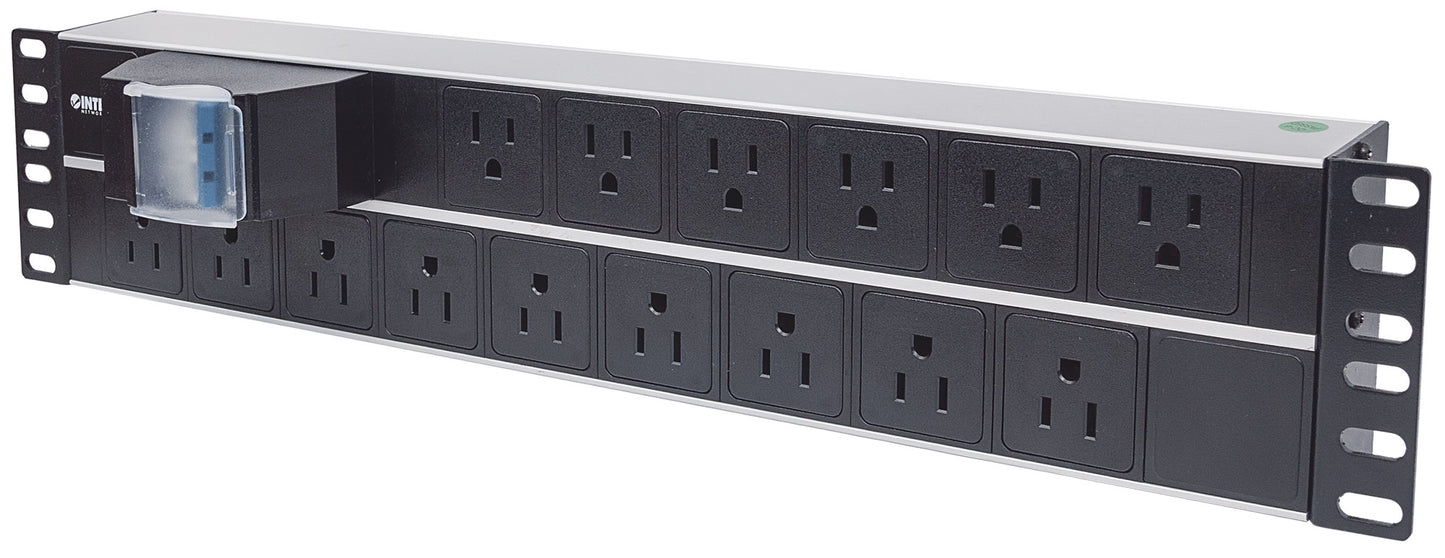

19" 2U Rackmount 15-Output Power Distribution Unit (PDU) Image 1

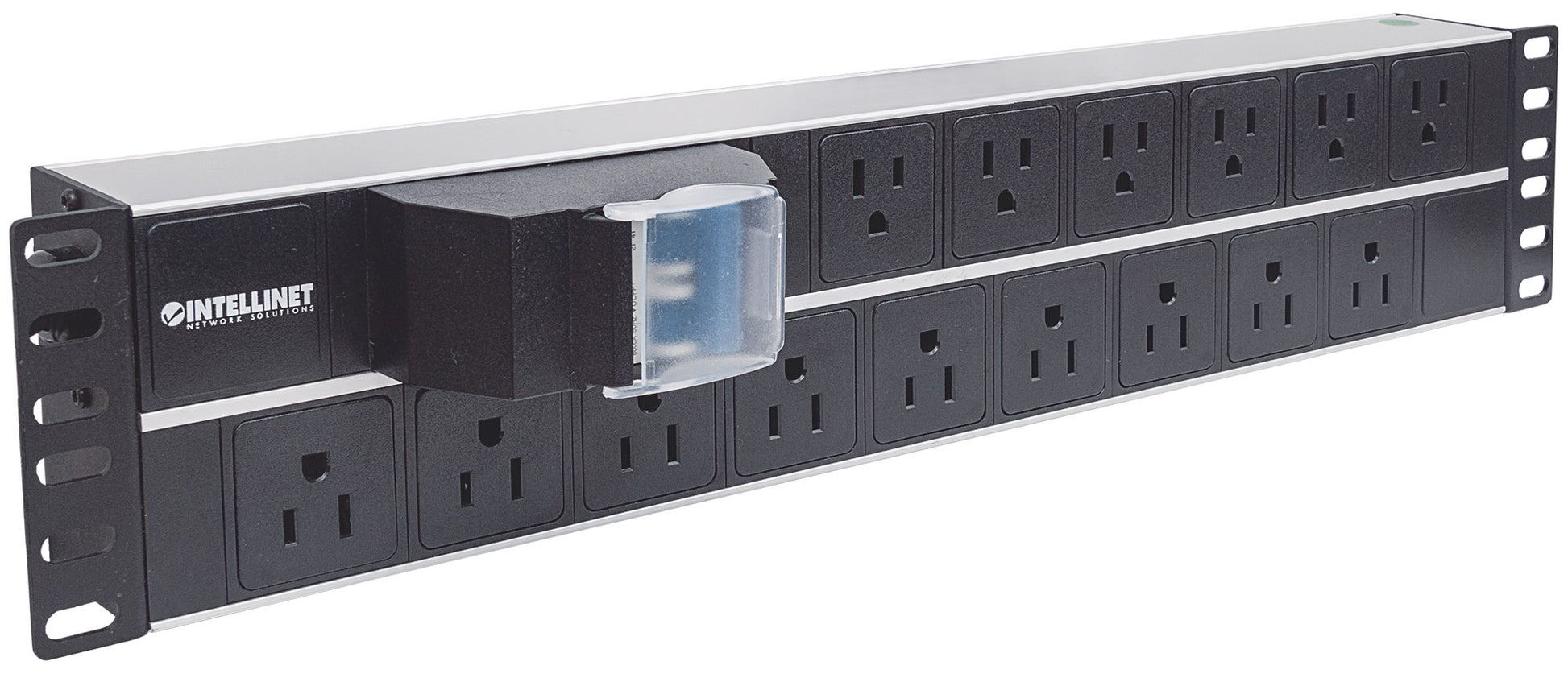

19" 2U Rackmount 15-Output Power Distribution Unit (PDU) Image 2

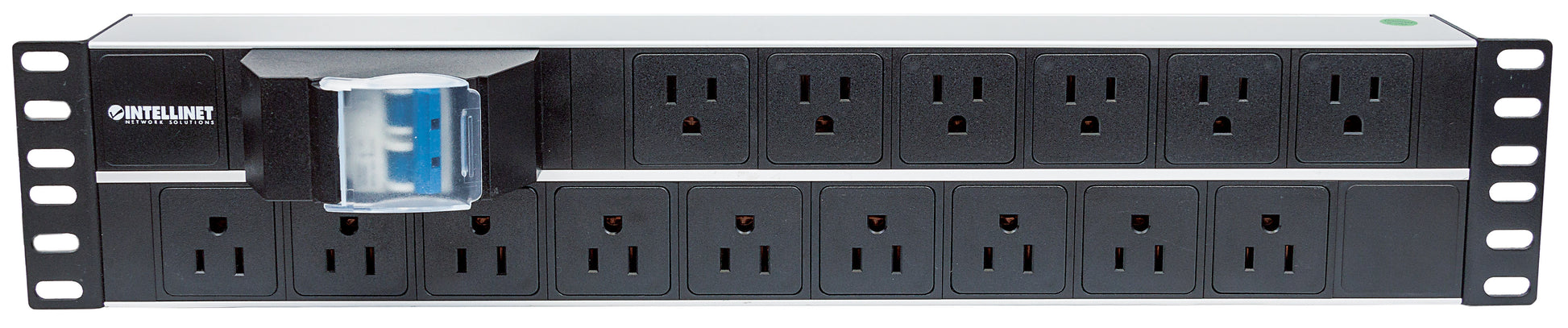

19" 2U Rackmount 15-Output Power Distribution Unit (PDU) Image 3

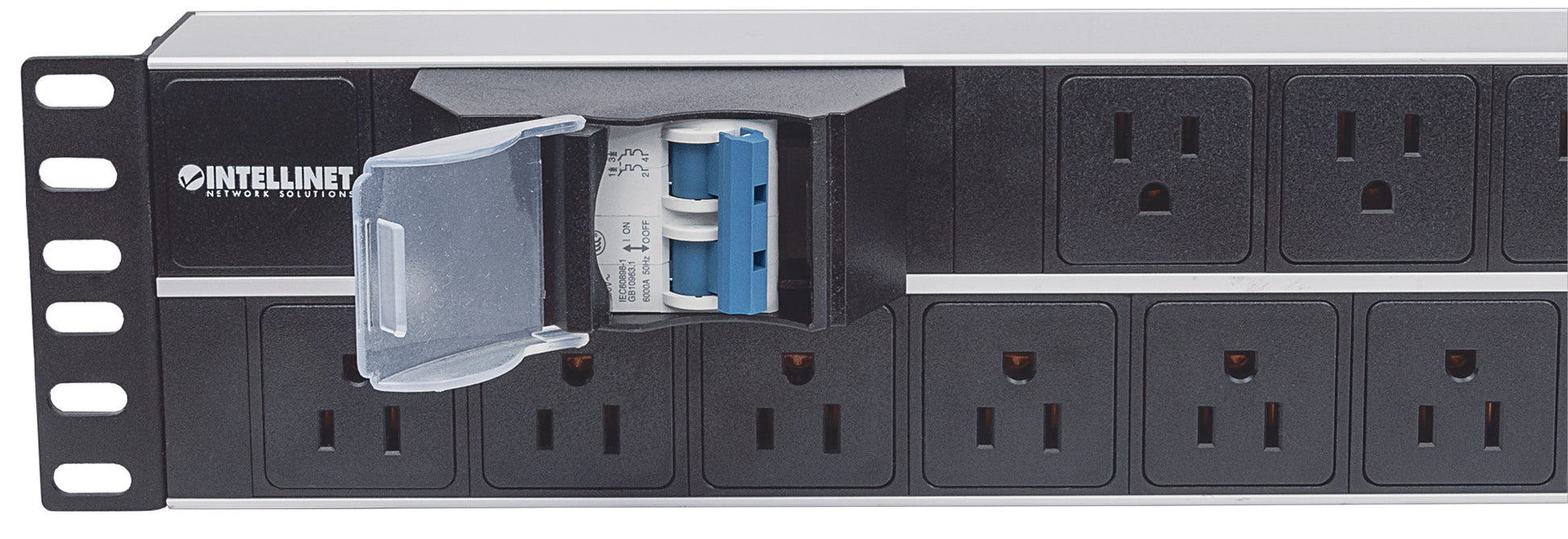

19" 2U Rackmount 15-Output Power Distribution Unit (PDU) Image 4

19" 2U Rackmount 15-Output Power Distribution Unit (PDU)

With Double Air Switch, 3 m (10 ft.) Power Cord

SKU: 714075

Highlights

  • 2U 19" Rackmount unit
  • Bracket installation style: frontal
  • Control & Protection functions: Double Air Switch

Manufacturer

Intellinet Network Solutions


Intellinet Network Solutions basic rack PDUs (Power Distribution Units) provide reliable power distribution via a single input with multiple output receptacles. Our current range is designed to distribute power from low amperage single phase electrical circuits.

  • 2U 19" Rackmount unit
  • Bracket installation style: frontal
  • Control & Protection functions: Double Air Switch
  • Shell color & material: black aluminum
  • Three-year warranty

  • 2U Rackmount
  • Socket/outlet standard: IEC60906
  • Outlets: 15
  • Cable specification: standard 3 m (10 ft.) power cord
  • Size: 482.6 (L) x 44.4 (W) x 88.8 (H) [mm] / 19 (L) x 1.75 (W) x 3.5 (H) [in]
  • Electrical rating: 125 V AC
  • Maximum load current: 15 A

California Proposition 65 WarningWarning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


  • Other Part Numbers

    • Amazon ASIN: B01N47V8HC
    • EAN: 0766623714075
    • UPC: 766623714075

  • Datasheet

    • Datasheet     » Download

    • Rackmount PDU Guide USA Market
      A short guide to our PDU range.     » Download


  • Manual

    • Quick Instruction Guide     » Download
