Intellinet

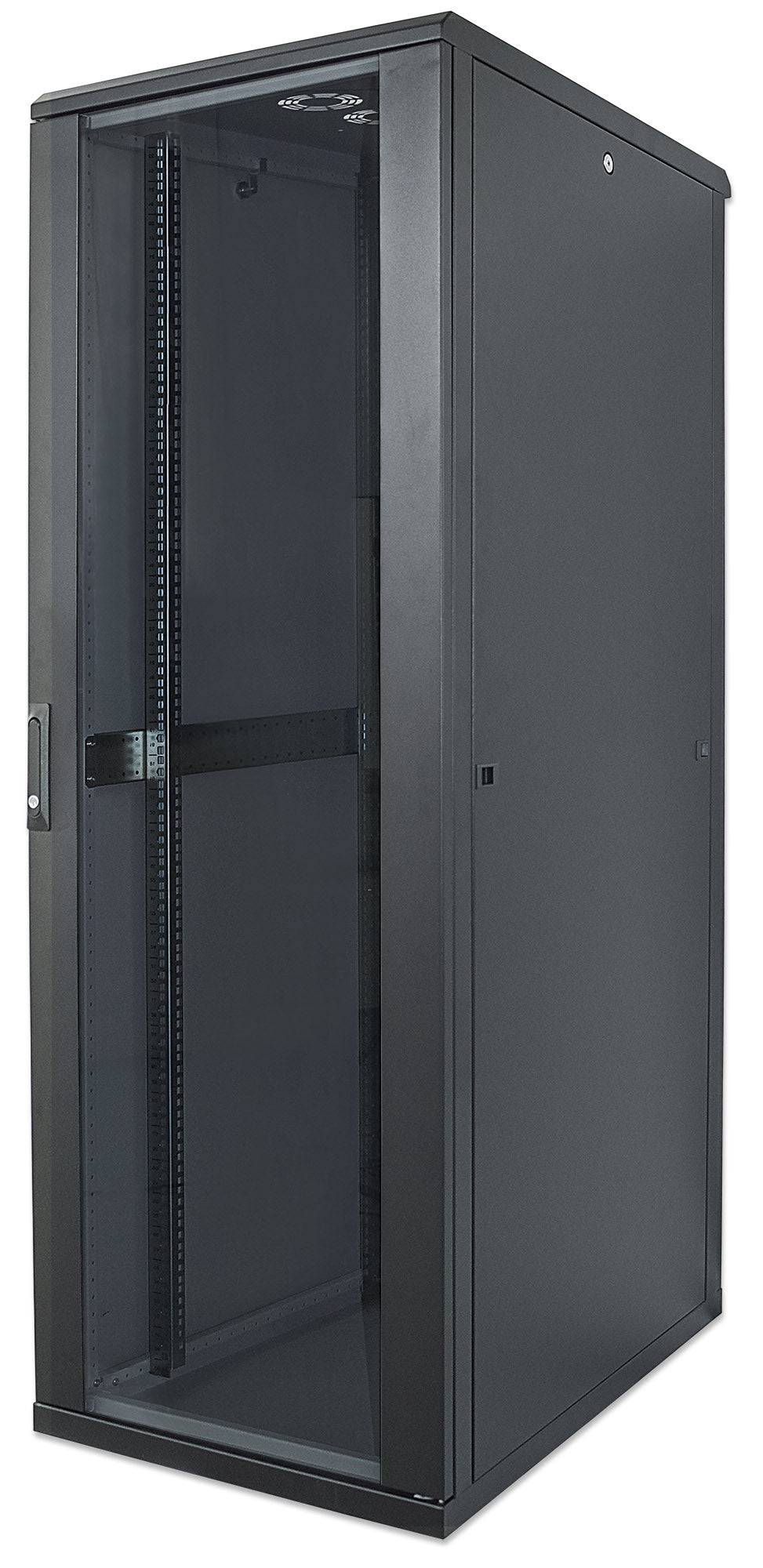

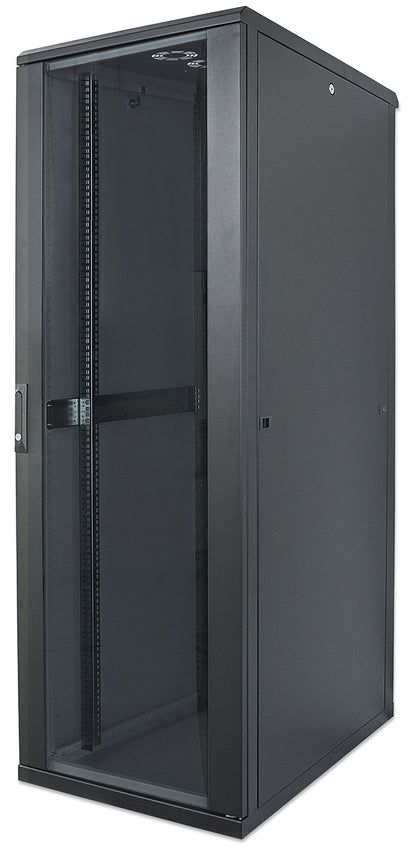

19" Network Cabinet, Standard Line, 36U, 800 (D) x 600 (W) mm, Black

IP20-rated housing, Flat Pack, Steel Panels, Maximum Static Load 1500 kg, Reversible Front Door, Installation Depth 123 to 573 mm

Highlights

Ideal for all 19 in. rackmount applications
Maximum static load of 1500 kg
Tempered-glass door

SKU: 713153

[ view high resolution images ]

Intellinet Network Solutions network cabinets offer you a flexible and comprehensive solution for your network installations. Top quality materials and workmanship include a tempered-glass door, antistatic powder coating, multi-point door lock and ventilation slots; while the flat-pack (unassembled) shipping* saves you space and money.
*Completely assembled versions are available in certain countries.

Ideal for all 19 in. rackmount applications
Maximum static load of 1500 kg

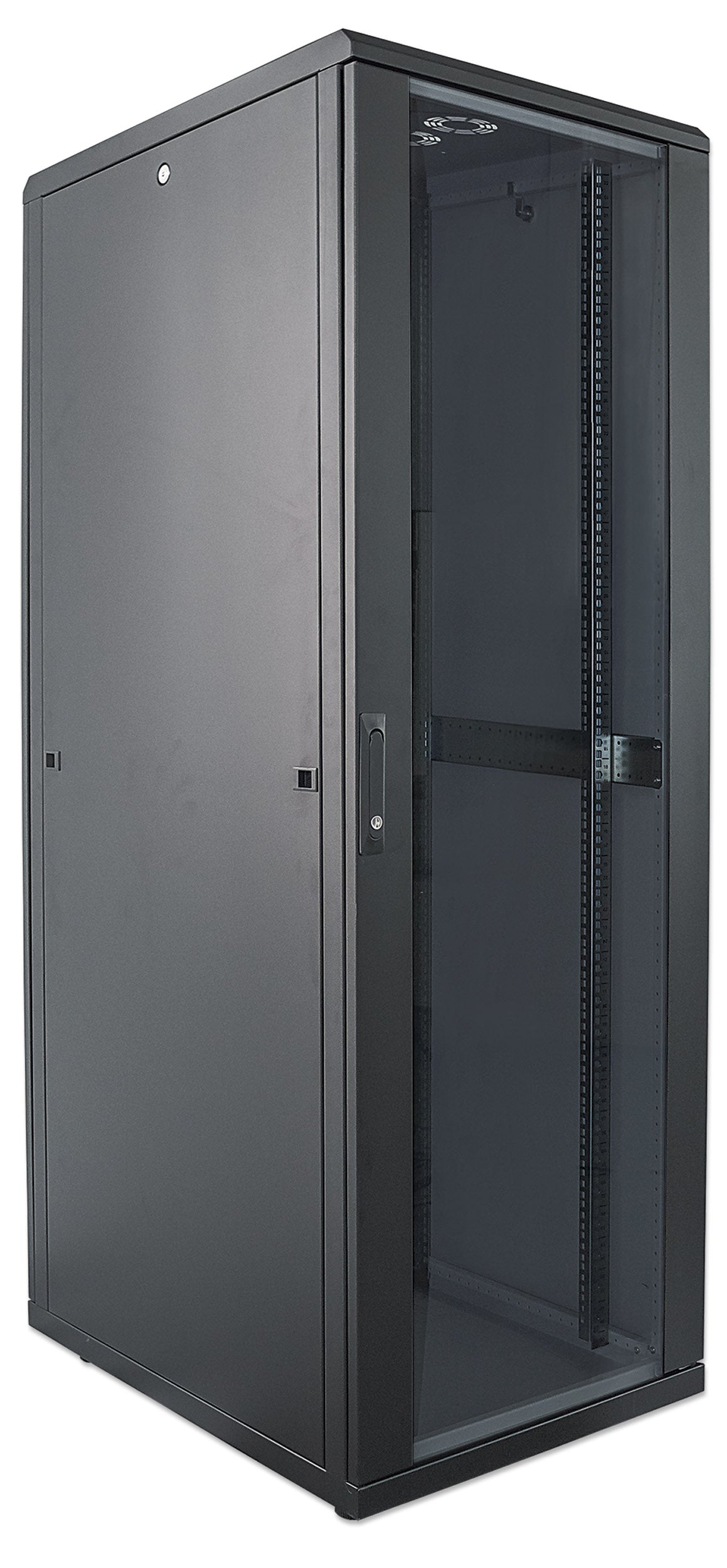

Tempered-glass door

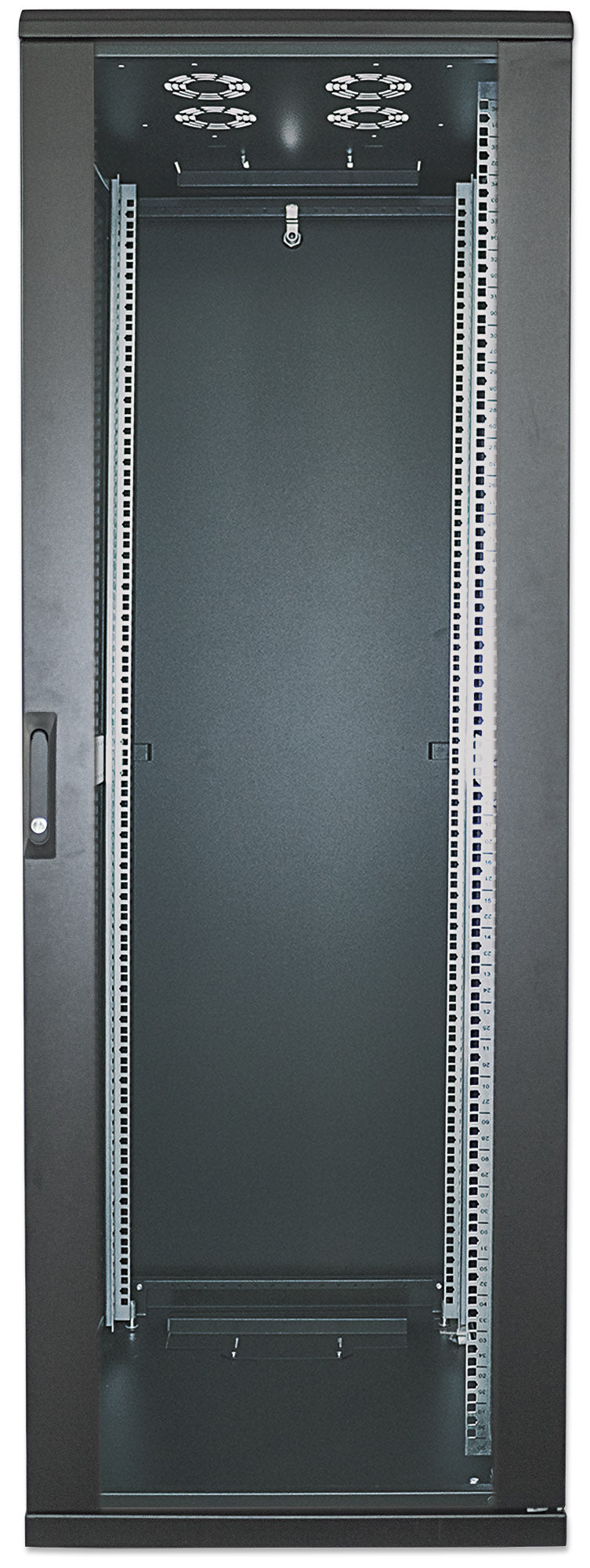

Zinc-plated 19 in. mounting rails
Antistatic powder coating on all panels
Panels with up to 2 mm steel thickness

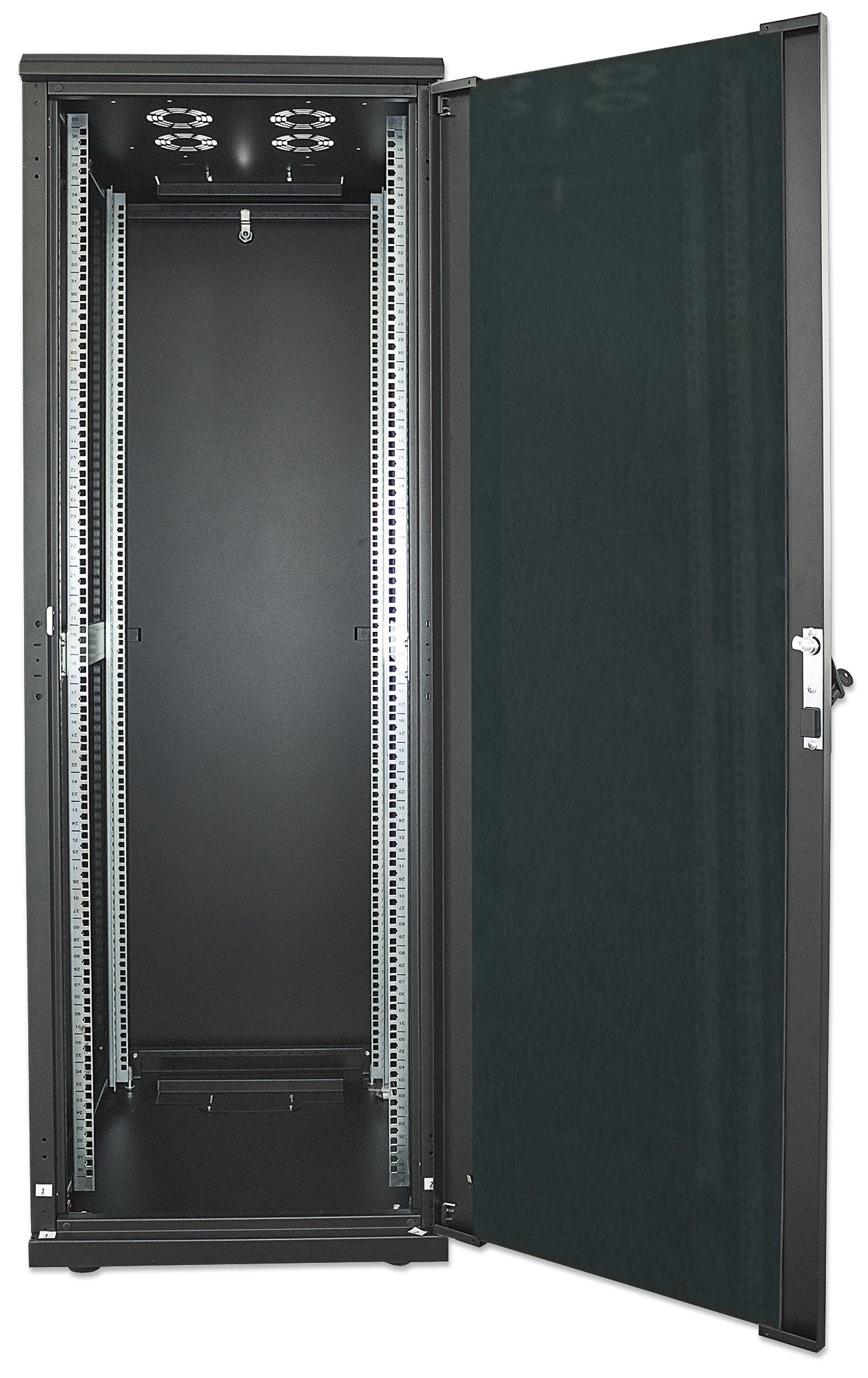

Reversible front door
IP20-rated housing

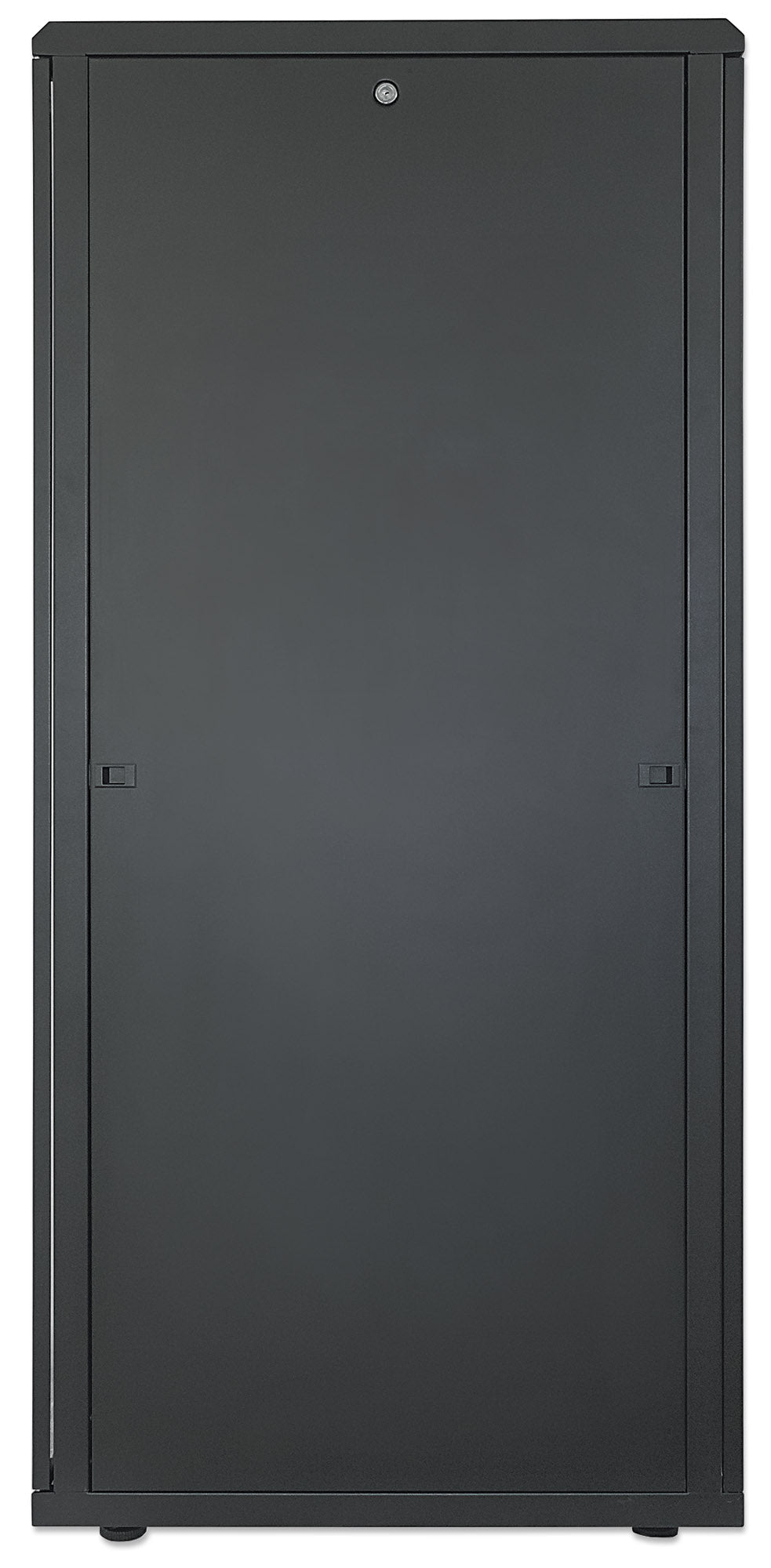

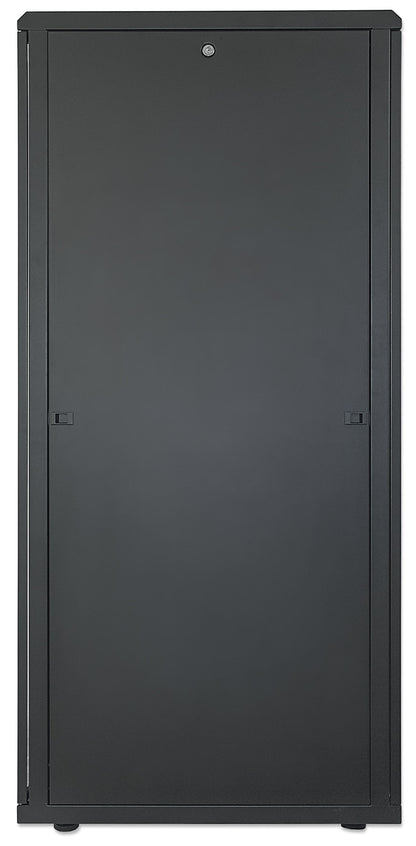

Easily removable side and rear panels

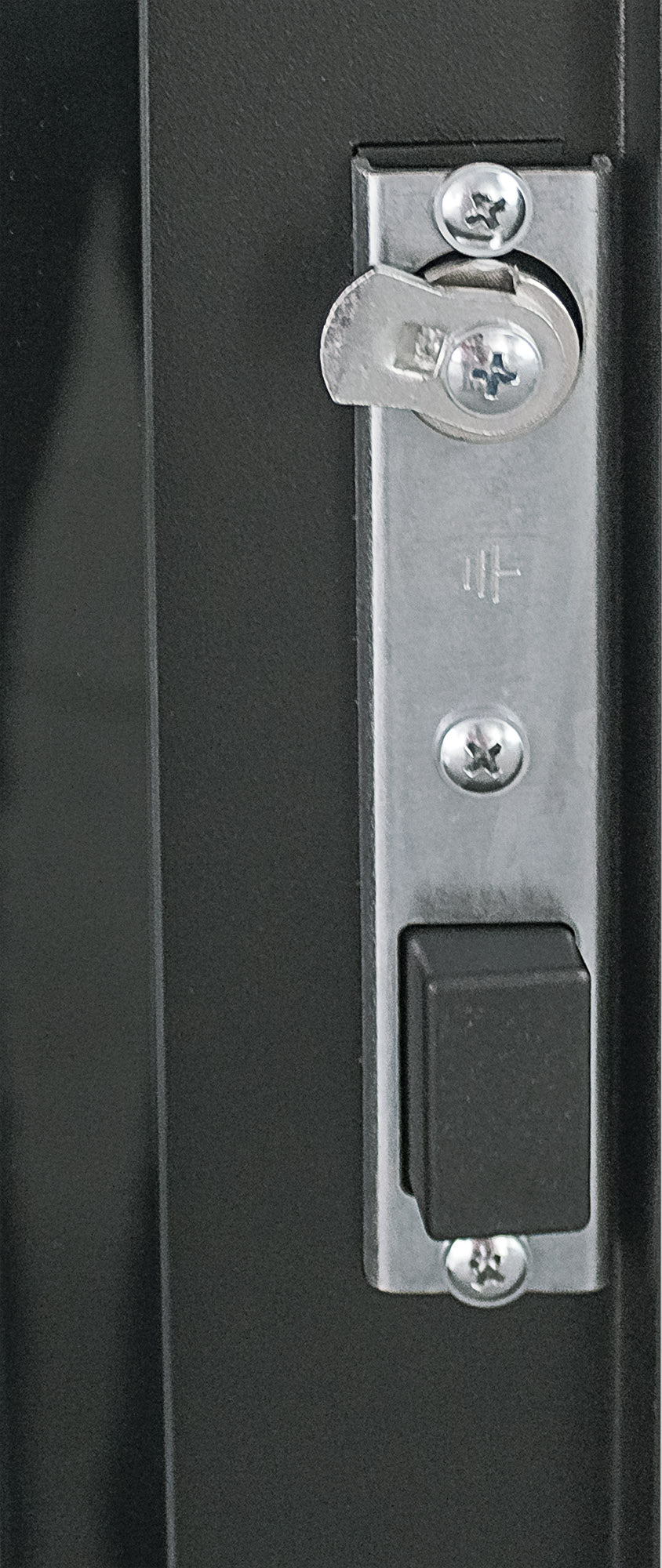

Multi-point door lock
Two apertures allow cable inlet from top or bottom

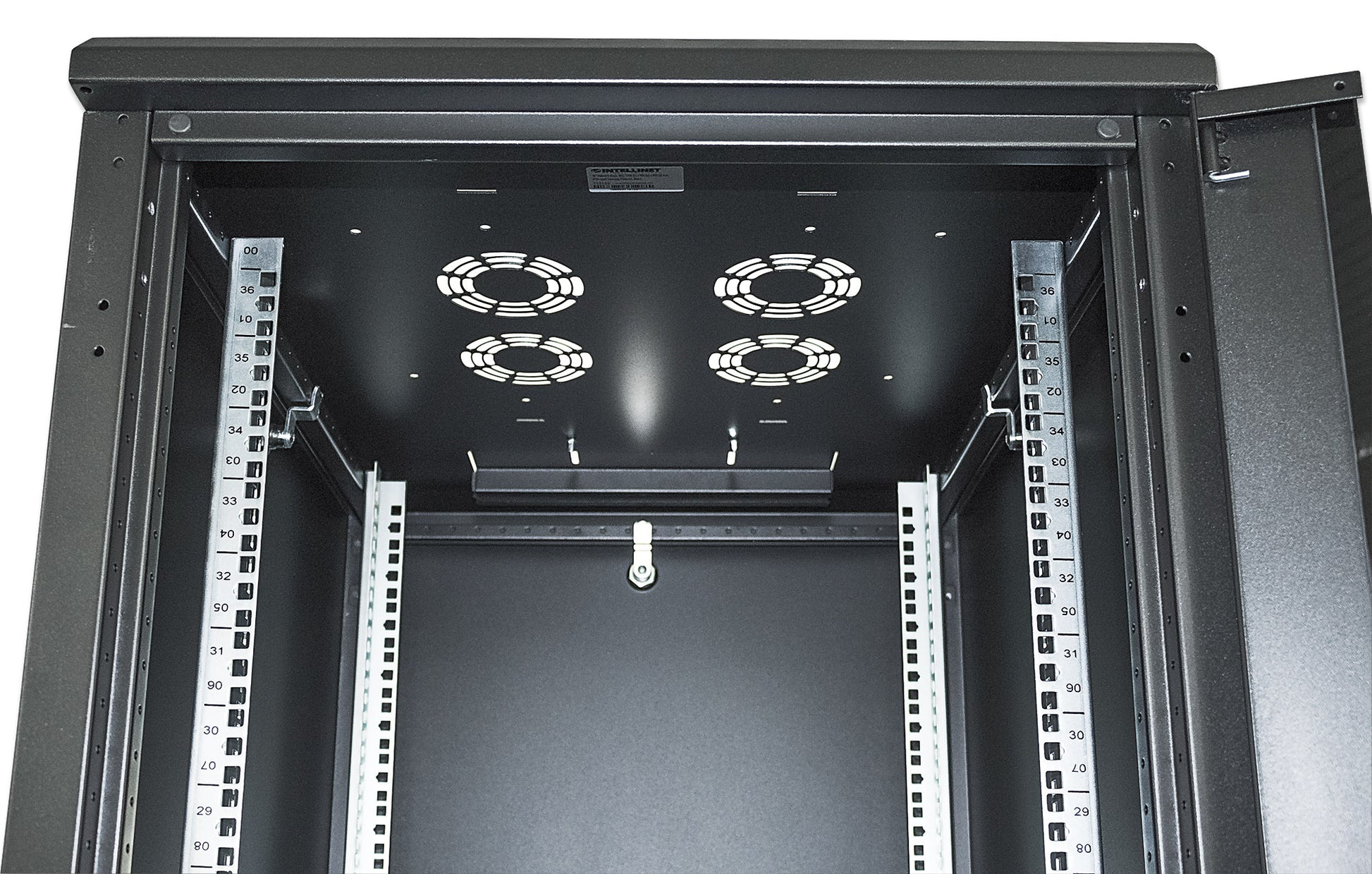

Ventilation slots provide excellent airflow
Ships flatpacked
Three-Year Warranty

19 in.
Height: 36U
Color: Black RAL9005
Certifications: RoHS, UL, Gost-R
Protection rating: IP20
800 (D) x 600 (W) x 1766 (H) [mm]
31.5 (L) x 23.62 (W) x 69.53 (H) [in]
4 depth-adjustable mounting rails

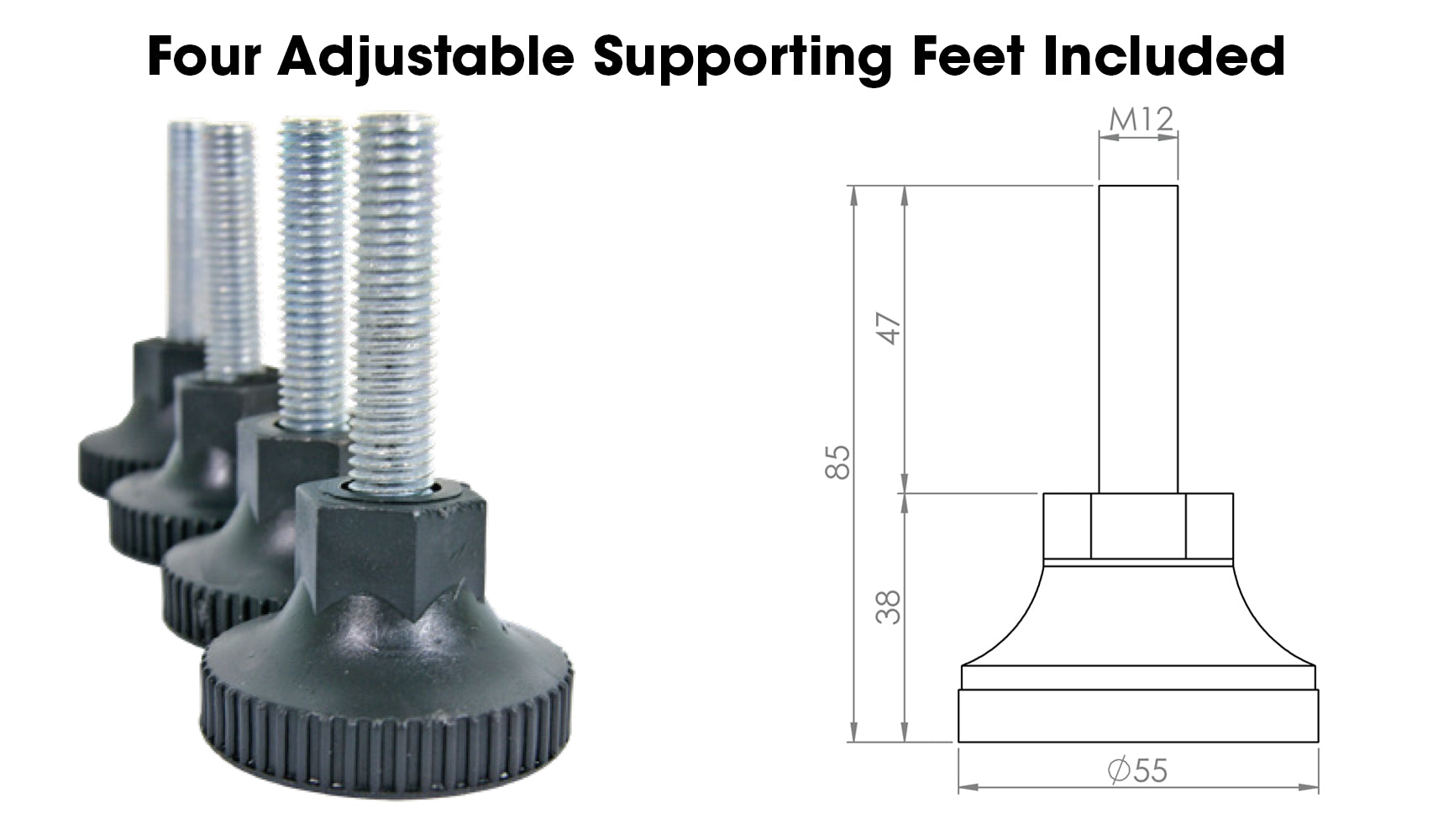

4 adjustable supporting feet
Installation hardware
