Intellinet

2-Fan Ventilation Unit with Thermostat for 19" Wallmount Cabinets

Roof-mount, 1.8 m (6 ft.) Power Cable, Fan Format 120 x 120 mm (4.72 x 4.72 in.), Grounding Cable Included, Black

Highlights

Roof-mount ventilation unit for reliable, energy-efficient cooling in wall-mount cabinets from Intellinet Network Solutions and other brands
Thermostat with a temperature monitoring range of 0 to 60˚C (32 to 140°F), prevents unnecessary operation and conserves energy
UL approved

SKU: 716383

[ view high resolution images ]

Keep Your Network Equipment Cool with Our Roof Mount Fans for 19" Wall-Mount Cabinets

The 2-Fan Ventilation Unit from Intellinet Network Solutions offers reliable cooling and ideal air circulation for 19" wall-mount cabinets, enhancing the performance and longevity of your network equipment. Mounted in the cut-outs on the roof of a cabinet, it effectively dissipates damaging heat at a noise level quieter than a whisper. These standardized cut-outs ensure compatibility with most 19" wall-mount cabinets, including all standard models from Intellinet Network Solutions.

Thermostat for Energy Efficiency

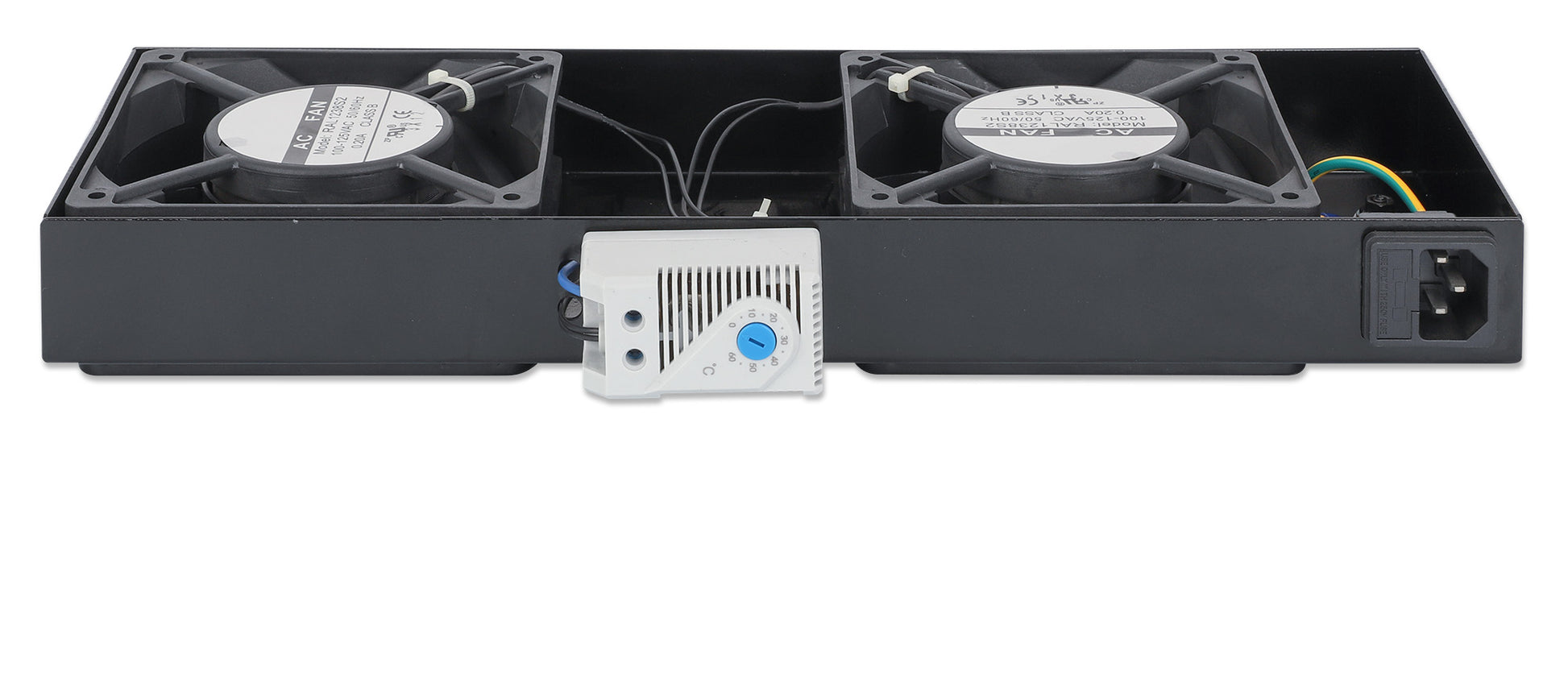

The built-in thermostat constantly monitors the temperature inside your network cabinet. Its rotary control allows you to easily select a temperature threshold for activating the ventilation fans, which turn off once the temperature drops to an acceptable level. This feature prevents unnecessary fan operation and conserves energy.

Roof-mount ventilation unit for reliable, energy-efficient cooling in wall-mount cabinets from Intellinet Network Solutions and other brands
Thermostat with a temperature monitoring range of 0 to 60˚C (32 to 140°F), prevents unnecessary operation and conserves energy
UL approved
Quiet fans with a noise level of only 24.9 db (A)
Ground cable included

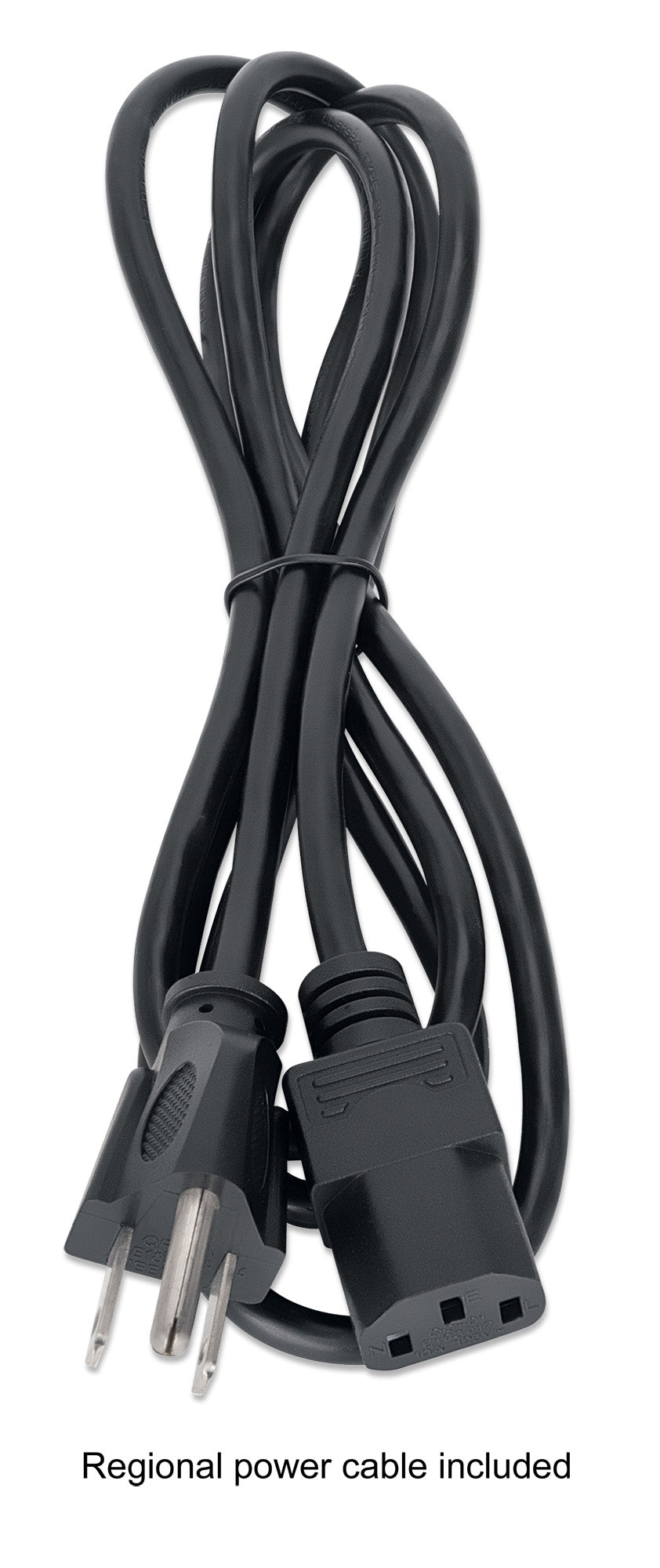

Detachable 1.8 m (6 ft.) power cord with C13 to AC plug
Three-year warranty

UL
CE
RoHS
REACH
UKCA
Two fans
Air flow: 85 m³/h (50 cfm) per fan
Noise level: 24.9 db (A)
Power cable plugs: C13 to AC
Rated power: 10.0 W
MTBF: 30,000 hours
Temperature range: 0 - 60°C (14 - 122°F)
Operating voltage: 110.0 - 240.0 VAC, 50 - 60 Hz, 0.1 A
Dimensions per fan (L x W): 120 x 120 mm (4.72 x 4.72)
Dimensions of complete unit (L x W x H): 373 x 130 x 40 mm (14.69 x 5.12 x 1.57 in.)
Detachable power cable length: 1.8 m (6 ft.)
Net weight: 1.9 kg (4.19 lbs.)
Gross weight: 2 kg (4.41 lbs.)
2-Fan Ventilation Unit with Thermostat for 19" Wallmount Cabinets
Grounding cable
Power cable, 1.8 m (6 ft.)
