Intellinet

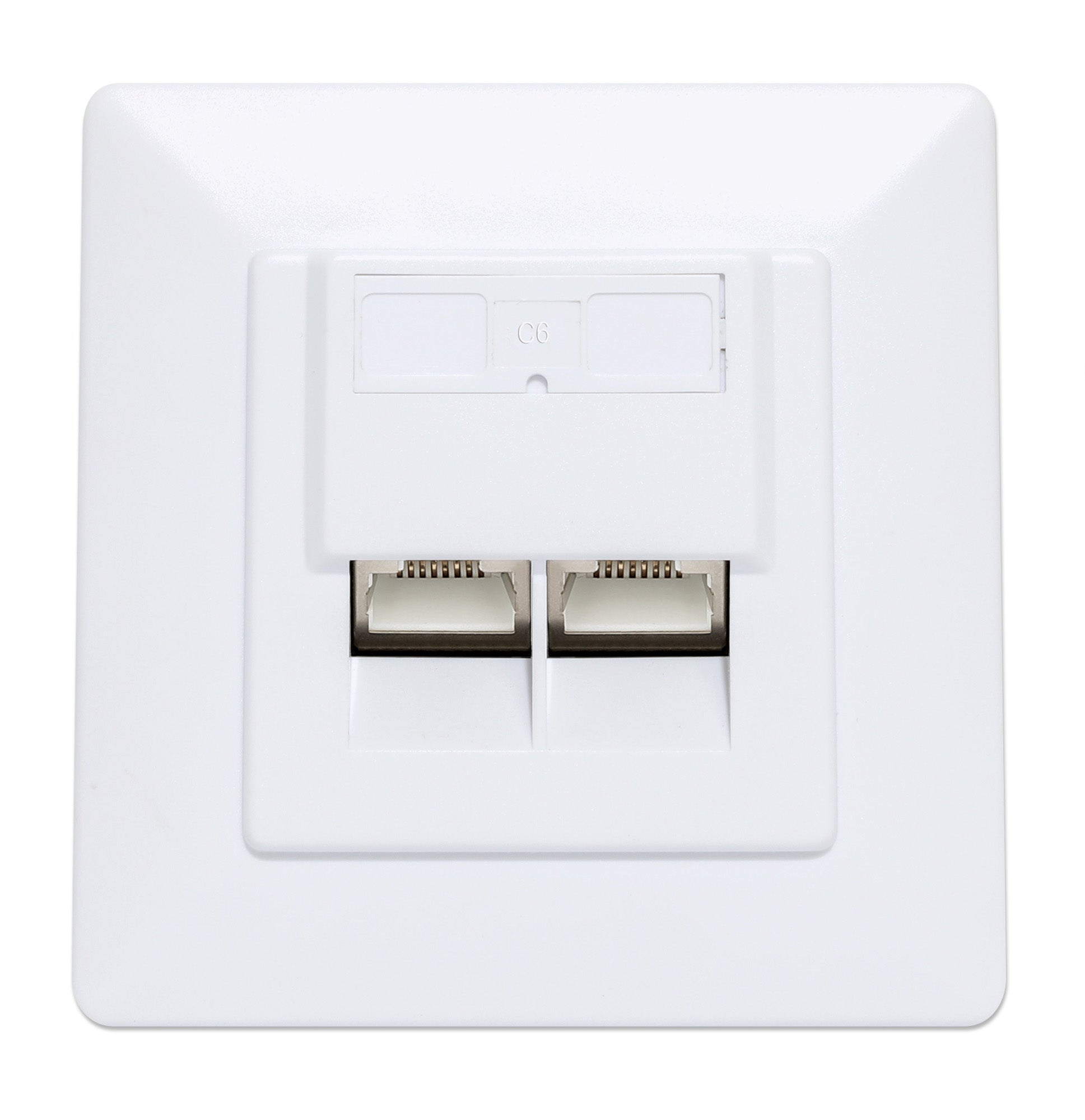

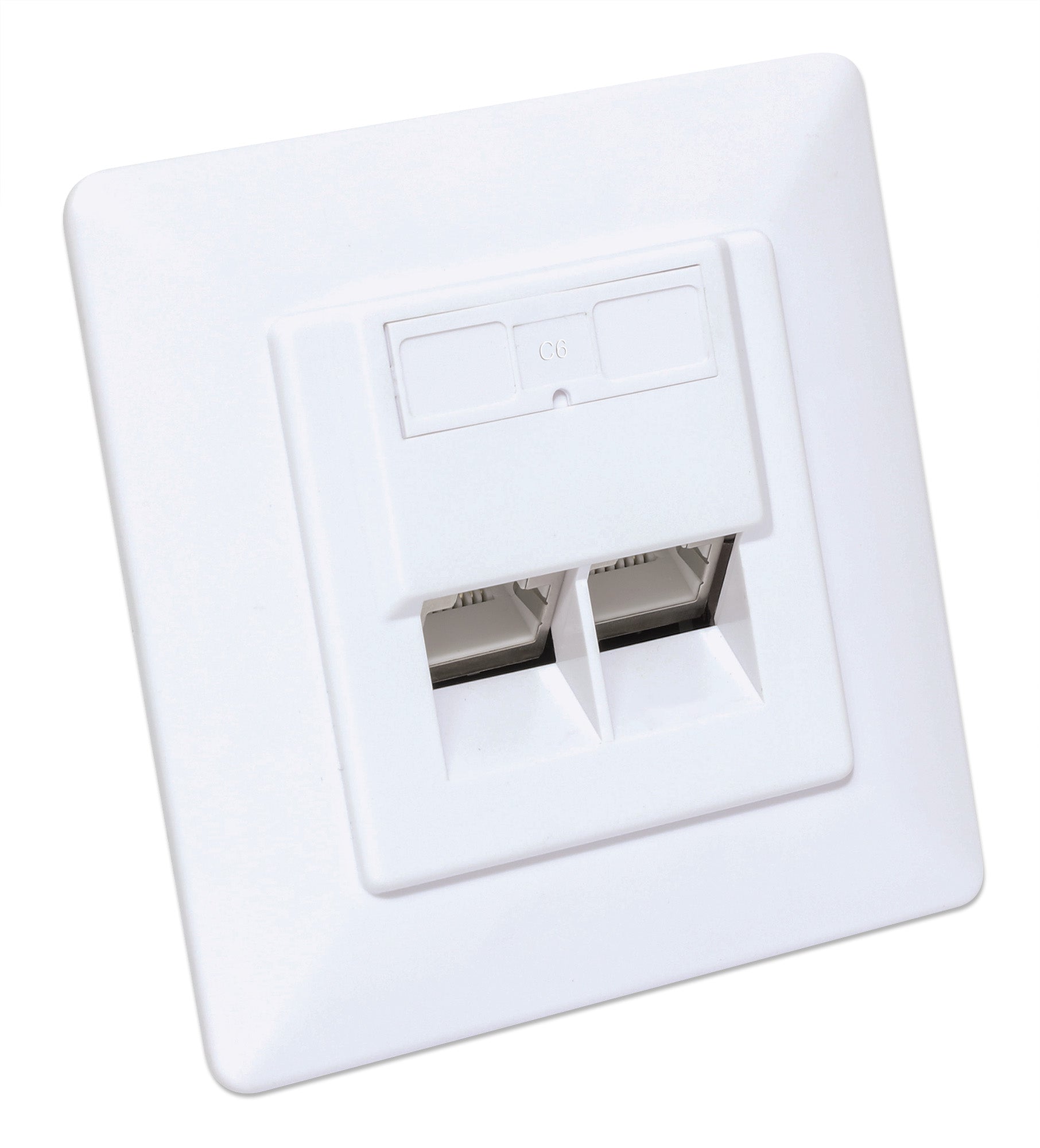

2-Port Cat6 10G Shielded RJ45 Wall Plate

Flush Mount with Faceplate, STP, Signal White RAL9003

Highlights

Cat6 STP 360° shielded RJ45 wall plate for 10G, HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
Two 40° angled outlet jacks

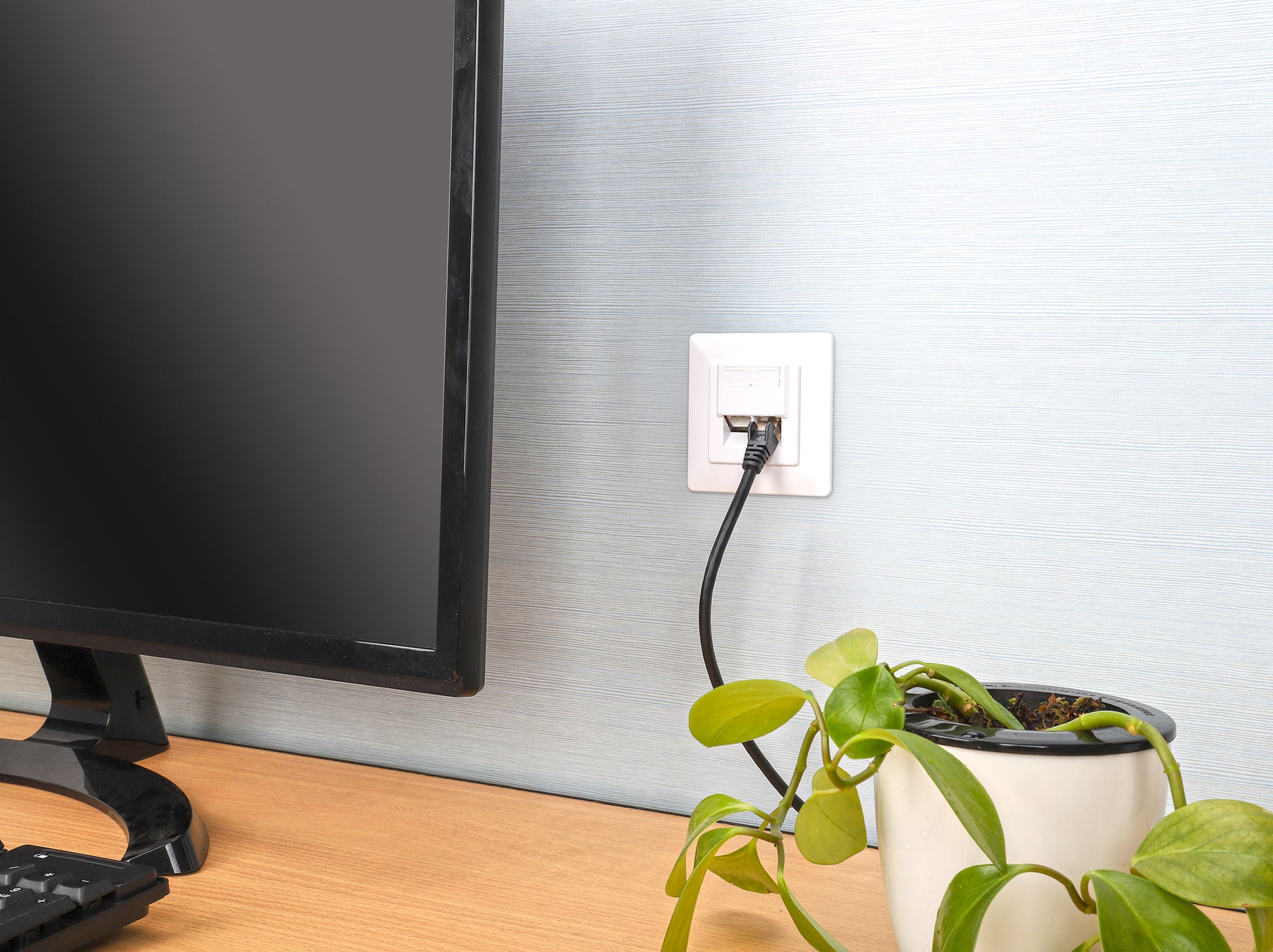

Mounts flush against the wall

SKU: 771900

[ view high resolution images ]

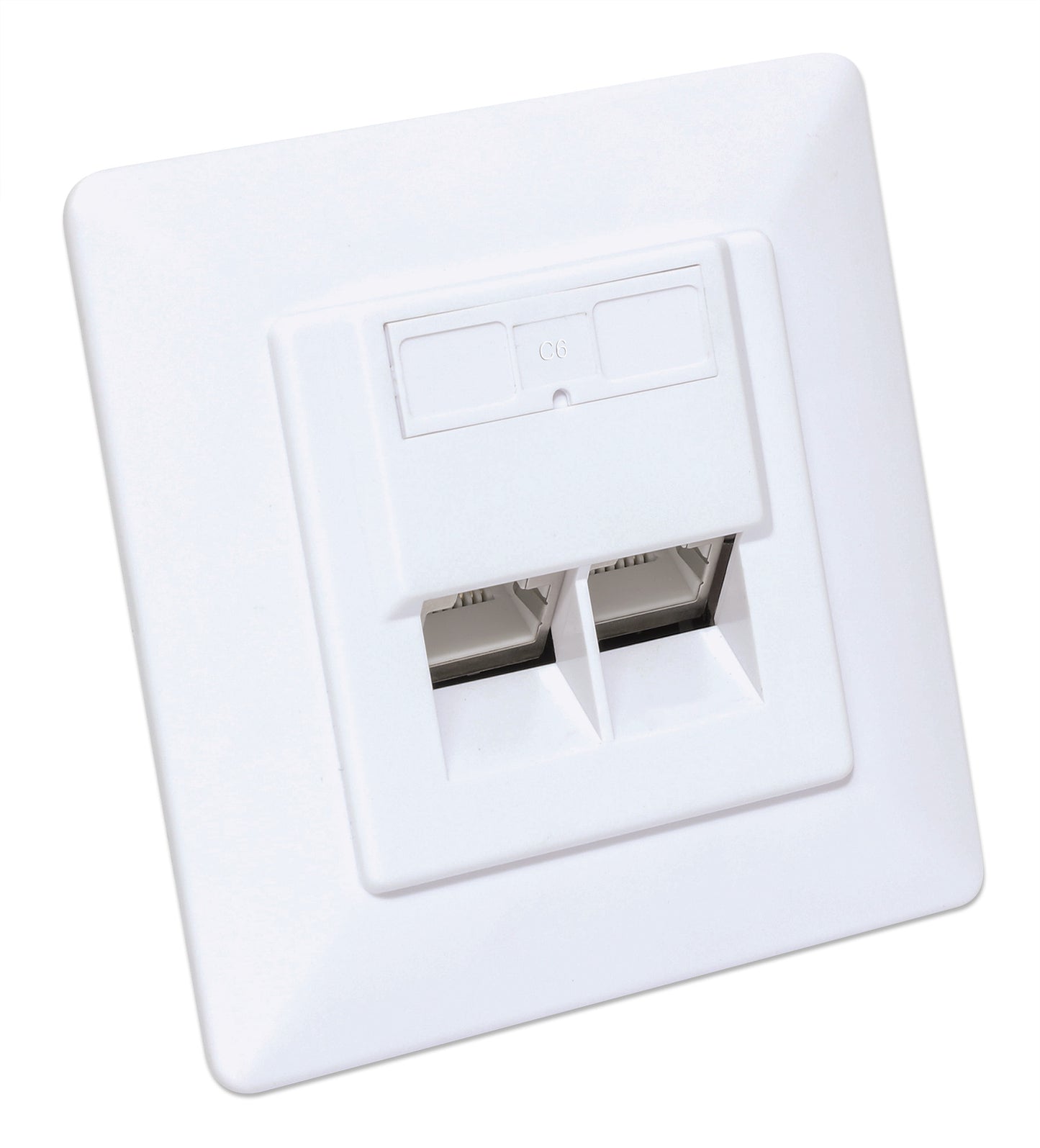

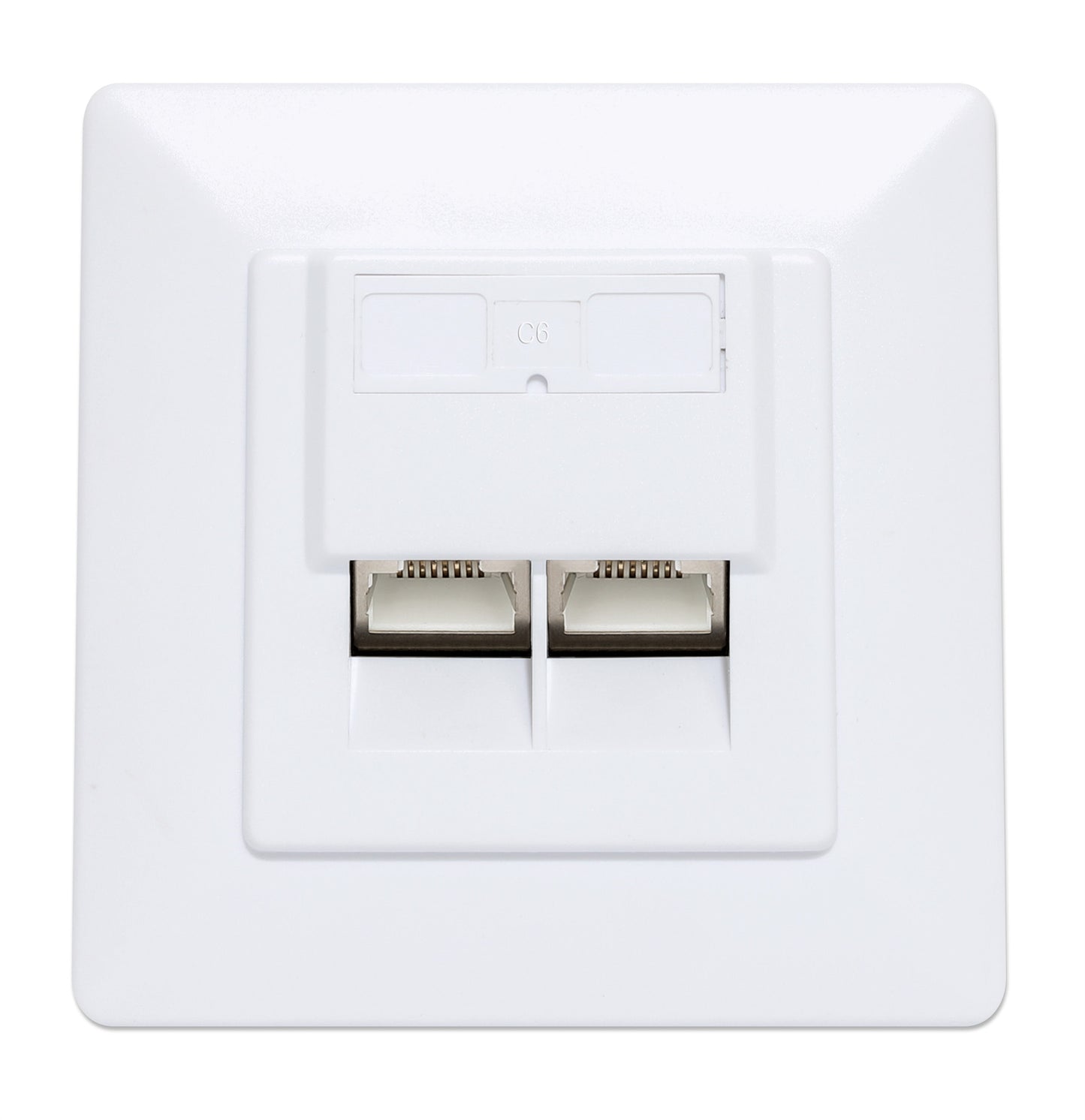

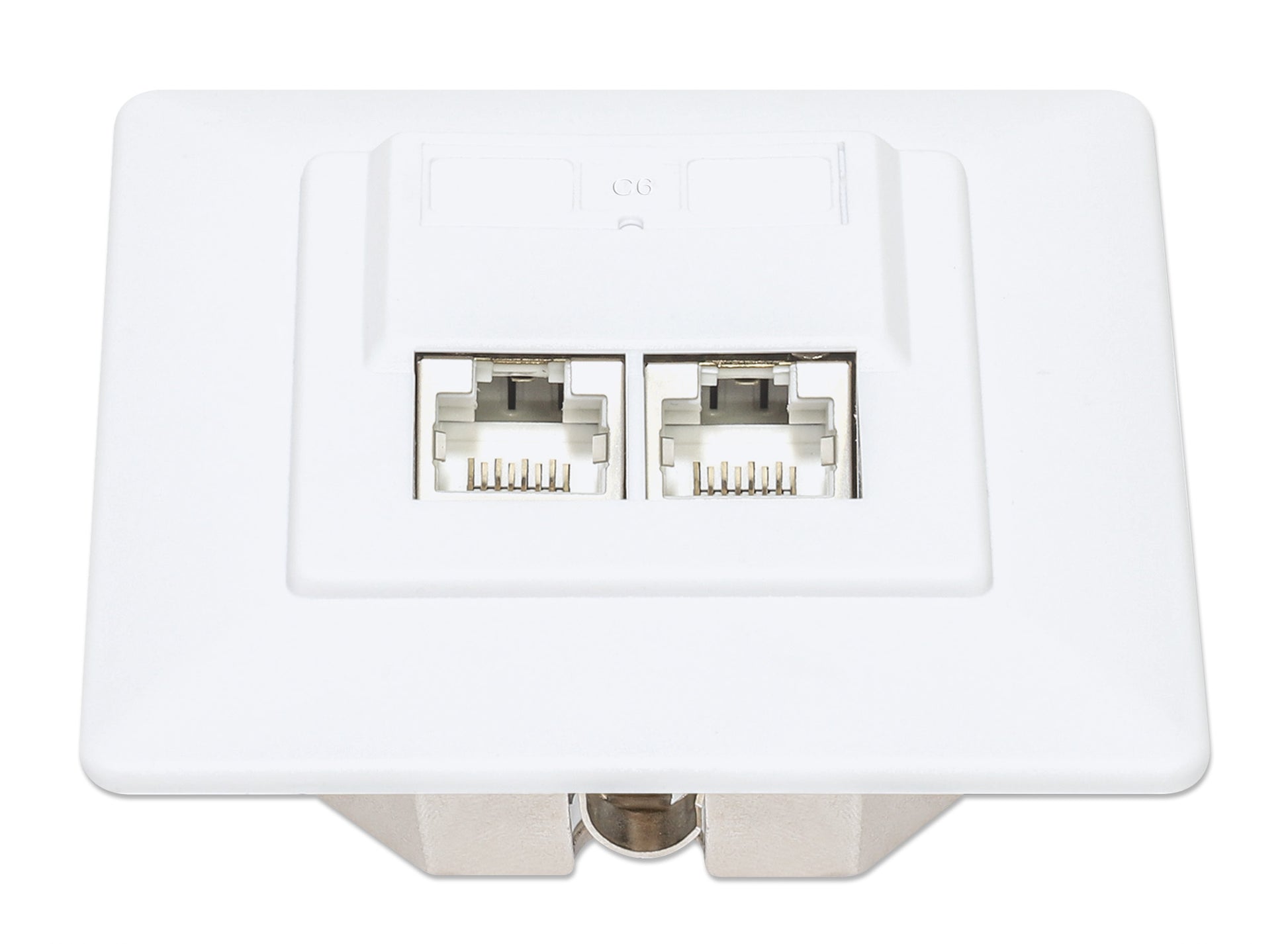

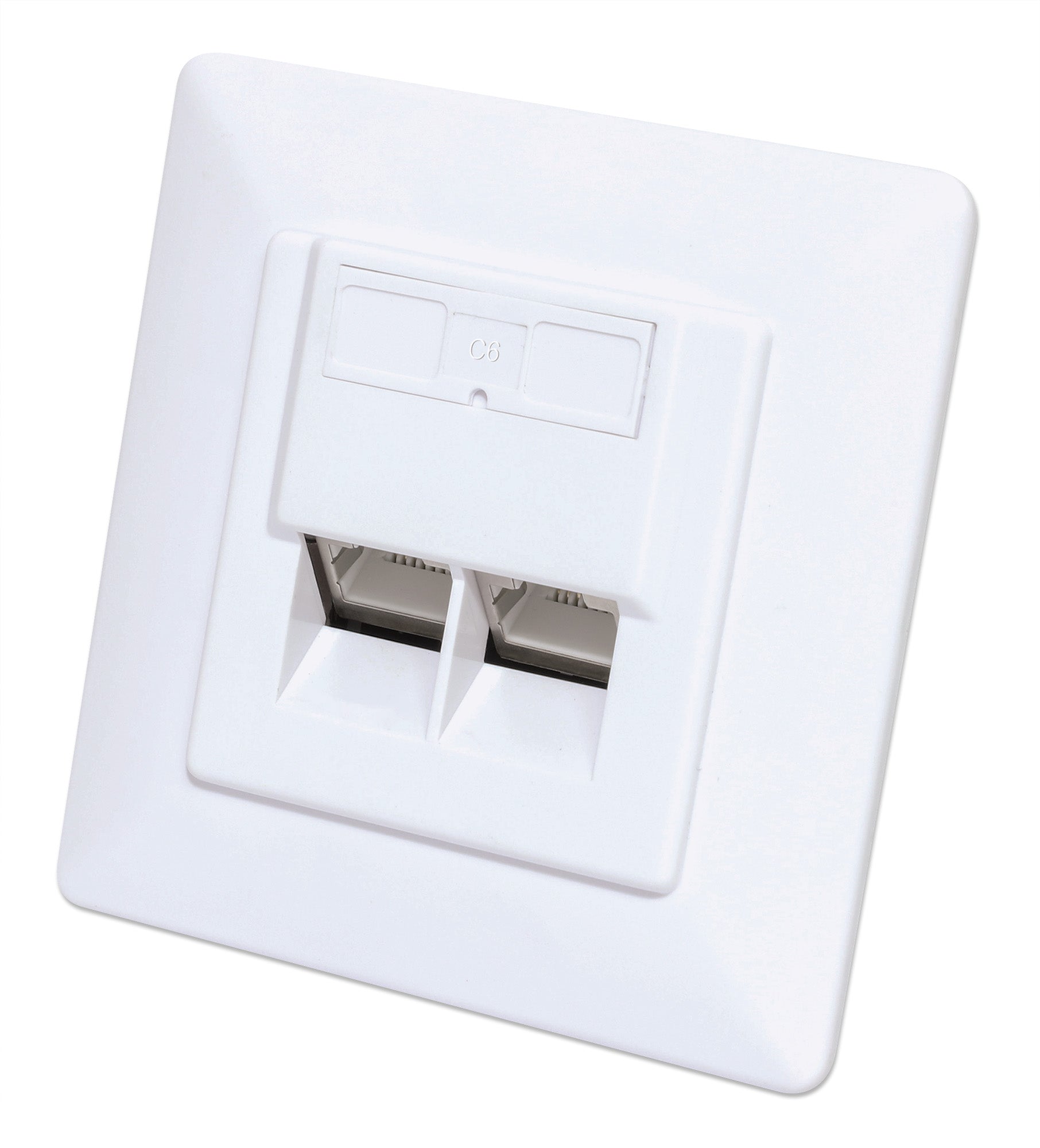

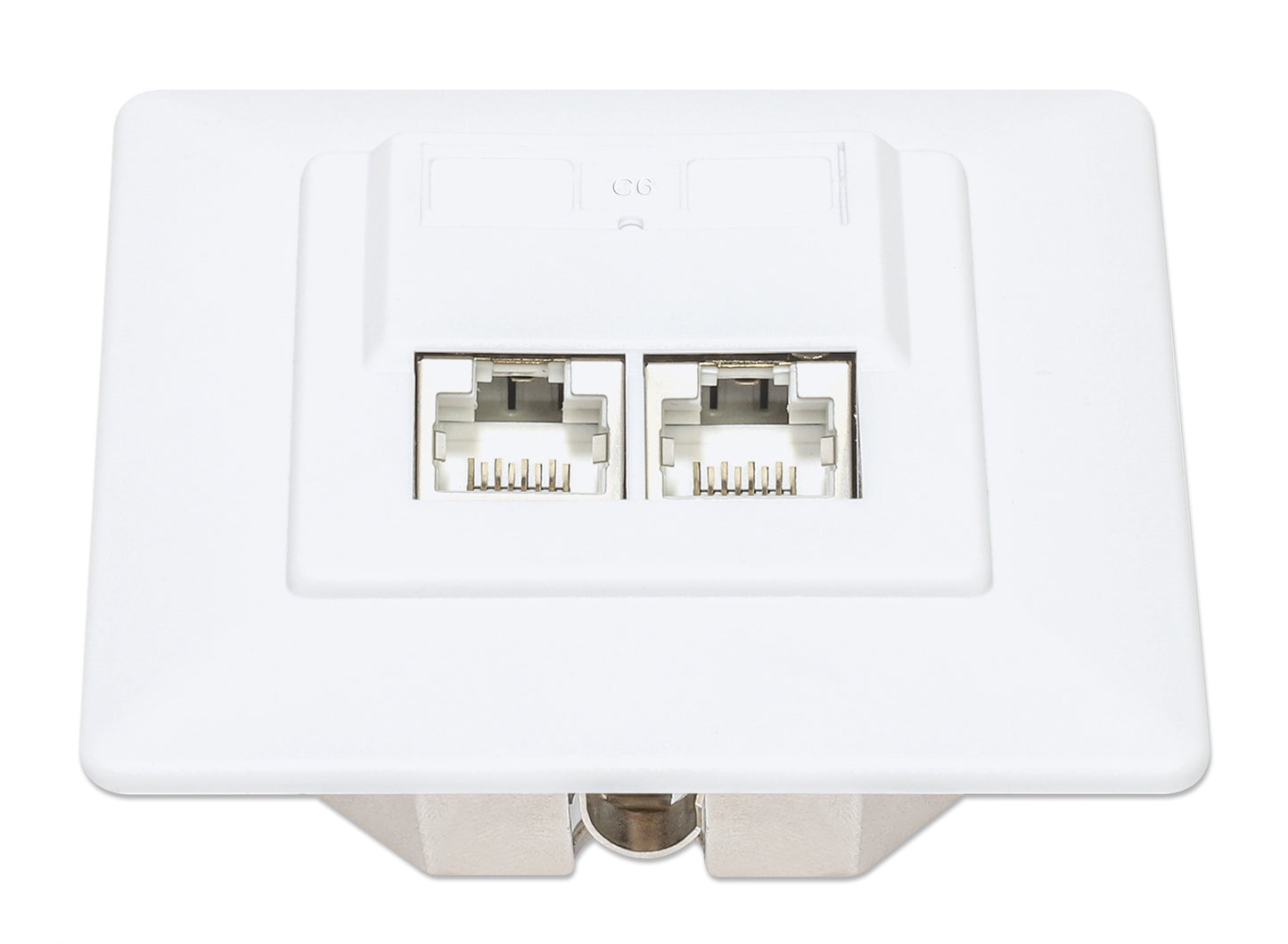

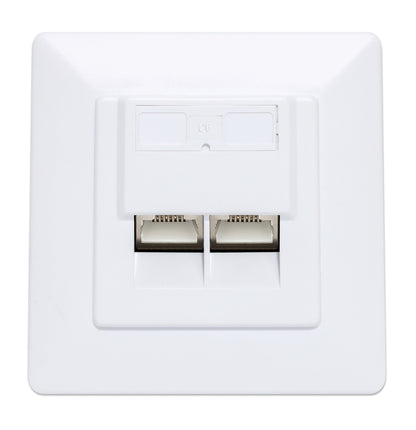

Cat6 Wall Plate - Flush-mount with 2 ports and faceplate for in-wall wiring projects

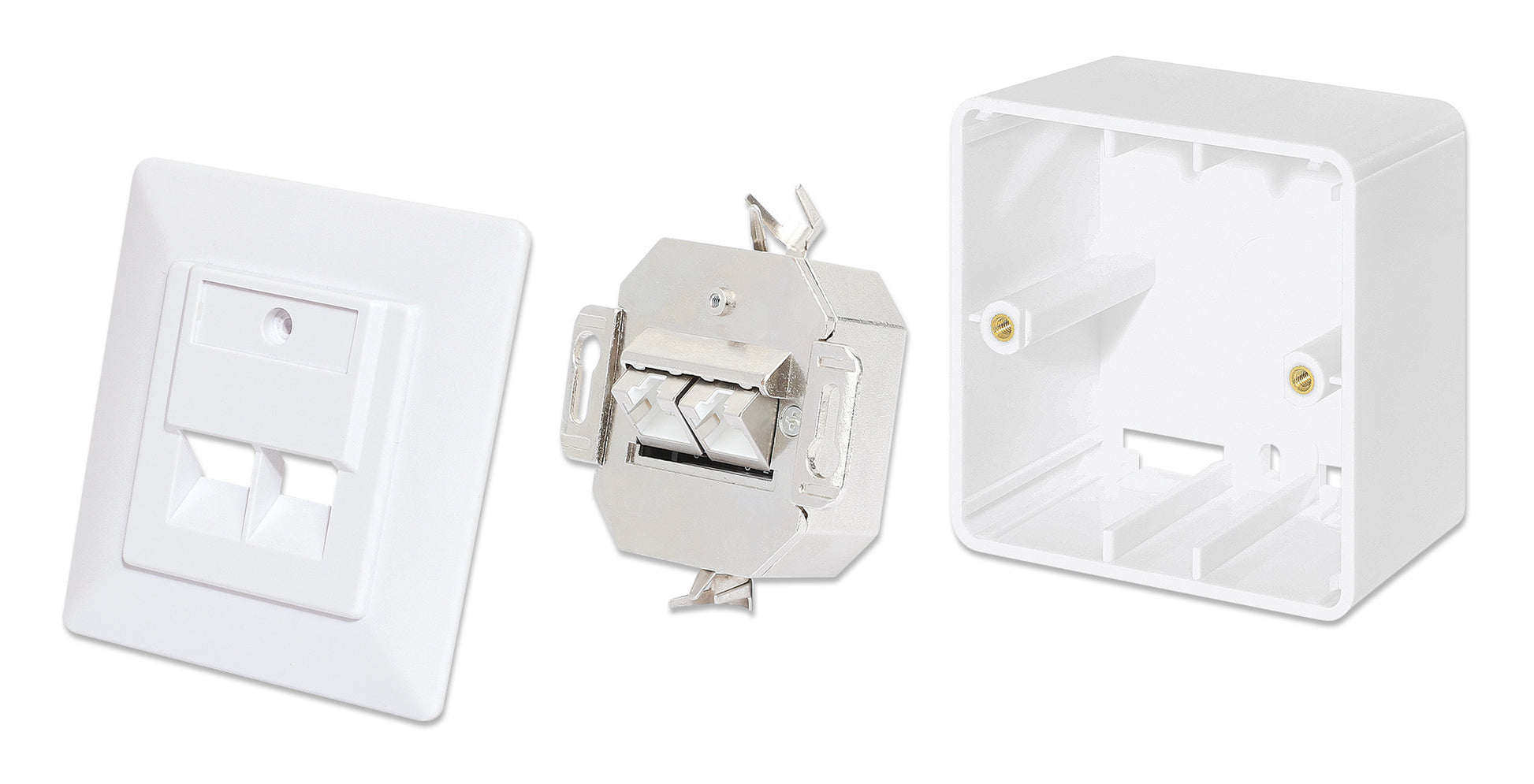

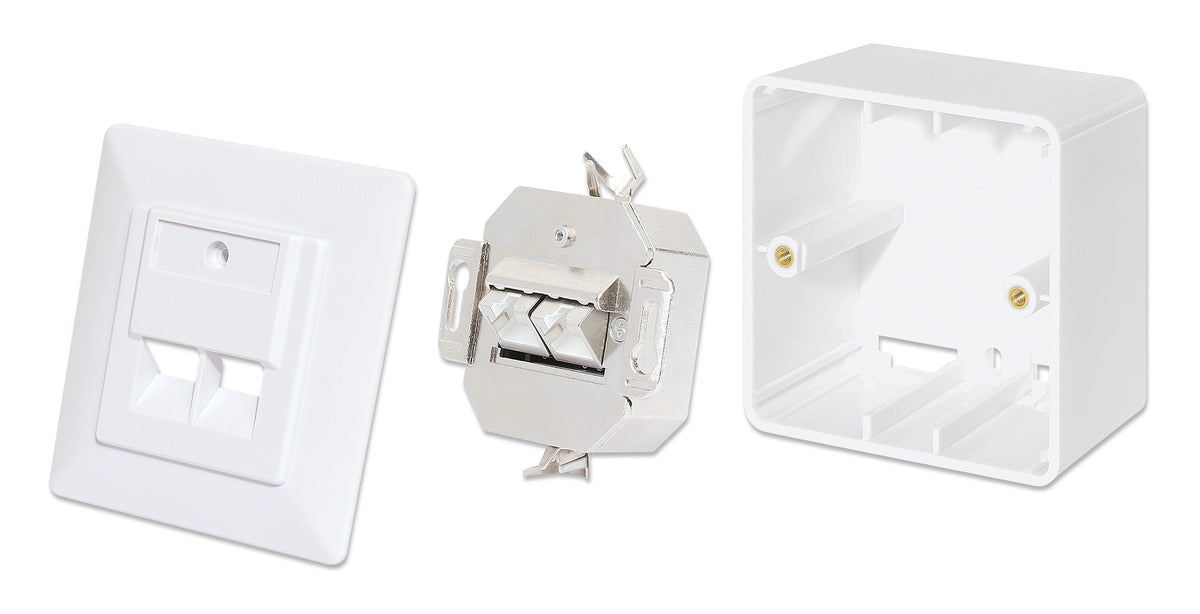

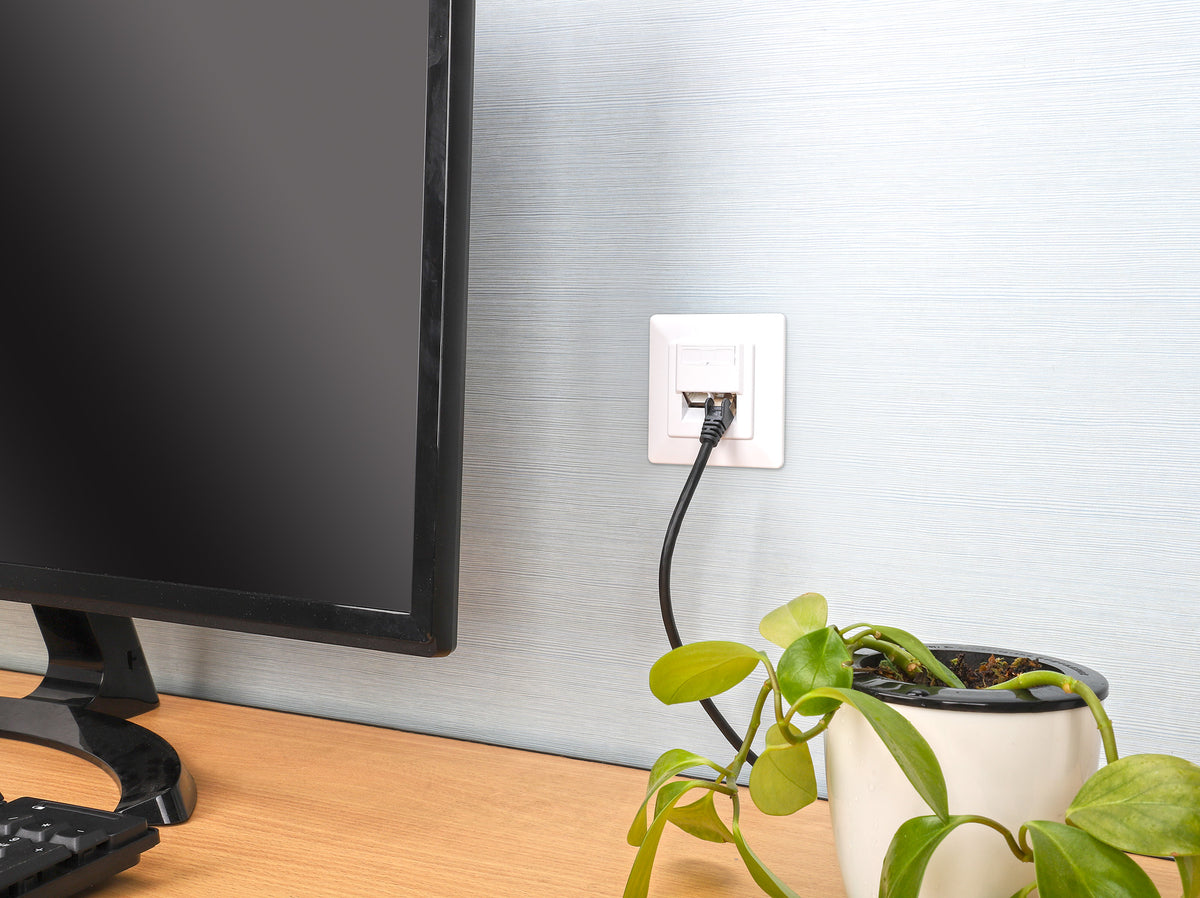

The 2-Port Cat6 10G Shielded RJ45 Wall Plate from Intellinet Network Solutions is the flush-mount outlet you need for your next network-wiring installation. Its clean faceplate provides cover for the 40°-angled outlet jacks that help keep cables close to the wall for a more professional look. This Wall Plate's Cat6 ports support 10G data transmissions with frequencies up to 250 MHz and all PoE applications up to PoE++. For an optional surface mount, use the pattress box #771894.

Cat6 STP 360° shielded RJ45 wall plate for 10G, HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
Two 40° angled outlet jacks
Mounts flush against the wall
Gold-plated contacts for corrosion-free connections
Supports solid wire with AWG 26/1 to 22/1
Compliant with ISO/IEC 11801, DIN EN 50173-1, and ANSI/TIA-568
European 80 x 80 mm faceplate design

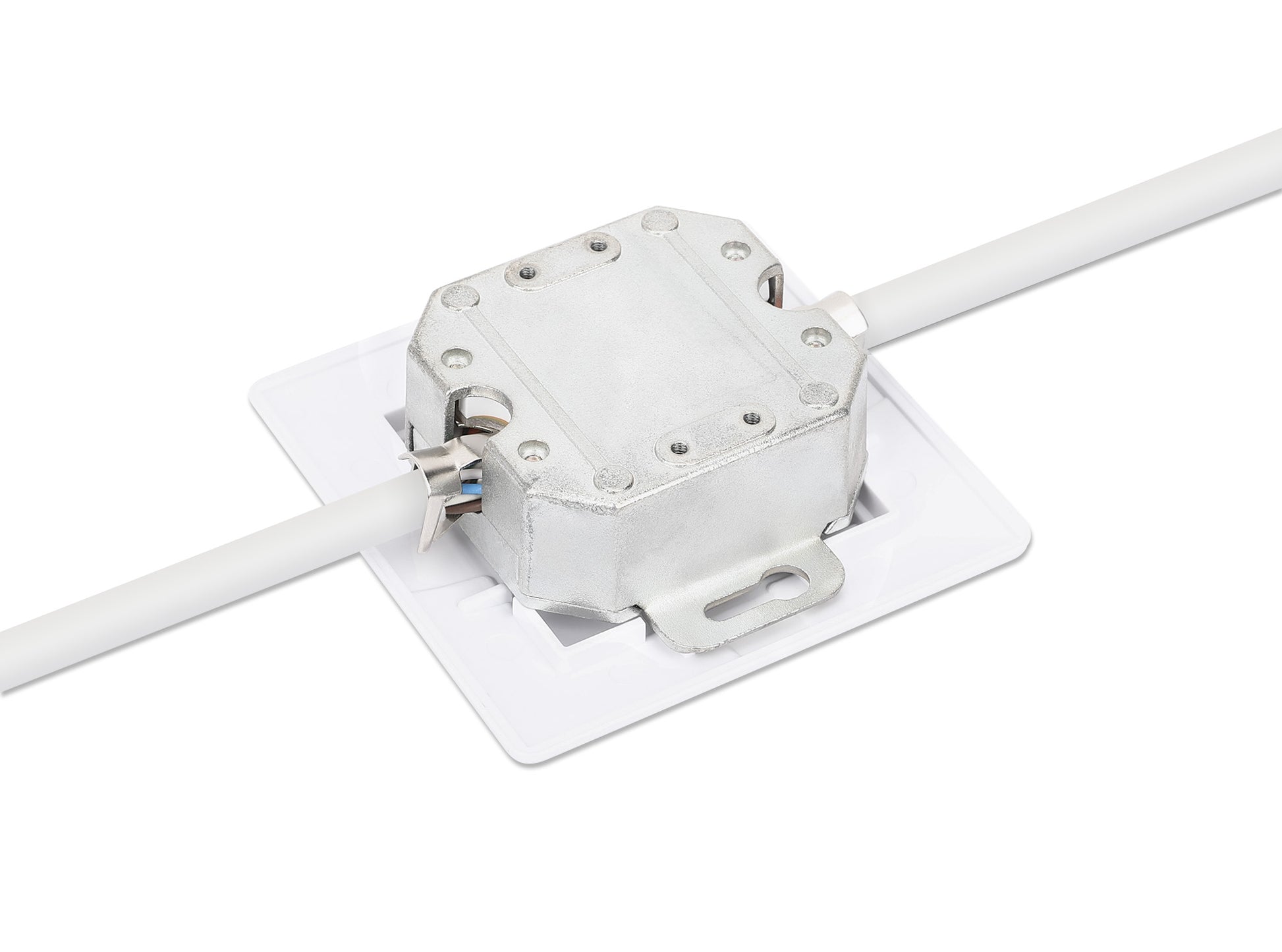

Adjustable strain relief
Standard 8P8C design, compatible with all network RJ45 connections
Integrated writable label
LSA punch-down type, compatible with 110, Krone, and other punch-down tools
Fits round cable
Lifetime warranty

CE
RoHS
ISO/IEC 11801
DIN EN 50173-1
Supports transfer speeds up to 10 Gbps
Max. operating frequency: 250 MHz
Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
Mating cycles: ≥750
Contacts: phosphor bronze, zinc-plated
Contact plating: 3 micro-inch gold
IDC: phosphor bronze
Shielding: zinc alloy
Housing: ABS plastic
Insulation resistance: ≤ 250 MOhm
Dielectric withstanding voltage: 1,000 V DC/700 V AC, 60 Hz for 1 minute
Contact resistance: 20 MOhm
Dimensions (L x W x H): 80 x 80 x 31 mm (3.15 x 3.15 x 1.22 in.)
Net weight: 150 g (5.29 oz.)
Gross weight: 160 g (5.64 oz.)
Operating temperature: -10 - 60°C (14 - 140°F)
Storage temperature: -40 - 70°C (-40 - 158°F)
Operating humidity (non-condensing): 10 - 90% RH
2-Port Cat6 10G Shielded RJ45 Wall Plate

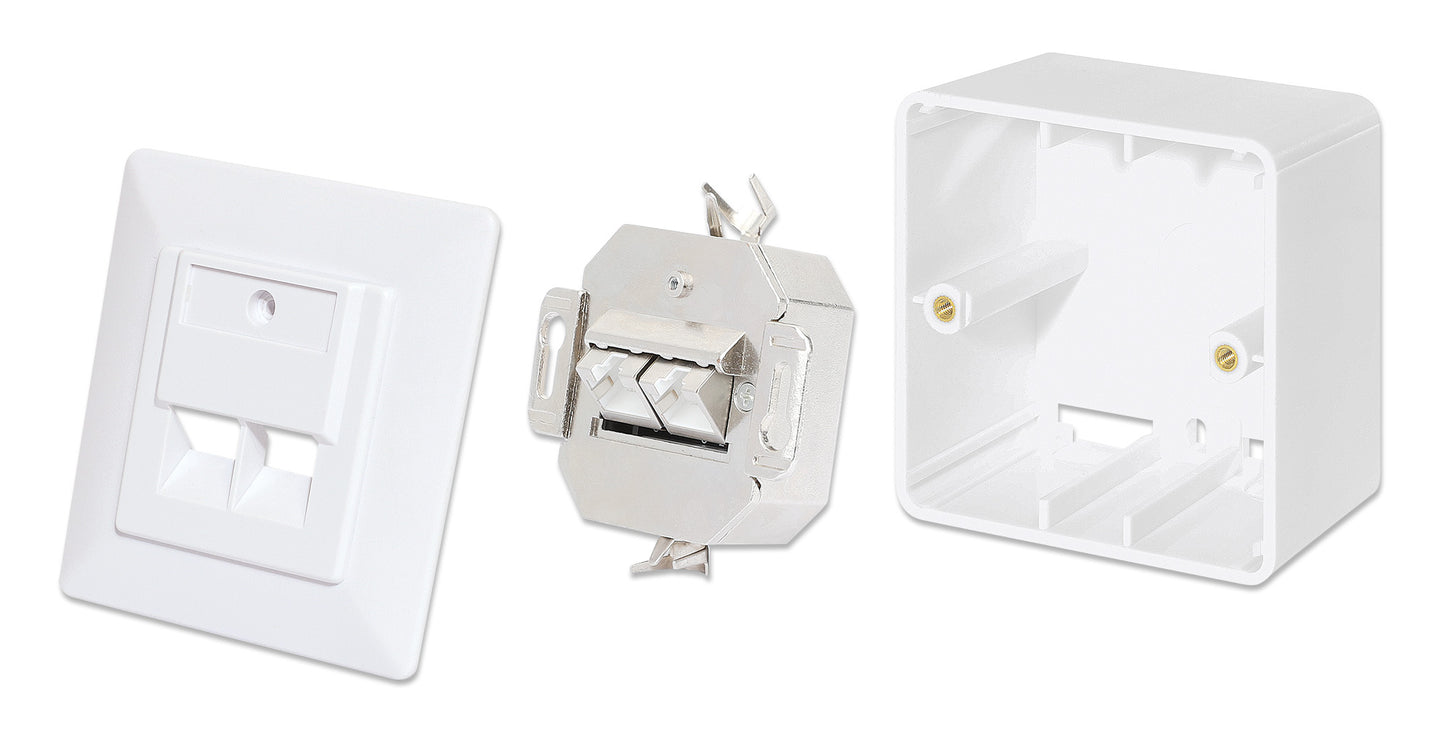

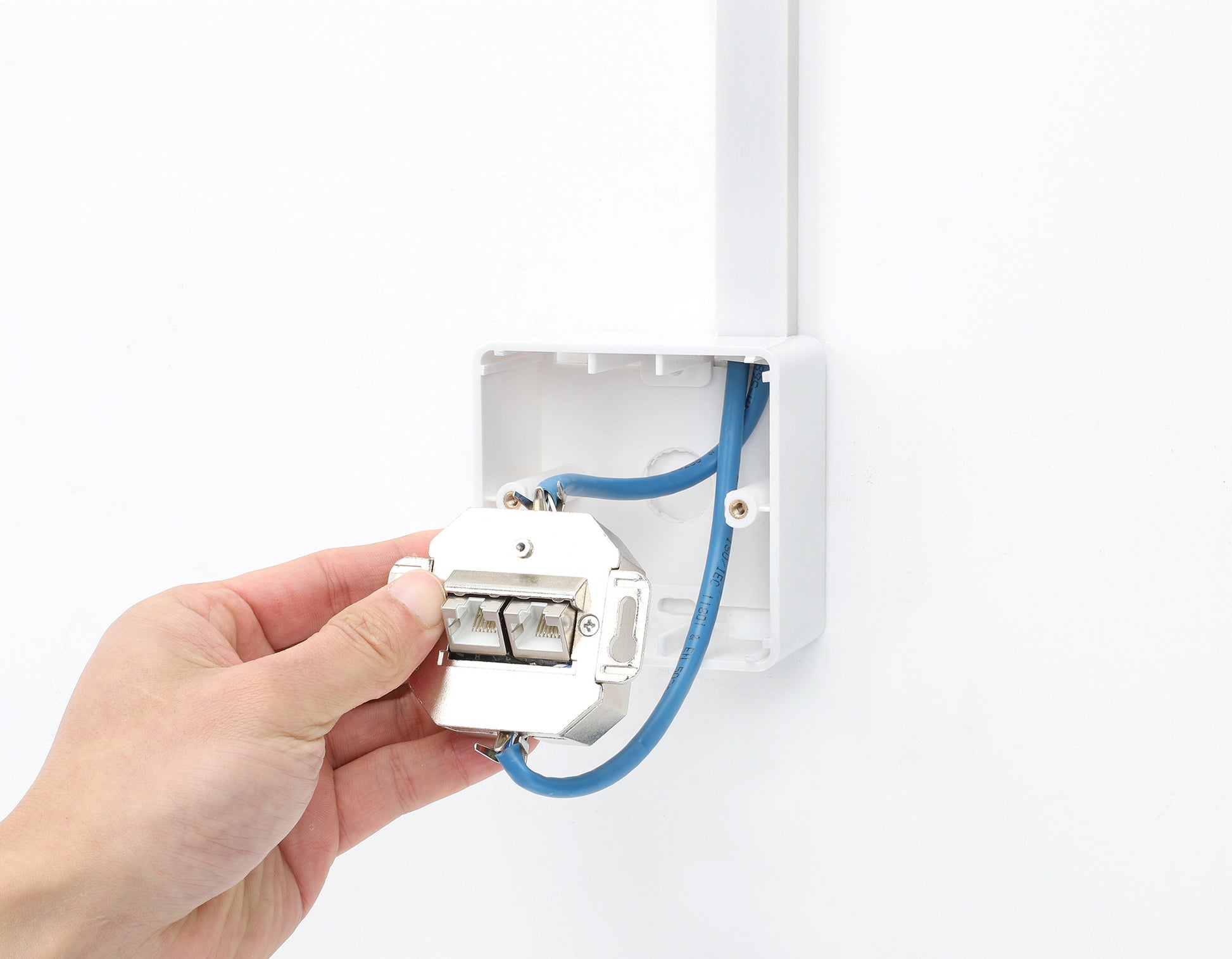

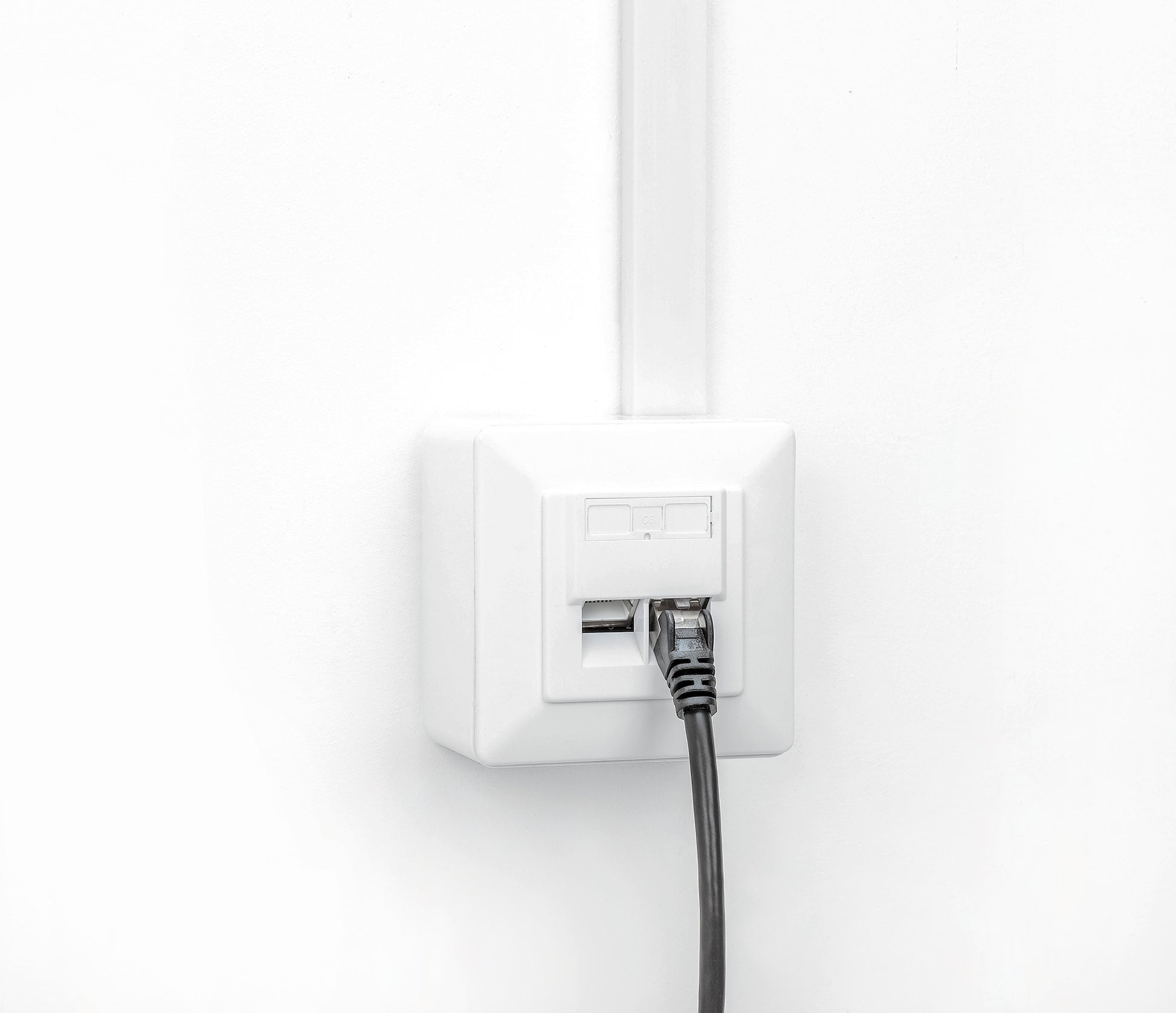

Two screws for surface mount trunking; suitable for #771894 Surface Mount Pattress Box
#771917 - Cat6a version
#771894 - Surface Mount Pattress Box
