Intellinet

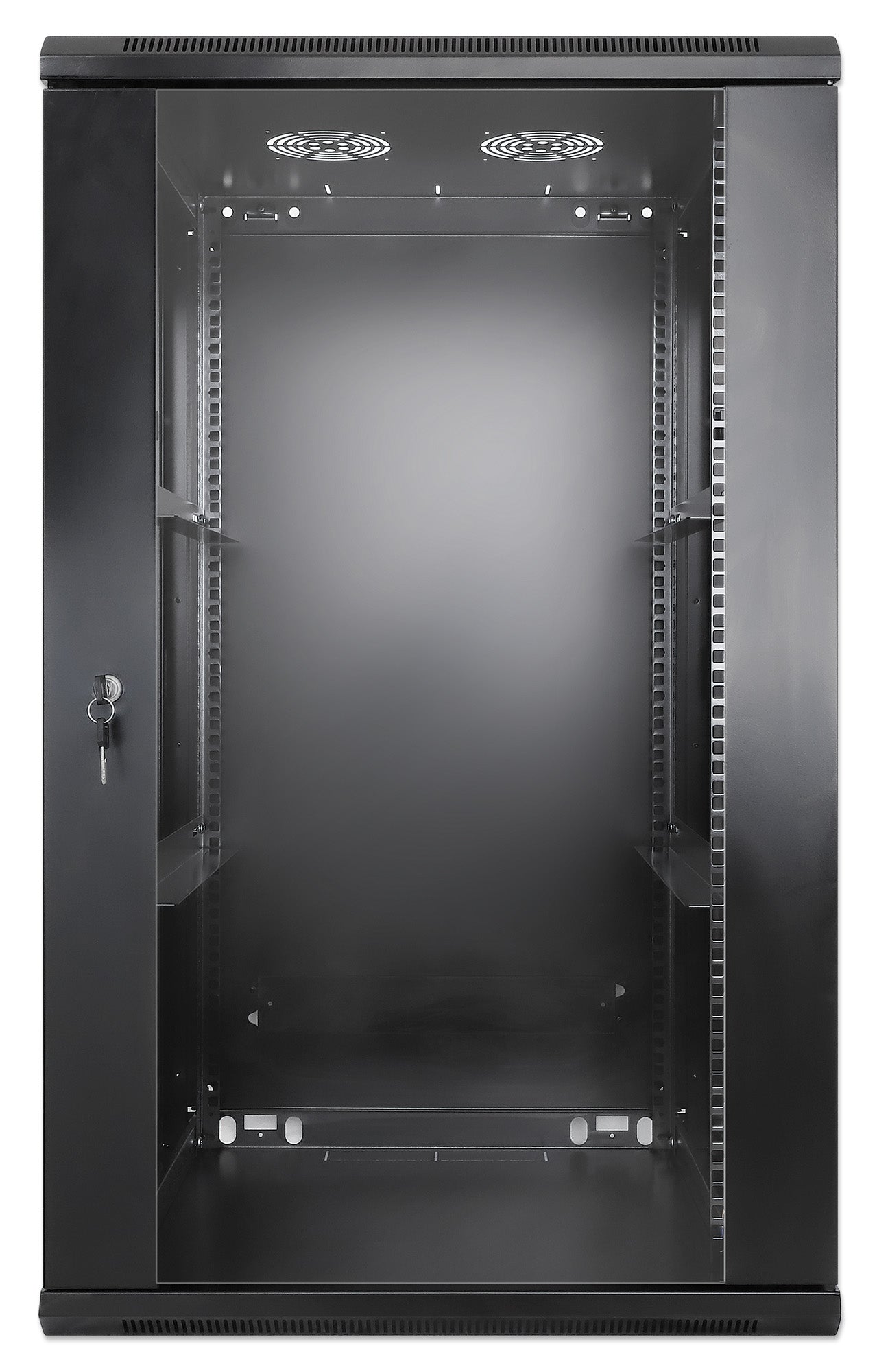

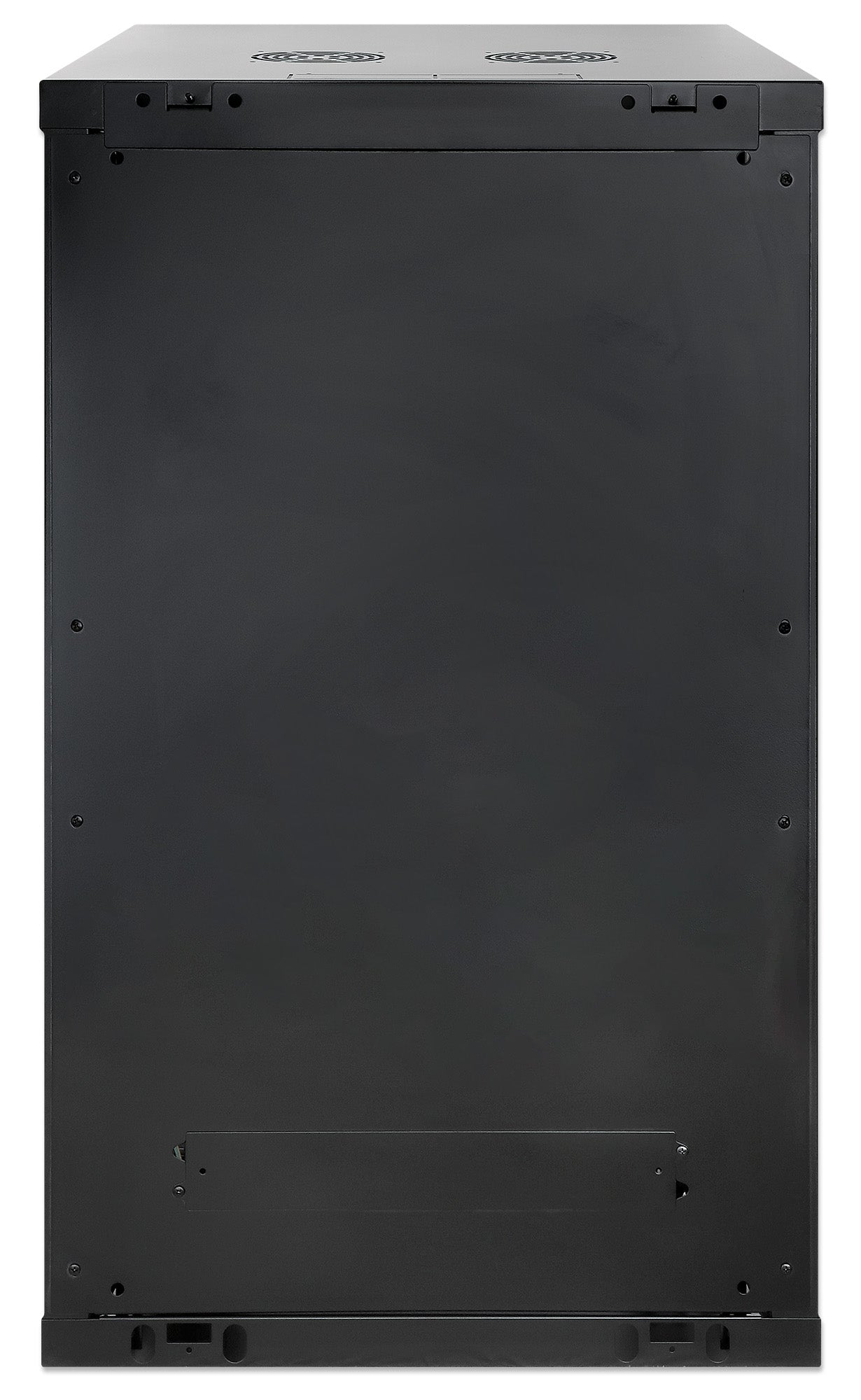

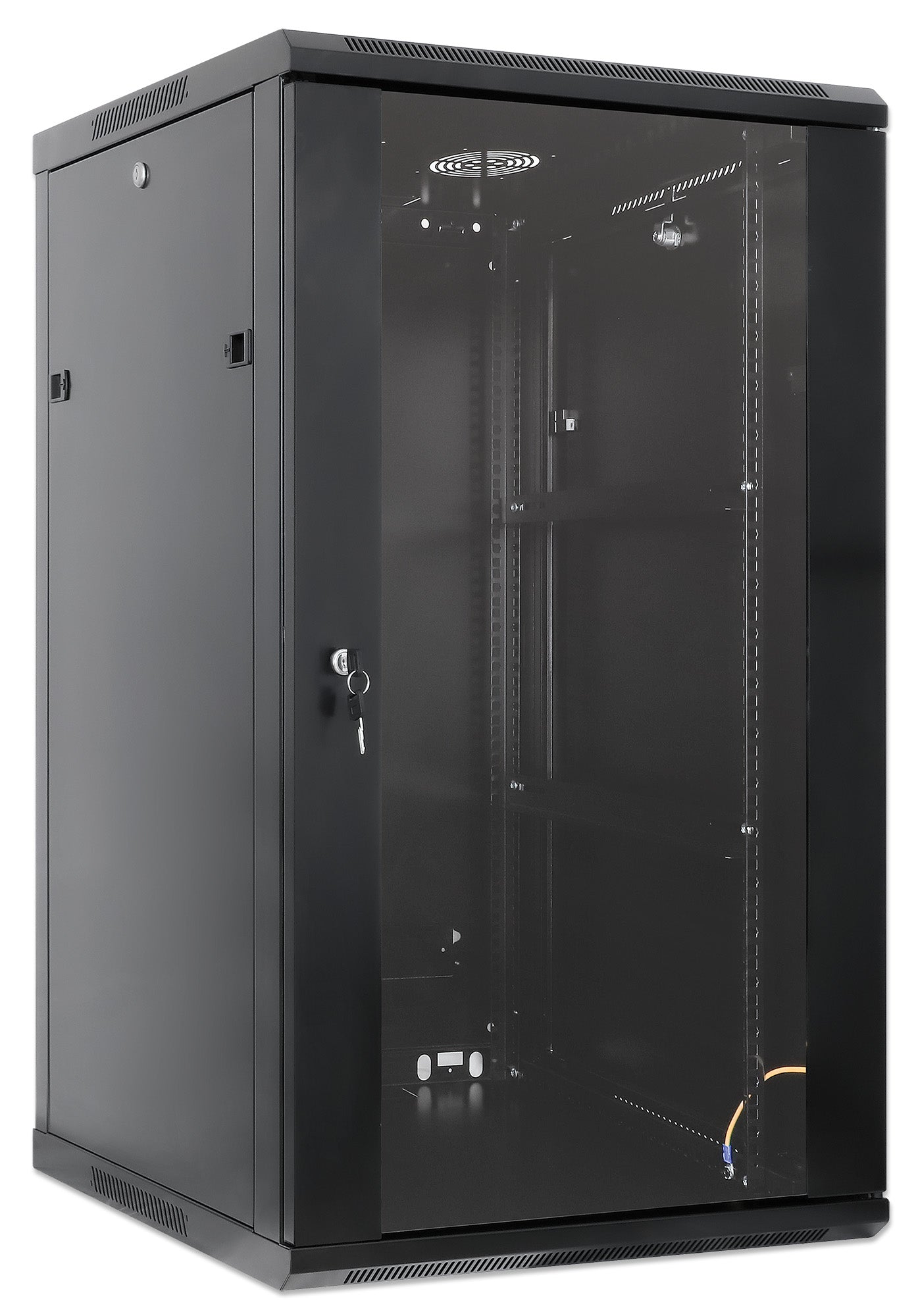

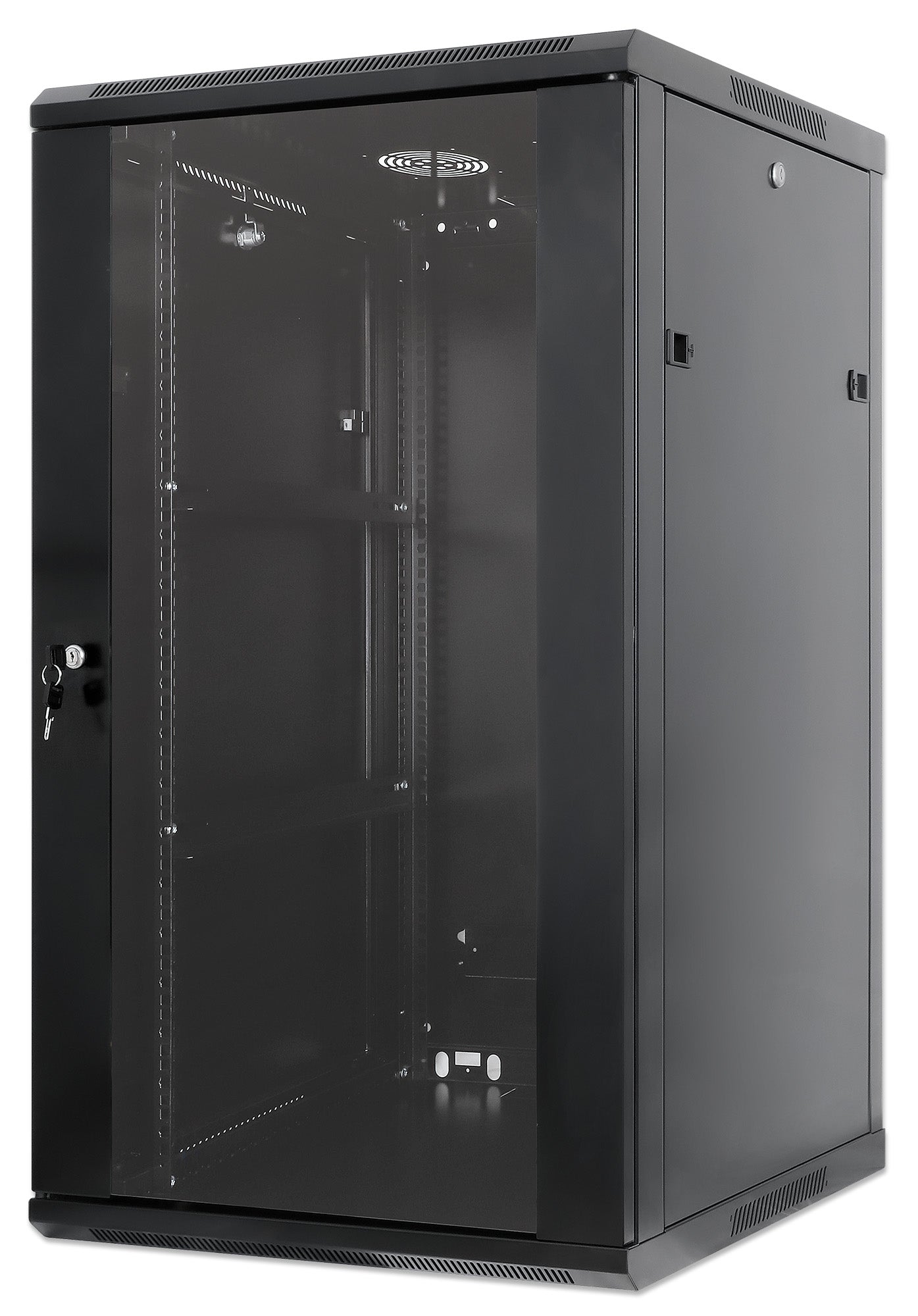

20U 19" Wall Mount Network Cabinet, 600 mm (23.6 in.) Depth, Black

Fully Assembled, Free-Standing or Wall-Mount, Reversible Glass Door, Installation Depth 212 to 519 mm (8.4 to 20.4 in.)

Highlights

Ideal for 19" rackmount applications
Maximum static load of 60 kg
Usable depth: 212 mm (8.35 in.) to 519 mm (20.43 in.)

SKU: 712057

[ view high resolution images ]

The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL 9004) gray (RAL 7035).
We offer you a solution for every need.
Various options include:
Removable side panels (some lockable).
Tempered/Toughened glass doors.
Double Section, making cabling and component exchange simple.

Ideal for 19" rackmount applications
Maximum static load of 60 kg
Usable depth: 212 mm (8.35 in.) to 519 mm (20.43 in.)

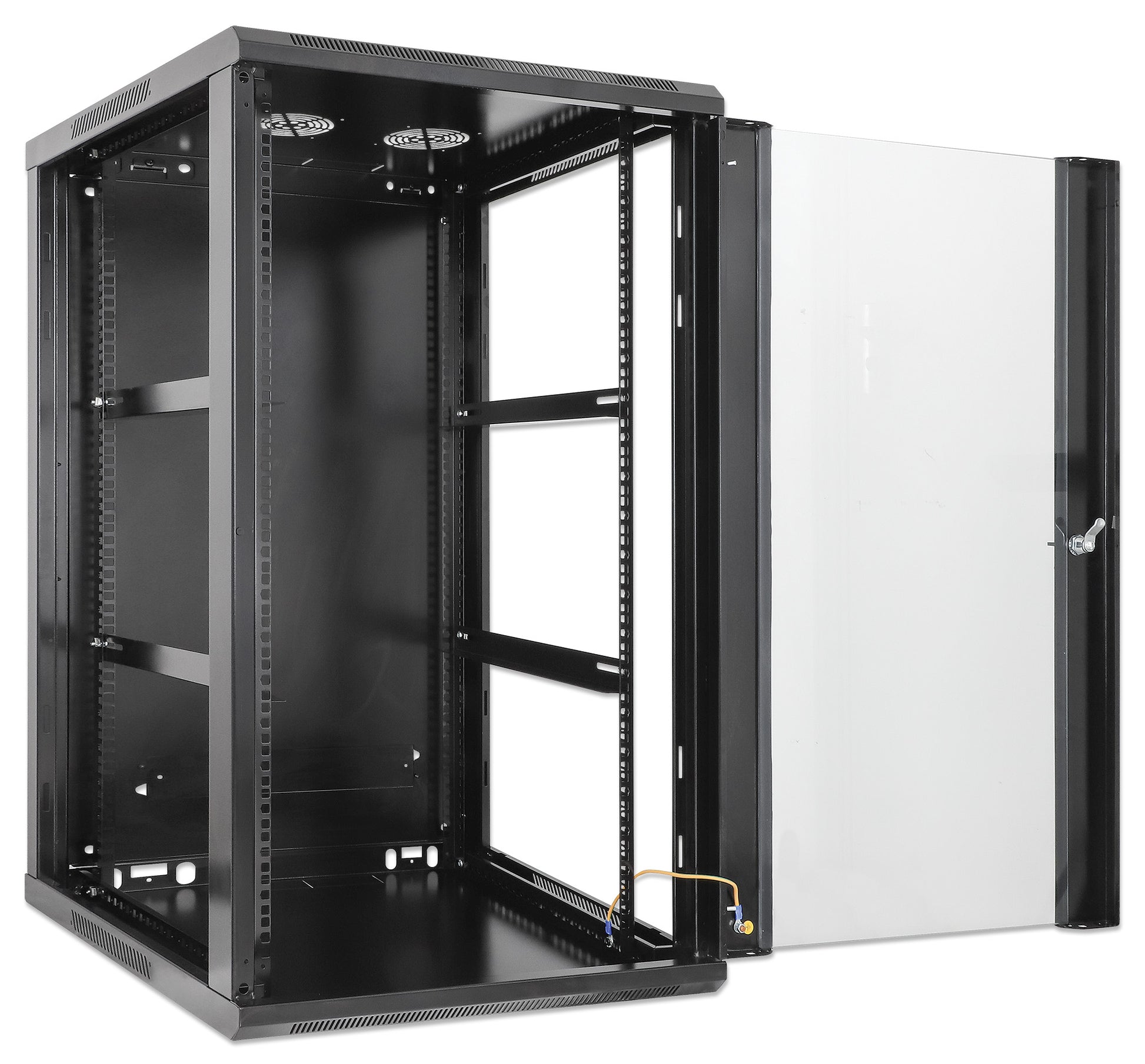

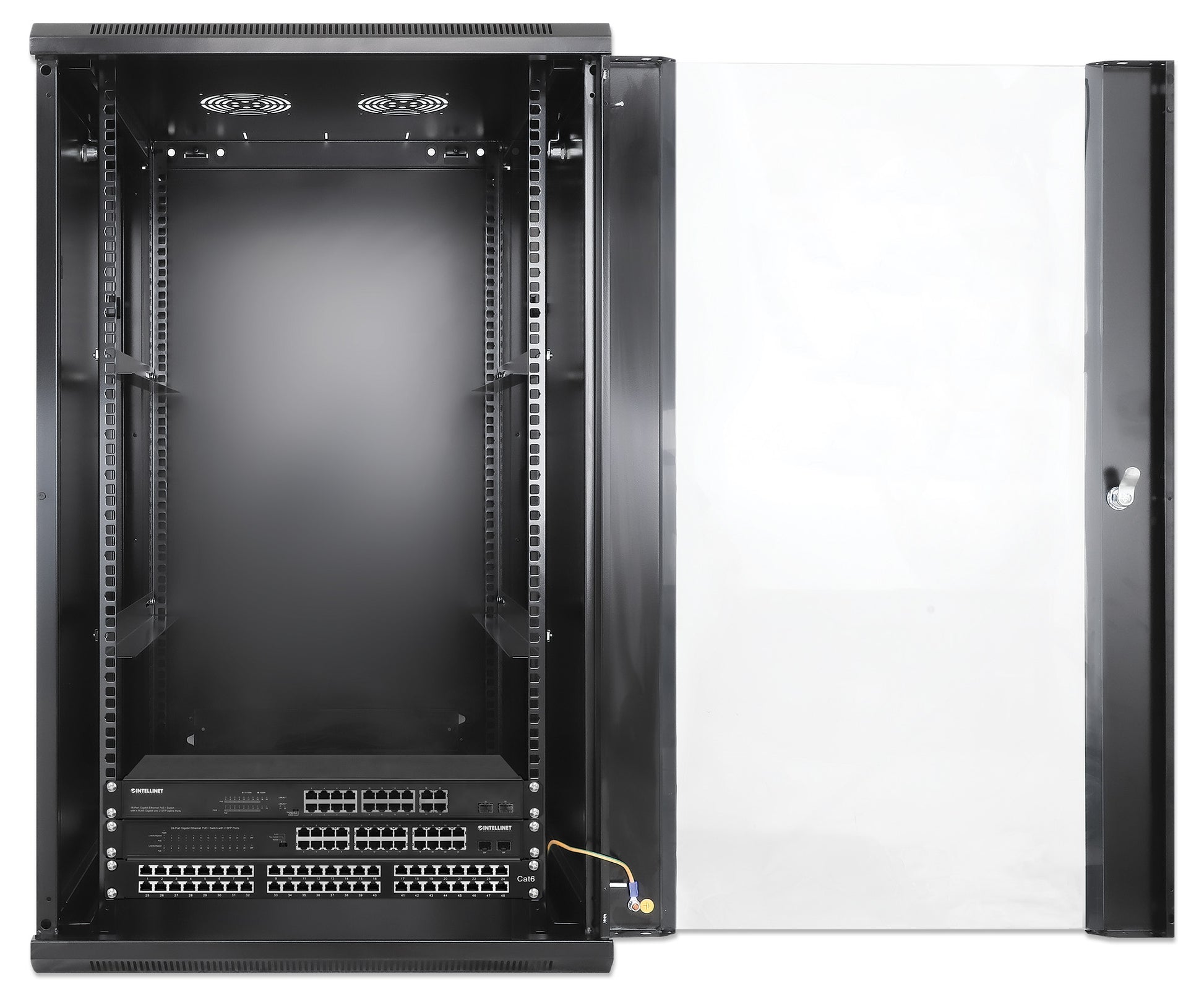

Tempered-glass door can be opened more than 180°

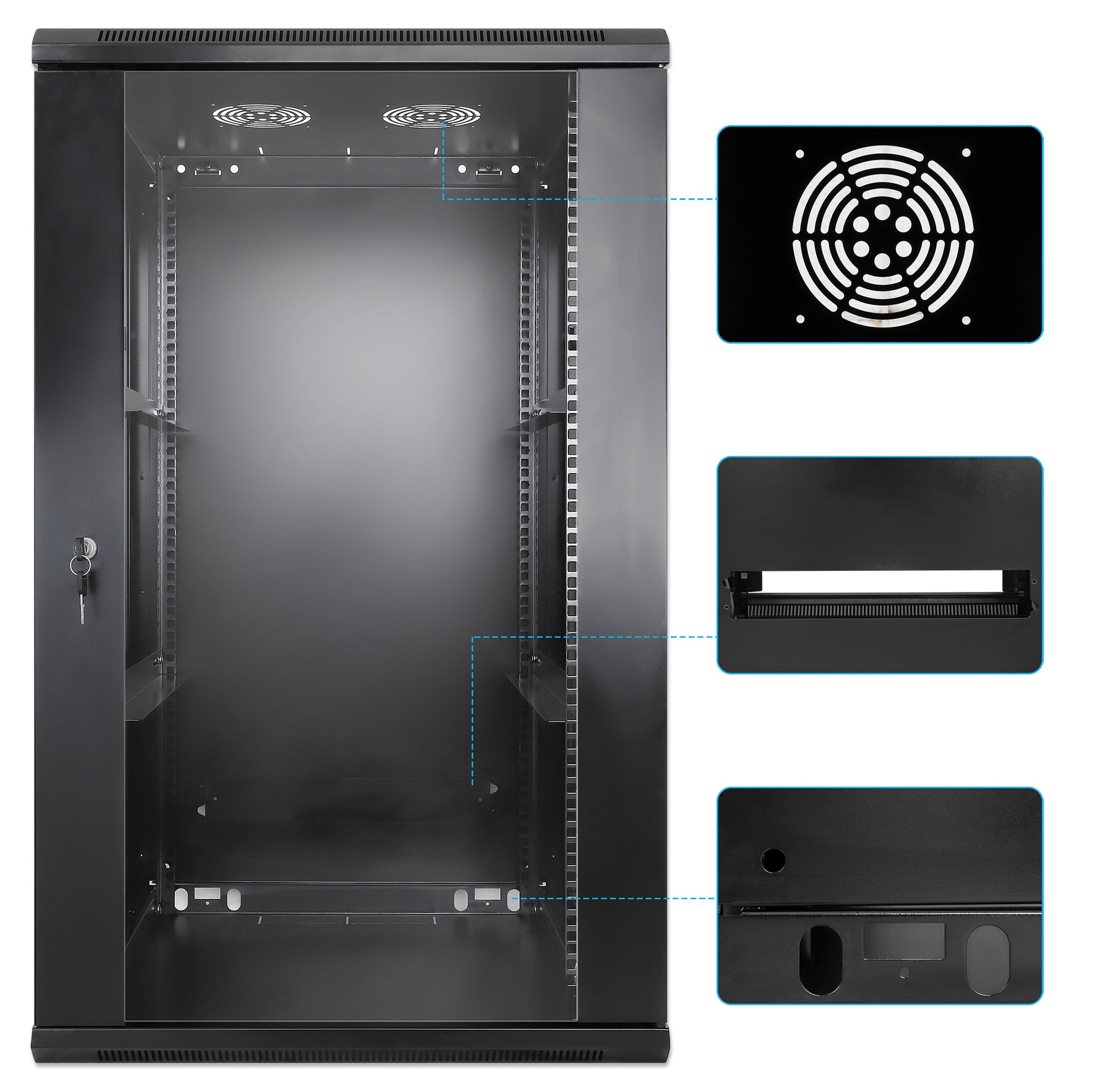

Cable entry via rear or top panel
Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
Reversible Front door
Lockable removable side panels
Ships assembled
Three-Year Warranty

19"
Height: 20U
Color: Black RAL 9004
Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
990 (h) x 600 (w) x 600 (d) mm
39 (h) x 23.6 (w) x 23.6 (d) in.
Usable depth: 212 mm (8.35 in.) to 519 mm (20.43 in.)

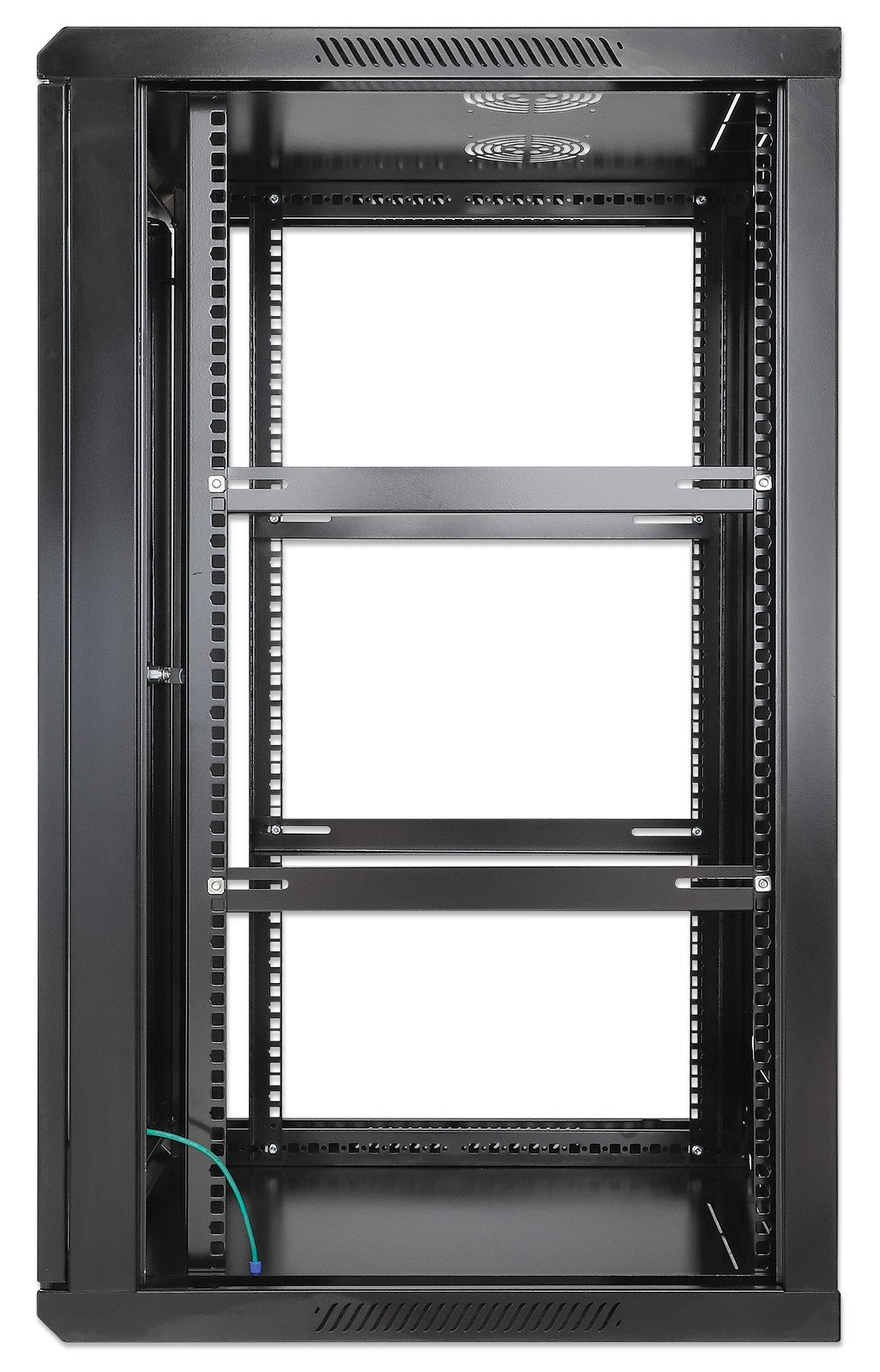

Wall mount Cabinet with 4 mounting rails
Installation hardware including tool, 20x M6 Sets and 6x Keys
