Intellinet

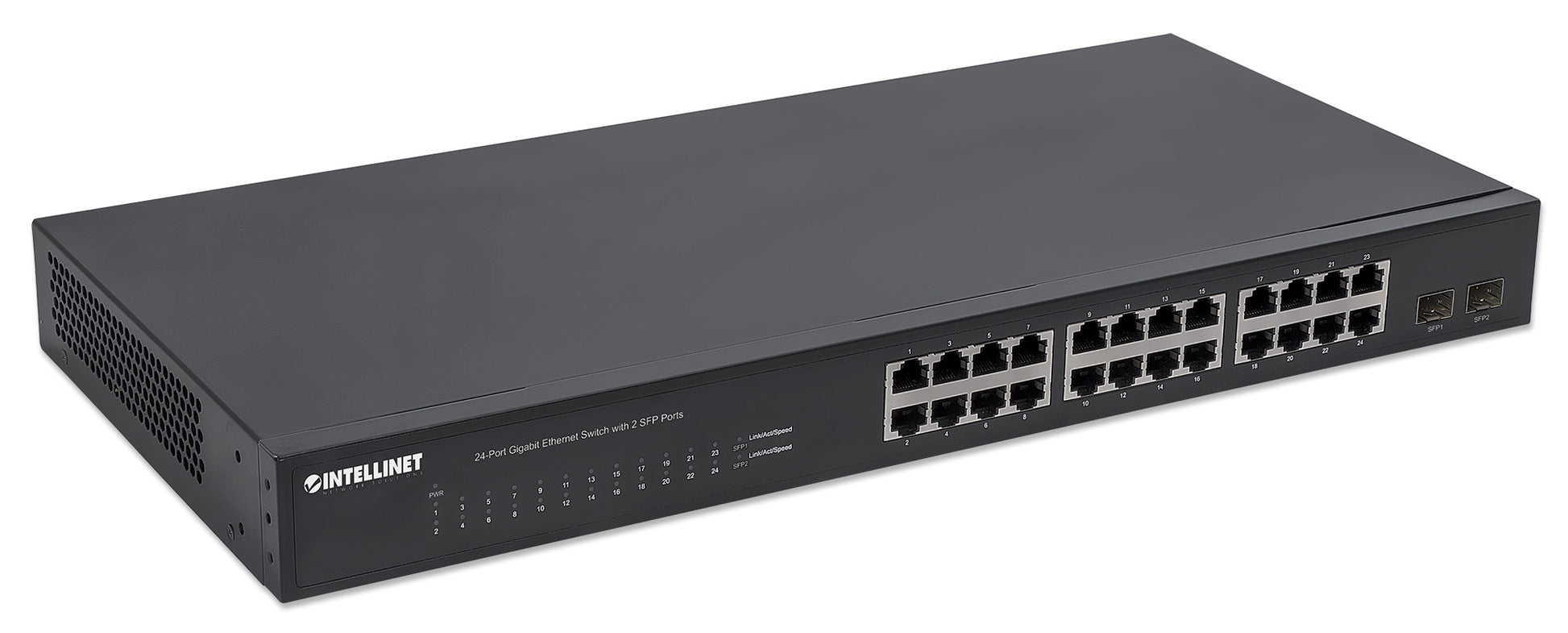

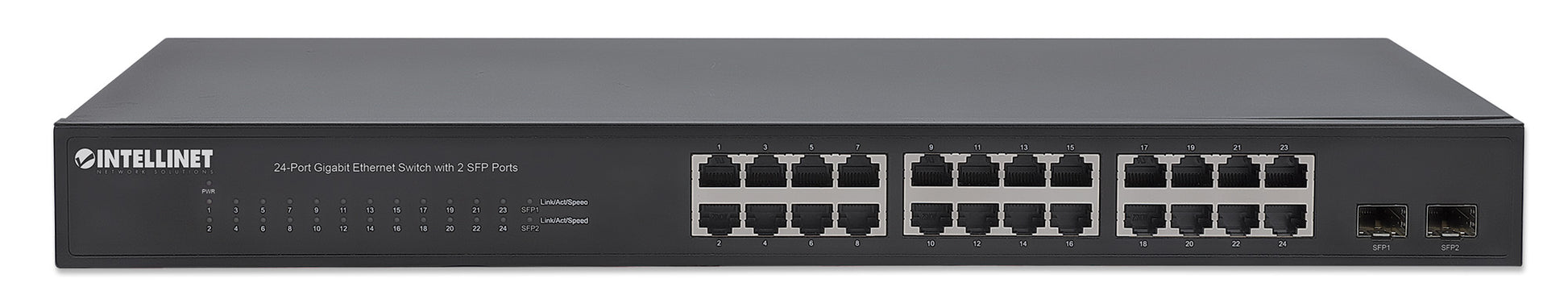

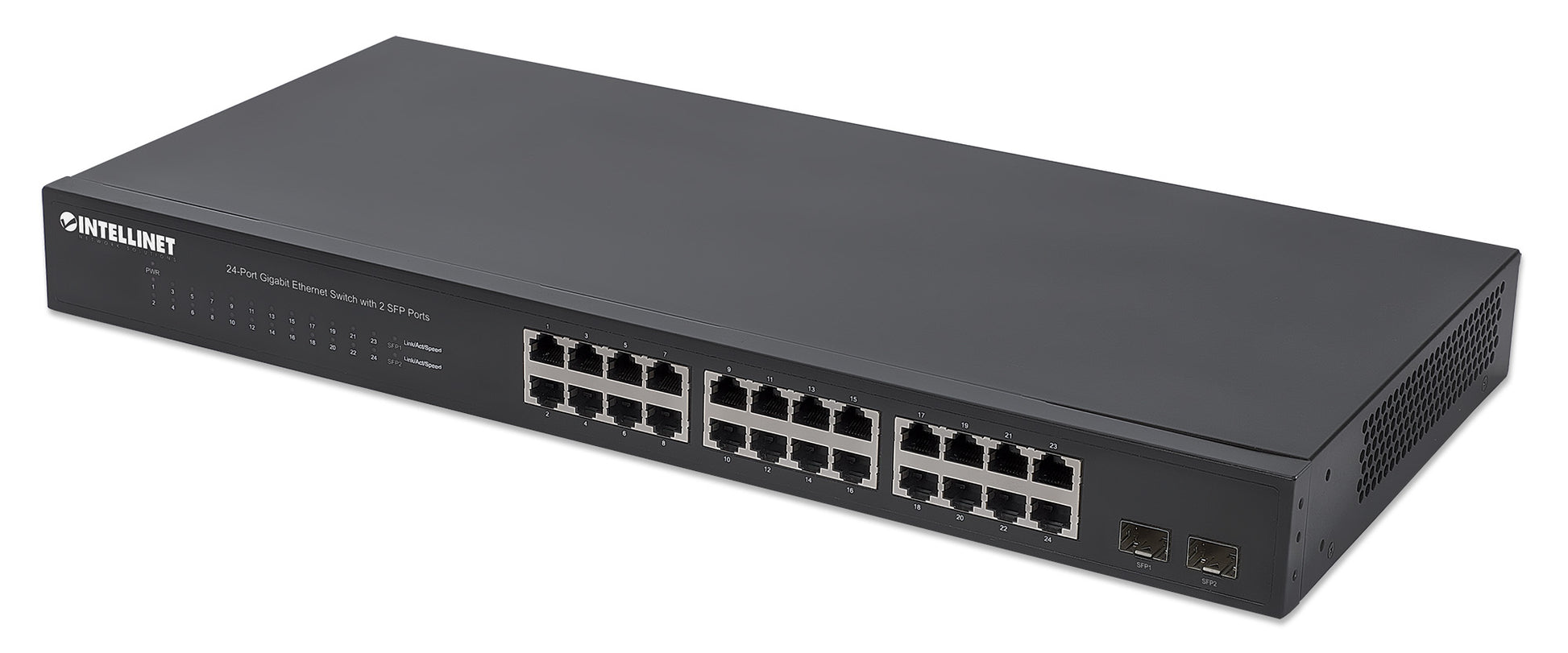

24-Port Gigabit Ethernet Switch with 2 SFP Ports

24 x 10/100/1000 Mbps RJ45 Ports + 2 x SFP, IEEE 802.3az (Energy Efficient Ethernet), 19" Rackmount, Metal

Highlights

10/100/1000 auto-sensing ports automatically detect optimal network speeds
Two small form-factor pluggable GBIC module slots (SFP)
All RJ45 ports with Auto-MDIX (auto uplink) support

SKU: 561044

[ view high resolution images ]

Boost your network speed

The Intellinet Network Solutions Gigabit Ethernet Rackmount Switch, model 561044, offers an array of features while providing superior network throughput.

Extreme Flexibility

Twenty-four 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds.

Eliminate Bottlenecks with 26 Gigabit Ports

Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this switch offers plenty of performance for your computers, servers and other networking devices. In addition, two small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances. These are not shared combo-ports, but true Gigabit ports, pushing the total available bandwidth up to 52 Gbps.

10/100/1000 auto-sensing ports automatically detect optimal network speeds
Two small form-factor pluggable GBIC module slots (SFP)
All RJ45 ports with Auto-MDIX (auto uplink) support
Supports NWay auto-negotiation
Store and forward switching architecture
Full/half duplex operation
Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
52 Gbps switch fabric
Supports Jumbo frames 9 kBytes
512 kBytes buffer memory
Supports up to 8K MAC address entries
Fanless design ideal for silent operation
Includes 19" rackmount brackets
Supports MAC address auto-learning and auto-aging
Fully NDAA-compliant
Three-Year Warranty

IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
IEEE 802.3az (Energy Efficient Ethernet EEE)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control, for full duplex mode)
Media support:
Packet filter/forwarding rate:
Buffer memory: 512 kBytes
MAC address table: 8K entries
Backplane speed: 52 Gbps
Switch architecture: store and forward
24 RJ45 Gigabit Ethernet ports
2 SFP (Small Formfactor Pluggable) slots
Certifications: FCC Class A, CE, UKCA, NDAA
Power
Link Speed per port: 1000 Mbps
Link/Activity per port

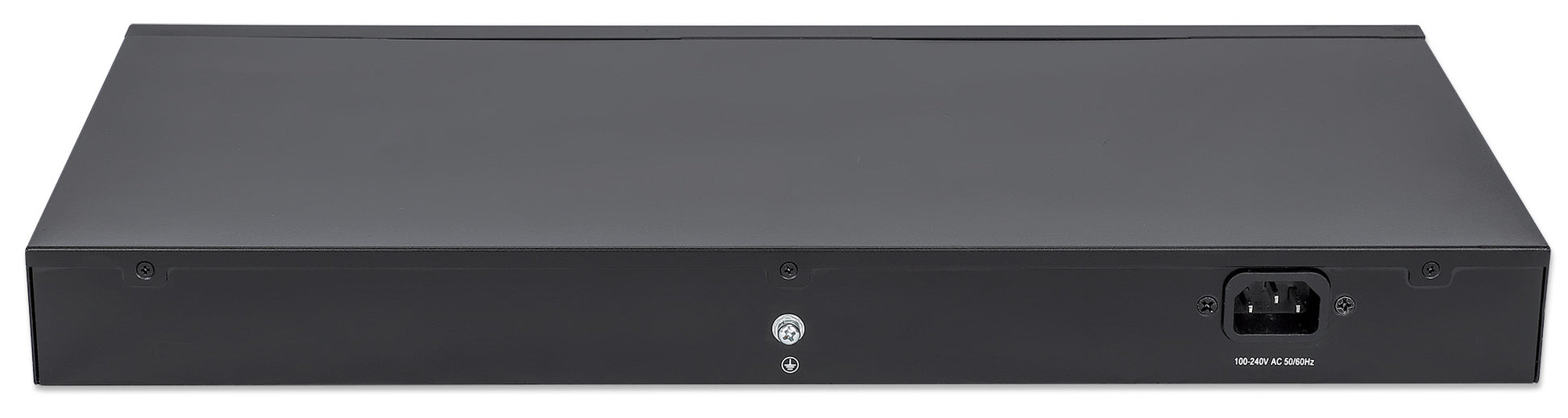

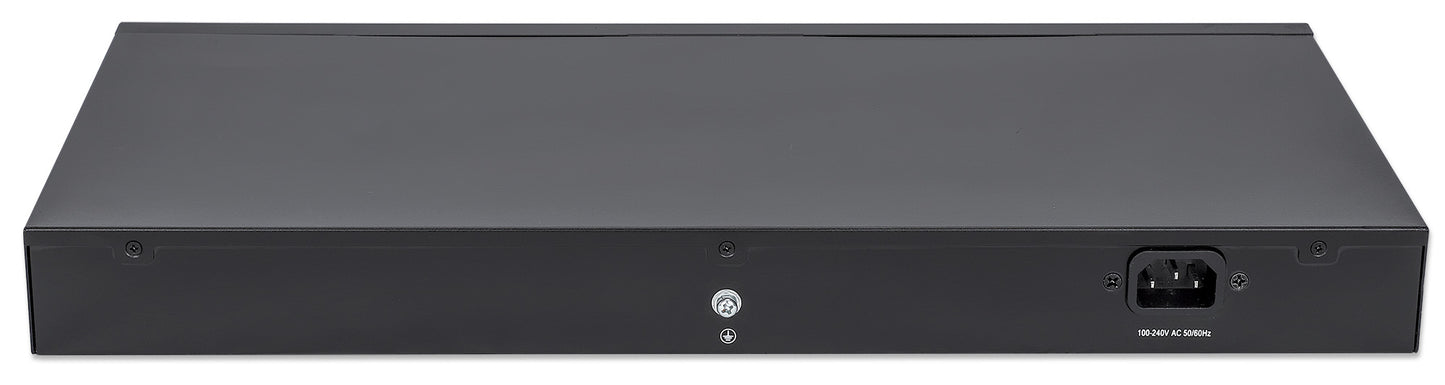

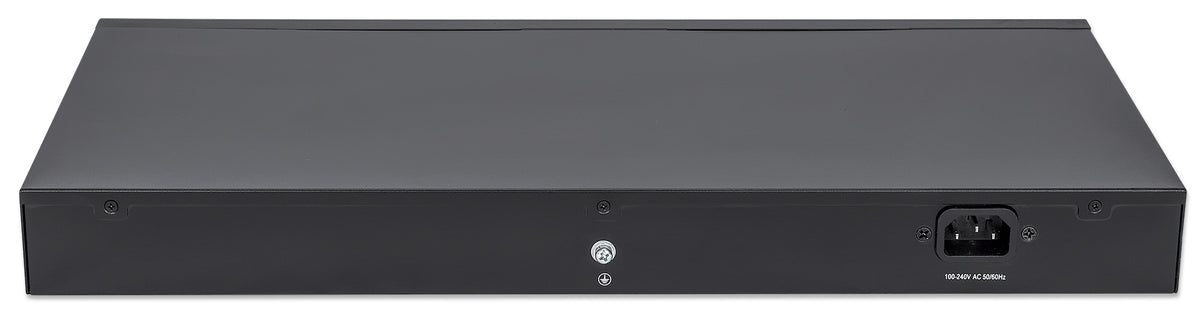

Internal power supply, 100 – 240 VAC, 50/60 Hz
Power consumption: 20 watts (maximum)
Metal housing, 19" rackmount, 1 U
Dimensions: 440 (W) x 208 (L) x 44 (H) [mm] / 17.32 (W) x 8.19 (L) x 1.73 (H) [in.]
Weight: 3.00 kg (6.6 lbs.)
Operating temperature: 0 – 40°C (32 – 104°F)
Operating humidity: 10 – 90% RH, non-condensing
Storage temperature: -10 – 70°C (14 – 158°F)
Gigabit Ethernet Rackmount Switch
Power cable
19" rackmount brackets with four screws
User manual
