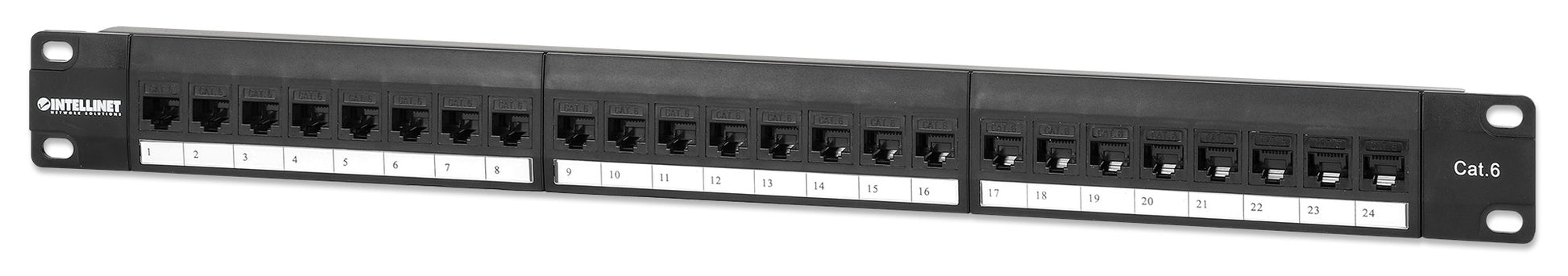

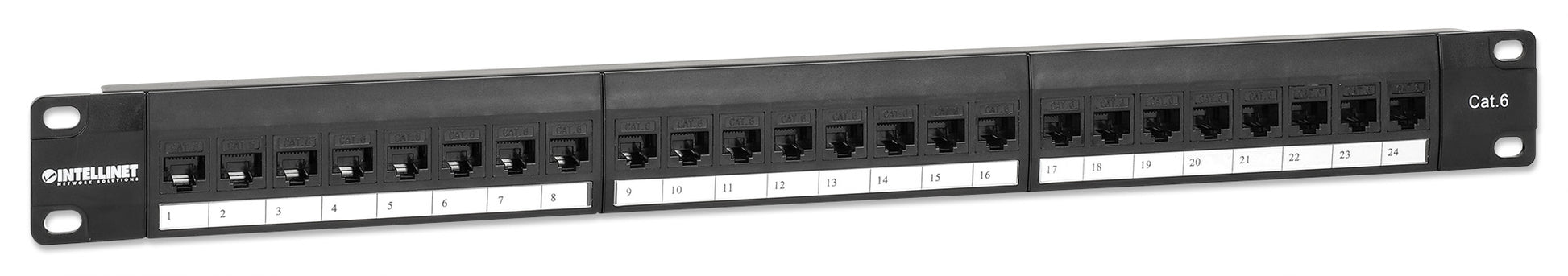

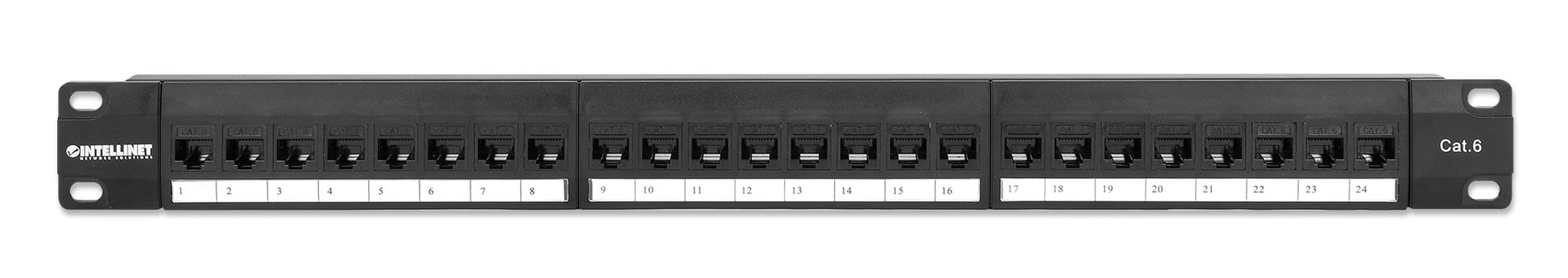

24-Port Unshielded Blank Patch Panel with Pre-Installed Cat6 Keystone Couplers, 1U

Modular 19-inch 1U 24-Port Blank Patch Panel for Keystone Couplers

Featuring 24 pre-installed unshielded Cat6 keystone couplers, this patch panel offers robust and efficient connectivity. Each port is numbered for quick identification and streamlined cable management. A removable cable-management bar helps keep cables in place. Constructed from sturdy, high-quality, cold-rolled SPCC steel, it guarantees reliability for many years. The 50 micro-inch gold-plated contacts provide excellent signal integrity and durability. A cage nut set with four cage nuts, four M6 screws, and four plastic washers is included to make your installation easier. This panel is ideal for a wide range of applications in small to medium-sized businesses, making it an excellent choice for IT professionals in various industries.

• Rackmount blank patch panel with numbered ports and 24 pre-installed unshielded keystone couplers
• Cat6 RJ45 couplers with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801
• 50 micro-inch gold-plated contacts
• Flame retardant rating in accordance with UL 94 V-0
• Standard 8P8C design, compatible with all network RJ45 connections
• Compatible and color-coded with T568A and T568B

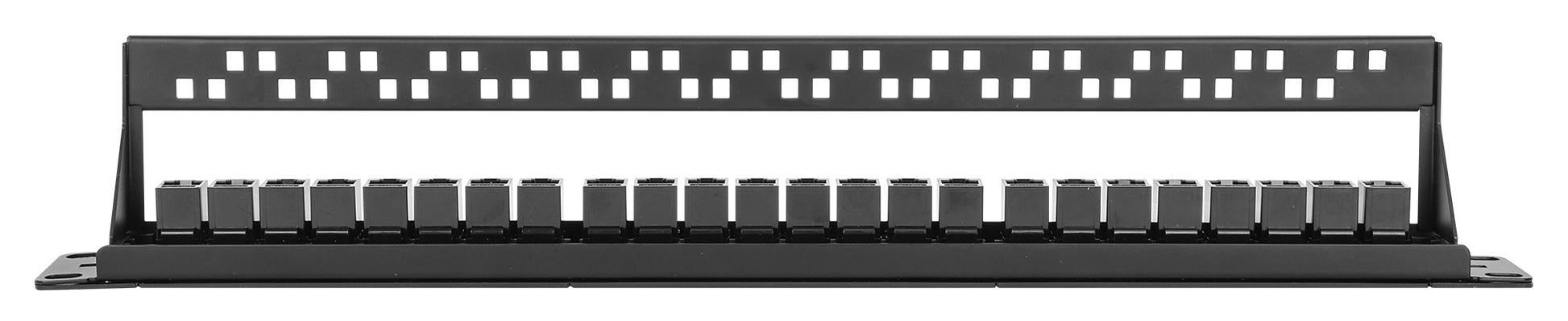

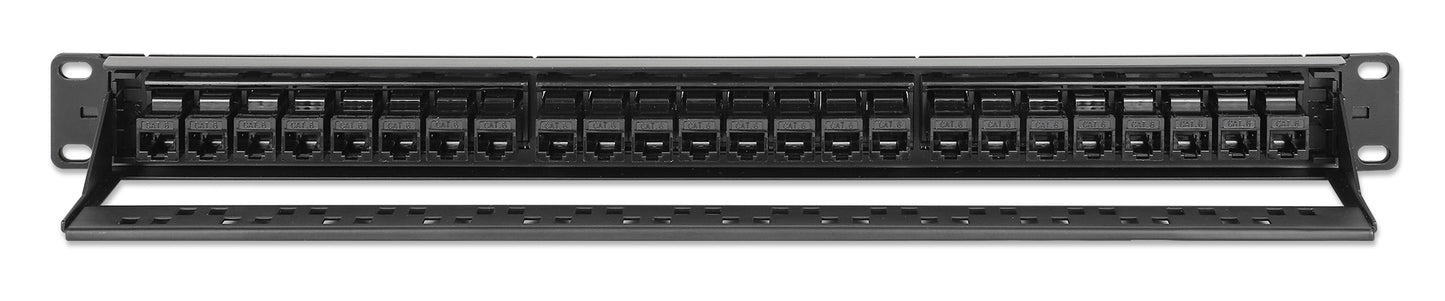

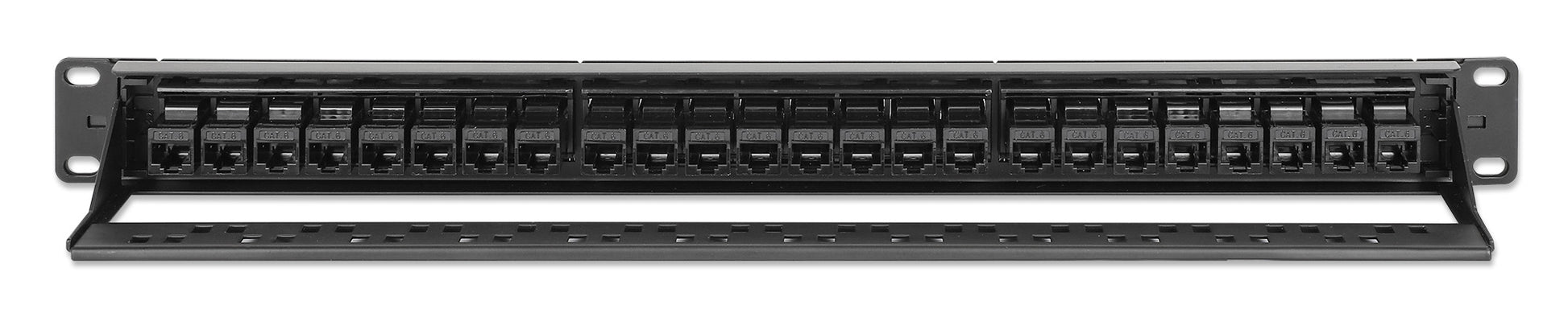

• Removable cable-management bar
• Sturdy, high-quality, cold-rolled SPCC steel construction

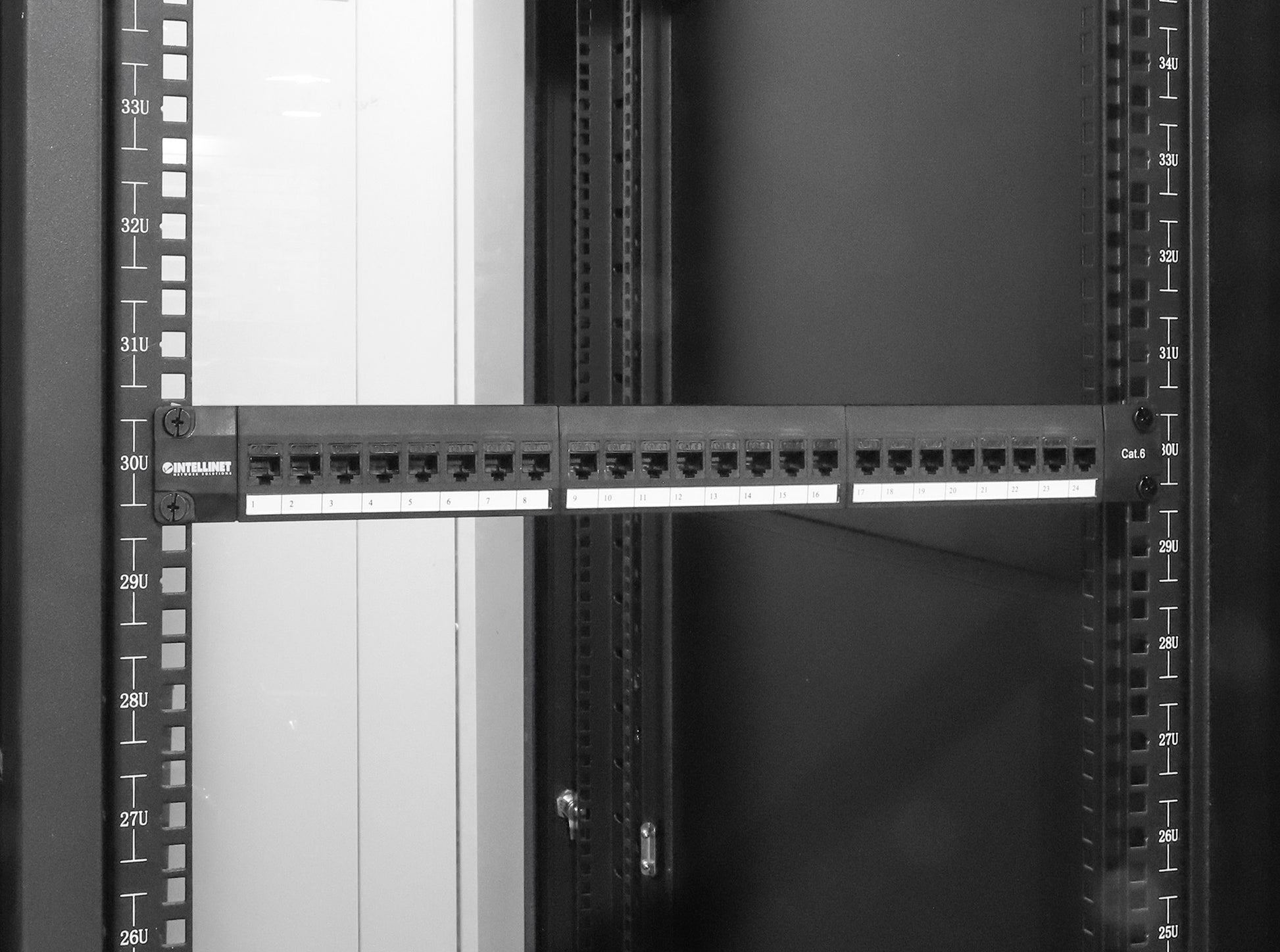

• IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm rack-mount equipment
• Includes 19" mounting material with four cage nuts, four M6 screws and four plastic washers
• Designed to support the distribution of voice, data, audio, video and fiber optic needs for commercial or residential applications
• Lifetime warranty

Standards and Certifications
• UL
• CE
• RoHS
• ISO/IEC 11801
• REACH
• ANSI/EIA 310-E
• IEC 60297-3
General (keystones)
• Supports transfer speeds up to 10 Gbps over distances up to 55 m (180 ft.)
• Max. operating frequency: 250 MHz
• Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Mating cycles: ≥750
Material (keystones)
• Contacts: phosphor bronze
• Contact plating: 50 micro-inch gold
• IDC: phosphor bronze
• Housing: PC
• Flammability: tested and rated in accordance with UL 94 V-0
Electrical (keystones)
• Insulation resistance: ≥500 MOhm
• Dielectric withstanding voltage: 1,000 V DC/750 V AC
• Contact resistance: ≤20 MOhm
• DC resistance: ≥0.3 Ohm
• Current rating: 1.5 A
Physical
• Dimensions (D x W x H): 79 x 482.6 x 44.4 mm (3.11 x 19 x 1.75 in.)
• Net weight: 200 g (1.21 lbs.)
• Gross weight: 250 g (1.41 lbs.)
Environmental
• Operating temperature: -10 - 60ºC (14 - 140ºF)
• Storage temperature: -40 - 70°C (-40 - 158°F)
• Operating humidity (non-condensing): 10 - 90% RH
Package Contents
• 24-Port Unshielded Blank Patch Panel, 1U
• 24 x Unshielded Cat6 Keystone Couplers, pre-Installed
• Cage nut set (4 x cage nut, 4 x M6 screw, 4 x plastic washer)

• Other Part Numbers

• EAN: 0766623721103
• UPC: 766623721103



• Physical Specifications

• Weight: 0.2 kg
• Dimensions: 79 (L) x 482.6 (W) x 44.4 (H) [mm]
• Carton Quantity: 10
• Carton Weight: 5.80 kg
