Intellinet

4-Outlet Smart PDU with Switched and Network-Managed Control

Intelligent Power Distribution Unit with Four EU CEE 7/3 Outlets, Overload Protection, Remote Monitoring and Control, Wall-Mountable, 10 A Output, C20 Inlet, Metal Housing, Black

Highlights

Intelligent 4-way single-phase PDU with EU sockets for electrical equipment, ideal for networking, telecom, security and audio/video
Manual and automatic outlet switching and power cycling to reboot unresponsive devices or schedule energy-saving shutdowns
Network-managed access and control via web browser or SNMP

SKU: 716673

[ view high resolution images ]

4-Port Intelligent Network-Managed Power Distribution Unit (PDU) for Reliable Power Control and Monitoring

The 4-Outlet Smart Network-Managed PDU with EU sockets from Intellinet Network Solutions delivers intelligent, remotely controlled power distribution for professional installations. Designed for reliability and efficiency, it allows administrators to monitor, switch, and schedule connected devices with precision. Ideal for networking, telecom, AV, and security environments, it combines advanced functionality with robust safety and flexible mounting options.

Remote Control and Automated Power Management

Each outlet offers manual or automated switching and power cycling to restore unresponsive devices and reduce energy consumption through scheduled shutdowns. Network-managed access via web browser or SNMP allows complete control from anywhere, giving system administrators the flexibility to manage equipment remotely and securely.

Comprehensive Monitoring and Scheduling

Real-time monitoring of voltage, current, and energy use provides full insight into power consumption. The PDU supports programmable scheduling, sequencing, and timer-based control to ensure devices power up safely and in the correct order after an outage. Detailed power usage statistics with graphical display make energy management straightforward and efficient.

Enhanced Safety, Reliability, and Security

Built-in overload protection automatically cuts power when the maximum load is exceeded, safeguarding both connected equipment and the PDU itself. Configurable system alerts, alarms, and email notifications ensure that any irregularities are reported immediately, while activity logs record all system events for traceability. Multi-user access with role-based permissions provides secure, controlled operation across teams and locations.

Mounts on Walls and other Surfaces

Installation is simple thanks to flexible mounting options for walls, enclosures, or flat surfaces, with hardware included. The PDU features a two-pole power switch, RJ45 Ethernet port, and dedicated buttons for system reset or restoring factory settings. A grounding point offers additional protection against external surges.

Durable, Quiet, and Ready for the Future

The compact, fire-resistant metal housing ensures long-term durability even in demanding environments. Its fanless design guarantees completely silent operation, ideal for offices, studios, and control rooms. The firmware is upgradeable via network, and the web interface supports multiple languages with customizable translations - ensuring adaptability for future projects and international deployments.

Intelligent 4-way single-phase PDU with EU sockets for electrical equipment, ideal for networking, telecom, security and audio/video
Manual and automatic outlet switching and power cycling to reboot unresponsive devices or schedule energy-saving shutdowns
Network-managed access and control via web browser or SNMP
Remote power monitoring for voltage, current, and energy use
Programmable scheduling, sequencing, and timer control
Configurable system alerts, power alarms, and email notifications with real-time display in the web interface and activity logging
Built-in overload protection with automatic power-off and customizable threshold
Multi-user access with role-based permissions
Power usage statistics with graphical display
Firmware upgradeable via network
Multi-language web interface with customizable translations
Two-pole on/off switch, RJ45 Ethernet port and buttons for system reset or restoring factory settings
Flexible mounting for wall, enclosure, or surface installation with included hardware
Grounding point to protect equipment from external electrical surges
Compact, durable, and fire-resistant metal construction with with IP20-rated housing

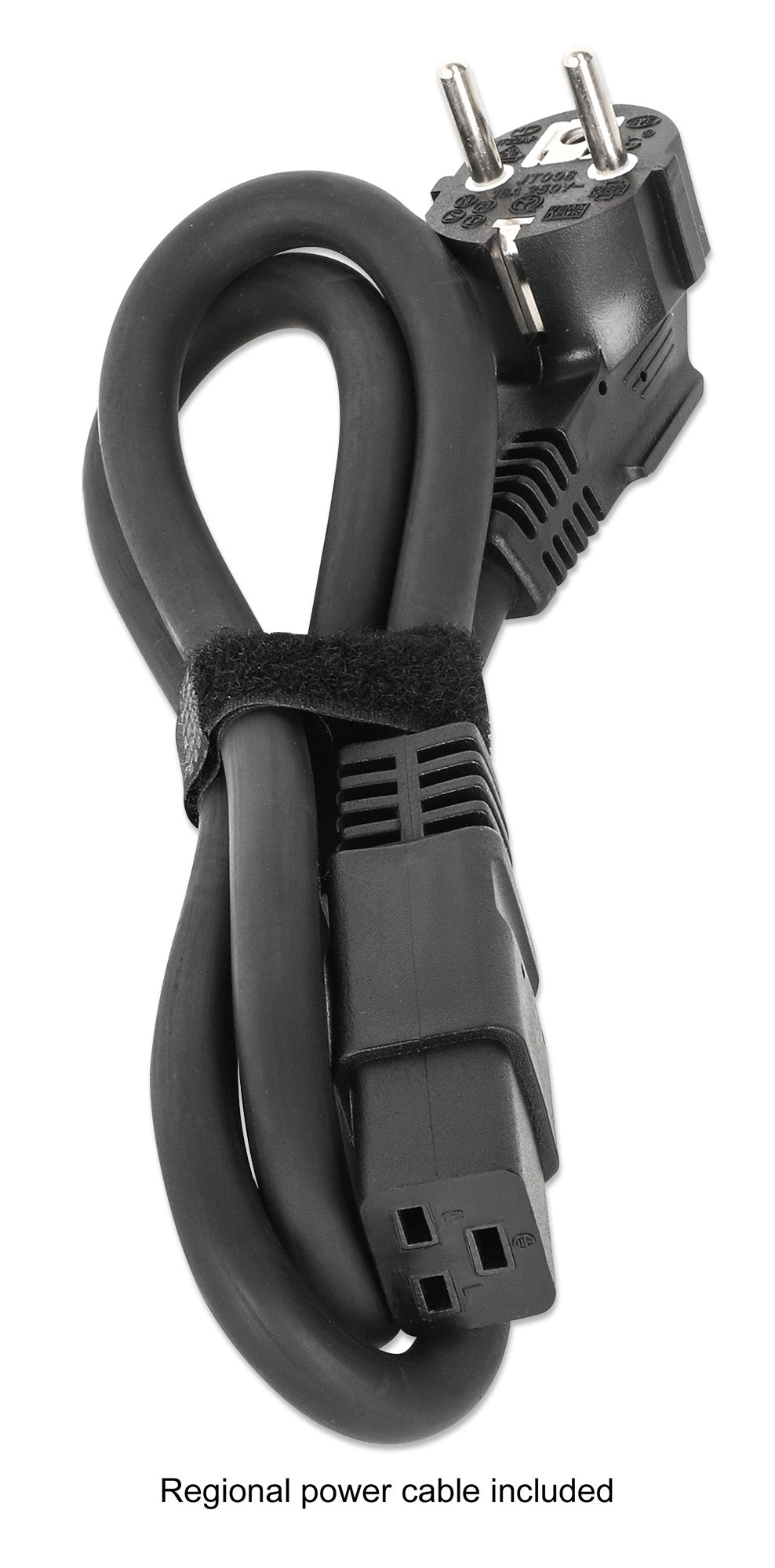

Detachable 1 m power cable with C19 to EU CEE 7/7 hybrid plug, fits both European type F and French type E sockets
Fanless design for silent operation
For indoor use only
Fully NDAA-compliant
Three-year warranty

CE
UKCA
RoHS
REACH
IEC 60884
IP20
AC input: 100.0 - 240.0 V; 50 - 60 Hz
Overload protection: 10.0 A maximum load current, automatic power-off and user-adjustable threshold
Maximum load: 3,840.0 W
Socket/outlet standard: EU CEE 7/3 (Type F); IEC 60884
Power inlet: IEC C20
Network Interface: 1 × RJ45 (10/100 Mbps)
Protocols: TCP/IP, UDP, HTTP, DHCP, SNMP, Ping
Web Interface: Browser-based control (Firefox, Safari, Chrome, Brave, Opera, Edge, etc.)
Remote Functions: Power monitoring, outlet switching, scheduling, sequencing
User accounts: multi-user access with permission levels
Alerts: configurable email notifications and system logs
Security: dynamic password verification
Firmware: upgradable via network
LED indicators: Power, LAN link/activity, individual outlet status
Operating Temperature: 0 to 50 °C
Storage Temperature: -20 to 60 °C
Humidity: 0 to 80% RH (non-condensing)
Dimensions (L x W x H): 255 x 210 x 70 mm
Cable length: 1 m (detachable)
Cable type: H07RN-F 3G 2.5 mm²
Net weight: 1.86 kg
Gross weight: 2.12 kg
Housing: metal
Mounting: wall, enclosure, or surface mount
Buttons:
4-Outlet Smart PDU with Switched and Network-Managed Control
Power cord, C19 to EU plug, 1 m
Instructions

Warning

This product can expose you to chemicals including Bisphenol-A, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
