Intellinet

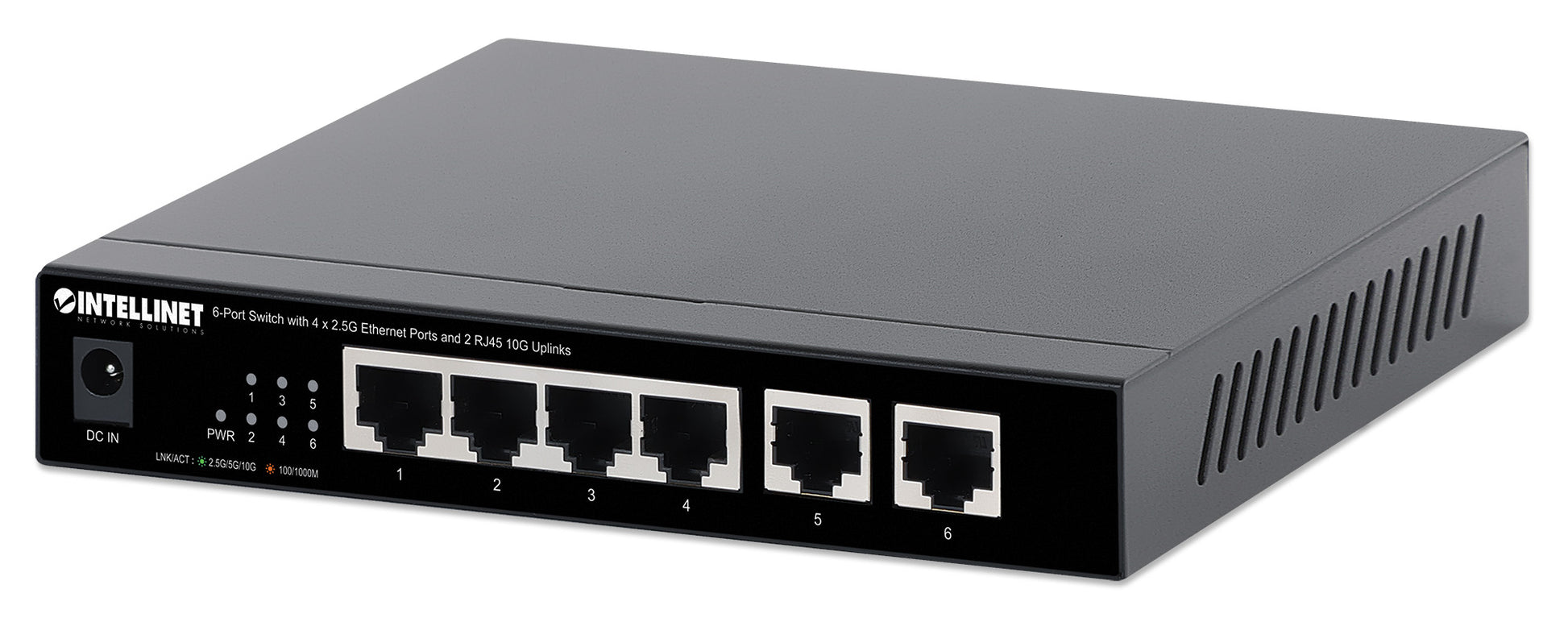

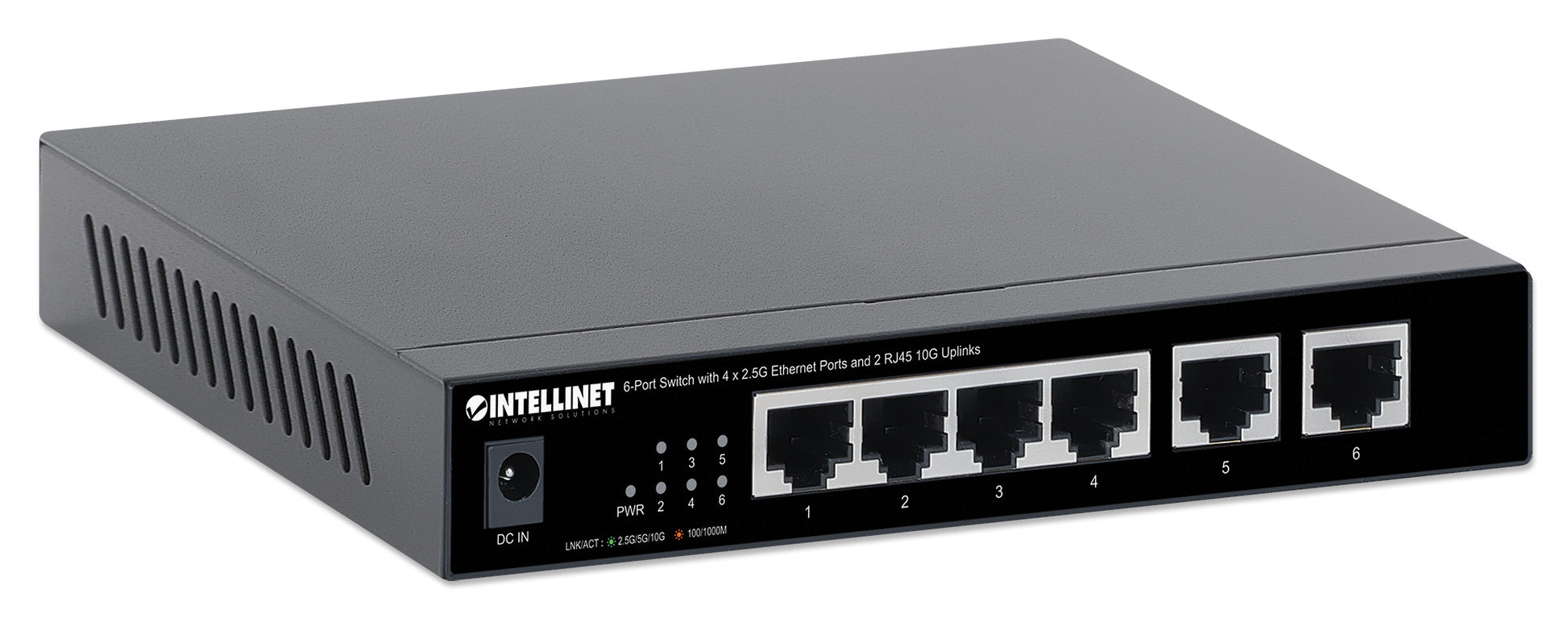

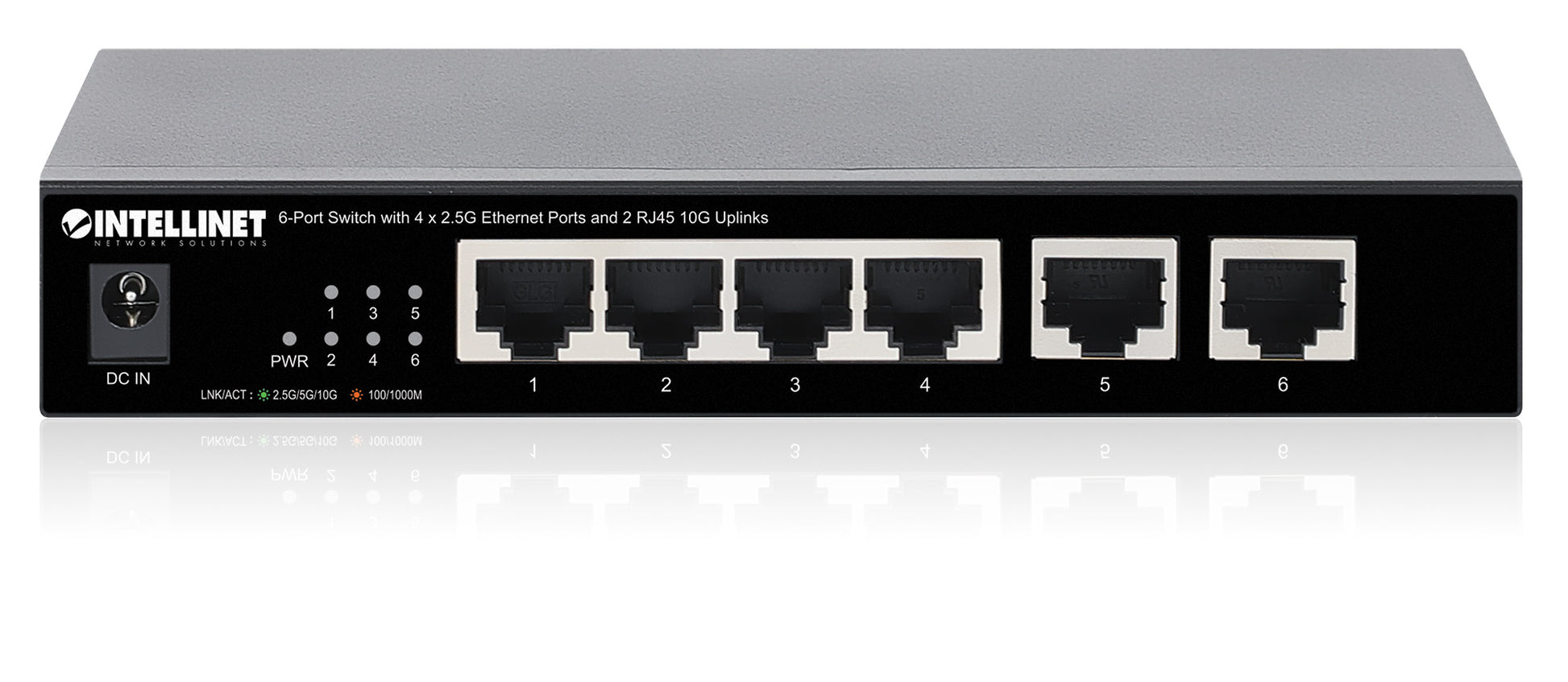

6-Port Switch with 4 x 2.5G Ethernet Ports and 2 RJ45 10G Uplinks

Four 10/100/1000/2500 Mbps RJ45 Ports, Two 10G RJ45 Uplink Ports, Unmanaged, Desktop Format, Wall-mount Option

Highlights

Four high-speed 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
10/100/1000/2500 Mbps auto-sensing ports that automatically detect optimal network speeds
Two RJ45 ports with 10G uplink capability

SKU: 562263

[ view high resolution images ]

Next-gen 2.5 Gbps Desktop 4+2 Port Network Switch - Supports 10/100/1000/2500 Mbps and 10G Uplinks

The 6-Port Switch with 4 x 2.5G Ethernet Ports and 2 RJ45 10G Uplinks from Intellinet Network Solutions passes data to a number of end devices. Equipped with four multi-gigabit Ethernet copper ports, this Switch can deliver network speeds up to 2500 Mbps.

Eliminate bottlenecks with 2.5G capability - great for high-bandwidth Wi-Fi 6/7 Access Points and more

Since the arrival of Wi-Fi 6 (IEEE 802.11ax) or even Wi-Fi 7 (IEEE 802.11be) APs, "regular" Gigabit Ethernet ports have been at their bandwidth limits when connecting to wireless networks. This Switch's ability to support 2.5GBASE-T means it can deliver data to wireless APs faster and better accommodate other higher-bandwidth devices in your enterprise network.

10 Gigabit Ethernet on the RJ45 Uplinks for High-Speed Backbone Connectivity

Equipped with two 10G RJ45 uplinks, this switch is the ideal solution for cost-sensitive organizations considering 10 Gigabit Ethernet. With 10G technology going mainstream and becoming ever more popular, the need for additional bandwidth has become more urgent than ever - even in smaller networks. Whether you wish to connect servers, network-attached-storage units or NVRs at 10 Gbps, or even simply connect to another gigabit switch without resorting to LACP techniques, 10G provides the solution.

Four high-speed 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
10/100/1000/2500 Mbps auto-sensing ports that automatically detect optimal network speeds
Two RJ45 ports with 10G uplink capability
60 Gbps switch fabric / switching capacity
Future-proof high-bandwidth connection; ideal for 2.5G servers, NAS devices, and Wi-Fi 6/7 access points
Backward compatible with 10/100/1000 Mbps devices
Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
Supports jumbo frames up to 12 kBytes
Store and forward switching architecture
Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
Supports 4k MAC address entries with Auto-learning and Auto-aging
Buffer memory of 8.1 Mbits
Compact desktop format with rugged metal housing

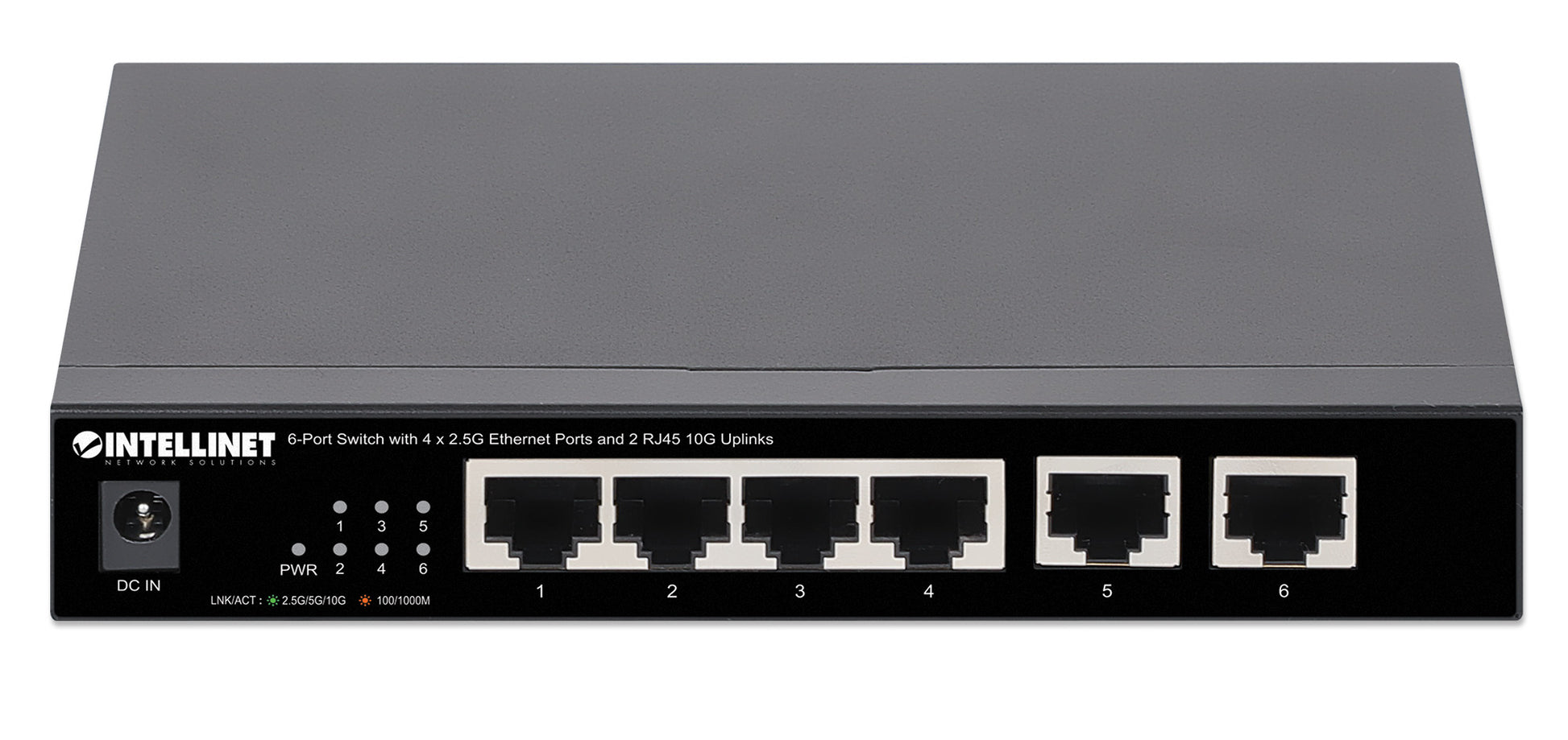

LEDs for power and link/activity

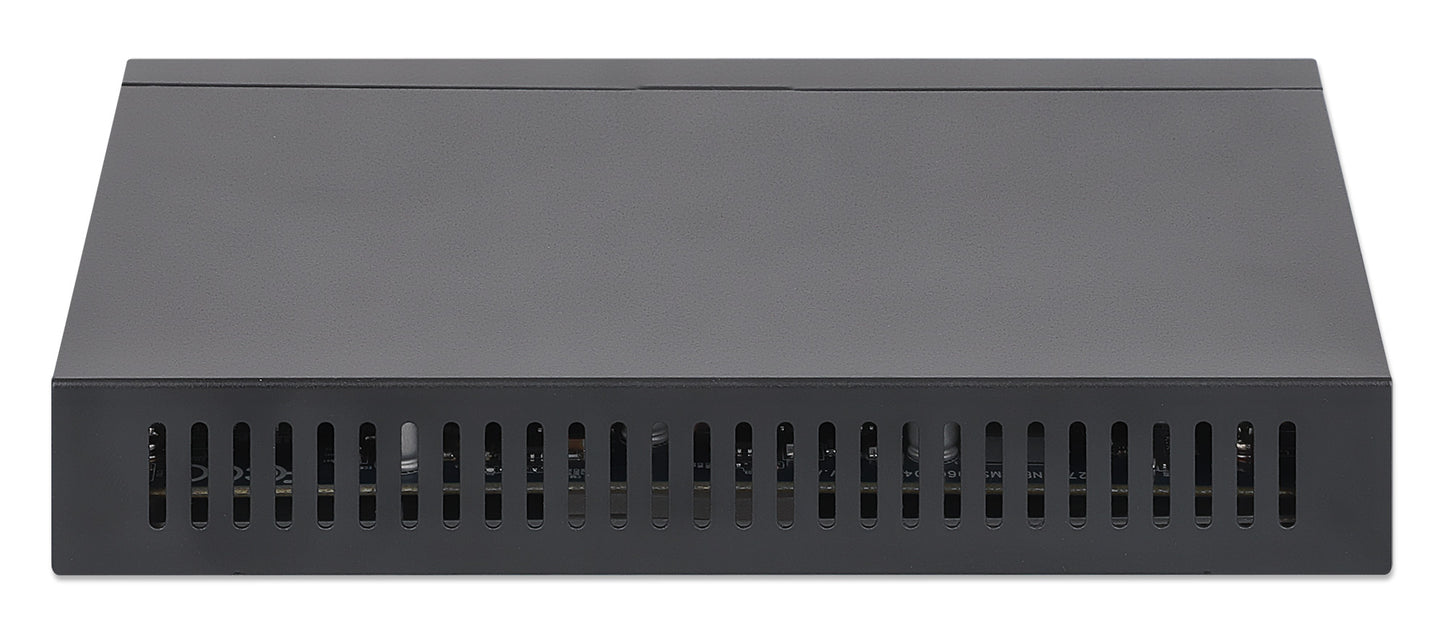

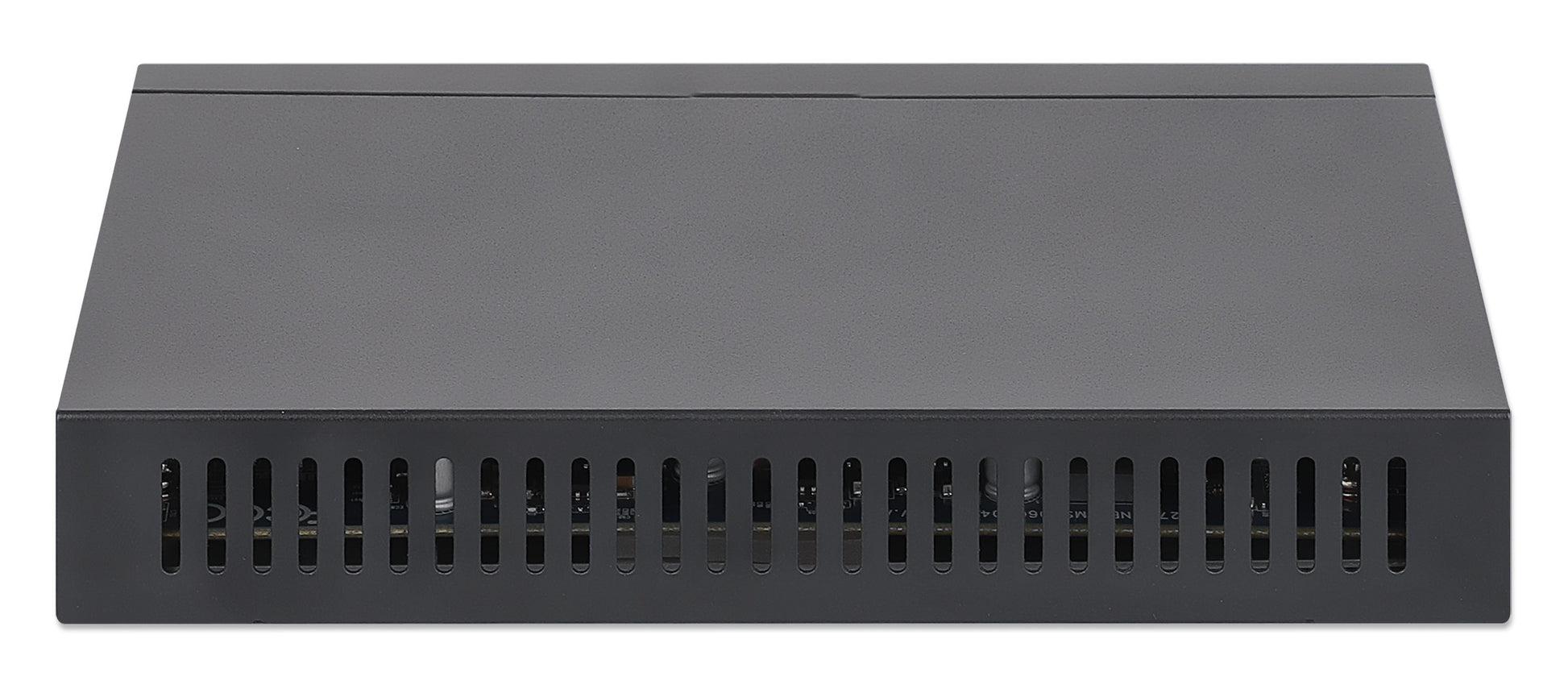

Fanless design for silent operation

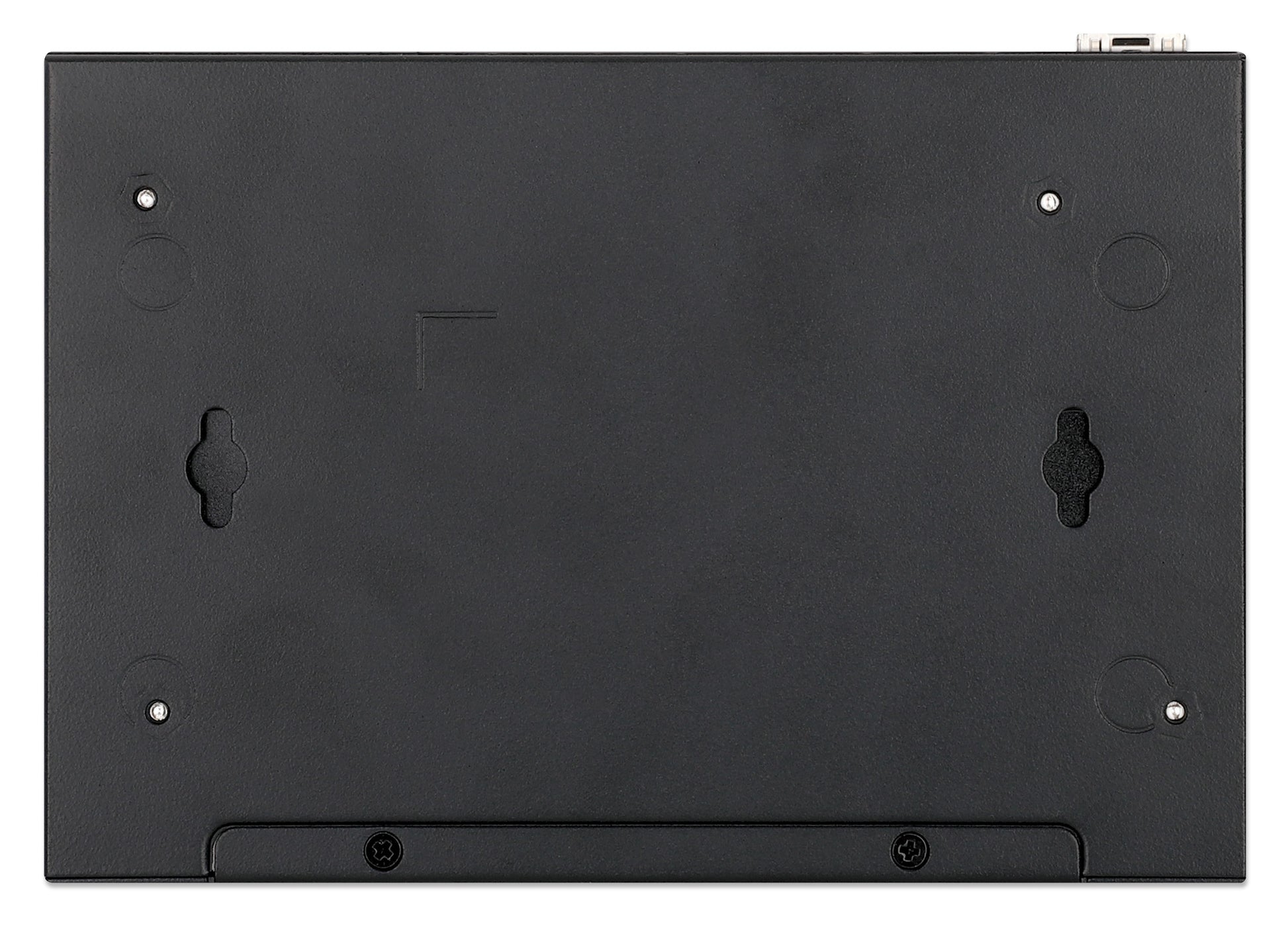

Built-in wall-mounting holes and four rubber feet for desktop use
Fully TAA-compliant
Three-year warranty

IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control for full duplex mode)
IEEE 802.3bz (2.5GBASE-T Ethernet)
Media support:
MAC address table: 4k
Buffer memory: 8.1 Mbits
Forwarding rate: 44.64 Mpps
Backplane speed / switch fabric: 60 Gbps
Switch architecture: store and forward
Certifications: FCC, CE, RoHS, REACH, UKCA, TAA
Power
Link/Act
Included external power adapter:
Metal housing
Dimensions (D x W x H): 110 x 160 x 26 mm (4.33 x 6.3 x 1.02 in.)
Net weight: 560 g (1.23 lbs.)
Gross weight: 760 g (1.68 lbs.)
Operating temperature: 0 - 40°C (32 - 104°F)
Storage temperature: -40 - 70°C (-4 - 194°F)
Operating humidity: 10 - 90% RH, non-condensing
Storage humidity: 5 - 90% RH, non-condensing
6-Port Switch with 4 x 2.5G Ethernet Ports and 2 RJ45 10G Uplinks
Power adapter
Instructions
