Intellinet

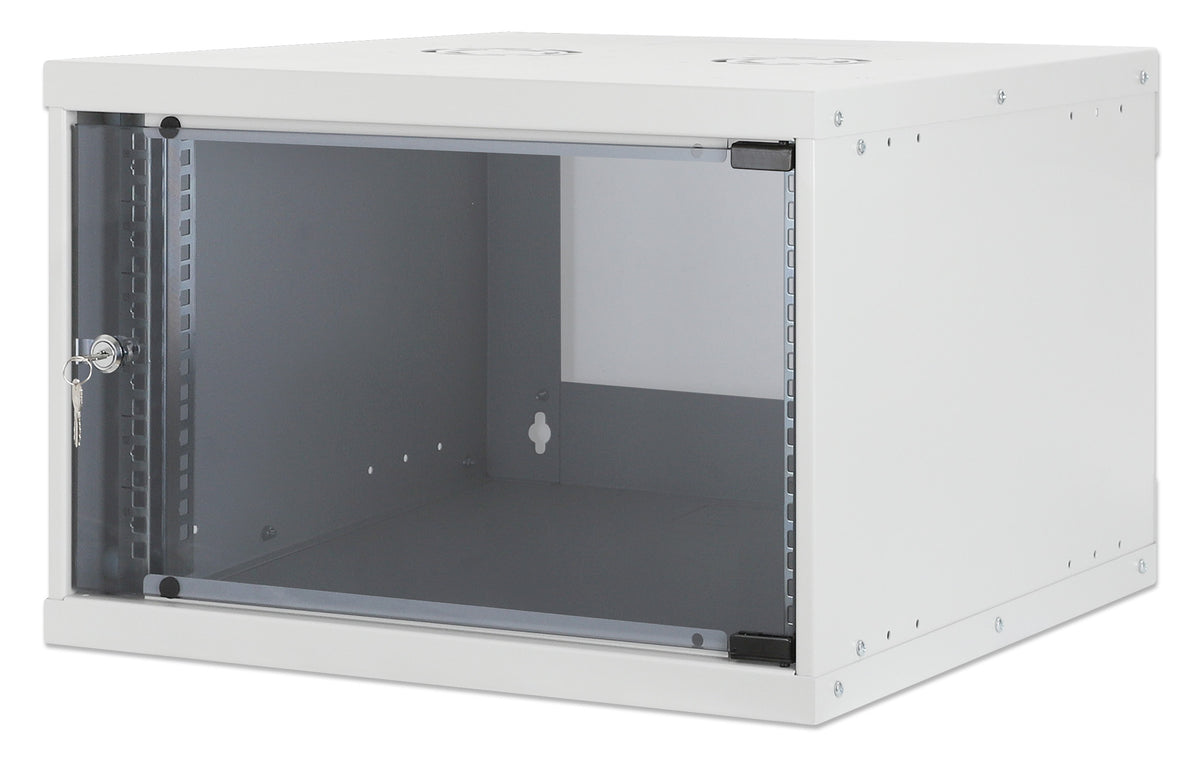

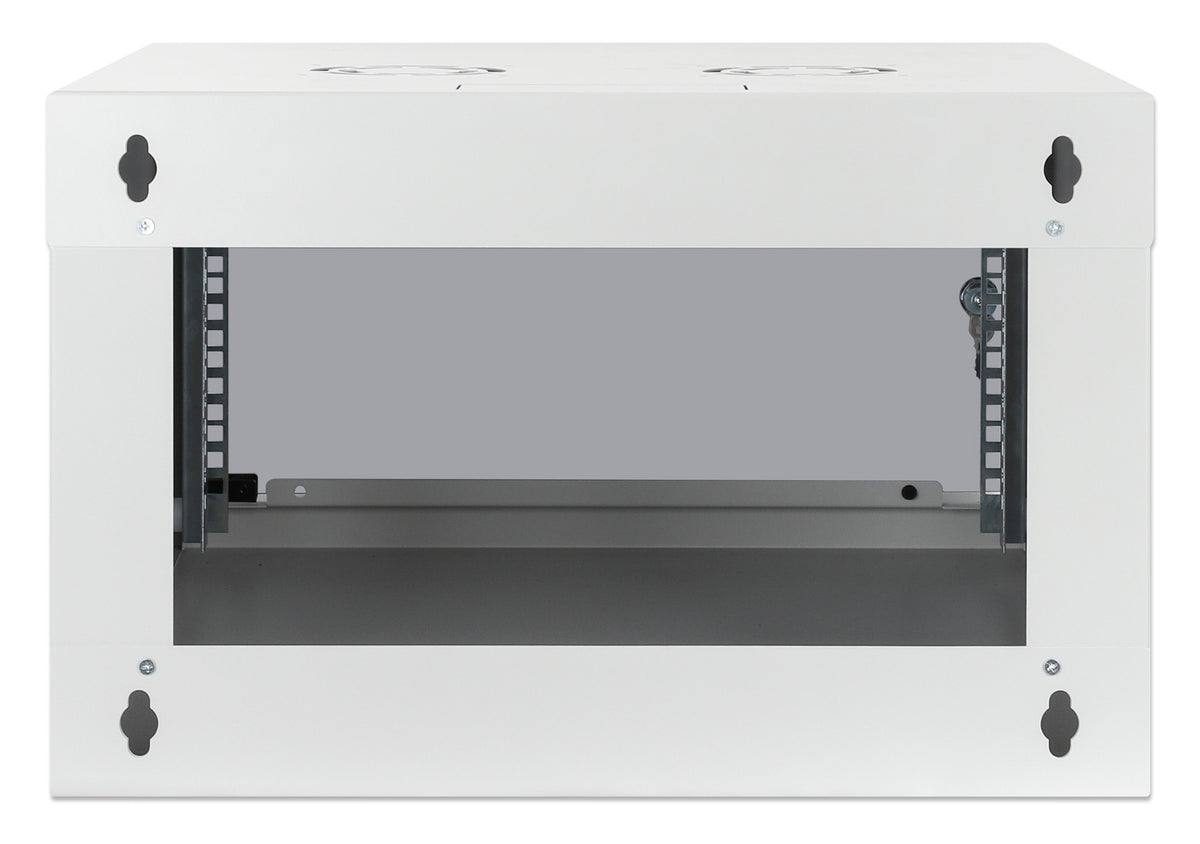

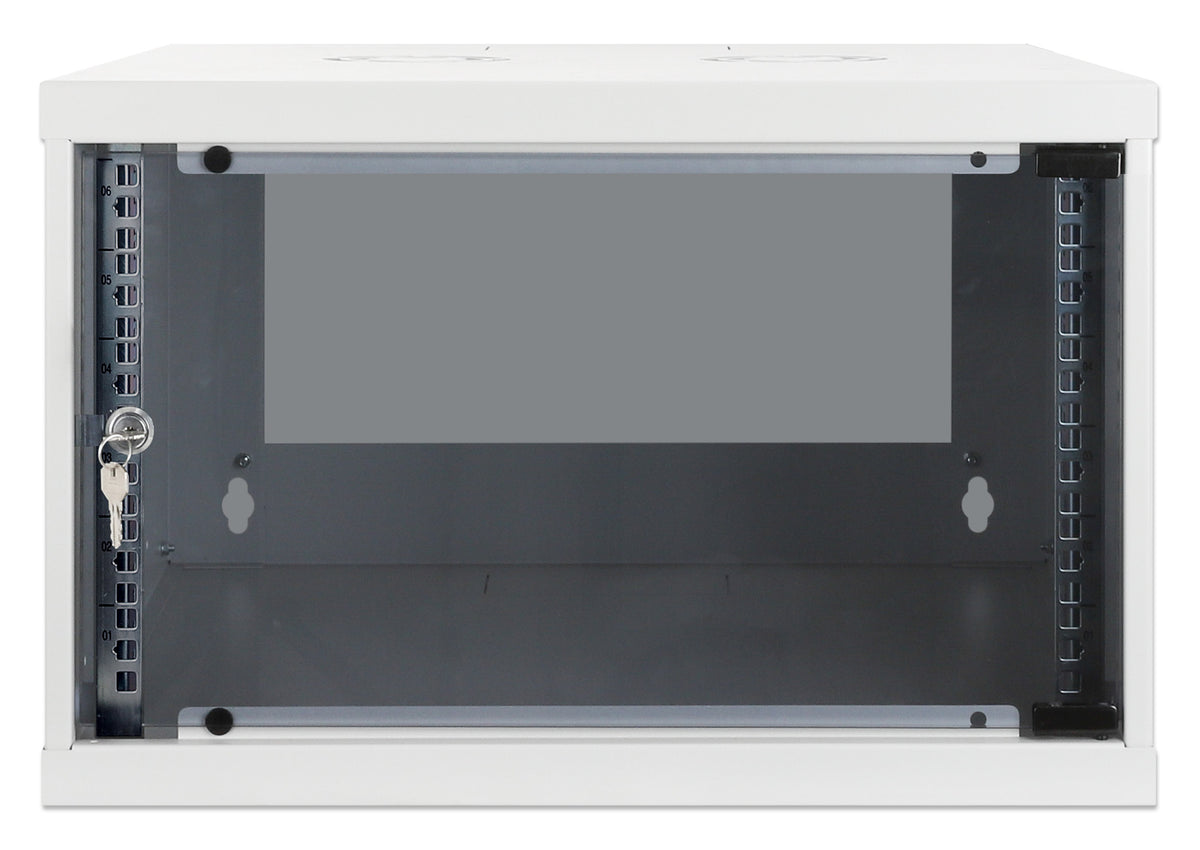

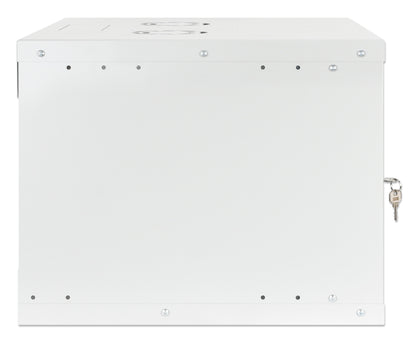

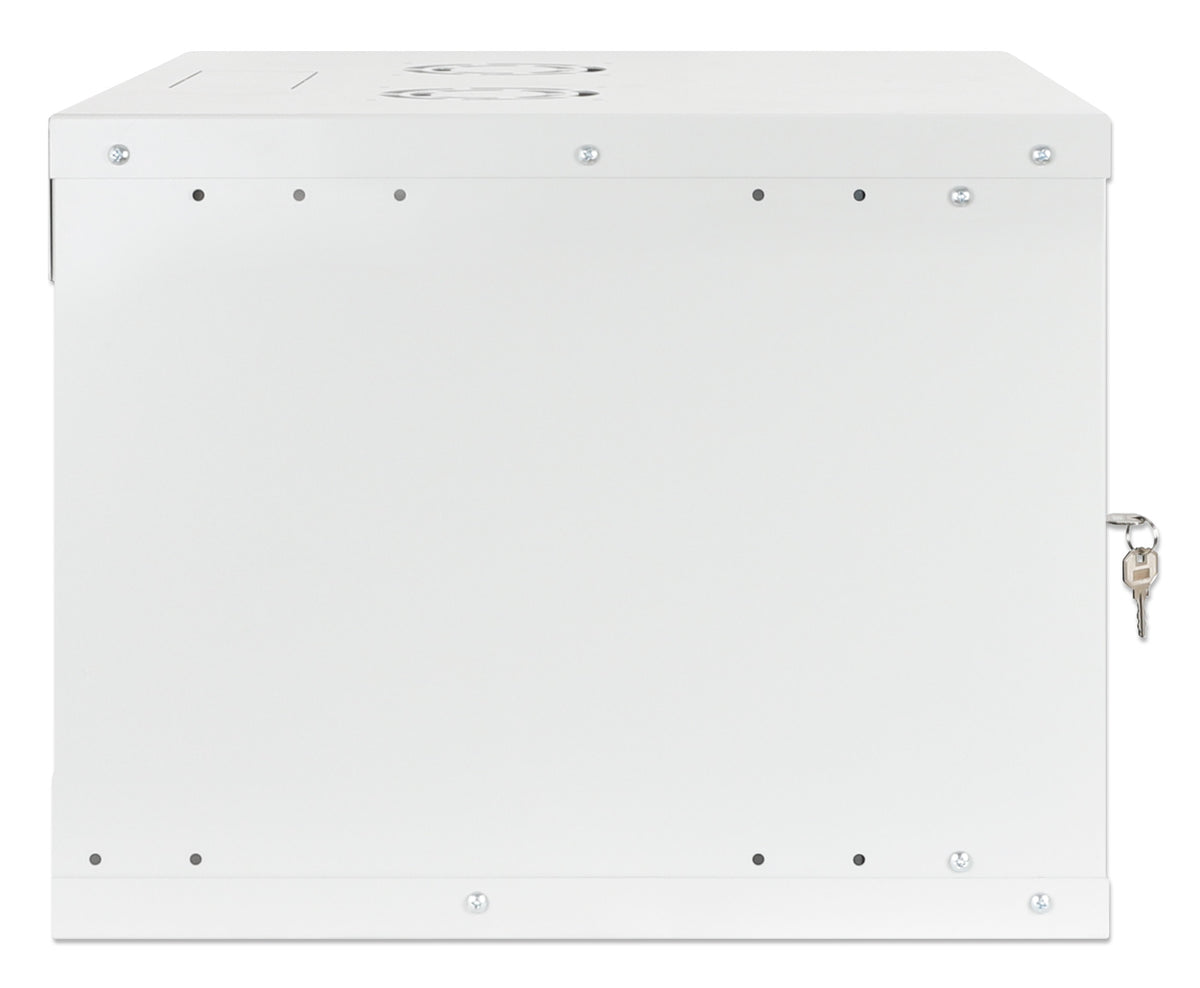

6U 19" Wall Mount Network Cabinet, Basic Line, 400 mm Depth, Gray

IP20-Rated Housing, Flat Pack, Steel Panels, Maximum Static Load 50 kg, Reversible Front Door

Highlights

Ideal for 19" rackmount applications
Protection grade: IP20
Maximum static load of 50 kg

SKU: 714150

[ view high resolution images ]

The Intellinet Network Solutions Basic Wallmount Cabinet provides a low-cost yet highly effective solution for protecting network equipment and securing its installation. An IP20 rating is achieved with cold-rolled, galvanized steel and a reversible, tempered-glass door that allows for easy access in limited-space environments. Available in black or gray at 6U or 9U heights and common, device-friendly depths, the Intellinet Network Solutions Basic Wallmount Cabinet is sure to accommodate and protect network equipment while complementing the network space and its surrounding environment.

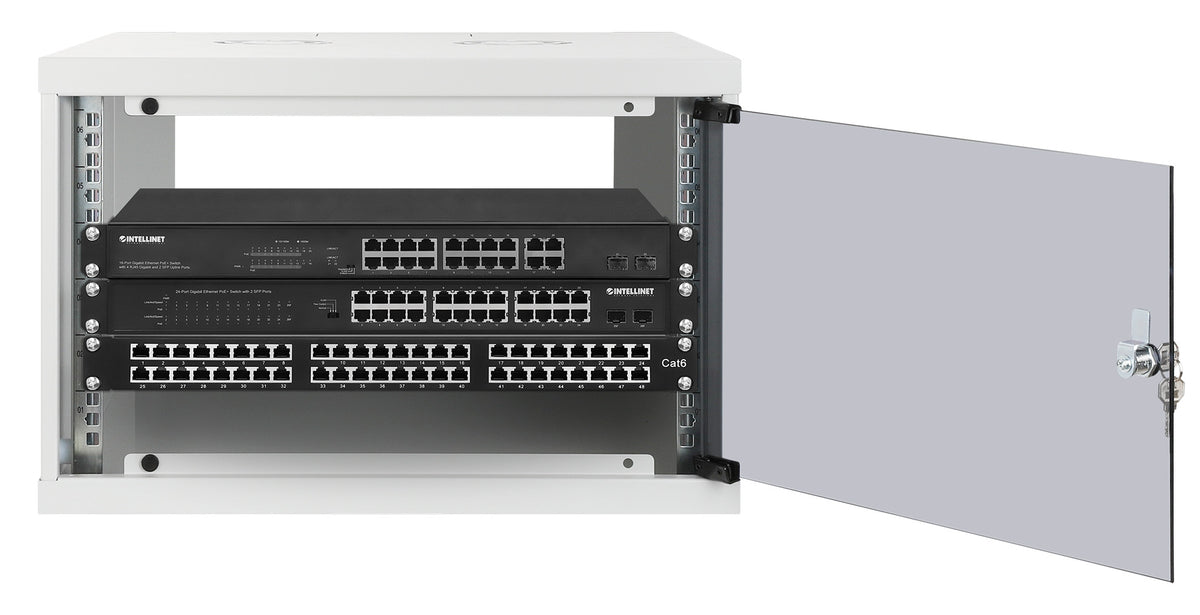

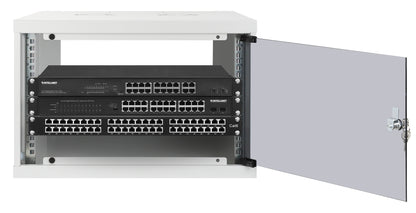

Ideal for 19" rackmount applications
Protection grade: IP20
Maximum static load of 50 kg
Usable depth: 340 mm (13.39 in.)

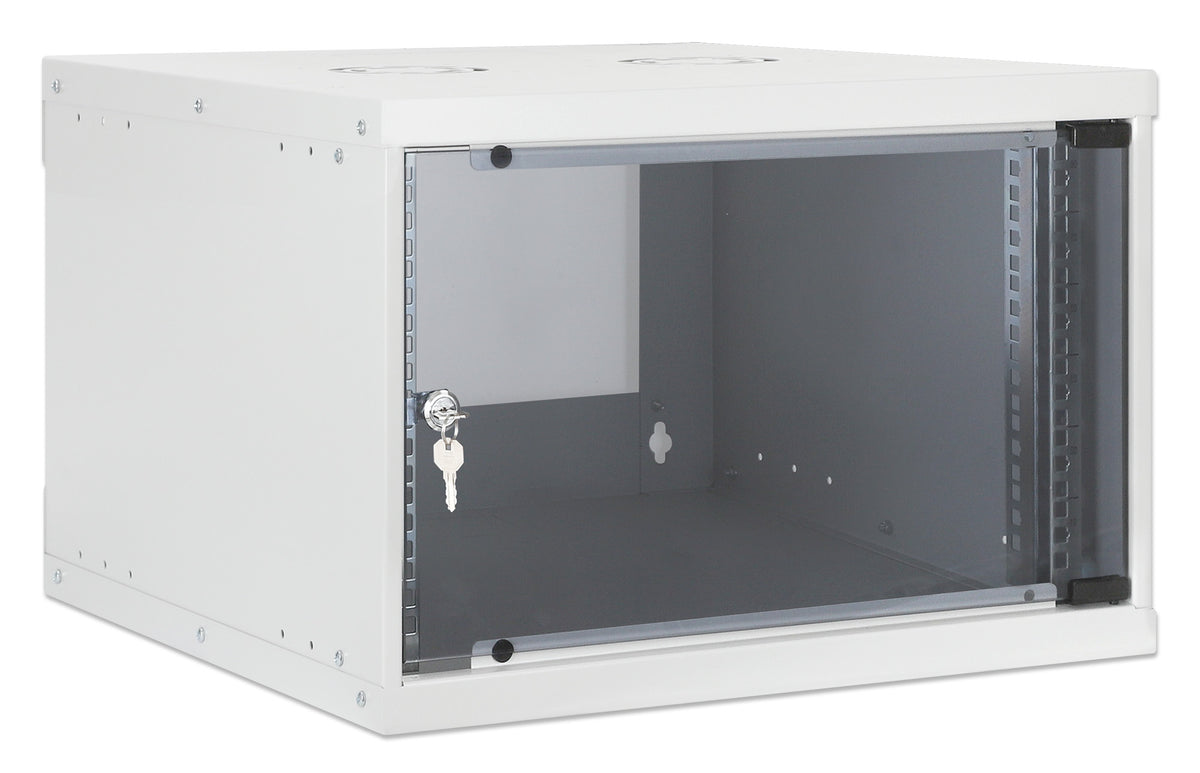

Reversible Front door

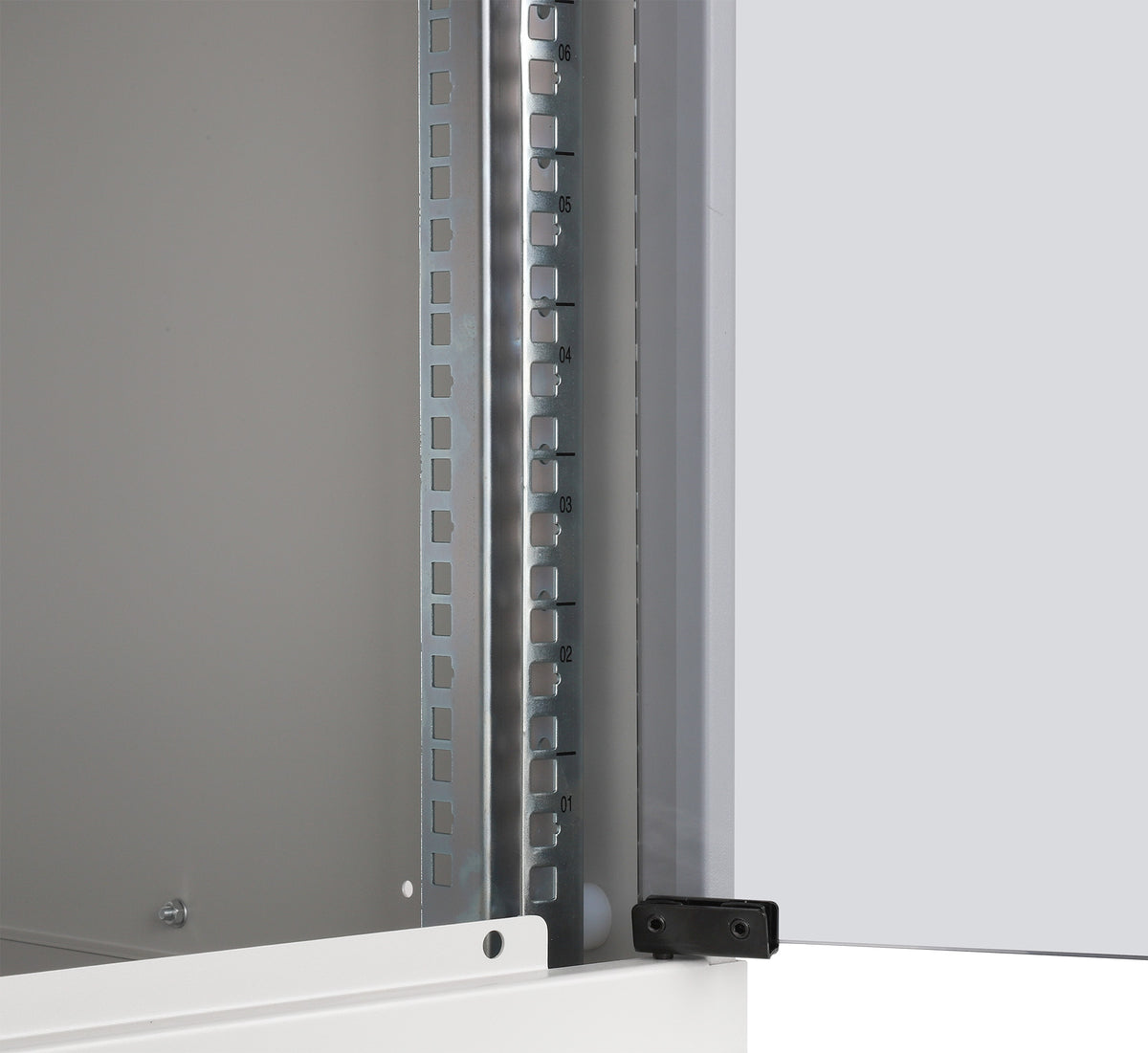

Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
Ships flatpacked
Three-Year Warranty

19 in.
Height: 6U
Color: Gray RAL7035
Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
400 (L) x 540 (W) x 354 (H) [mm]
15.75 (L) x 21.26 (W) x 13.9 (H) [in]
Flat Pack Wallmount
Installation Instructions
