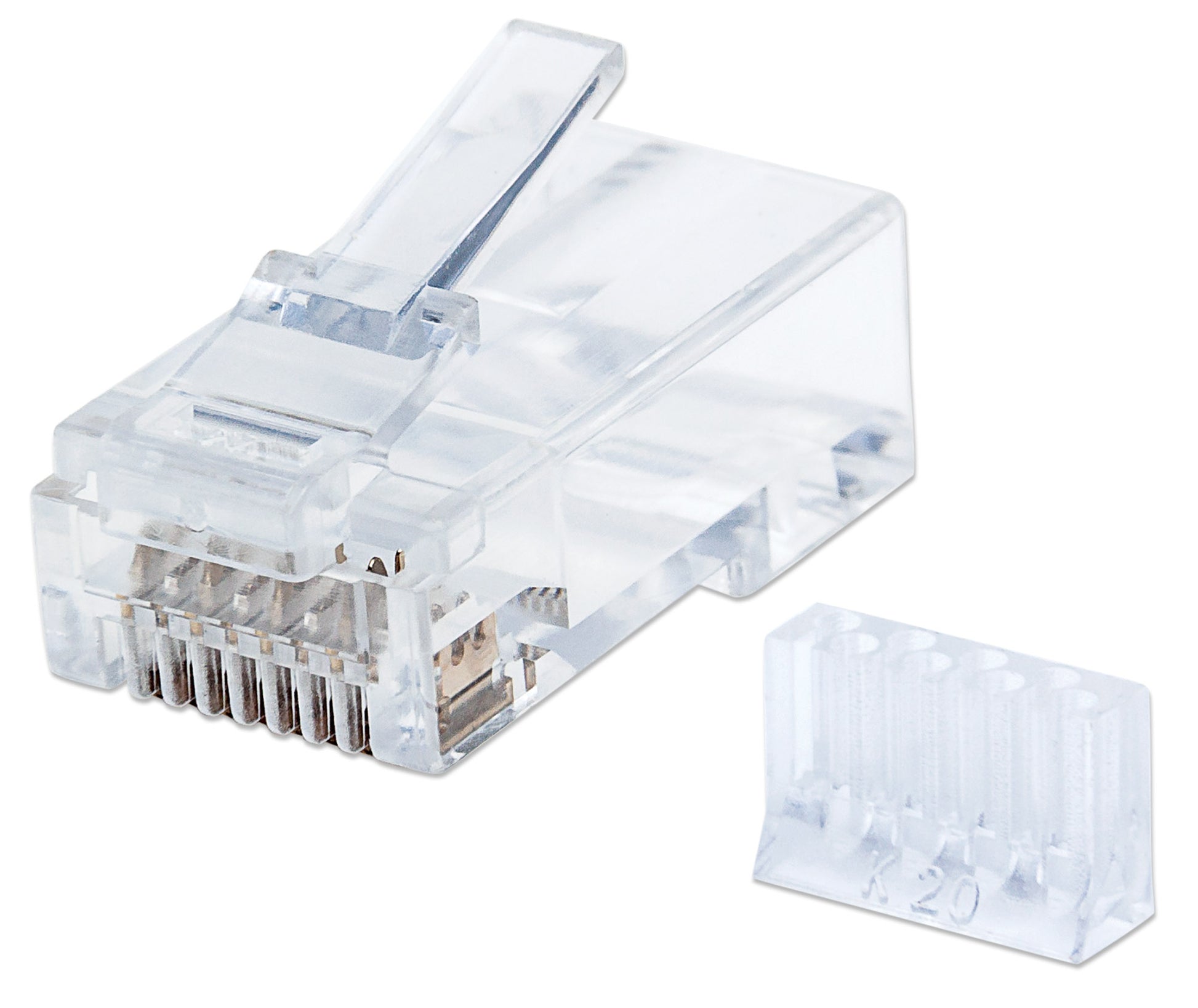

90-Pack Cat6 RJ45 Modular Plugs Image 1

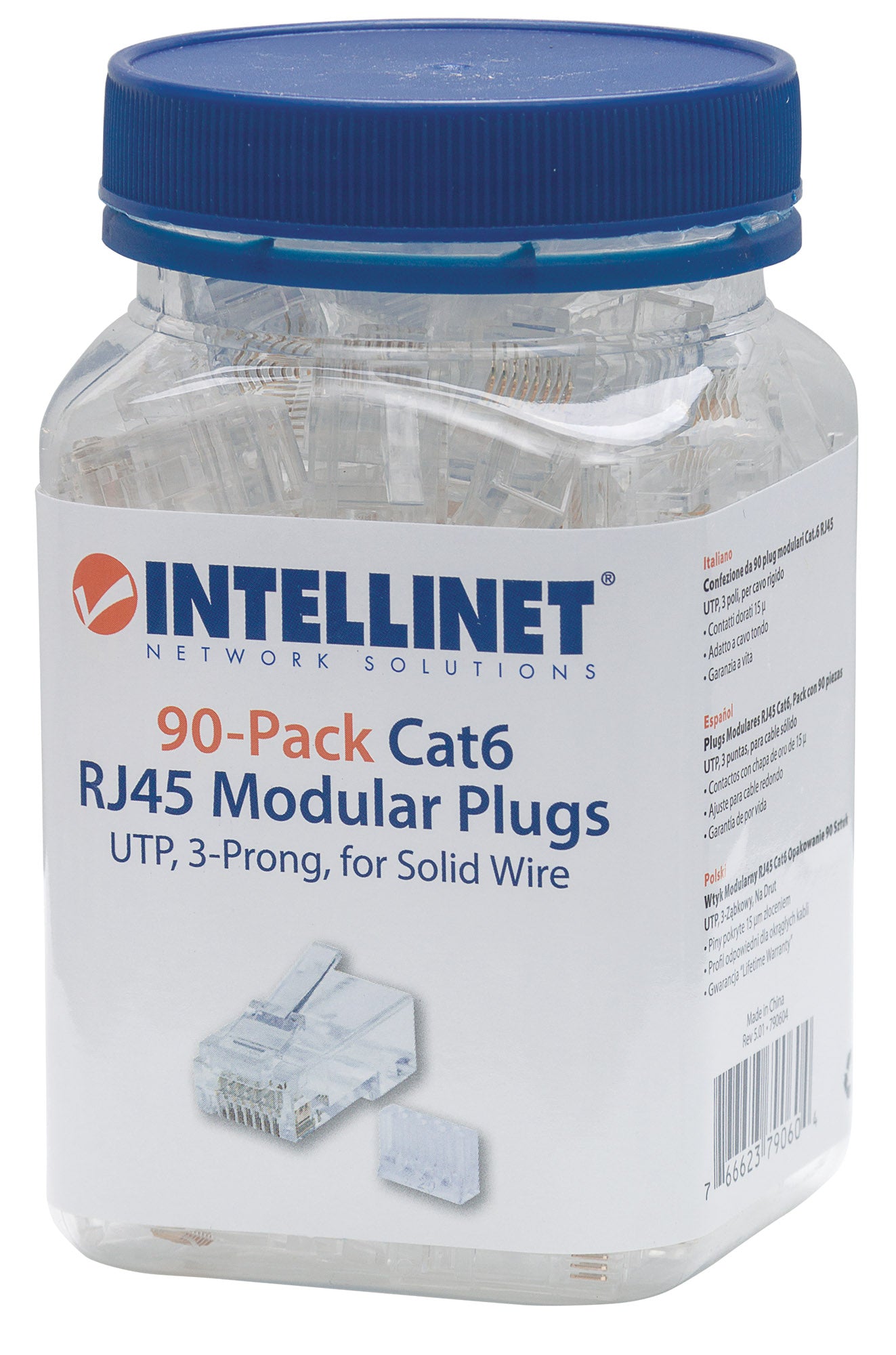

90-Pack Cat6 RJ45 Modular Plugs Packaging Image 2

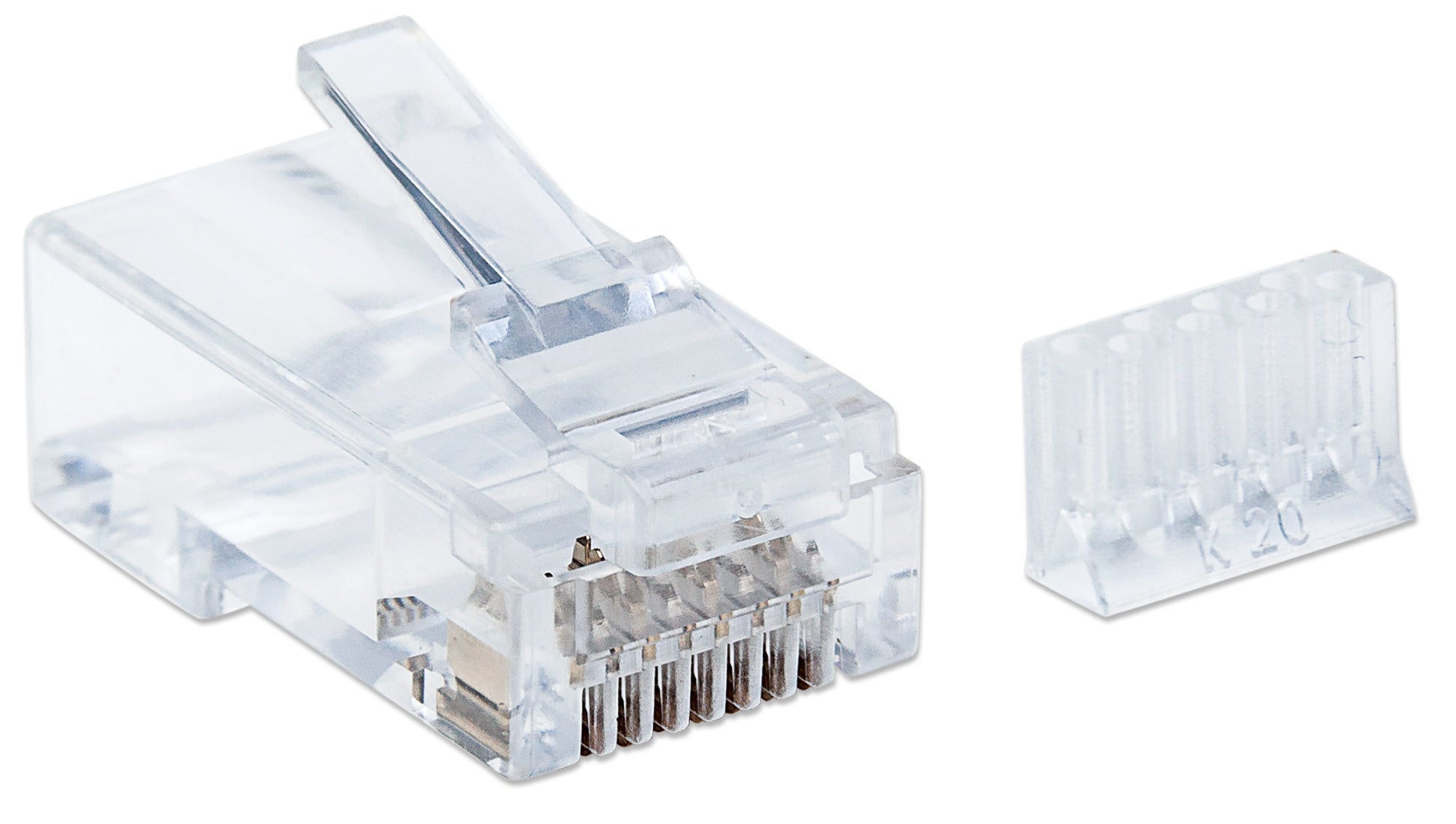

90-Pack Cat6 RJ45 Modular Plugs Image 3

90-Pack Cat6 RJ45 Modular Plugs

UTP, 3-prong, for solid wire, 90 plugs and liners in jar

SKU: 790604

Highlights

  • Cat6 RJ45 modular plug
  • 15 µ gold-plated contacts
  • Three-prong terminal for solid wire

Manufacturer

Intellinet Network Solutions


Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micron gold contacts for our standard plugs or a high-quality 50 micron standard in our Premium and Pro lines.

  • Cat6 RJ45 modular plug
  • 15 µ gold-plated contacts
  • Three-prong terminal for solid wire
  • Supports 24 to 26 AWG
  • Fits round cable
  • For unshielded twisted pair applications
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully compatible with Category 3, 4, 5, 5e and 6 applications
  • Lifetime Warranty

    StandardsCategory 5 (ANSI/TIA/EIA-568-C)Category 5e (TIA/EIA-568-C)Category 6 (ANSI/TIA-568-C)MaterialInsulator: polycarbonate rated UL 94V-2Contacts: phosphor bronzeContact Plating: 15 micron goldPackage Contents90 Cat6 RJ45 Modular Plugs with liners in jar

California Proposition 65 WarningWarning

This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


  • Other Part Numbers

    • Amazon ASIN: B01L6QSFE4
    • EAN: 0766623790604
    • UPC: 766623790604

  • Physical Specifications

    • Weight: 0.17 kg
    • Dimensions: 21.5 (L) x 11.5 (W) x 8.2 (H) [mm]
    • Carton Quantity: 70
    • Carton Weight: 12.50 kg

  • Datasheet
