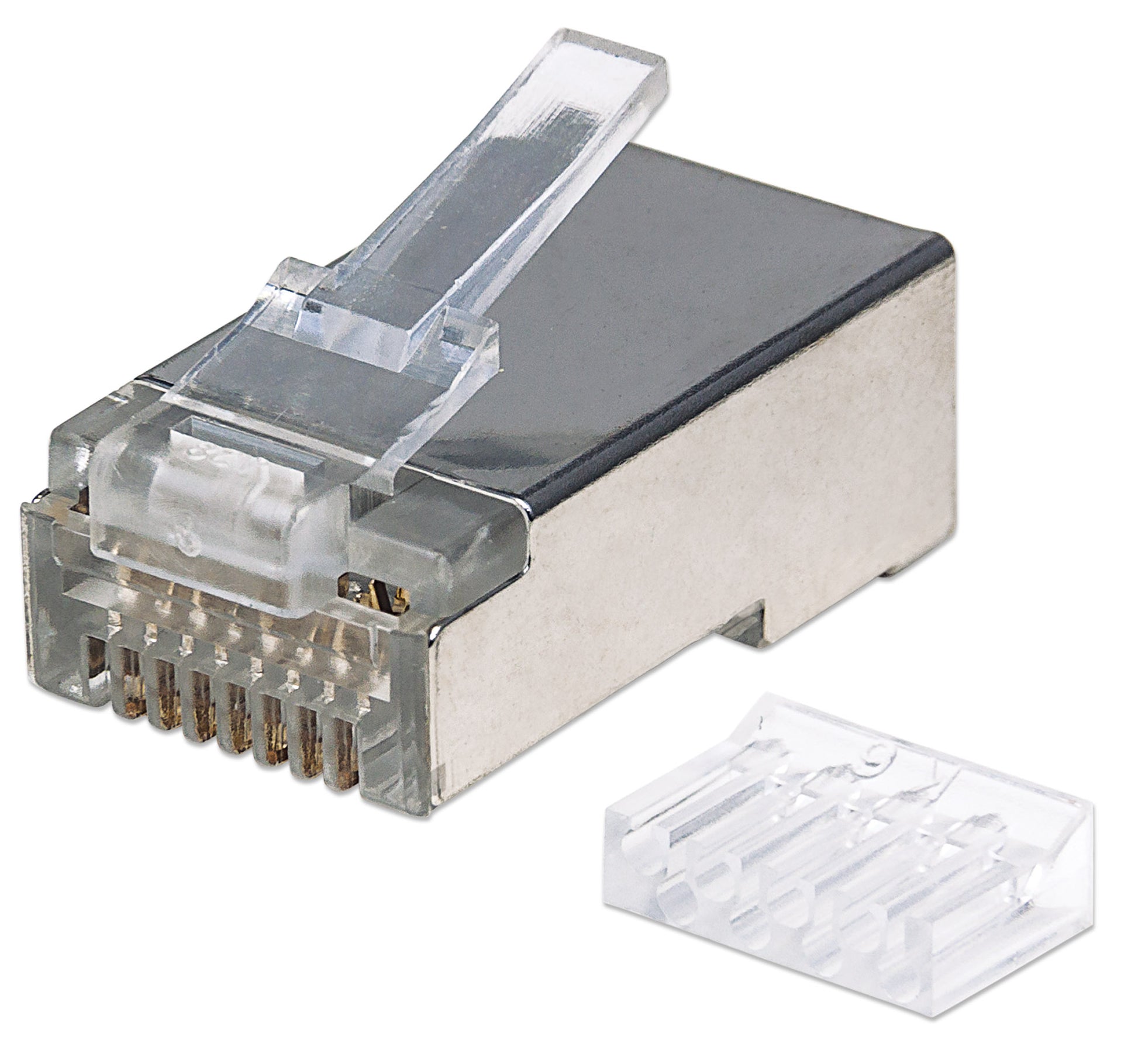

90-Pack Cat6 RJ45 Modular Plugs Image 1

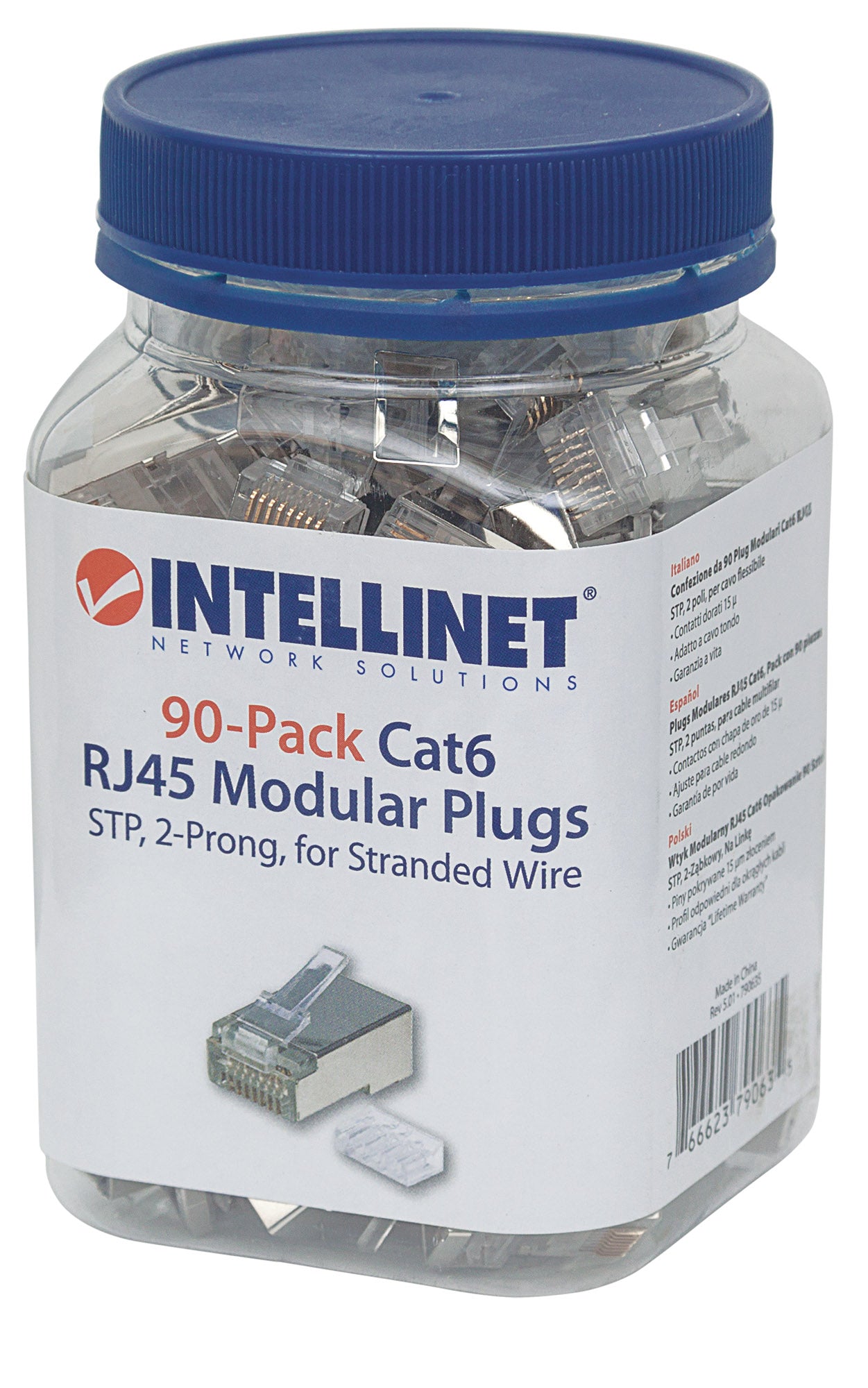

90-Pack Cat6 RJ45 Modular Plugs Packaging Image 2

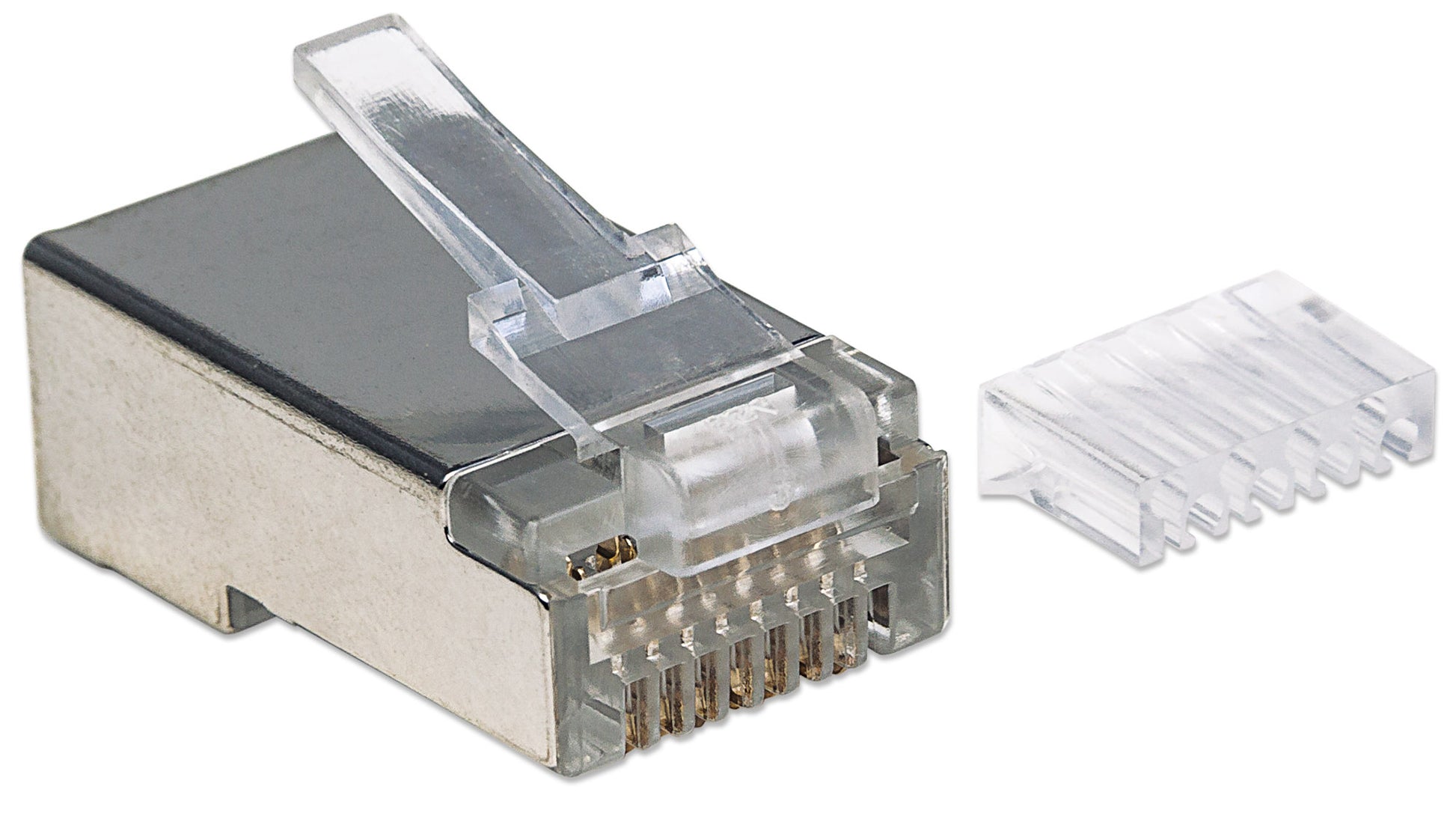

90-Pack Cat6 RJ45 Modular Plugs Image 3

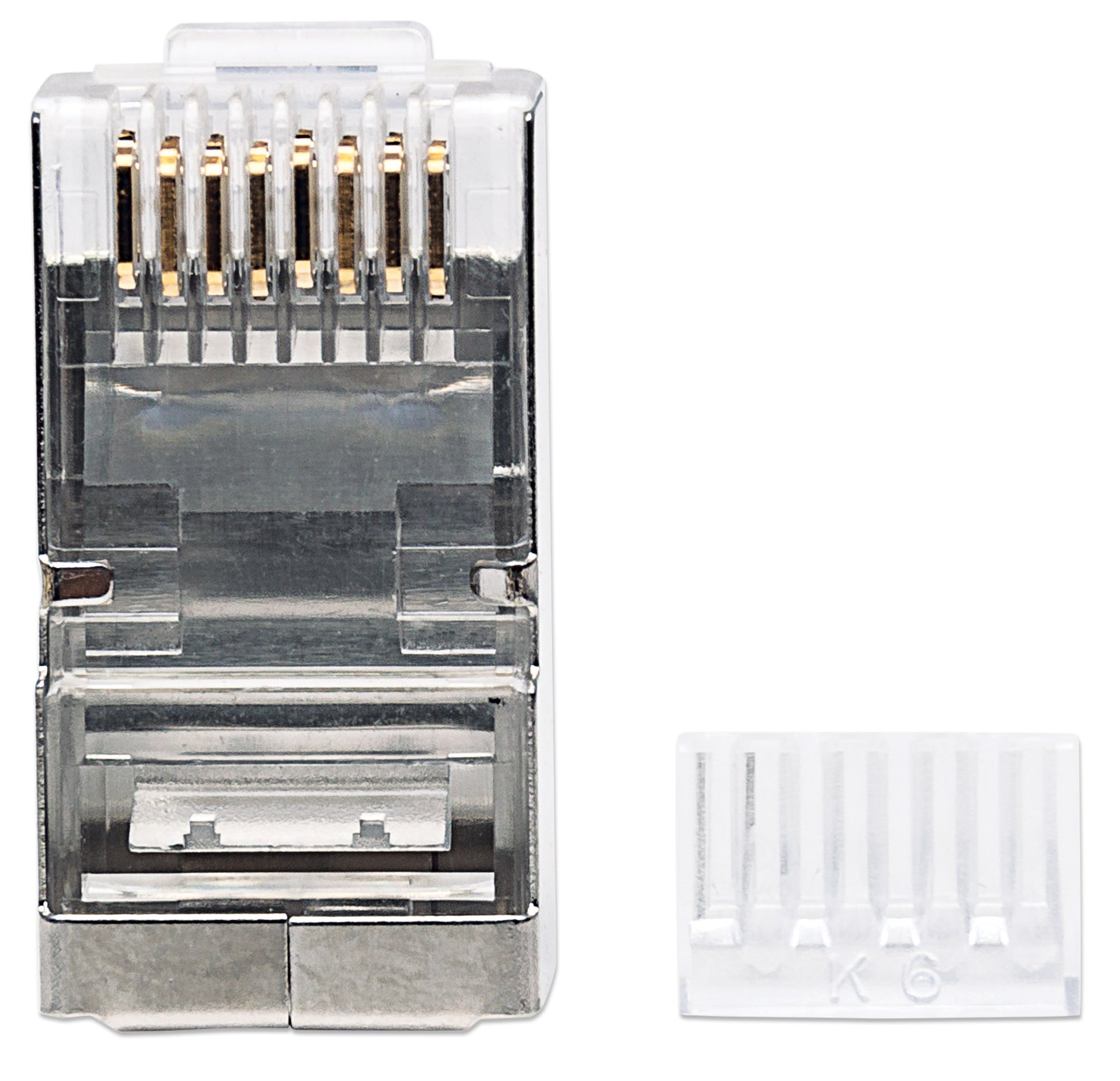

90-Pack Cat6 RJ45 Modular Plugs Image 4

90-Pack Cat6 RJ45 Modular Plugs

STP, 2-prong, for stranded wire, 90 plugs in jar

SKU: 790635

Highlights

  • 15 µ gold-plated contacts
  • Two-prong terminal for stranded wire
  • Supports 22 to 26 AWG

Manufacturer

Intellinet Network Solutions


Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micron gold contacts for our standard plugs or a high-quality 50 micron standard in our Premium and Pro lines.

  • 15 µ gold-plated contacts
  • Two-prong terminal for stranded wire
  • Supports 22 to 26 AWG
  • Fits round cable
  • For shielded twisted pair applications
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully compatible with Category 3, 4, 5, 5e and 6 applications
  • Lifetime Warranty

    StandardsCategory 5 (ANSI/TIA/EIA-568-C)Category 5e (TIA/EIA-568-C)Category 6 (ANSI/TIA-568-C)MaterialInsulator: polycarbonate rated UL 94V-2Contacts: phosphor bronzeContact Plating: 15 micron goldPackage Contents90 Cat6 RJ45 Modular Plugs with liners in jar

  • Other Part Numbers

    • Amazon ASIN: B01L6PJN14
    • EAN: 0766623790635
    • UPC: 766623790635

  • Datasheet
