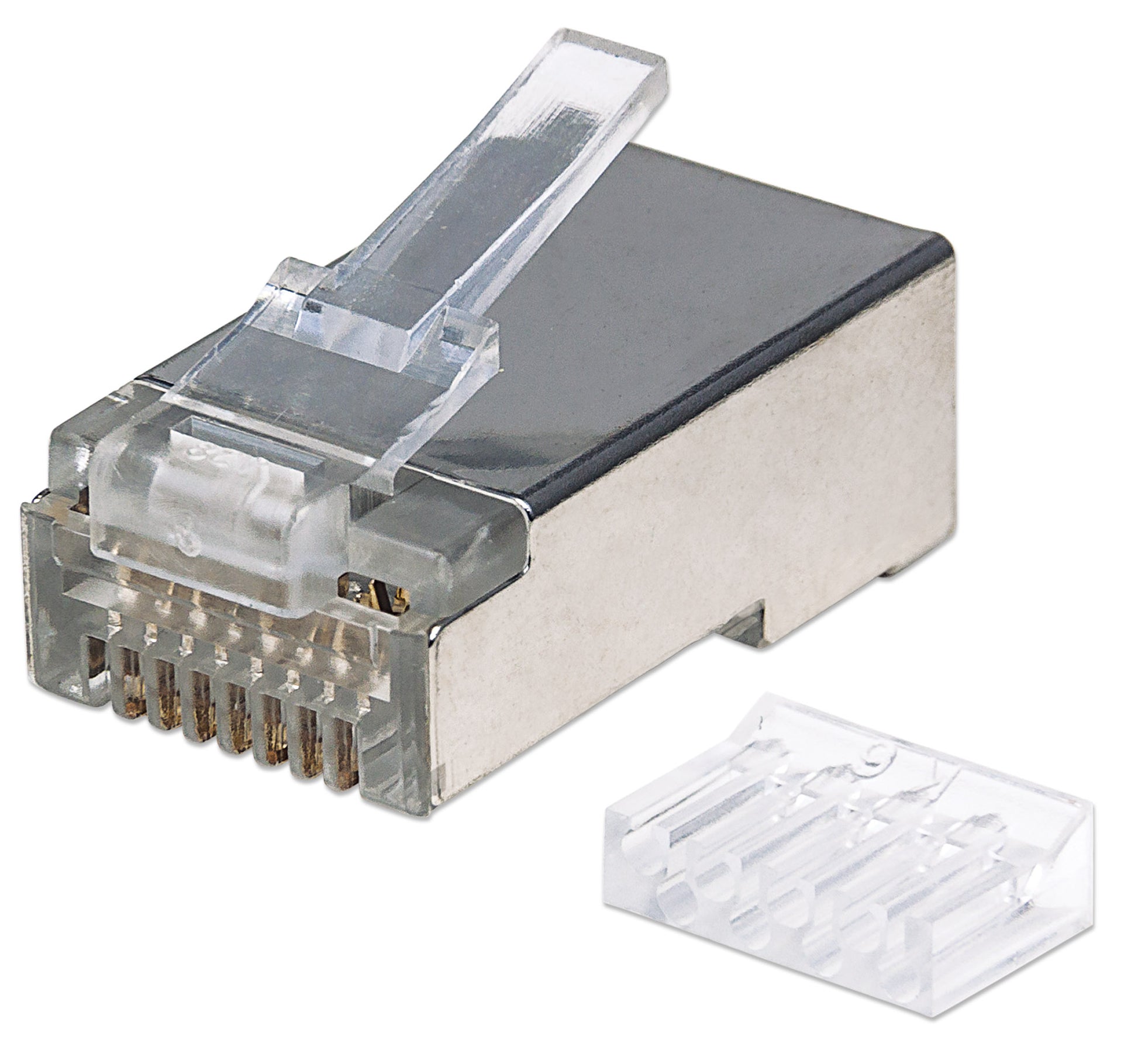

90-Pack Cat6 RJ45 Modular Plugs Pro Line Image 1

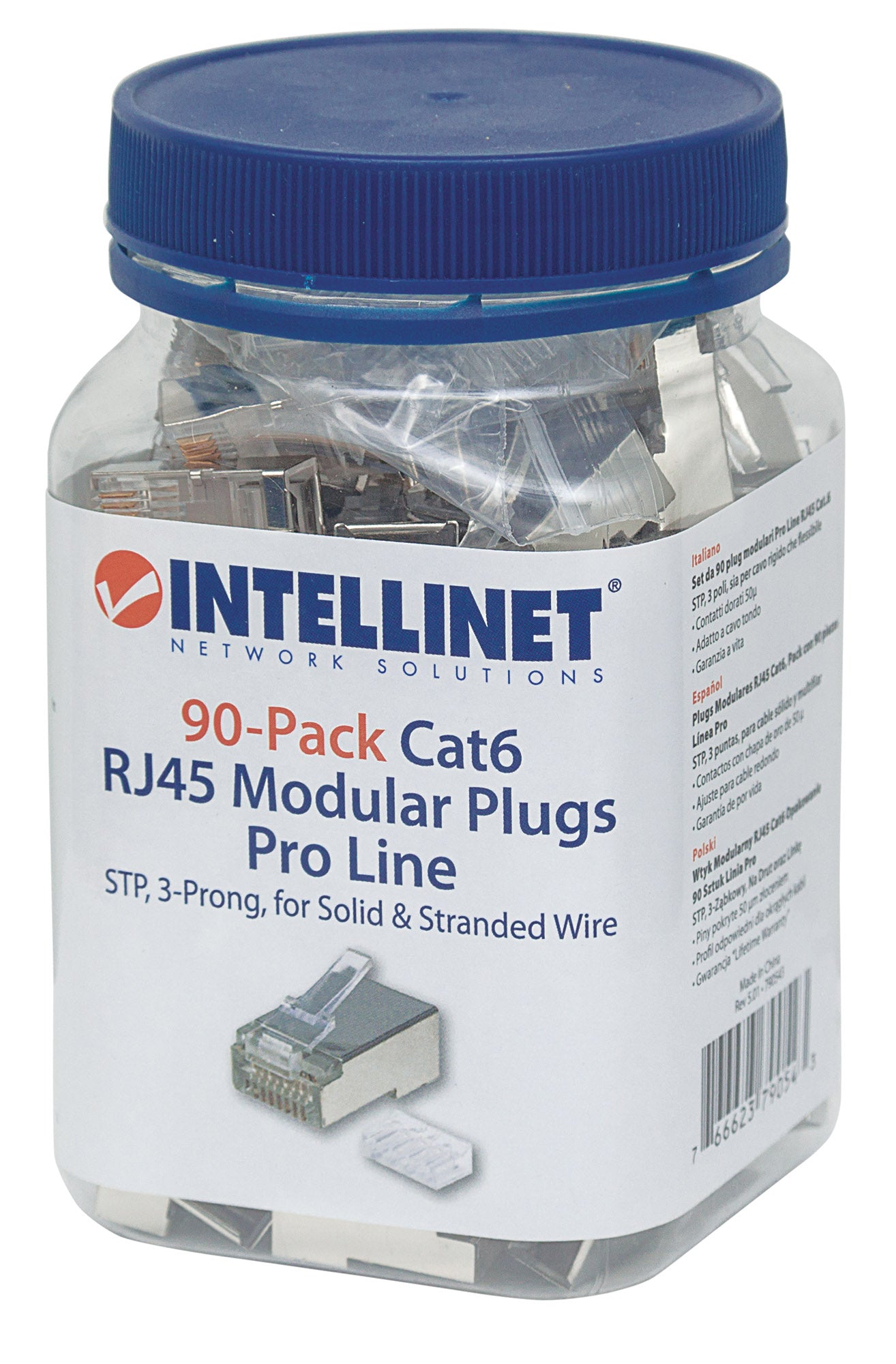

90-Pack Cat6 RJ45 Modular Plugs Pro Line Packaging Image 2

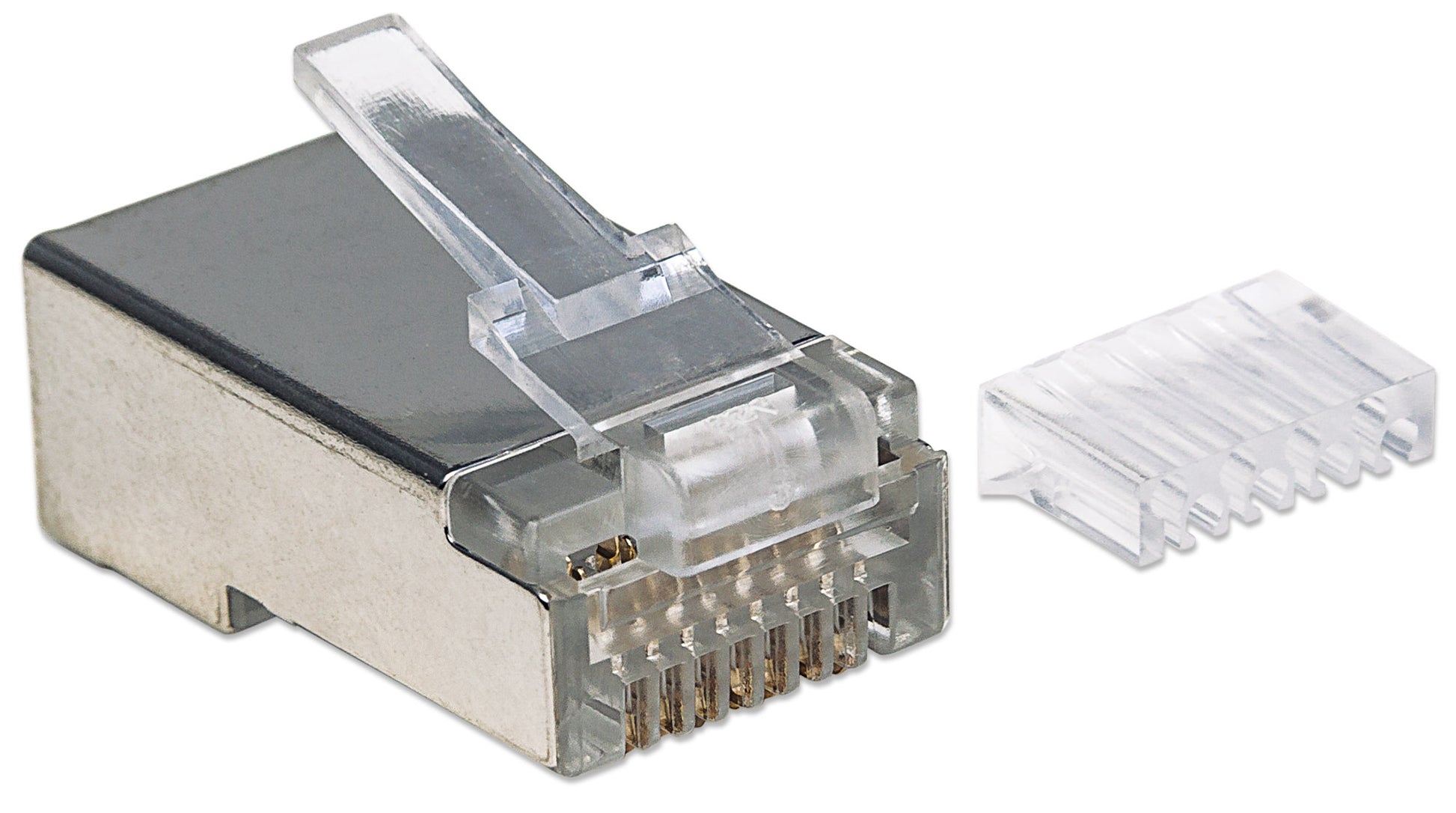

90-Pack Cat6 RJ45 Modular Plugs Pro Line Image 3

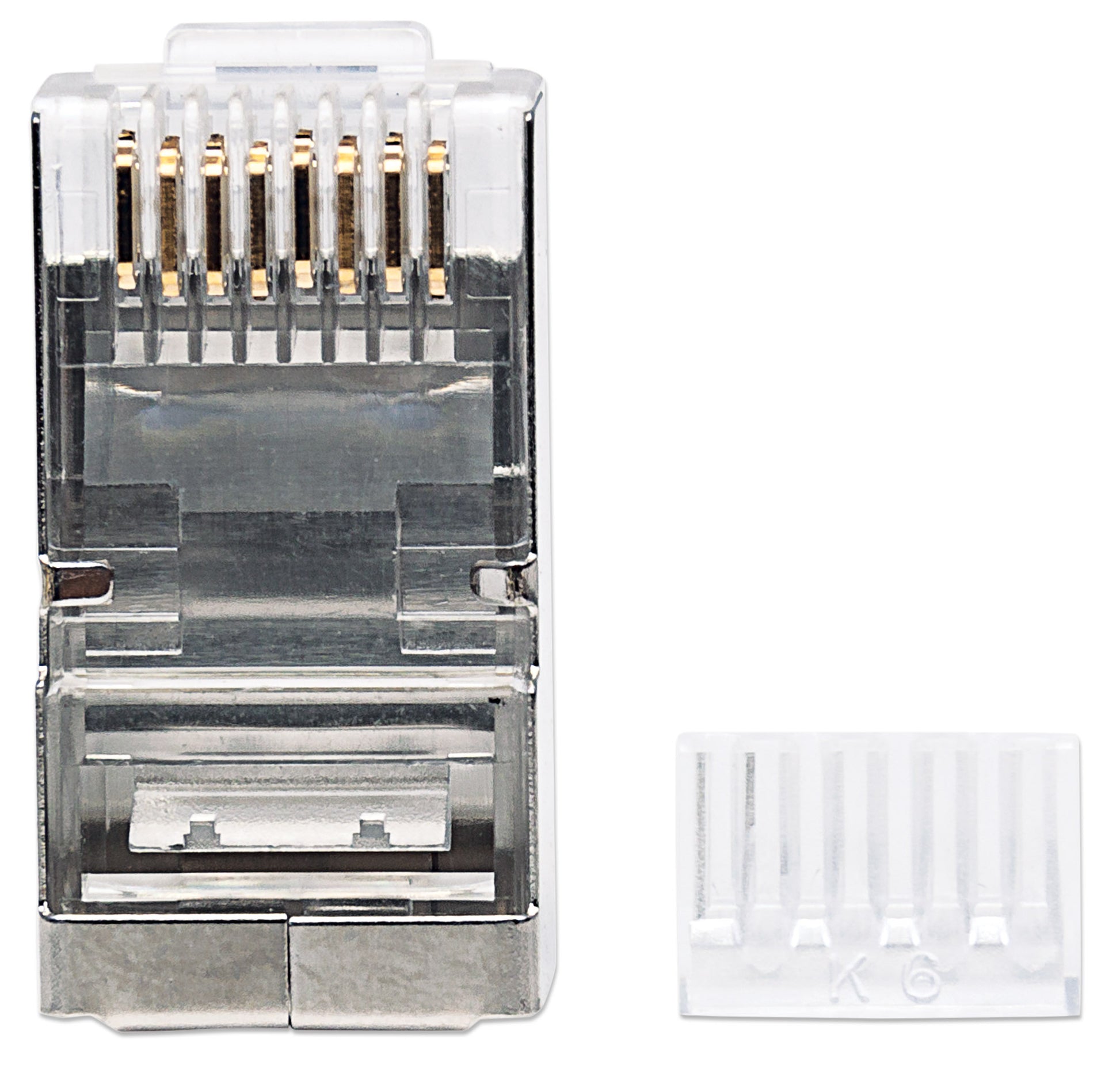

90-Pack Cat6 RJ45 Modular Plugs Pro Line Image 4

90-Pack Cat6 RJ45 Modular Plugs Pro Line

STP, 3-prong, for solid and stranded wire, 90 plugs in jar

SKU: 790543

Highlights

  • 50 µ gold-plated contacts
  • Three-prong terminal for solid & stranded wire
  • Supports 24 to 26 AWG

Manufacturer

Intellinet Network Solutions

Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micron gold contacts for our standard plugs or a high-quality 50 micron standard in our Premium and Pro lines.

  • 50 µ gold-plated contacts
  • Three-prong terminal for solid & stranded wire
  • Supports 24 to 26 AWG
  • Fits round cable
  • For shielded twisted pair applications
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully compatible with Category 3, 4, 5, 5e and 6 applications
  • Lifetime Warranty


    StandardsCategory 5 (ANSI/TIA/EIA-568-C)Category 5e (TIA/EIA-568-C)Category 6 (ANSI/TIA-568-C)MaterialInsulator: polycarbonate rated UL 94V-2Contacts: phosphor bronzeContact Plating: 50 micron goldPackage Contents90 Cat6 RJ45 Modular Plugs with Liners in jar

  • Other Part Numbers

    • Amazon ASIN: B01L6QPJ6Q
    • EAN: 0766623790543
    • UPC: 766623790543

  • Physical Specifications

    • Weight: 0 kg
    • Dimensions: 21.5 (L) x 11.5 (W) x 8 (H) [mm]
    • Carton Quantity: 70
    • Carton Weight: 17.70 kg

  • Datasheet
