Intellinet

Cat5e Slim Punch-Down Keystone Jack, White

Cat5e Slim Punch-Down Keystone Jack, White

For Easy Fit in High-density Patch Panels, UTP, for Solid Wire, Gold-plated Contacts

Highlights

  • Slimline design, only 16.2 mm (0.64 in.) wide for comfortable side-by-side deployment in blank patch panels, wall plates or surface connection boxes
  • Cat5e RJ45 module with 1G and 100 MHz in accordance with ISO/IEC 11801
  • Gold-plated contacts for corrosion-free connections

SKU: 772013

NDAA Compliant
[ view high resolution images ]

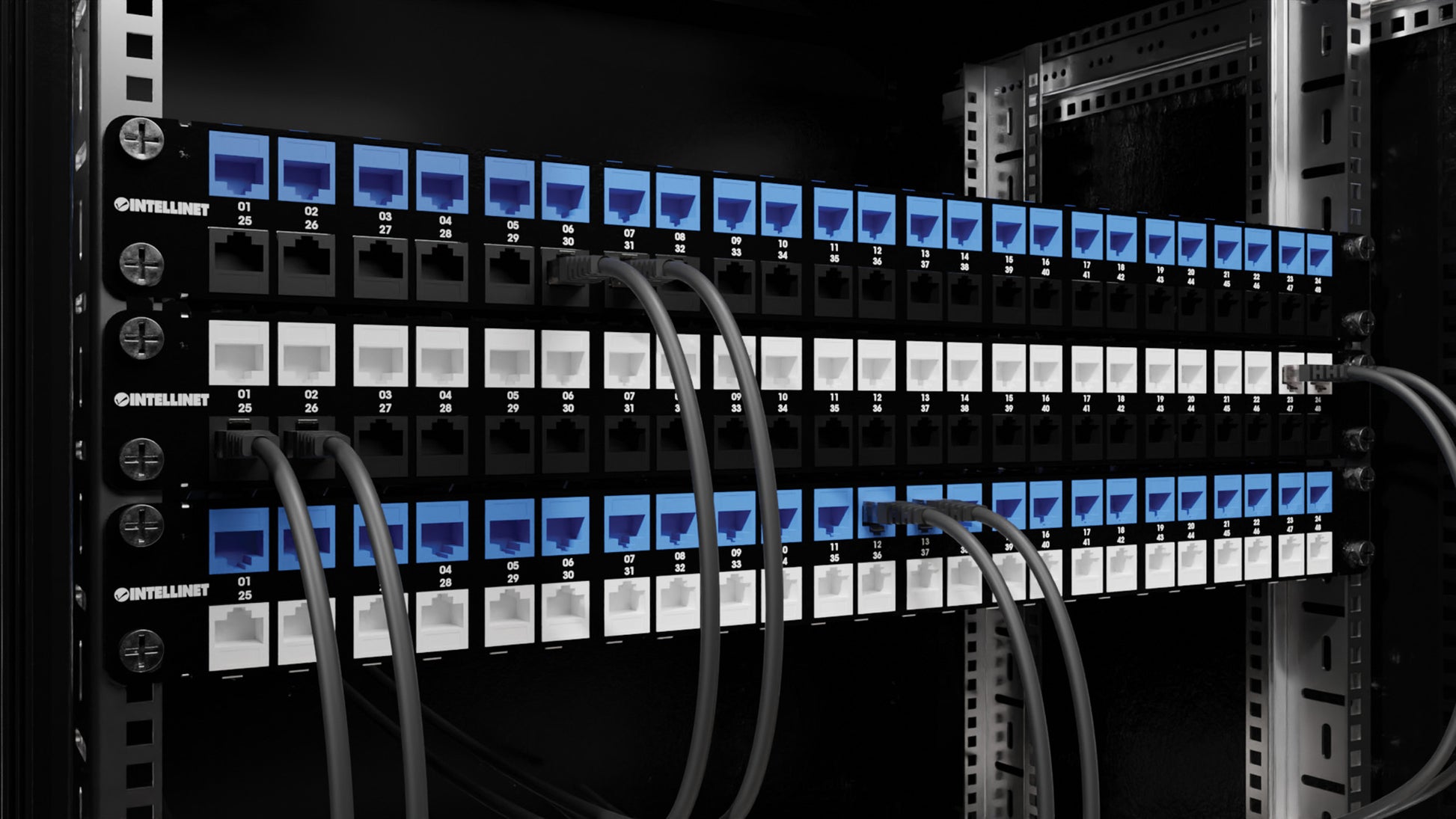

Slimline, space-saving Cat5e UTP Gigabit Keystone Jack Module for comfortable fit in high-density patch panels

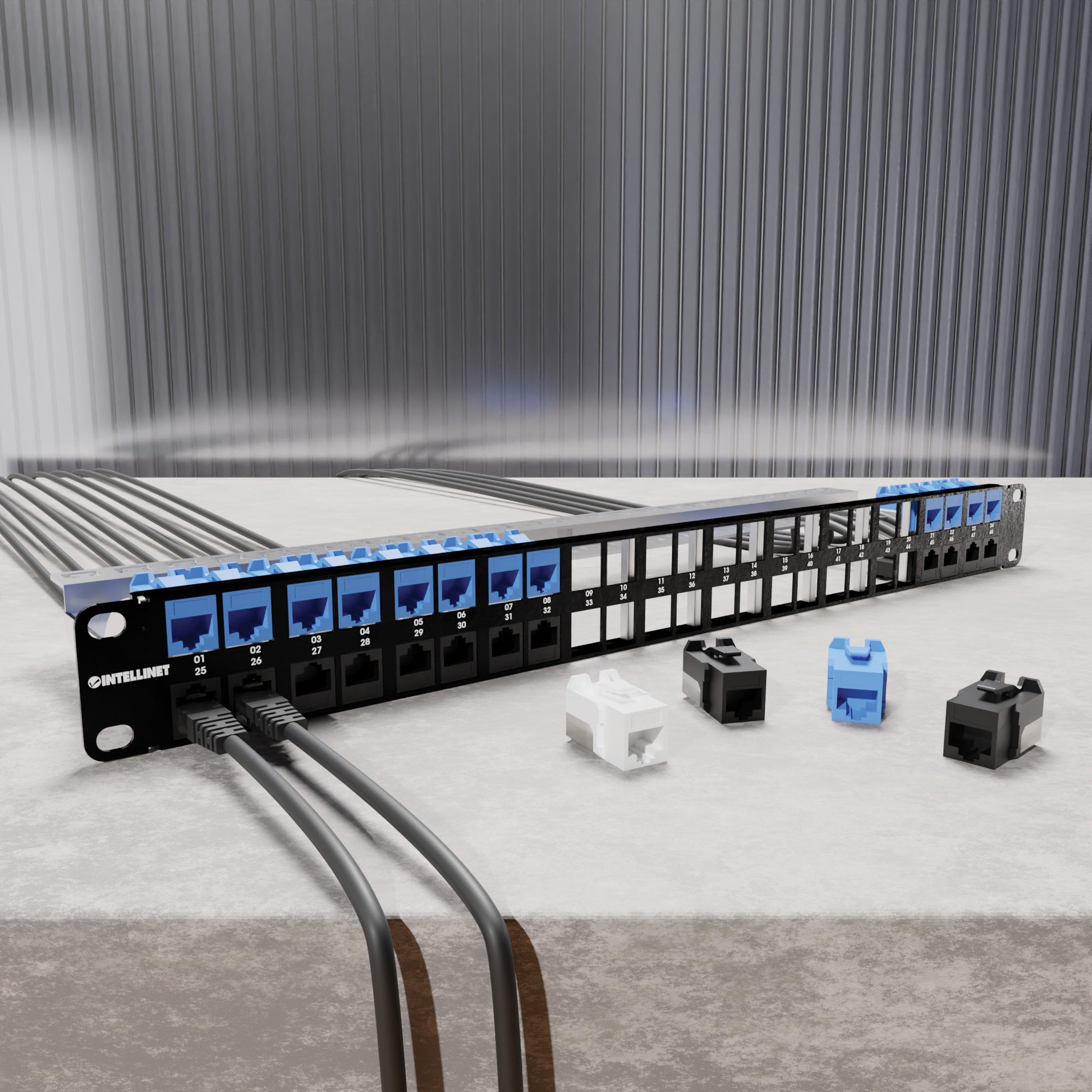

The Slim Cat5e Punch-Down Keystone Jack from Intellinet Network Solutions is designed for easy side-by-side deployment in blank patch panels, wall plates or surface connection boxes. This keystone jack is suitable for solid conductor cables for high-performance network applications up to 1000BASE-T with PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For high signal integrity, it is equipped with gold-plated contacts.

  • Slimline design, only 16.2 mm (0.64 in.) wide for comfortable side-by-side deployment in blank patch panels, wall plates or surface connection boxes
  • Cat5e RJ45 module with 1G and 100 MHz in accordance with ISO/IEC 11801
  • Gold-plated contacts for corrosion-free connections
  • Supports solid wire with AWG 26/1 to 23/1
  • LSA punch-down type, compatible with 110, Krone, and other punch-down tools
  • Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
  • Standard 8P8C design, compatible with all network RJ45 connections

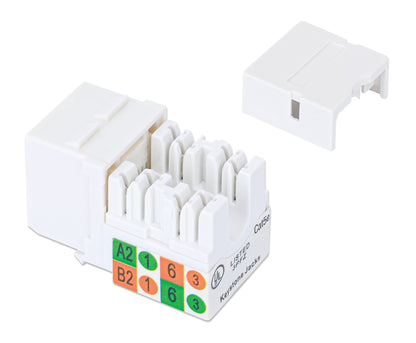

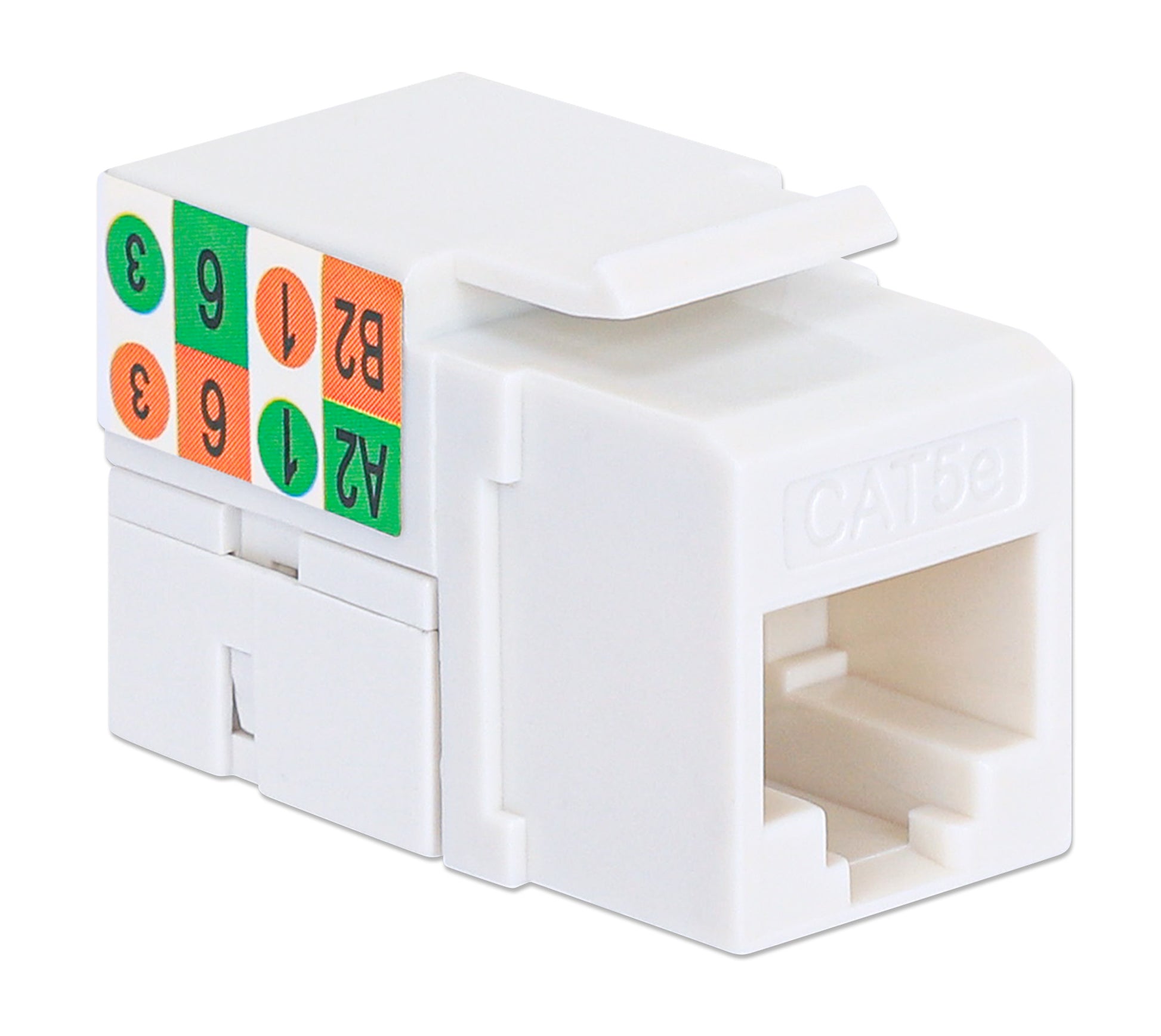

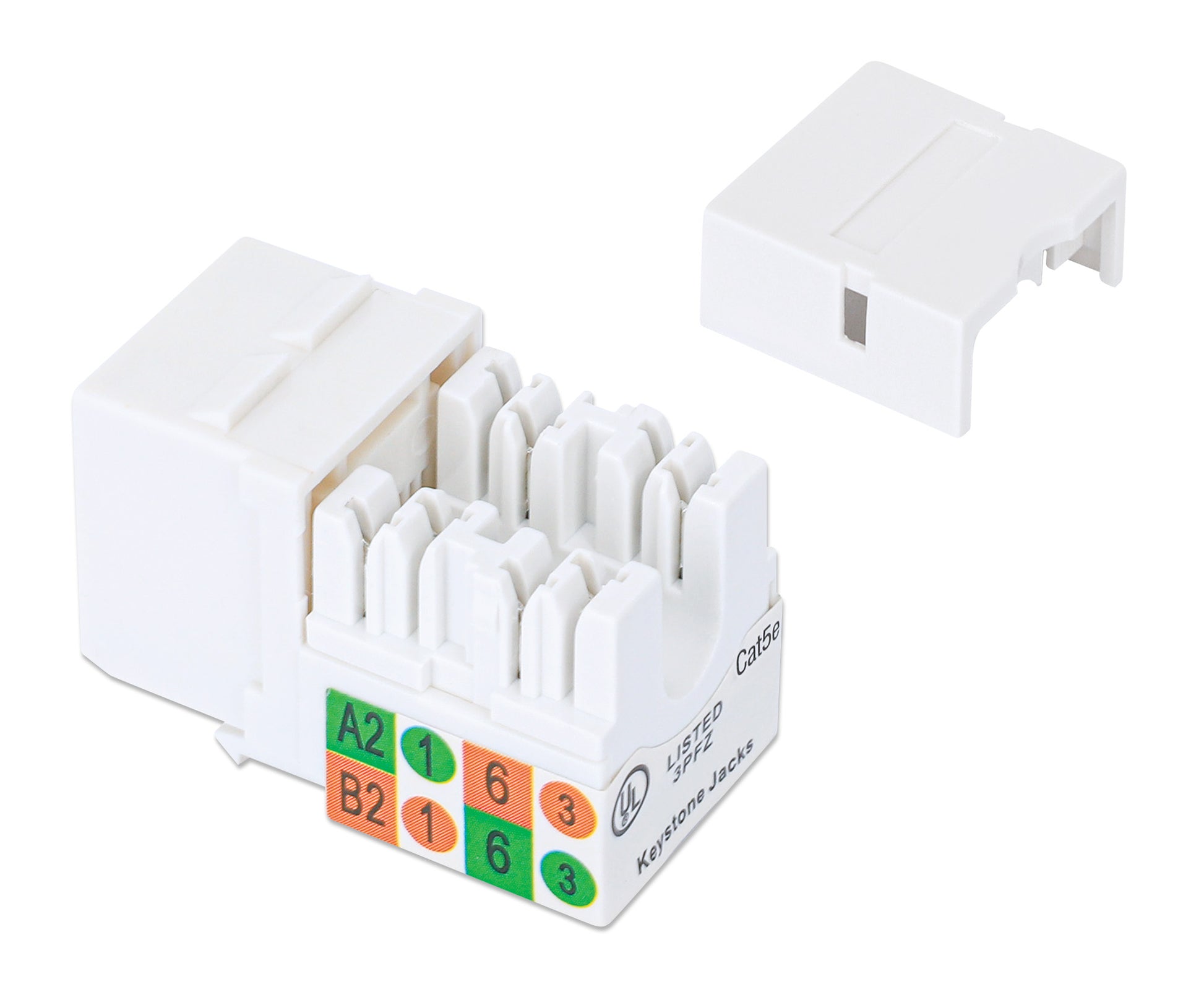

  • Compatible and color-coded with T568A and T568B

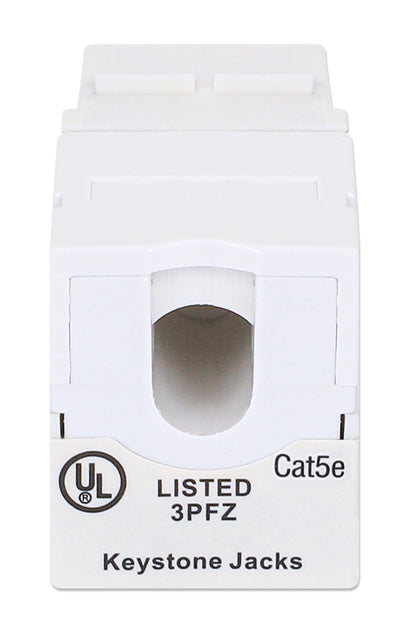

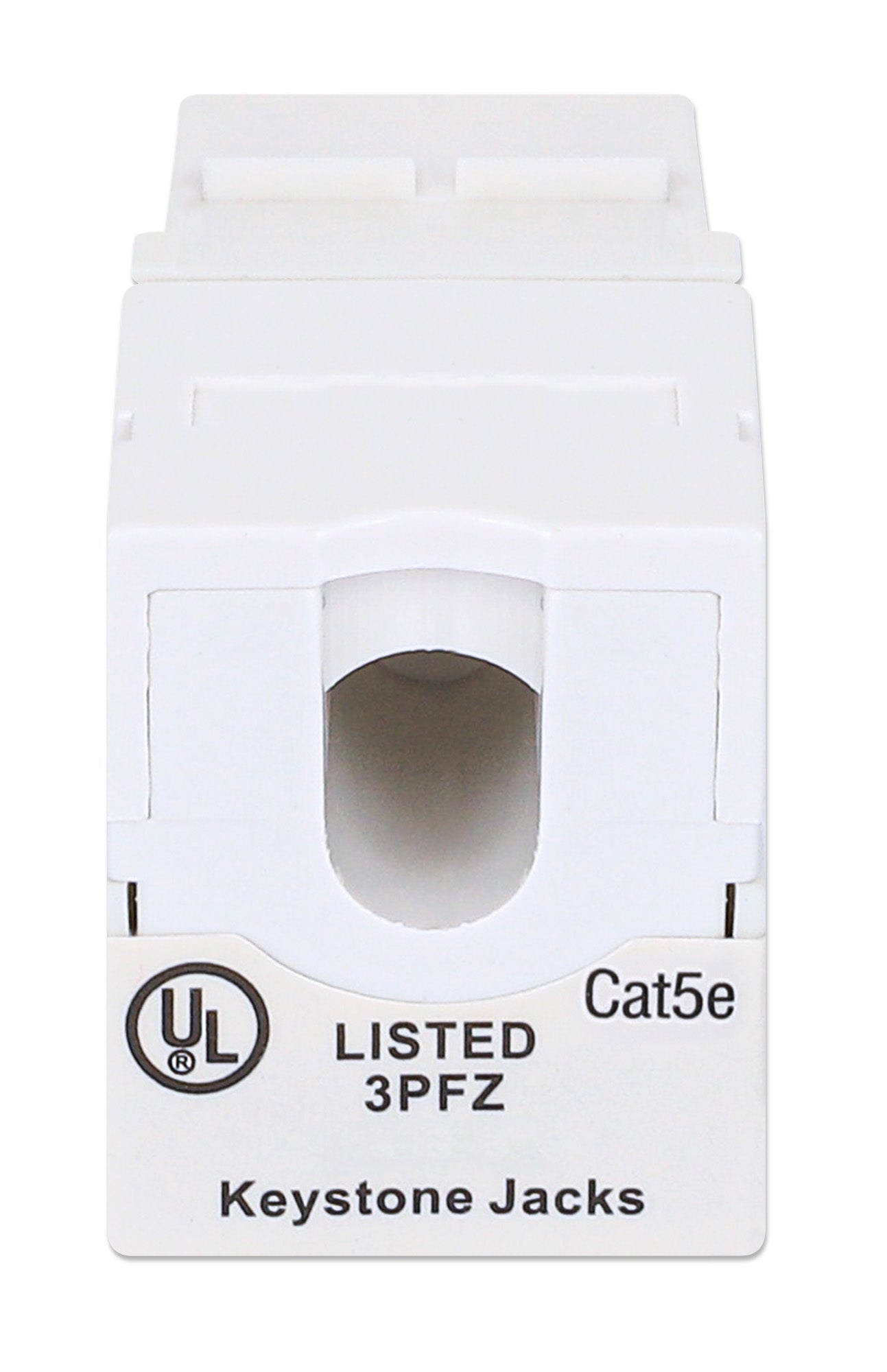

  • UL approved
  • Lifetime warranty


    Standards and Certifications
  • CE
  • RoHS
  • ISO/IEC 11801
  • UL
  • REACH
  • UKCA
    • General
  • Supports transfer speeds up to 1 Gbps
  • Max. operating frequency: 100 MHz
  • Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
  • Mating cycles: ≥750
  • Insertion force: 30N max.
  • Retention strength: 7.7 kg (17 lbs.) between jack and plug
    • Material
  • Contacts: phosphor bronze
  • Contact plating: gold
  • IDC: phosphor bronze
  • Housing: PC
  • Flammability: tested and rated in accordance with UL 94 V-0
    • Electrical
  • Insulation resistance: ≥500 MOhm
  • Dielectric withstanding voltage: 1,000 V DC/750 V AC
  • Contact resistance: ≤20 MOhm
  • DC resistance: ≥0.3 Ohm
  • Current rating: 1.5 A
    • Physical
  • Dimensions (L x W x H): 29.7 x 16.2 x 22 mm (1.17 x 0.64 x 0.87 in.)
  • Net weight: 7.5 g (0.26 oz.)
  • Gross weight: 12.5 g (0.44 oz.)
    • Environmental
  • Operating temperature: -10 - 60ºC (14 - 140ºF)
  • Storage temperature: -40 - 70°C (-40 - 158°F)
  • Operating humidity (non-condensing): 10 - 90% RH
    • Package Contents
  • Cat5e Slim Punch-Down Keystone Jack
  • Instructions
    • This product is part of a group; the complete list of variations follows:
  • #772006 - Cat5e Slimline Punch-Down Keystone Jack, Black
  • #772020 - Cat5e Slimline Punch-Down Keystone Jack, Blue
  • #772013 - Cat5e Slimline Punch-Down Keystone Jack, White
  • #772037 - Cat6 Slimline Punch-Down Keystone Jack, Black
  • #771979 - Cat6 Slimline Punch-Down Keystone Jack, Blue
  • #772051 - Cat6 Slimline Punch-Down Keystone Jack, White

  • Other Part Numbers

    • EAN: 0766623772013
    • UPC: 766623772013

  • Physical Specifications

    • Weight: 0.01 kg
    • Dimensions: 29.7 (L) x 16.2 (W) x 22 (H) [mm]
    • Carton Quantity: 500
    • Carton Weight: 7.00 kg
