Intellinet

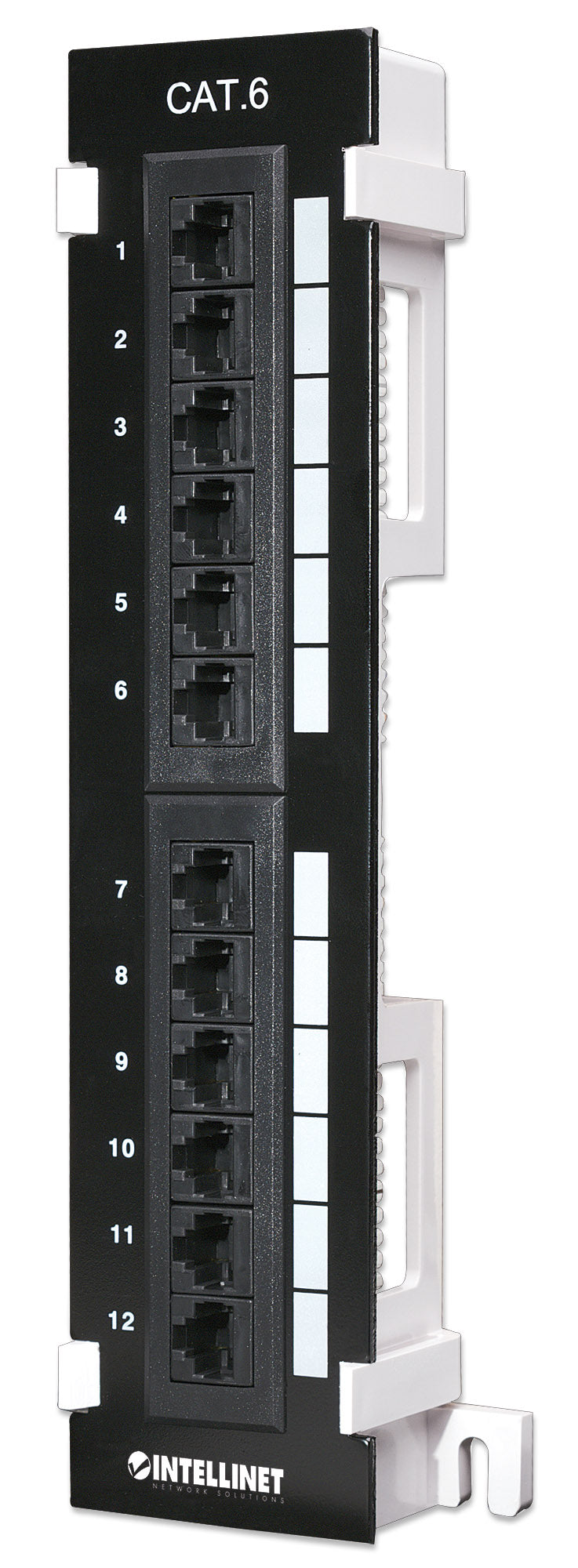

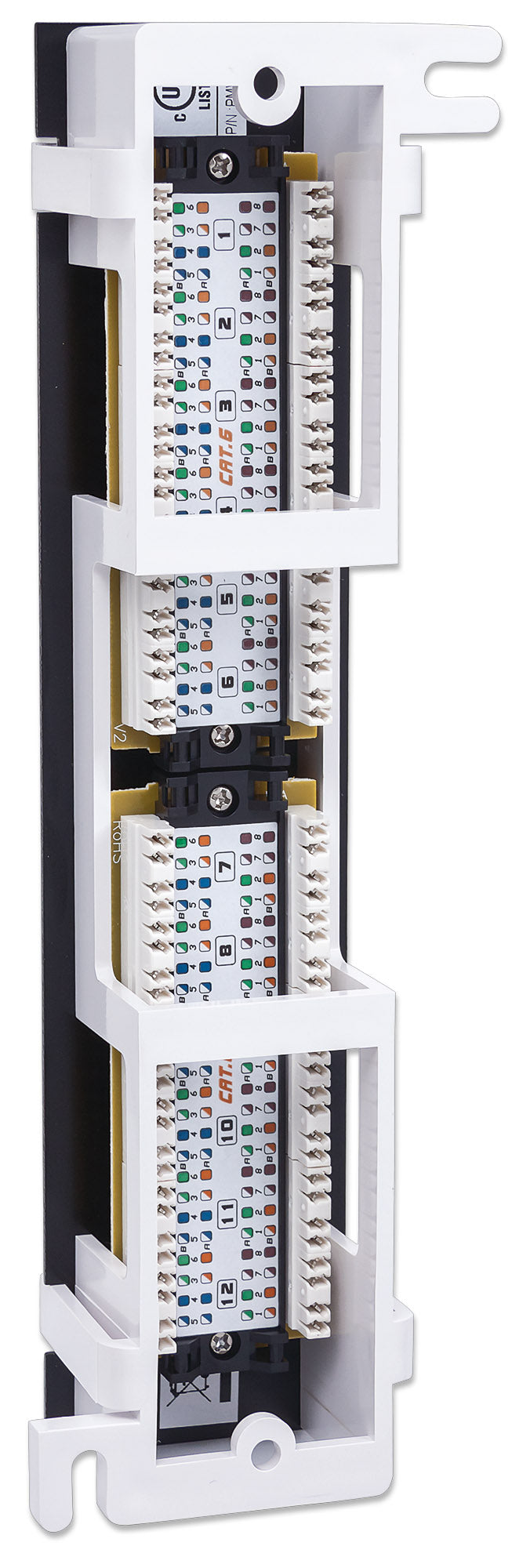

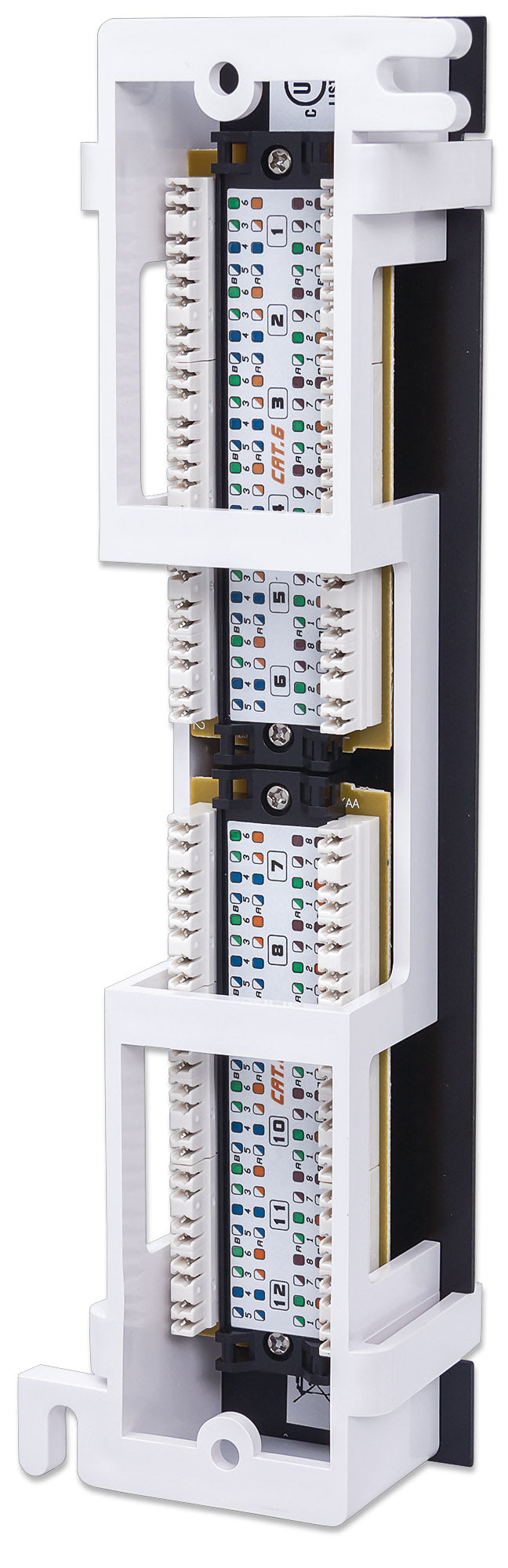

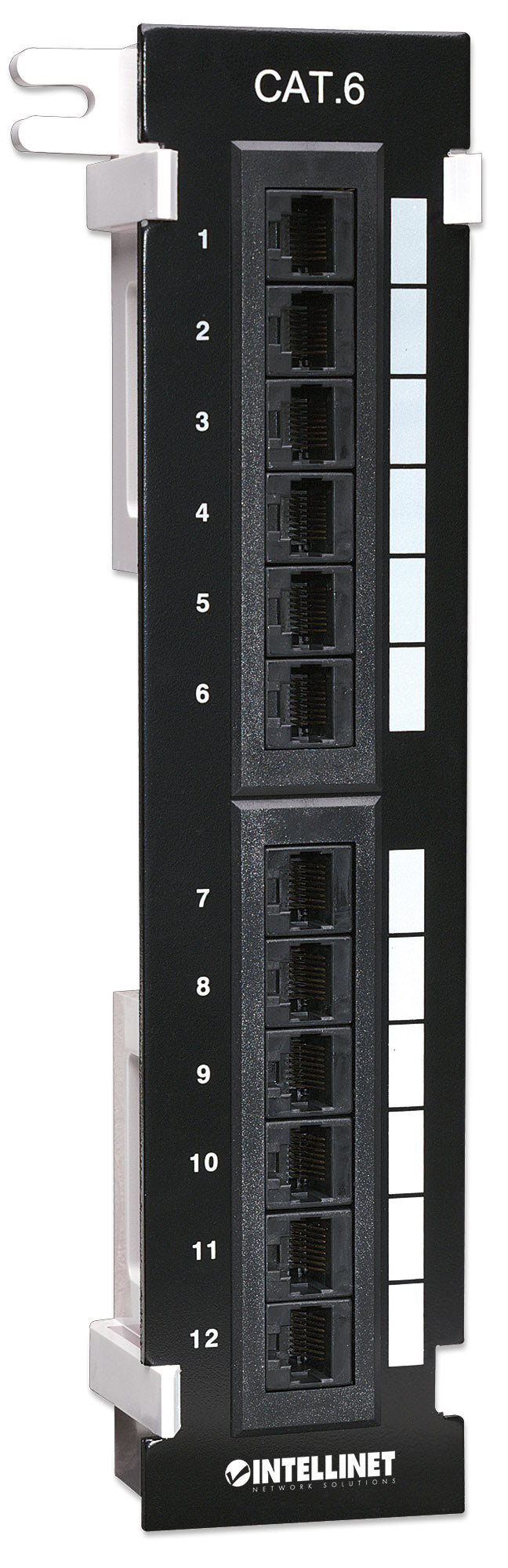

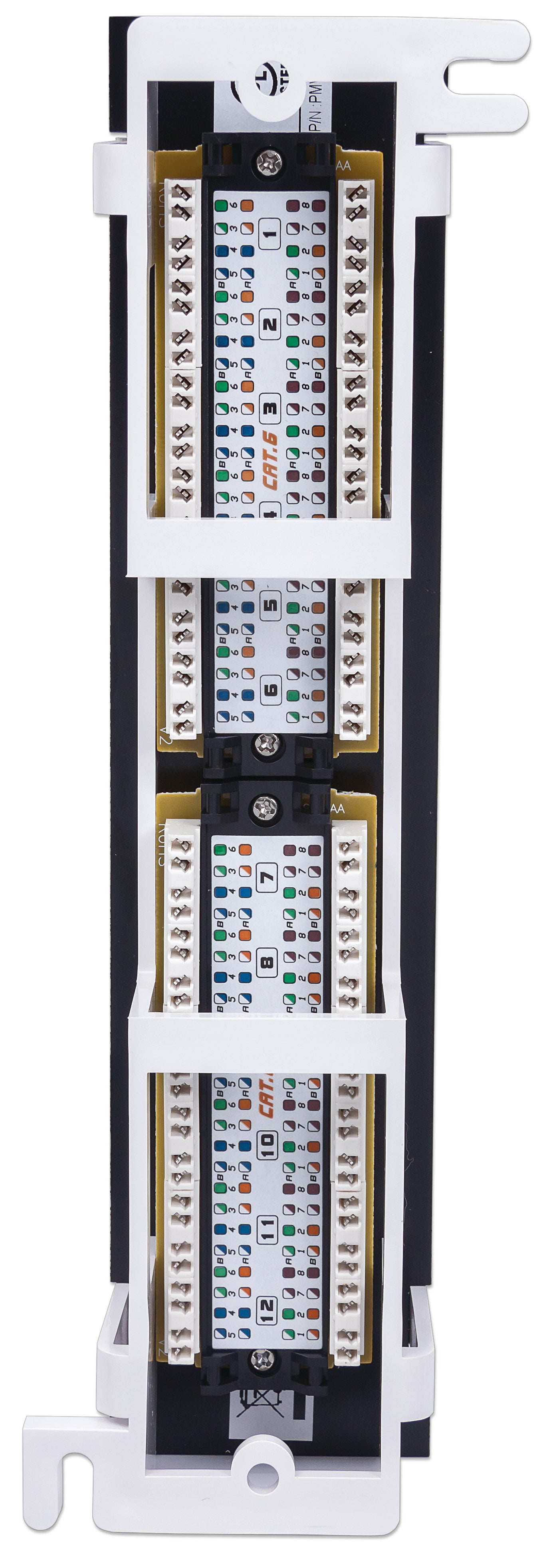

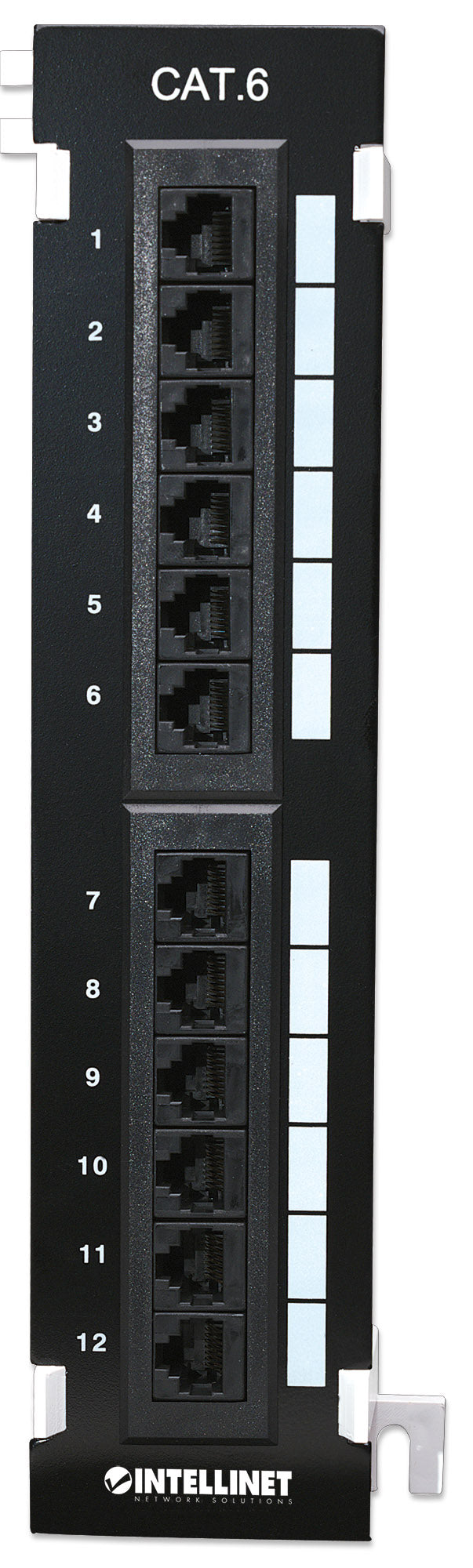

Cat6 12-Port Wall-Mount Patch Panel

UTP, for Solid and Stranded Wire, Gold-plated Contacts, Black

Highlights

Solid and reliable terminations for copper cabling featuring gold plated jack contacts
Compatible with both 110 and Krone punch down tools
Supports 22 to 26 AWG stranded and solid wire

SKU: 560269

[ view high resolution images ]

Wall-mount Patch Panel

The Intellinet Network Solutions Wall-mount Patch Panel helps maintain the integrity of your data and enables you to quickly change the port assignment of any piece of equipment that's attached to your network. This patch panel offers convenient access to ports and can be mounted to a wall, desk or any appropriate place where a rack is not able to be set up. With Cat6 performance that complies with the ANSI/TIA/EIA 568 B.2-1 standard and supporting unshielded Cat6 cable, this patch panel meets current industry standards for enhanced support of what's possible in your network.

Solid and reliable terminations for copper cabling featuring gold plated jack contacts
Compatible with both 110 and Krone punch down tools
Supports 22 to 26 AWG stranded and solid wire
For use with unshielded twisted pair (UTP) Cat6 network cable
Cat6 performance is in compliance with the ANSI/TIA/EIA 568 B.2-1 standard
Ideal for Ethernet, Fast Ethernet, and Gigabit Ethernet network applications
Connects RJ45 ports to a network
Lifetime Warranty

IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3ab (1000Base-T Gigabit Ethernet)
UL listed
RoHS Compliant
Dimensions: 254 mm (W) x 82 mm (H) x 47 mm (D)
Weight: .337 kg (11.9 oz.)
Operating temperature: -40°C to 80°C (-40°F to 176°F)
Cat6 Mini Patch Panel
2 mounting screws
Quick Installation Guide
