Cat6 Slim Punch-Down Keystone Jack, White
Cat6 Slim Punch-Down Keystone Jack, White
For Easy Fit in High-density Patch Panels, UTP, for Solid Wire, Gold-plated Contacts
Highlights
- Slimline design, only 16.2 mm (0.64 in.) wide for comfortable side-by-side deployment in blank patch panels, wall plates or surface connection boxes
- Cat6 RJ45 module with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801
- Gold-plated contacts for corrosion-free connections
SKU: 772051
[ view high resolution images ]
Slimline, space-saving Cat6 UTP Gigabit Keystone Jack Module for comfortable fit in high-density patch panels

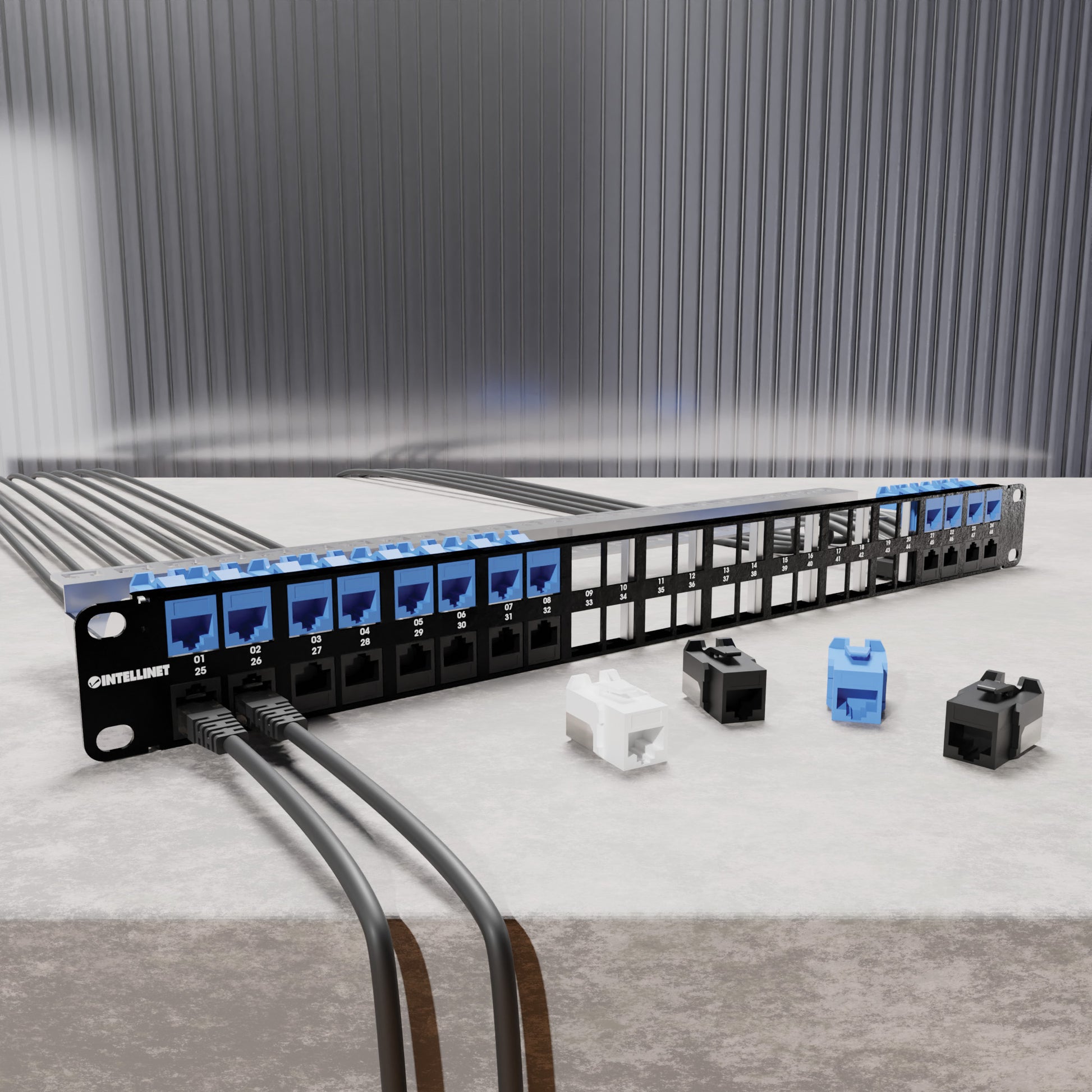

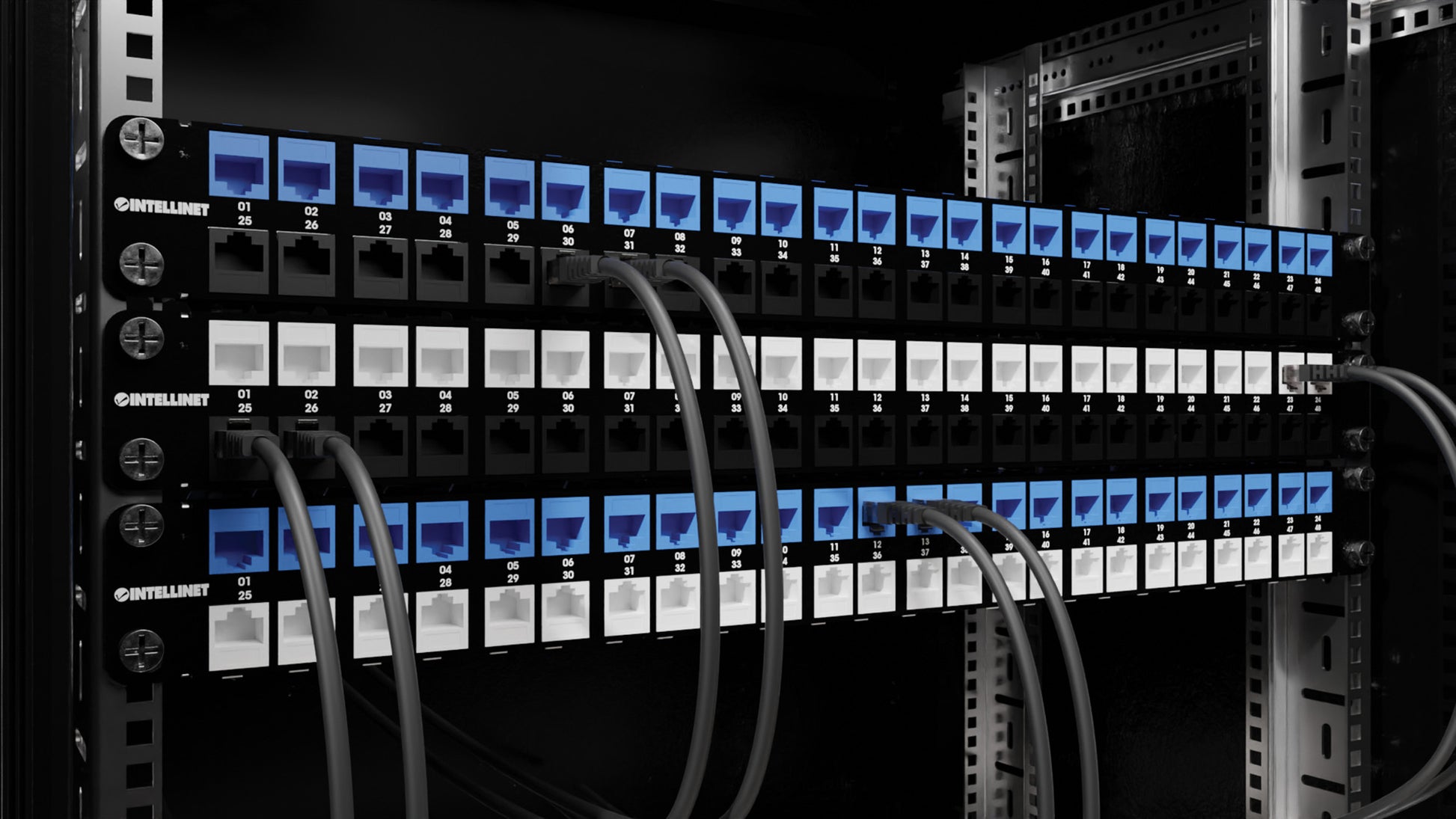

The Slim Cat6 Punch-Down Keystone Jack from Intellinet Network Solutions is designed for easy side-by-side deployment in blank patch panels, wall plates or surface connection boxes. This keystone jack is suitable for solid conductor cables for high-performance network applications up to 10GBASE-T over 55 m (180 ft.) or 1000BASE-T over 100 m (328 ft.) with PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For high signal integrity, it is equipped with gold-plated contacts.
- Slimline design, only 16.2 mm (0.64 in.) wide for comfortable side-by-side deployment in blank patch panels, wall plates or surface connection boxes
- Cat6 RJ45 module with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801
- Gold-plated contacts for corrosion-free connections
- Supports solid wire with AWG 26/1 to 23/1

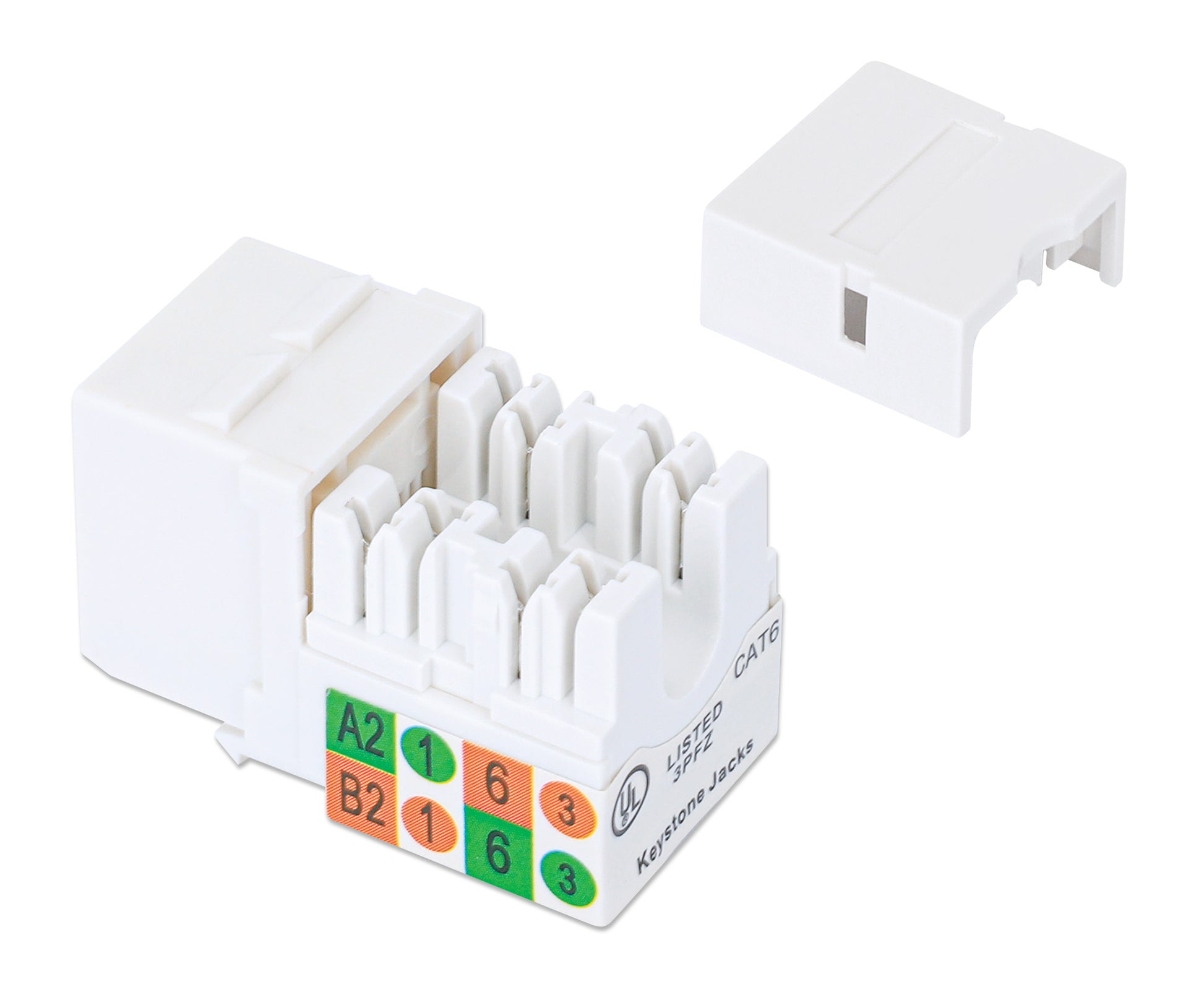

- LSA punch-down type, compatible with 110, Krone, and other punch-down tools
- Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
- Standard 8P8C design, compatible with all network RJ45 connections

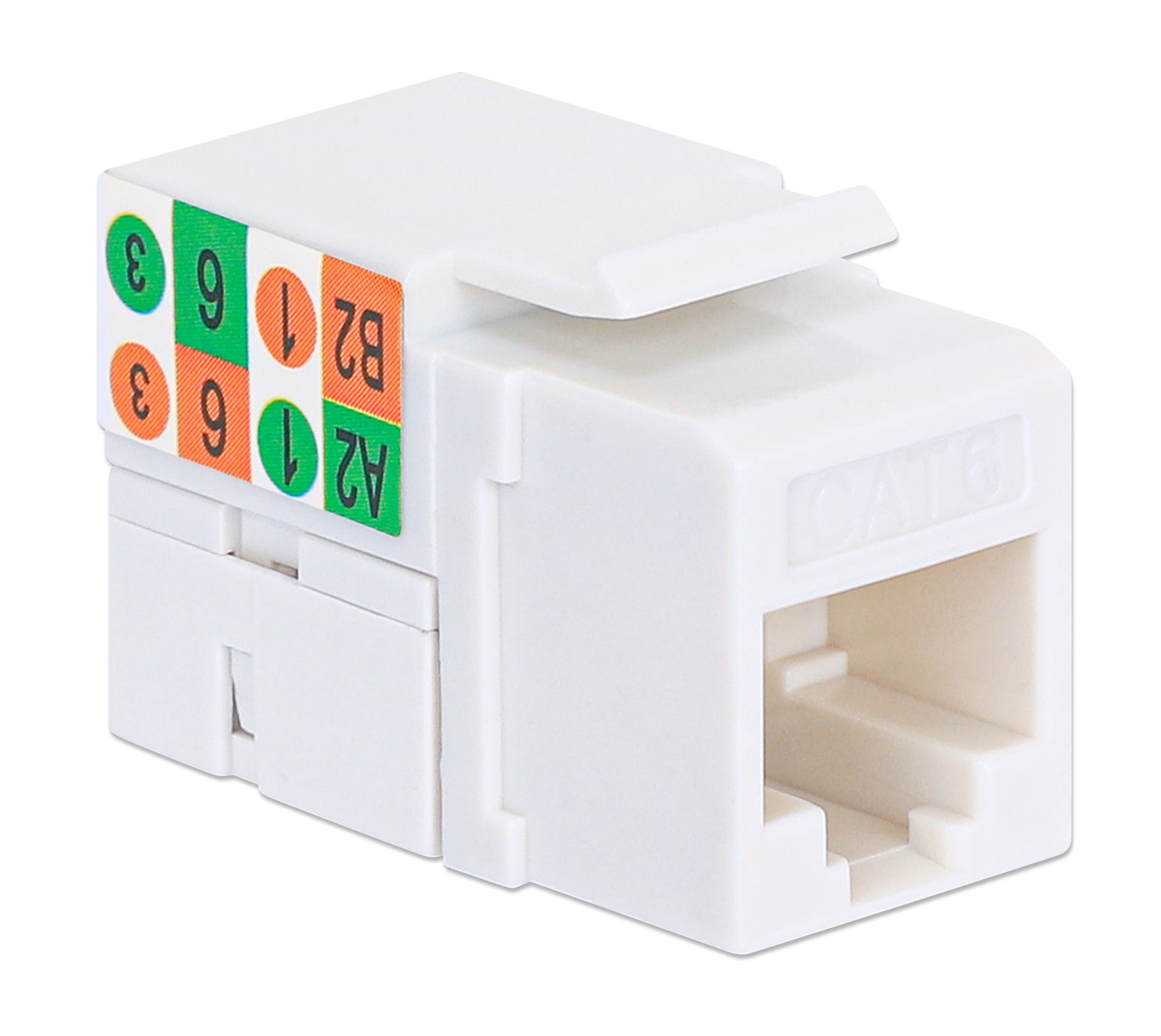

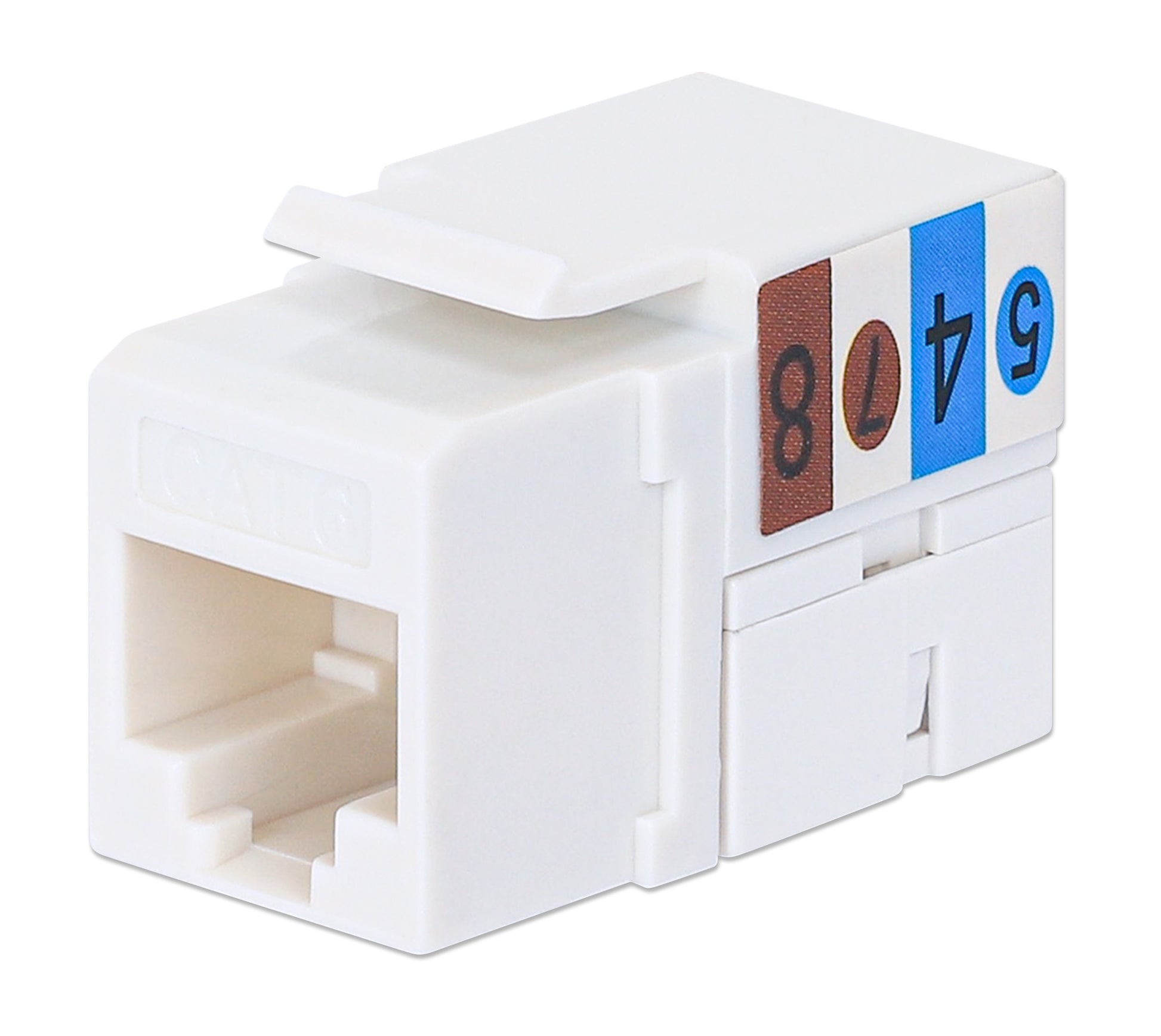

- Compatible and color-coded with T568A and T568B
- UL approved
- Lifetime warranty
- Standards and Certifications
- CE
- RoHS
- ISO/IEC 11801
- UL
- REACH
- UKCA General
- Supports transfer speeds up to 10 Gbps over distances up to 55 m (180 ft.)
- Max. operating frequency: 250 MHz
- Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
- Mating cycles: ≥750
- Insertion force: 30N max.
- Retention strength: 7.7 kg (17 lbs.) between jack and plug Material
- Contacts: phosphor bronze
- Contact plating: gold
- IDC: phosphor bronze
- Housing: PC
- Flammability: tested and rated in accordance with UL 94 V-0 Electrical
- Insulation resistance: ≥500 MOhm
- Dielectric withstanding voltage: 1,000 V DC/750 V AC
- Contact resistance: ≤20 MOhm
- DC resistance: ≥0.3 Ohm
- Current rating: 1.5 A Physical
- Dimensions (L x W x H): 29.7 x 16.2 x 22 mm (1.17 x 0.64 x 0.87 in.)
- Net weight: 7.5 g (0.26 oz.)
- Gross weight: 12.5 g (0.44 oz.) Environmental
- Operating temperature: -10 - 60ºC (14 - 140ºF)
- Storage temperature: -40 - 70°C (-40 - 158°F)
- Operating humidity (non-condensing): 10 - 90% RH Package Contents
- Cat6 Slim Punch-Down Keystone Jack
- Instructions This product is part of a group; the complete list of variations follows:
- #772006 - Cat5e Slimline Punch-Down Keystone Jack, Black
- #772020 - Cat5e Slimline Punch-Down Keystone Jack, Blue
- #772013 - Cat5e Slimline Punch-Down Keystone Jack, White
- #772037 - Cat6 Slimline Punch-Down Keystone Jack, Black
- #771979 - Cat6 Slimline Punch-Down Keystone Jack, Blue
- #772051 - Cat6 Slimline Punch-Down Keystone Jack, White
Other Part Numbers
- EAN: 0766623772051
- UPC: 766623772051
Physical Specifications
- Weight: 0.01 kg
- Dimensions: 29.7 (L) x 16.2 (W) x 22 (H) [mm]
- Carton Quantity: 500
- Carton Weight: 7.00 kg
