Intellinet

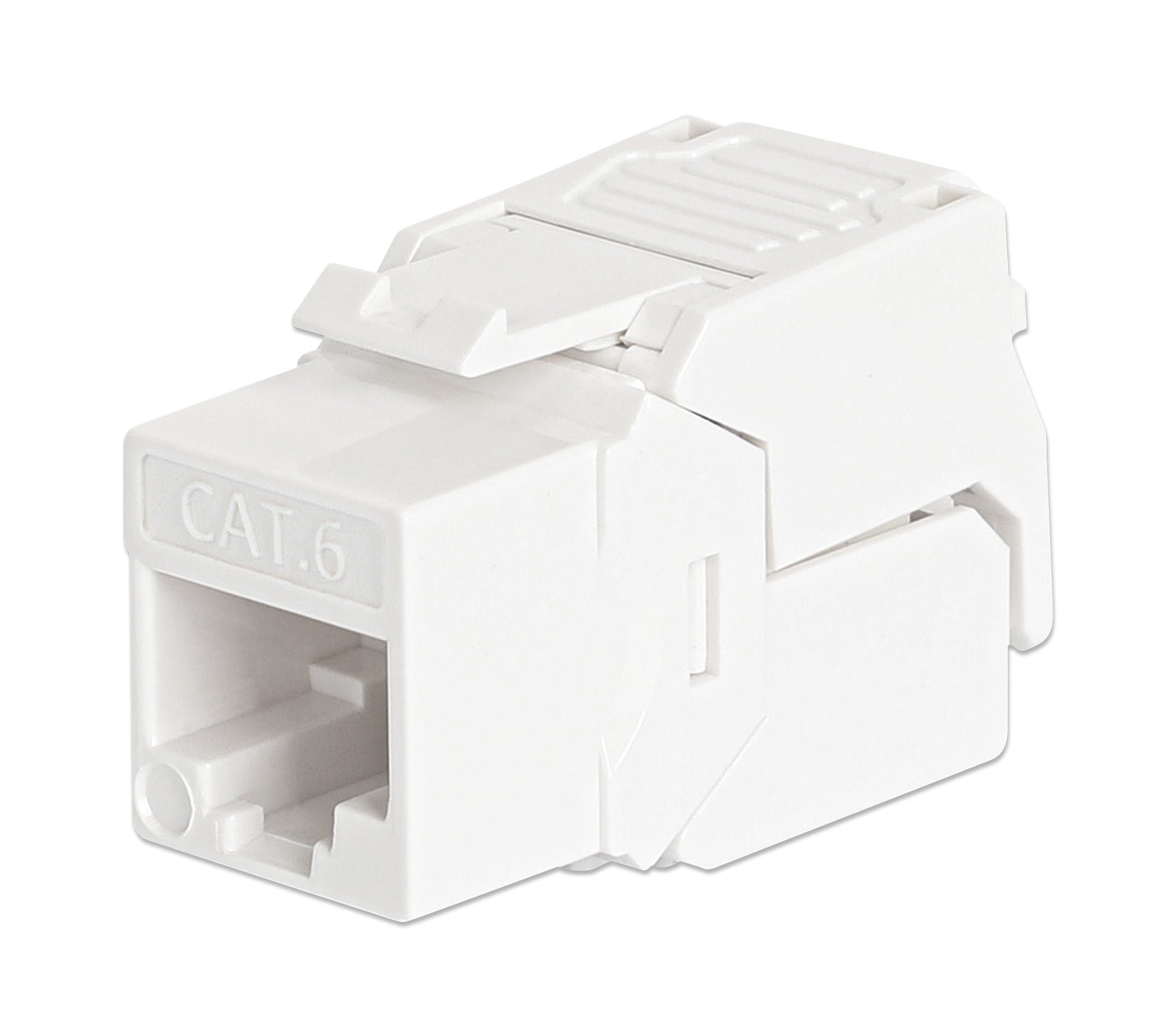

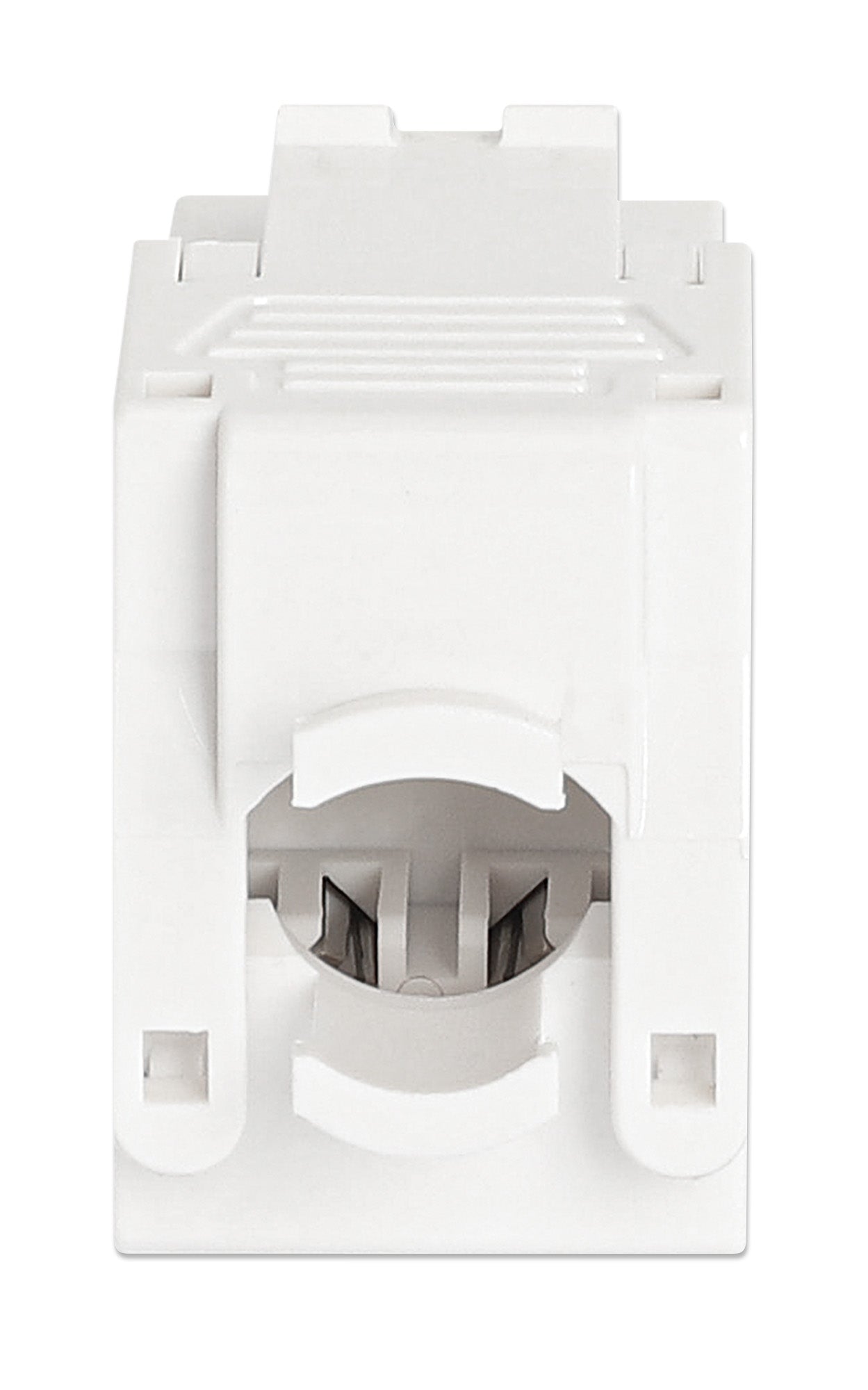

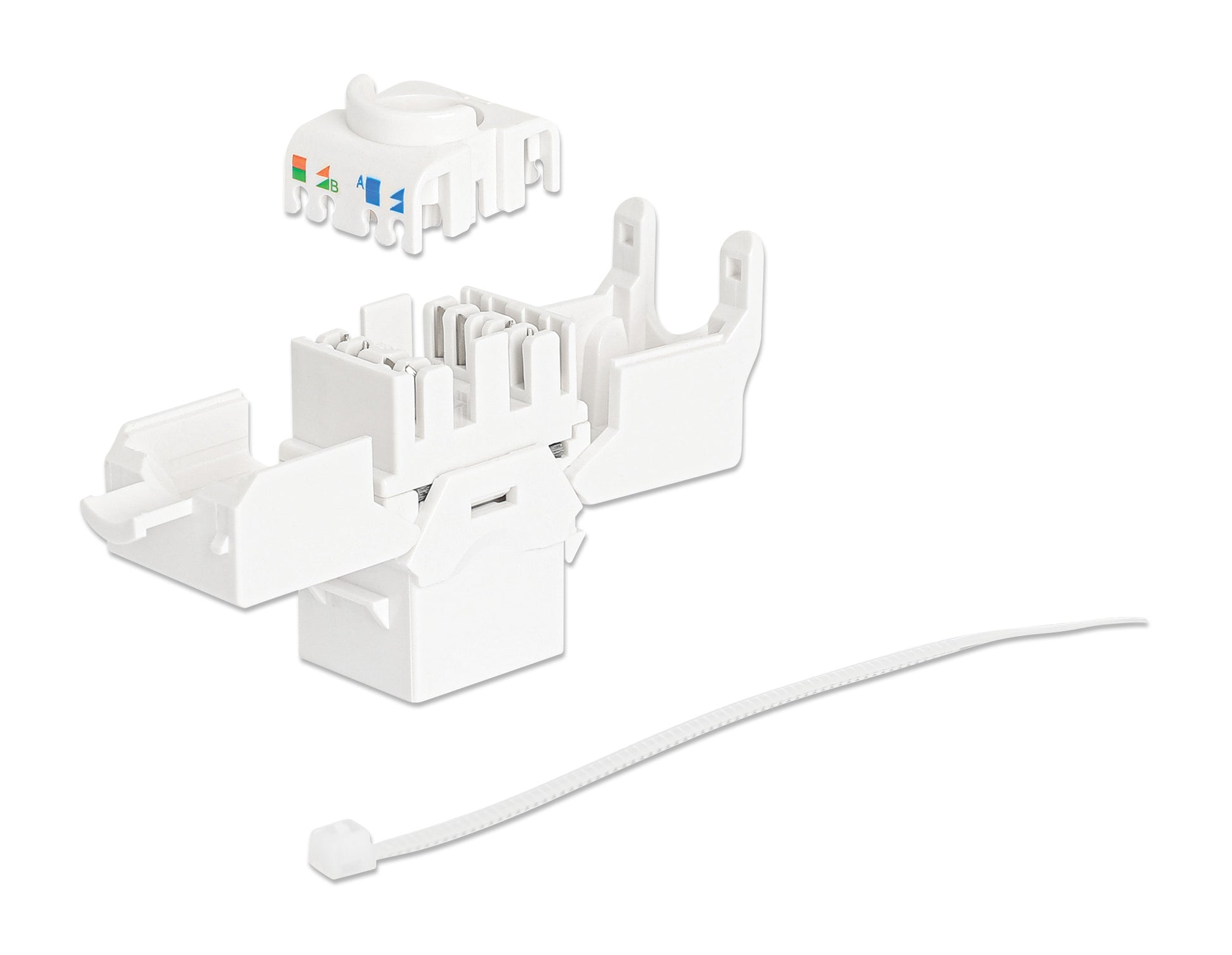

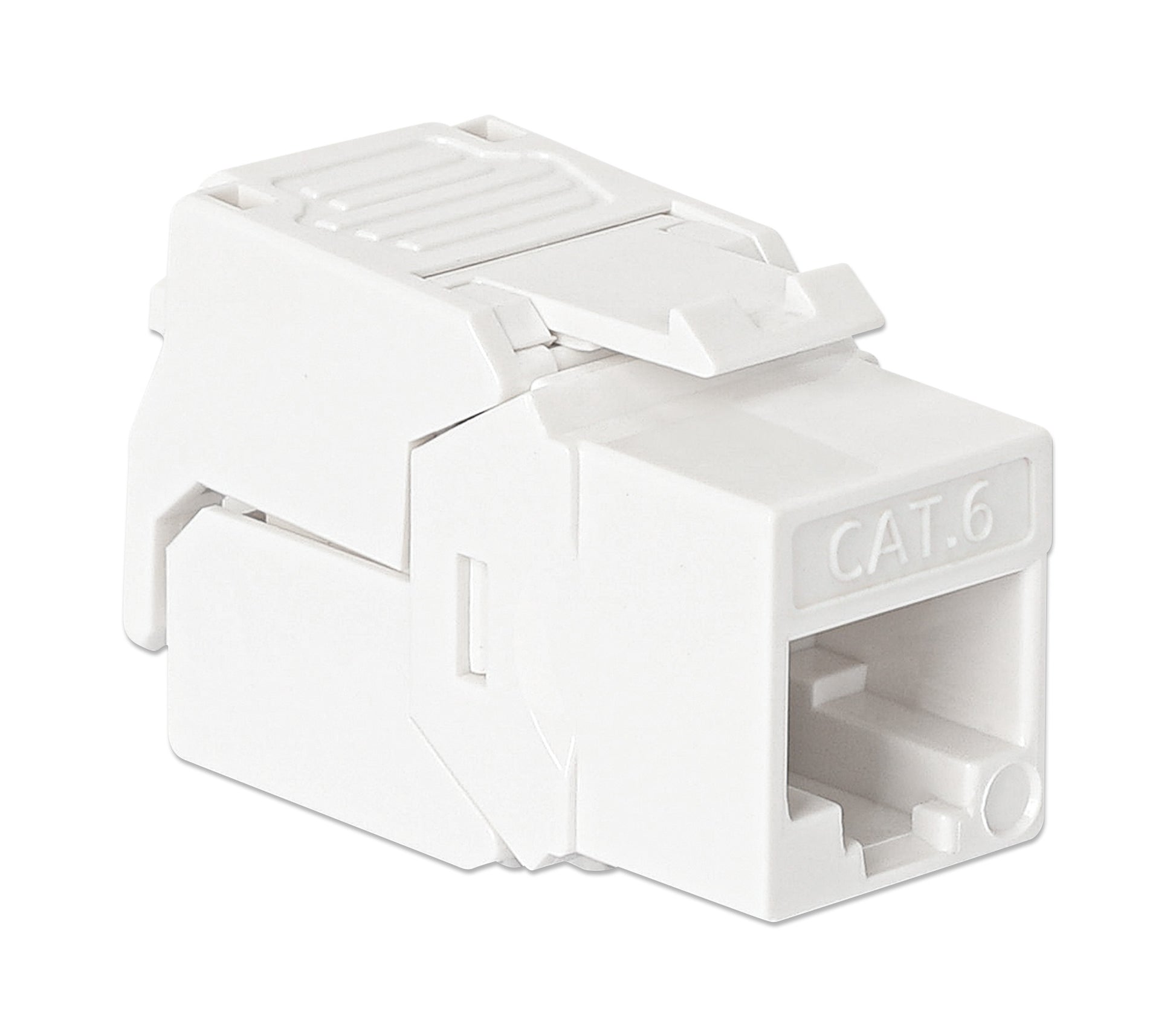

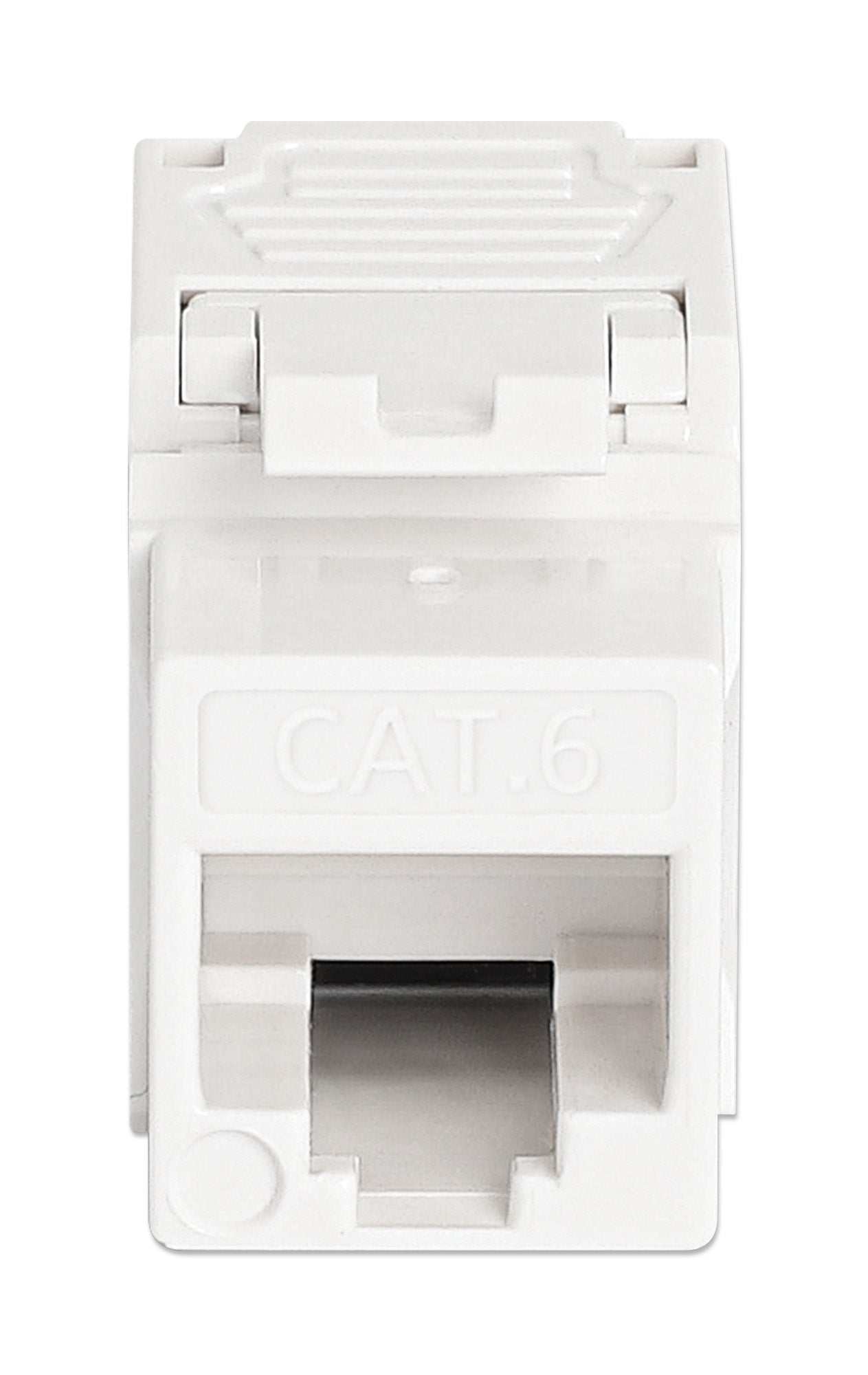

Cat6 Toolless Keystone Jack

For Easy and Quick Snap-in Deployment, UTP, for Solid Wire, Gold-plated Contacts, Metal Housing, White

Highlights

For easy, time-saving and tool-free deployment in blank patch panels, wall plates or surface connection boxes
Cat6 RJ45 module with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801
Gold-plated contacts for corrosion-free connections

SKU: 771955

[ view high resolution images ]

Cat6 UTP 10G / 1G Keystone Jack for easy, fast and tool-free deployment

The Cat6 Toolless Keystone Jack from Intellinet Network Solutions is designed for quick, seamless deployment. This module easily snaps into blank patch panels, wall plates or surface connection boxes without special tools. This keystone jack is suitable for solid conductor cables in high-performance network applications up to 10GBase-T over 55 m (180 ft.) or 1000BASE-T over 100 m (328 ft.) and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. It is equipped with gold-plated contacts for high signal integrity.

For easy, time-saving and tool-free deployment in blank patch panels, wall plates or surface connection boxes
Cat6 RJ45 module with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801
Gold-plated contacts for corrosion-free connections
Supports solid wire with AWG 26/1 to 23/1
Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
Standard 8P8C design, compatible with all network RJ45 connections
Compatible and color-coded with T568A and T568B
UL approved
Lifetime warranty
