Intellinet

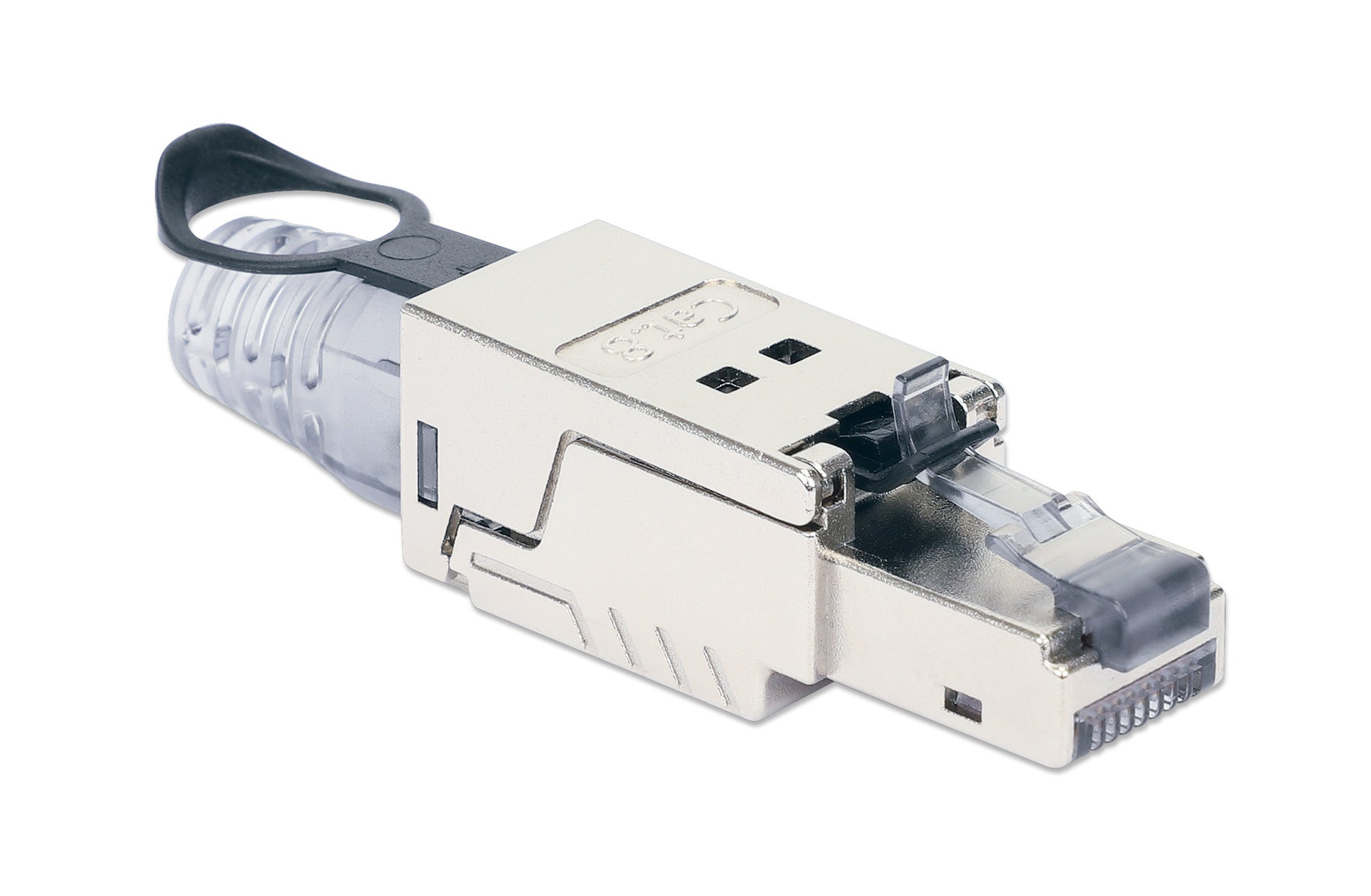

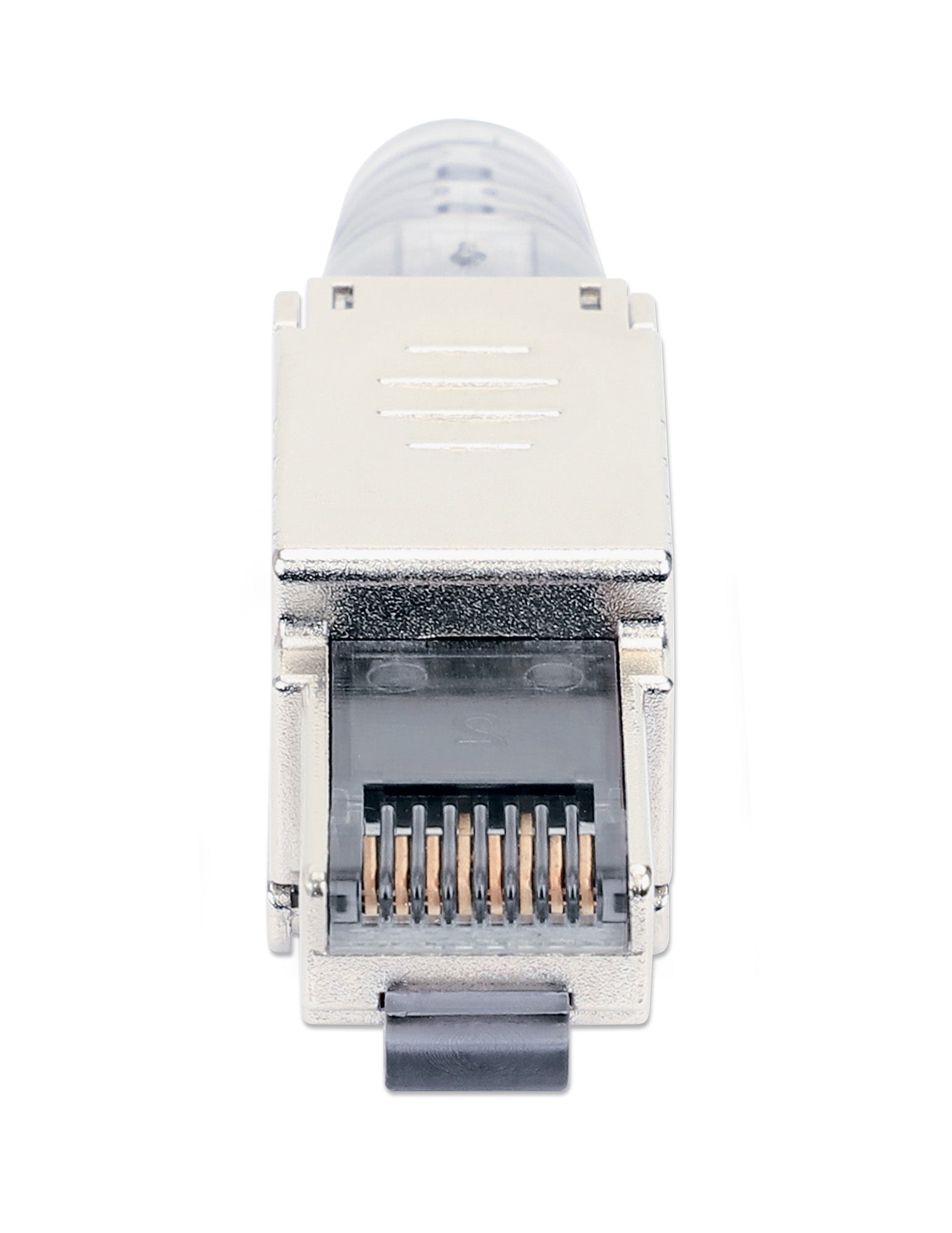

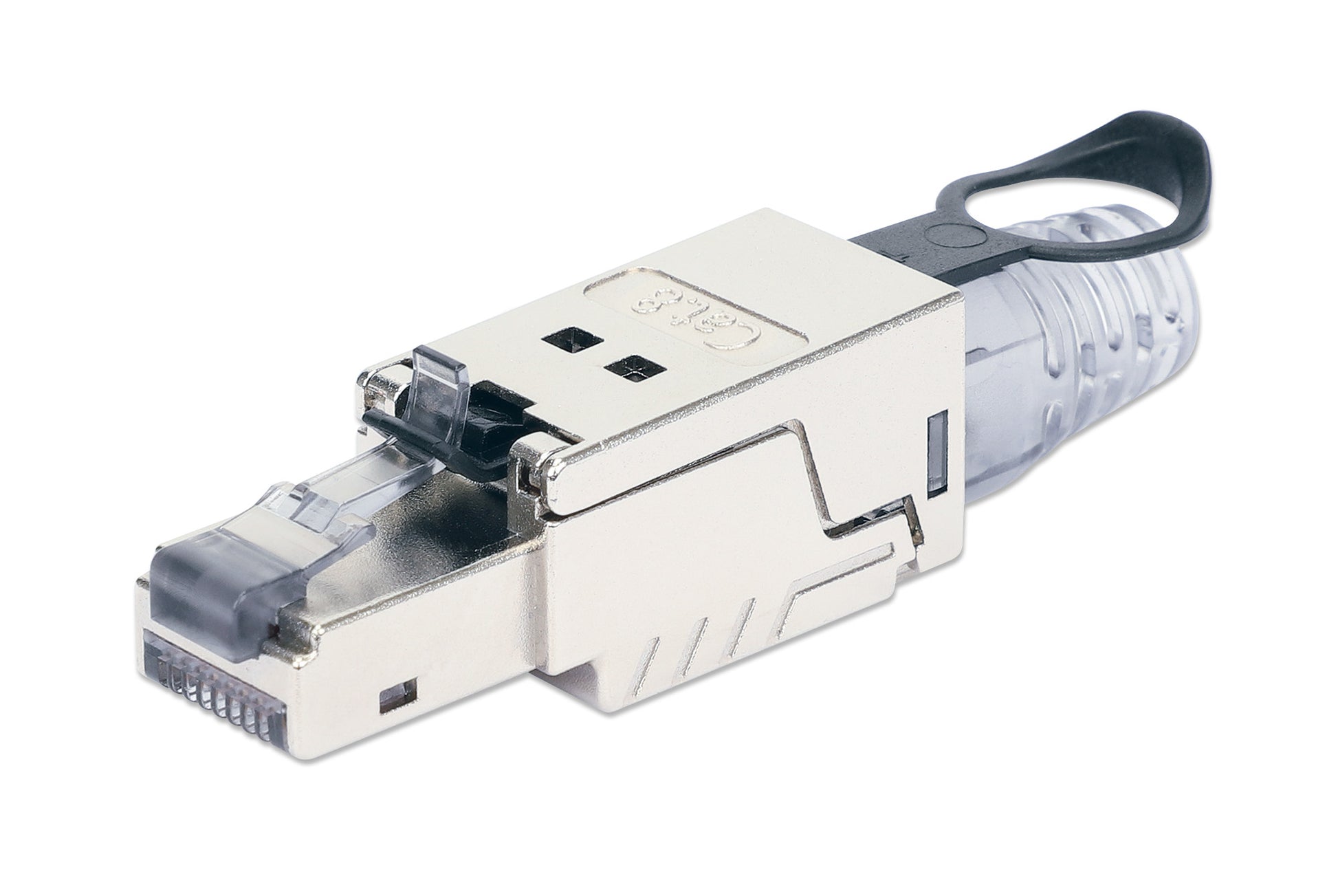

Cat8.1 40G Shielded Toolless RJ45 Modular Field Termination Plug with Pull-ring Release

For Easy and Quick High-quality Cable Assembly, Ideal for Data Centers, STP, 2 GHz, for Solid Wire, Gold-plated Contacts, Metal Housing, Silver

Highlights

For easy, time-saving and tool-free high-performance network cable assembly in the field
Cat8.1 STP 360° shielded premium RJ45 plug for 25G / 40G and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE

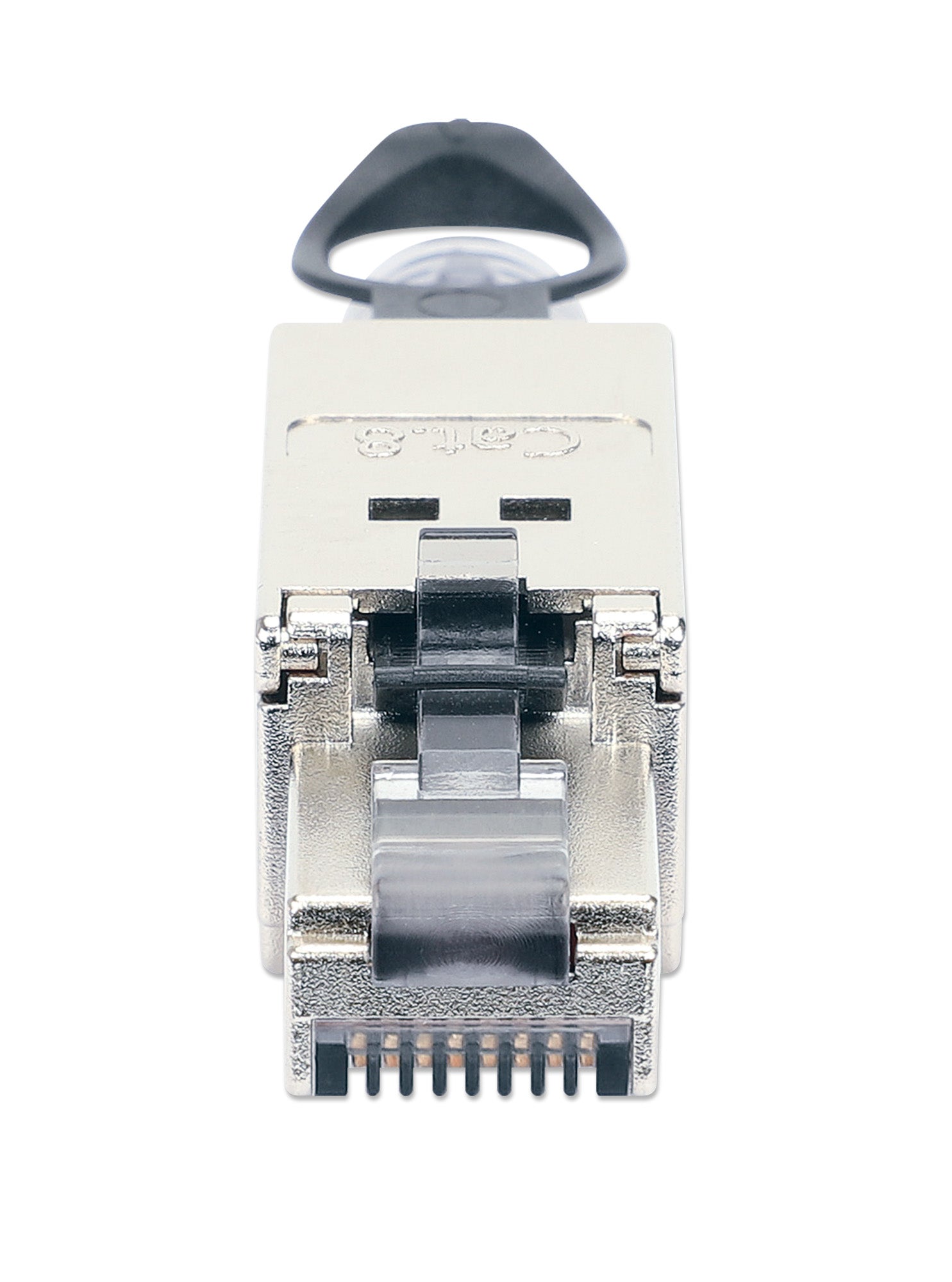

Built-in pull-ring with release tab to disconnect easier from the RJ45 port, especially in hard-to-reach places

SKU: 771931

[ view high resolution images ]

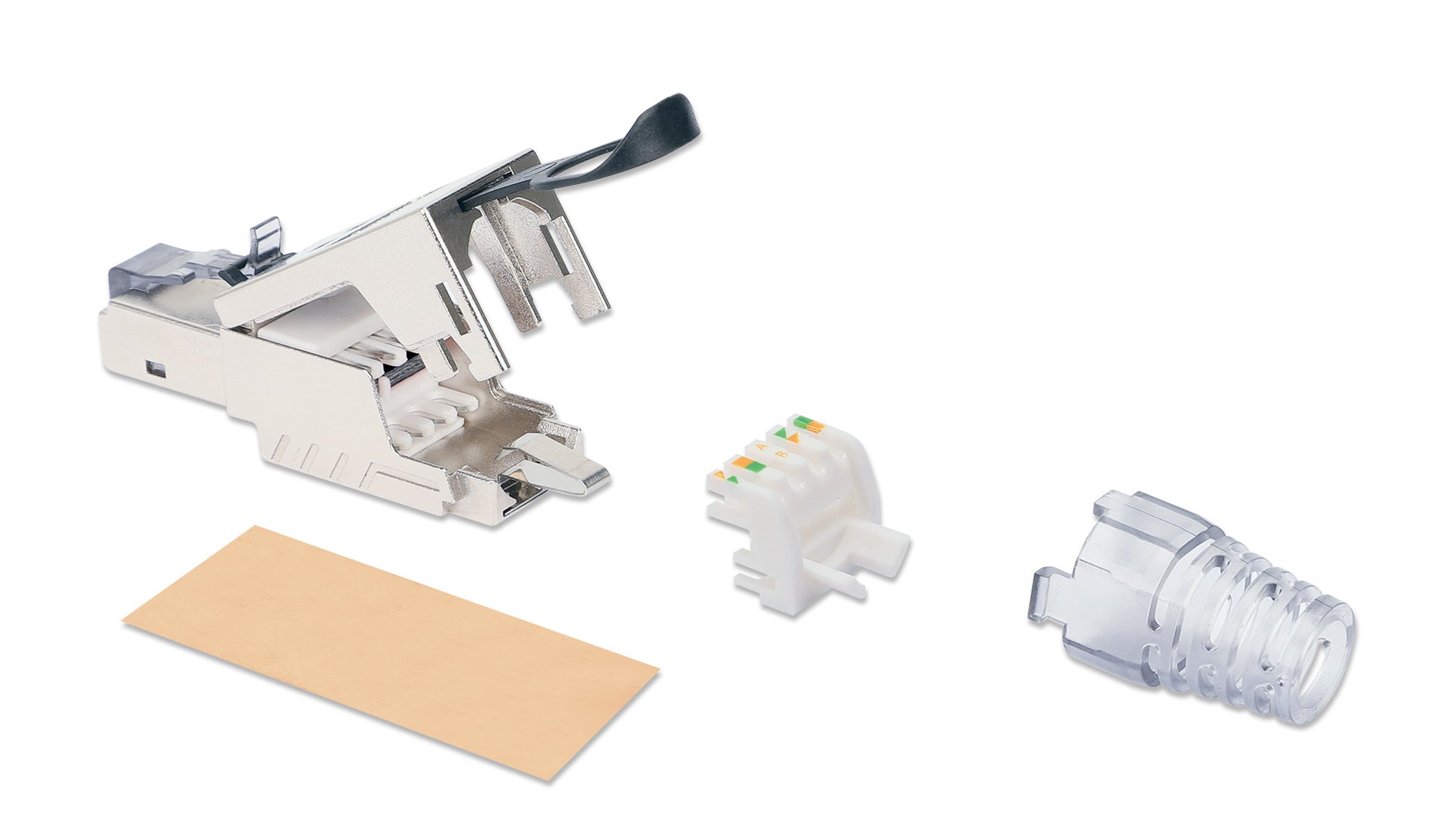

Field-installable Cat8 STP RJ45 Modular Plug for easy, fast and tool-free high-quality cable assembly in data centers

The Cat8.1 40G Shielded Toolless RJ45 Modular Field Termination Plug from Intellinet Network Solutions is designed for time-saving, high-quality cable terminations even when you're out in the field, especially for ToR (Top of Rack) and MoR (Middle of Row) installations in data centers. This termination plug helps you assemble your cable within a few minutes without special tools. A built-in pull-ring release tab makes disconnecting from the RJ45 port easier, especially in hard-to-reach places.

Future-proof high-end connection

This plug is suitable for solid conductor cables in ultra-high performance network applications up to 25GBase-T and 40GBase-T with PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. It is equipped with gold-plated contacts and 360° STP shielding for maximum signal integrity.

For easy, time-saving and tool-free high-performance network cable assembly in the field
Cat8.1 STP 360° shielded premium RJ45 plug for 25G / 40G and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
Built-in pull-ring with release tab to disconnect easier from the RJ45 port, especially in hard-to-reach places
Future-proof high-end connection; ideal for ToR and MoR cabling installations in data centers
50 micro-inch gold-plated contacts
Supports solid wire with AWG 24/1 to 23/1
Suitable for wide operating temperatures of -10 to 60°C (14 to 140°F)
Permanent link distance up to 24 m (80 ft.) and channel link up to 30 m (100 ft.)
Adjustable strain relief
Compliant with ANSI/TIA-568.2-D, ISO/IEC 11801 and IEC 60603-7
Standard 8P8C design, compatible with all network RJ45 connections
Compatible and color-coded with T568A and T568B
Fits round cable
Lifetime warranty

ISO/IEC 11801
ISO/IEC 60603-7
ANSI/TIA-568.2-D
CE
RoHS
REACH
UKCA
Supports transfer speeds up to 40 Gbps
Max. operating frequency: 2,000 MHz
Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
Mating cycles: ≥750
Contacts: phosphor bronze
Contact plating: 50 micro-inch gold
IDC: phosphor bronze
Housing: zinc die casting, nickel-plated
Insulation resistance: ≥500 MOhm
Dielectric withstanding voltage: 1,000 V DC/750 V AC
Contact resistance: ≥20 MOhm
DC resistance: ≥0.3 Ohm
Current rating: 1.5 A
Dimensions (L x W x H): 63 x 14 x 17 mm (2.48 x 0.55 x 0.67 in.)
Net weight: 15 g (0.53 oz.)
Gross weight: 20 g (0.71 oz.)
Operating temperature: -10 - 60°C (14 - 140°F)
Storage temperature: -40 - 70°C (-40 - 158°F)
Operating humidity (non-condensing): 10 - 90% RH
