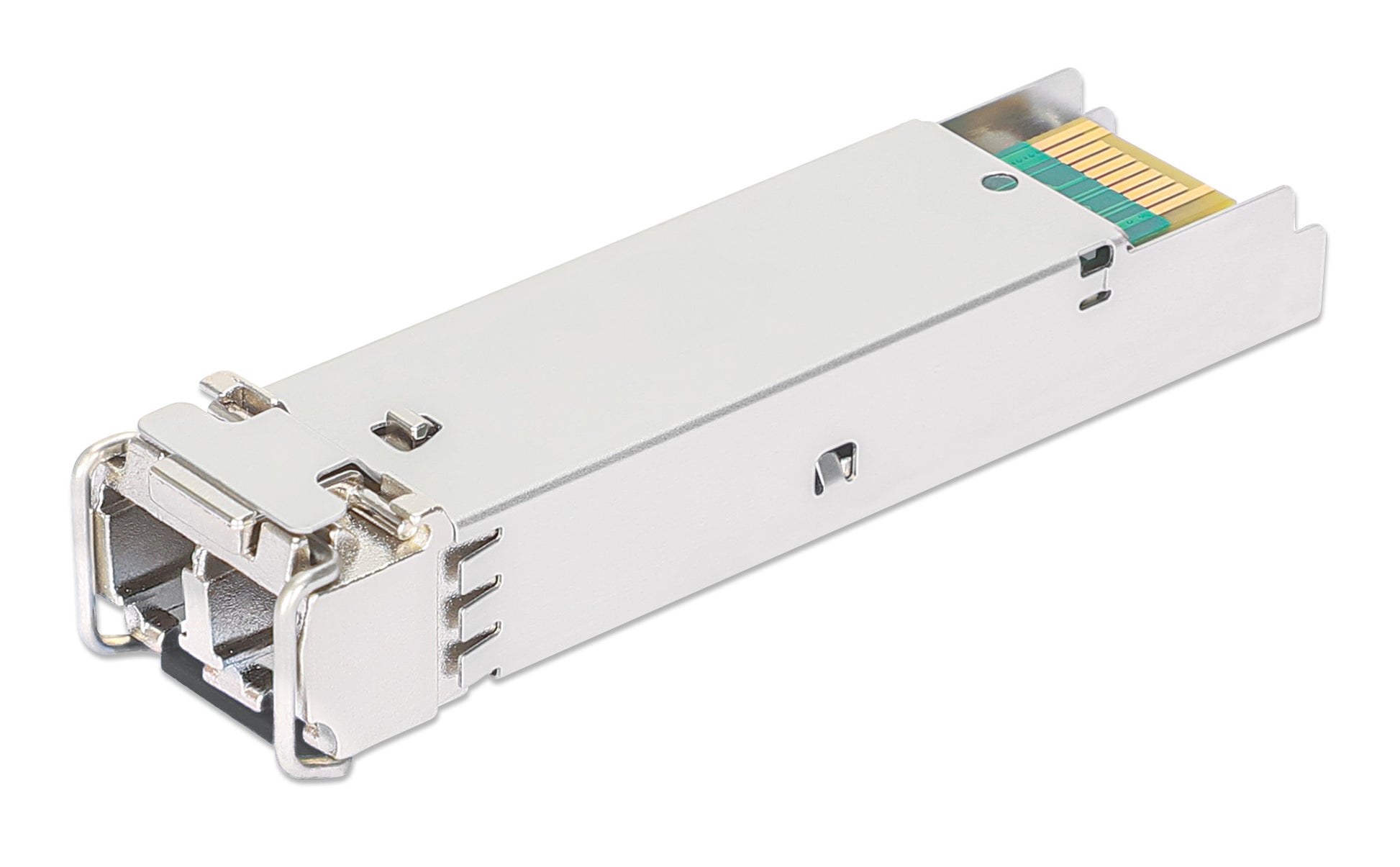

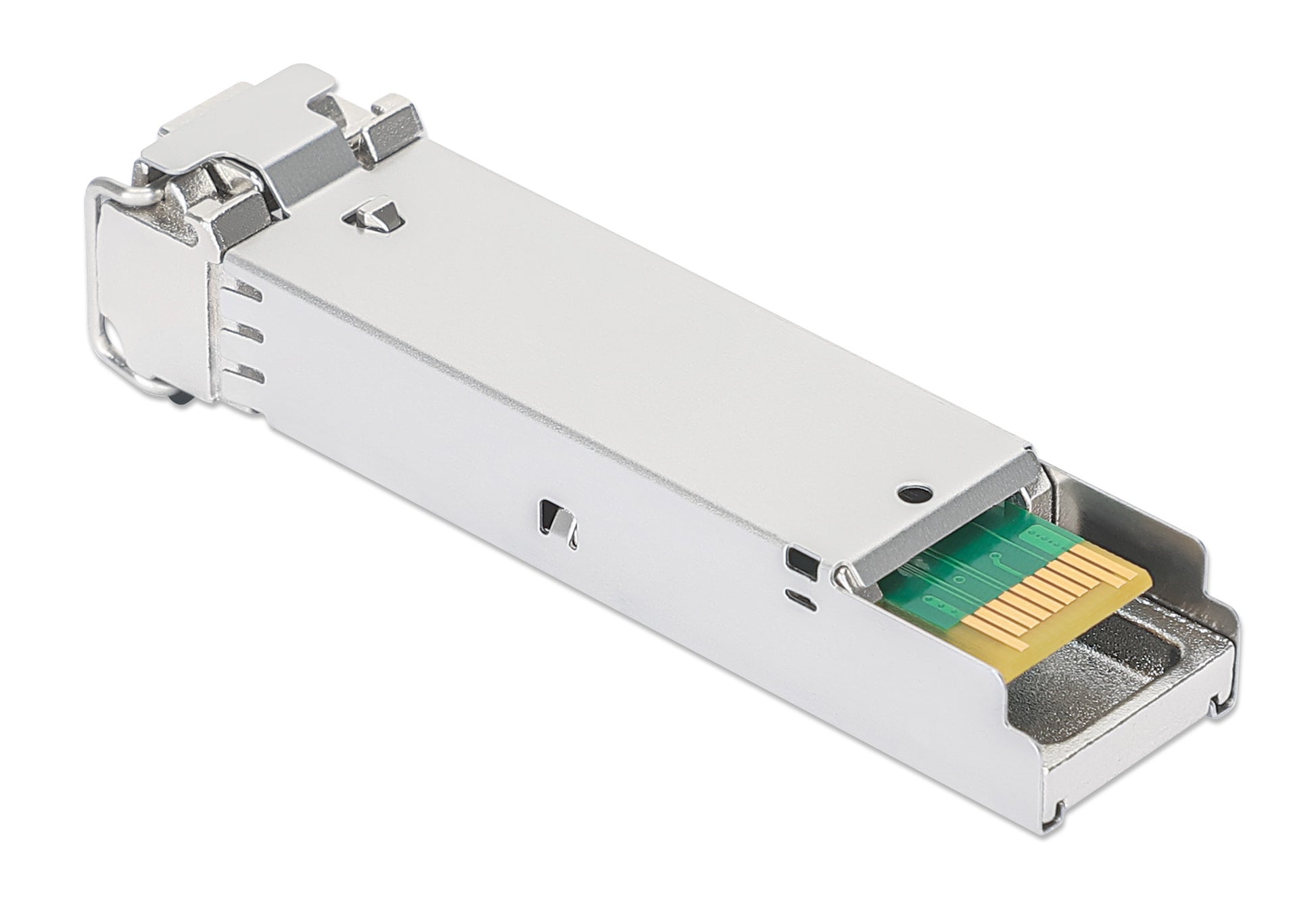

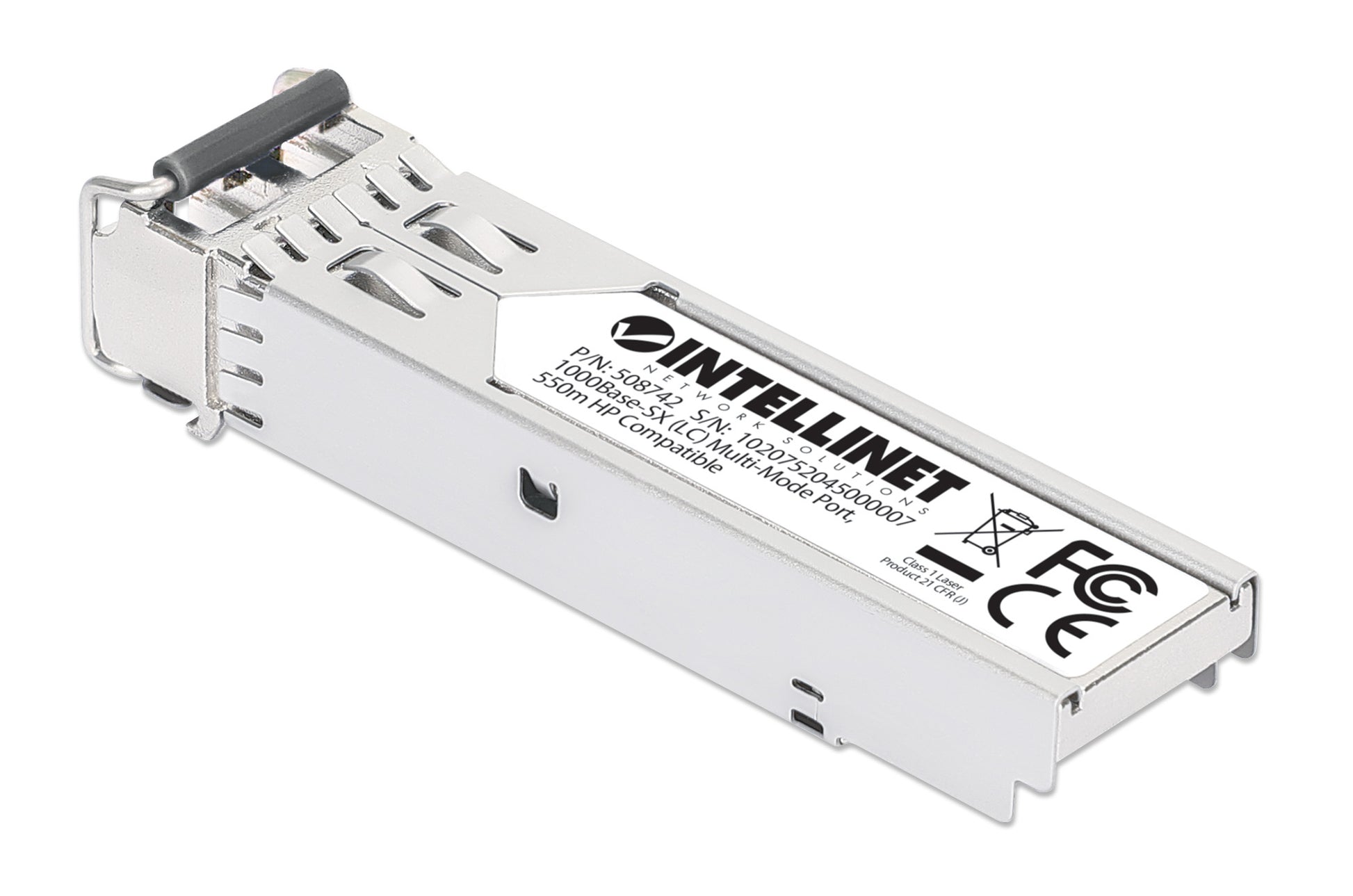

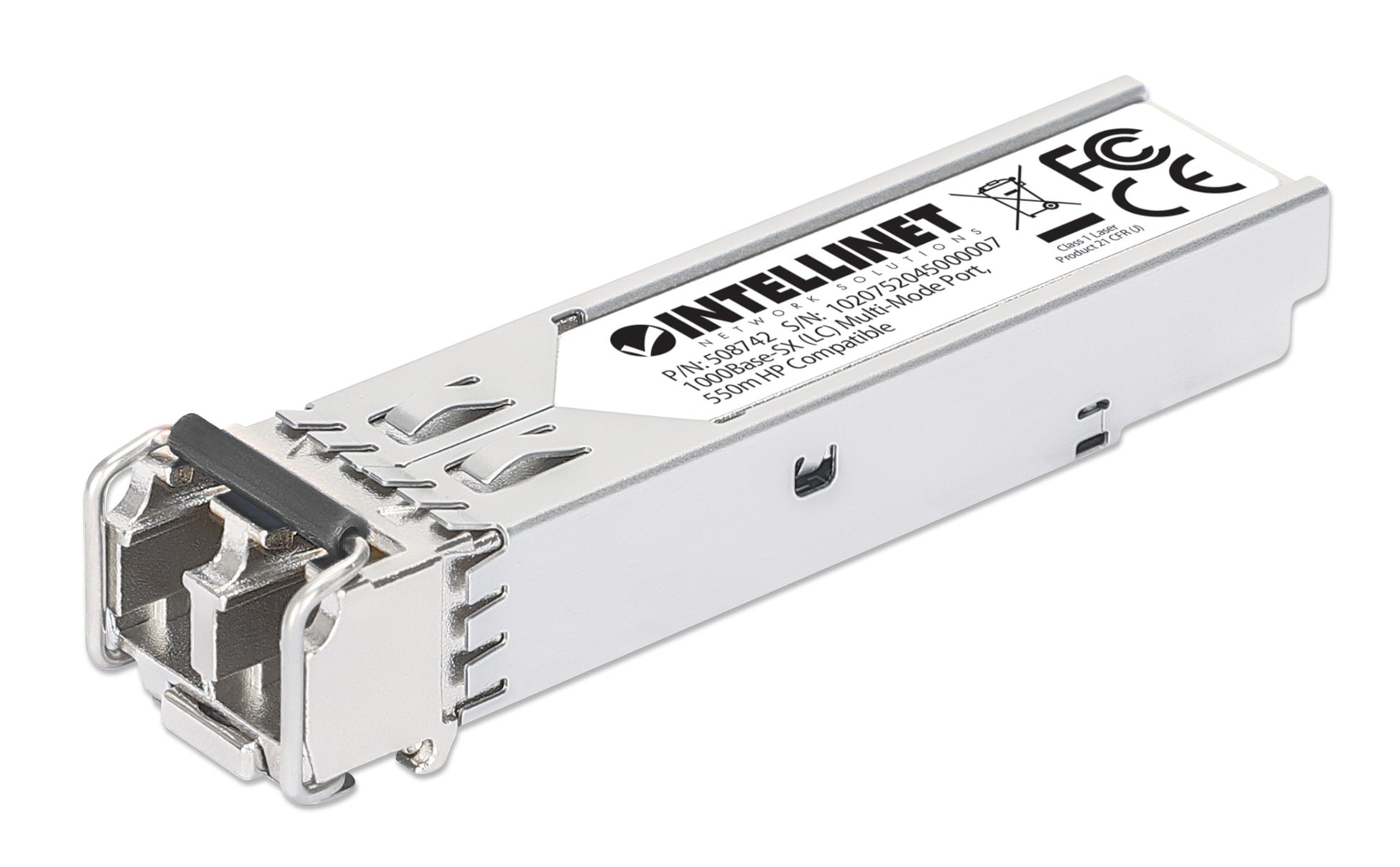

Gigabit Fiber SFP Optical Transceiver Module

SFP Module – HP® / HPE® compatible, affordable premium performance

The Small Form Factor Pluggable (SFP) Transceiver from Intellinet Network Solutions provides a great combination of performance and affordability. Also known as a mini-Gigabit Interface Converter (GBIC), this SFP module's metal housing reduces electromagnetic interference and increases its durability.

Small Size for High-density Fiber Connections

The transceiver's mini-GBIC form factor helps it take up less space on the equipment it plugs into. It's ideal in environments that require many fiber connections.

Compatible with HP/HPE

Compatibility in your network is everything, and this SFP Transceiver Module delivers. It has been designed, programmed and tested to work with HP / HPE-compatible switches and routers. Since it is set to broadcast the vendor part number J4858A / J4858B / J4858C / J4858D, it is compatible with your HPE gear.

Hot-pluggable

This module is fully hot-pluggable, and that allows you to install it without rebooting your network switch, so network traffic is uninterrupted.

• Compatible with switches and routers from HPE (Hewlett Packard Enterprise)
• Data transfer rate: 1000 Mbps
• One 1000Base-SX multi-mode fiber LC duplex port
• Distance support: up to 550 m (50/125 µm cable) or 220 m (62.5/125 µm cable)
• Wavelength: 850 nm
• Equivalent to the HPE J4858A / J4858B / J4858C / J4858D transceiver
• SFP standard form factor
• Low EMI due to fully metallic housing
• Supports hot-plugging
• Fully NDAA-compliant
• Three-year warranty

Standards
• IEEE 802.3z (Fiber Optic Gigabit Ethernet)
General
• Media support:
- 1000Base-SX multi-mode 50/125 µm fiber - 1000Base-SX multi-mode 62.5/125 µm fiber
• Connector: fiber LC duplex port, 1000Base-SX
• Distances:
- 550 m (50/125 µm fiber cable) - 220 m (62.5/125 µm fiber cable)
• Wavelength: 850 nm
• Fiber power budget
- Maximum TX power: -3 dBm - Minimum TX power: -8 dBm - Sensitivity: -20 dB - Power budget: 8 dB
• Design: SFP (small form factor pluggable)
• Certifications: FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA
Power
• Power requirement: 3.3 V
• Power consumption: 1.0 watt (maximum)
Physical
• Dimensions (L x W x H): 57 x 14 x 12 mm (2.24 x 0.55 x 0.5 in.)
• Weight: 20 g (0.71 oz.)
Environmental
• Operating temperature: 0 - 70°C (32 - 158°F)
• Typical operating temperature: 34.8°C (94.64°F)
• Operating humidity: 5 - 95% RH, non-condensing
• Storage temperature: -40 - 85°C (-40 - 185°F)
Package Contents
• Gigabit Fiber SFP Optical Transceiver Module

• Other Part Numbers

• Amazon ASIN: B0C1DQP1XV
• EAN: 0766623508742
• UPC: 766623508742



• Physical Specifications

• Weight: 0.02 kg
• Dimensions: 55 (L) x 13 (W) x 12 (H) [mm]
• Carton Quantity: 54
• Carton Weight: 2.60 kg

• Datasheet
• Datasheet     » Download
