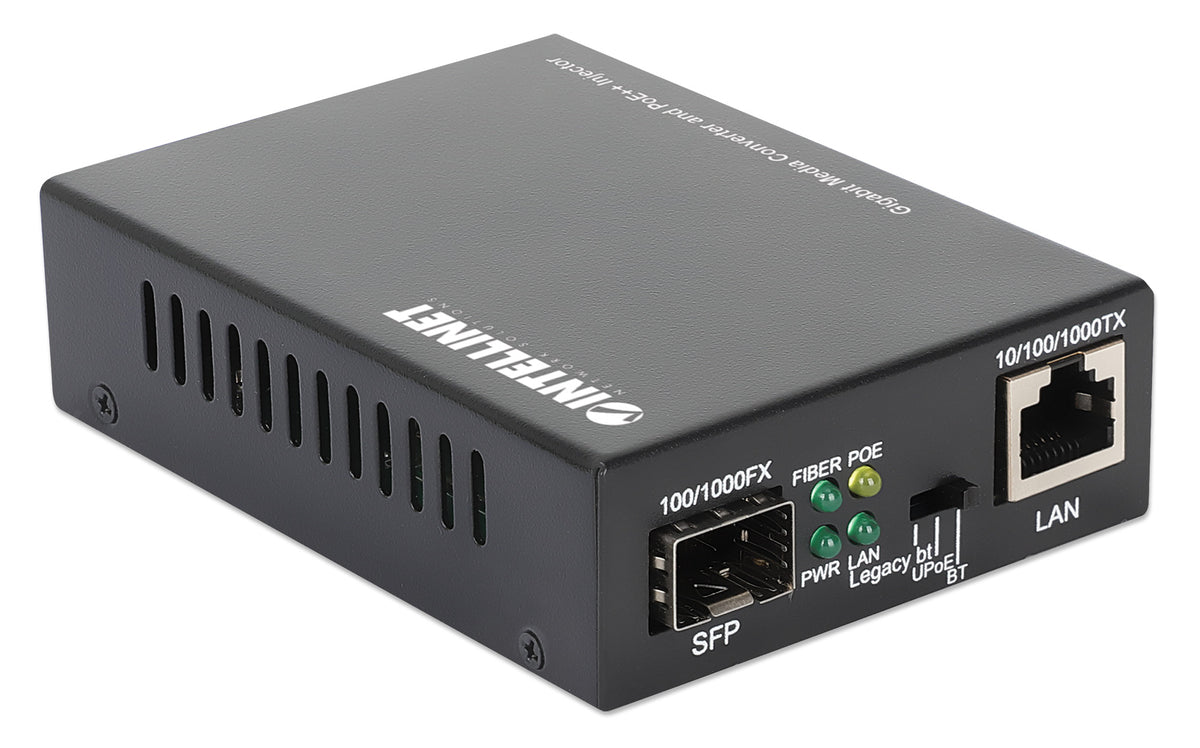

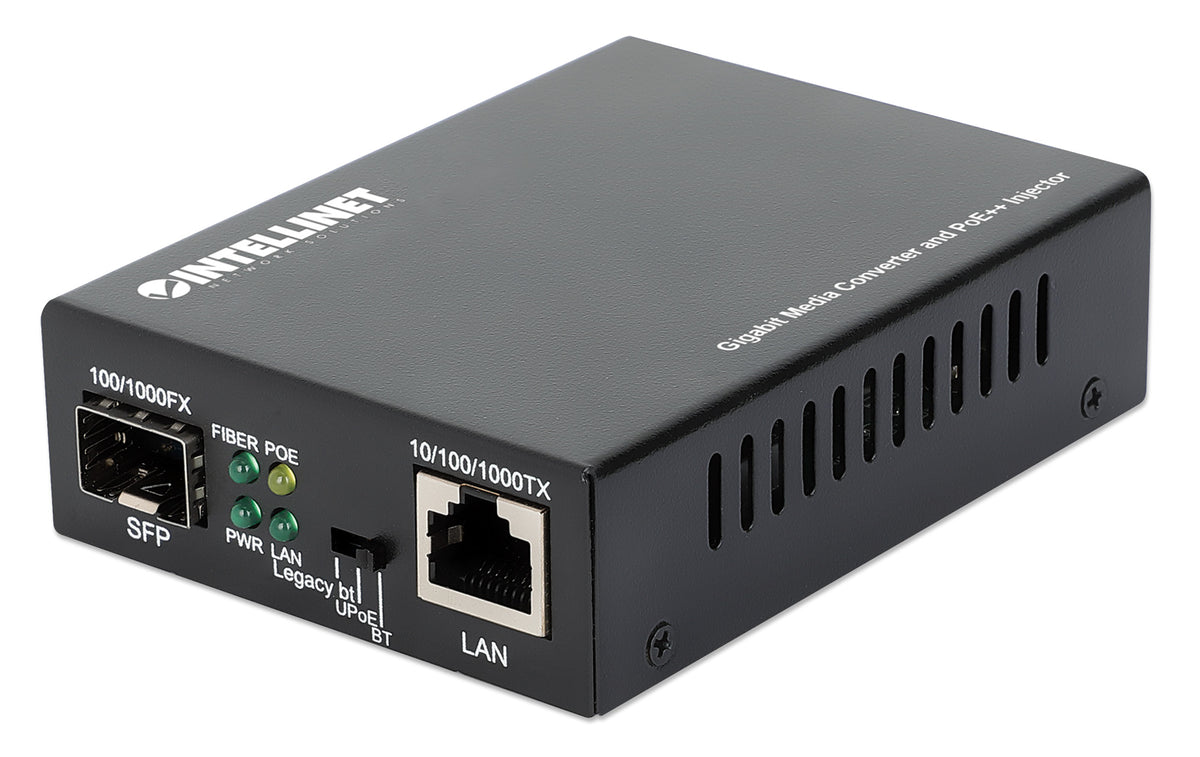

Gigabit Media Converter and PoE++ Injector 90W

One 90 W Port, 10/100/1000Base-TX to SFP Slot, PoE Injector Function, IEEE 802.3bt (4PPoE) Compliant, Supports UPoE and Legacy 4PPoE, Metal Housing

Highlights

One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (328 ft.)
One SFP port for 1000Base-X optical transceiver modules and distances up to 120 km / 75 mi. (depending on module used)
Power over Ethernet injector function with output up to 90 watts

SKU: 509688

[ view high resolution images ]

Media Converter with Power over Ethernet IEEE 802.3bt, UPoE, and Legacy 4PPoE, and Long-Distance Fiber - All in One Compact Device

The Gigabit Media Converter and PoE++ Injector from Intellinet Network Solutions offers simplified migration from copper-based Ethernet to Fiber Ethernet while providing power to a compatible device at up to 90 watts. The device creates the easy expansion of existing networks with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before – only now it can support both copper and fiber mediums.

Flexible Connectivity and Impressive Reach

Featuring one 10/100/1000 Mbps RJ45 port with support for up to 100 meters, and one SFP slot for 1000Base-X optical modules, this converter supports transmission distances of up to 120 km (75 mi.), depending on the module used. Whether across a campus or between buildings, it delivers reliable, high-speed data wherever it’s needed.

Ultra-High Power PoE++ for Demanding Devices

Deliver up to 90 watts of power via PoE++ to devices such as motorized IP cameras, thin clients, PoE lighting, and more. With a simple DIP switch, choose between IEEE 802.3bt, UPoE, or Legacy modes for maximum compatibility. Auto-sensing PoE awareness ensures that only compliant devices receive power — non-PoE devices stay protected and receive data only.

Reliable, Protected, and Built to Last

Designed for critical environments, the device features short-circuit, overload, and high-voltage protection, plus ESD protection up to 8 kV (air) and 6 kV (contact). Port surge protection up to 4 kV and a dedicated grounding point provide added peace of mind against electrical hazards.

One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (328 ft.)
One SFP port for 1000Base-X optical transceiver modules and distances up to 120 km / 75 mi. (depending on module used)
Power over Ethernet injector function with output up to 90 watts

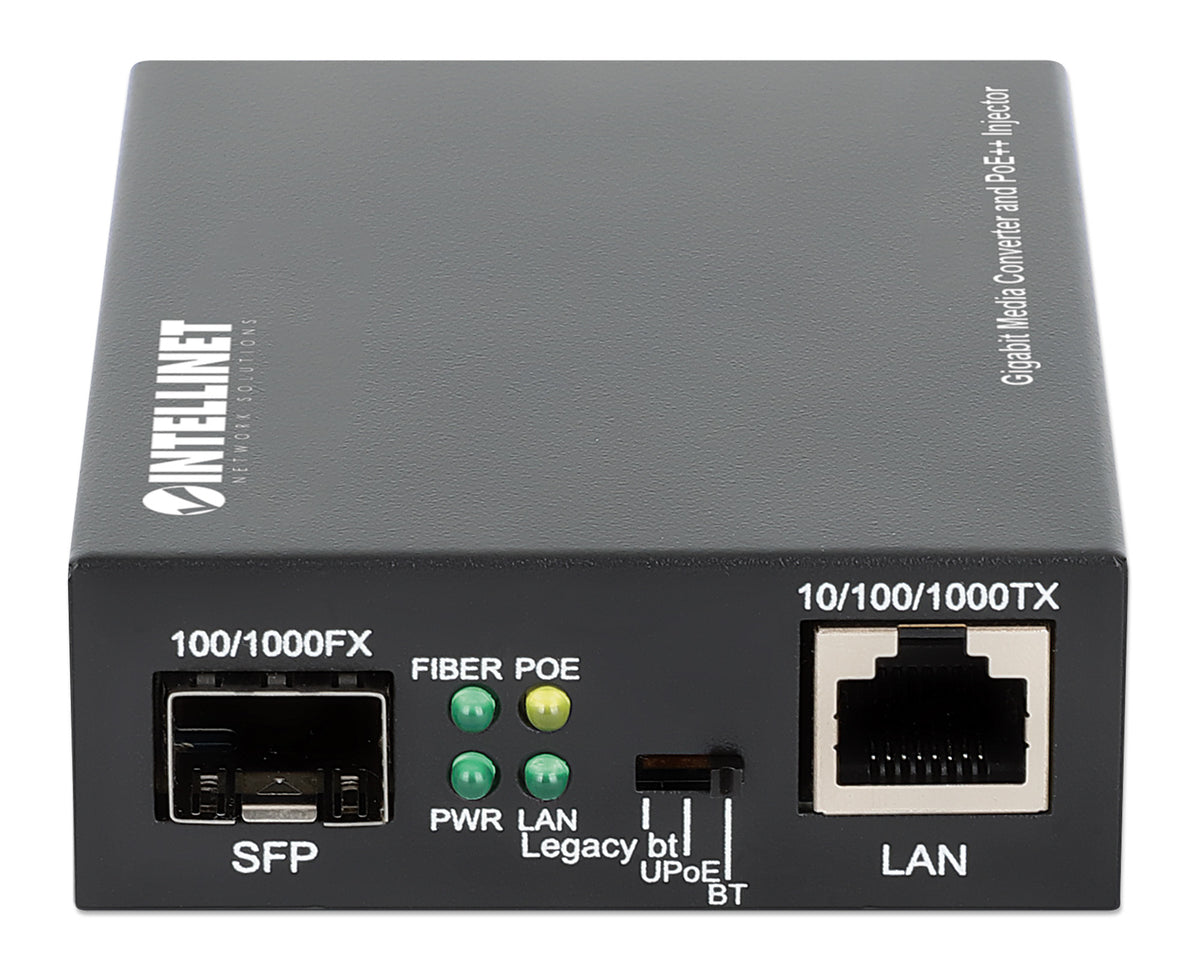

Supports three PoE++ modes, selectable with a DIP switch: IEEE 802.3bt, UPoE, and Legacy

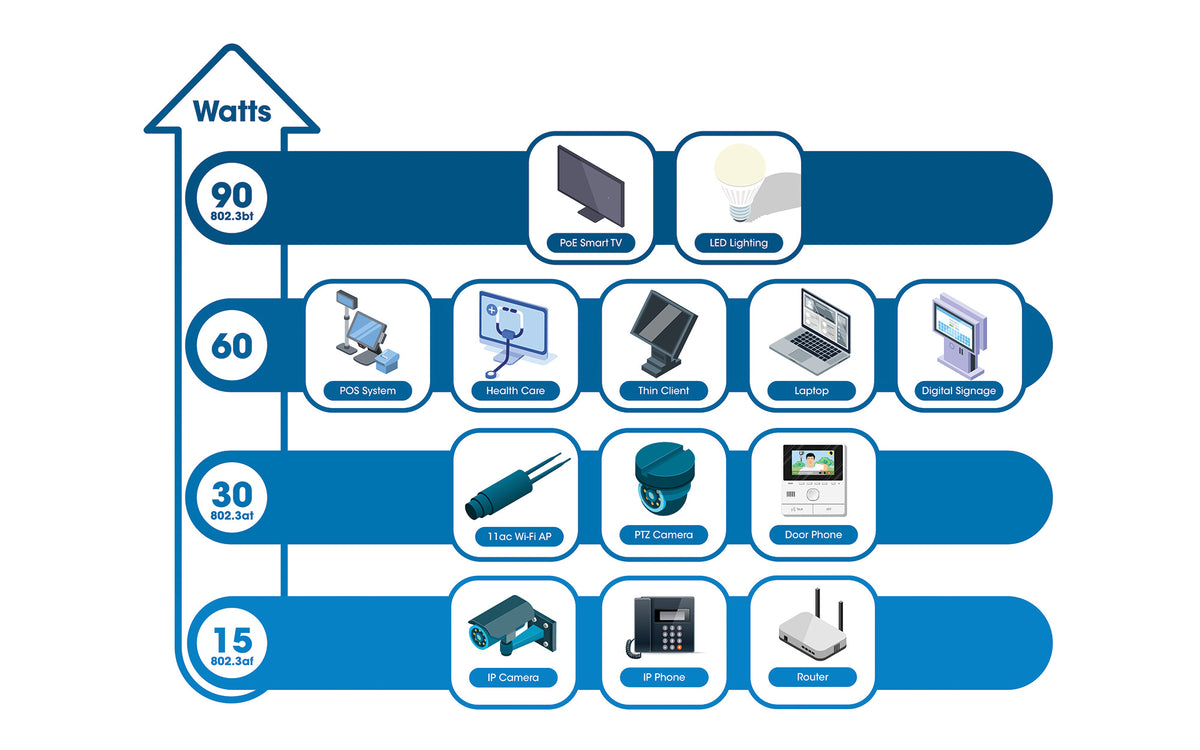

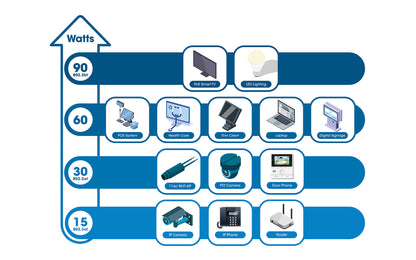

Ideal for power-hungry IoT devices like motorized IP cameras, thin clients, PoE lighting and more
Short-circuit, overload and high-voltage protection
Auto-sensing PoE awareness to ensure that power is only sent to IEEE 802.3bt/at/af-compliant devices; non-PoE devices only receive data

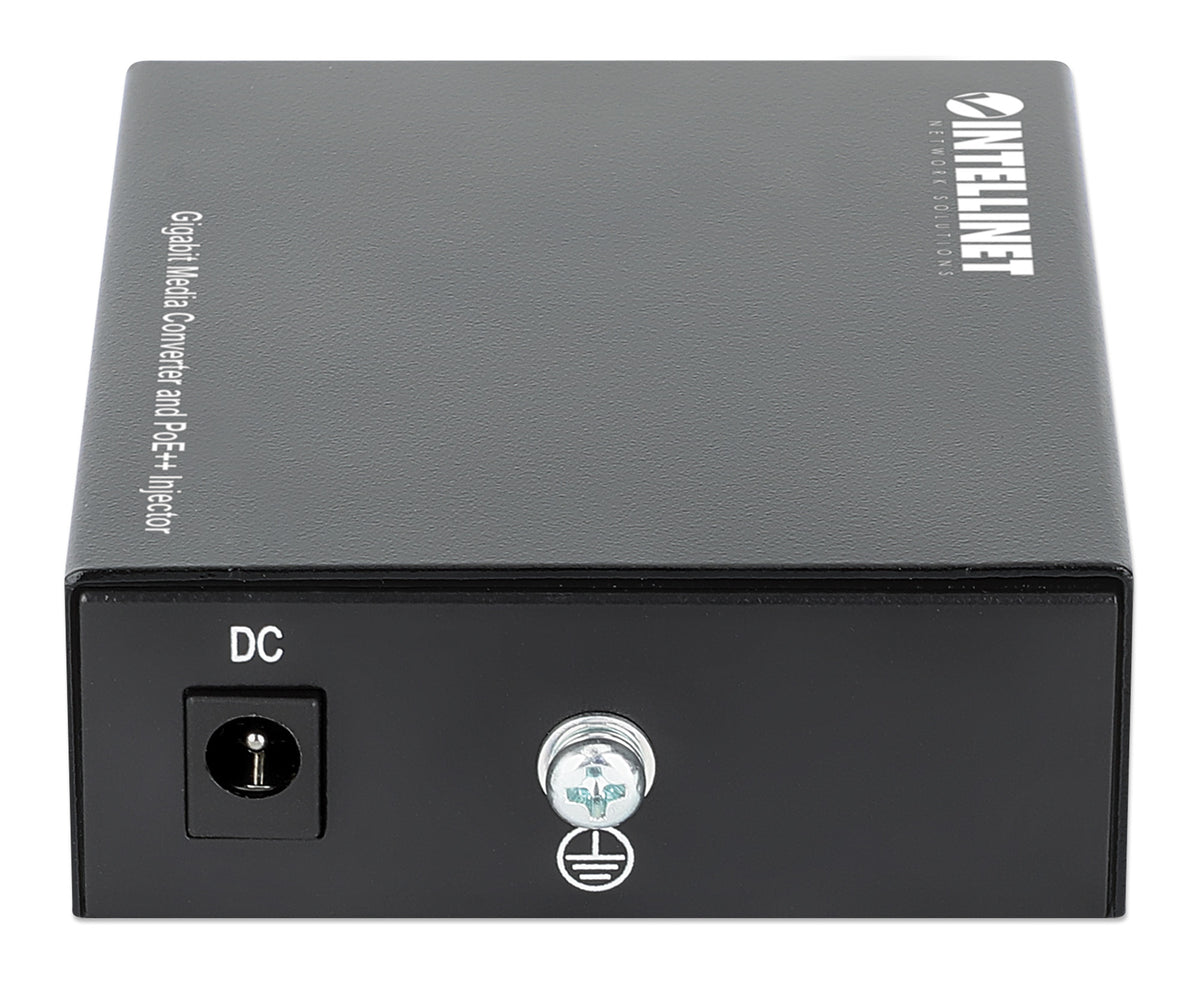

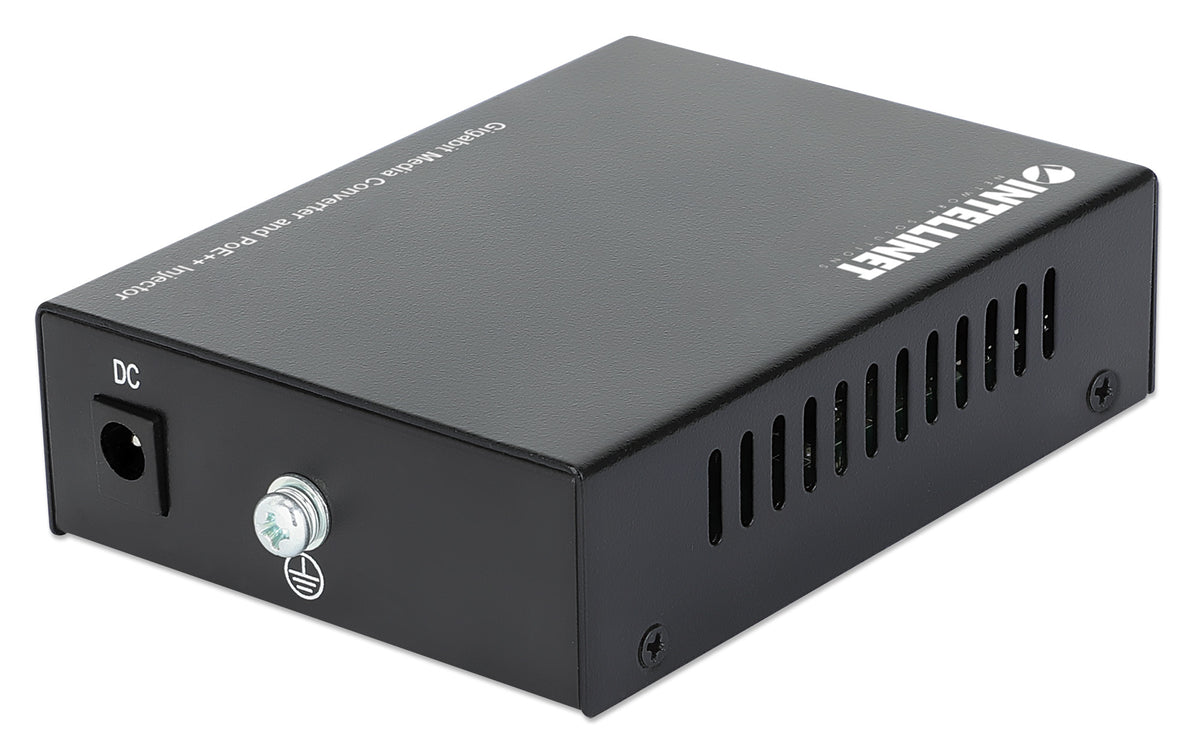

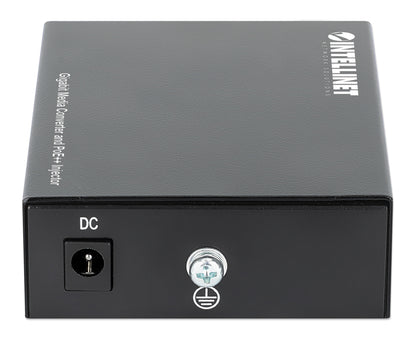

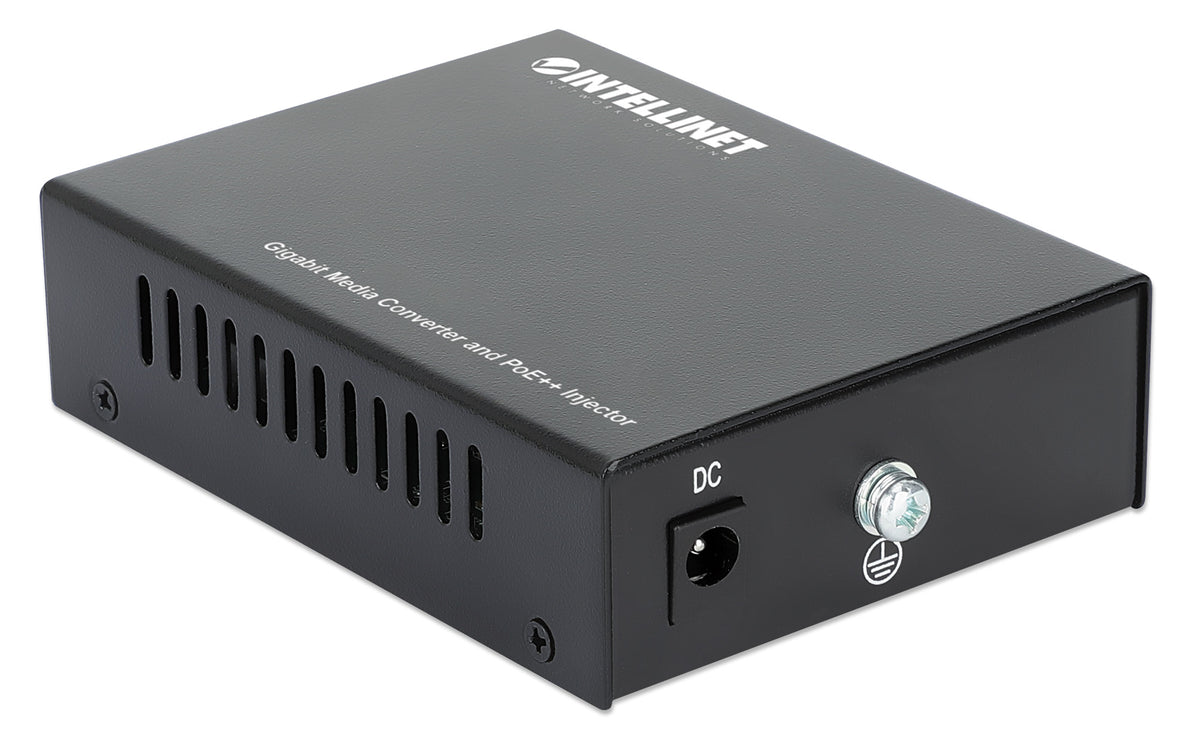

Grounding point to protect equipment from external electrical surges
ESD protection up to 8 kV (air) and 6 kV (contact)
Port surge protection up to 4 kV
Saves time and money by delivering data and power via existing network cables
Supports full-duplex and half-duplex modes with autonegotiation
IEEE 802.3x flow control for full duplex
Supports 2k MAC address entries with Auto-learning and Auto-aging
Buffer memory of 2 Mbits
Supports jumbo frames up to 9 kBytes
Fanless design ideal for silent operation
Fully TAA-compliant
Three-year warranty

IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High-Power PoE+ Power over Ethernet)
IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3ab (1000BASE-T Gigabit Ethernet)
IEEE 802.3z (1000Base-X Gigabit over Fiber Optic)
Media support:
MAC address table: 2k
Buffer memory: 2 Mbits
Switch architecture: store and forward
Certifications: FCC, CE, RoHS, REACH, UKCA, TAA
MTBF: 574,619 hours
802.3bt (for fully compliant IEEE 802.3bt/at/af PDs)
UPoE (for PDs that support the maximum power from PSE over four pairs, regardless of the PD class, including Cisco Universal Power over Ethernet)
Legacy (for PDs not in full compliance with 802.3bt/at/af)
Pin 1: DC (-)
Pin 2: DC (-)
Pin 3: DC (+)
Pin 4: DC (+)
Pin 5: DC (+)
Pin 6: DC (+)
Pin 7: DC (-)
Pin 8: DC (-)

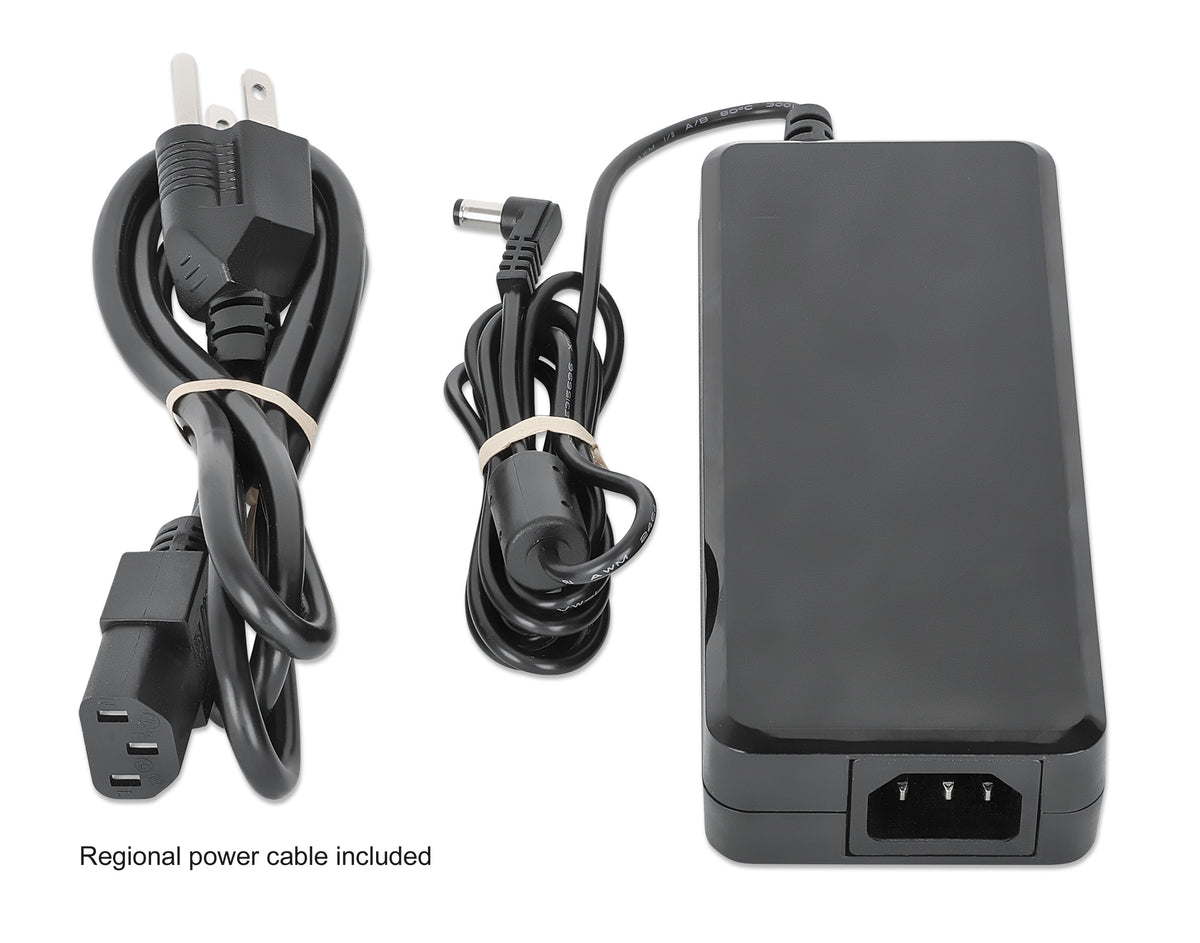

Included external power adapter:
FIBER
POE
PWR
LAN
Dimensions (L x W x H): 94 x 70 x 26 mm (3.7 x 2.76 x 1.02 in.)
Net weight: 200 g (0.44 lbs.)
Gross weight: 760 g (1.68 lbs.)
Operating temperature: 0 - 50°C (32 - 122°F)
Storage temperature: -40 - 80°C (-40 - 176°F)
Operating humidity: 10 - 90% RH, non-condensing
Storage humidity: 5 - 90% RH, non-condensing
Gigabit Media Converter and PoE++ Injector
Power adapter
Instructions
