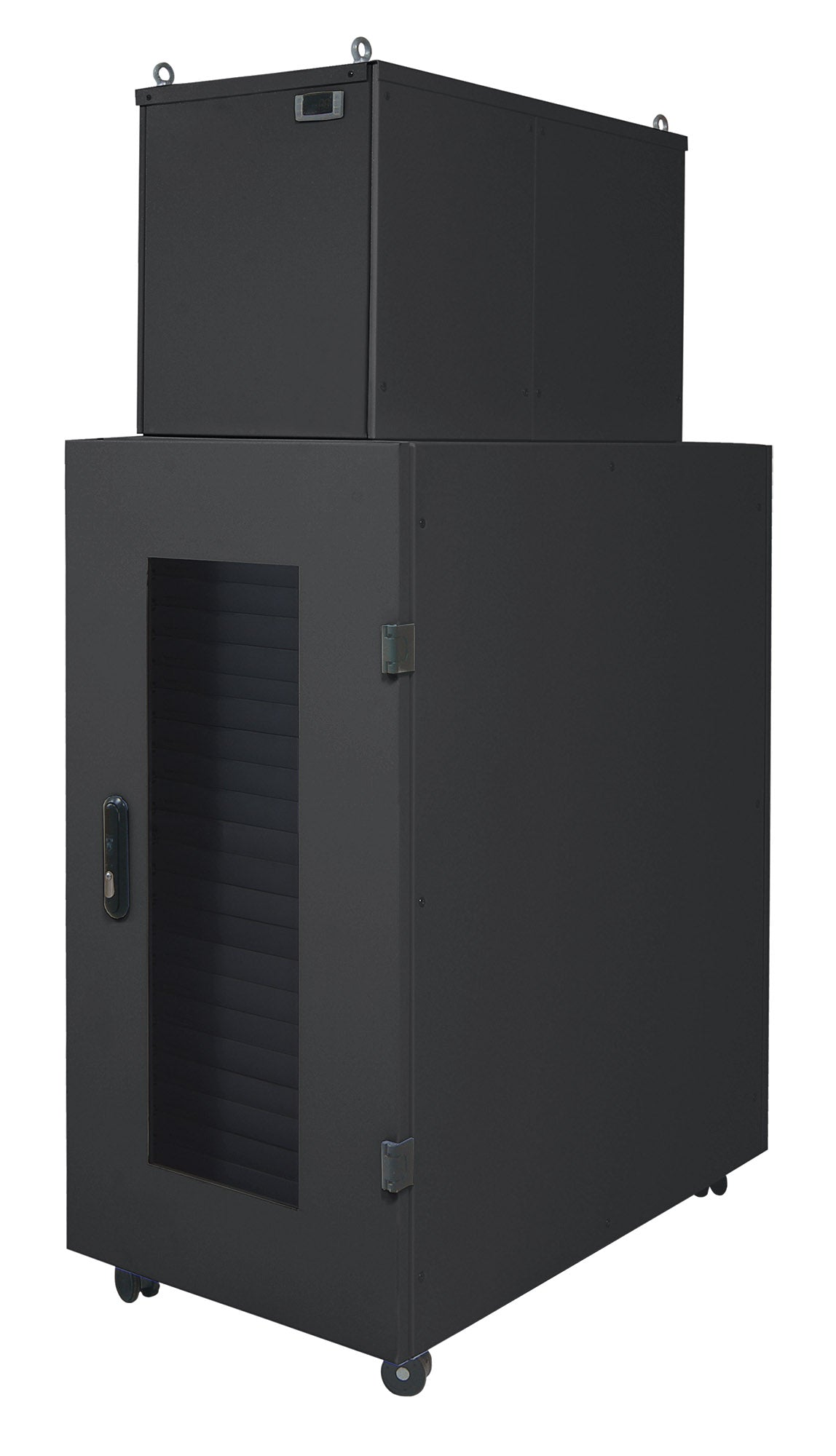

Micro Data Center Image 1

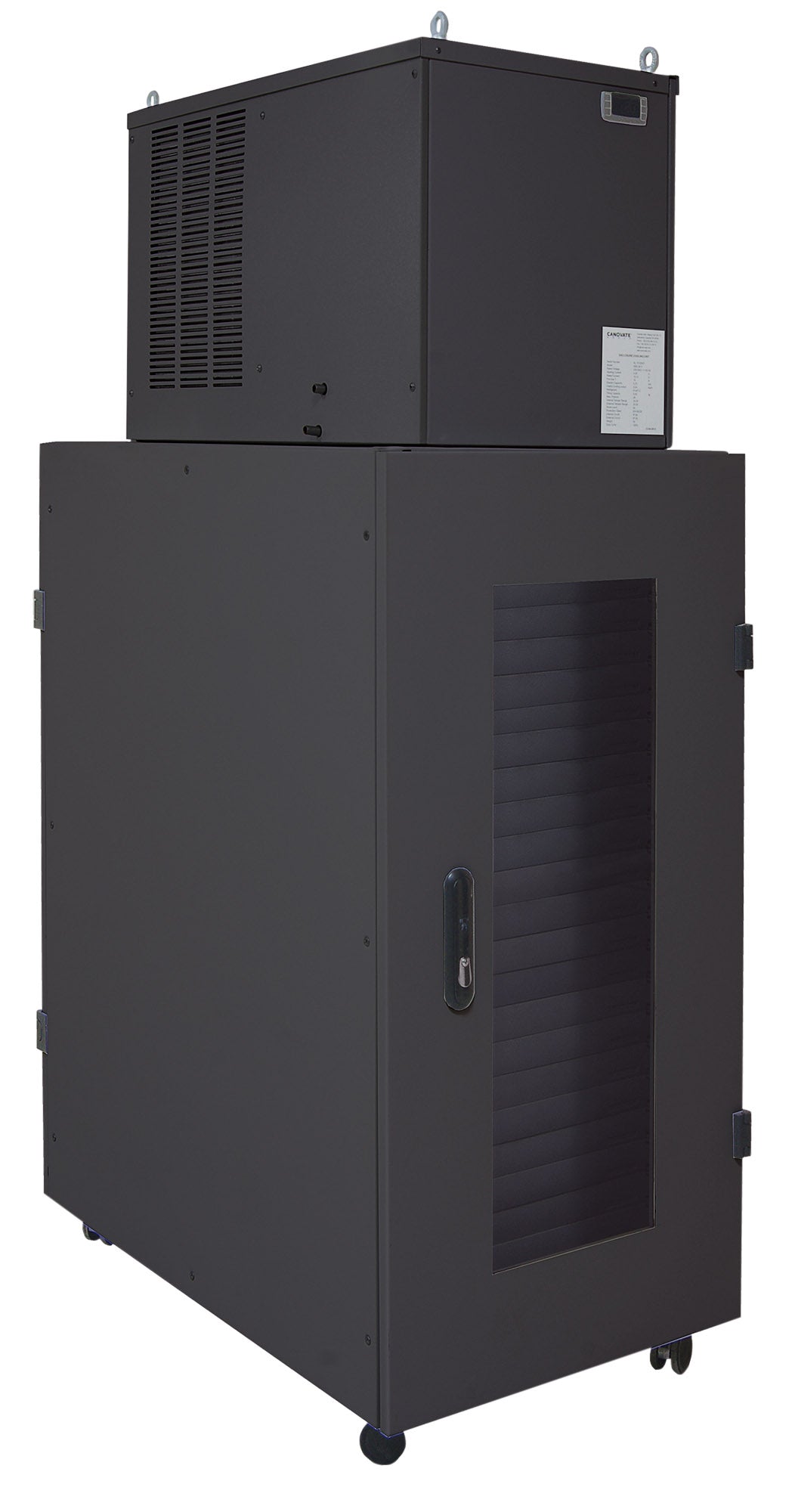

Micro Data Center Image 2

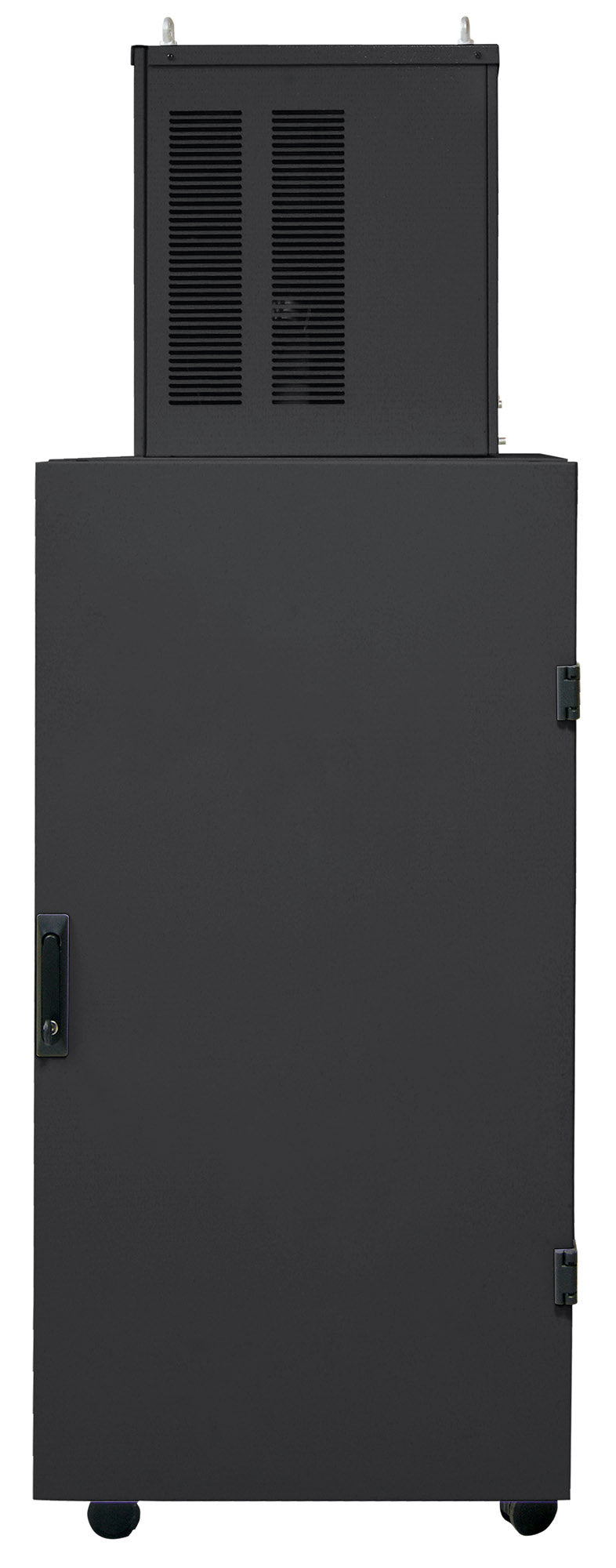

Micro Data Center Image 3

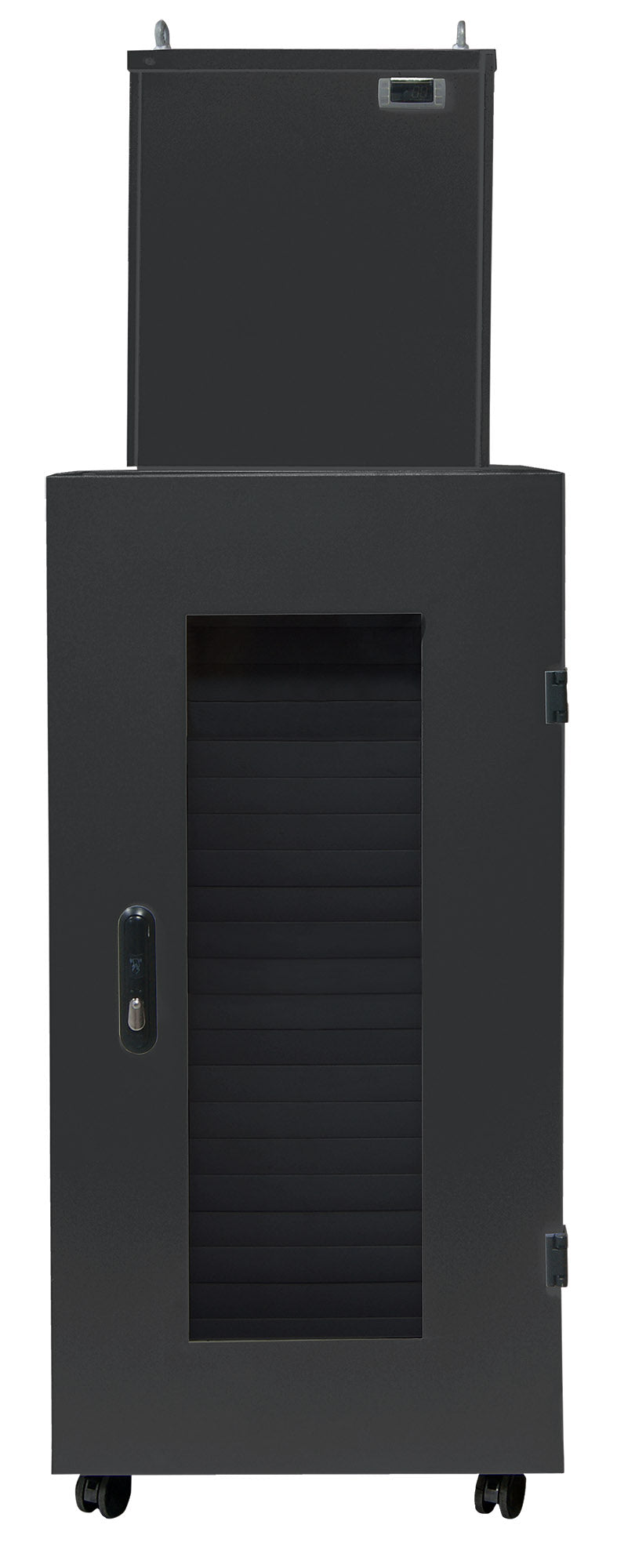

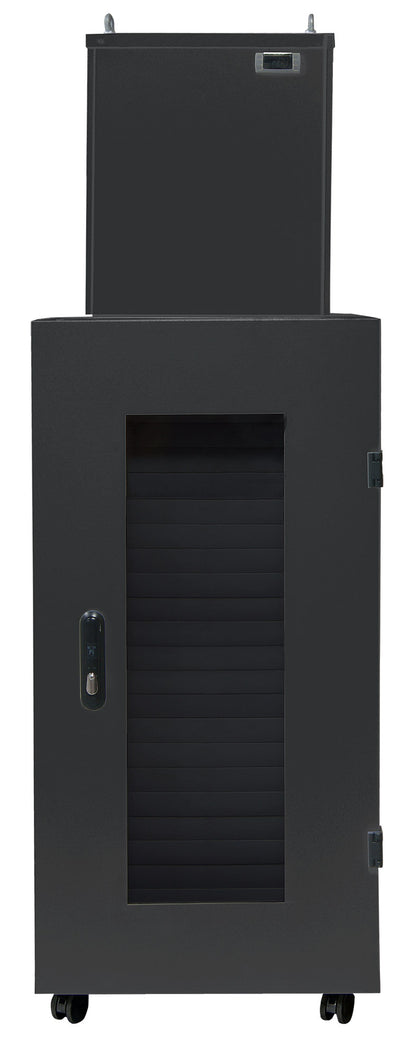

Micro Data Center Image 4

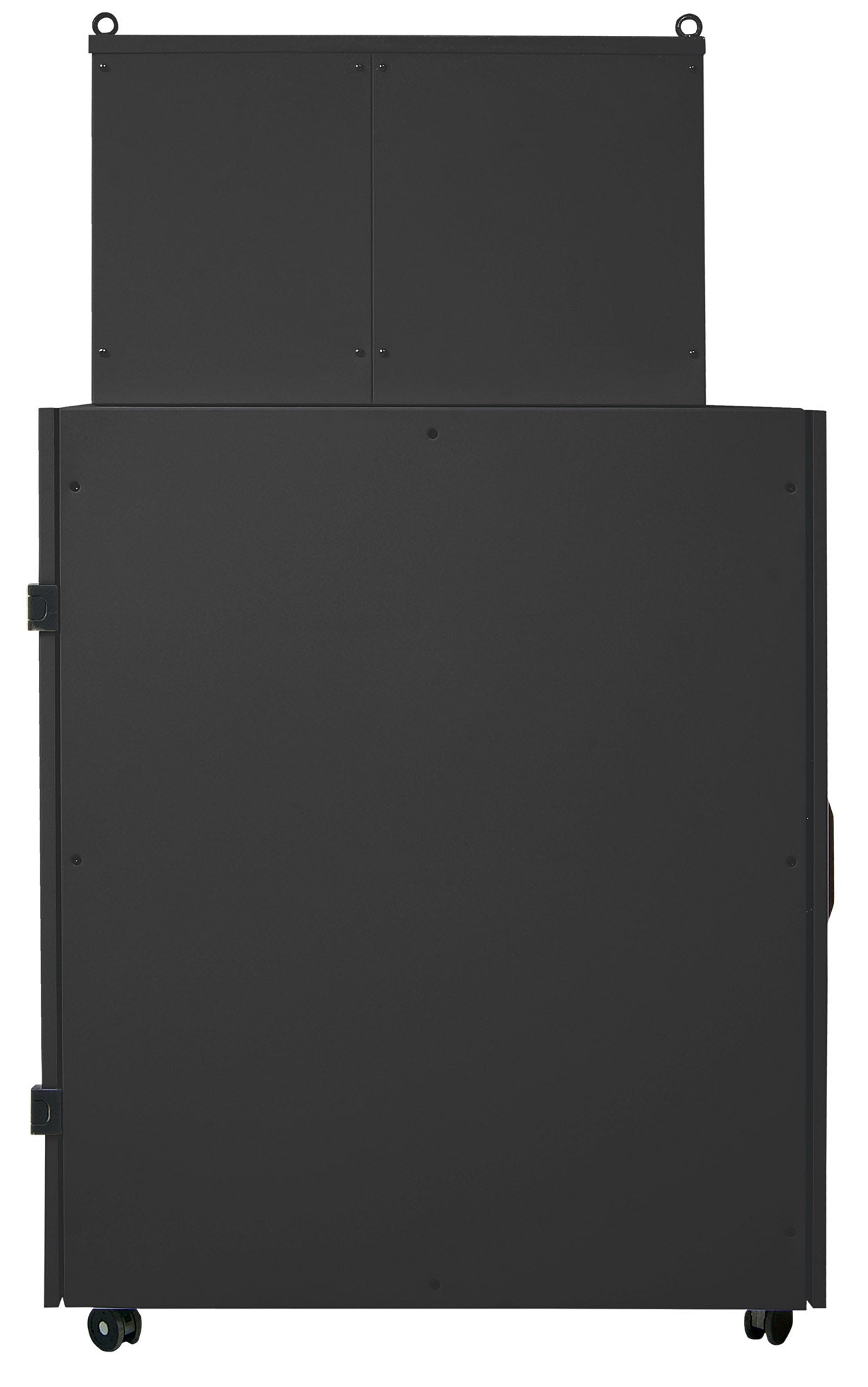

Micro Data Center Image 5

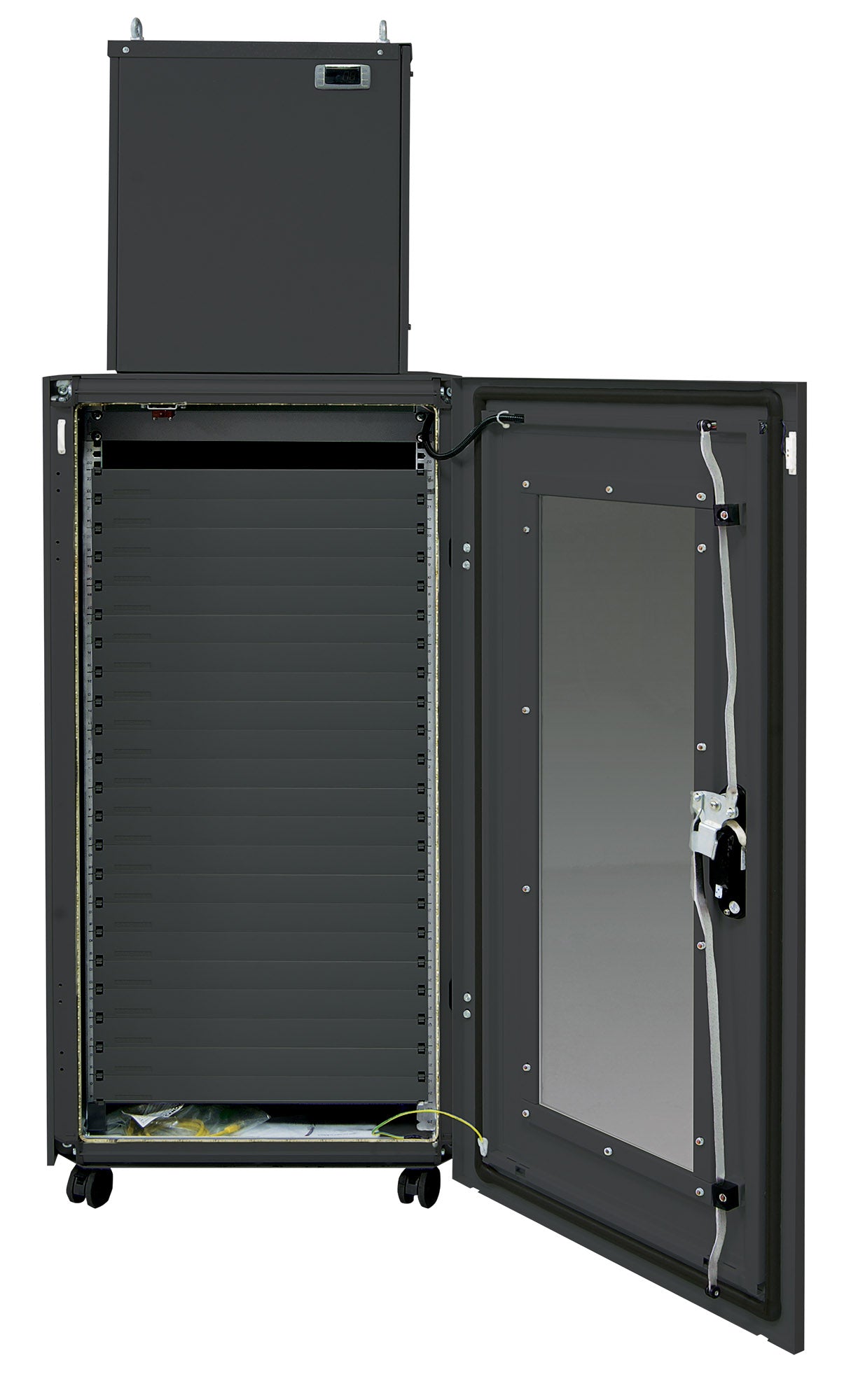

Micro Data Center Image 6

Micro Data Center

19", 24U, 600 x 1000 mm, IP54 Cabinet with 2 kW Cooling Unit, Black

SKU: 714600

Highlights

  • Supports a maximum static load of 2000 kg (4409 lbs.)
  • Anodized aluminium extrusion profiles
  • Antistatic powder coating on all panels

Manufacturer

Intellinet Network Solutions


The most compact data center on the market

The Intellinet Network Solutions Micro Data Center is a modular network and server cabinet that provides rapid, cost-effective and energy-efficient service. Its durable design provides a secure location that keeps network equipment cool while dramatically reducing the set-up and overhead costs that accompany traditional data centers. The Micro Data Center is constructed from high-quality steel and anodized aluminum for enhanced structural integrity and better protection of servers, switches and more. With multiple options available to meet height and depth requirements, this 19" cabinet is also offered in either black (RAL9005) or gray (RAL7035) for aesthetic integration into your current IT environment. The Micro Data Center arrives completely assembled, so it can be quickly implemented into a network.



In addition to lower initial costs, the Intellinet Network Solutions Micro Data Center also reduces power expenses by cooling just the equipment, not a whole room. The included casters allow for easier cabinet mobility should it ever need to be moved. IP54-rated housing ensures the protection of your expensive network equipment against dust and water. The Intellinet Network Solutions Micro Data Center is the ideal solution for Small- and Medium-sized Businesses, bank and insurance branch offices as well as government and corporate offices.

  • Supports a maximum static load of 2000 kg (4409 lbs.)
  • Anodized aluminium extrusion profiles
  • Antistatic powder coating on all panels
  • Zinc-plated 19 in. mounting rails
  • Front glass door and rear steel door
  • Multi-point door lock
  • Panels with up to 2 mm steel thickness
  • IP54-rated housing
  • Cable inlet from bottom
  • Ships assembled
  • Three-Year Warranty

    General
  • 19 in.
  • Height: 24U
  • Color: Black RAL9005
  • Certifications: RoHS, UL
  • Protection rating: IP54
  • Dimensions (including cooling unit)
  • 1000 (L) x 600 (W) x 1651 (H) [mm]
  • 39.37 (L) x 23.62 (W) x 65 (H) [in]
  • Package Contents
  • 24U cabinet
  • 2 kW cooling unit
  • Manual

  • Other Part Numbers

    • EAN: 0766623714600
    • UPC: 766623714600

  • Datasheet


  • Manual
