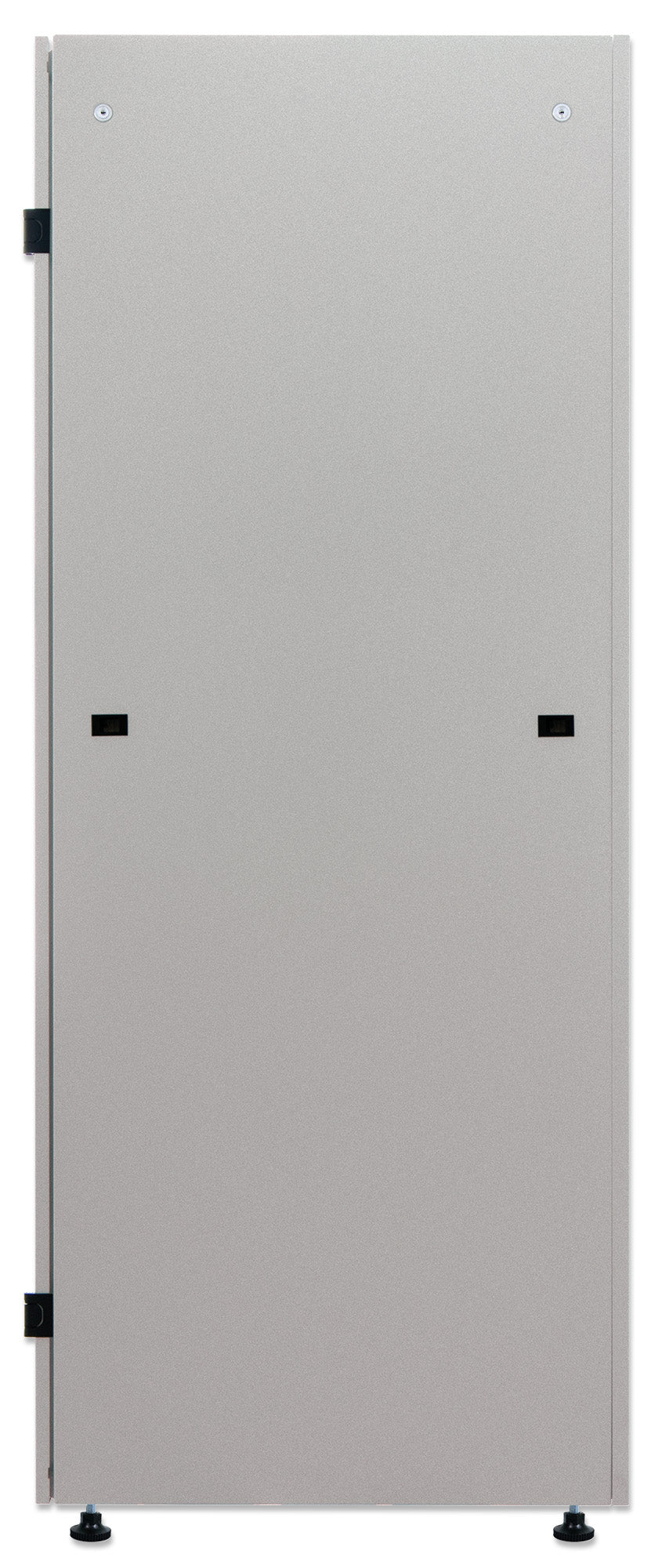

Premium 19" Network Cabinet, 42U, 800 (D) x 600 (W) x 2033 (H) mm, Gray

The Intellinet Network Solutions Premium 19" Network Cabinet is designed with the data center in mind. This premium cabinet incorporates a safety-glass door with tinted sides, an anodized aluminum frame and solid-steel panels coated with electrostatic powder paint to secure and protect network equipment. Its zinc-plated, depth-adjustable mounting rails help ensure years of reliable use and sturdiness. The Intellinet Network Solutions Premium 19" Network Cabinet also features UL and RoHS certifications, reinforcing the quality of materials and construction to support networks that last.

• Ideal for all 19" rackmount applications
• Anodized aluminium frame
• Maximum static load of 2000 kg (4409 lb.)
• Tempered-glass door with tinted left and right sections
• Zinc-plated 19" mounting rails
• Antistatic powder coating on all panels
• Reversible front door
• Easily removable locking side and rear panels
• Single-point cylindrical door lock
• Cable-entry and ventilation slots
• Ships fully assembled
• Three-year warranty

General
• 19"
• Height: 42U
• Color: Gray RAL7035
• Certifications: RoHS, UL
Dimensions
• 800 (D) x 600 (W) x 2033 (H) [mm] / 31.5 (L) x 23.62 (W) x 80.04 (H) [in.]
Package Contents
• Premium 19" Network Cabinet
• Four depth-adjustable mounting rails
• Four adjustable supporting feet
• Installation hardware

• Other Part Numbers

• EAN: 0766623715768
• UPC: 766623715768



• Physical Specifications

• Weight: 100 kg
• Dimensions: 800 (L) x 600 (W) x 2033 (H) [mm]
• Carton Quantity: 1
• Carton Weight: 115.00 kg

• Datasheet
• Datasheet     » Download

• Manual
• Assembly Instructions
  Multilingual assembly instructions English and German     » Download
