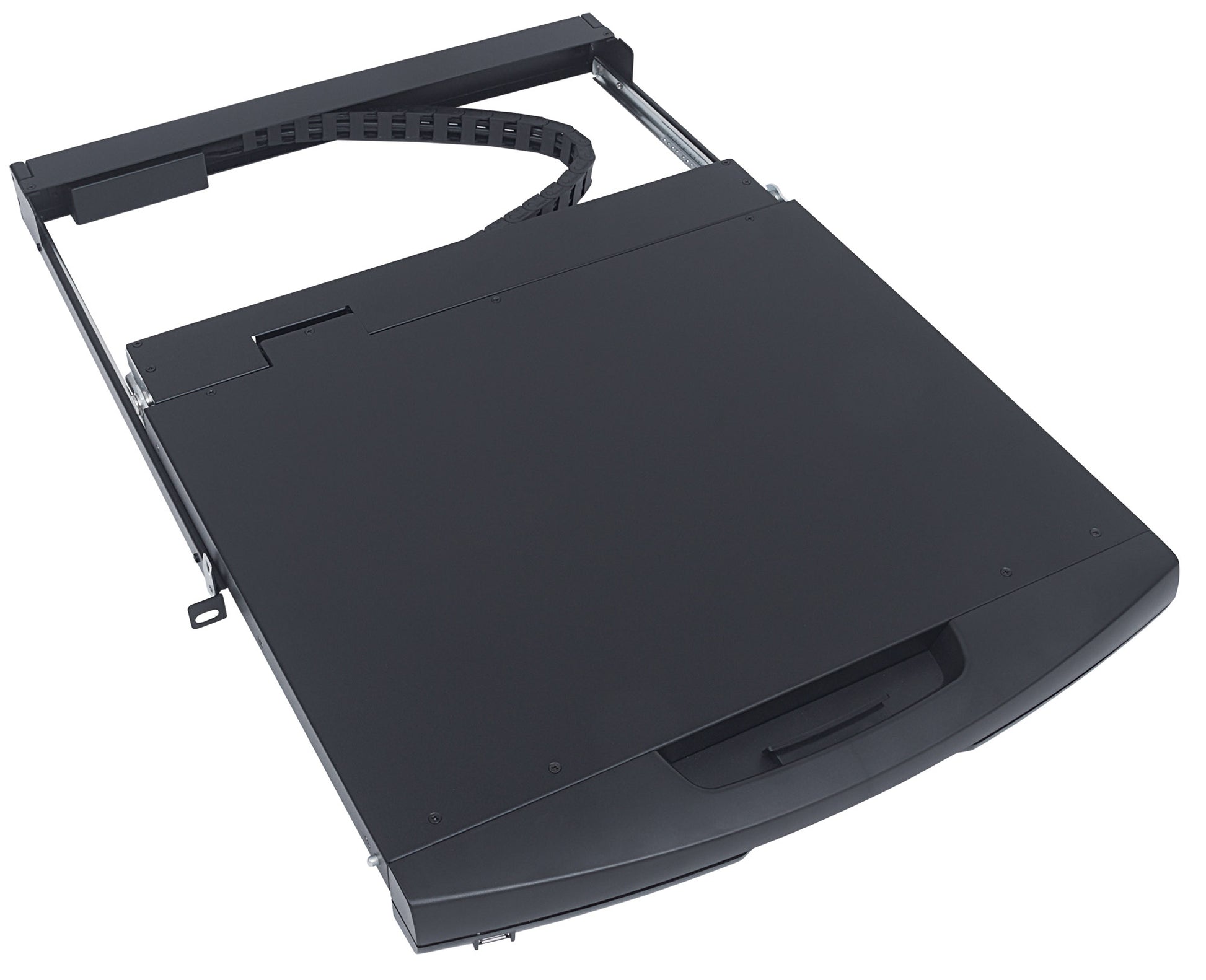

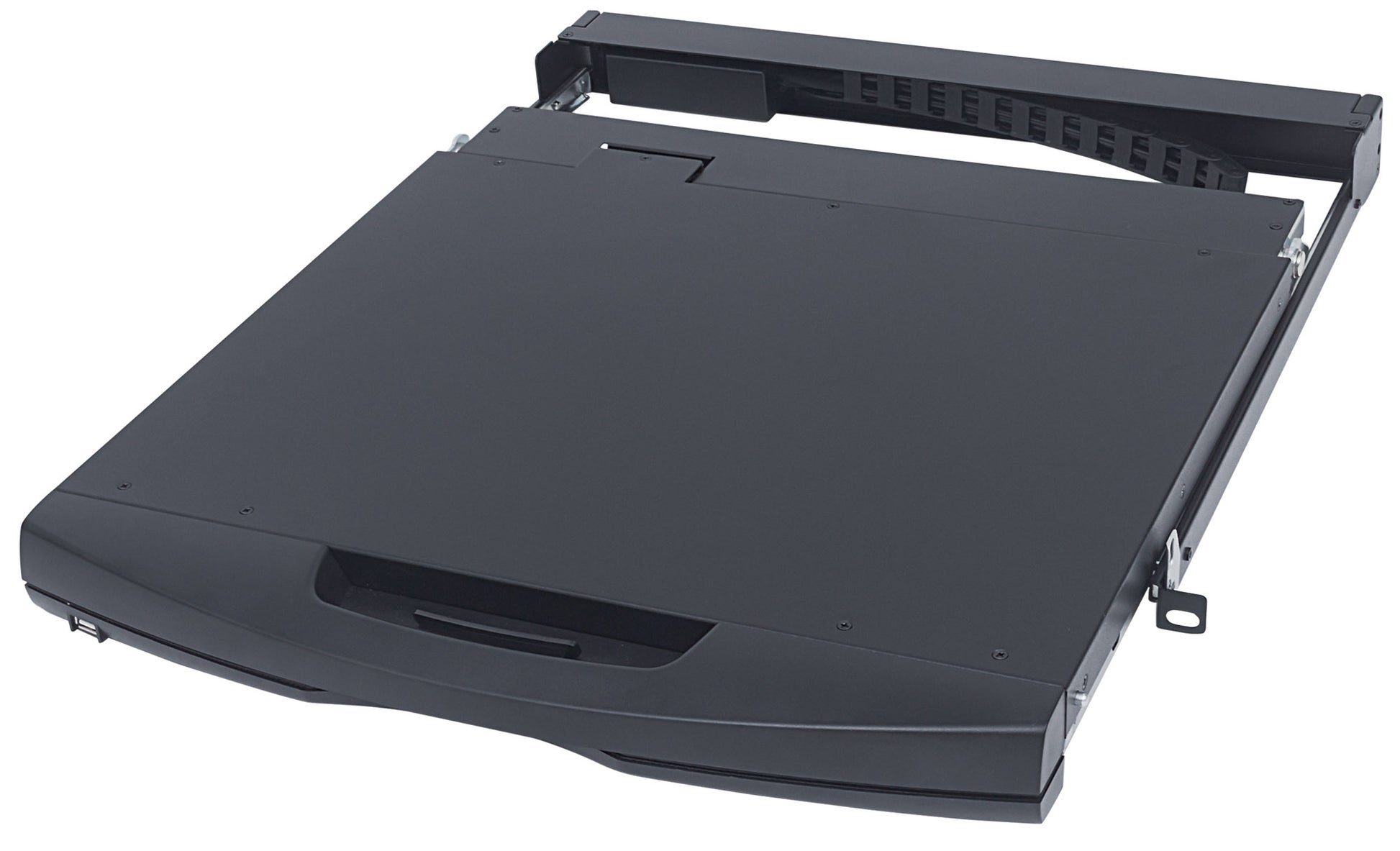

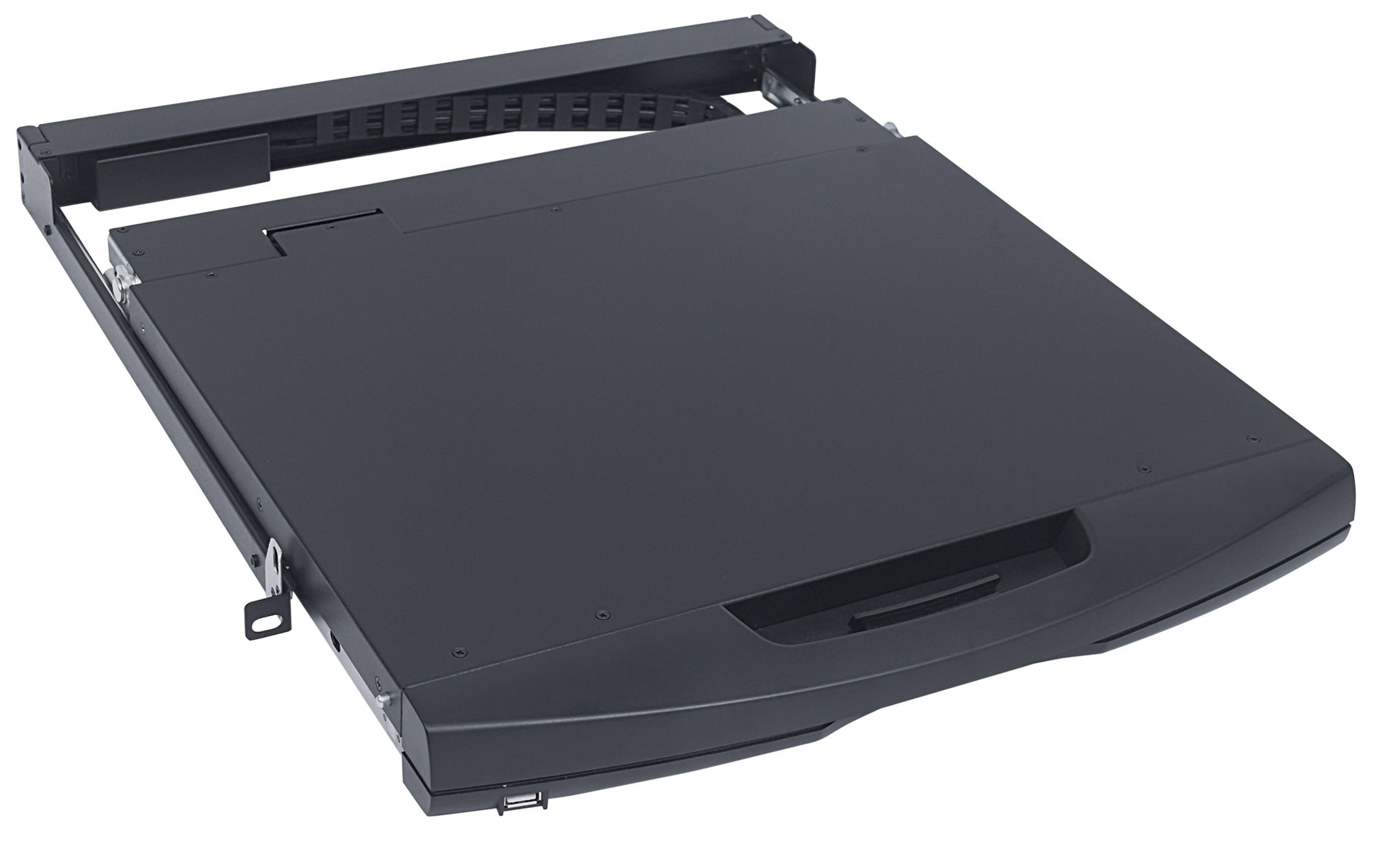

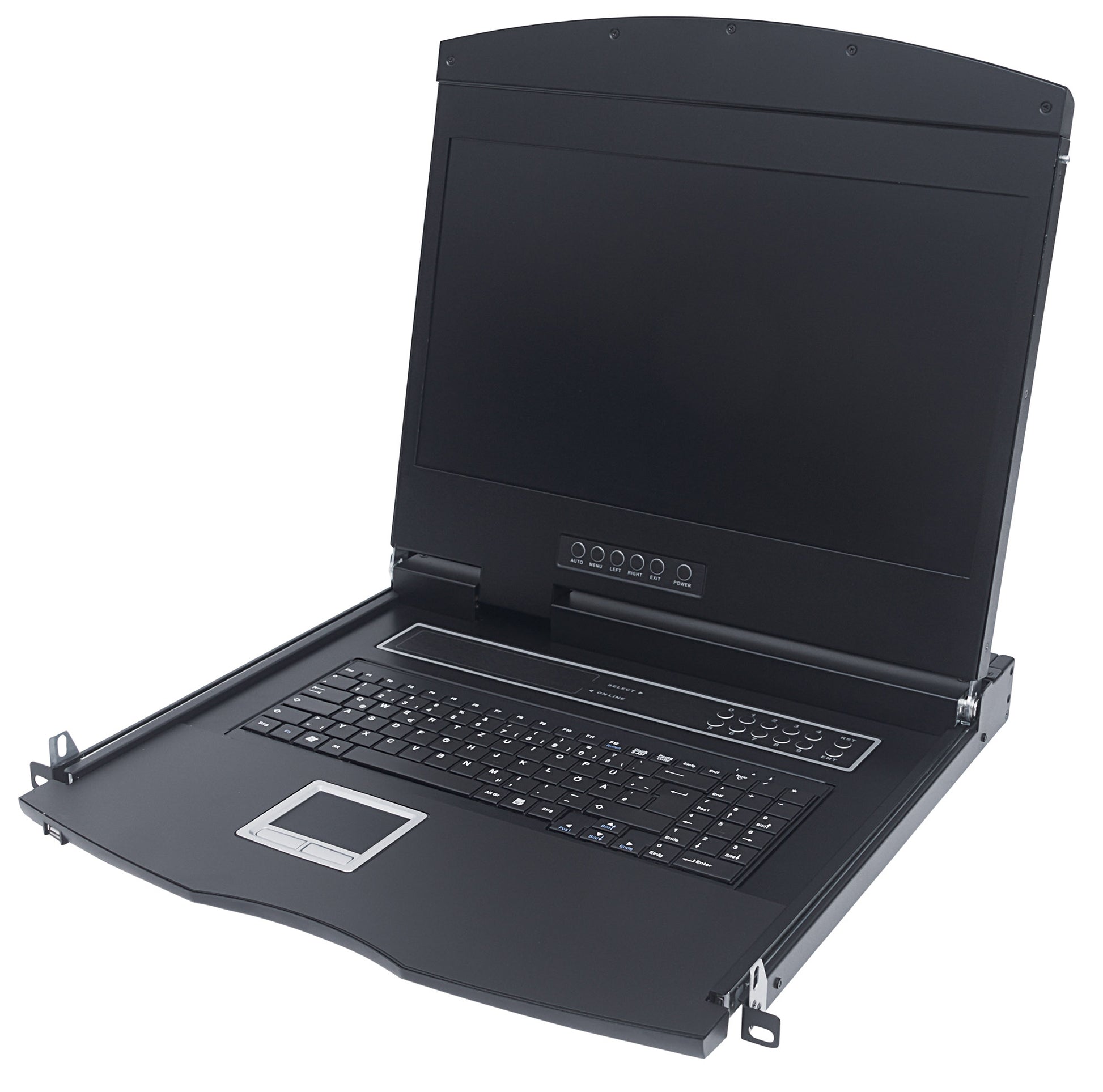

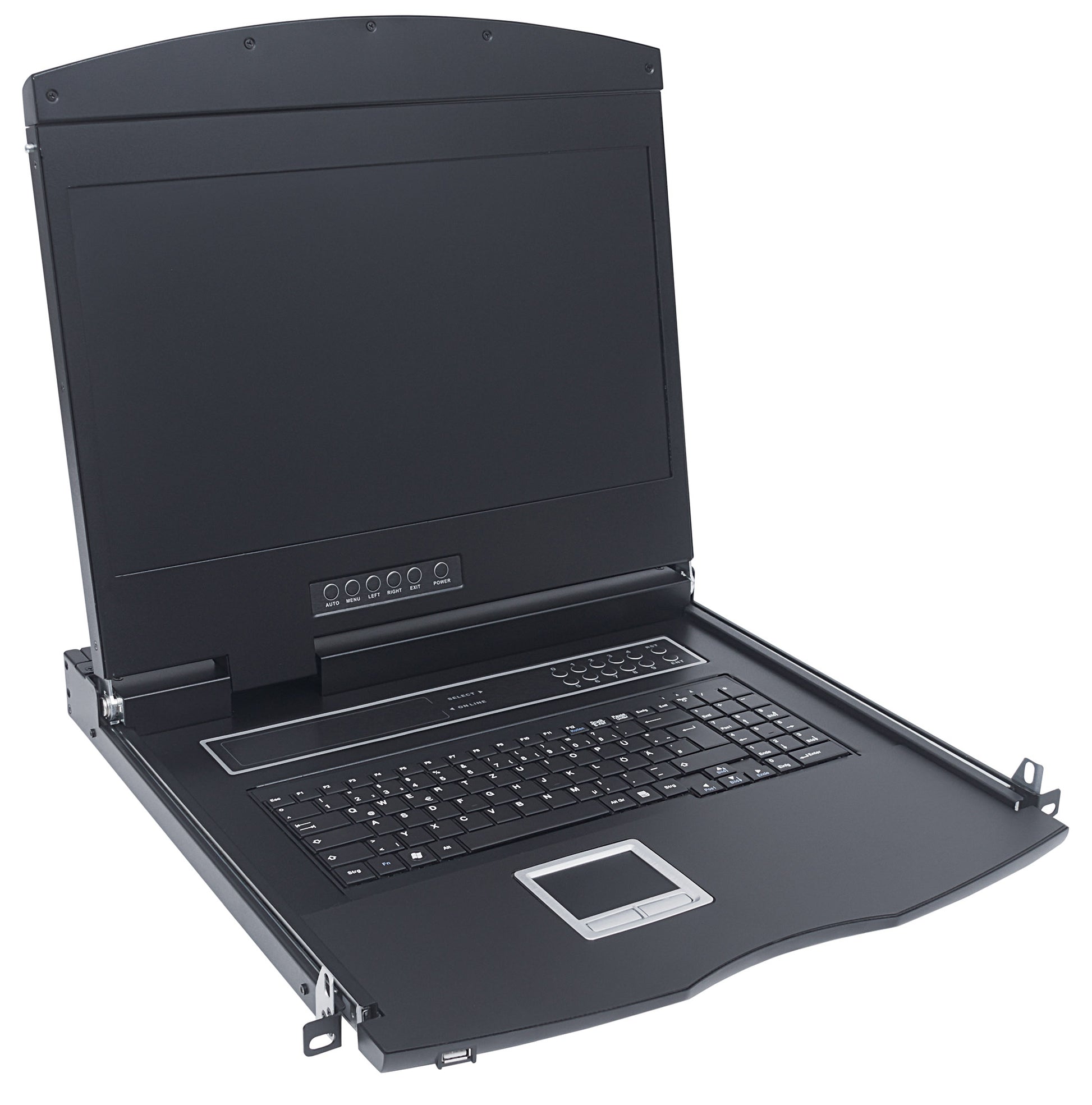

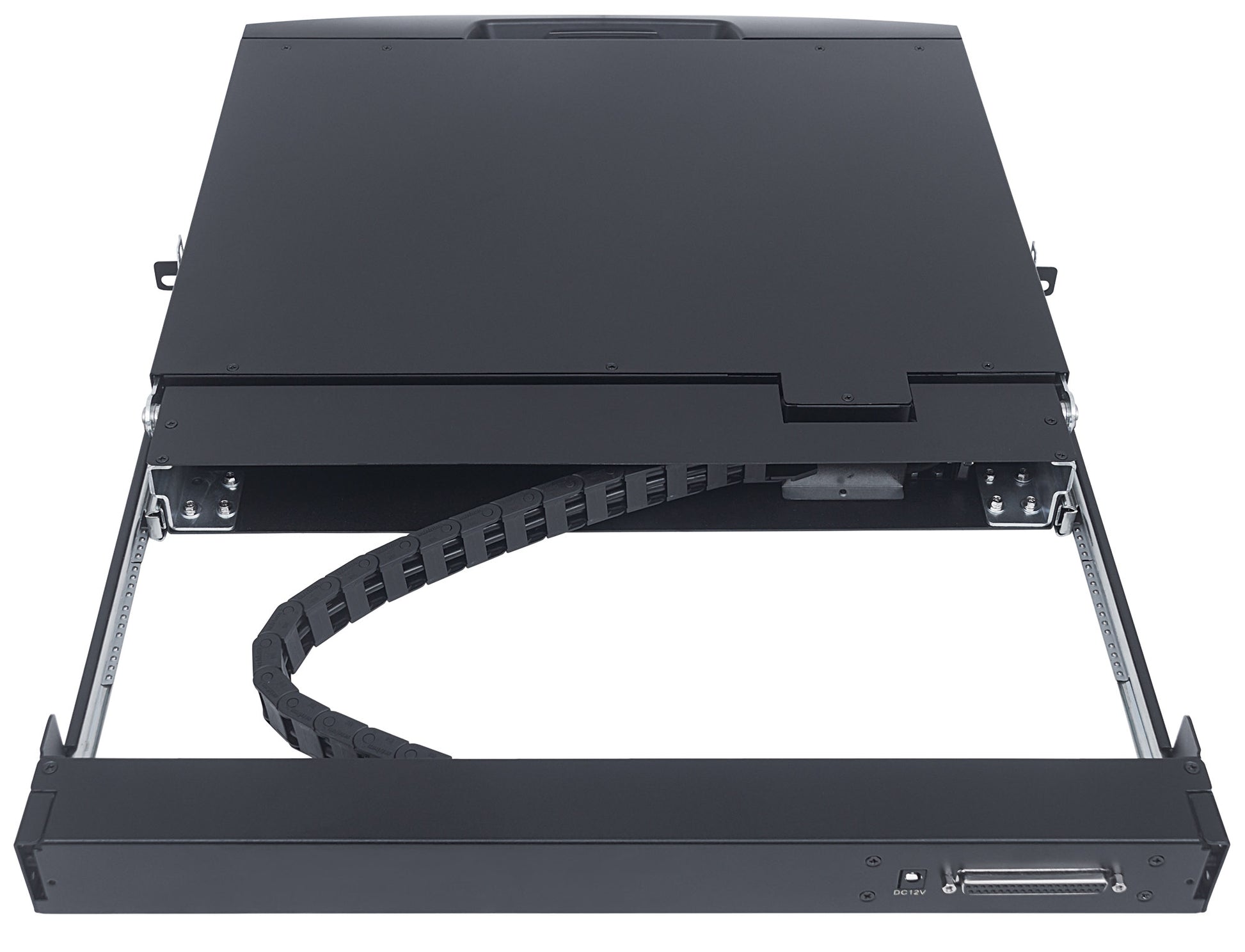

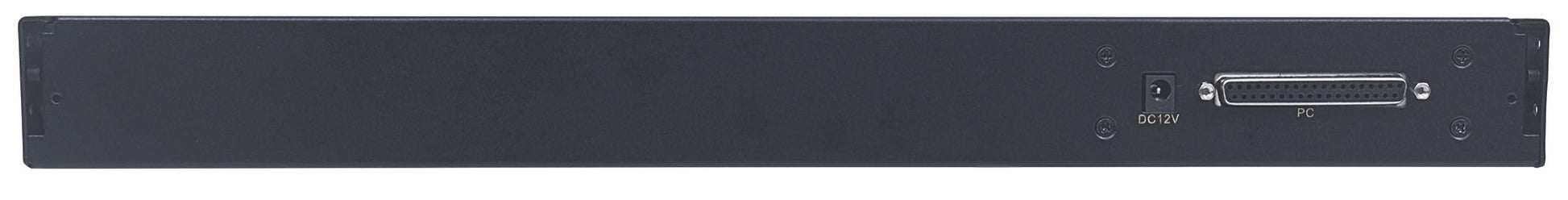

Rackmount 19" LCD Console Image 1
Rackmount 19" LCD Console Image 2
Rackmount 19" LCD Console Image 3
Rackmount 19" LCD Console Image 4
Rackmount 19" LCD Console Image 5
Rackmount 19" LCD Console Image 6
Rackmount 19" LCD Console Image 7

Rackmount 19" LCD Console

19-Inch LCD Panel, 1U, Modular system, Italian Layout

SKU: 508049

Highlights

  • Integrated LCD console, keyboard & mouse
  • Manage/control PS/2 or USB computers from one keyboard, monitor and mouse (KVM Module needed)
  • Standard 19 inch 1U rack drawer

Manufacturer

Intellinet Network Solutions


  • Integrated LCD console, keyboard & mouse
  • Manage/control PS/2 or USB computers from one keyboard, monitor and mouse (KVM Module needed)
  • Standard 19 inch 1U rack drawer
  • Flip-open 19 inch LCD panel supports 1366 x 768 resolution
  • Gain complete control with easy-to-use OSD interface
  • Adjustable - for rack cabinets with depths from 600 mm to 1000 mm (23.6 to 39.37 in.)
  • 100-key, low-profile, sturdy keyboard included
  • Ergonomic hand rest design
  • Ultra sturdy rear bracket and extension design
  • OSD control and adjustment
  • Auto-scan automatically selects computers sequentially
  • Supports both PS/2 and USB mouse
  • Operating system independent, transparent to all applications
  • Three-Year Warranty

    Standards
  • PS/2
  • USB
  • Compatible with Windows, MAC and Unix
  • General
  • PC connections: Dependent on KVM module purchased alongside
  • Computer selection:
  • - Via buttons - Via hotkeys
  • OSD: yes
  • FCC Class B, CE, RoHS
  • Power
  • Input (AC): approx. 100 - 240 V
  • LCD Panel
  • Active display area: 337.9 x 270.3 (mm)
  • Pixel pitch: 0.264 (H) x 0.264 (W)
  • Resolution: 1366 x 768 at 60 Hz
  • Brightness: 250 (Typ)
  • Contrast ratio: 1000:1 (Typ)
  • Display color: 16.7M colors
  • User control: OSD control (auto saving)
  • Backlight unit: LED
  • MTBF: 100,000 hours
  • Keyboard
  • Ultra-thin, 100-key, Italian-layout, stand-alone, removable keyboard (keyboard language format optional)
  • Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10
  • Service life > 1,000,000 times
  • Mouse
  • Touch Mouse
  • 1000 point/inch(40 x 40 mm)
  • Service life > 1,000,000 times
  • Environmental
  • Operating temperature: 0 – 50°C (32° – 122°F)
  • Storage temperature: -20 – 60°C (-4 – 140°F)
  • Package Contents
  • 19" Rackmount Console
  • Rear bracket and extension kit
  • Power adapter
  • User manual

  • Other Part Numbers

    • EAN: 0766623508049
    • UPC: 766623508049

  • Physical Specifications

    • Weight: 6.07 kg
    • Dimensions: 407 (L) x 445 (W) x 44 (H) [mm]
    • Carton Quantity: 1
    • Carton Weight: 11.45 kg

  • Datasheet
