Intellinet

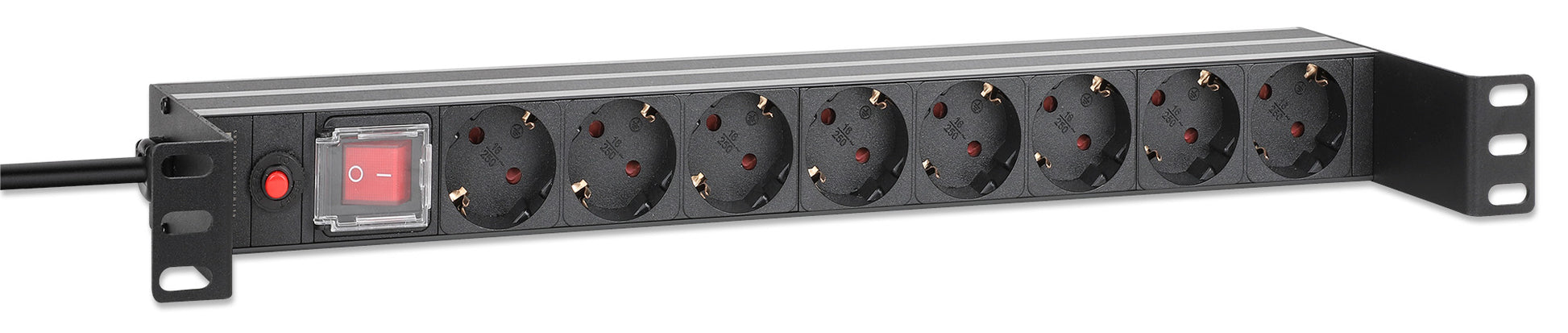

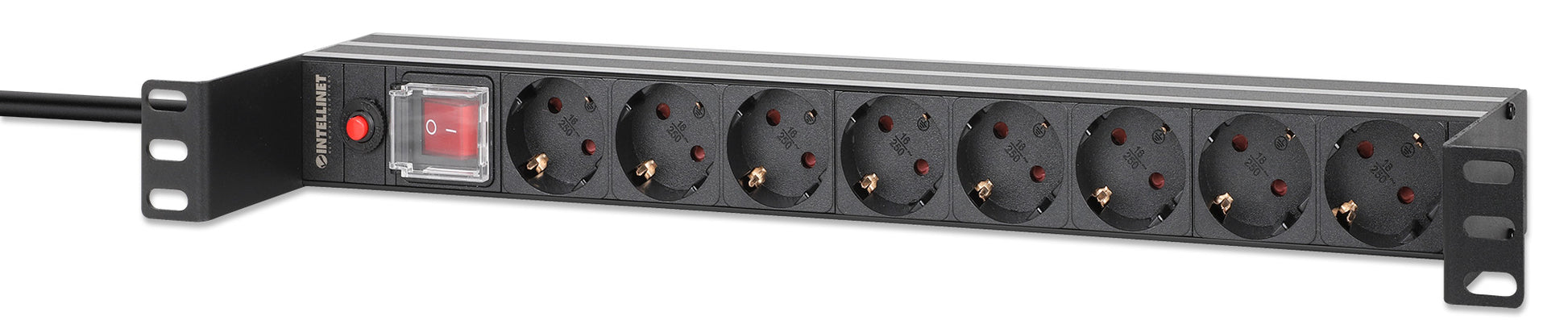

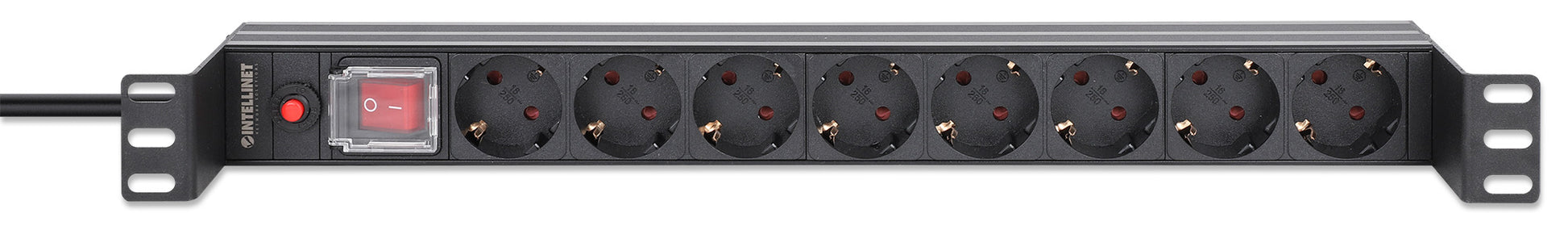

Recessed 19" 1U Rackmount 8-Outlet PDU with Circuit Breaker

EU CEE 7/3 Sockets, 16 A, Overload Protection and On/Off Switch, Built-in 3 m Power Cord with EU CEE 7/7 Plug, Horizontal Mount, Aluminum, Black/Silver

Highlights

8-way single-phase Power Distribution Unit (PDU) for electrical equipment, ideal for networking, telecom, security and audio/video
Integrated 16 A circuit breaker for reliable overload protection
Recessed design allows front mounting with 95 mm extra clearance for plugs and cables to prevent interfering with rack door

SKU: 716864

[ view high resolution images ]

19-inch Rack Mount 8-Way PDU (Power Distribution Unit) with Overload Protection and Recessed Design

Provide reliable power distribution for rack-mounted equipment with this recessed 8-Output 19 in. 1U Rackmount PDU from Intellinet Network Solutions. Designed for professional IT, AV and telecom environments, it delivers dependable power management for networks and audio/video installations. Its robust aluminum housing and horizontal 1U form factor make it an ideal solution for organized and efficient rack integration.

Recessed Design Optimized for Front Rack Installation with Extra Clearance

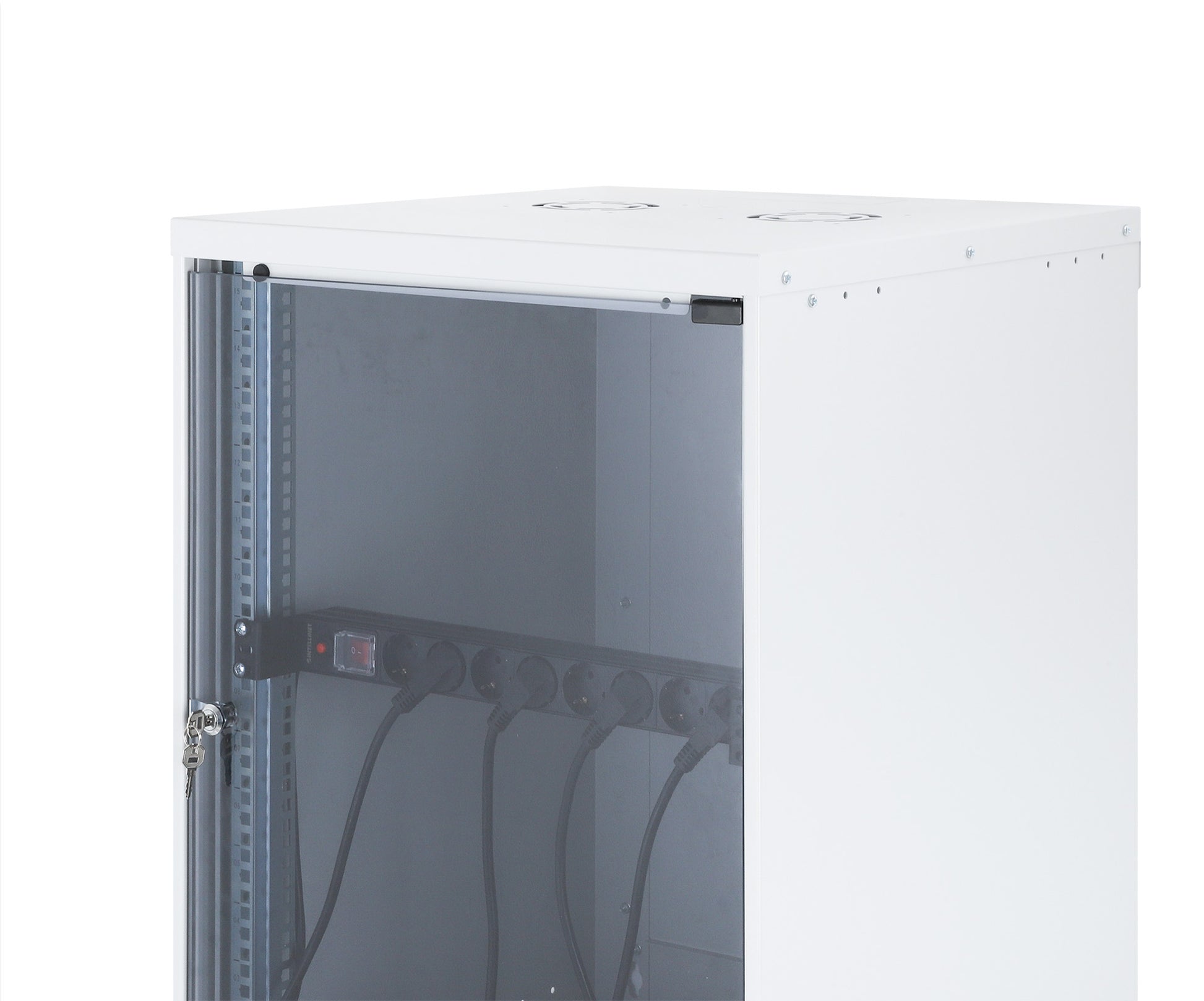

The recessed housing design makes this PDU particularly suitable for front mounting in 19" racks and cabinets. By positioning the outlets slightly behind the mounting plane, it provides extra clearance for plugs and cables, preventing interference with rack doors and allowing for cleaner, more organized cable routing.

Integrated Circuit Breaker Protection and More Safety Features

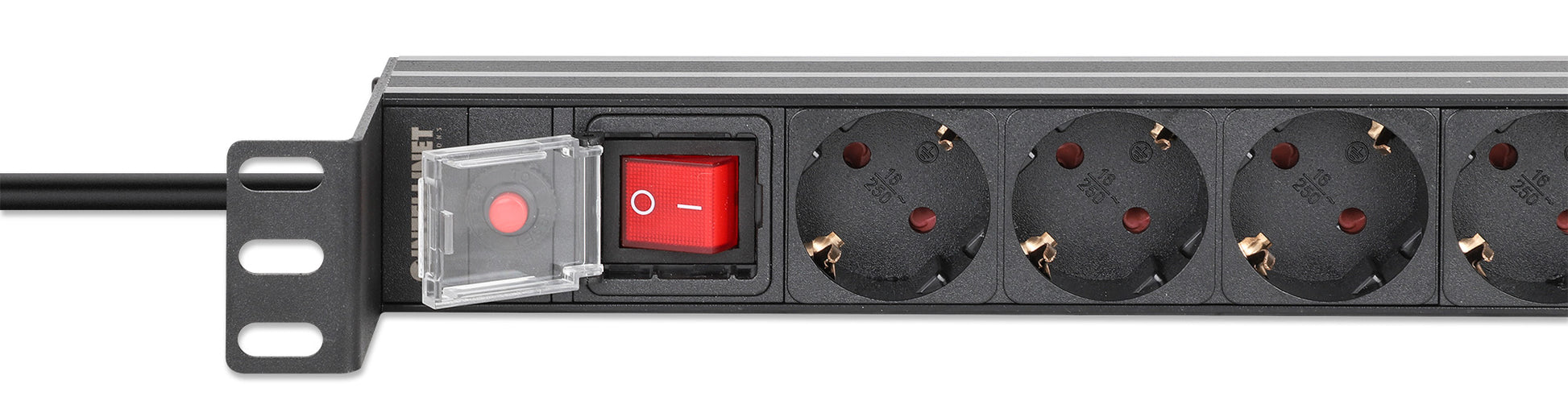

An integrated 16 A circuit breaker protects connected equipment from overload conditions and helps ensure reliable operation in demanding environments. The built-in on/off switch offers convenient power control directly at the PDU, while a dedicated grounding point provides additional protection against external electrical surges. Sockets with integrated contact shutters increase touch protection and improve operational safety in professional installations.

European Compatibility

The built-in 3 m power cord features a hybrid EU CEE 7/7 plug that supports both European type F and French type E wall sockets, offering flexible deployment across a wide range of installations. The PDU distributes single-phase power through eight EU CEE 7/3 outlets, making it suitable for standard rack equipment used throughout Europe.

Durable Construction for Data Center and Network Environments

Built with a strong aluminum housing and an IP20-rated enclosure, this rack PDU is engineered for long-term reliability in networking, telecom, surveillance and AV applications. Compliance with IEC 60297 and EIA 310 standards ensures compatibility with all standard 19-inch racks and cabinets, enabling seamless integration into professional infrastructure.

8-way single-phase Power Distribution Unit (PDU) for electrical equipment, ideal for networking, telecom, security and audio/video
Integrated 16 A circuit breaker for reliable overload protection
Recessed design allows front mounting with 95 mm extra clearance for plugs and cables to prevent interfering with rack door
Built-in 3 m power cord with EU CEE 7/7 hybrid plug, fits both European type F and French type E sockets
Horizontal 1U 19-inch rack-mount installation
Sockets with increased touch protection through contact shutters
Angled outlet orientation for easier cable management in tight rack environments
IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm racks
Durable aluminum construction with IP20-rated housing
Grounding point to protect equipment from external electrical surges
Bracket installation style: frontal
For indoor use only
Three-year warranty

CE
RoHS
REACH
IEC 60297
IEC 60884
IP20
AC input: 220.0 - 250.0 V; 50 - 60 Hz
Rated voltage: 230.0 V
Plug standard: EU CEE 7/7 (Type E+F); IEC 60884
Socket/outlet standard: EU CEE 7/3 (Type F); IEC 60884
Maximum load: 4,000.0 W
Overload protection: 16.0 A circuit breaker, push-to-reset
Switch: on/off
MTBF: >100,000 hours
Dimensions (D x W x H): 95 x 482.6 x 44.4 mm
1U rack mount

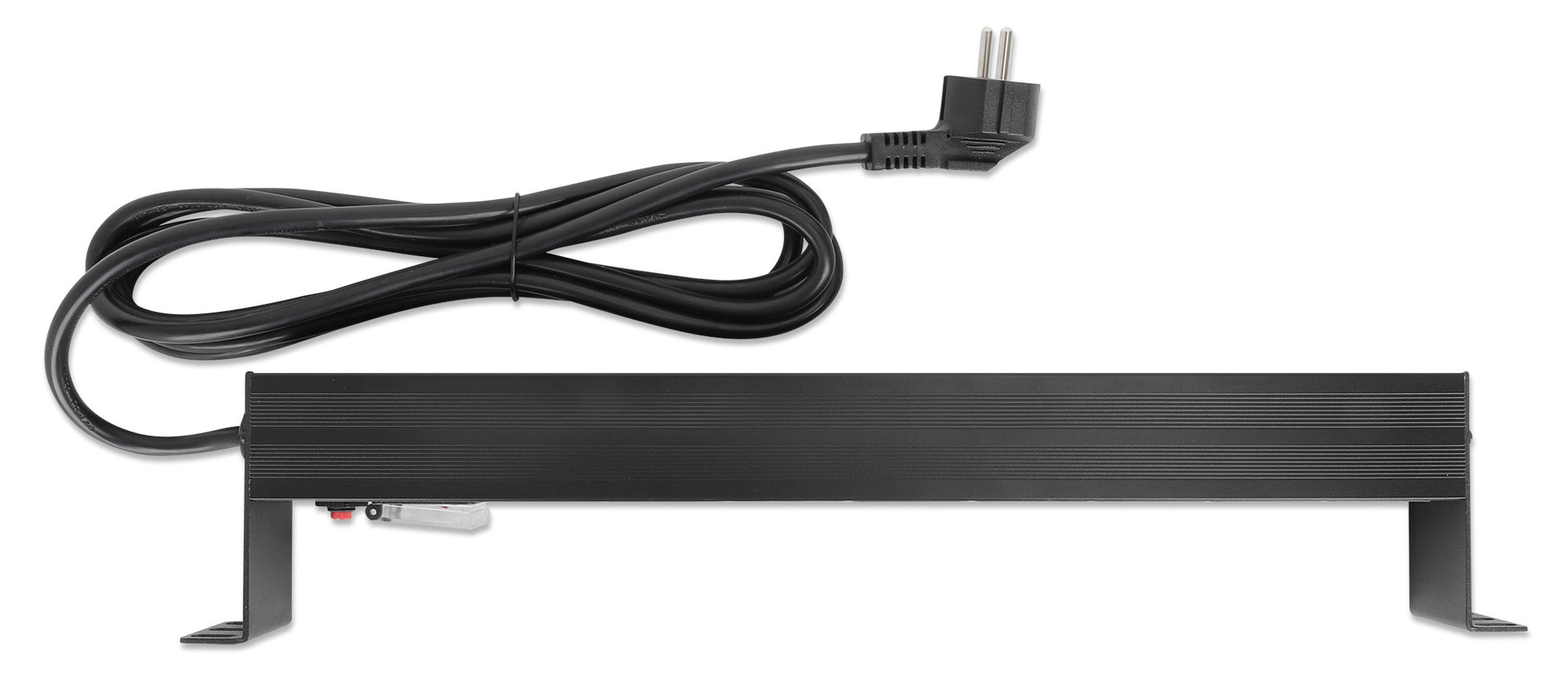

Cable length: 3 m
Cable type: H05VV-F 3G 1.5 mm²
Socket angle: 35°
Net weight: 900 g
Gross weight: 1 kg
Housing: aluminum
Recessed design: brackets with 95 mm setback for additional plug and cable clearance
Operating Temperature: 0 to 50 °C
Storage Temperature: -20 to 60 °C
Humidity: 0 to 80% RH (non-condensing)
8-Way PDU, Recessed, 19 inch 1U Rack-Mount, Power Distribution Unit with On/Off Switch and Overload Protection
