Intellinet

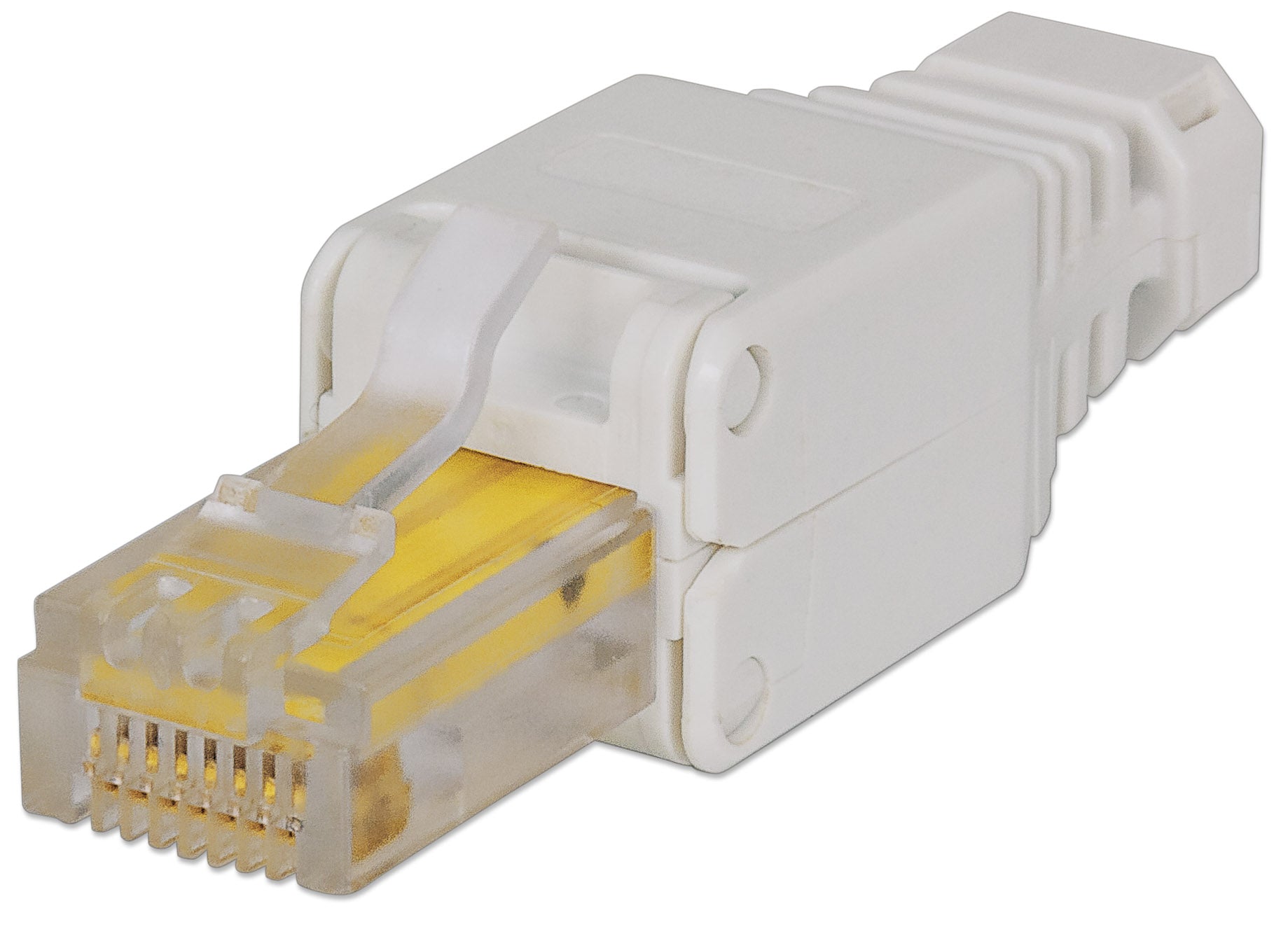

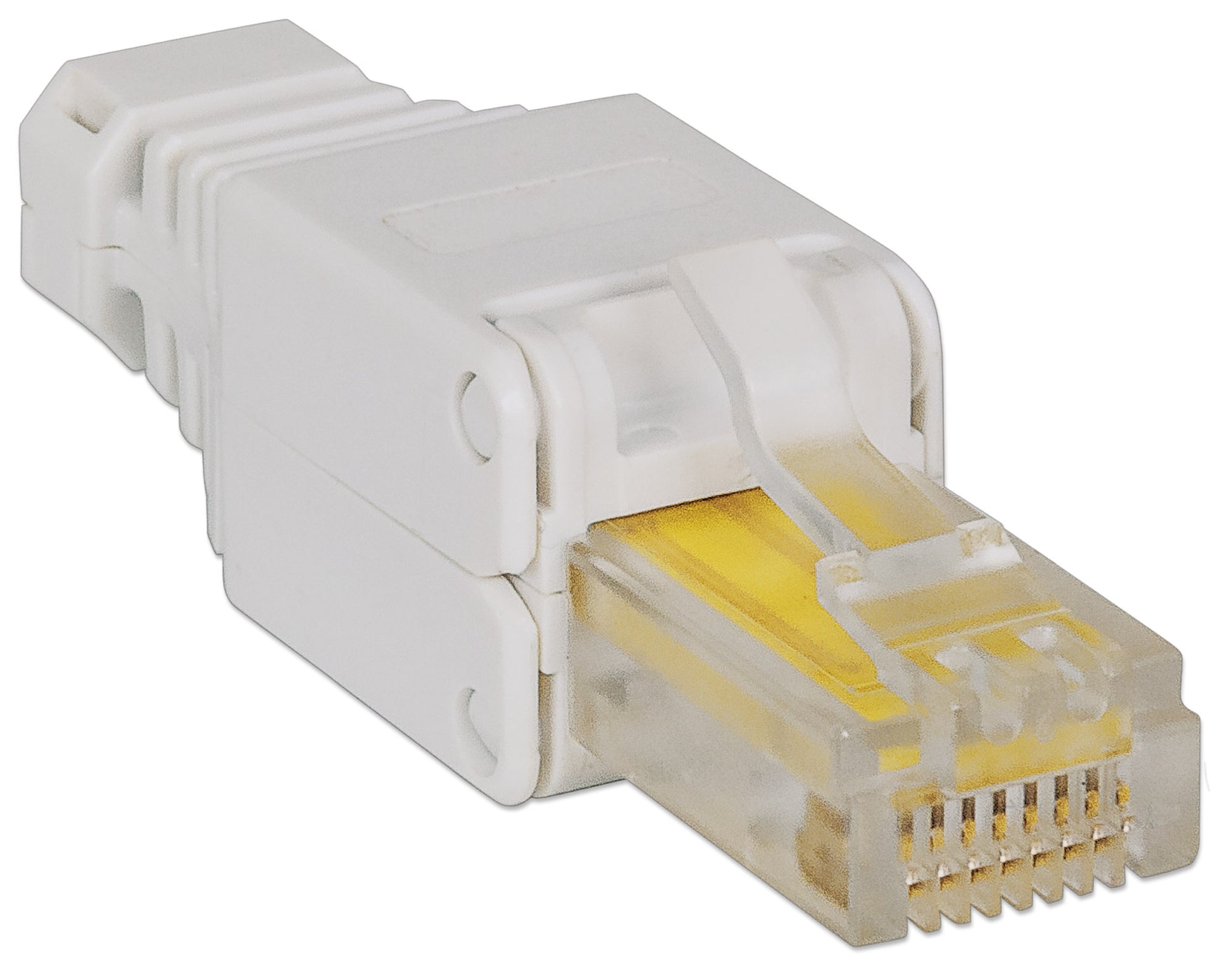

Toolless RJ45 Plug

Toolless RJ45 Modular plug

Highlights

RJ45 plug
Toolless connector
TIA/EIA-568-B.2, ISO/IEC11801 and EN50173-1

SKU: 790482

[ view high resolution images ]

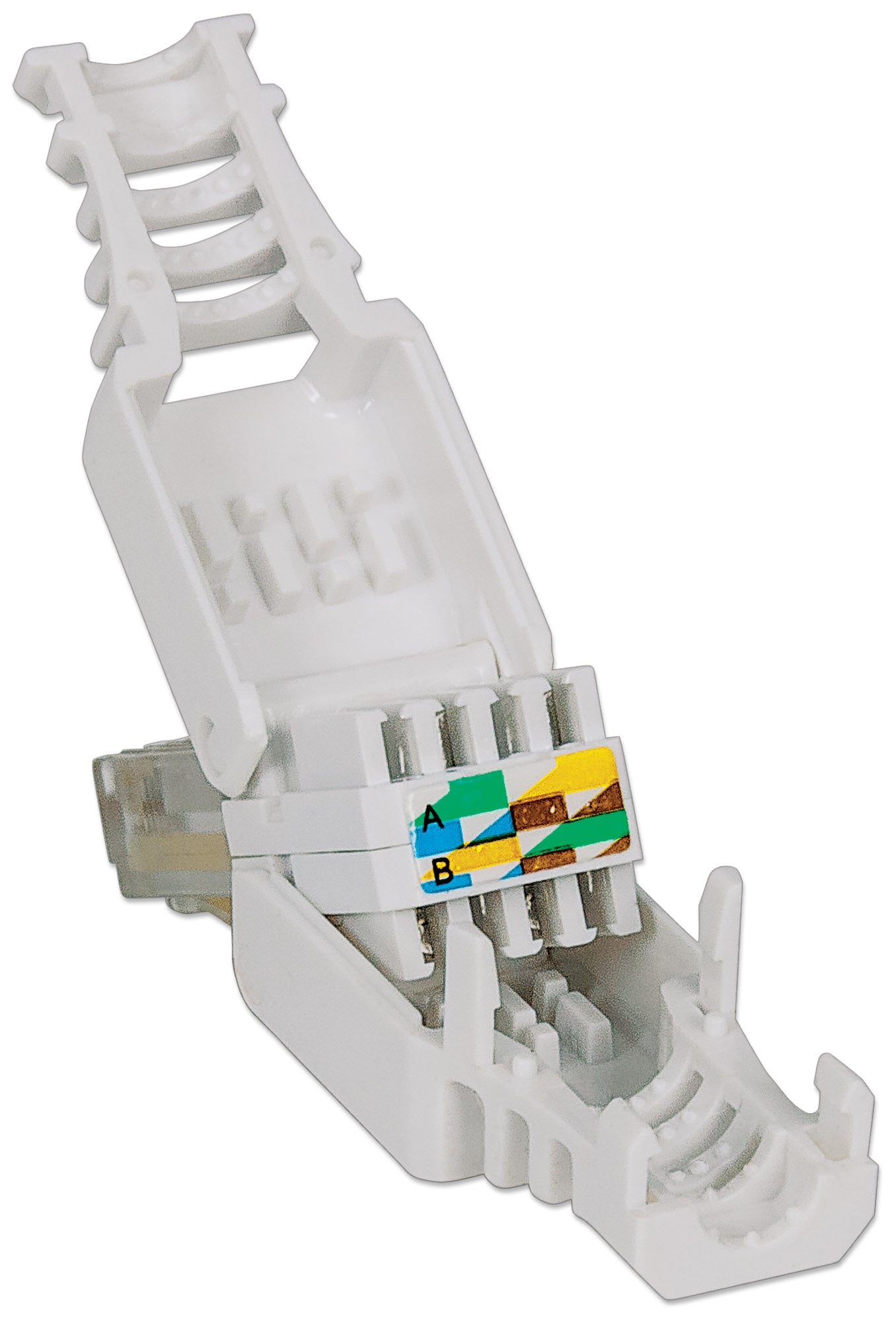

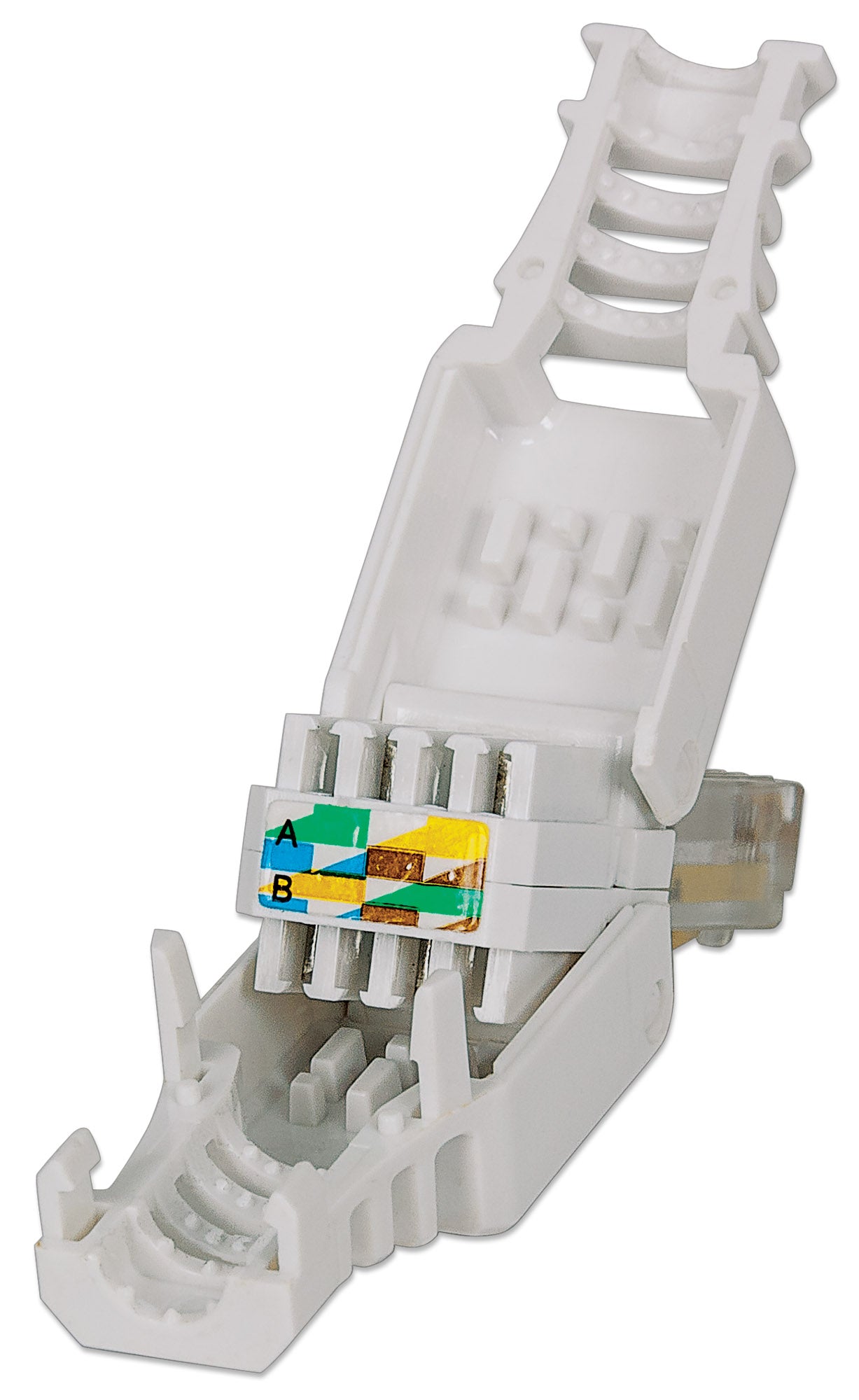

With this Toolless RJ45 Plug from Intellinet Network Solutions, there is no need for a crimping tool. Simply strip about 15 mm off the cable, select either T568A or B wiring style, place the wires in the corresponding color-coded slot and close the boot onto the cable. When the boot is closed over the IDC connectors, it pushes the wires into place and makes the connection.

RJ45 plug
Toolless connector
TIA/EIA-568-B.2, ISO/IEC11801 and EN50173-1
Compatible with 22-26 AWG solid and stranded UTP cables
Fast and easy installation
Lifetime Warranty

For Cat5/5e/6 installations
Connector accepts 22-26 AWG solid and stranded UTP cables
Meets TIA/EIA-568-B.2, ISO/IEC11801 and EN50173-1 specifications
Complies with Cat5e patch cord testing performance requirements
Supports T568 A&B wiring
