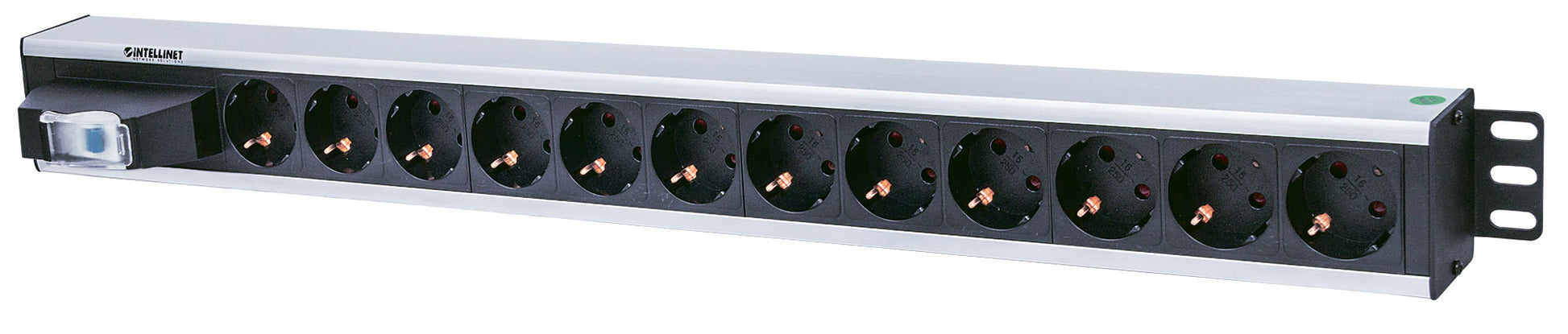

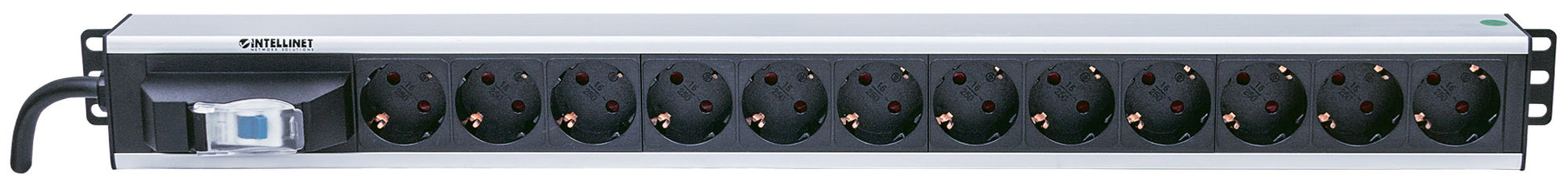

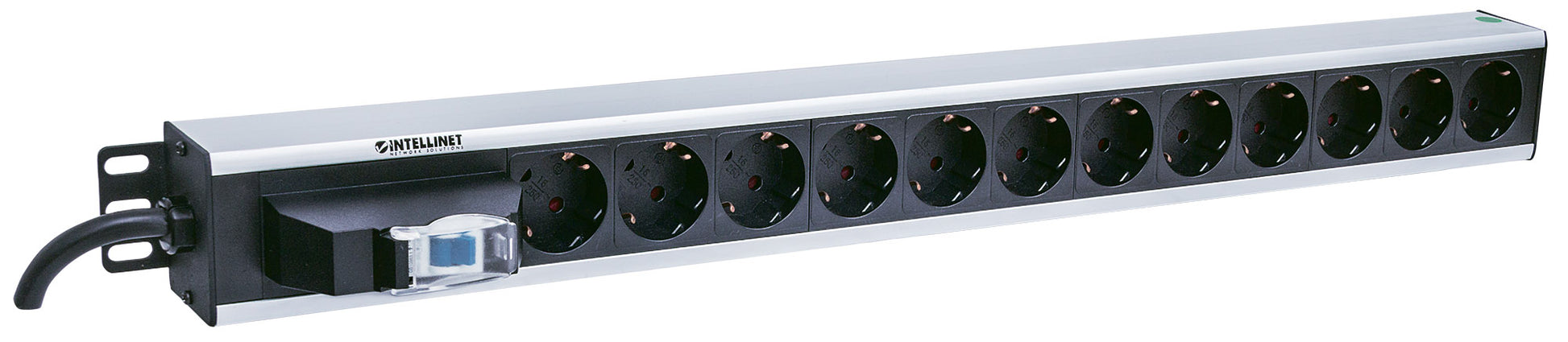

Vertical Rackmount 12-Output Power Distribution Unit (PDU)

With Single Air Switch, No Surge Protection

SKU: 711449

Highlights

  • Outlets: 12
  • Power input style: left-end single input
  • Cable plug: IEC60884

Manufacturer

Intellinet Network Solutions


Intellinet Network Solutions basic rack PDUs (Power Distribution Units) provide reliable power distribution via a single input with multiple output receptacles. Our current range is designed to distribute power from low amperage single phase electrical circuits.

  • Outlets: 12
  • Power input style: left-end single input
  • Cable plug: IEC60884

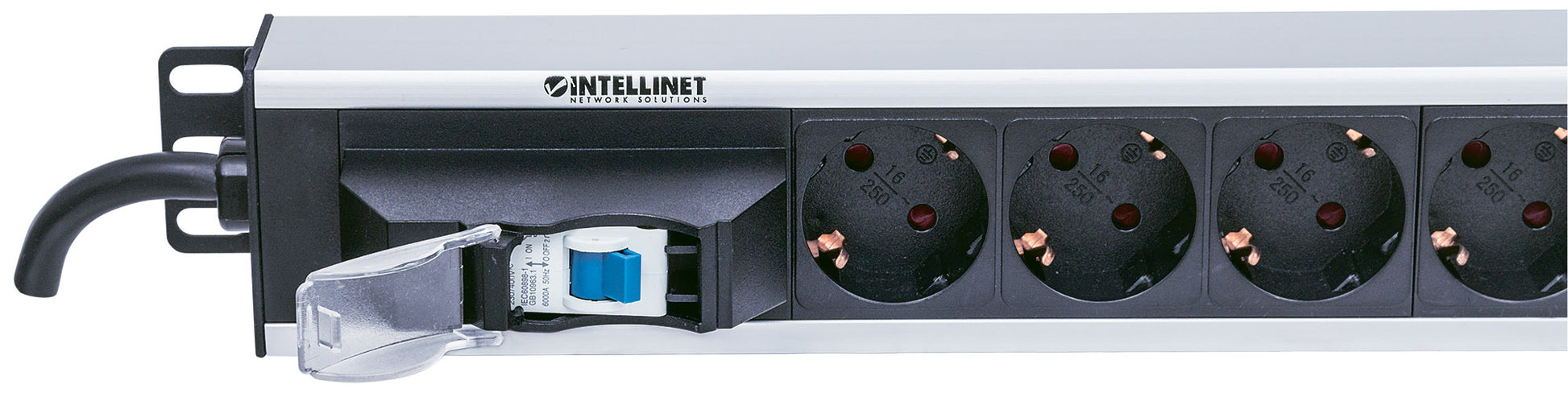

  • Control & Protection functions: single air switch
  • Relative humidity: 10 - 90%
  • Three-year warranty

  • Socket/outlet standard: IEC60884
  • Outlets: 12
  • Cable specification: standard 1.6 m (5 ft.) power cord
  • Size: 640 (L) x 44.4 (W) x 63 (H) [mm] / 25.2 (L) x 1.75 (W) x 2.48 (H) [in]
  • Rated Voltage: 250 V AC
  • Rated Current: 16 A

  • Other Part Numbers

    • Amazon ASIN: B006VYWHZK
    • EAN: 0766623711449
    • UPC: 766623711449

  • Datasheet

    • Datasheet     » Download

    • PDU Datasheet
      Tech drawing of PDU     » Download

    • PDU Flyer
      PDU Range Flyer     » Download
