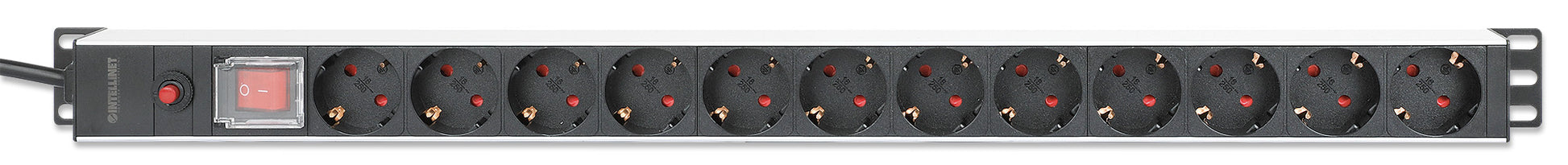

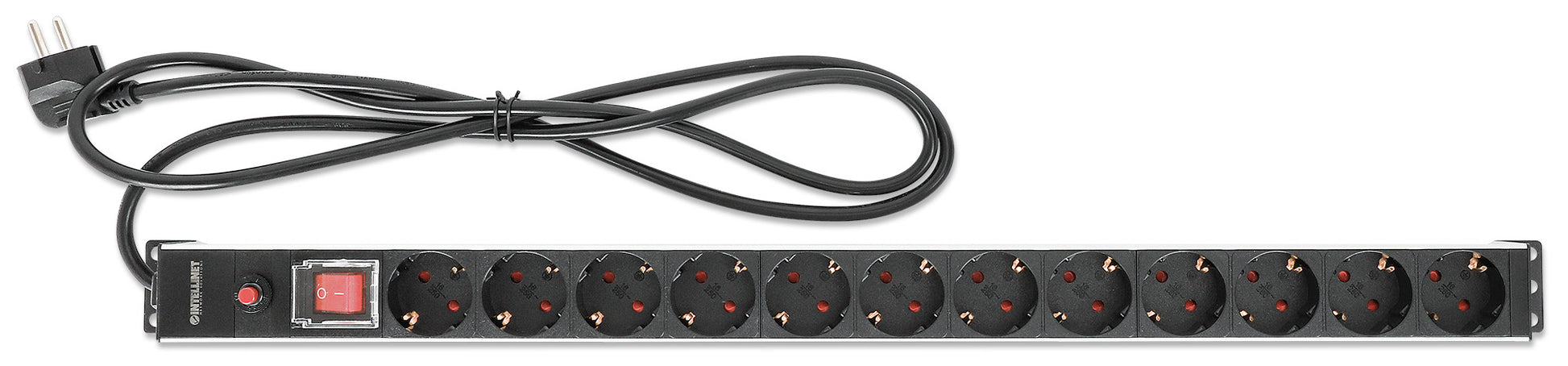

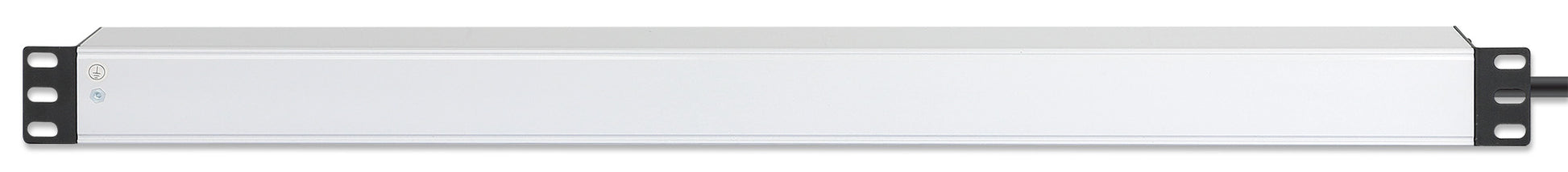

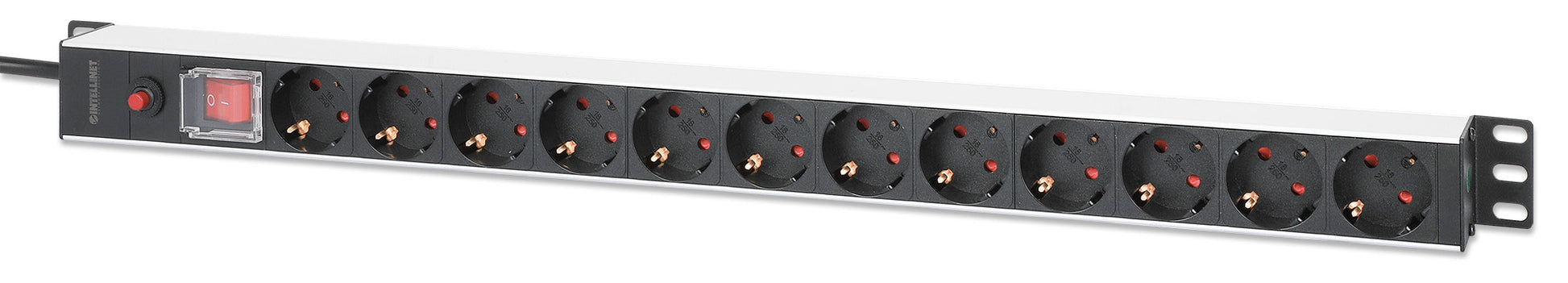

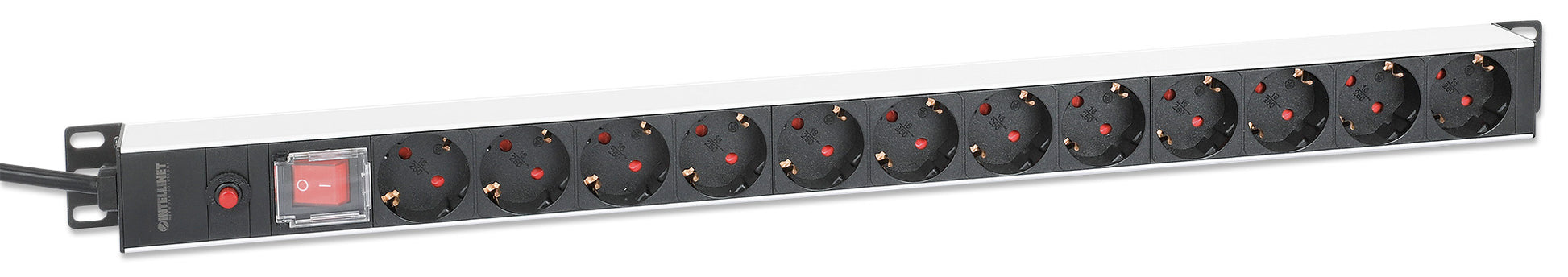

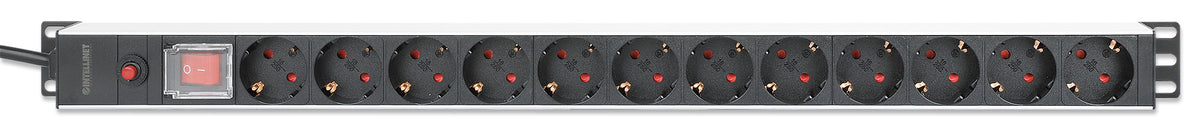

Vertical Rackmount 12-Output Power Distribution Unit (PDU) Image 1
Vertical Rackmount 12-Output Power Distribution Unit (PDU) Image 2
Vertical Rackmount 12-Output Power Distribution Unit (PDU) Image 3
Vertical Rackmount 12-Output Power Distribution Unit (PDU) Image 4

Vertical Rackmount 12-Output Power Distribution Unit (PDU)

With On/Off Switch and Overload Protection, 1.8 m (5 ft.) Power Cord

SKU: 714044

Highlights

  • Power input style: left-end single input
  • Cable plug: IEC60884
  • Protection functions: Overload Protection

Manufacturer

Intellinet Network Solutions


Intellinet Network Solutions basic rack PDUs (Power Distribution Units) provide reliable power distribution via a single input with multiple output receptacles. Our current range is designed to distribute power from low amperage single phase electrical circuits.

  • Power input style: left-end single input
  • Cable plug: IEC60884
  • Protection functions: Overload Protection
  • Shell color & material: black aluminum
  • Three-year warranty

  • Socket/outlet standard: IEC60884
  • Outlets: 12
  • Cable specification: standard 1.8 m (5 ft.) power cord
  • Size: 675 (L) x 44.4 (W) x 63 (H) [mm] / 26.57 (L) x 1.75 (W) x 2.48 (H) [in]
  • Electrical rating: 250V AC
  • Maximum load current: 16 A

  • Other Part Numbers

    • Amazon ASIN: B01GUXUG3G
    • EAN: 0766623714044
    • UPC: 766623714044

  • Datasheet

    • PDU Datasheet
      Tech drawing of PDU     » Download

    • Datasheet     » Download

    • PDU Flyer
      PDU Range Flyer     » Download
