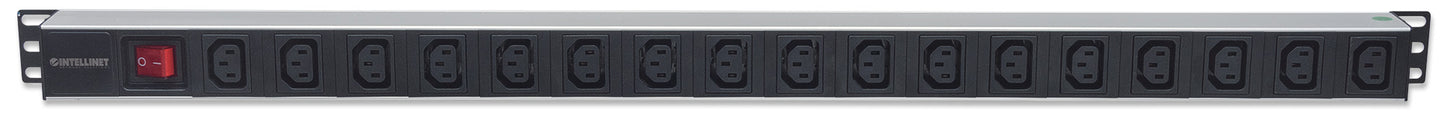

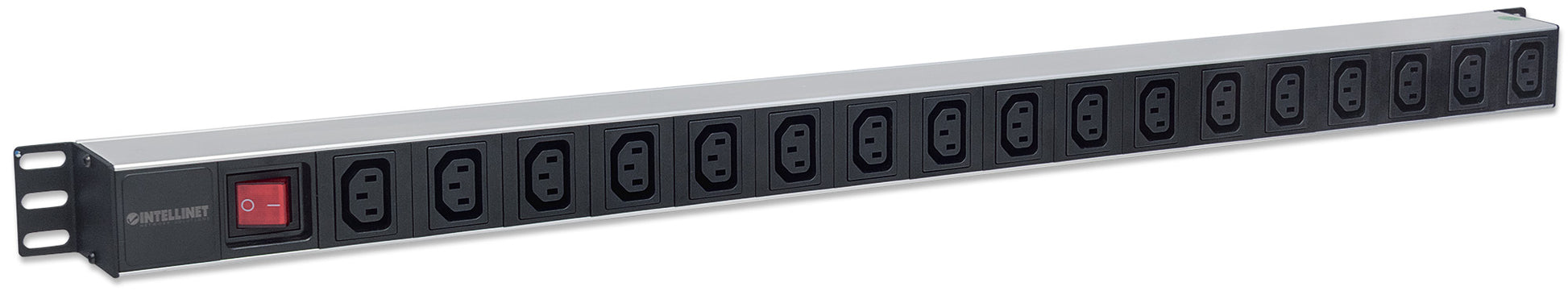

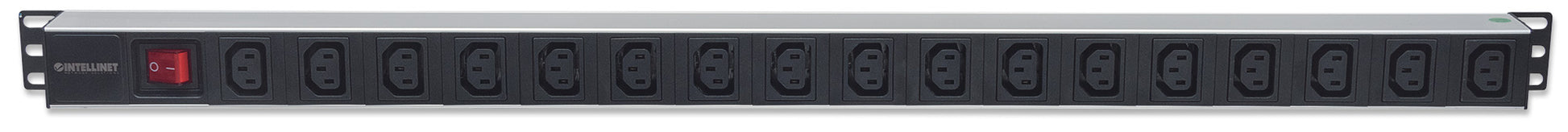

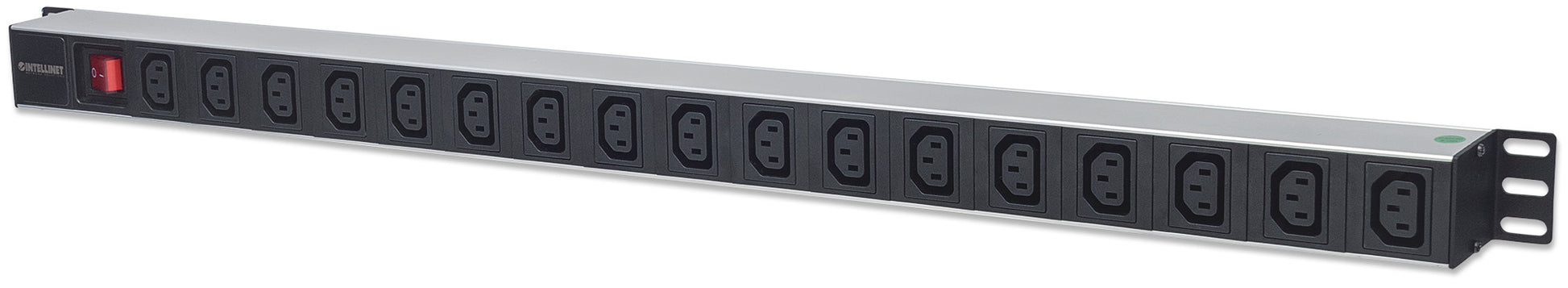

Vertical Rackmount 17-Output C13 Power Distribution Unit (PDU)

With Power Switch, Removable Power Cable and Rear C14 Input

SKU: 163637

Highlights

  • Socket outlet standard IEC320 C13
  • Socket input standard IEC320 C14

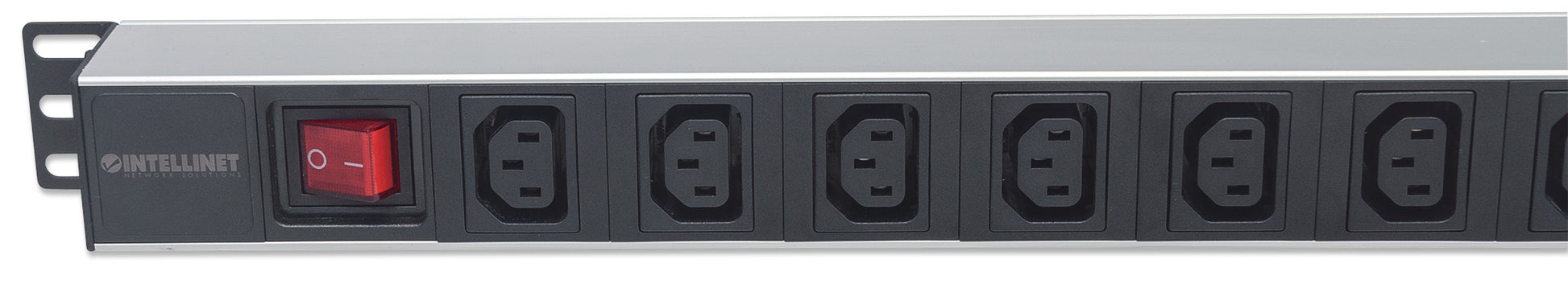

  • Control & protection functions: Power switch

Manufacturer

Intellinet Network Solutions

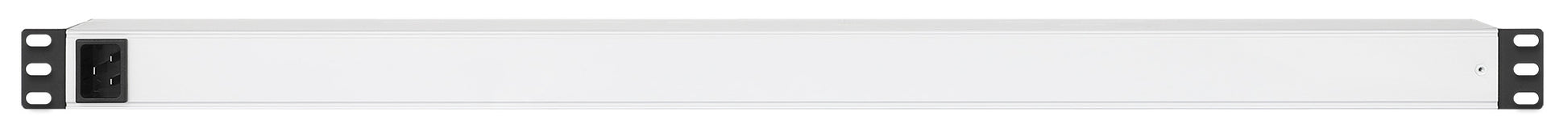

Our new 19" rackmountable PDU range puts Intellinet Network Solutions innovation and practicality on display. This comprehensive line offers a wide selection of tools to protect your valuable I.T. equipment. An integrated, removable cable plugs conveniently into the rear C14 input of the unit.

  • Socket outlet standard IEC320 C13
  • Socket input standard IEC320 C14
  • Control & protection functions: Power switch
  • Cable specification: standard 2 m (6.6 ft.) removable power cord
  • Three-Year Warranty

    General

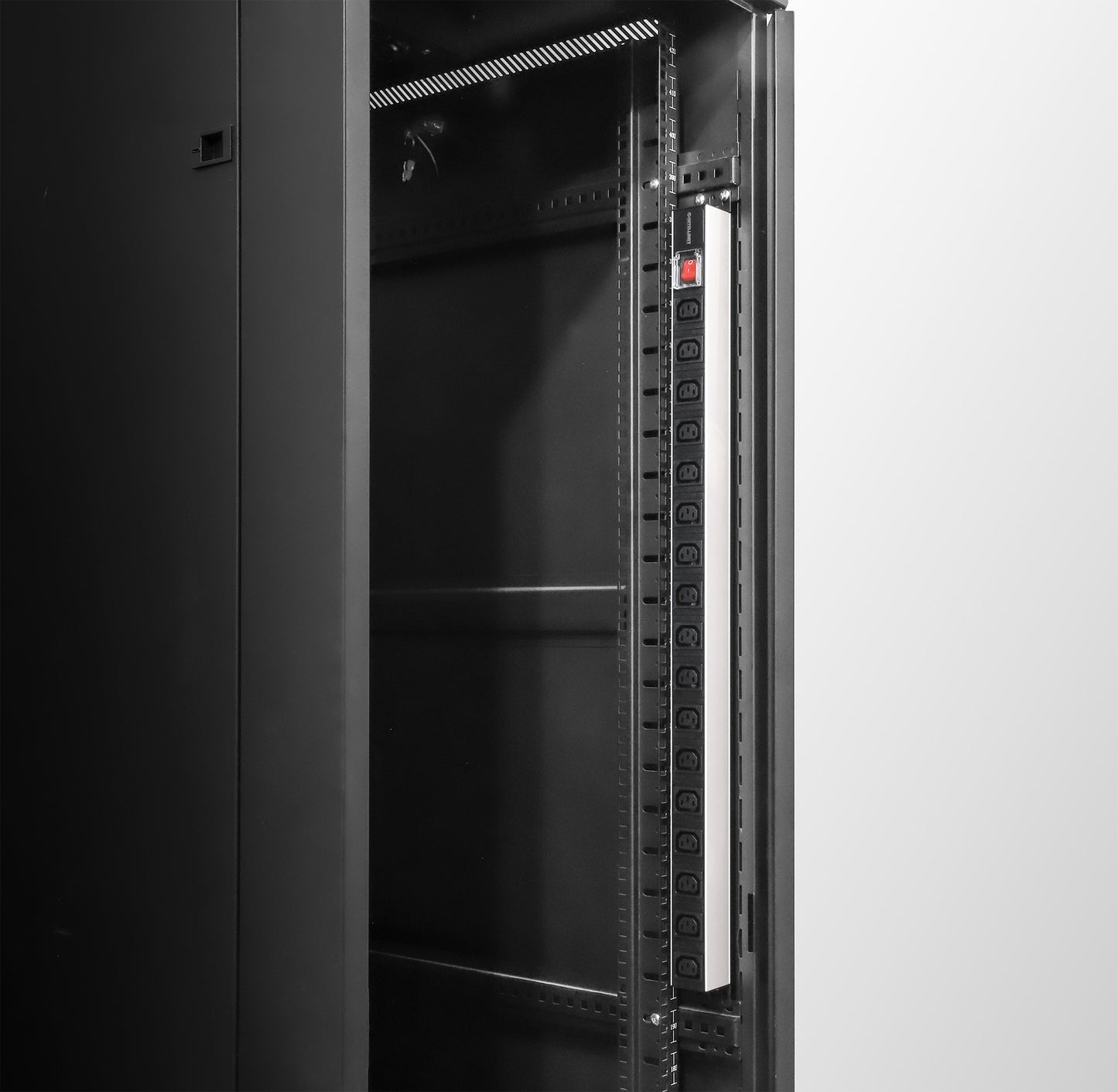

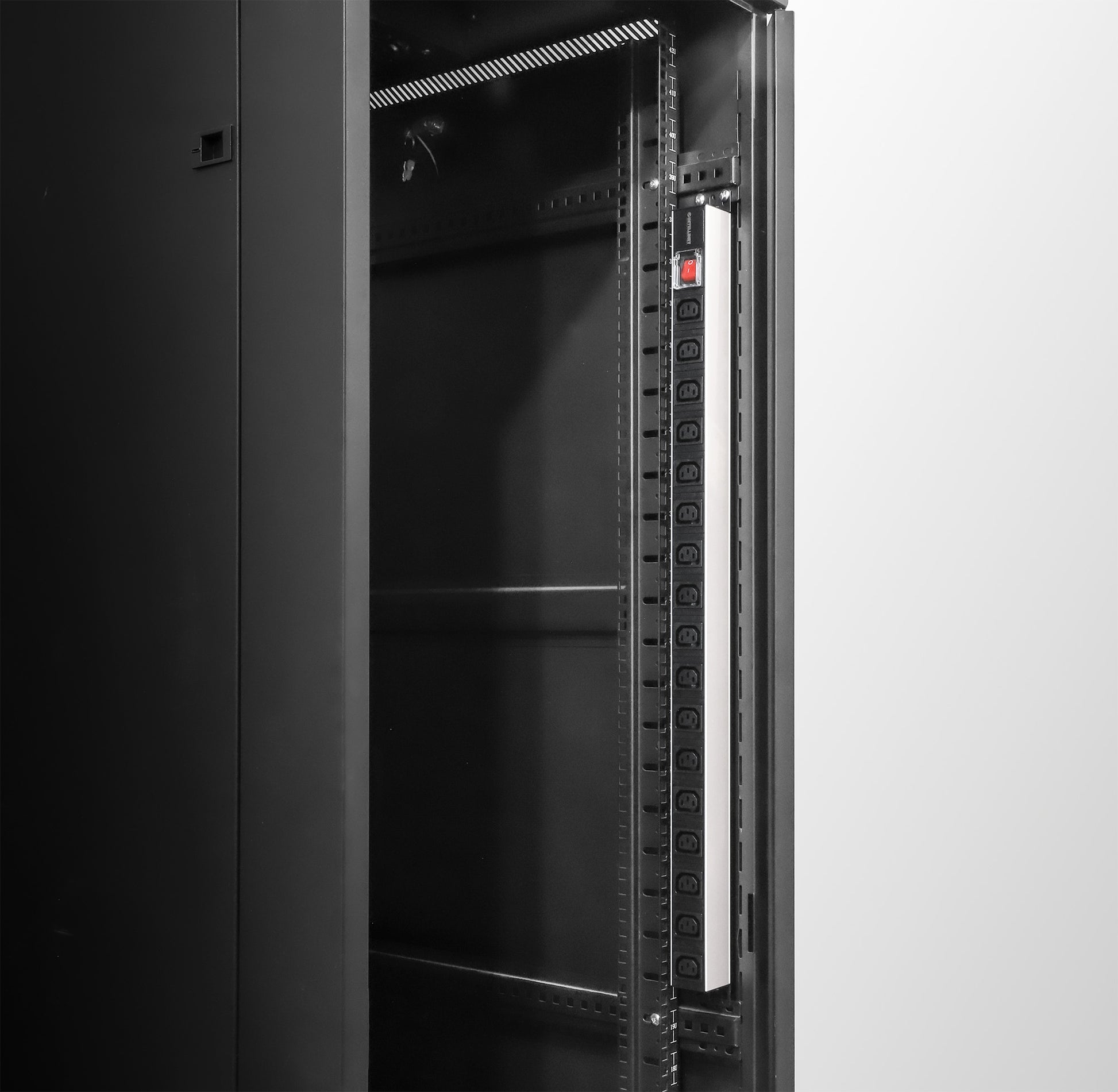

  • Vertical rackmount (recommended for cabinets 32U and above)

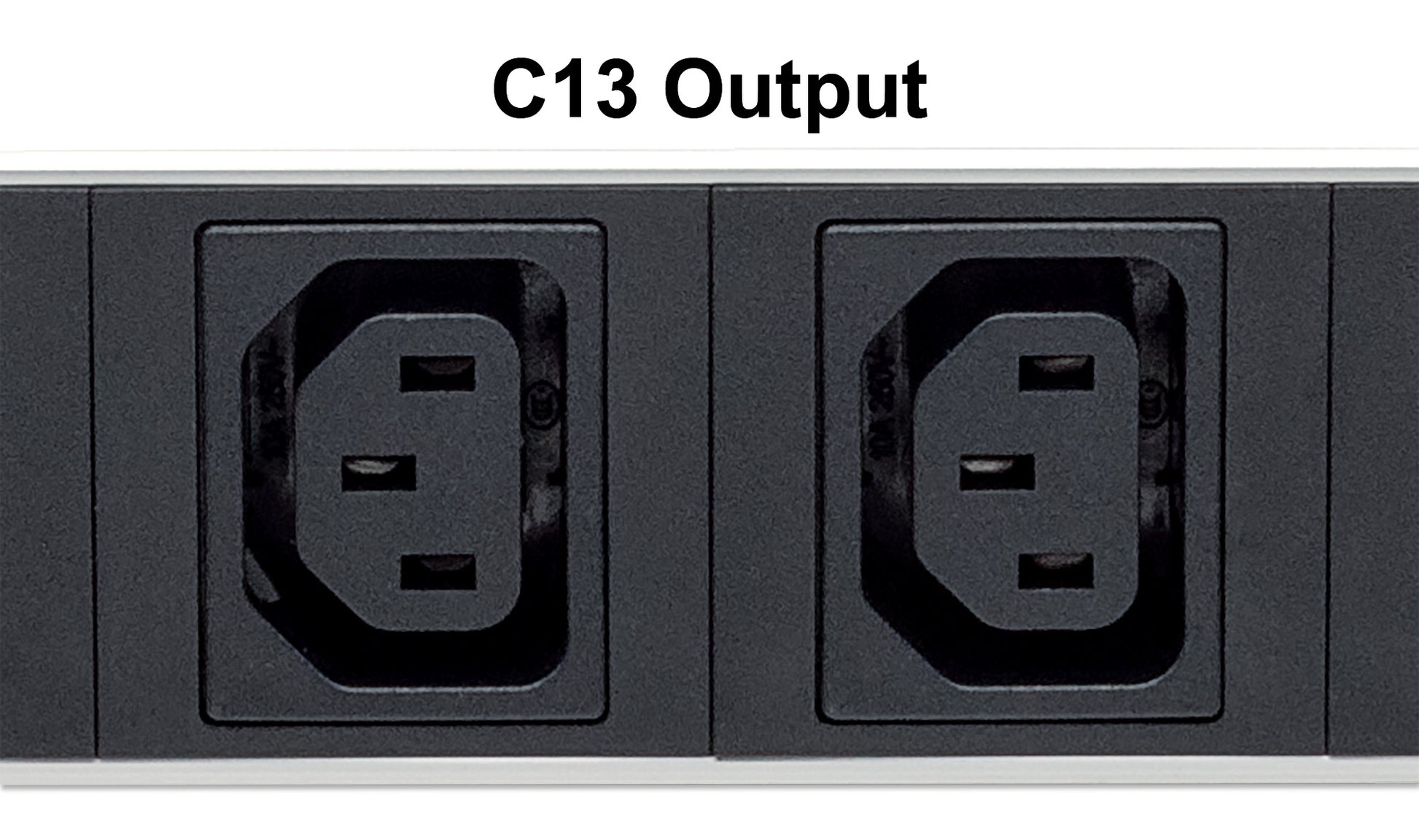

  • Socket/outlet standard: IEC320 C13
  • Outlets: 17
  • Cable specification: standard 2 m (6.6 ft.) removable power cord
  • Size: 848 (L) x 45 (W) x 45 (H) [mm] 33.39 (L) x 1.77 (W) x 1.77 (H) [in]
  • Electrical rating: 110 - 250V AC
  • Maximum load current: 16 A (IEC EU 10 A, North America 15 A)

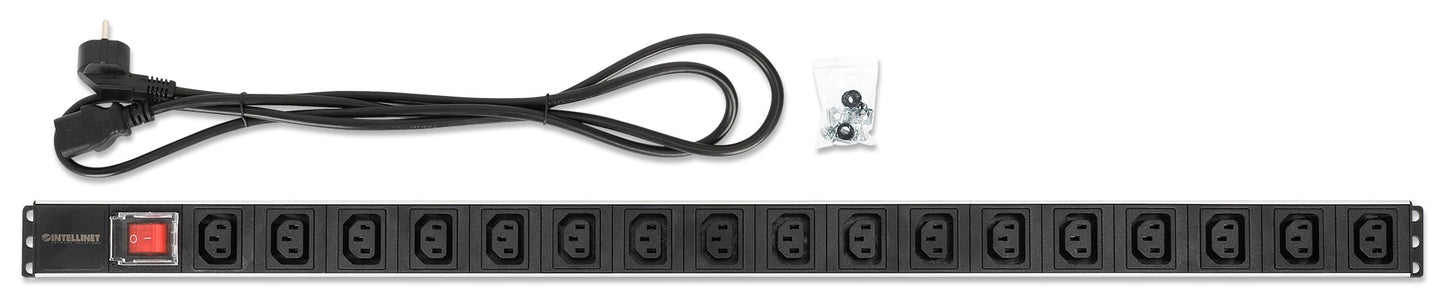

  • Package Contents
  • Vertical Rackmount 17-Output C13 Power Distribution Unit (PDU)
  • 2 m (6.6 ft.) power cord
  • Two M6*12 screws
  • Two M6 nuts
  • Two plastic washers

California Proposition 65 WarningWarning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


  • Other Part Numbers

    • Amazon ASIN: B072C3VP7C
    • EAN: 0766623163637
    • UPC: 766623163637

  • Datasheet


  • Manual

    • Quick Instruction Guide     » Download
