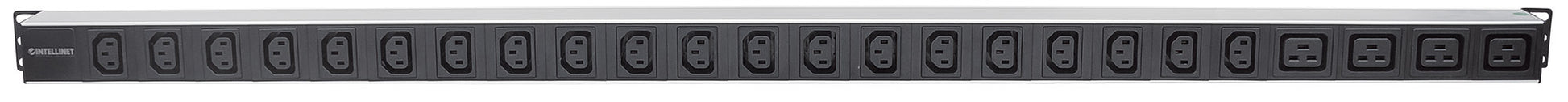

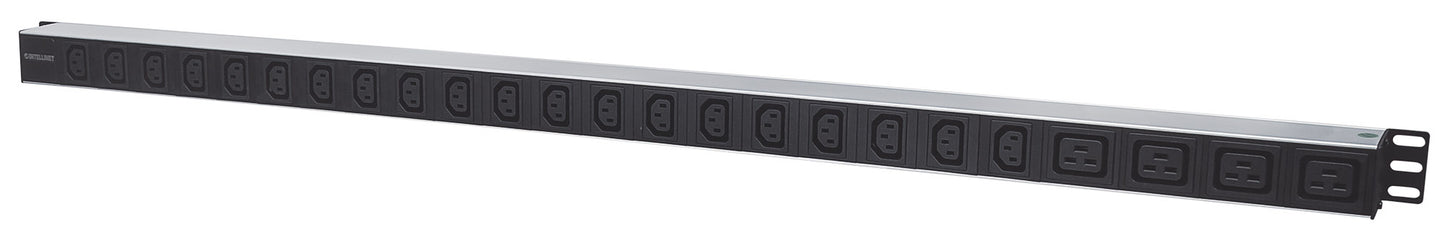

Vertical Rackmount 24-Output Power Distribution Unit (PDU)

20 x C13 & 4 x Output C19, Removable Power Cable, Rear C20 Input

SKU: 163675

Highlights

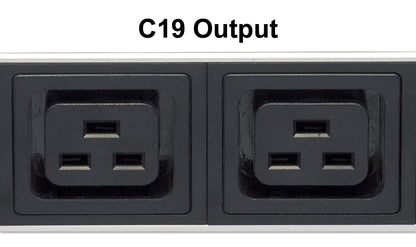

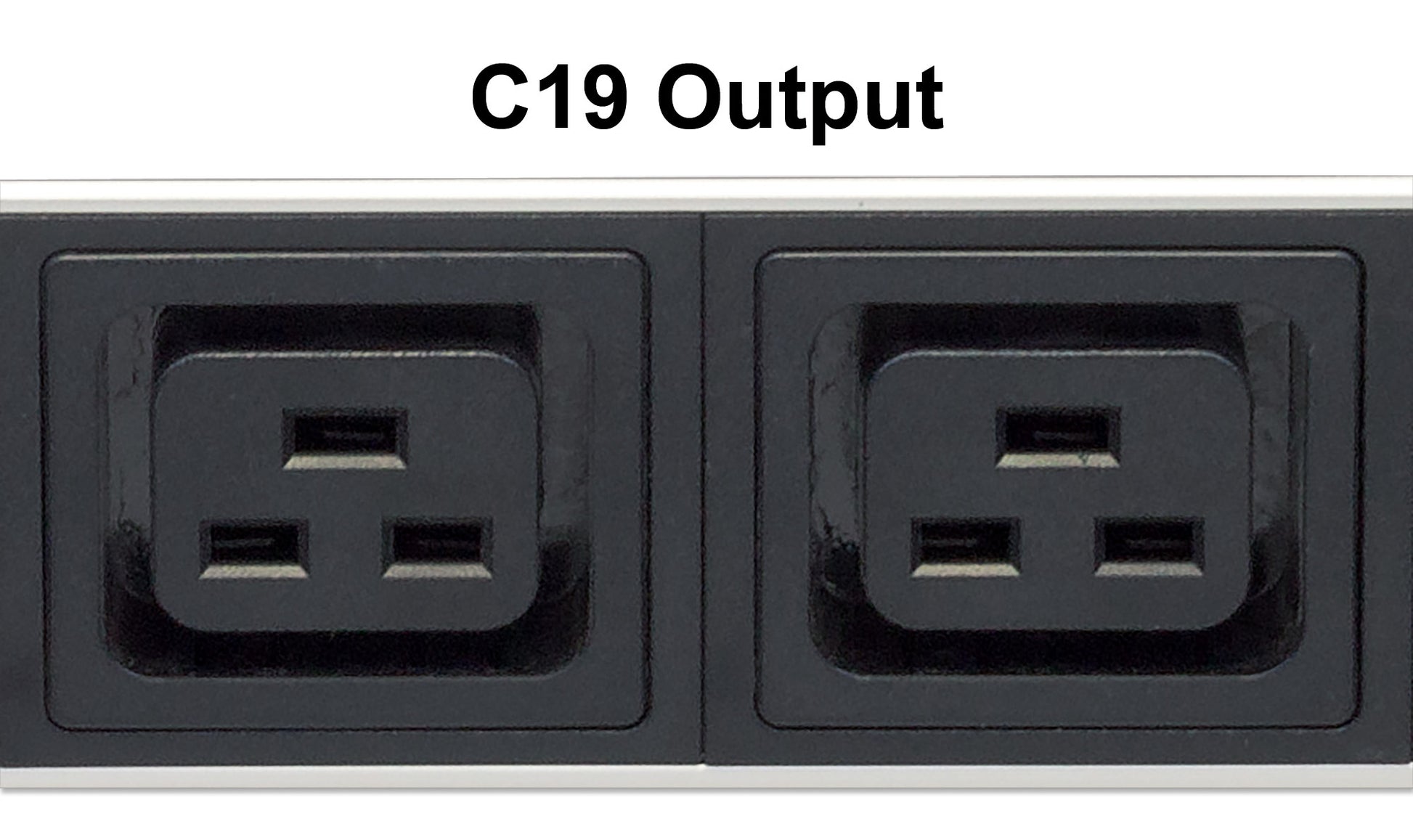

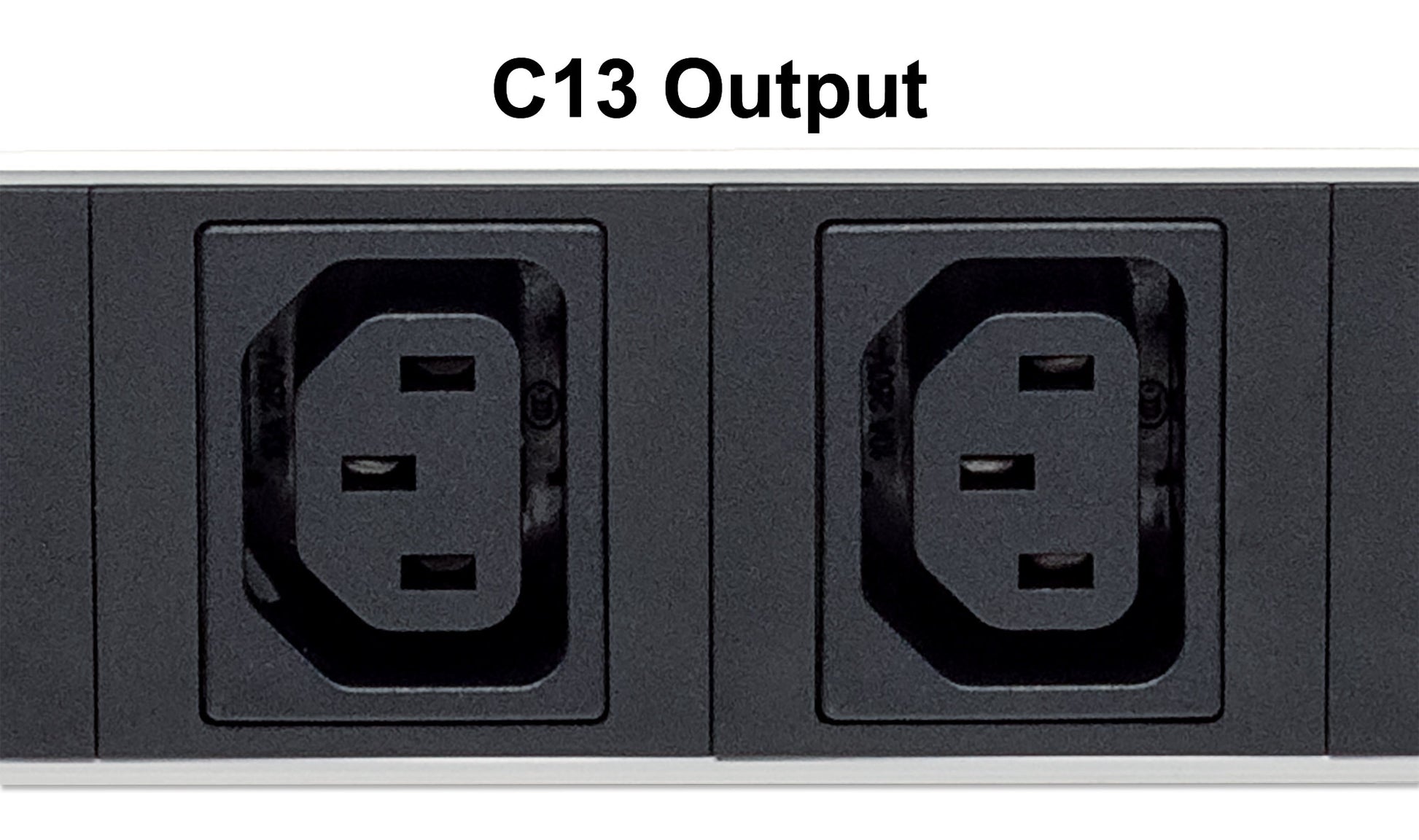

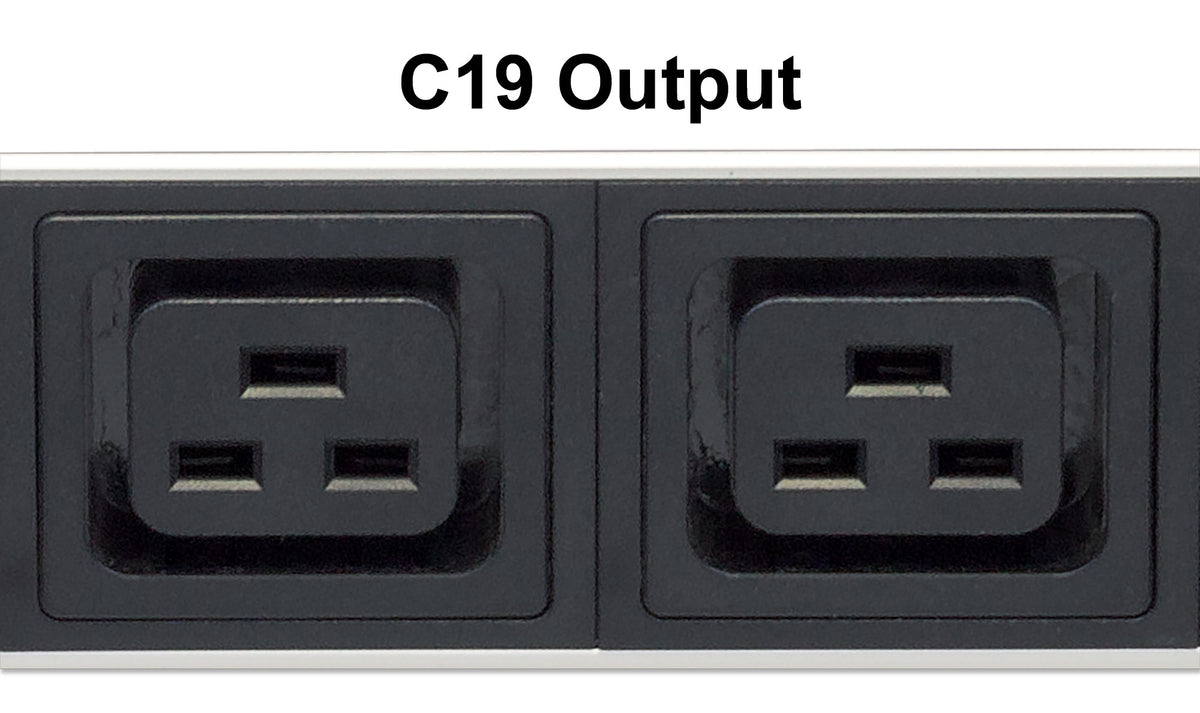

  • Socket outlet Standard IEC320 C13 (x 20) & IEC320 C19 (x 4)

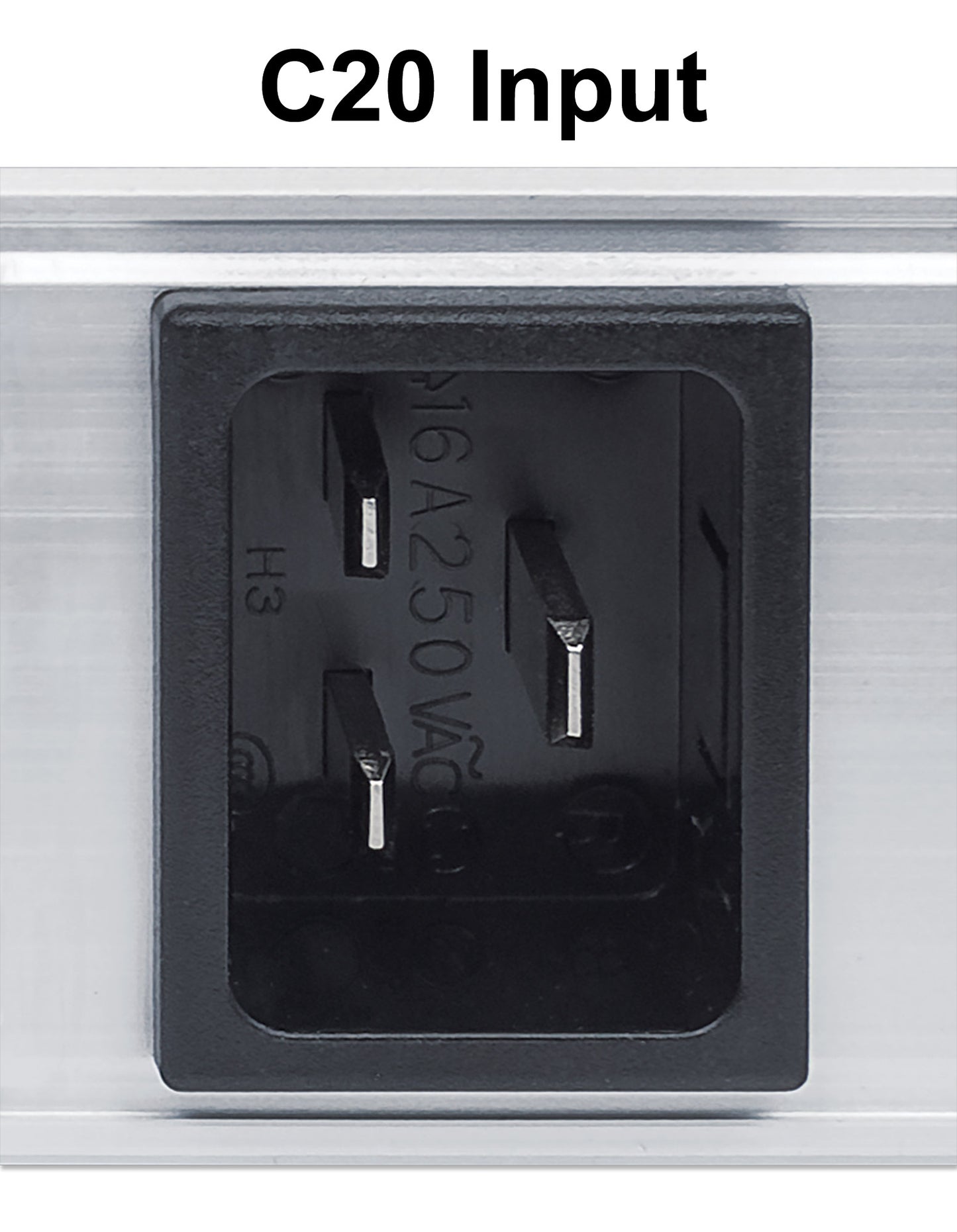

  • Socket input Standard IEC320 C20
  • Cable specification: standard 2 m (6.6 ft.) removable power cord

Manufacturer

Intellinet Network Solutions

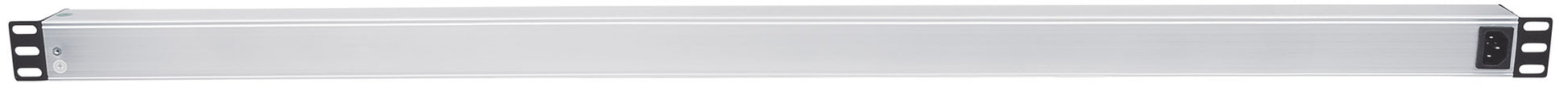

Our new, 19" rackmountable PDU range displays Intellinet Network Solutions innovation and practicality. This comprehensive line offers a wide selection of tools to protect your valuable I.T. equipment. An integrated, removable cable plugs conveniently into the rear C20 input of the unit.

  • Socket outlet Standard IEC320 C13 (x 20) & IEC320 C19 (x 4)
  • Socket input Standard IEC320 C20
  • Cable specification: standard 2 m (6.6 ft.) removable power cord
  • Three-Year Warranty

    General
  • Vertical Rackmount (recommended for cabinets 32U and above)
  • Socket/outlet standard: IEC320 C13 (x 20) & IEC320 C19 (x 4)
  • Outlets: 24
  • Cable specification: standard 2 m (6.6 ft.) removable power cord
  • Size: 1133.6 (L) x 45 (W) x 45 (H) [mm] / 44.63 (L) x 1.77 (W) x 1.77 (H) [in]
  • Electrical rating: 110 - 250V AC
  • Maximum load current: 16 A (IEC 60320 16 A, North America 15 A)
  • Package Contents
  • Vertical Rackmount 24-Output Power Distribution Unit (PDU)
  • 2 m (6.6 ft.) power cord

California Proposition 65 WarningWarning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


  • Other Part Numbers

    • Amazon ASIN: B076HWF2XM
    • EAN: 0766623163675
    • UPC: 766623163675

  • Datasheet

    • Datasheet     » Download

    • Declaration of Conformity     » Download


  • Manual

    • Quick Instruction Guide     » Download
