Manhattan

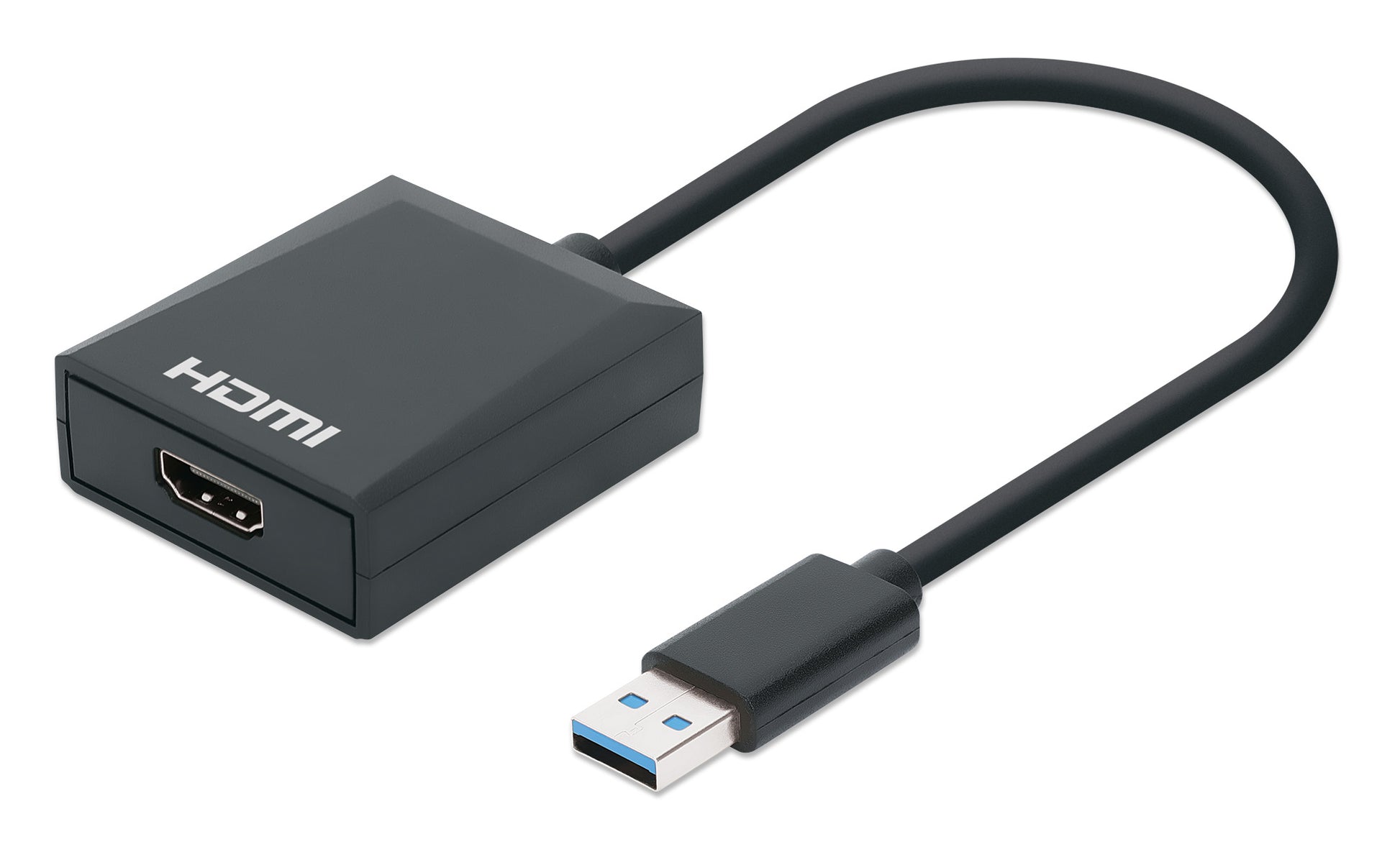

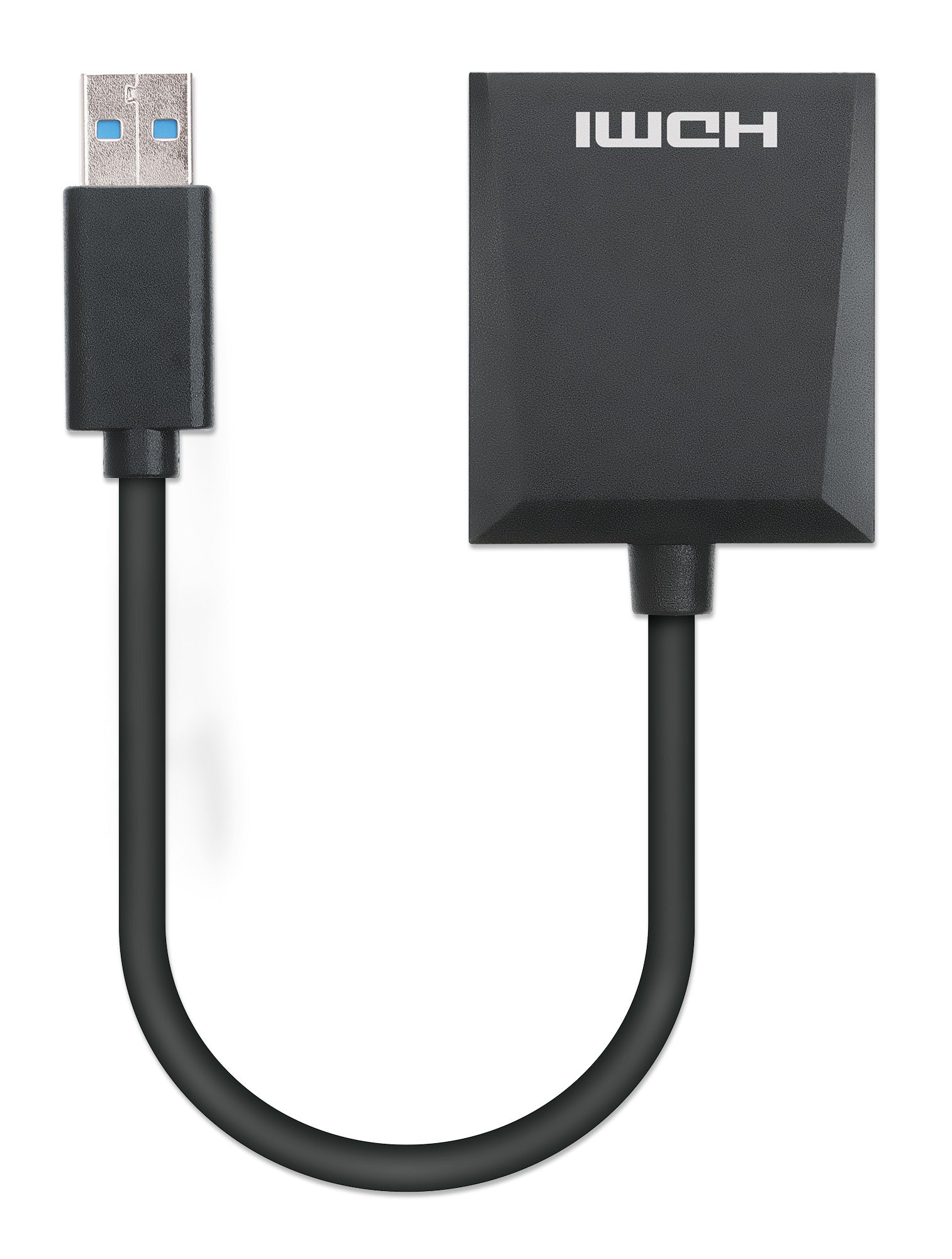

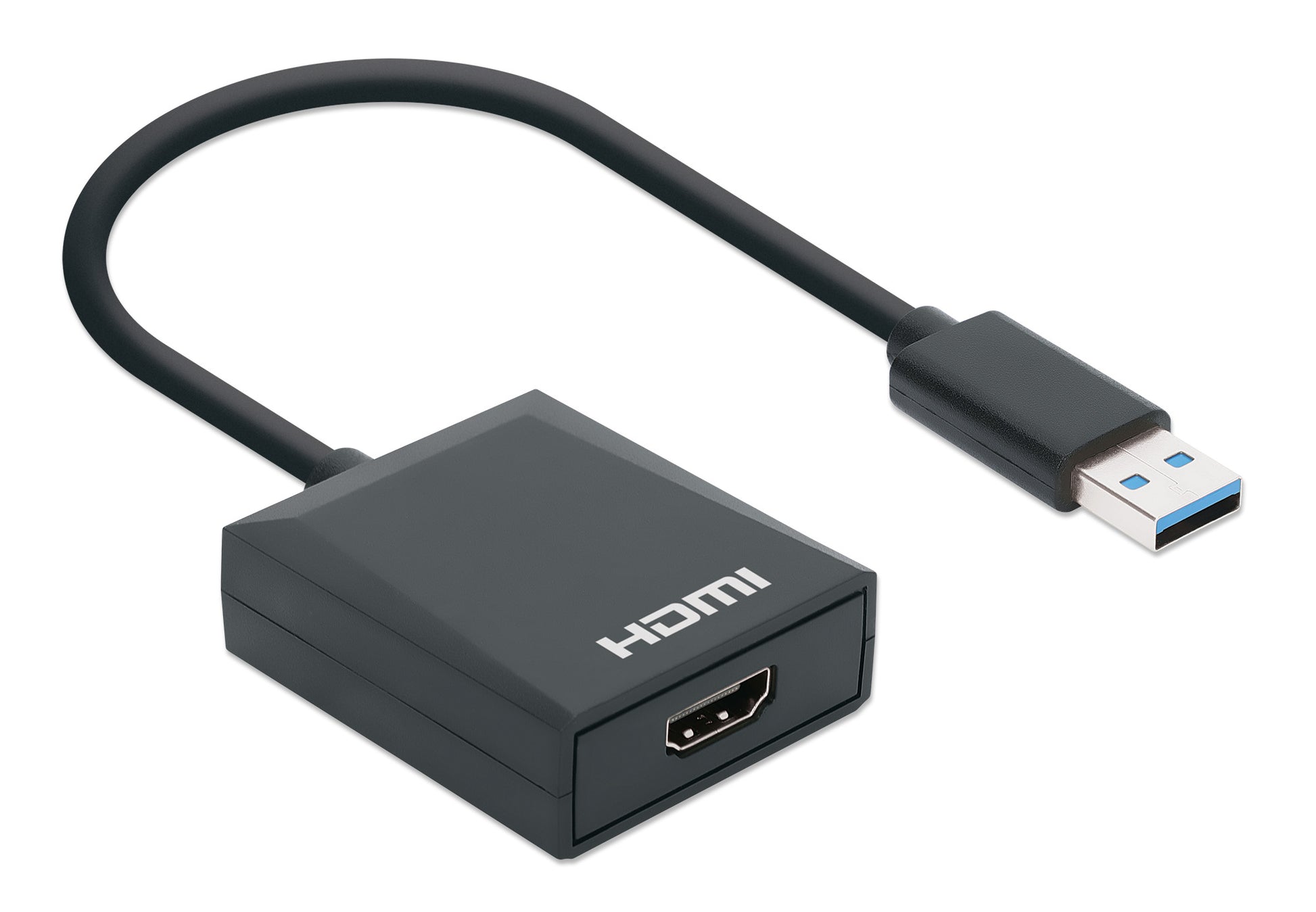

1080p USB-A to HDMI Adapter

USB 3.0 (USB 3.2 Gen 1) Type-A Male to HDMI Female Converter, 1080p@60Hz, Black

Highlights

Easily connects a USB-A device to an HDMI display
Resolutions up to Full HD 1080p@60Hz (1980×1080)
Converts a USB 3.2 Gen 1 (formerly USB 3.0) signal into an HDMI signal with video and audio

SKU: 153690

[ view high resolution images ]

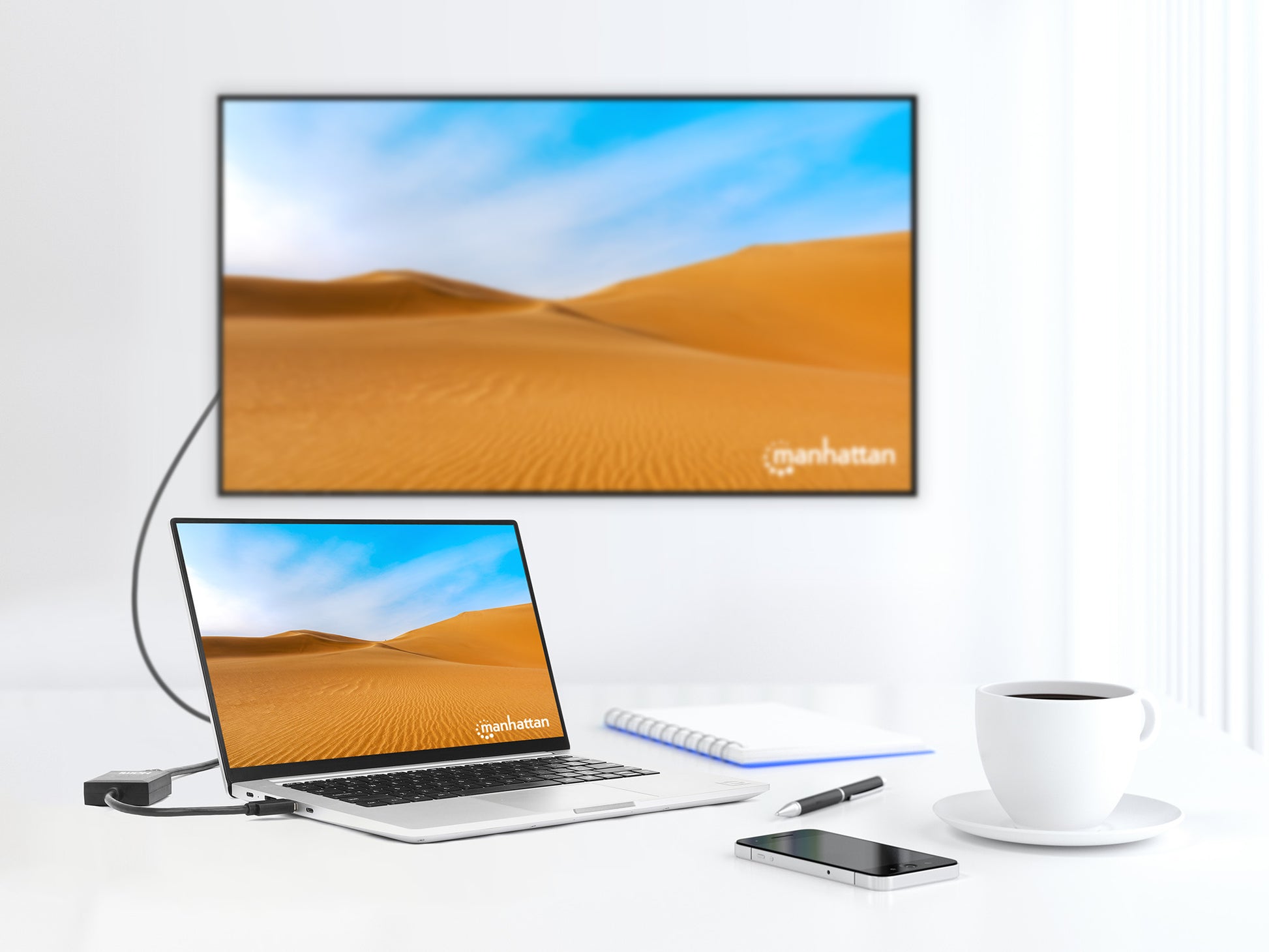

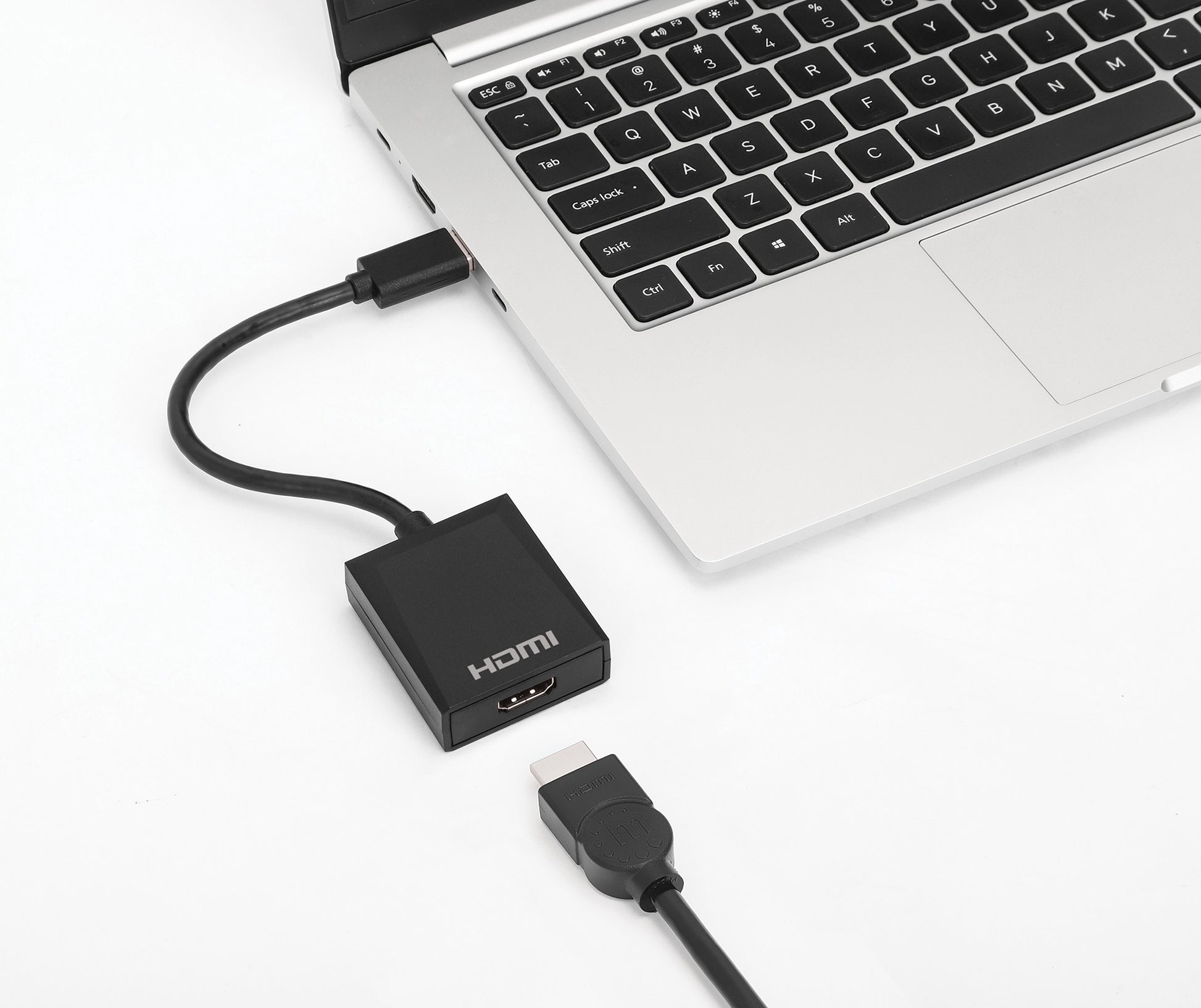

USB 3.0 to HDMI Adapter / Converter to connect your laptop, MacBook®, Ultrabook or Desktop PC to an HDMI monitor, TV or projector

The Manhattan USB-A to HDMI Adapter lets you connect your laptop or desktop computer to an HDMI monitor, TV or projector through a single USB Type-A port. Add a display in mirror mode for larger screen space, or add it in extend mode for more productivity with multitasking. It provides a cost-effective and convenient way to expand the video capabilities of your Mac® or PC. This product works like an external graphics card, so adding a second adapter lets you connect a second display.

An HDMI adapter that's made to go with you

The very compact housing makes this USB to HDMI Adapter the perfect travel companion. With a footprint of only 52 x 45 x 16 mm (2.05 x 1.77 x 0.63 in.), it's small enough to fit in an outer notebook bag pocket so you can create a mini-workstation for your laptop where ever you're going.

Easily connects a USB-A device to an HDMI display
Resolutions up to Full HD 1080p@60Hz (1980×1080)
Converts a USB 3.2 Gen 1 (formerly USB 3.0) signal into an HDMI signal with video and audio
Ideal for connecting an HDMI display to a PC or laptop that doesn't have an HDMI port or for adding a display if the HDMI port is already in use

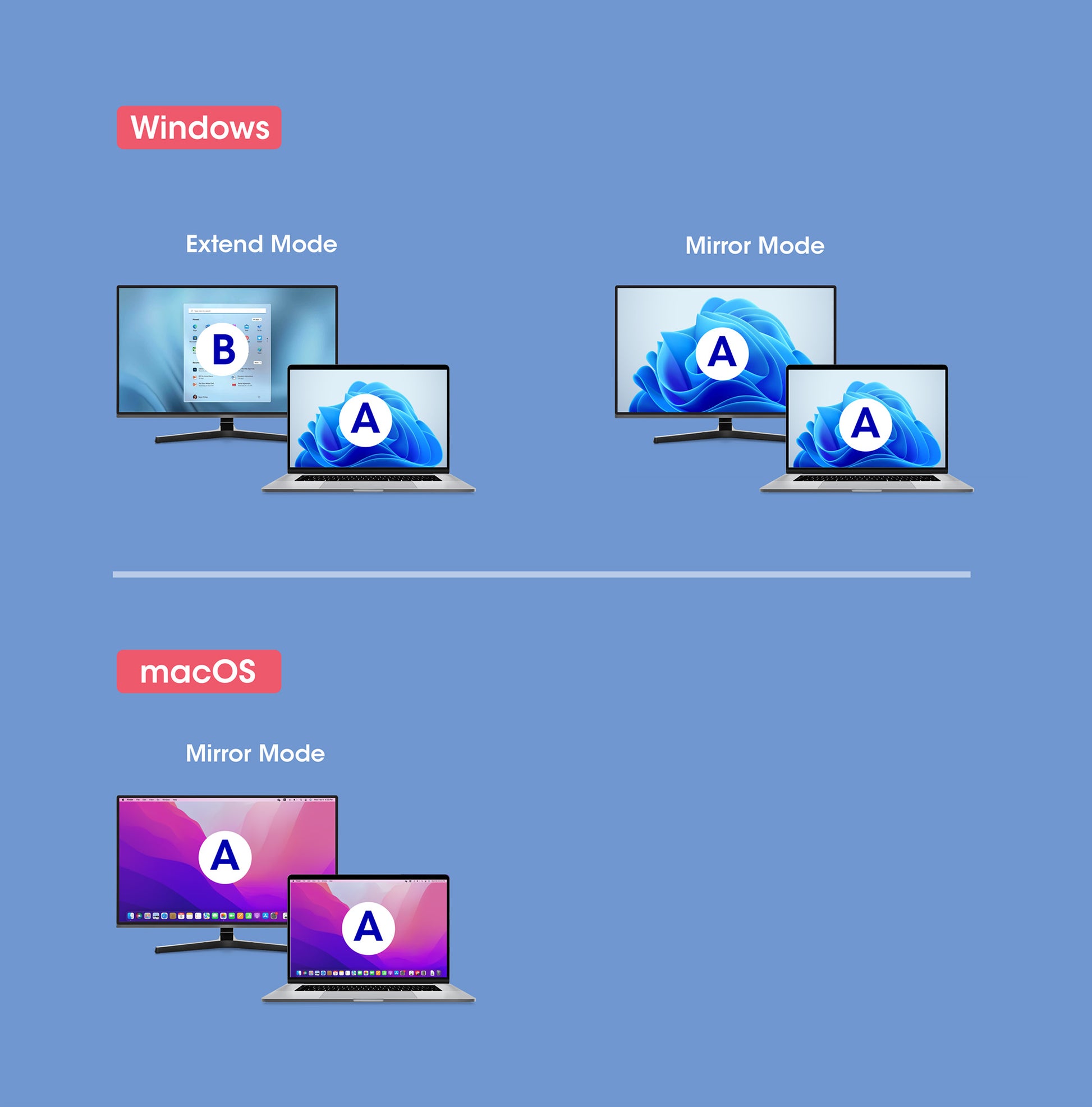

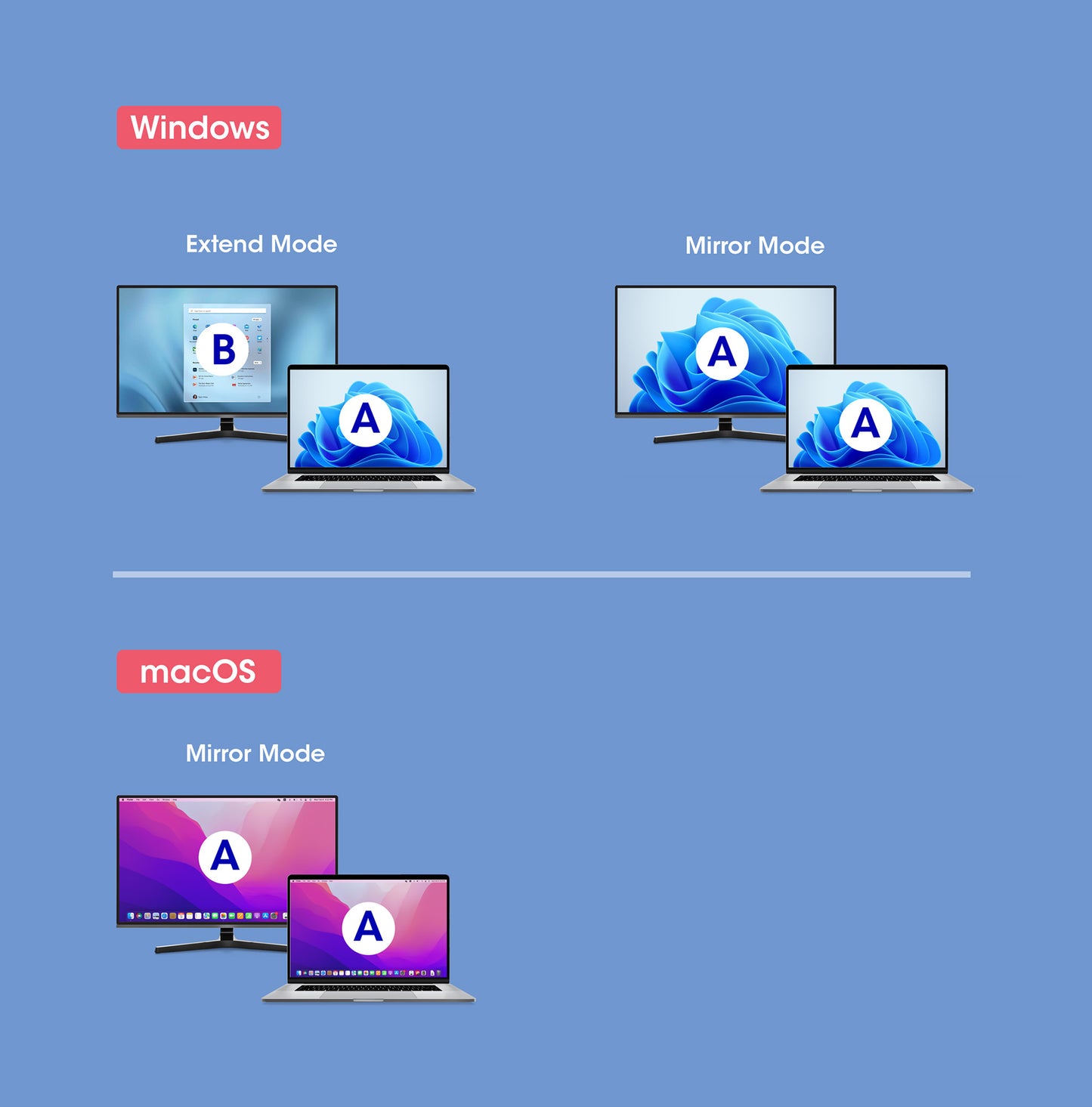

Supports display modes Extended or Mirror on Windows®, and Mirror on Mac®
Serves as an external graphics card, which allows adding up to two external displays to your system (requires one adapter per display)
Built-in, sturdy 15 cm (6 in.) cable
Bus powered: no external power supply needed
Backward compatible with USB 2.0
Portable, compact, lightweight design that easily fits into laptop bag pockets
HDCP 1.4 compliant
Plug-and-play installation; Windows®, and macOS® compatible
Three-year warranty

USB 3.2 Gen 1
HDCP 1.4
CE
FCC
RoHS
REACH
UKCA
One USB-A 9-pin, male
One HDMI 19-pin, female
Dimensions (L x W x H): 234 x 45 x 16 mm (9.21 x 1.77 x 0.63 in.)
Net weight: 36 g (1.27 oz.)
Gross weight: 64 g (2.26 oz.)
Cable length: 15 cm (6 in.)
Cable diameter: 28 AWG
Plastic housing
Operation temperature: -20 - 45°C (-4 - 113°F)
Storage temperature: -20 - 80°C (14 - 176°F)
Humidity (noncondensing): 5 - 90% RH
Windows 10 and above, macOS 10.14 and above or Android 5.1 and above
USB-A to HDMI Adapter
Instructions
#153690 - USB-A to HDMI
#151788 - USB-C to HDMI, 4K@30Hz
#153416 - USB-C to HDMI, 4K@60Hz, PD Port
