Manhattan

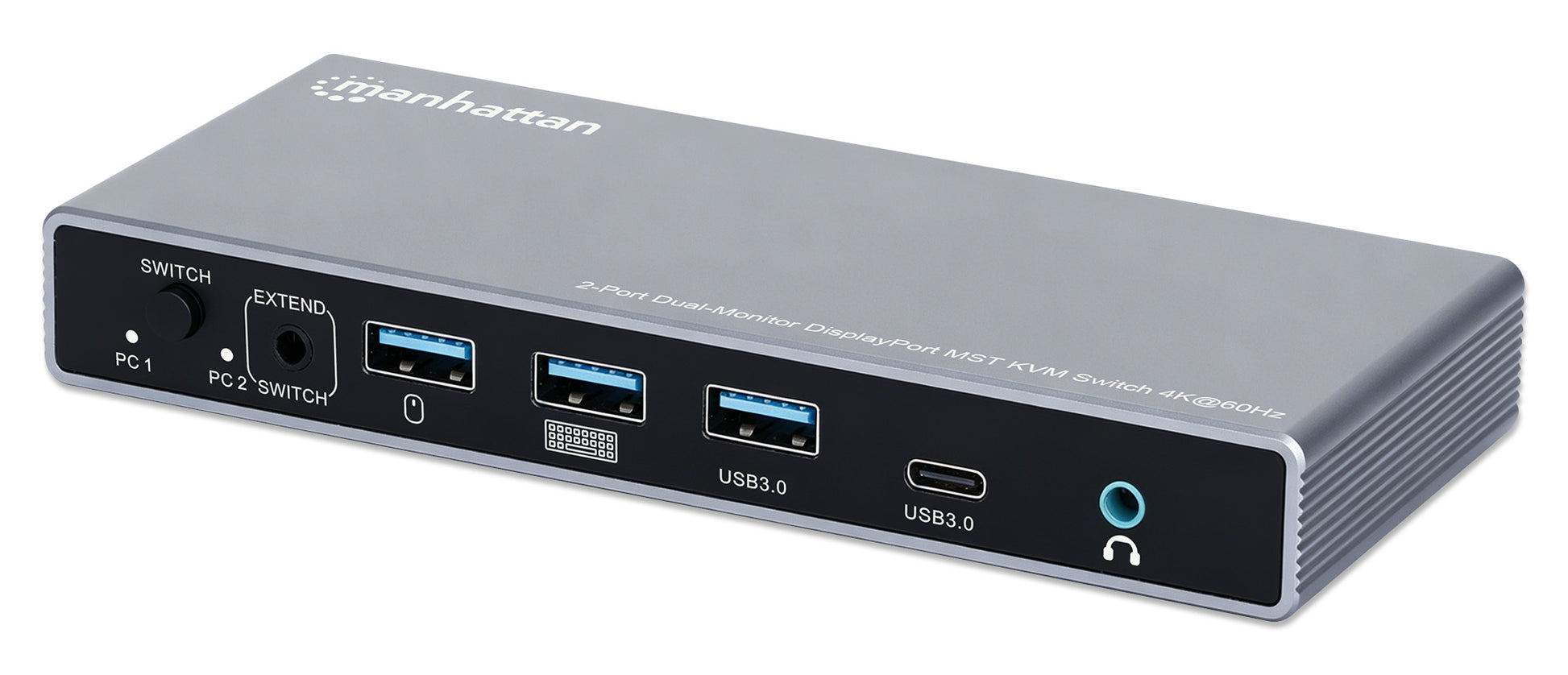

2-Port Dual-Monitor DisplayPort MST KVM Switch 4K@60Hz

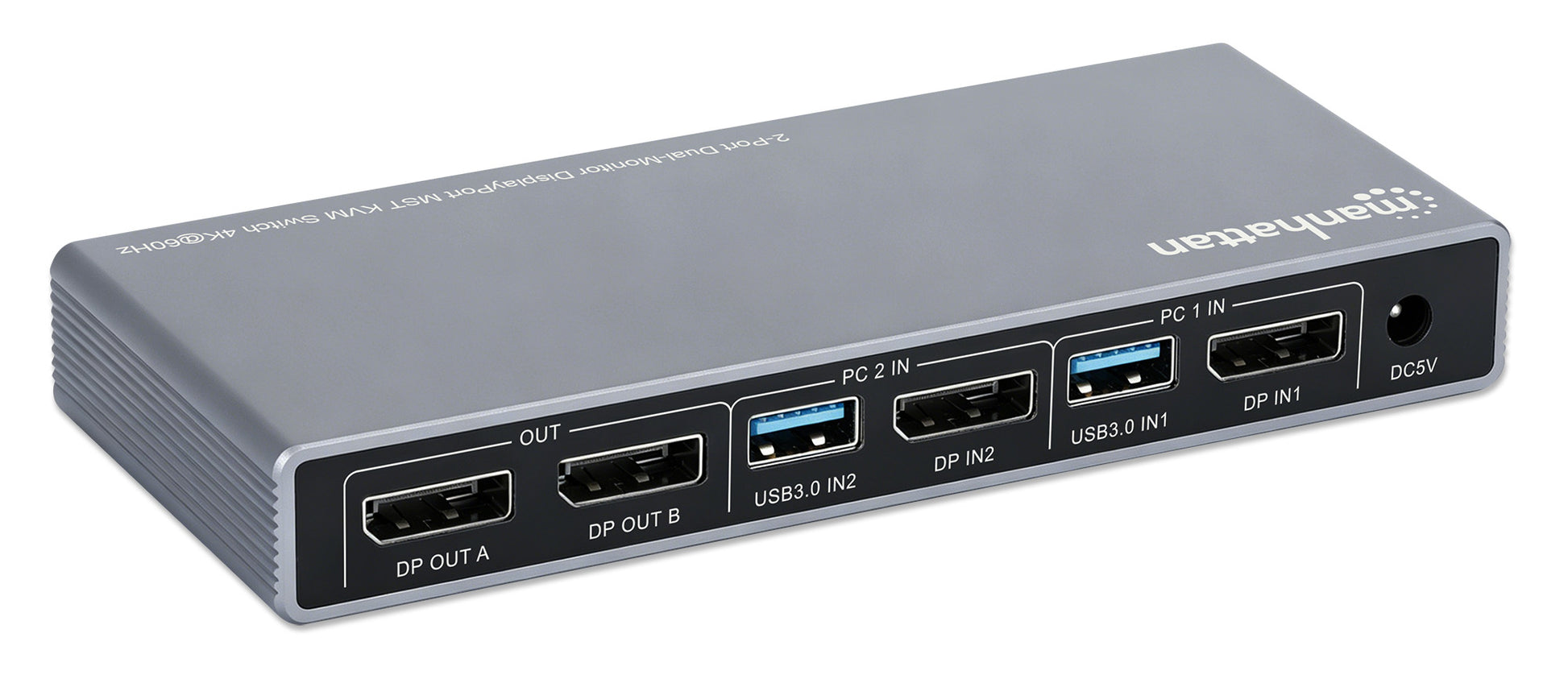

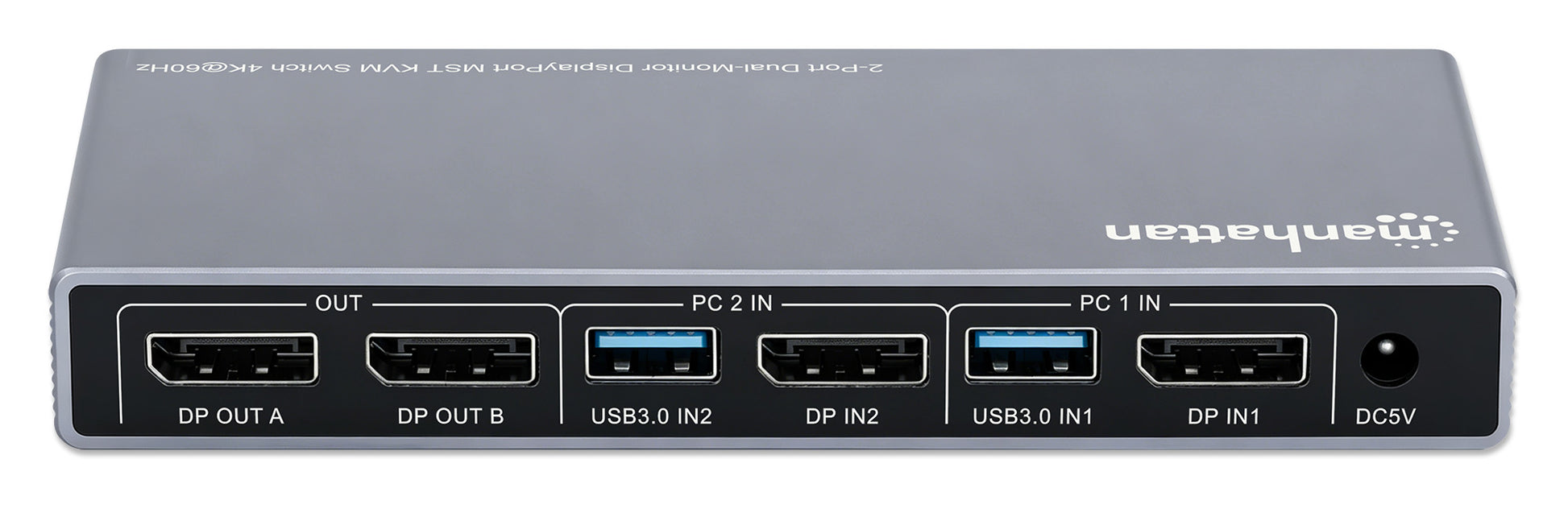

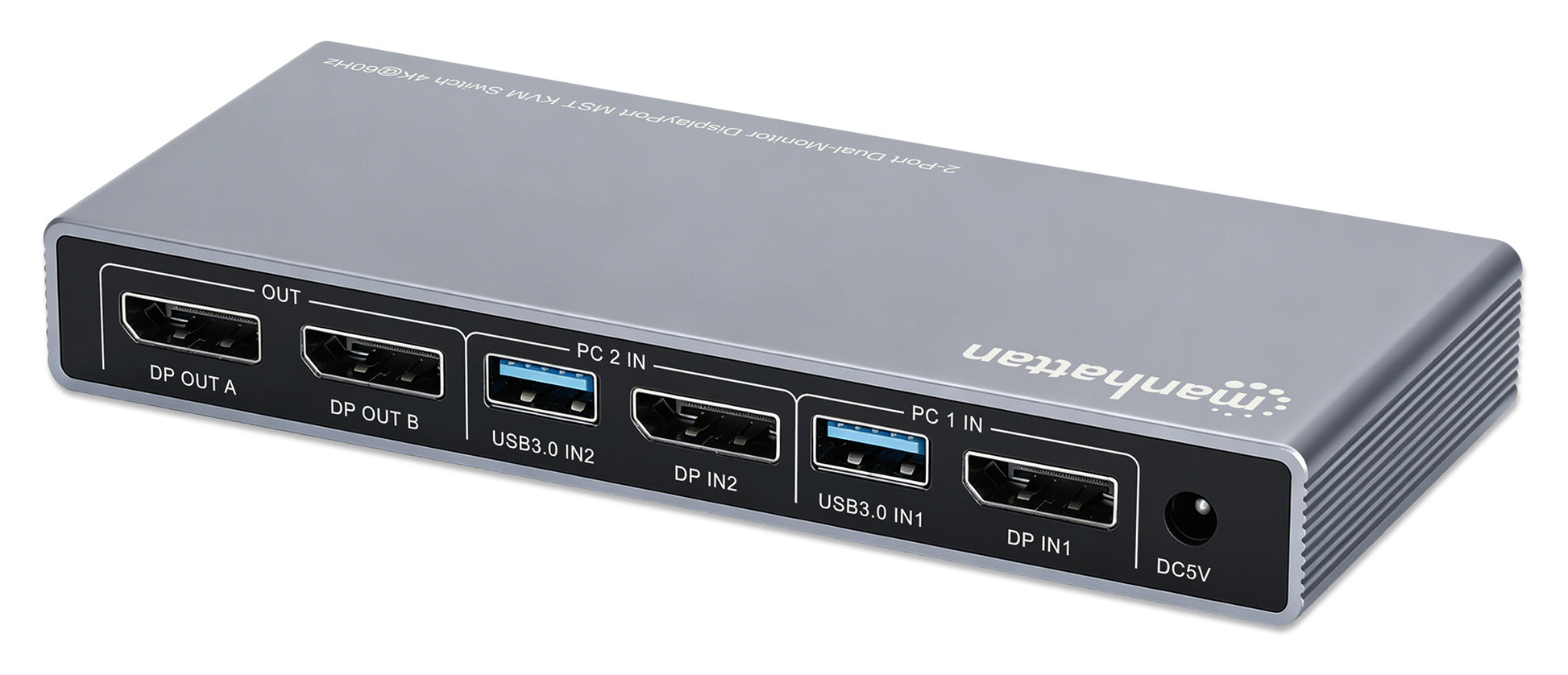

2x DP Input, 2x DP Output, 2x USB-A Input (5 Gbps), 3x USB-A Output (5 Gbps), 1x USB-C Output (5 Gbps), 1x 3.5 mm Audio Output, Gray

Highlights

Controls two DP and USB-A equipped desktop computers from a single keyboard and mouse and up to two monitors

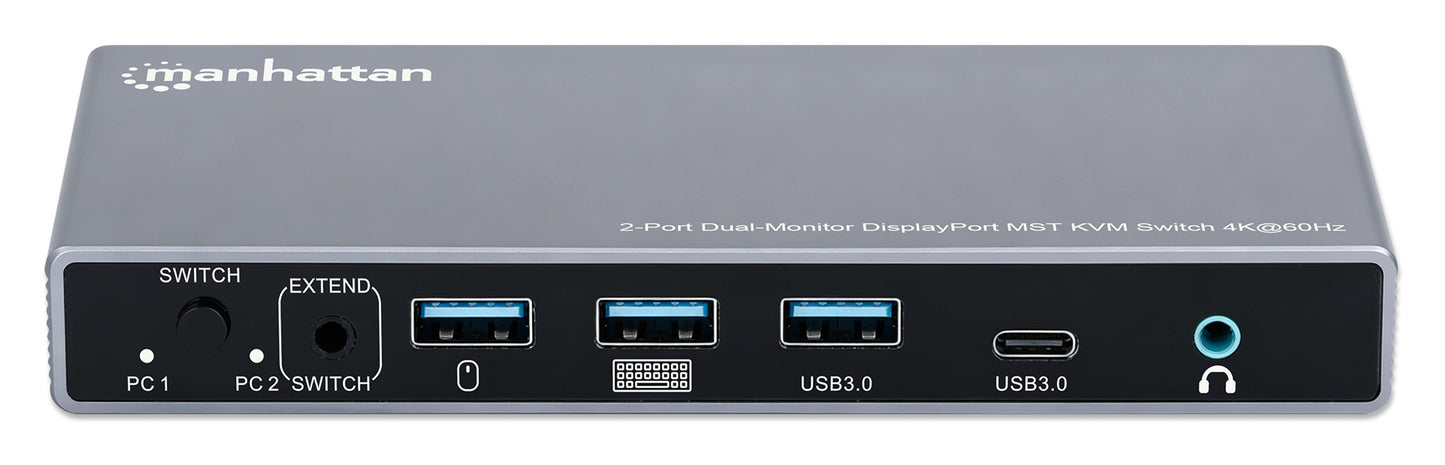

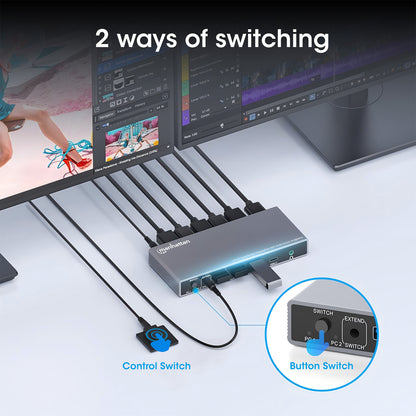

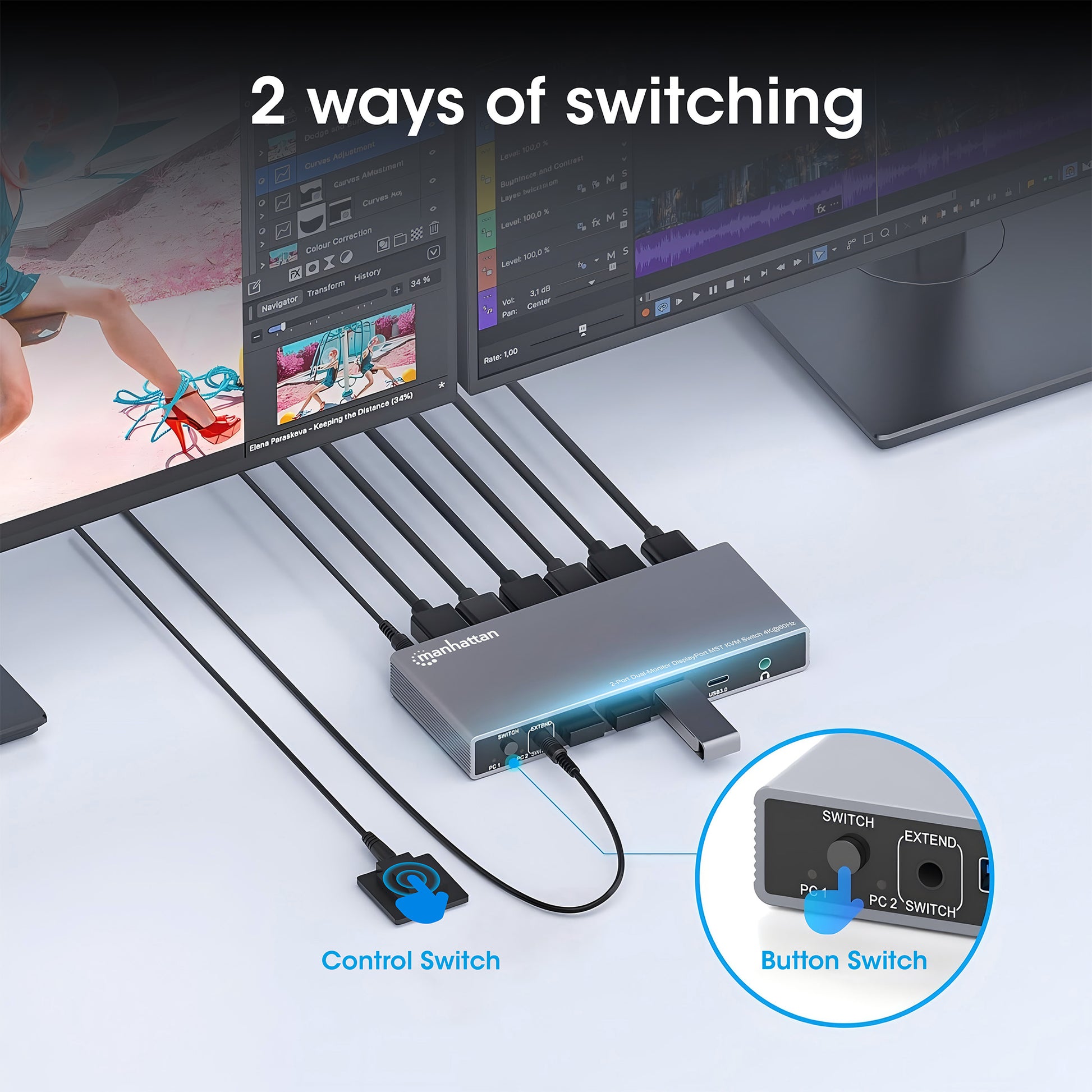

Switching via front-panel button or included wired remote control
Two DisplayPort 1.4 outputs, each with resolutions up to Ultra-High-Definition (UHD) 4K@60Hz (3840 × 2160)

SKU: 154666

[ view high resolution images ]

4K 2-Port Dual-Monitor DP KVM Switch for Efficient Multi-System Workstations

Streamline your workspace and boost productivity with this 2-Port Dual-Monitor DisplayPort KVM Switch from Manhattan. Designed to control two desktop computers from a single keyboard, mouse, and up to two monitors, it eliminates desktop clutter while enabling seamless switching between systems. Whether managing a personal and work PC or maintaining multiple systems in a professional environment, this KVM switch offers a convenient and efficient solution.

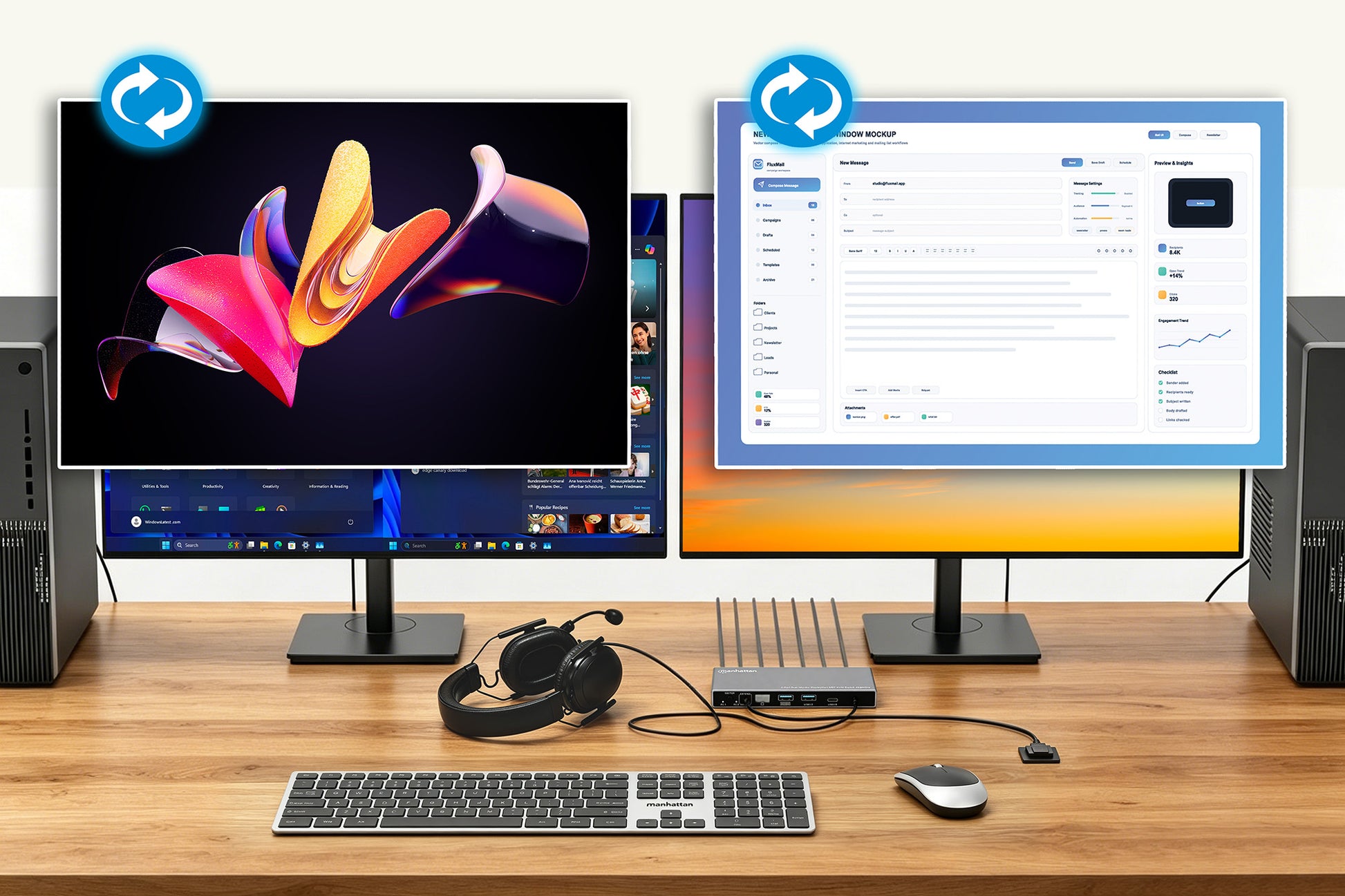

Control Two Computers with One Workspace

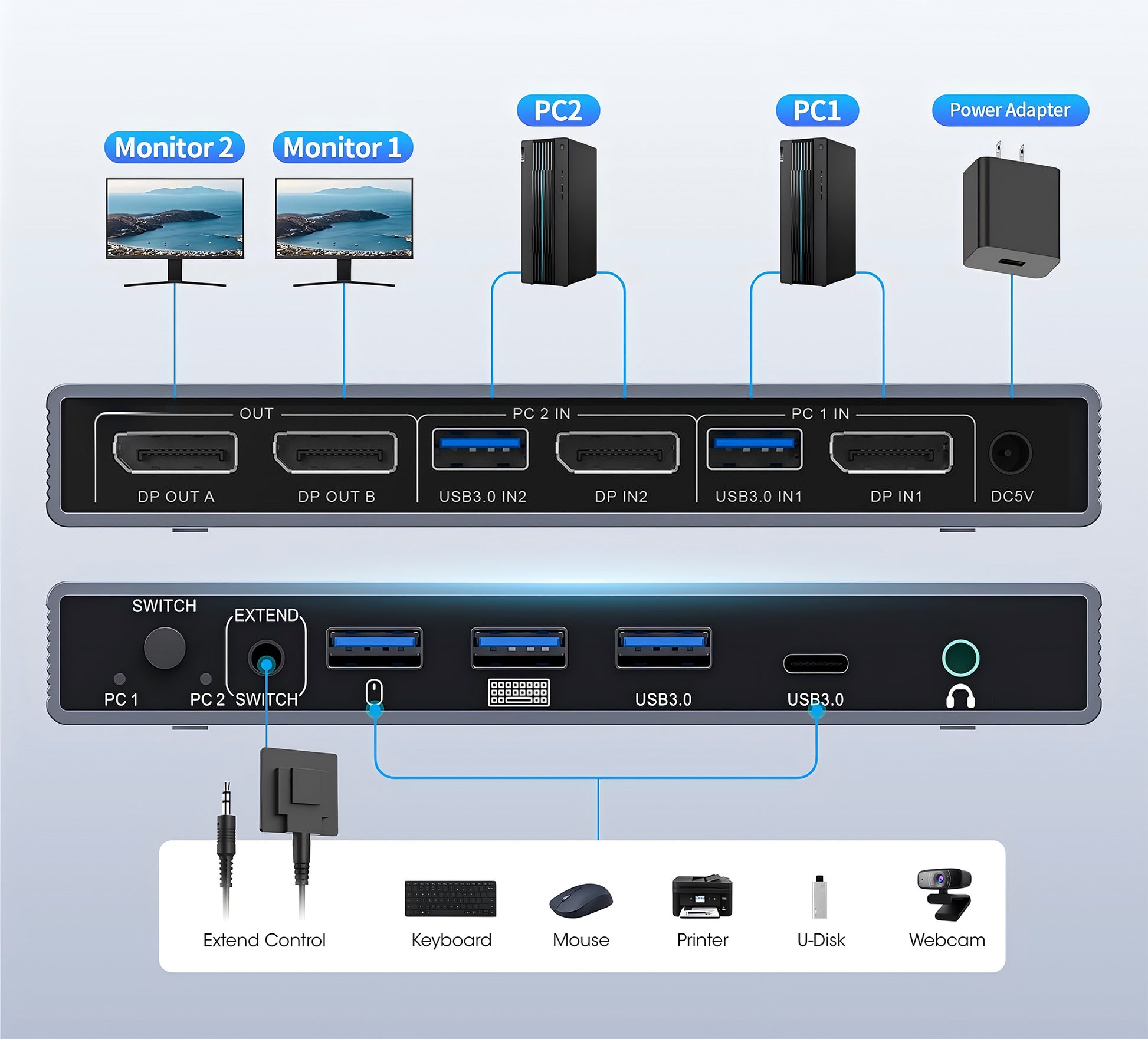

Switch instantly between two DisplayPort and USB-equipped computers using either the front-panel button or the included wired remote control. By sharing monitors, input devices, and peripherals between systems, the KVM switch creates a cleaner and more organized workstation while reducing hardware duplication and simplifying daily workflows. Ideal for home offices, professional workstations, and IT environments, it allows users to move effortlessly between systems without reconnecting cables or changing peripherals.

Dual-Monitor 4K DisplayPort Performance with Multi-Stream Transport (MST)

Featuring two DisplayPort 1.4 outputs, the switch supports dual-monitor setups with resolutions up to Ultra-High-Definition 4K@60Hz (3840 × 2160) on each display. Thanks to DisplayPort Multi-Stream Transport (MST) technology, both monitors can be driven from a single DisplayPort connection on each connected computer, reducing cable clutter while maintaining full extended-desktop functionality. With bandwidths up to 32.4 Gbps, it delivers sharp image quality, smooth video playback, and reliable performance for productivity applications, content creation, system administration, and everyday computing. Broad operating system compatibility ensures seamless integration with Windows, macOS, ChromeOS, Linux, and other platforms.

Integrated USB Hub and Audio Connectivity

In addition to dedicated keyboard and mouse connections, the integrated USB hub provides one USB-A and one USB-C port with data transfer speeds up to 5 Gbps. This makes it easy to share storage drives, printers, scanners, and other USB peripherals between connected computers without additional equipment. A built-in 3.5 mm stereo audio connection allows convenient sharing of headphones or speakers, creating a complete workstation solution for both productivity and multimedia applications.

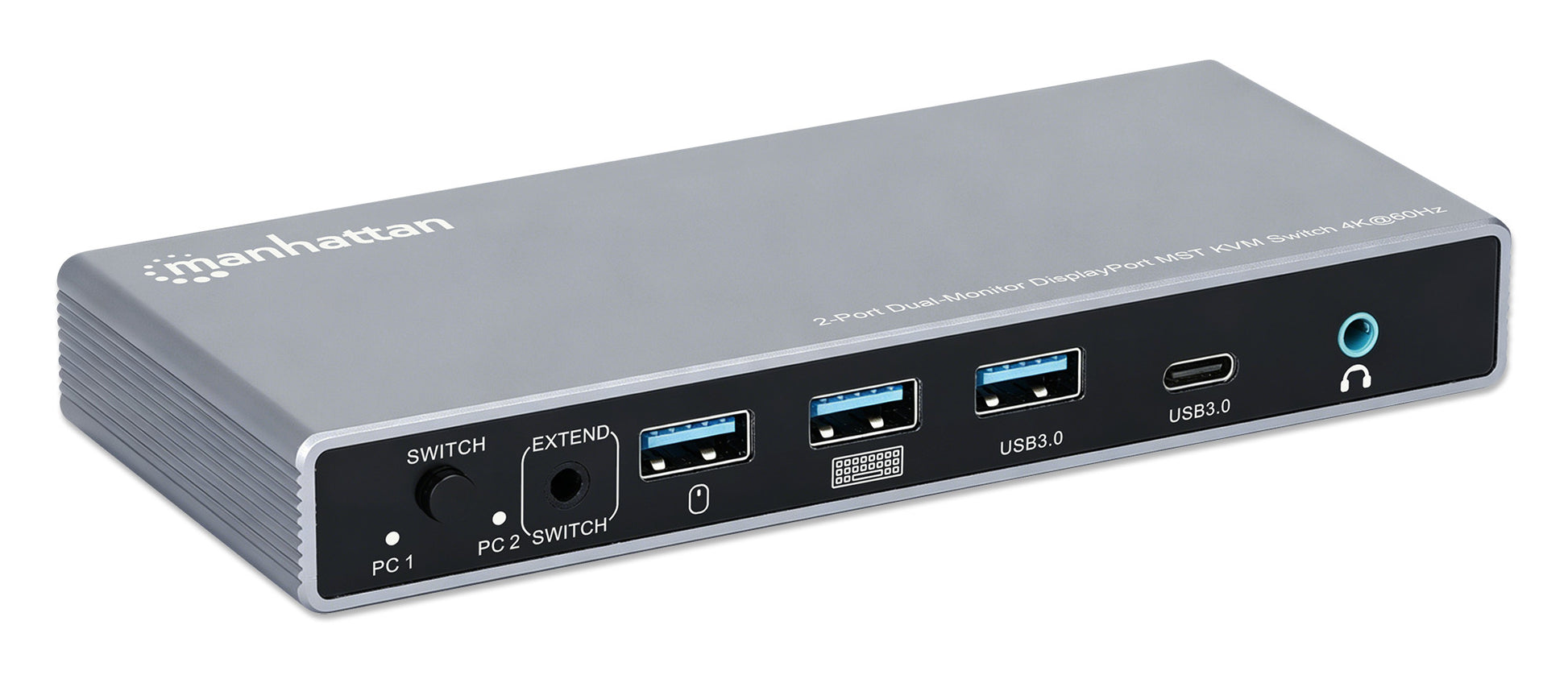

Compact Design with Rugged Metal Construction

Built for everyday professional use, the compact desktop design fits neatly into any workspace while the durable metal housing provides long-lasting reliability. Combining high-resolution dual-monitor support, USB peripheral sharing, and effortless switching between two systems, this DisplayPort KVM switch is an ideal solution for efficient and organized multi-computer environments.

Controls two DP and USB-A equipped desktop computers from a single keyboard and mouse and up to two monitors
Switching via front-panel button or included wired remote control
Two DisplayPort 1.4 outputs, each with resolutions up to Ultra-High-Definition (UHD) 4K@60Hz (3840 × 2160)
MST technology supports dual-monitor operation through a single DisplayPort connection per computer
Compatible with any operating system including Windows, macOS, ChromeOS, and Linux

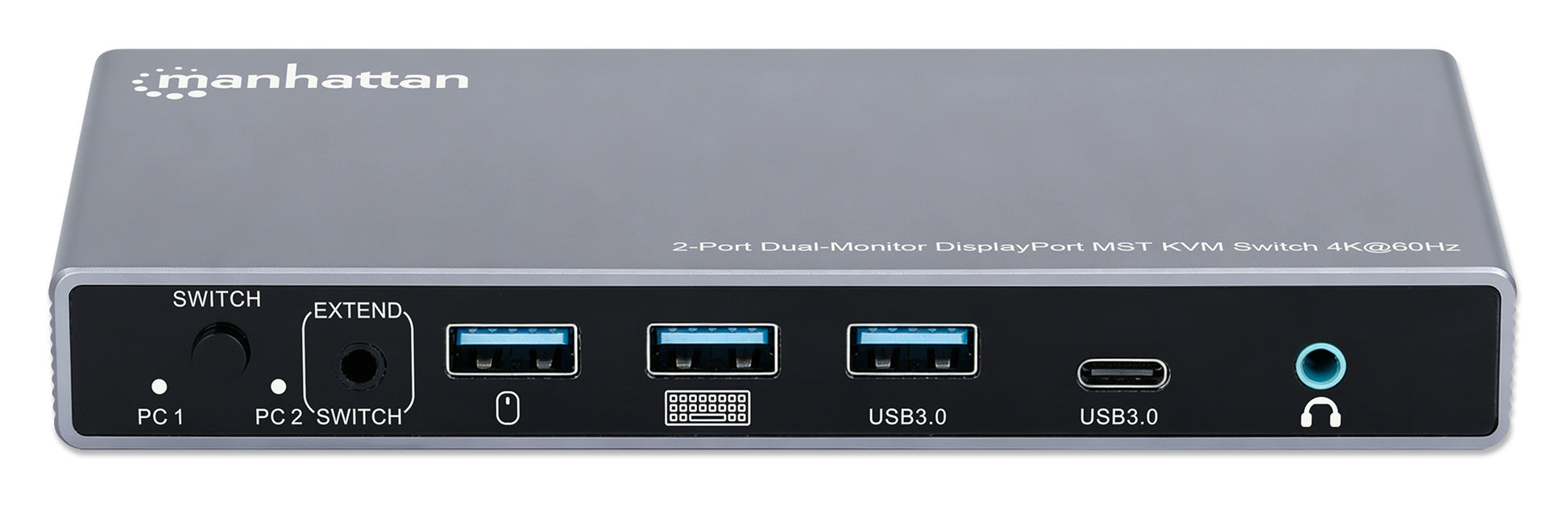

Two USB-A ports for mouse and keyboard, one additional USB-A and one USB-C as hub ports, all with 5 Gbps, to connect storage drives, printers, scanners, and more
Stereo audio support through single 3.5 mm AUX jack for headphones or speakers
HDR10+ for superior contrast and brilliant colors
Bandwidth up to 32.4 Gbps
Ideal for switching between a personal and a work PC or for IT admins managing two systems during maintenance tasks
Compact desktop format with rugged metal housing
Built-in ESD protection prevents damage from static electricity
Fully NDAA-compliant
Note: Does not include DisplayPort cables (available separately from Manhattan)
Three-year warranty

USB 3.2 Gen 1 (USB 3.0)
FCC
Console ports
Computer/host ports
Other
Resolutions: 4096x2160, 3840x2160, 5120x1440, 3440x1440, 2560x1440, 2560x1080, 1920x1200, 1920x1080; other resolutions may be supported
MTBF: 423,282 hours
Impedance: 100 Ohm
Power consumption: 10.0 W (max.)
PC 1
PC 2
Metal housing
Dimensions (L x W x H): 131 x 63 x 30 mm (5.16 x 2.48 x 1.18 in.)
Net weight: 400 g (0.88 lbs.)
Gross weight: 460 g (1.01 lbs.)
Operation temperature: -5 to 70°C (23 to 158°F)
Storage temperature: -10 to 75°C (14 - 167°F)
Humidity (non-condensing): 5 to 90% RH
4K@60Hz: Input cable up to 2 m (7 ft.), output cable up to 2 m (7 ft.), 24 AWG
4K@30Hz: Input cable up to 3 m (10 ft.), output cable up to 3 m (10 ft.), 26 AWG
1080p@60Hz: Input cable up to 5 m (16 ft.), output cable up to 5 m (16 ft.), 26 AWG

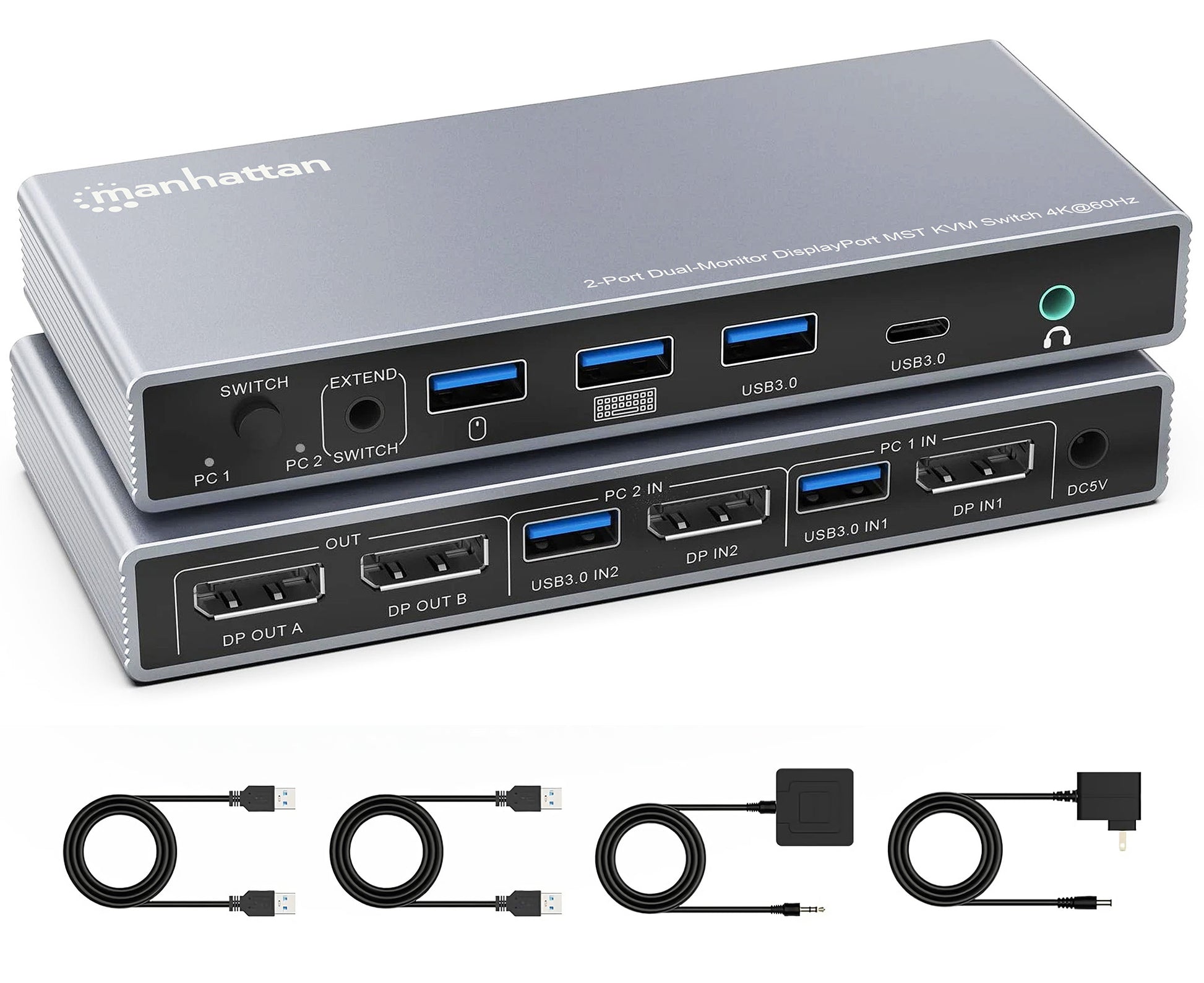

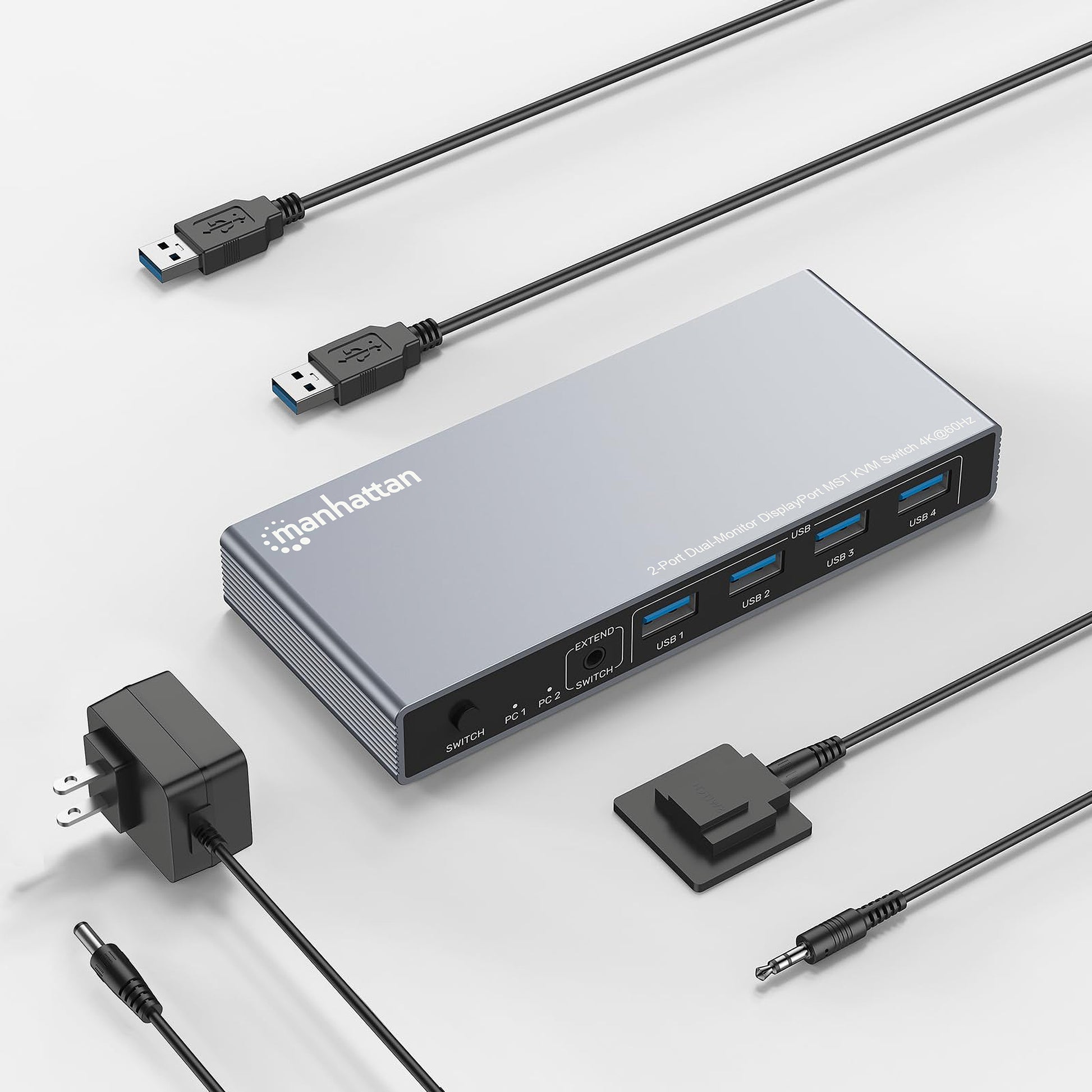

2-Port Dual-Monitor DisplayPort MST KVM Switch 4K@60Hz
2 x USB-A male to USB-A male connection cable, 1 m (3 ft.), 5 Gbps
DC Power adapter, 1.2 m (4 ft.) cable
Wired remote control with 3.5 mm connection, 1.5 m (5 ft.) cable
Instructions
