Manhattan

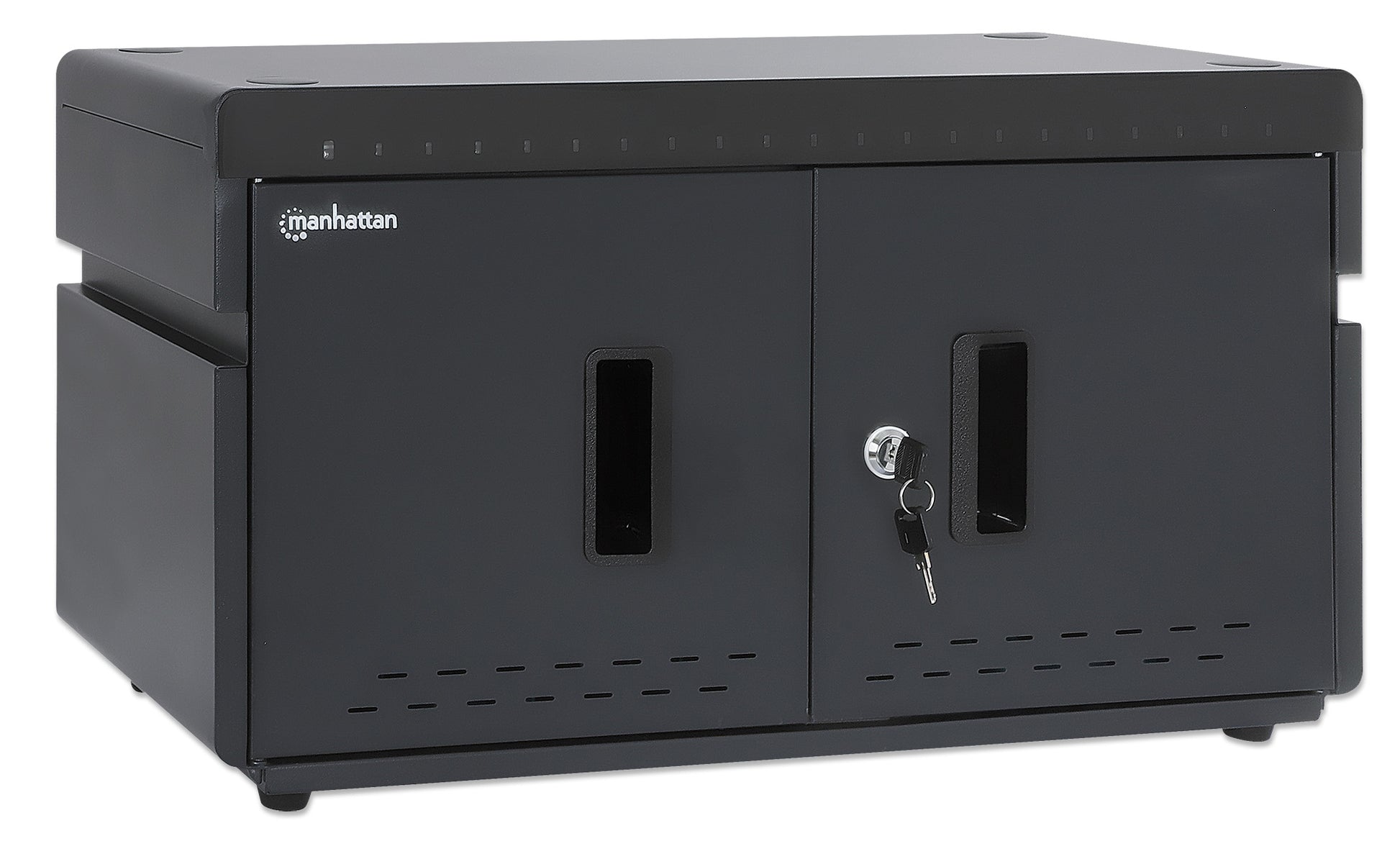

20-Port USB Power Delivery Charging Cabinet

20 USB-C PD Ports, up to 18 W / 3 A / 5 V per Port, 360 W Total, Lockable Split Door, Surge Protection, Silent Ventilation, Metal Housing, Black

Highlights

Safely stores and charges up to 20 USB devices
USB-C charging ports with up to 18 W / 3 A / 5 V per port; no additional wall chargers required
Smart power management system that prevents overload at any time

SKU: 102568

[ view high resolution images ]

Safely stores and charges up to 20 USB devices
USB-C charging ports with up to 18 W / 3 A / 5 V per port; no additional wall chargers required
Smart power management system that prevents overload at any time

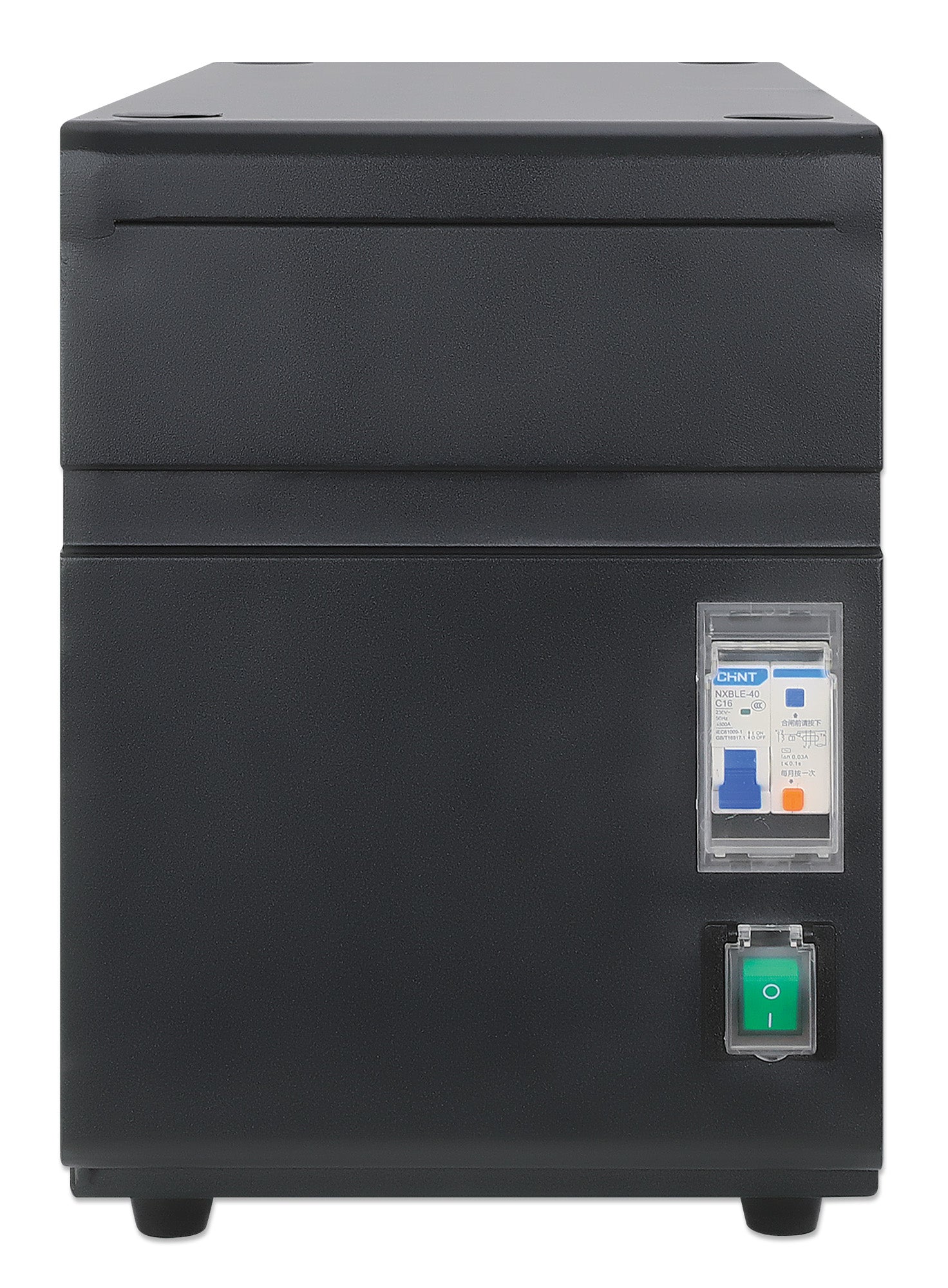

Built-in safety with fuse between mains power and power supply
Protection against overload, overcurrent, short circuit, voltage spikes and lightning strikes

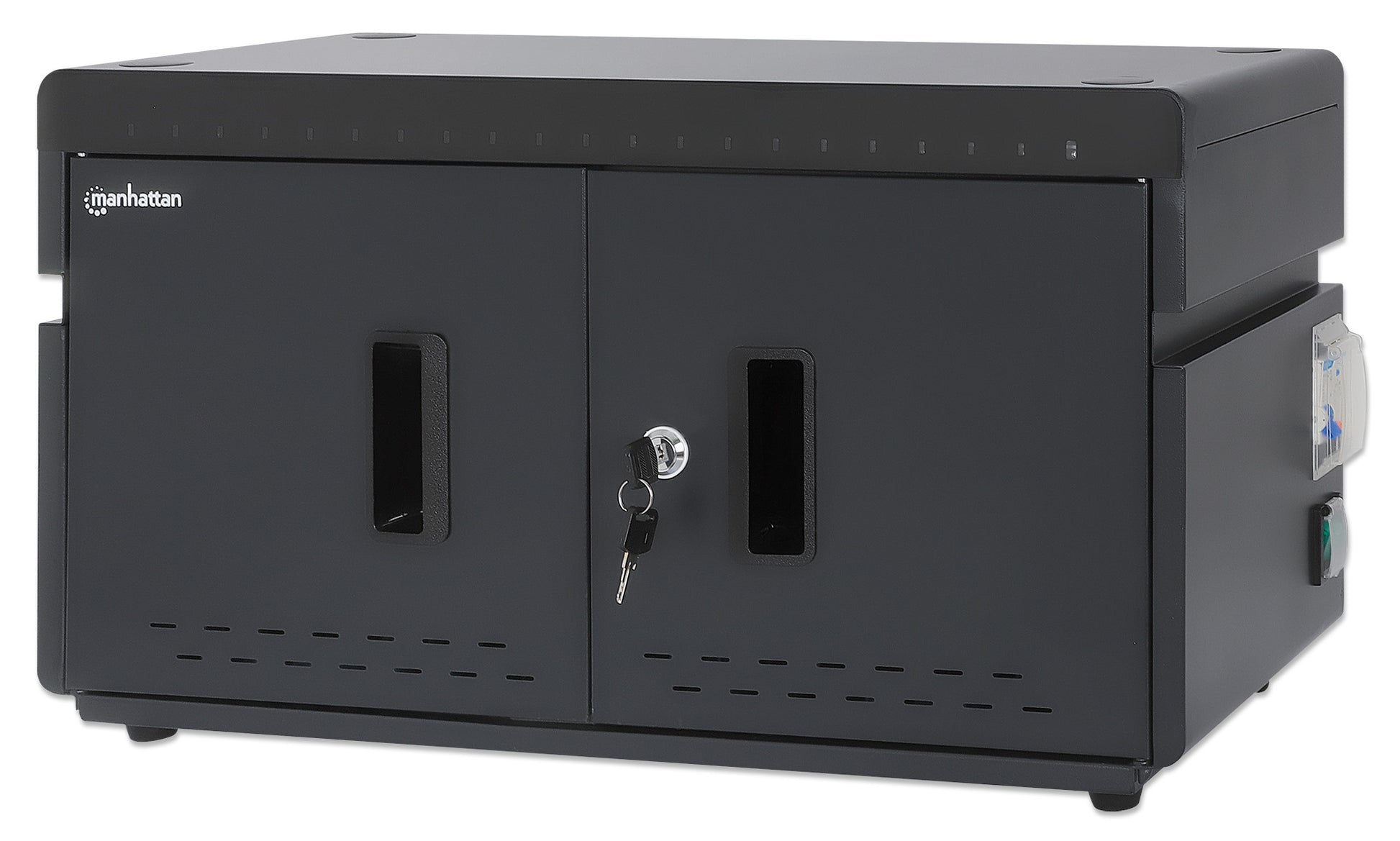

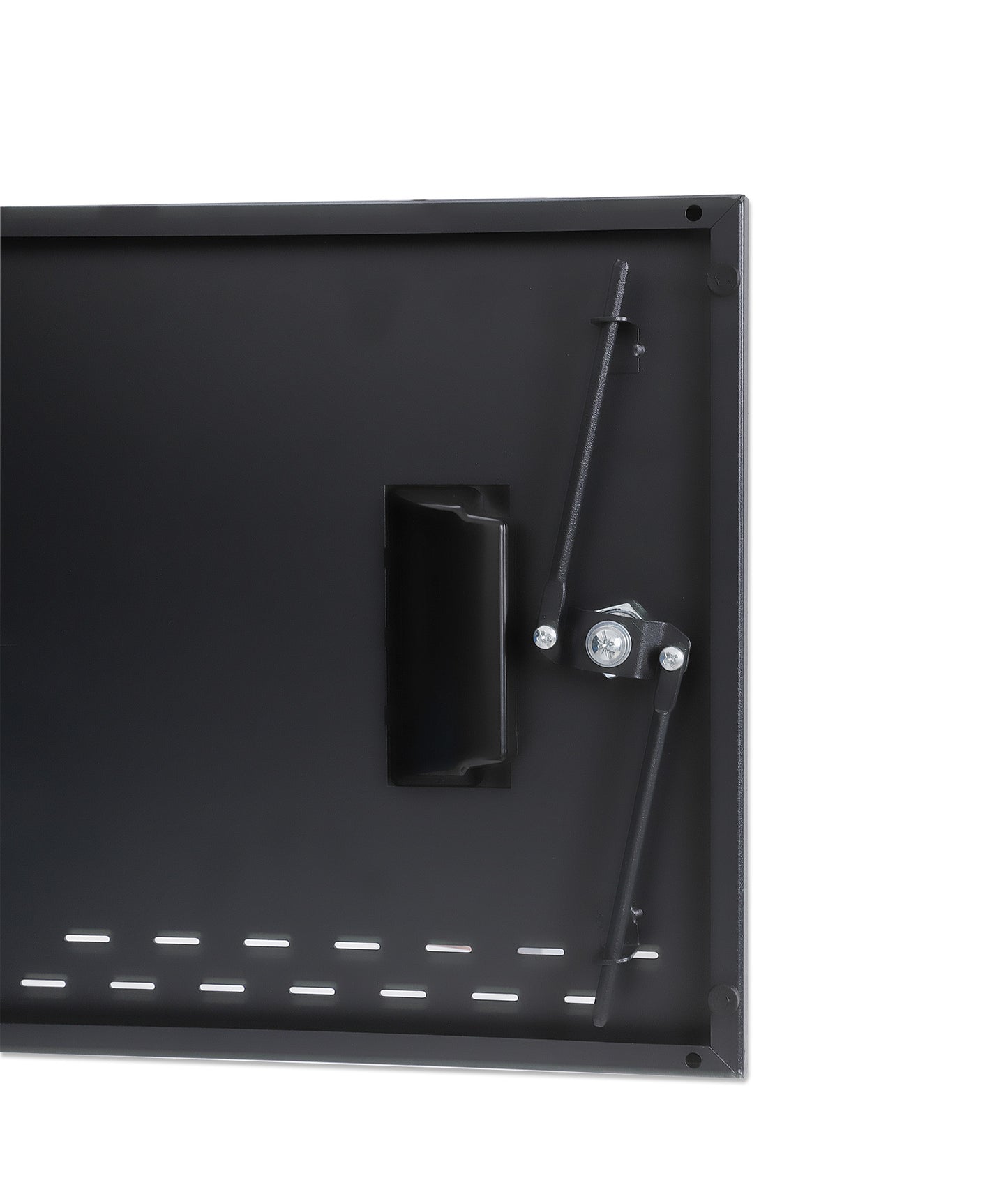

Sturdy, secure, powder-coated metal housing; lockable with two included keys

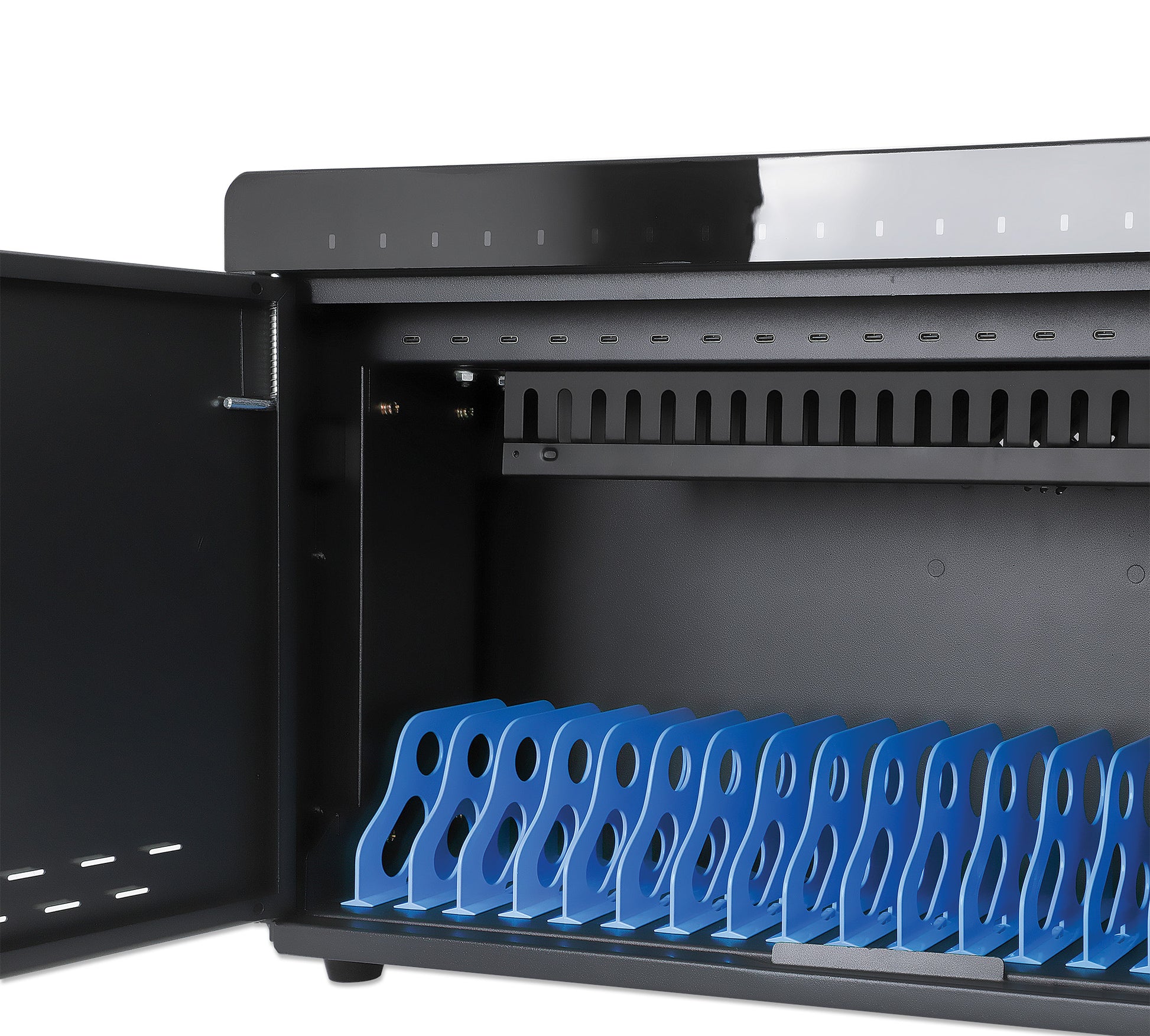

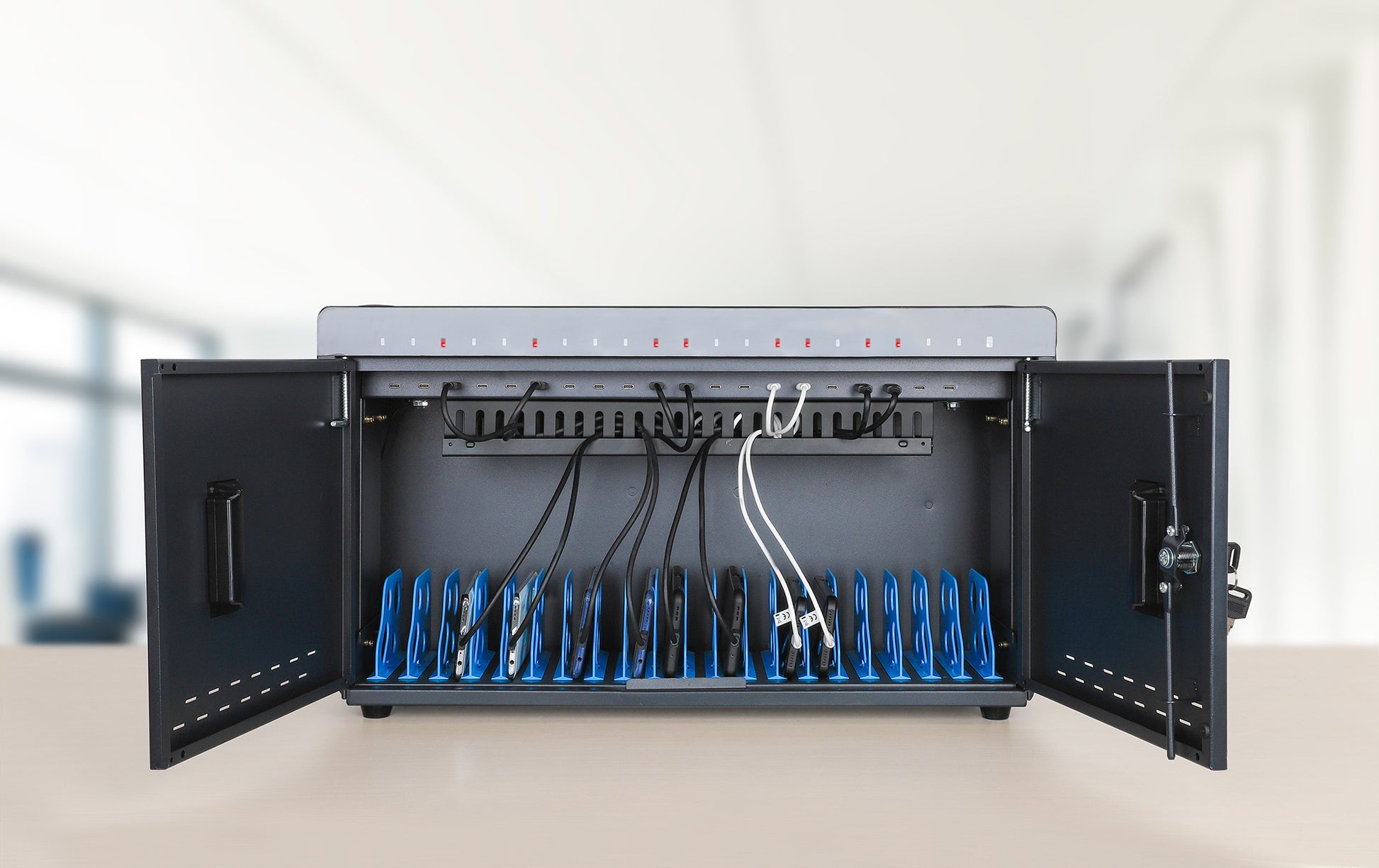

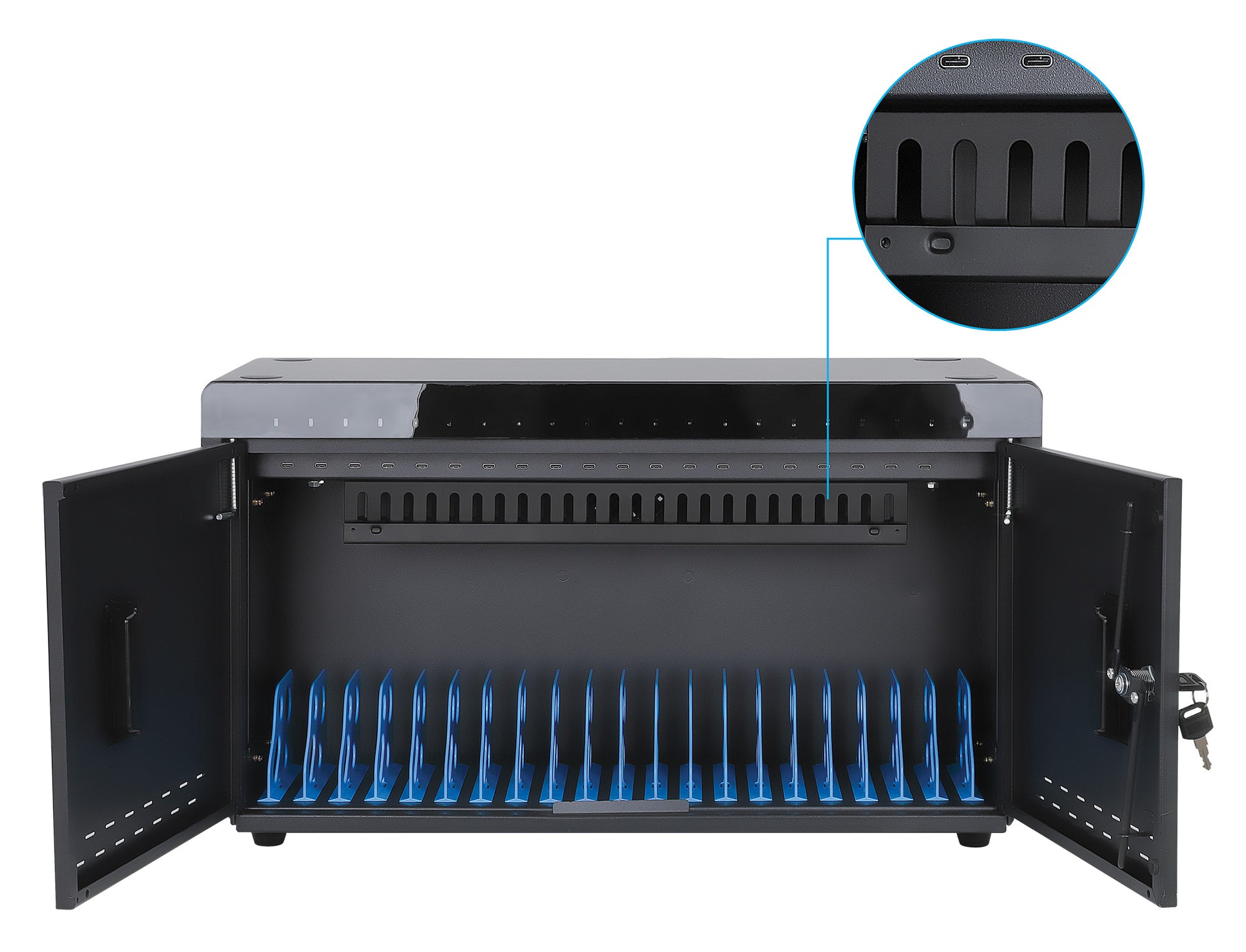

Bays [175 (D) x 24 (W) x 190 (H) mm each] with cable management built into the dividers

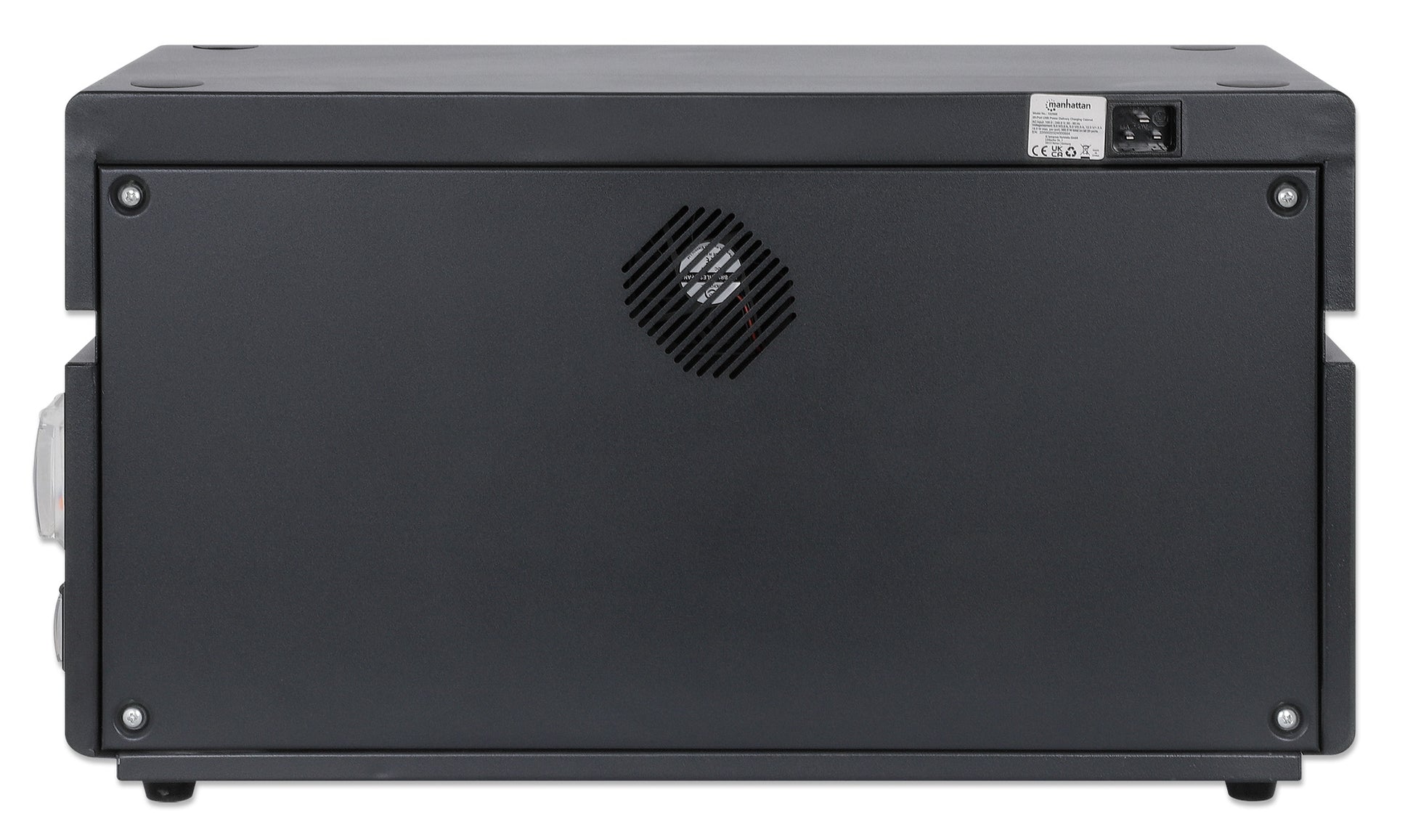

Silent fan and ventilation slots for maximum airflow and cooling efficiency

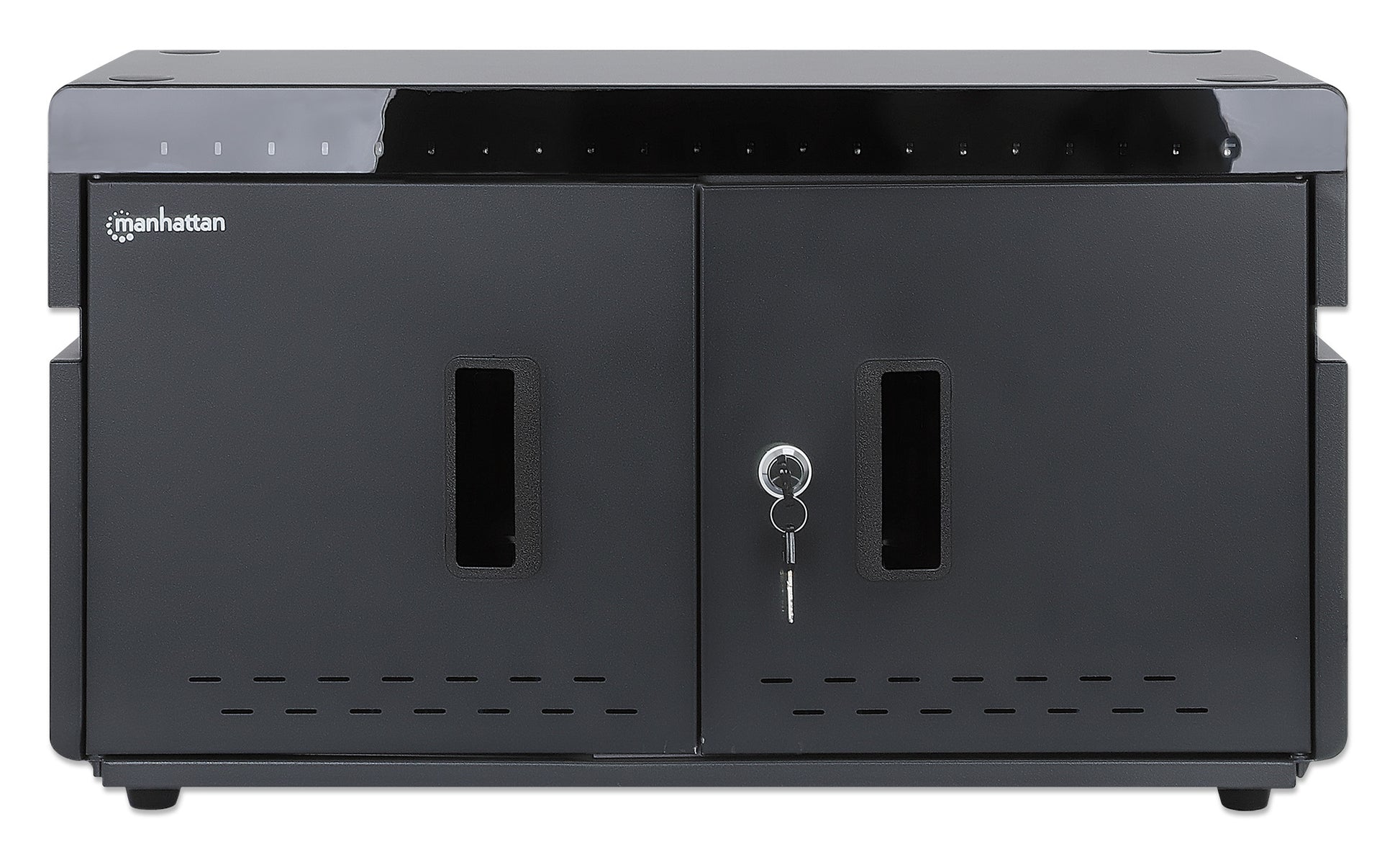

Vertically split double-door ideal for confined spaces
LED indicators for easy status monitoring
Rubber feet for non-slip desktop use
Not stackable
Built in USB-C PDU with 2 m power cable, EU plug and cable management
Three-year warranty

CE
RoHS
REACH
UKCA
AC input: 100.0 - 240.0 V; 50 - 60 Hz
Voltage/current: 5.0 V/3.0 A, 9.0 V/2.0 A, 12.0 V/1.5 A
18.0 W max. per port, 360.0 W total on all 20 ports
Made for handheld USB devices
Overload protection
Leakage protection
Isolation protection
Overcurrent protection
Input overvoltage protection
Input undervoltage protection
Output short circuit protection
On/off switch
LED status indicators (red: charging / green: fully charged)

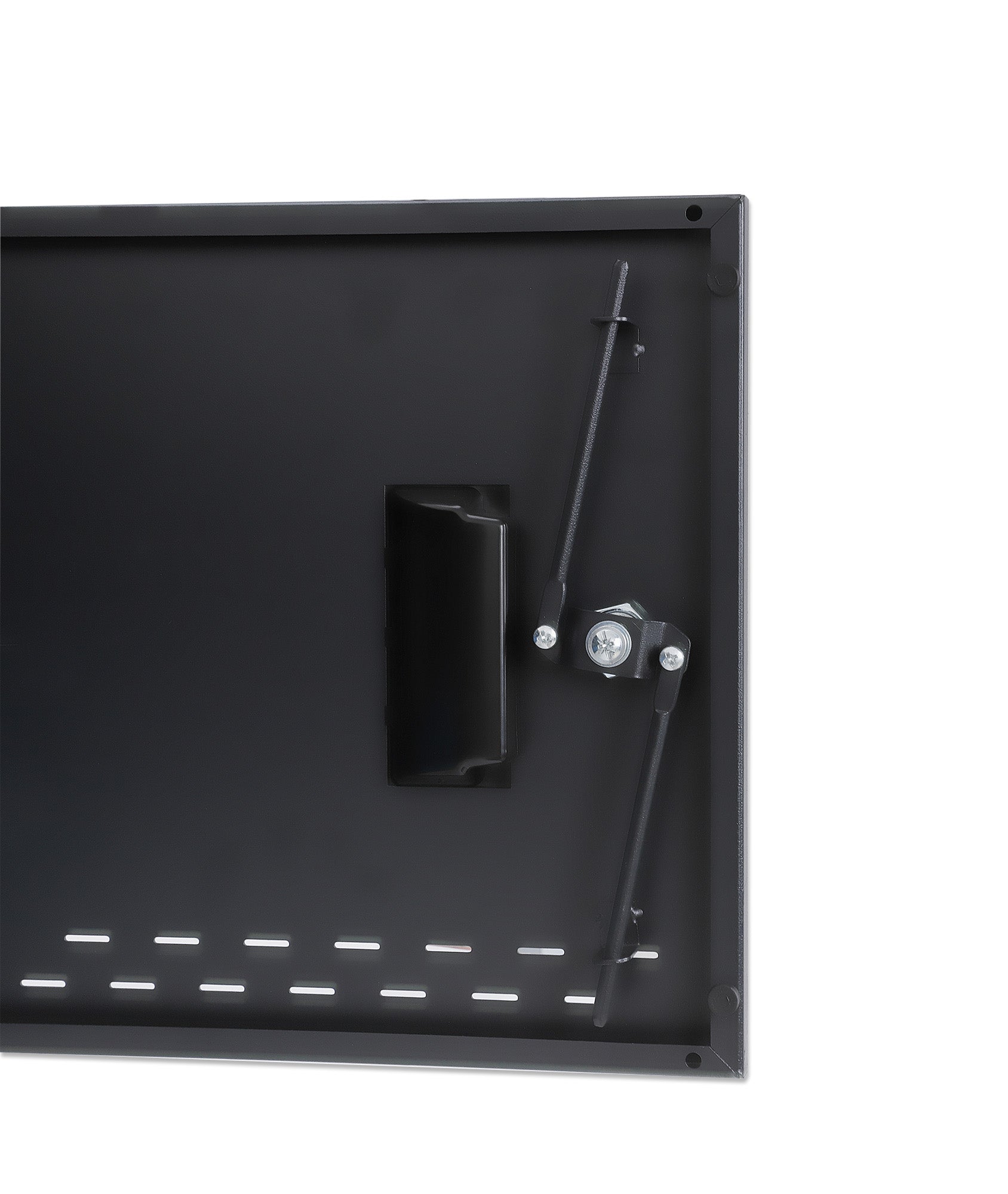

Vertically split double door
Housing: 1 - 1.5 mm cold-rolled steel
External housing dimensions: 250 (D) x 610 (W) x 345 (H) mm
Bay dimensions (20): 175 (D) x 24 (W) x 190 (H) mm
AC Power cable length: 2 m
Weight: 17 kg
Operation temperature: 0 - 45°C
Storage temperature: -15 - 45°C
Humidity (noncondensing): 20 - 80%
20-Port USB Charging Cabinet
AC Power cable length: 2 m
Two door keys
Instructions
