Manhattan

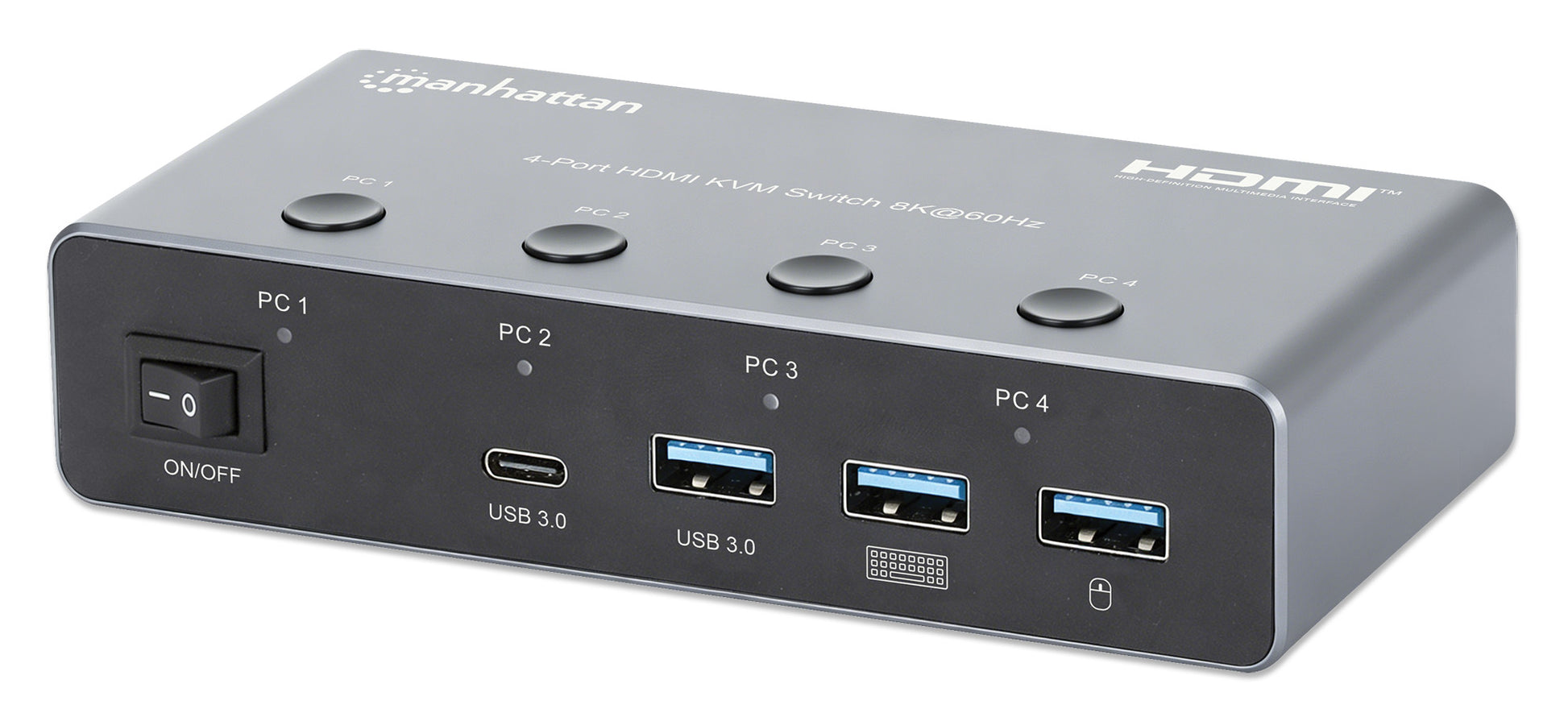

4-Port HDMI KVM Switch 8K@60Hz

4x HDMI Input, 1x Single-Monitor HDMI Output, 4x USB-A Input (5 Gbps), 3x USB-A Output (5 Gbps), 1x USB-C Output (5 Gbps), Silver

Highlights

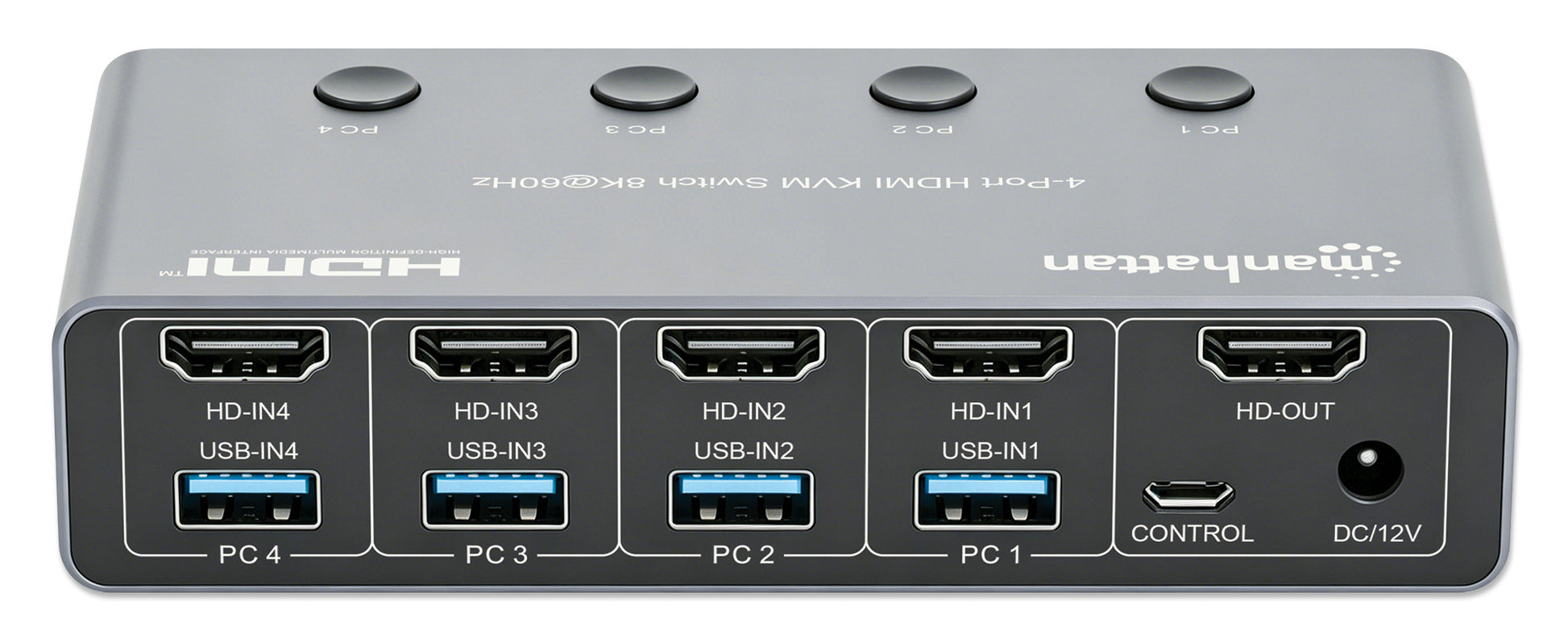

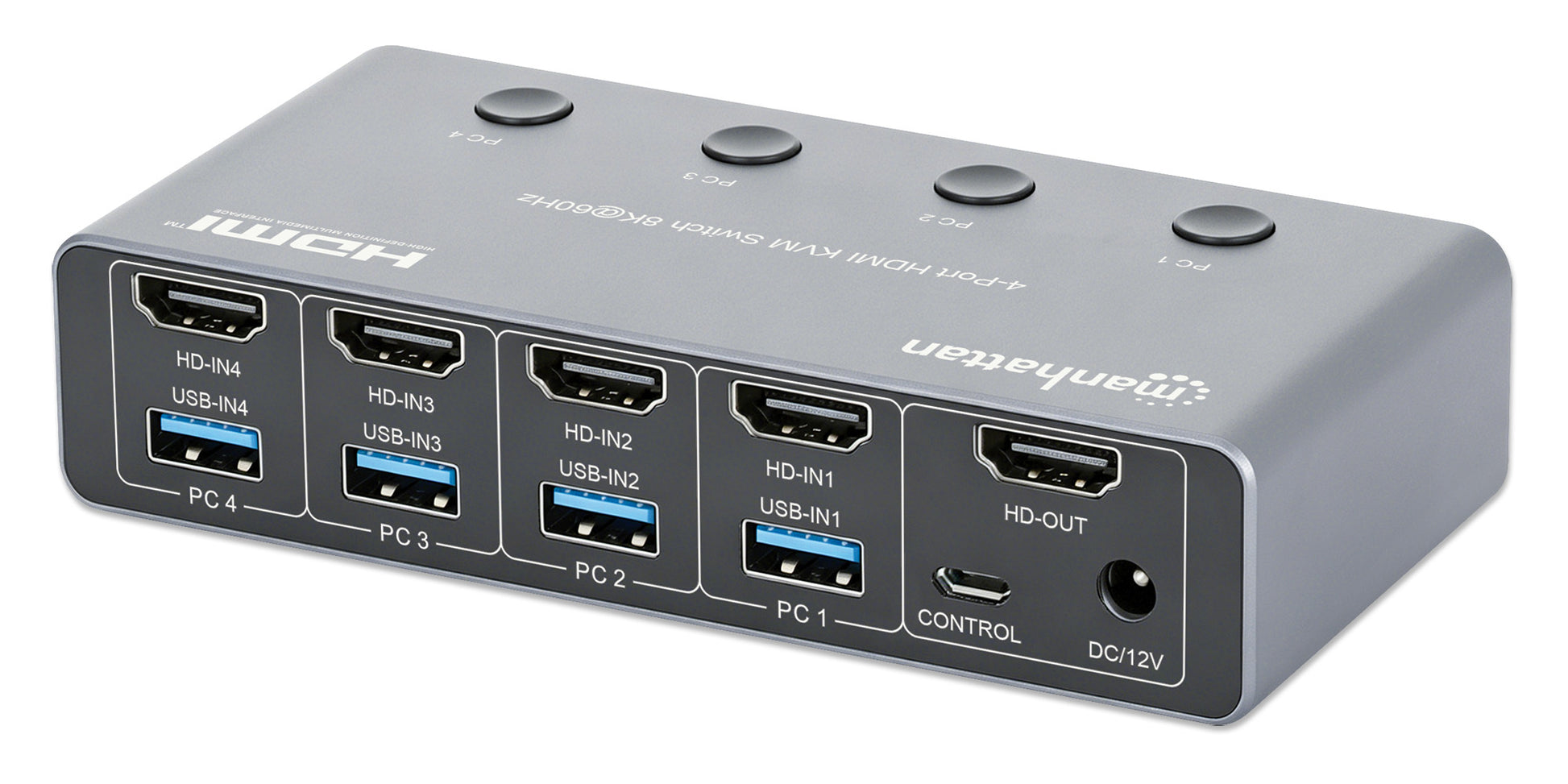

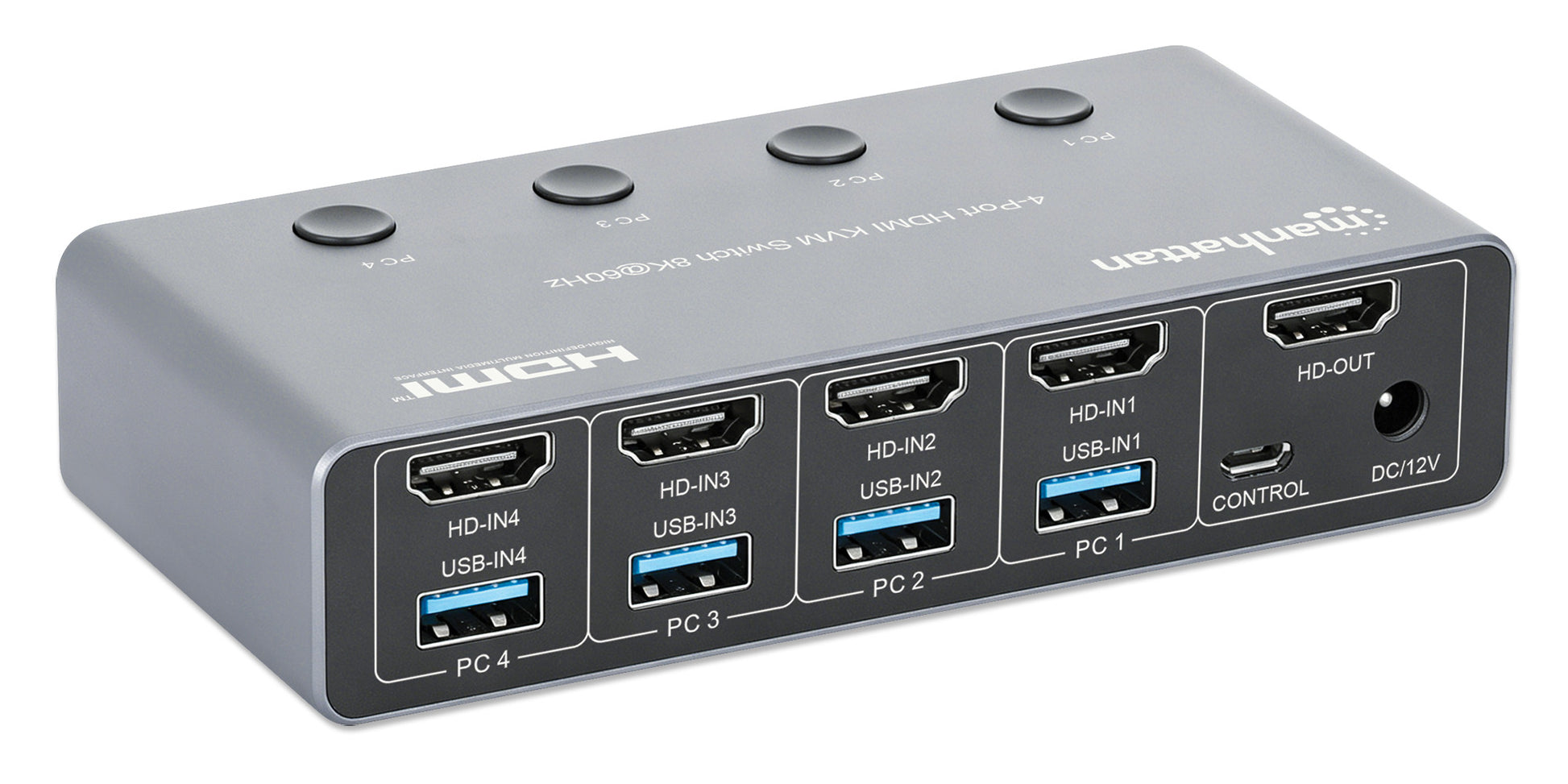

Controls four HDMI and USB-A equipped computers from a single keyboard, mouse, and monitor

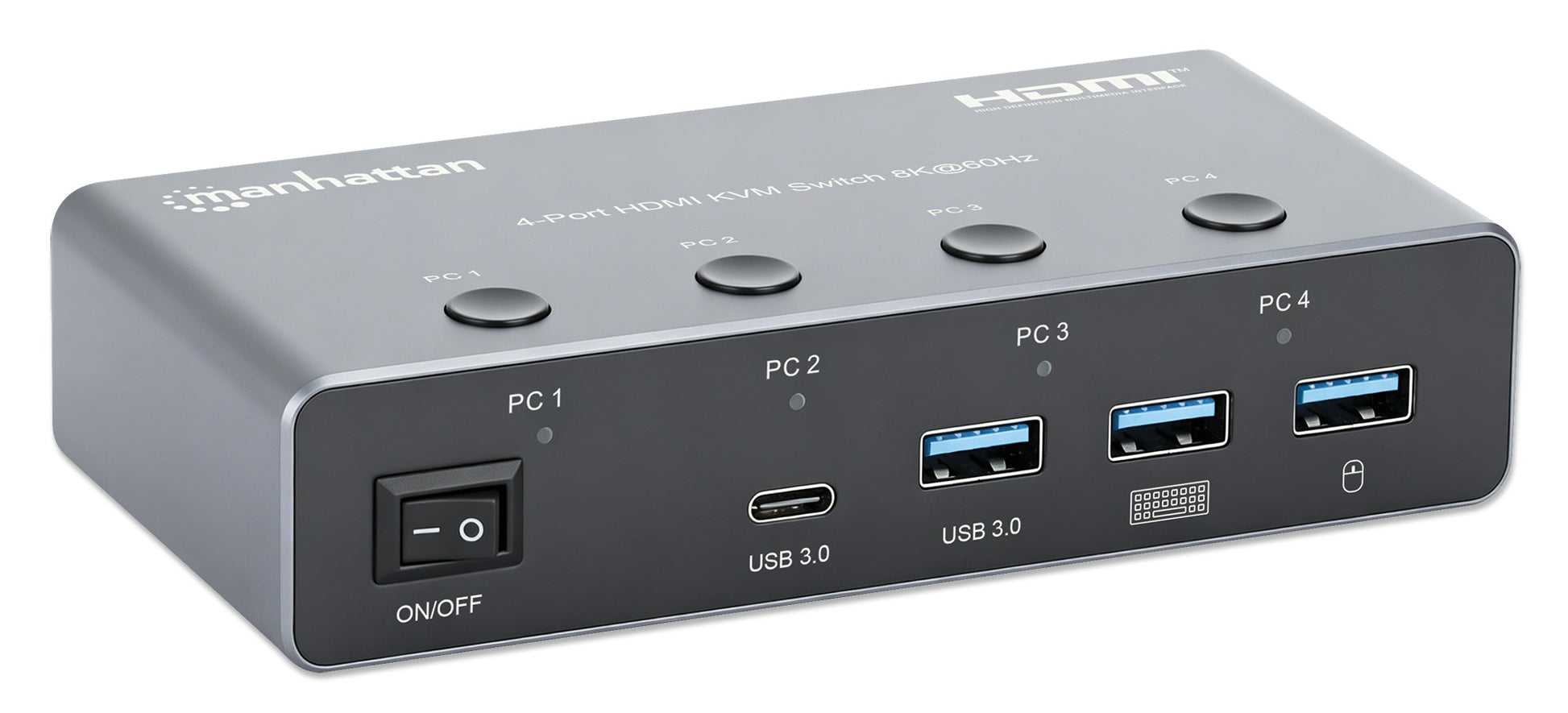

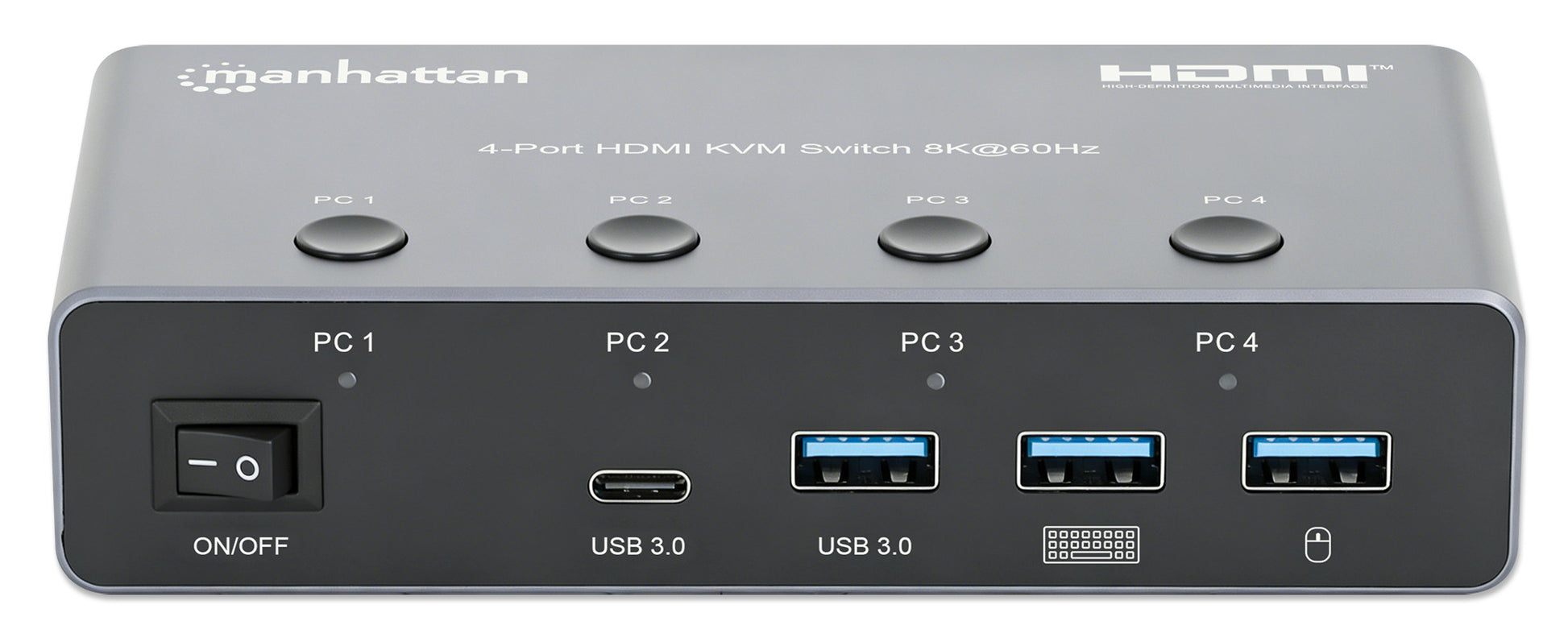

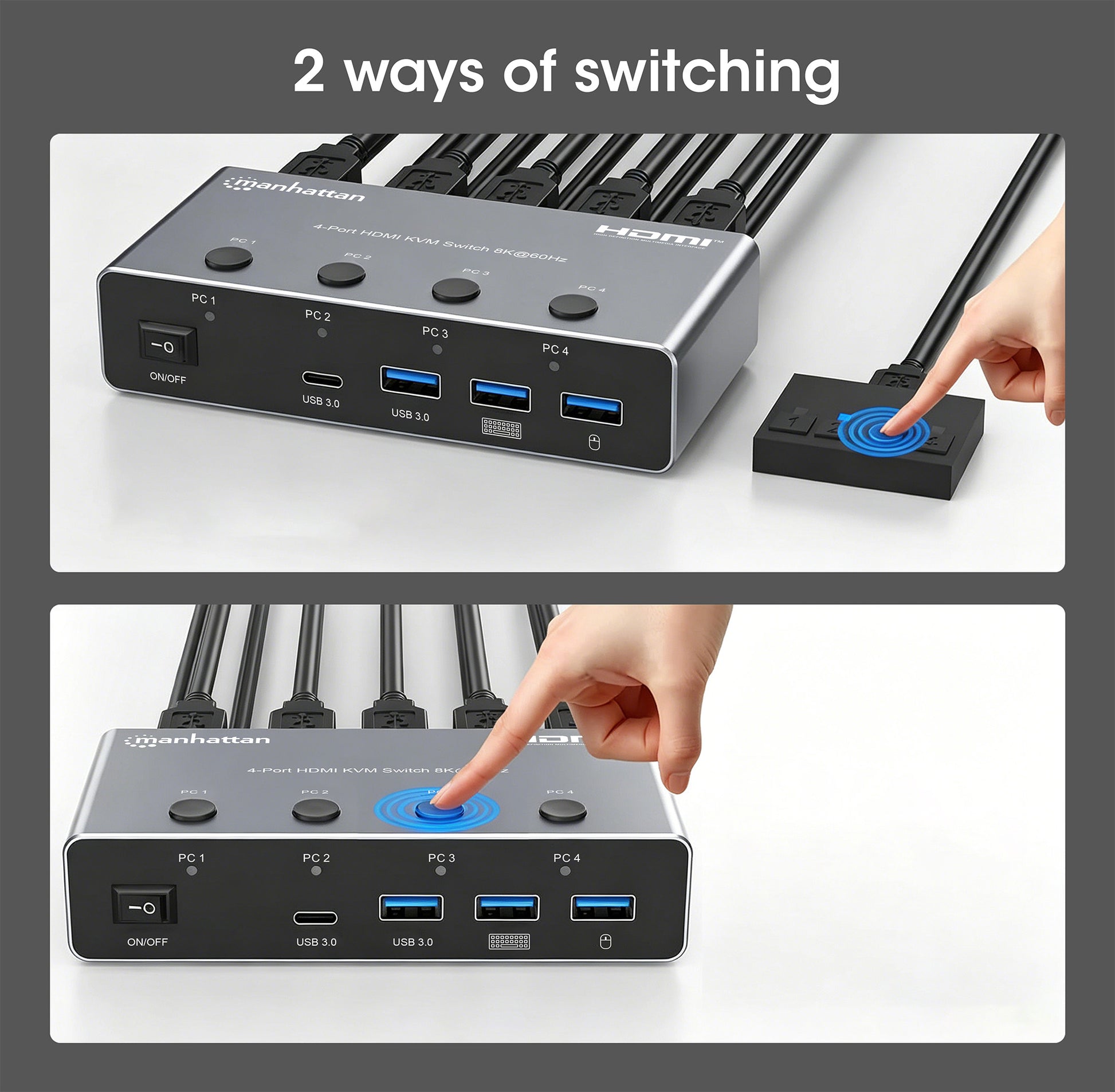

Switching via front-panel buttons or included wired remote control
One HDMI single-monitor output with resolutions up to Ultra-High-Definition (UHD) 8K@60Hz or 4K@120Hz

SKU: 154680

[ view high resolution images ]

8K 4-Port HDMI KVM Switch 8K@60Hz for Efficient Multi-Computer Control

Simplify complex workstations and reduce desktop clutter with this 4-Port HDMI KVM Switch from Mnahttan. Designed to control up to four HDMI-equipped computers from a single keyboard, mouse, and monitor, it provides a convenient and efficient way to manage multiple systems without duplicating peripherals. Whether used in home offices, professional workspaces, content creation environments, or IT departments, the switch enables seamless access to multiple computers from a single workstation.

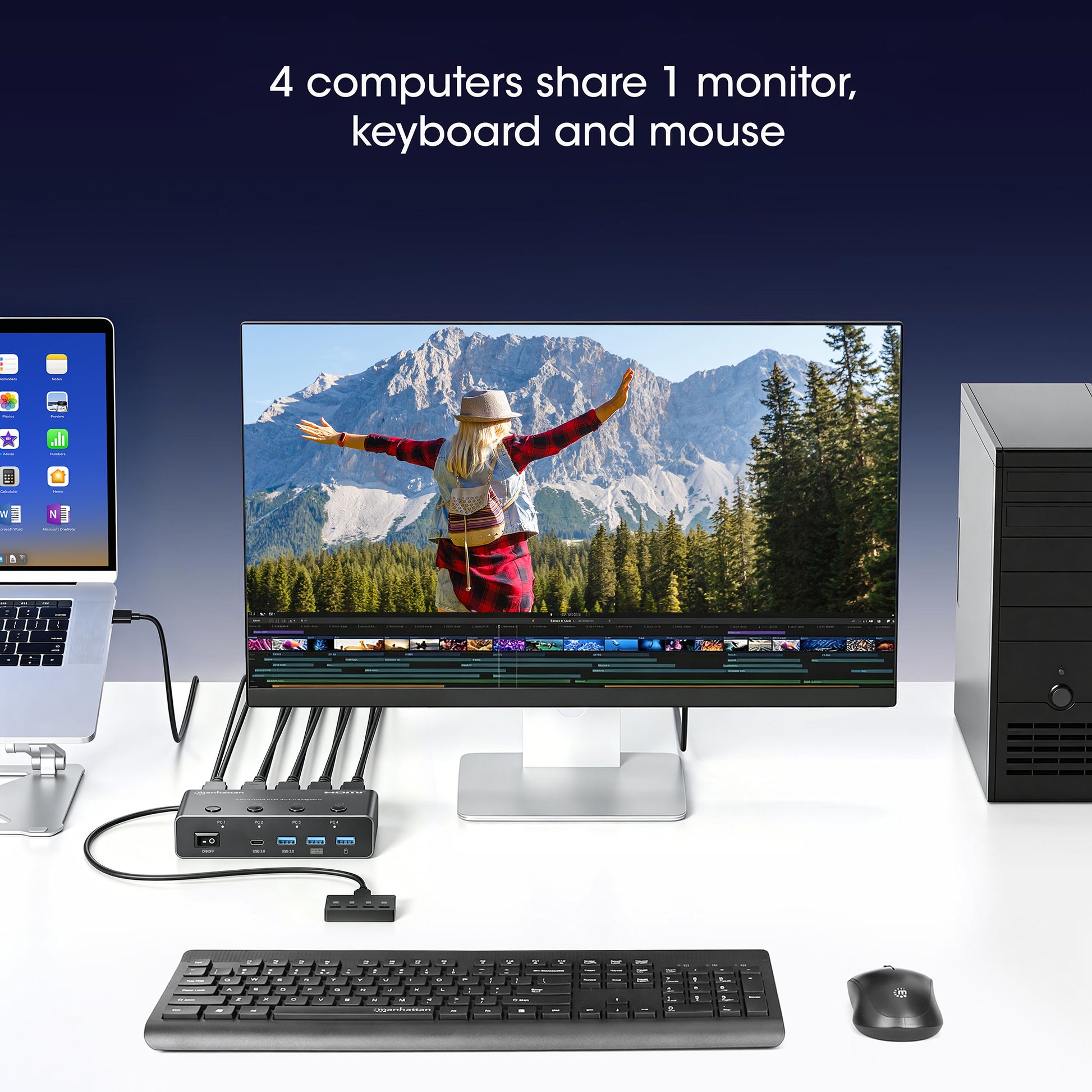

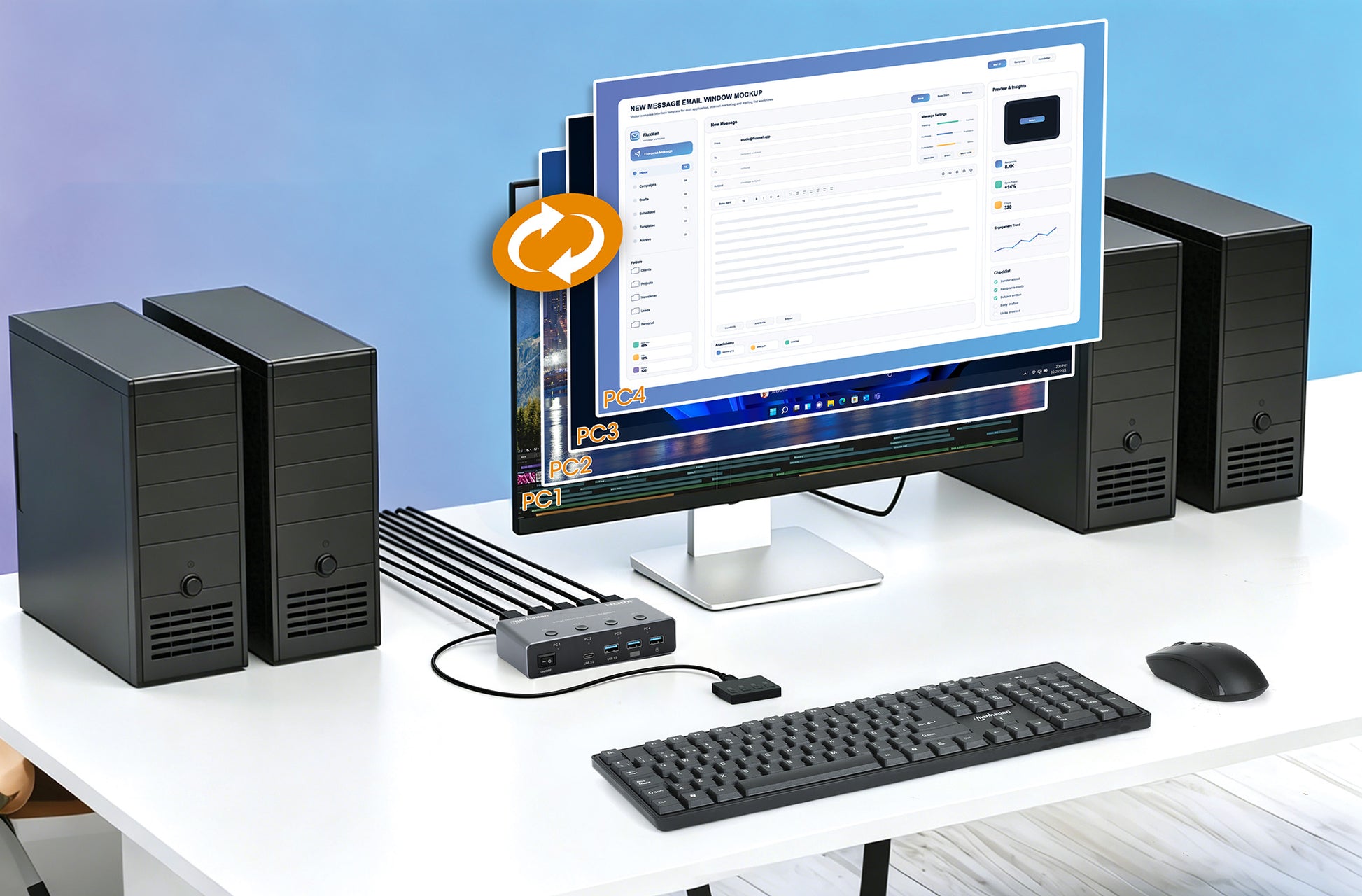

Control Four Computers with One Workspace

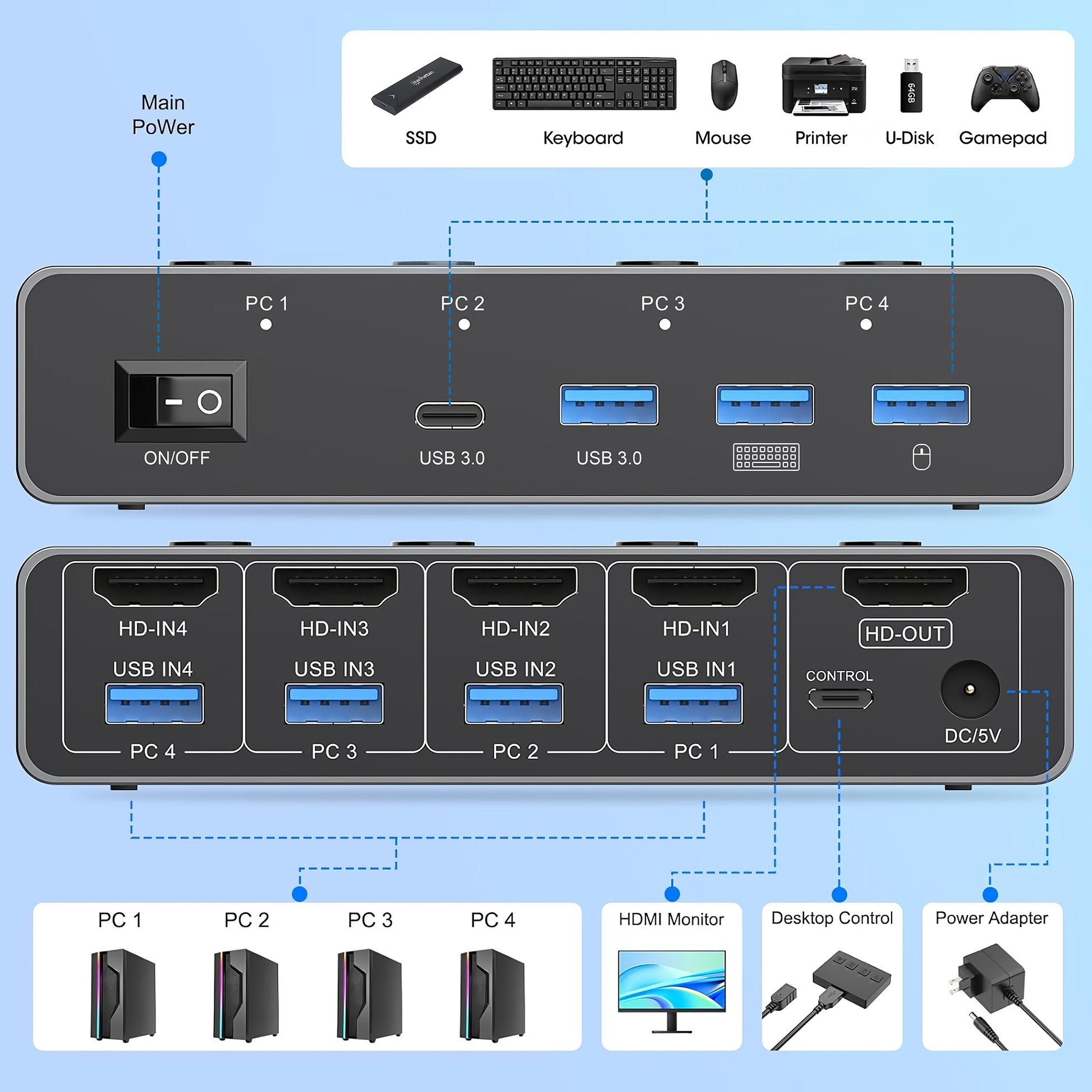

Switch quickly and conveniently between four connected computers using the front-panel buttons or the included wired remote control. By sharing a monitor, keyboard, mouse, and USB peripherals across multiple systems, the KVM switch creates a cleaner, more organized desktop while streamlining workflows and reducing equipment costs. Ideal for users managing multiple personal and work computers, content creators working across dedicated systems, or IT administrators performing maintenance and monitoring tasks, it provides effortless access to all connected devices.

Stunning 8K60Hz or 4K120Hz Video Performance for Modern Applications

The HDMI output supports resolutions up to 8K UHD at 60 Hz and 4K at 120 Hz, delivering exceptional image quality for modern computing, gaming, professional AV applications, and high-resolution content creation. With bandwidths up to 48 Gbps, the switch provides the performance required for today's most demanding video applications. Dynamic HDR technology enhances contrast, brightness, and color accuracy, producing vivid, lifelike images and a more immersive viewing experience.

Integrated USB Hub for Shared Peripherals

Dedicated USB ports for keyboard and mouse are complemented by additional USB-A and USB-C hub ports with transfer speeds up to 5 Gbps. This allows convenient sharing of storage devices, printers, scanners, and other USB peripherals between all connected computers, eliminating the need to reconnect accessories when switching systems. Broad operating system compatibility ensures seamless integration with Windows, macOS, ChromeOS, Linux, and virtually any HDMI-equipped computer.

Compact Metal Housing with Enhanced Reliability

Designed for everyday professional use, the compact desktop form factor fits easily into any workspace while the rugged metal housing provides long-lasting durability. Built-in ESD protection helps safeguard the switch and connected equipment from electrostatic discharge, enhancing reliability and protecting sensitive electronics. Combining support for four computers, stunning 8K video performance, high-speed USB peripheral sharing, and effortless switching, this HDMI KVM switch is an ideal solution for efficient multi-system workstations.

Controls four HDMI and USB-A equipped computers from a single keyboard, mouse, and monitor
Switching via front-panel buttons or included wired remote control
One HDMI single-monitor output with resolutions up to Ultra-High-Definition (UHD) 8K@60Hz or 4K@120Hz
Compatible with any operating system including Windows, macOS, ChromeOS, and Linux
Two USB-A ports for mouse and keyboard, one additional USB-A and one USB-C as hub ports, all with 5 Gbps, to connect storage drives, printers, scanners, and more
Dynamic HDR for superior contrast and brilliant colors
Bandwidth up to 48 Gbps
Ideal for switching between personal and work computers, gaming and a video editing computers, or for IT admins managing two systems during maintenance tasks
Compact desktop format with rugged metal housing
Built-in ESD protection prevents damage from static electricity
Fully HDCP 2.3 compliant, backward compatible
Fully NDAA-compliant
Note: Does not include HDMI cables (available separately from Manhattan)
Three-year warranty

USB 3.2 Gen 1 (USB 3.0)
FCC
Console ports
Computer/host ports
Other
Resolutions: 7680x4320, 5120x2880, 5120x2160, 4096x2160, 3840x2160, 5120x1440, 3440x1440, 2560x1440, 2560x1080, 1920x1200, 1920x1080; other resolutions may be supported
MTBF: 423,282 hours
Impedance: 100 Ohm
Power consumption: 12.0 W (max.)
PC 1
PC 2
Metal housing
Dimensions (L x W x H): 129 x 62 x 29 mm (5.08 x 2.44 x 1.14 in.)
Net weight: 570 g (1.26 lbs.)
Gross weight: 630 g (1.39 lbs.)
Operation temperature: -5 to 70°C (23 to 158°F)
Storage temperature: -10 to 75°C (14 - 167°F)
Humidity (non-condensing): 5 to 90% RH
8K@60Hz: Input cable up to 1.5 m (5 ft.), output cable up to 1.5 m (5 ft.), 24 AWG
8K@30Hz: Input cable up to 2 m (7 ft.), output cable up to 2 m (7 ft.), 24 AWG
4K@60Hz: Input cable up to 3 m (10 ft.), output cable up to 3 m (10 ft.), 26 AWG
4K@30Hz: Input cable up to 10 m (33 ft.), output cable up to 10 m (33 ft.), 26 AWG
1080p@60Hz: Input cable up to 15 m (50 ft.), output cable up to 15 m (50 ft.), 26 AWG

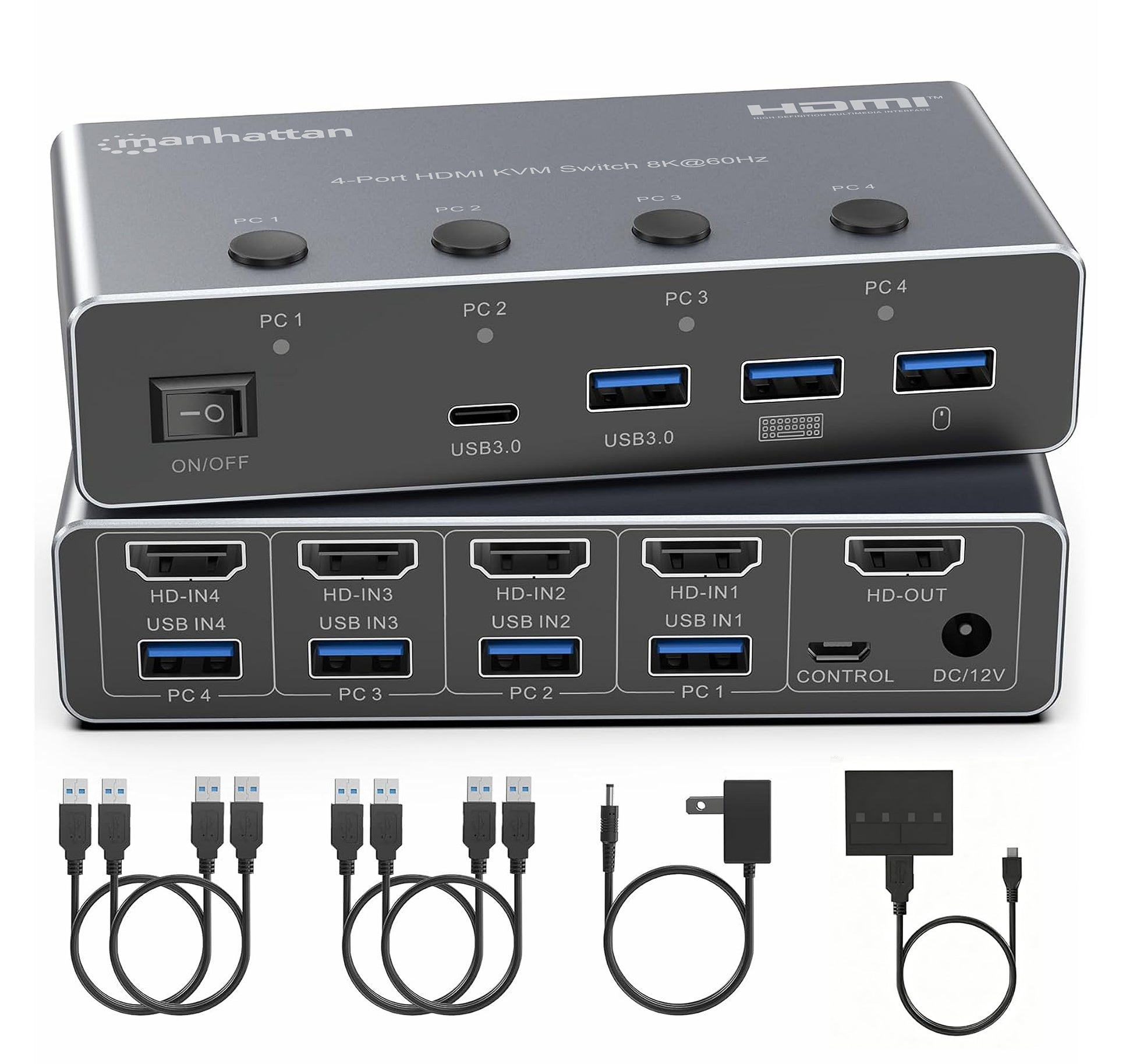

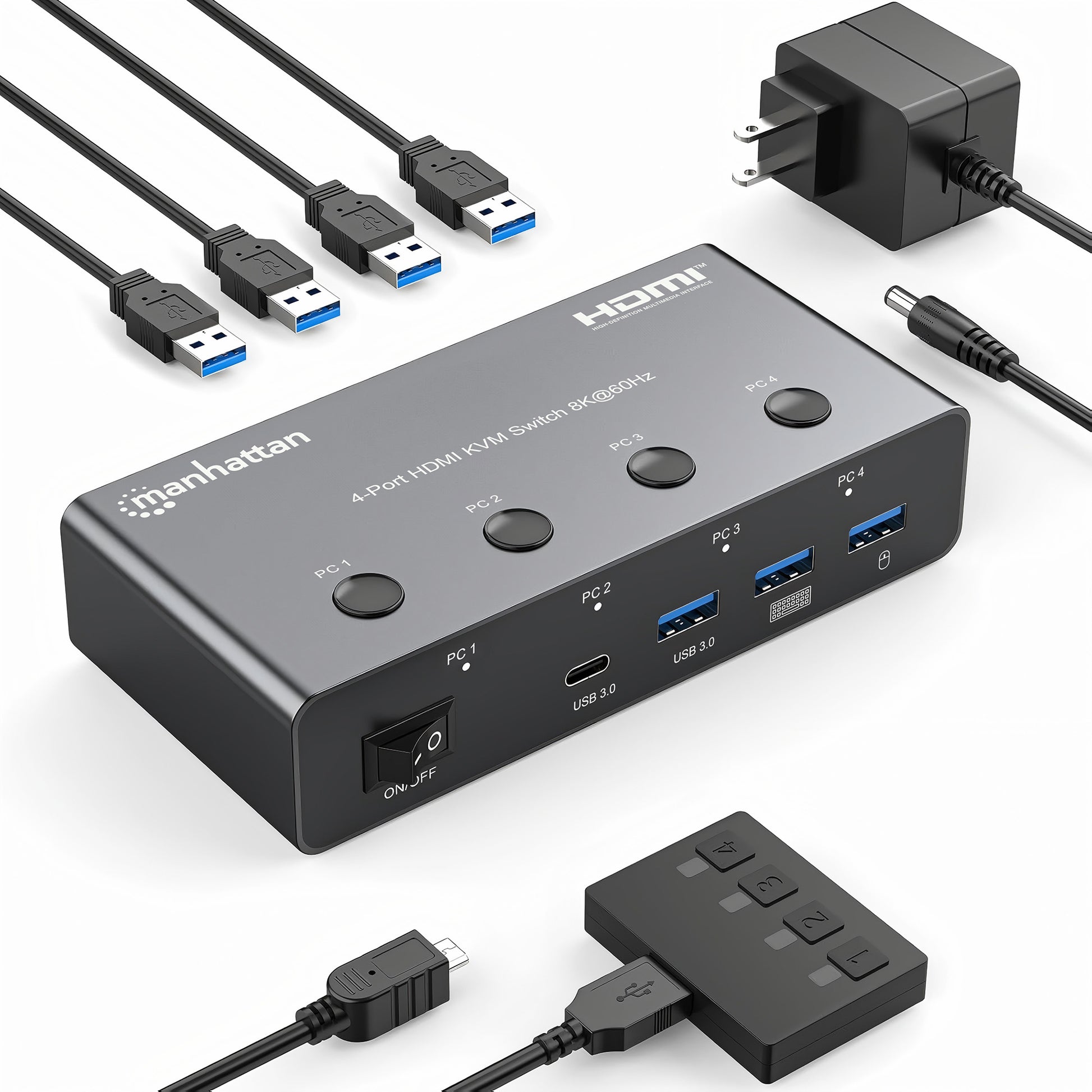

4-Port HDMI KVM Switch 8K@60Hz
4 x USB-A male to USB-A male connection cable, 1 m (3 ft.), 5 Gbps
DC Power adapter, 1.2 m (4 ft.) cable
Wired remote control with Micro-USB connection, 1.5 m (5 ft.) cable
Instructions
