Manhattan

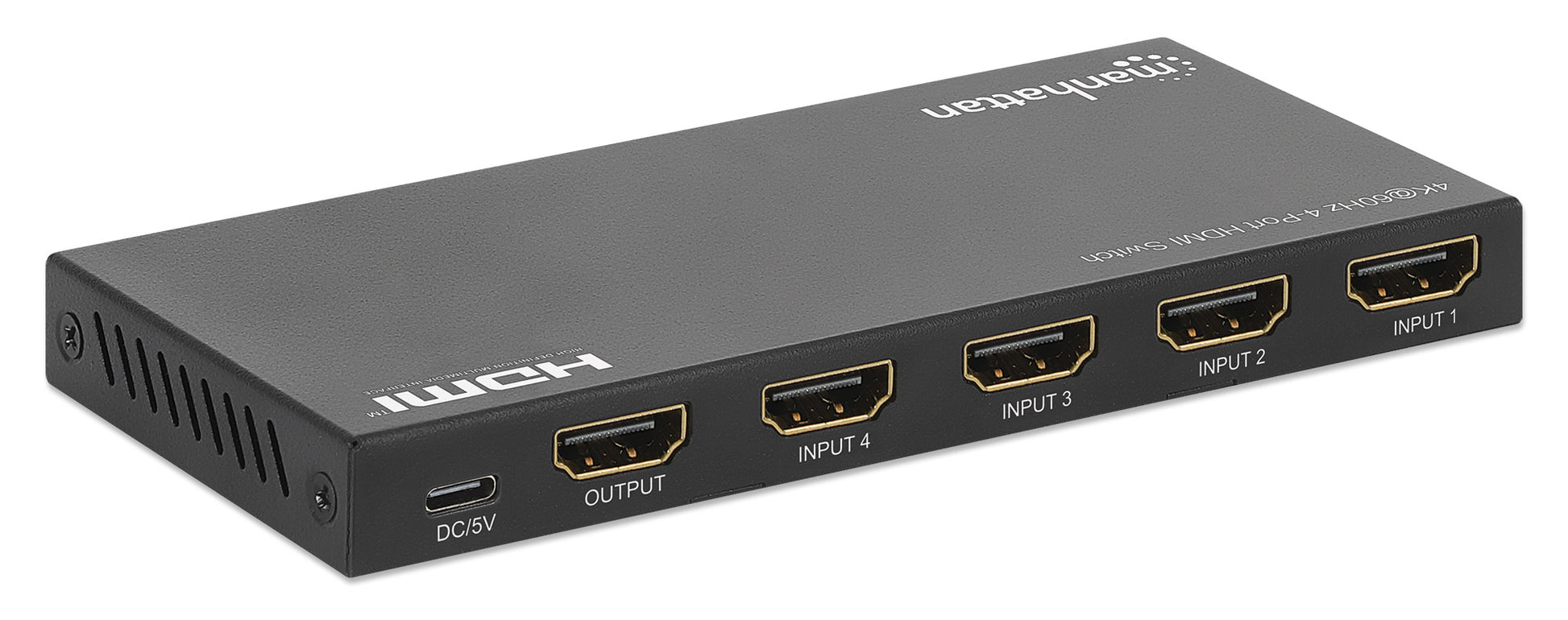

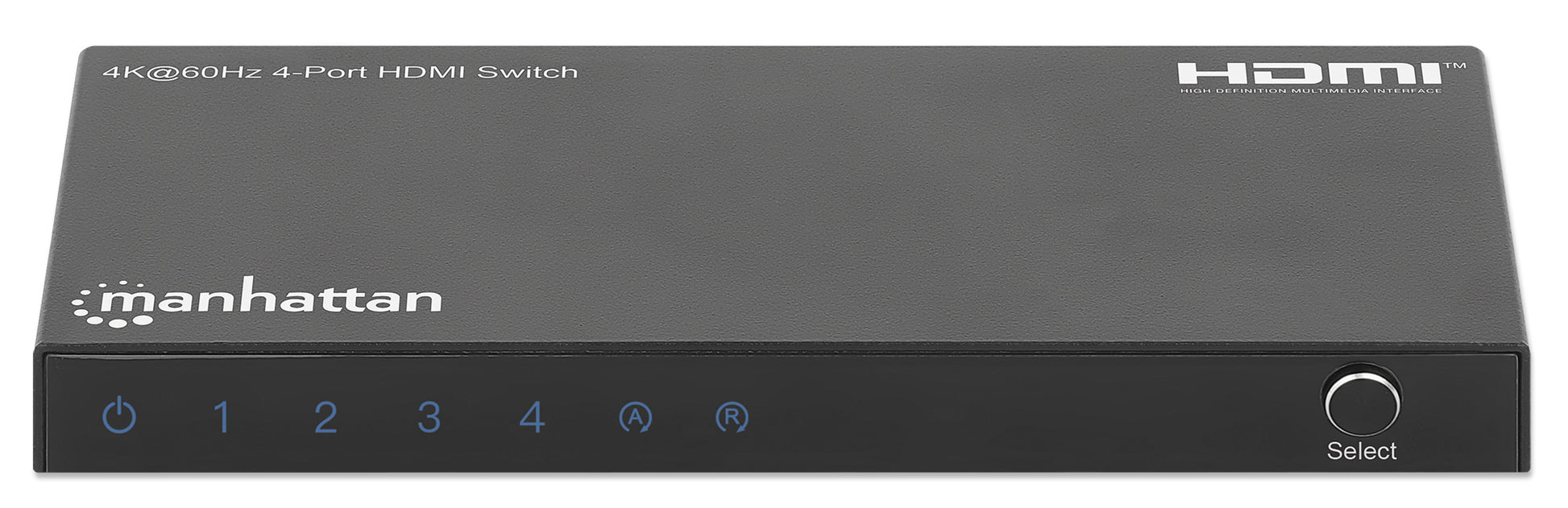

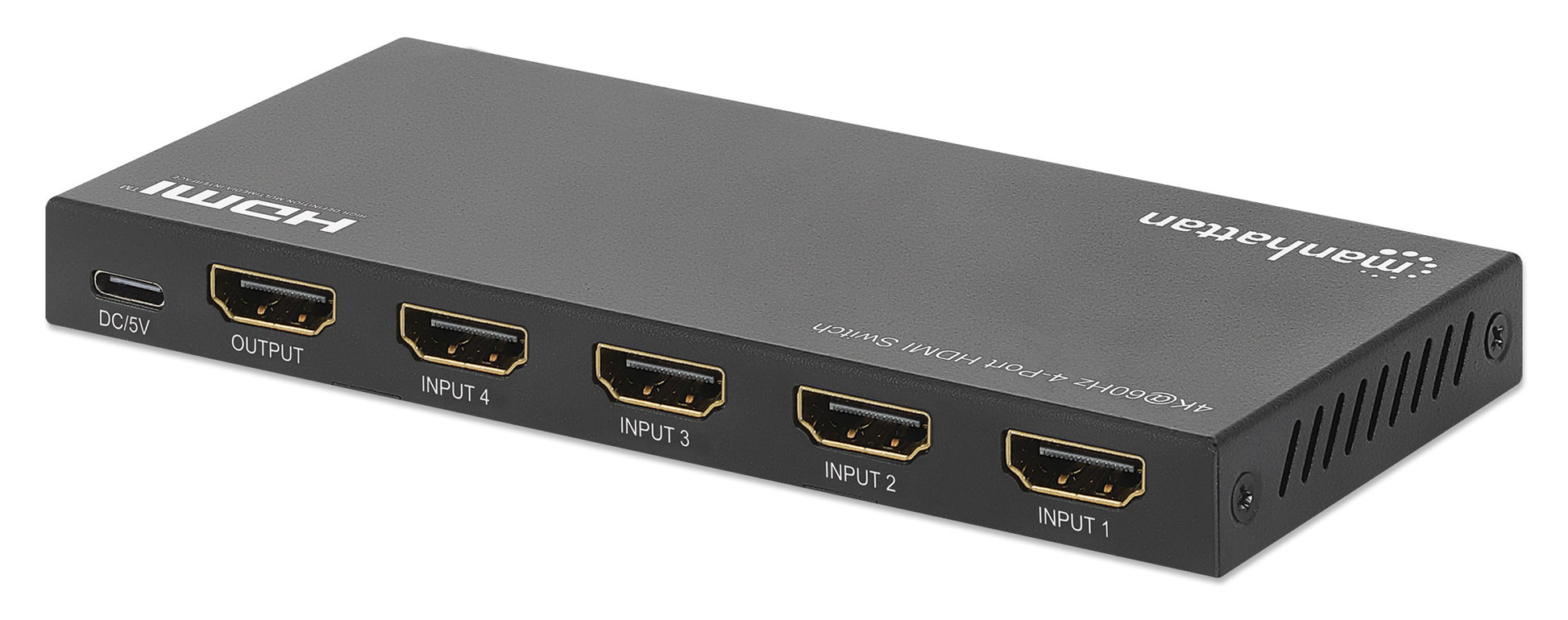

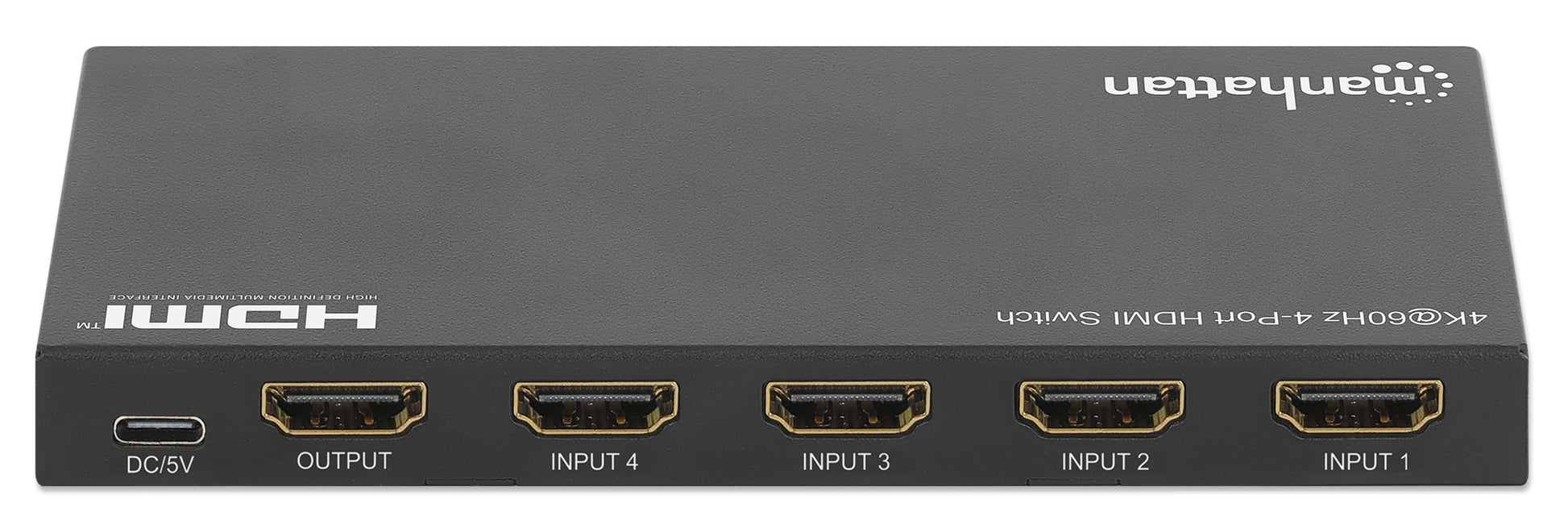

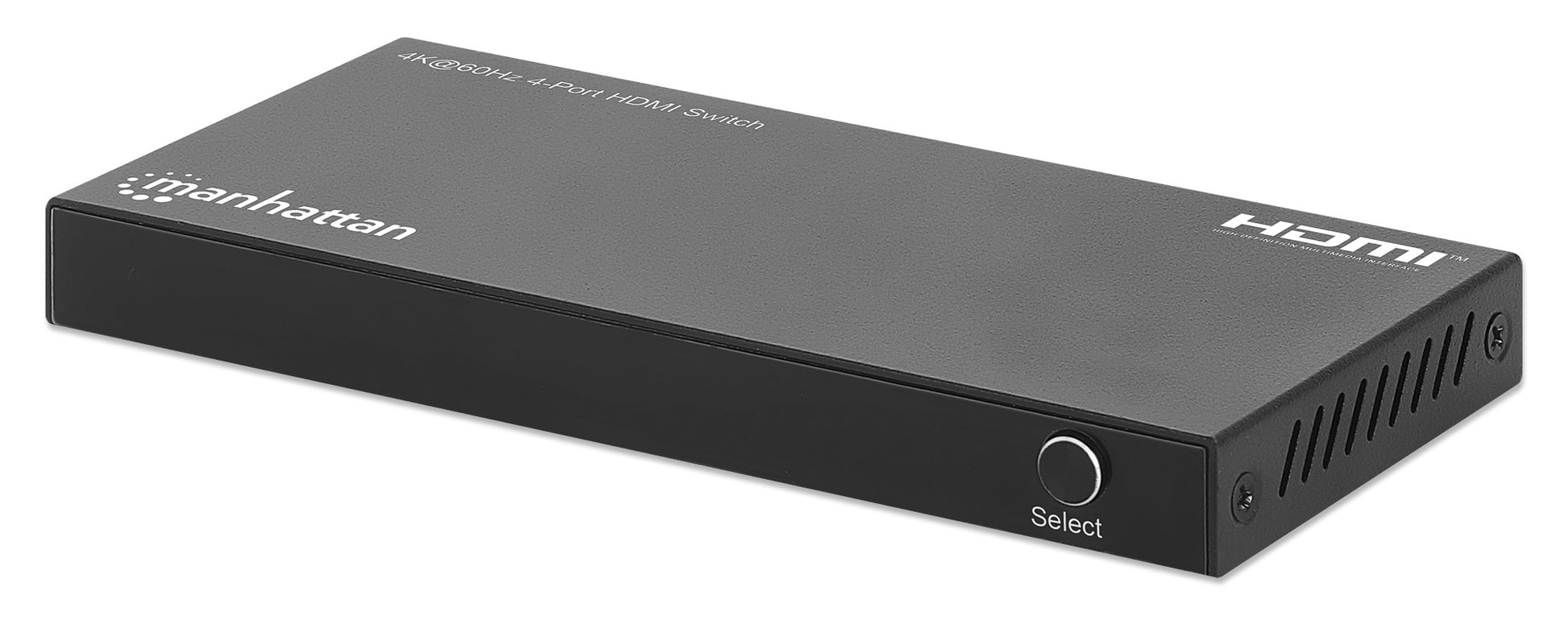

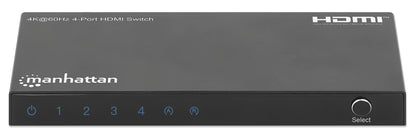

4K@60Hz 4-Port HDMI Switch

Switches Between Four HDMI Inputs on One HDMI Output (4x1), 18G, IR Remote Control, Black

Highlights

Switches between four HDMI audio/video source signals on a single display
Supports resolutions up to Ultra-High-Definition (UHD) 4K@60Hz (3840x2160)
High Dynamic Range (HDR) for superior contrast and brilliant colors

SKU: 208581

[ view high resolution images ]

4-Port HDMI 2.0 Switcher with 4K at 60Hz to easily connect multiple sources to a single display

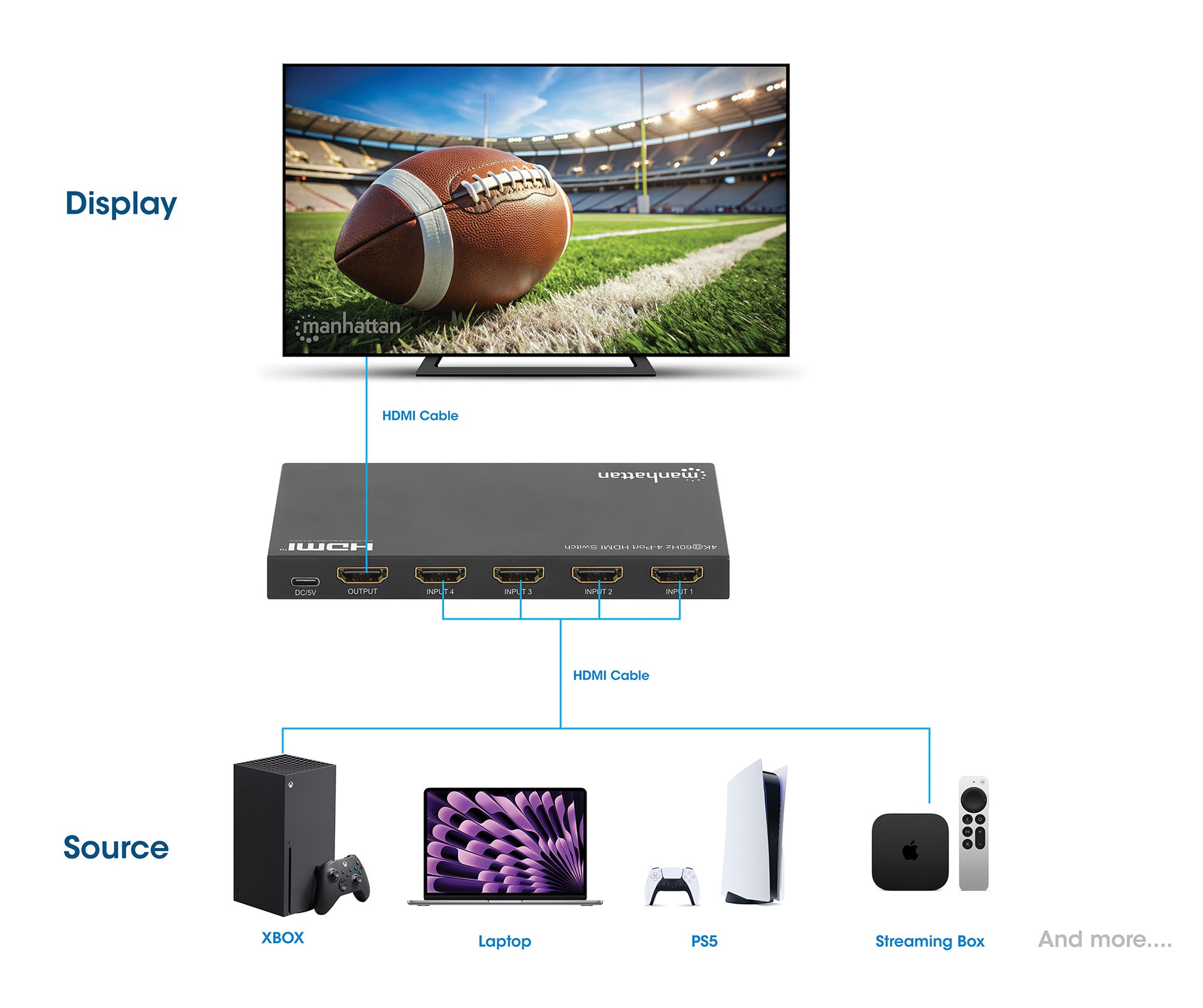

The compact Manhattan 4K@60Hz 4-Port HDMI Switch lets you share an HDMI TV or projector with four HDMI sources without distorting or degrading your video. It features four independent video inputs that can each support 4K resolution at 60 Hz, making it the perfect solution for connecting and watching either video source on a display that has only one available HDMI port.

Brilliant colors and contrast with HDR and Dolby Vision

This switch delivers images in stunning 4K (3840x2160) at rapid 60 Hz Dynamic HDR and Dolby Vision for perfect contrast and colors. With full 4:4:4 chroma subsampling, it does not compress the signal to work at inferior bitrates. It can transmit bandwidths up to 18 Gbps for high-resolution tasks.

Easy installation and wide compatibility

Full compliance with HDMI 2.0 and HDCP 2.3 ensures that this 4-way Switch can provide reliable performance. Quickly connect HDMI 2.0 cables (not included) and the USB-C power cable to complete this affordable High-Definition, 4K HDMI solution - no software/hardware configuration or complicated settings required. Full backward compatibility with 4K@30Hz, 1080p, and 720p displays ensures that it will work with any HDMI source or destination device. This 4K Switch is great for digital signage applications, where you want to display multiple source devices at different times or for sharing a high-end projector between multiple high-end sources.

Effortless operation with automatic or manual switching

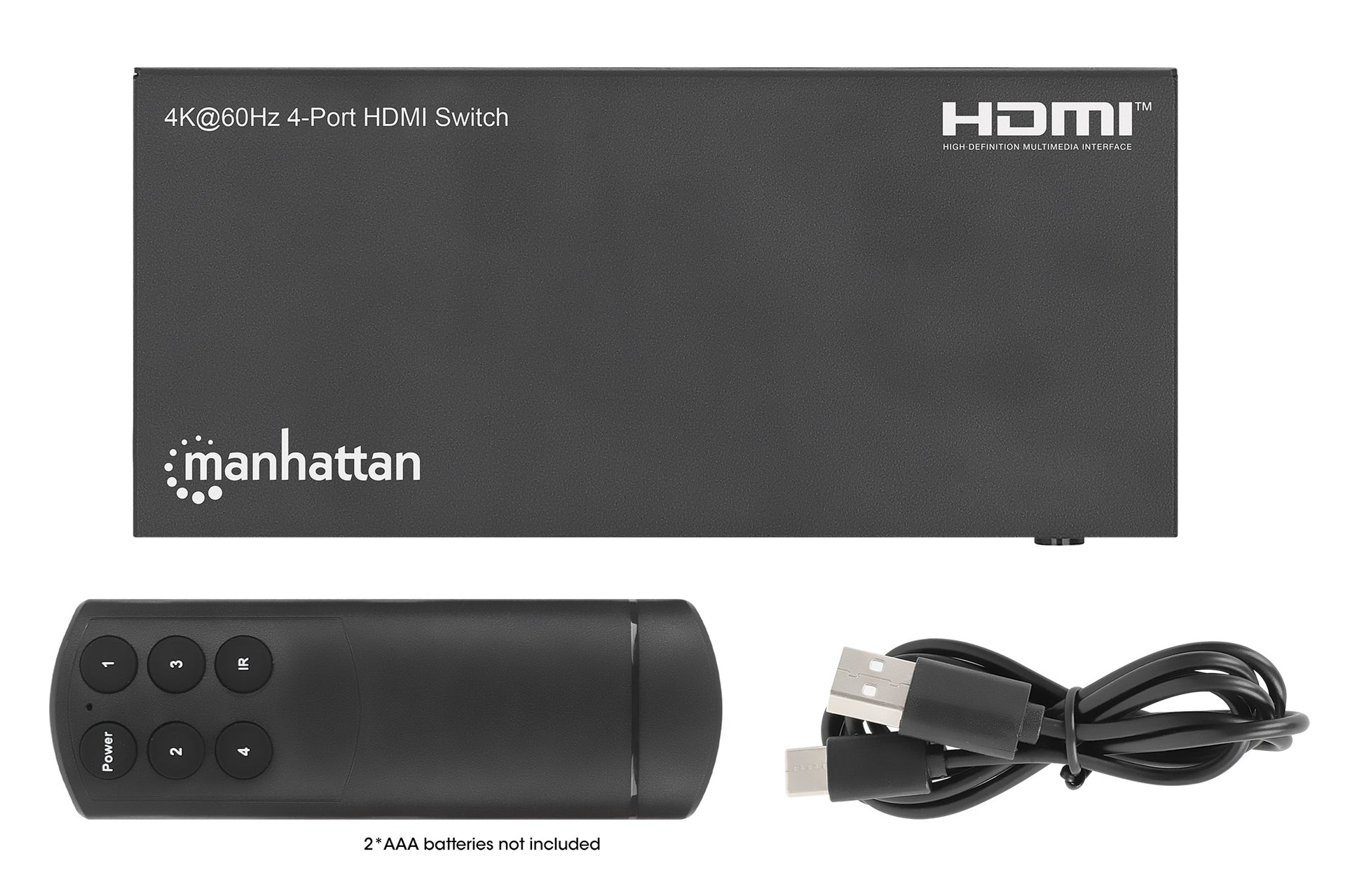

This switch ensures effortless operation with automatic switching that detects and selects a newly connected device, which is also useful when the unit is required to be out of sight. It supports manual operation too, using the included IR remote control or the built-in front panel toggle switch.

Switches between four HDMI audio/video source signals on a single display
Supports resolutions up to Ultra-High-Definition (UHD) 4K@60Hz (3840x2160)
High Dynamic Range (HDR) for superior contrast and brilliant colors
Supports Dolby Vision™ and Dolby Atmos®
Gold-plated contacts for corrosion-free connections
Up to 18 Gbps total bandwidth with 6 Gbps per channel at 600 MHz
Fully backward compatible with 4K@30Hz, 1080p, and 720p displays
4:4:4 chroma subsampling for true color accuracy and maximum sharpness
Supports source switching via IR remote control or manual switching with the push of a button
Supports compressed DTS-HD Master Audio, uncompressed LPCM 8 channel (7.1 surround sound) audio and Dolby TrueHD as well as 32-channel audio
Compatible with every HDMI device - TVs, projectors, monitors, notebooks, PCs, AV receivers, streaming boxes, game consoles, PlayStation® (PS4/PS5), Xbox® (One/Series S/Series X), Blu-ray players and more
Plug-and-play installation; no configuration required
Fully HDCP 2.3 compliant, backward compatible
Rugged metal housing for maximum durability
Rubber feet for non-slip desktop use
USB-A to USB-C power cable included (requires 5V/1A USB-A port on TV or wall charger, no power supply included)
Fully NDAA-compliant
Three-year warranty
