Manhattan

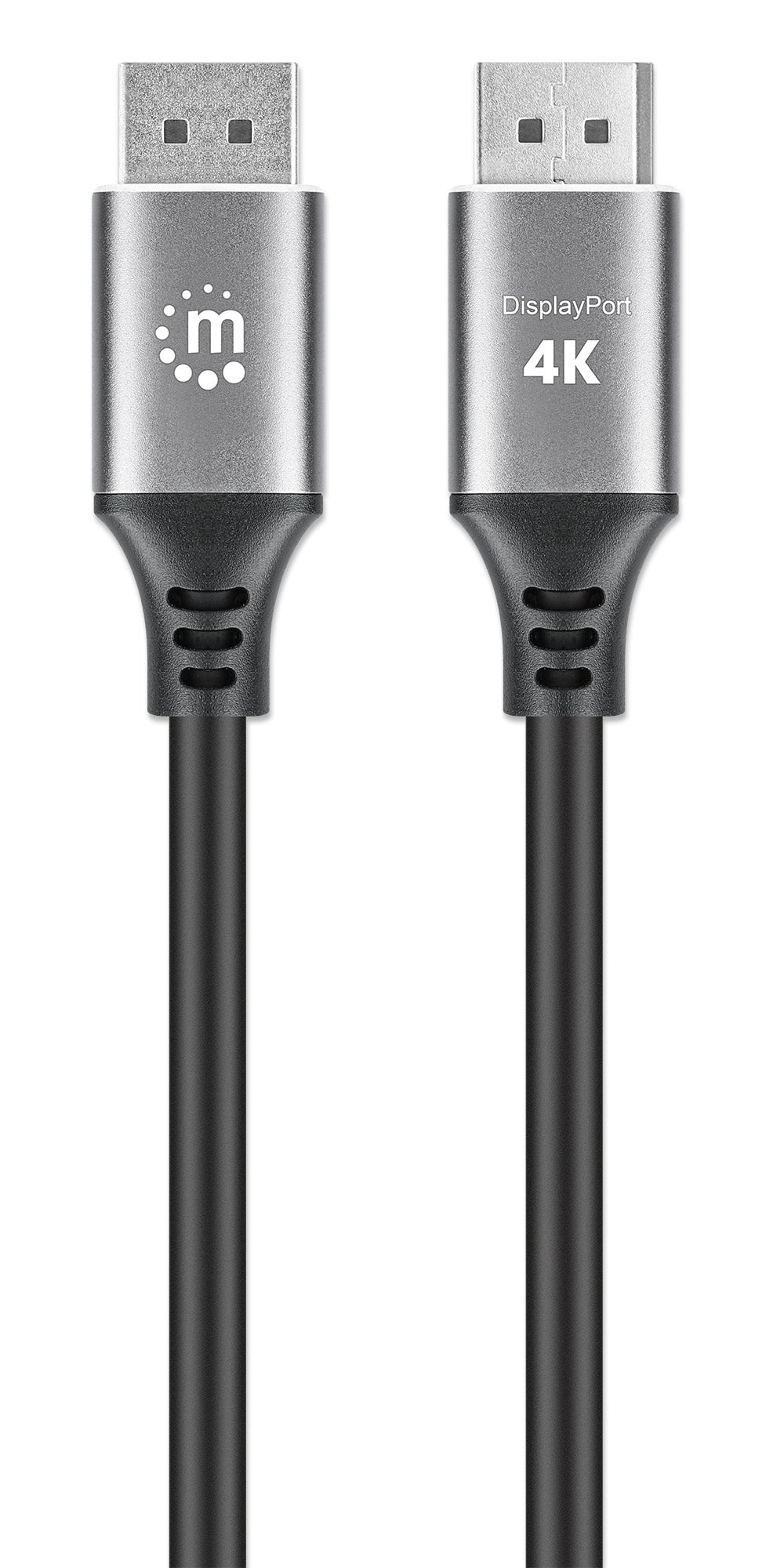

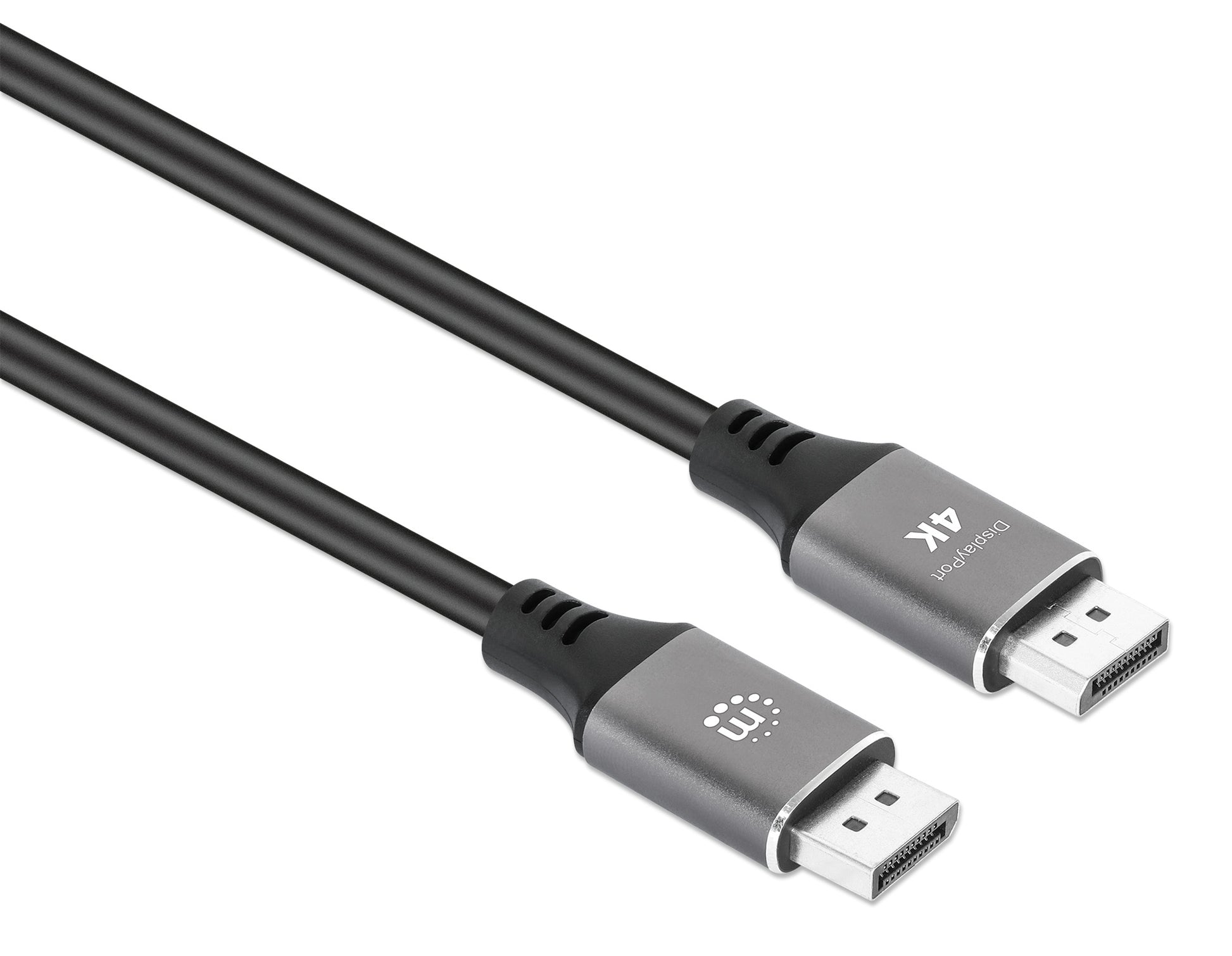

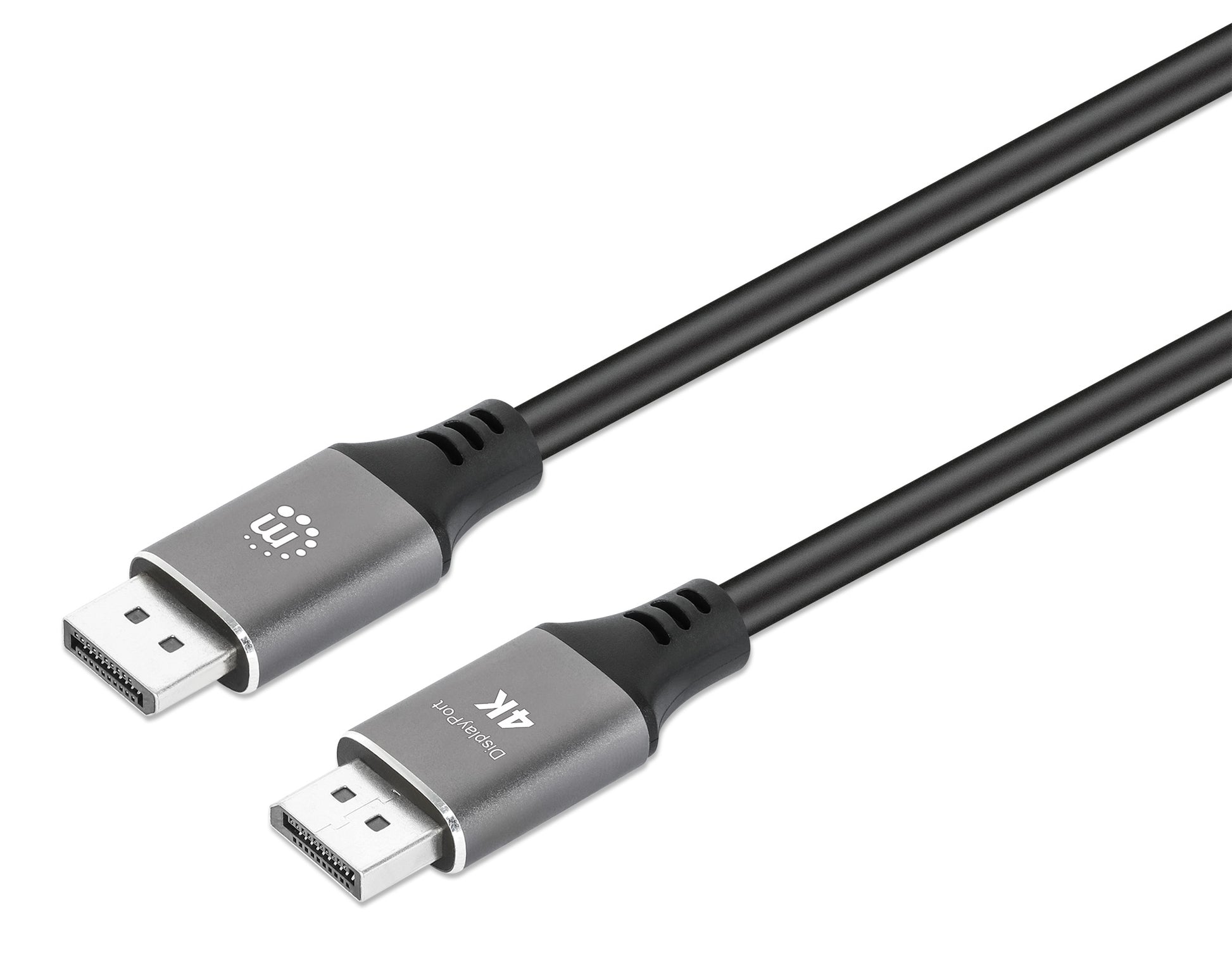

4K@60Hz DisplayPort Monitor Cable, 1 m

DisplayPort Male to Male, Double Shielding, 1440p@144Hz, PVC Jacket with Latches, Black

Highlights

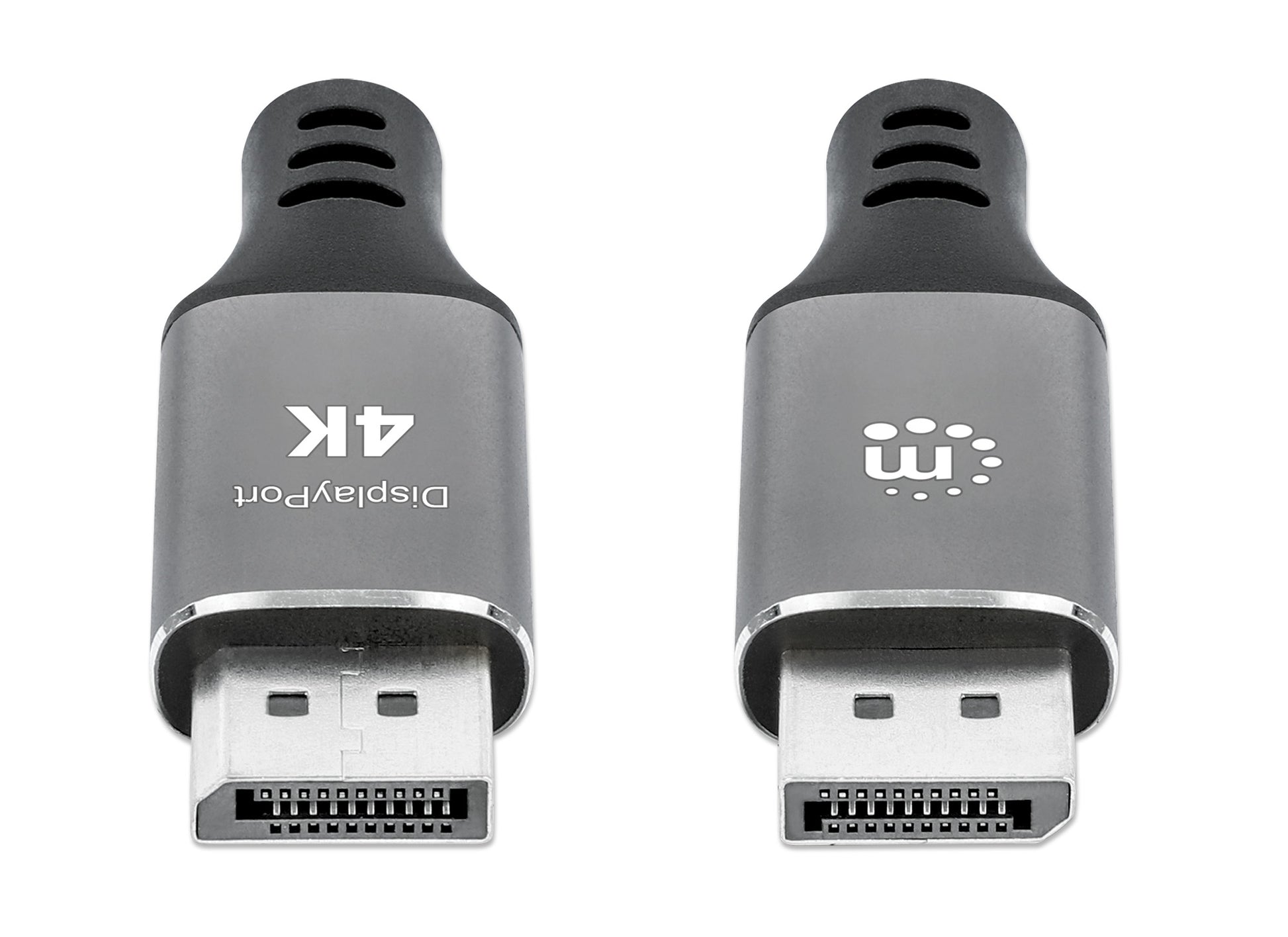

DisplayPort 20-pin male to DisplayPort 20-pin male latching connections

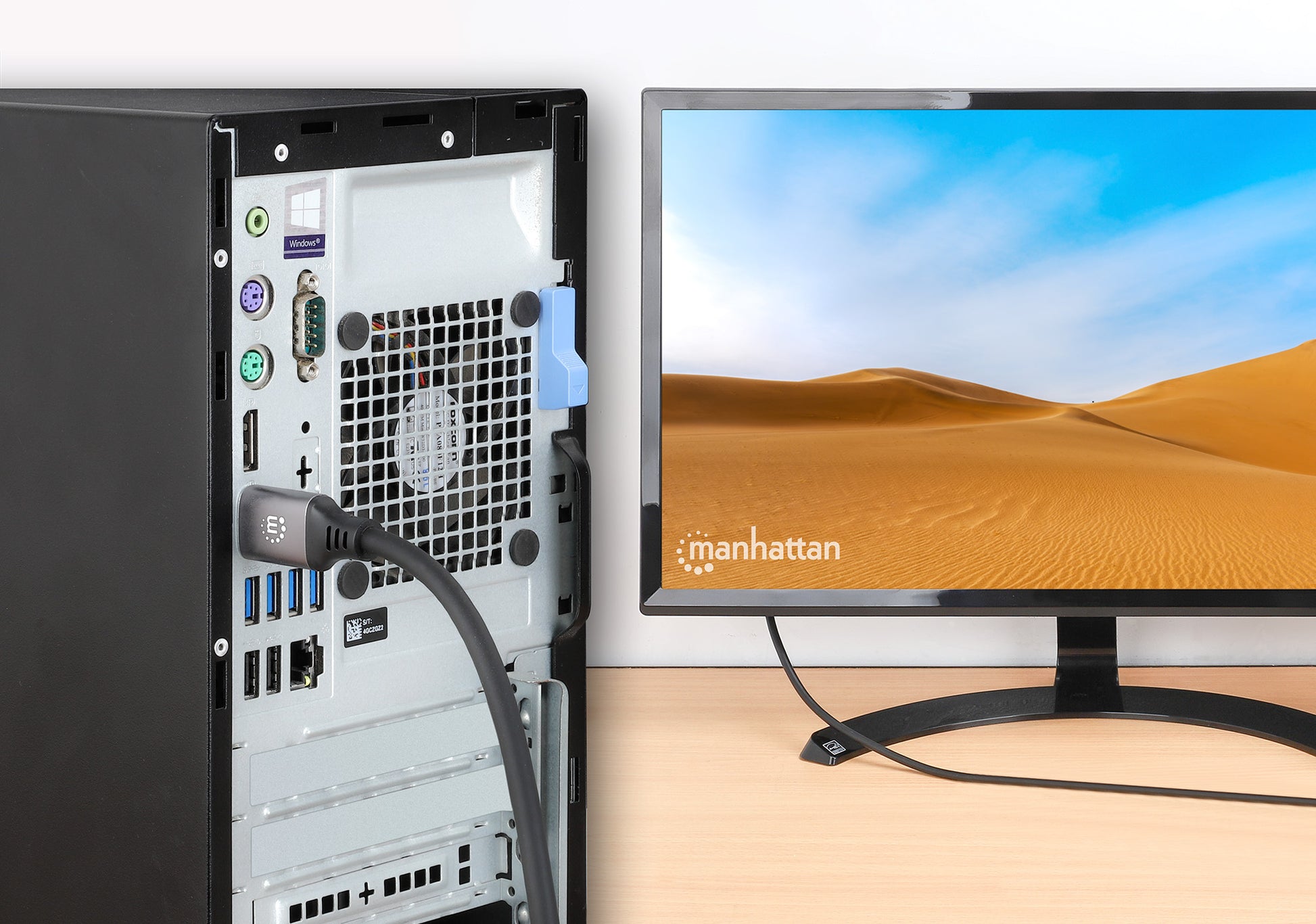

Connects a PC to a DP-enabled display with resolutions up to 4K@60Hz UHD (3840 × 2160)
Foil and braid double shielding to reduce EMI and other interference sources

SKU: 356794

[ view high resolution images ]

High-definition performance for personal computing

Manhattan DisplayPort Cables provide a single-cable solution that delivers both high-definition digital audio and video signals between desktop and notebook computers and an output device. With 21.6 Gbps bandwidth (HBR2), DeepColor and 24-bit, 8-channel uncompressed audio capability, the 20-pin connector is small, compact and ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

DisplayPort 20-pin male to DisplayPort 20-pin male latching connections
Connects a PC to a DP-enabled display with resolutions up to 4K@60Hz UHD (3840 × 2160)
Foil and braid double shielding to reduce EMI and other interference sources
Supports Multi-Stream Transport (MST) to daisy-chain multiple displays
Up to 21.6 Gbps bandwidth
Uncompressed 8-channel audio
Fully compliant with DisplayPort High Bit Rate 2 (HBR2)
Molded PVC boot
Lifetime warranty

CE
RoHS
REACH
UKCA
DisplayPort 1.2
DisplayPort 20-pin male with latches (2)
Nickel plated contacts
Molded PVC boot
28 AWG
Shielding: aluminum and braid
Withstanding voltage: 300 VDC
Insulation resistance: 5 MΩ
Contact resistance: 10 Ω
PVC jacket
Length: 1 m
Net weight: 69 g
Gross weight: 96 g
4K@60Hz DisplayPort 1.2 Monitor Cable
