Manhattan
8K@60Hz DisplayPort Monitor Cable, 1 m
8K@60Hz DisplayPort Monitor Cable, 1 m
DisplayPort Male to Male, HDR, Gold-plated Contacts, Triple Shielding, 4K@144Hz, PVC Jacket with Latches, Black
Highlights
- Two latching 20-pin DisplayPort males to connect a PC to a DP-enabled display
- State-of-the art, future-proof features for high-end gaming and AV applications
- Supports resolutions up to 8K@60Hz, 4K@144Hz, 1440p@165Hz (WQHD) or 1080p@240Hz
SKU: 356817
[ view high resolution images ]
DisplayPort Cable featuring future-proof 8K@60Hz for high-end gaming and AV applications
The Manhattan DisplayPort Monitor Cable makes you ready for even the most demanding graphic challenges in gaming, digital signage and other high-end AV applications. Its superior DisplayPort 1.4 standard delivers images in brilliant 8K (7680 x 4320) at rapid 60 Hz or 4K UHD at blazing fast 144 Hz with HDR for perfect contrast and colors. The triple shielding and gold-plated contacts provide maximum conductivity as well as crisp, clear signal transmissions with zero EMI interference.
- Two latching 20-pin DisplayPort males to connect a PC to a DP-enabled display
- State-of-the art, future-proof features for high-end gaming and AV applications
- Supports resolutions up to 8K@60Hz, 4K@144Hz, 1440p@165Hz (WQHD) or 1080p@240Hz
- HDR for superior contrast and brilliant colors
- Supports Dolby Vision™ and Dolby Atmos®
- Gold-plated contacts for corrosion-free connections
- Triple shielded to reduce EMI and other interference sources
- Up to 32.4 Gbps bandwidth
- Unwired Pin 20 to prevent short circuits
- Supports Multi-Stream Transport (MST) to daisy-chain multiple displays
- Uncompressed 32-channel audio
- Fully compliant with DisplayPort High Bit Rate 3 (HBR3)
- Display Stream Compression 1.2 (DSC) for maximum resolution output
- HDCP 2.2 compliant
- Lifetime warranty
- Standards and Certifications
- CE
- RoHS
- REACH
- UKCA
- DisplayPort v1.4
- HDCP 2.2 Connectors

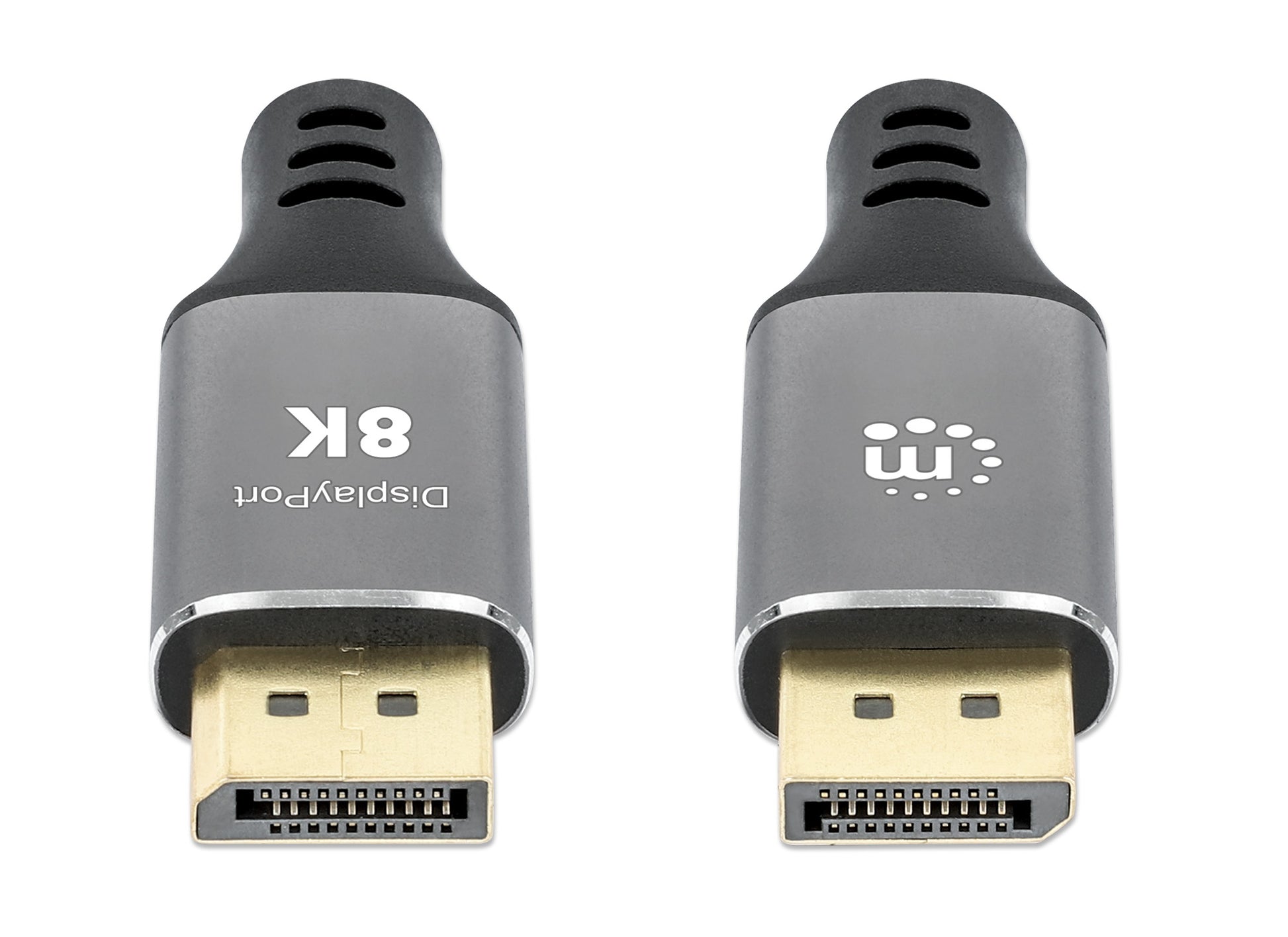

- Two DisplayPort 20-pin males with latches
- 19 conductors
- Gold-plated contacts
- ABS shell housing Cable
- 28 AWG
- Triple shielding: aluminum foil and braid
- Withstanding voltage: 300 VDC
- Insulation resistance: 5 MΩ
- Contact resistance: 10 Ω
- PVC jacket
- Length: 1 m
- Net weight: 68 g
- Gross weight: 93 g Operating Environment
- Operation temperature: 0 - 40°C (32 - 104°F)
- Storage temperature: -20 - 60°C (-4 - 140°F)
- Humidity (noncondensing): 0 - 96% Package Contents
- 8K@60Hz DisplayPort 1.4 Monitor Cable
Other Part Numbers
- Amazon ASIN: B0FHWZG88D
- EAN: 0766623356817
- UPC: 766623356817
Physical Specifications
- Weight: 0.07 kg
- Dimensions: 1 (L) x 0.02 (W) x 0.01 (H) [m]
- Carton Quantity: 100
- Carton Weight: 10.50 kg
