Manhattan

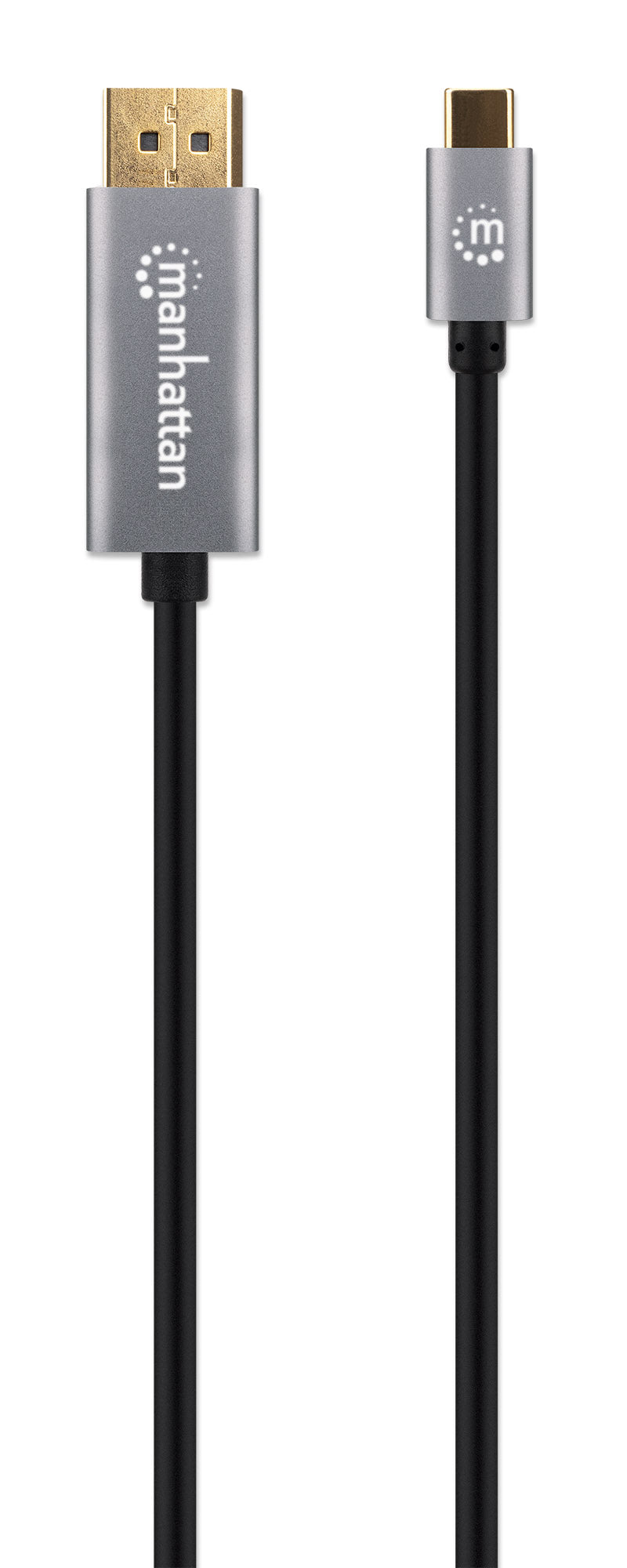

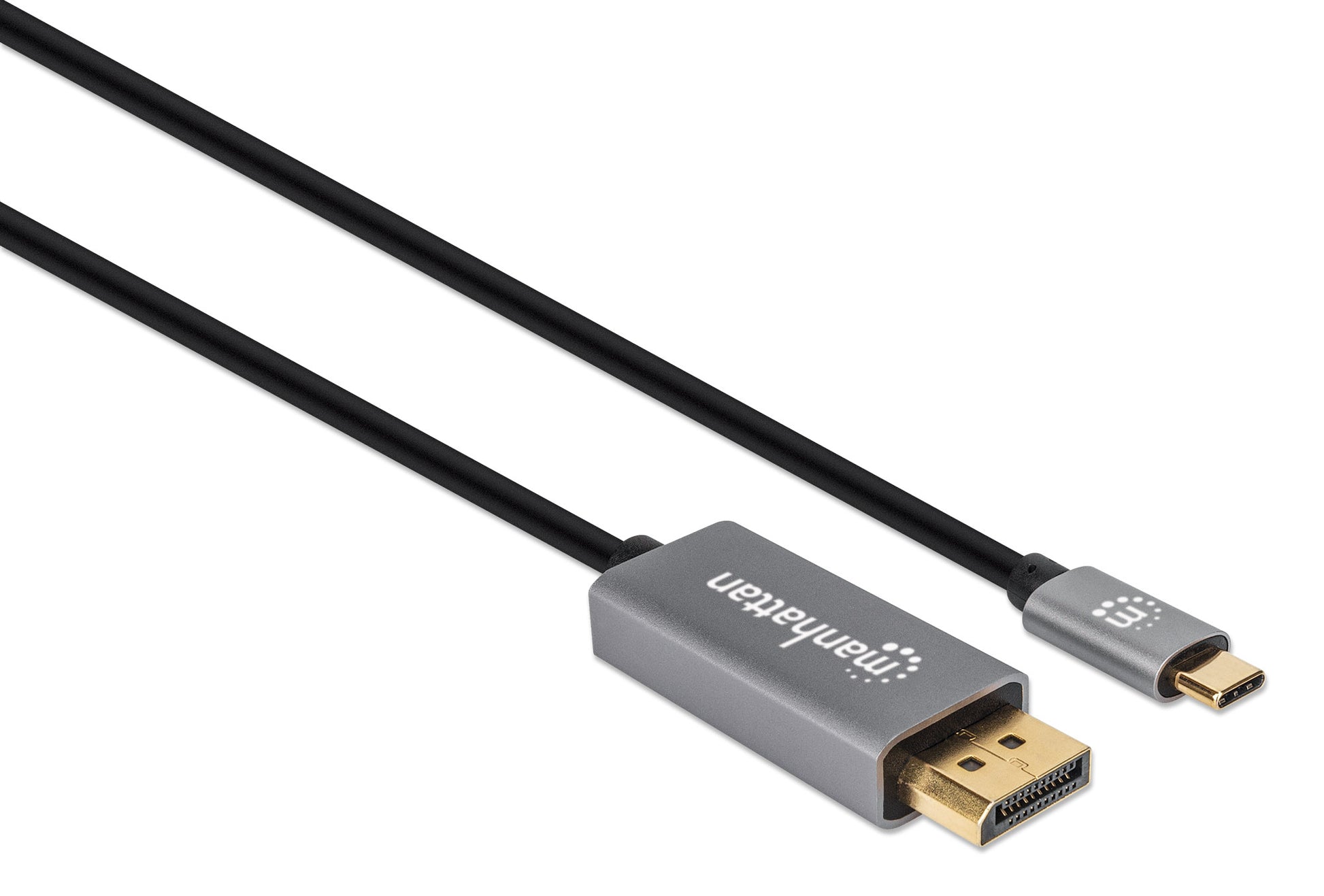

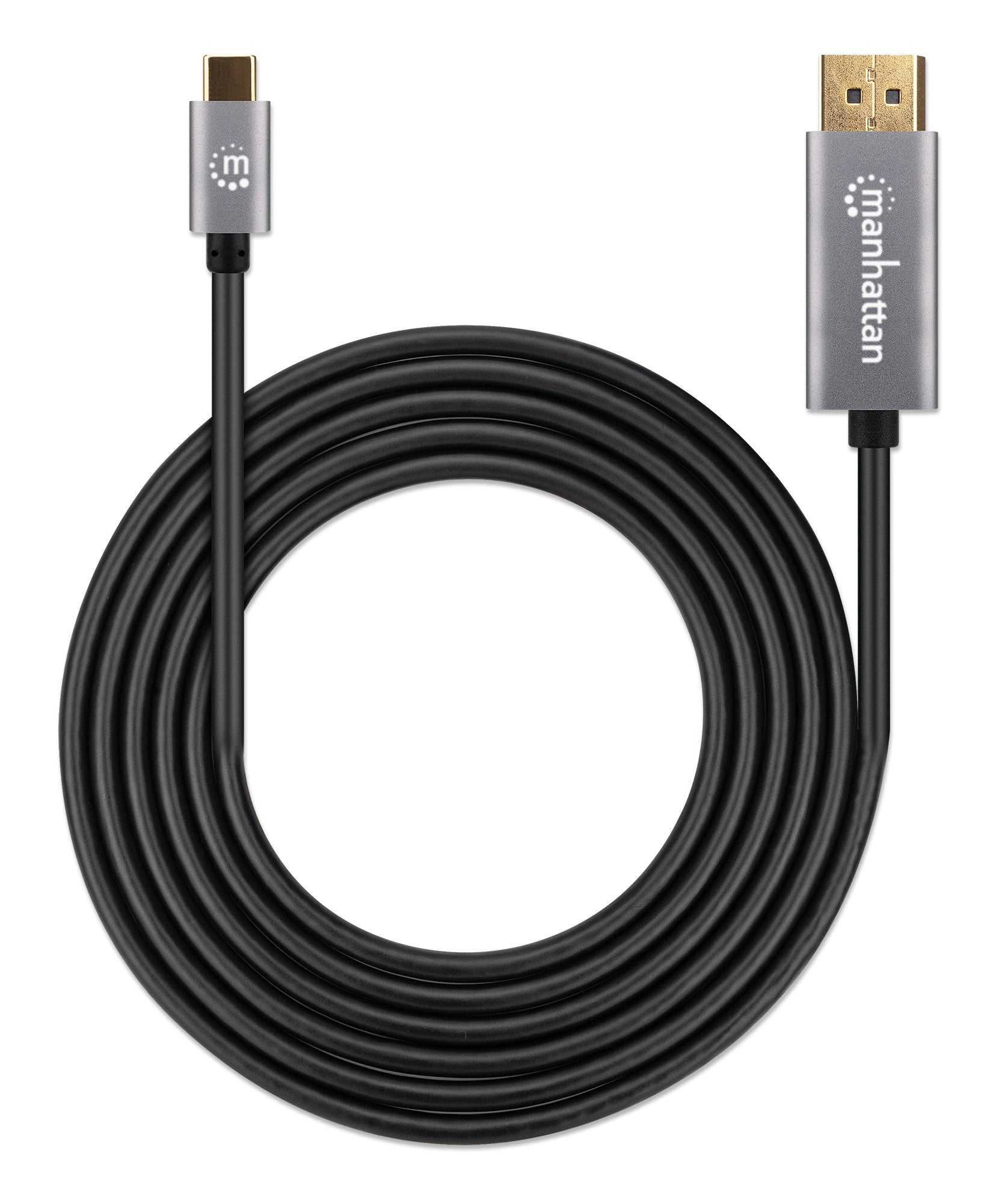

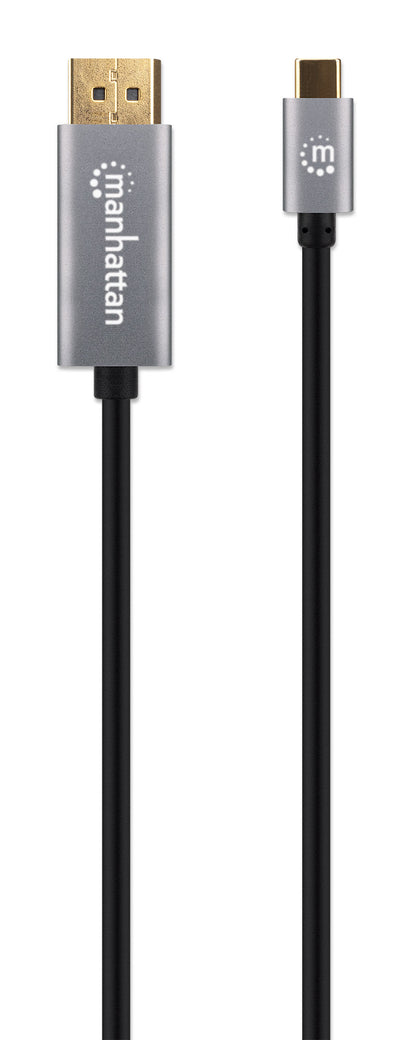

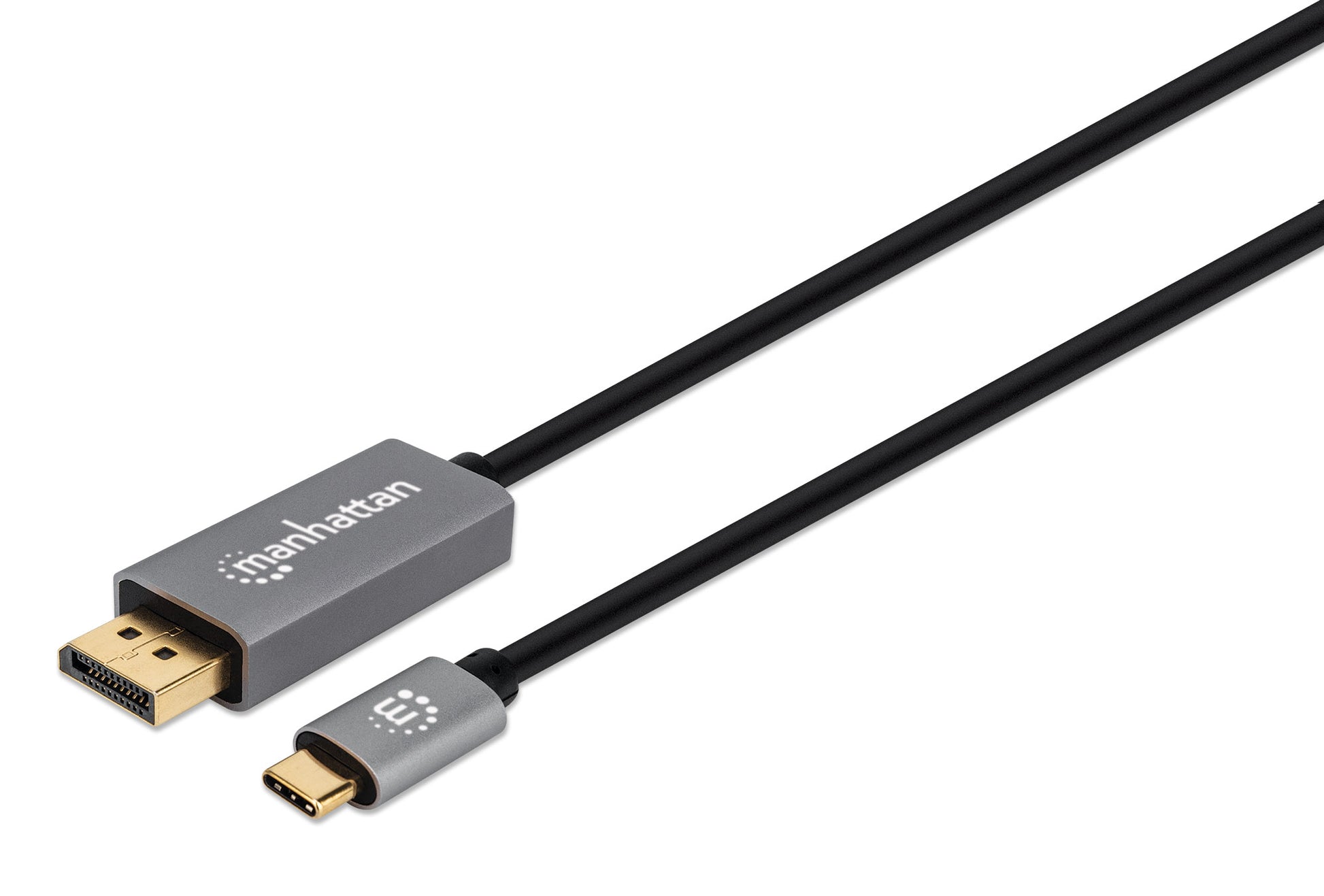

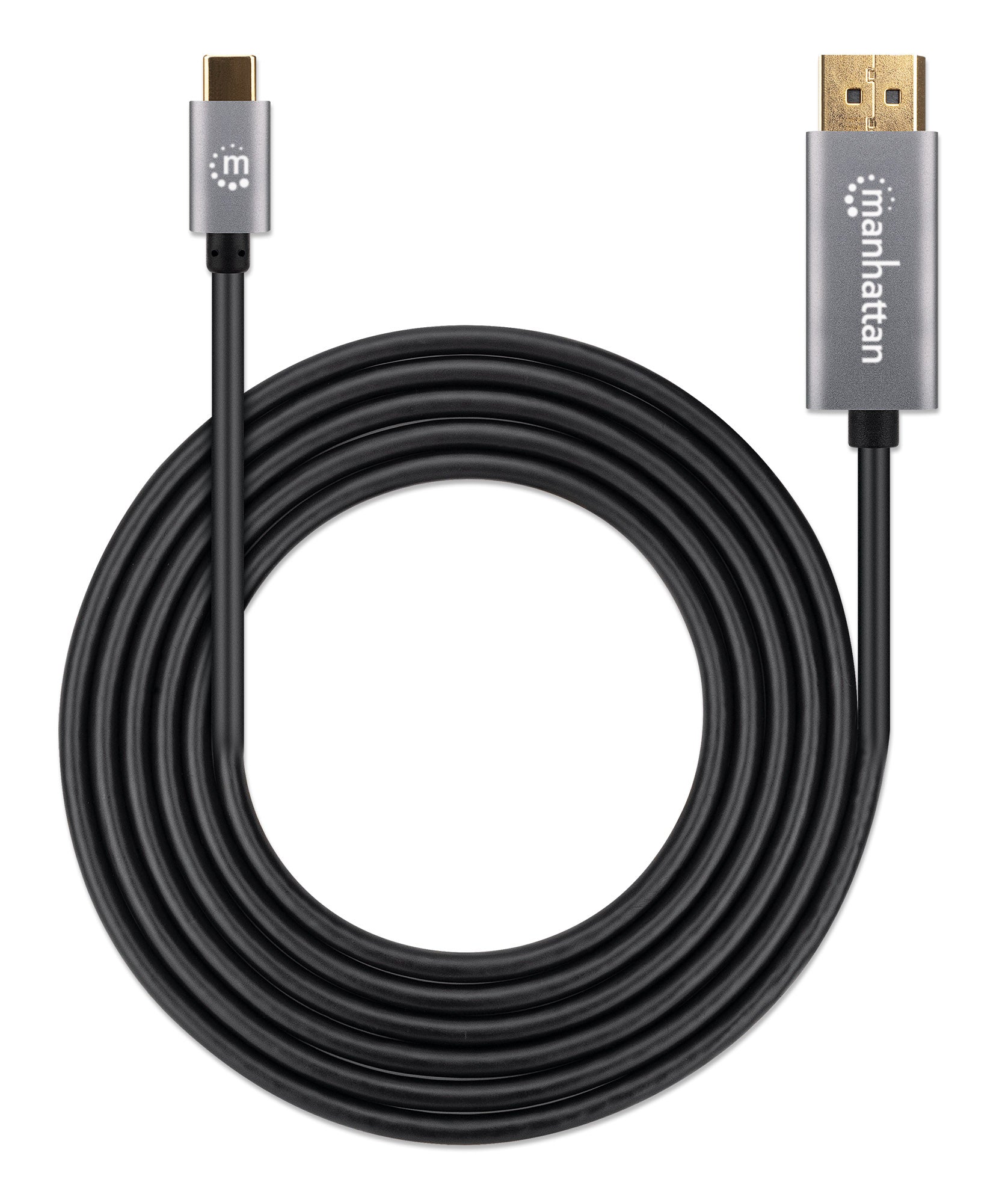

8K@60Hz USB-C to DisplayPort Monitor Cable, 2 m

8K@60Hz USB-C to DisplayPort Monitor Cable, 2 m

USB-C Male to DisplayPort Male, HDR, Gold-plated Contacts, Triple Shielding, 4K@120Hz, Black

Highlights

  • Connects a laptop or other USB-C device to a DP-enabled display
  • Supports resolutions up to 8K@60Hz, 4K@120Hz, 1440p@165Hz (WQHD) or 1080p@240Hz
  • Compatible with any USB-C device that supports DP Alt Mode, including phones, MacBooks®, Chromebooks™, tablets and more

SKU: 394987

NDAA Compliant
[ view high resolution images ]

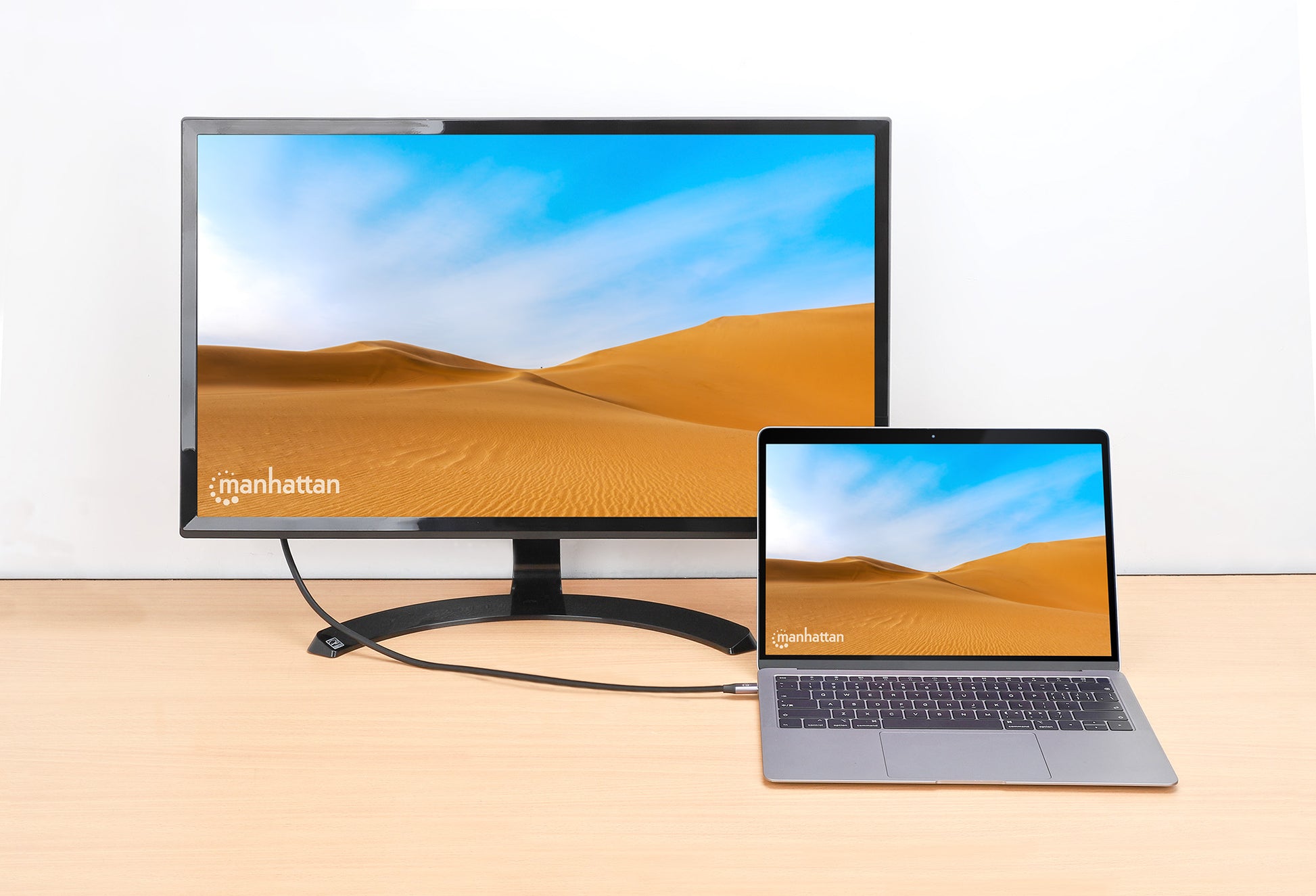

USB-C Laptop to DisplayPort Adapter Cable, 2m, to connect a notebook, MacBook®, smartphone or tablet to a DisplayPort monitor

If you own a modern laptop or MacBook, you've noticed the lack of AV ports to connect a display. The Manhattan DisplayPort Adapter Cable opens up your connectivity options to link to a DP monitor, TV or projector through your device's USB-C port. Its superior DisplayPort 1.4 standard delivers images in brilliant 8K (7680 x 4320) at rapid 60 Hz or 4K UHD at blazing fast 120 Hz with HDR10 for perfect contrast and colors. But it doesn’t end there – if you have a smartphone or tablet that supports DP Alt Mode, you can connect it and take content from your mobile device to the big screen. Triple shielding and gold-plated contacts provide maximum conductivity as well as crisp, clear signal transmissions with zero EMI interference.

  • Connects a laptop or other USB-C device to a DP-enabled display
  • Supports resolutions up to 8K@60Hz, 4K@120Hz, 1440p@165Hz (WQHD) or 1080p@240Hz
  • Compatible with any USB-C device that supports DP Alt Mode, including phones, MacBooks®, Chromebooks™, tablets and more
  • State-of-the art, future-proof features for high-end gaming and AV applications
  • HDR for superior contrast and brilliant colors
  • Thunderbolt™ 3/4 compatible
  • Up to 32.4 Gbps bandwidth
  • Gold-plated contacts for corrosion-free connections
  • Triple shielded to reduce EMI and other interference sources
  • Unwired Pin 20 to prevent short circuits
  • Supports Multi-Stream Transport (MST) to daisy-chain multiple displays
  • Uncompressed 32-channel audio
  • Fully compliant with DisplayPort High Bit Rate 3 (HBR3)
  • Display Stream Compression 1.2 (DSC) for maximum resolution output
  • Unidirectional design, can only connect from a USB-C source to a DP display
  • Three-year warranty

    Standards and Certifications
  • CE
  • RoHS
  • REACH
  • UKCA
  • DisplayPort v1.4

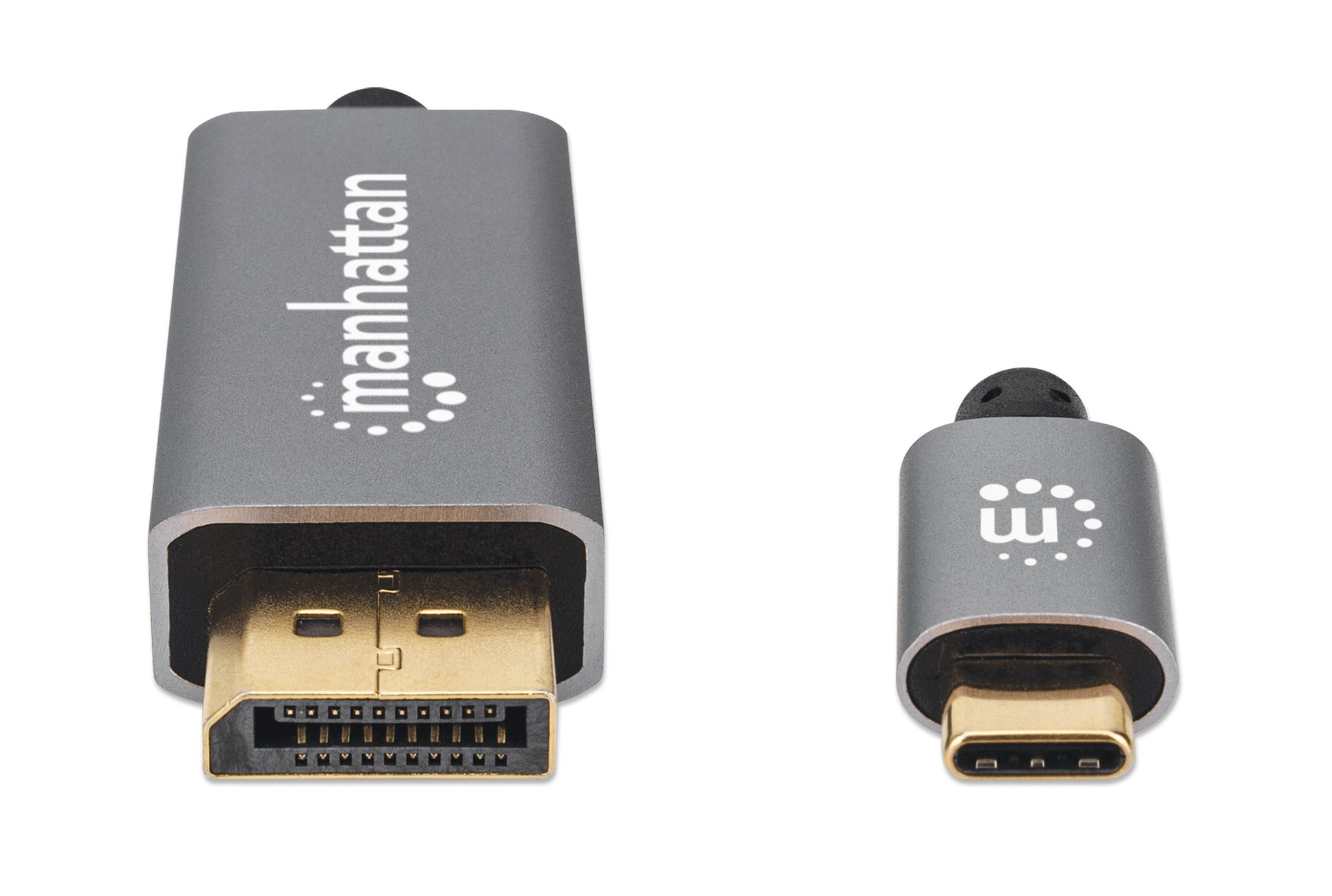

  • Connectors
  • One DisplayPort 20-pin male
  • One USB-C male
  • 19 conductors (DP)
  • Gold-plated contacts
  • Aluminum shell housing
  • Cable
  • 32 AWG
  • Triple shielding: aluminum and Mylar braid
  • Withstanding voltage: 300 VDC
  • Insulation resistance: 5 MΩ
  • Contact resistance: 10 Ω
  • Length: 2 m
  • Net weight: 85 g
  • Gross weight: 117 g
  • Operating Environment
  • Operation temperature: 0 - 40°C (32 - 104°F)
  • Storage temperature: -20 - 60°C (-4 - 140°F)
  • Humidity (noncondensing): 0 - 96%
  • Package Contents
  • 8K@60Hz USB-C to DisplayPort 1.4 Adapter Cable

  • Other Part Numbers

    • Amazon ASIN: B0FJ2W5JLD
    • EAN: 0766623394987
    • UPC: 766623394987

  • Physical Specifications

    • Weight: 0.09 kg
    • Dimensions: 2 (L) x 0.02 (W) x 0.01 (H) [m]
    • Carton Quantity: 40
    • Carton Weight: 5.30 kg

  • Datasheet
    • Datasheet     » Download

    • Declaration of Conformity     » Download


  • Manual
    • Quick Installation Guide     » Download
