Manhattan

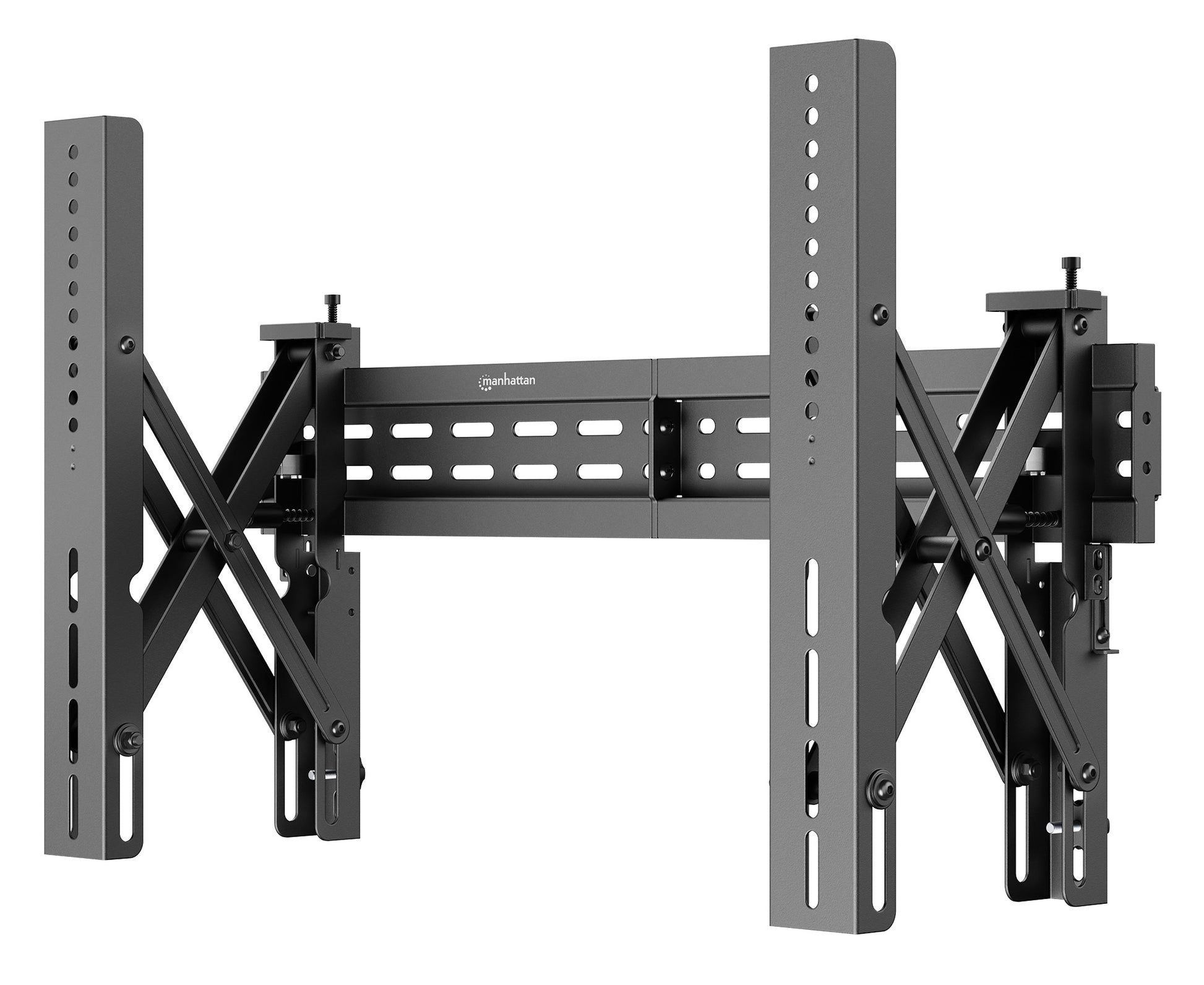

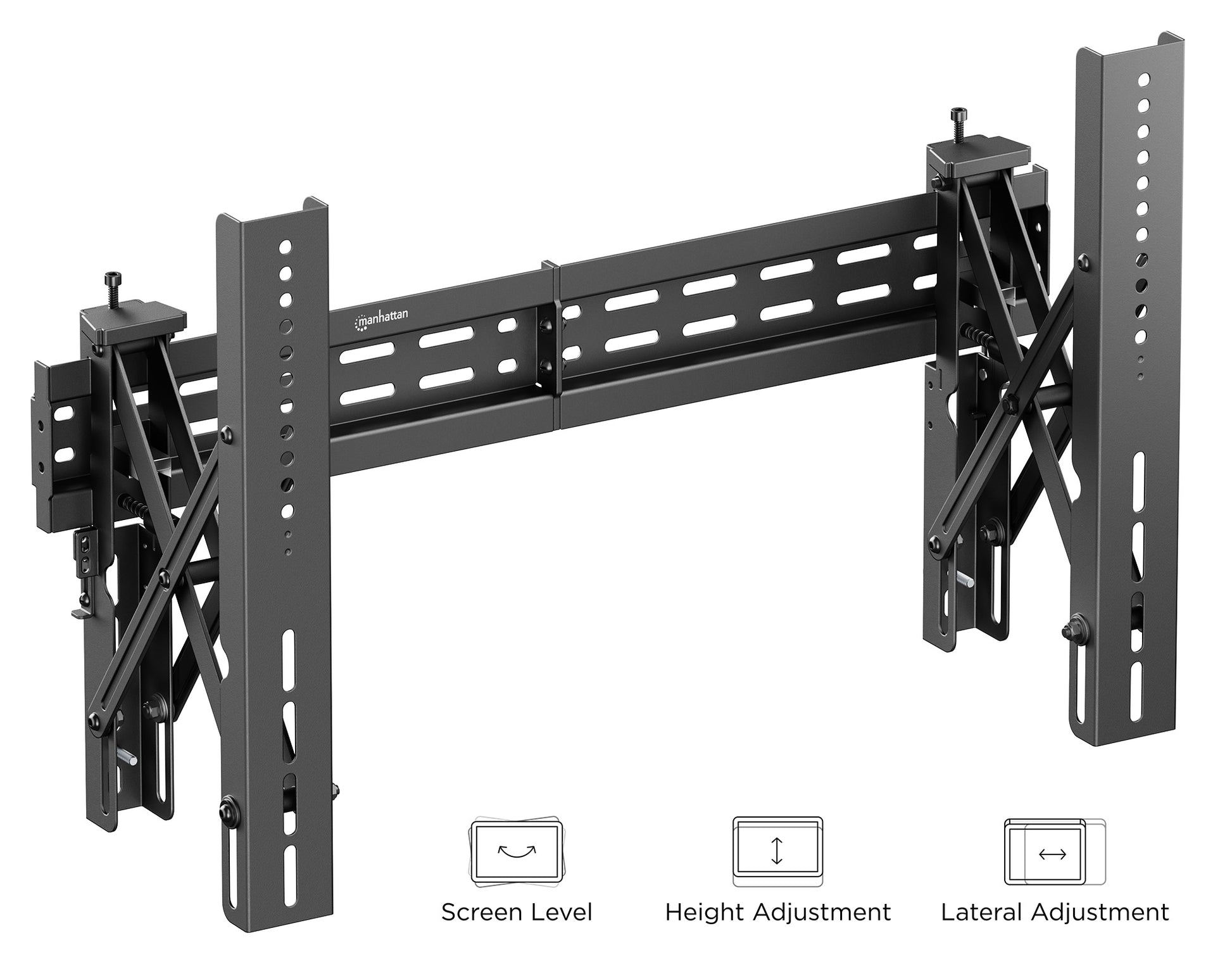

Adjustable Video Wall Mount with Pop-Out Design

Holds One 37" to 70" TV up to 70 kg (154 lbs.), Anti-Theft Lock, Extends up to 220 mm (8.7 in.), Level and Lateral Adjustments for Perfect Alignment, Black

Highlights

Supports one flat 37" to 70" TV up to 70 kg (154 lbs.) for integration into a professional video wall installation

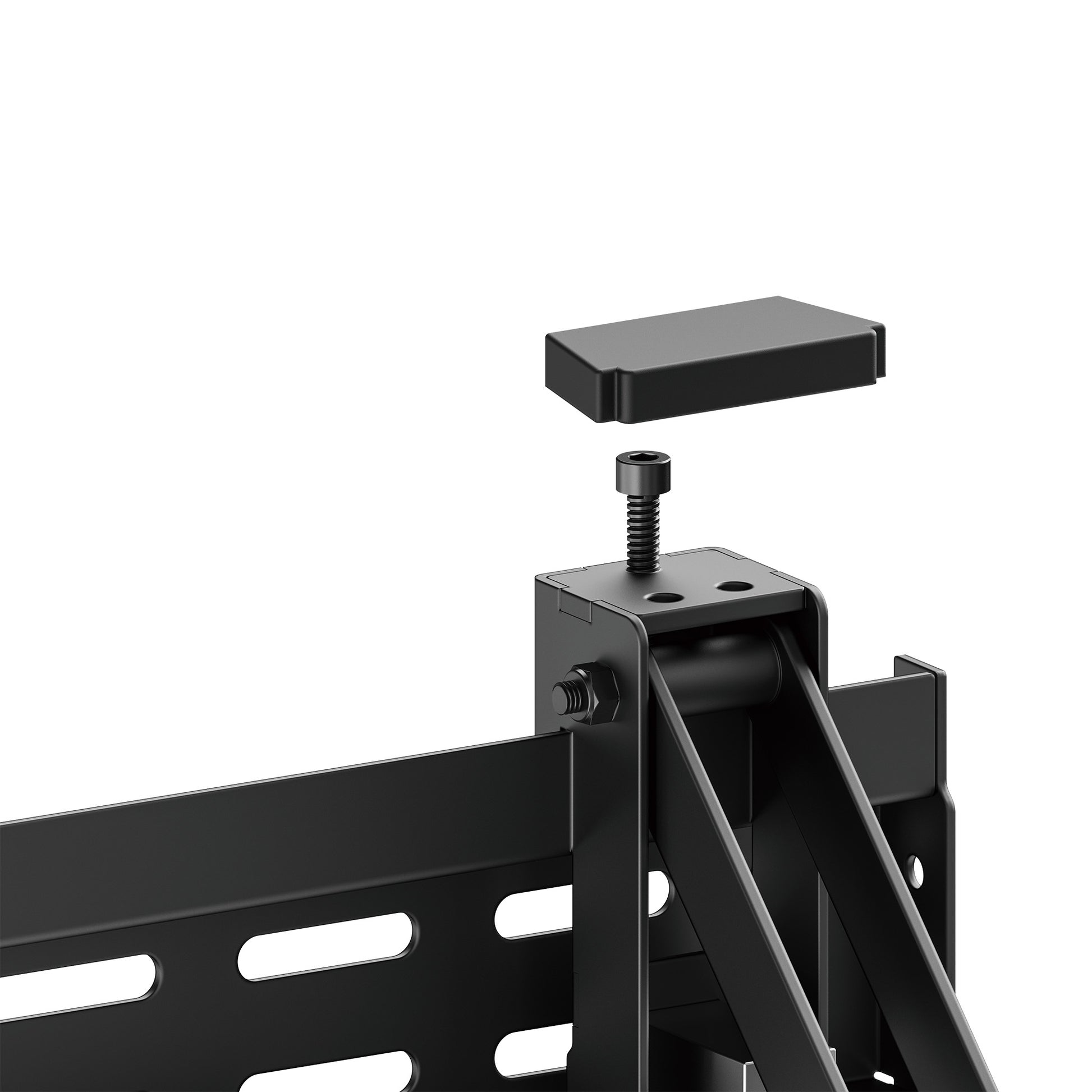

Seamless display alignment with micro height and depth adjustments, plus lateral shift brackets for side-to-side positioning (X, Y, and Z axis)
Optimized views with +/-3° post-installation leveling adjustment

SKU: 462655

[ view high resolution images ]

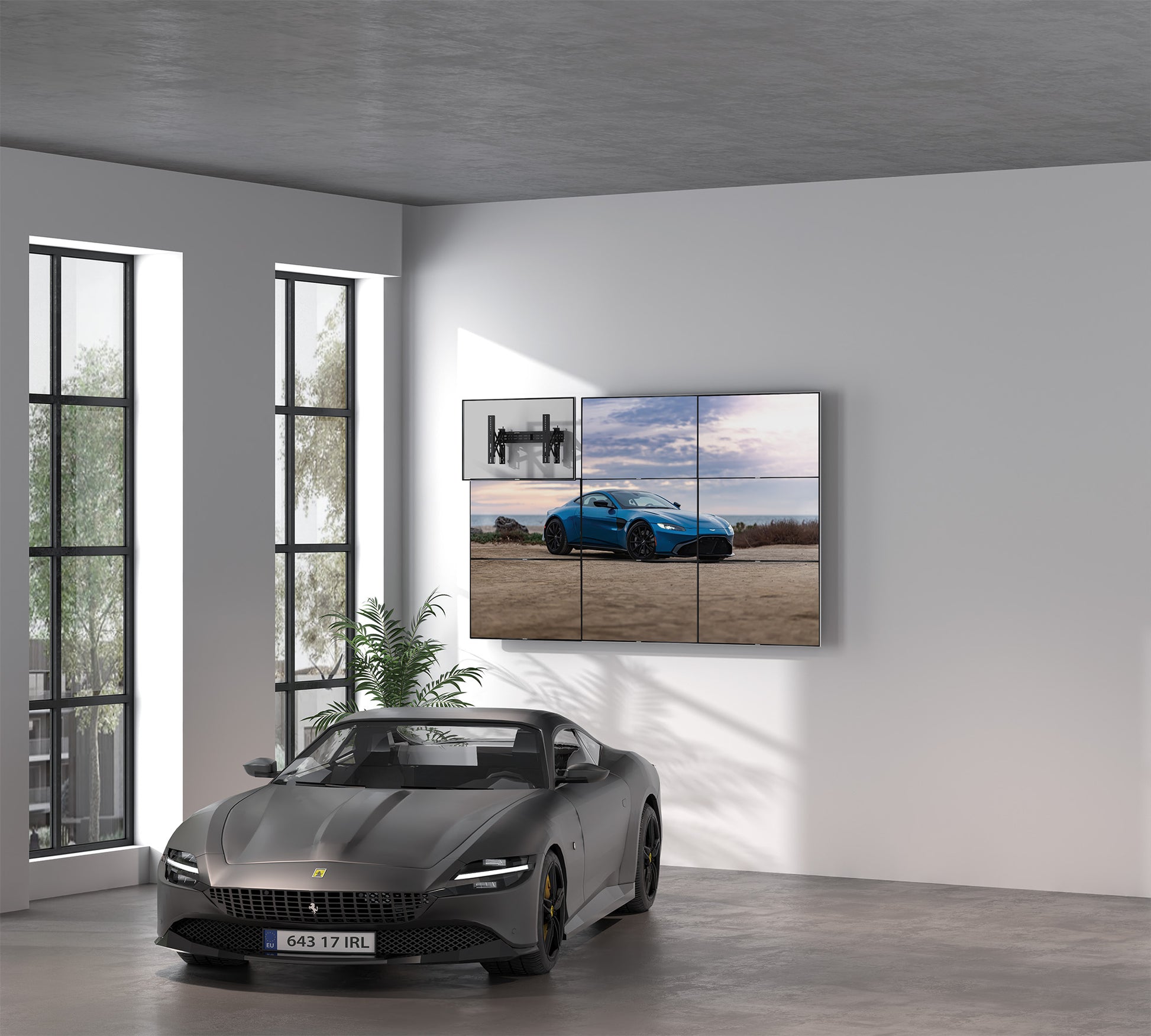

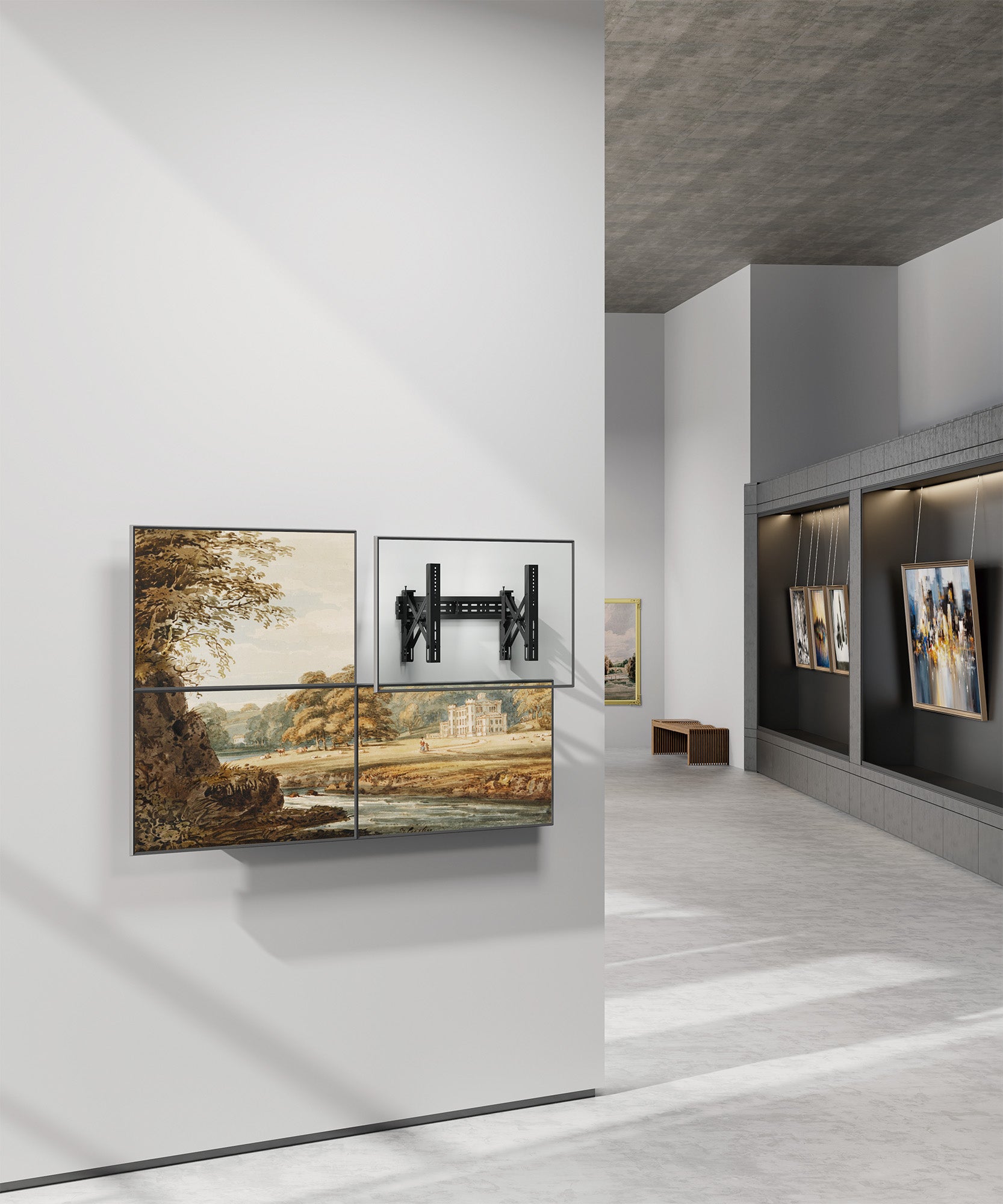

Professional Universal Video Wall Solution for Digital Signage and more

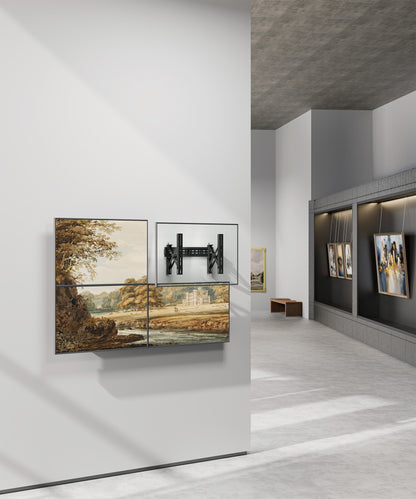

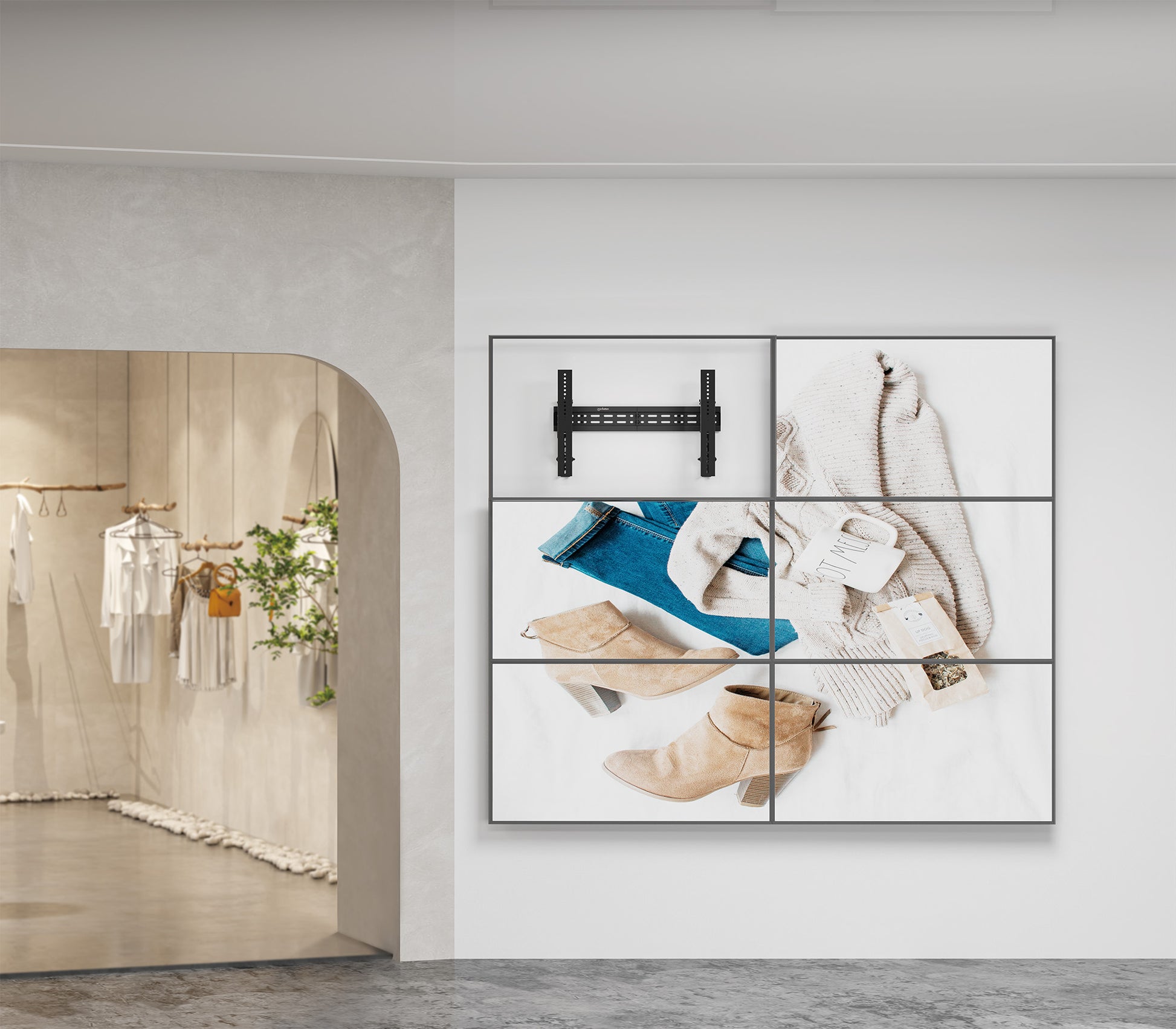

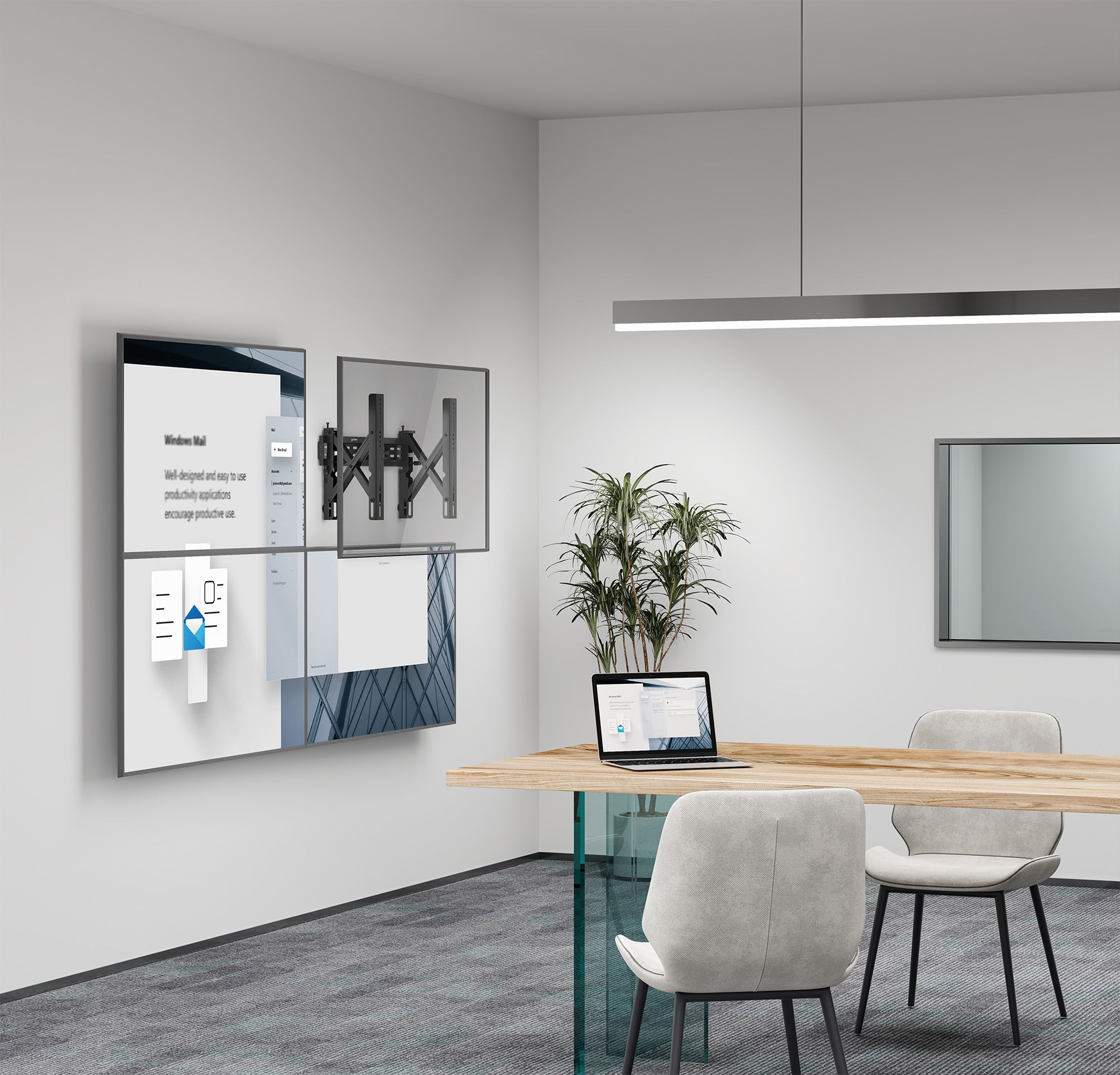

The Adjustable Video Wall Mount from Manhattan provides a sleek, professional setup for LCD/LED TVs from LG, Samsung, Sony, Sharp and others, supporting up to 70 kg (154 lbs.). Ideal for creating impressive multi-screen displays in retail, hospitality, education, and other public venues, this mount offers versatility and stability for impactful digital signage.

Seamless Alignment and Fine-Tuning Adjustments

Achieve flawless display alignment with micro-adjustments in height, depth, and lateral shift brackets. These features ensure side-to-side positioning, allowing for a perfectly aligned video wall that enhances viewer engagement and presentation quality.

Easy Access with Pop-Out Design

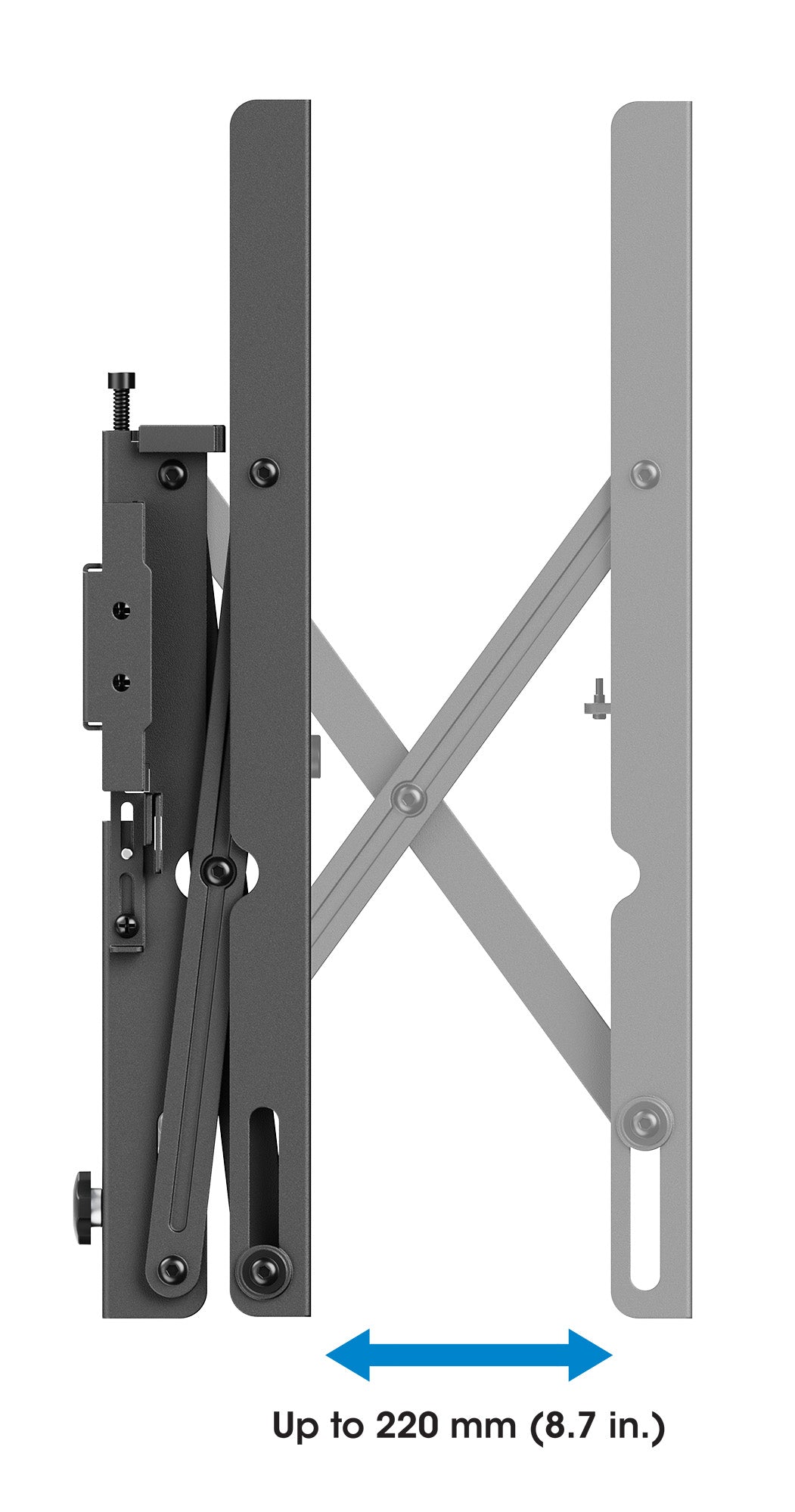

The convenient pop-out extension allows easy access to the back of the screen, simplifying installation, adjustments, and maintenance. It holds your screen at a minimal 78 mm (3 in.) distance from the wall, with an optional extension up to 220 mm (8.7 in.). Thanks to post-installation leveling adjustments of +/-3°, you can optimize viewing angles effortlessly, ensuring a polished finish.

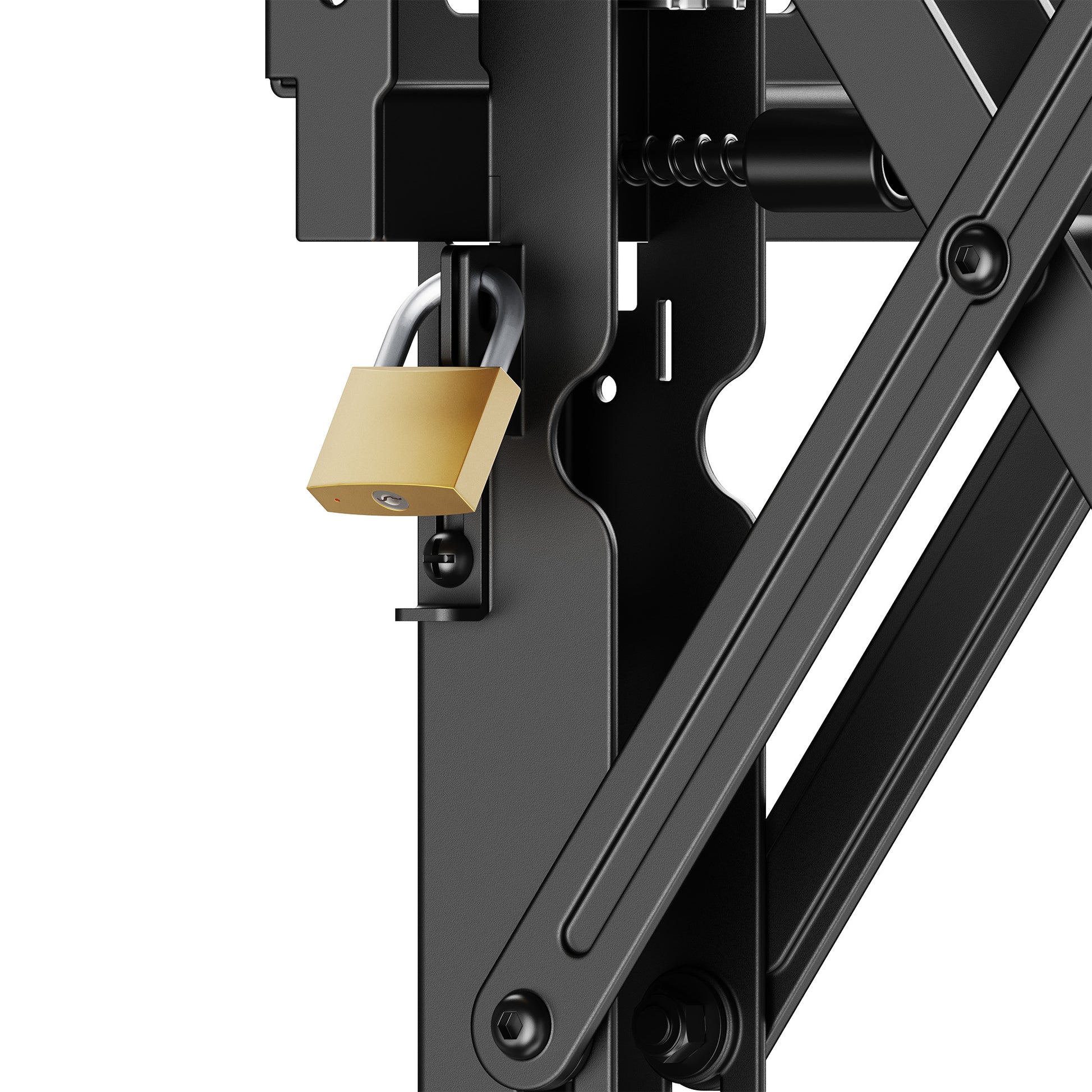

Enhanced Security with Anti-Theft Lock Option

For high-traffic areas, the mount includes an anti-theft locking option (padlock required, not included), providing peace of mind in public environments. This added security feature is ideal for installations in places like retail stores and transportation hubs.

Heavy-Duty Construction for Long-Lasting Performance

Constructed from 2 mm thick reinforced steel with a powder coating, this mount ensures durability and stability on uneven surfaces. The extendable knobs further enhance its stability, making it a reliable choice for long-term installations in demanding environments.

Supports one flat 37" to 70" TV up to 70 kg (154 lbs.) for integration into a professional video wall installation
Seamless display alignment with micro height and depth adjustments, plus lateral shift brackets for side-to-side positioning (X, Y, and Z axis)
Optimized views with +/-3° post-installation leveling adjustment
Pop-out extension for easy display installation, adjustment, rear-screen access, maintenance, and replacement
Anti-theft locking option, great for digital signage (requires padlock, not included)
Holds TV 78 mm (3 in.) from wall and optionally extends up to 220 mm (8.7 in.)

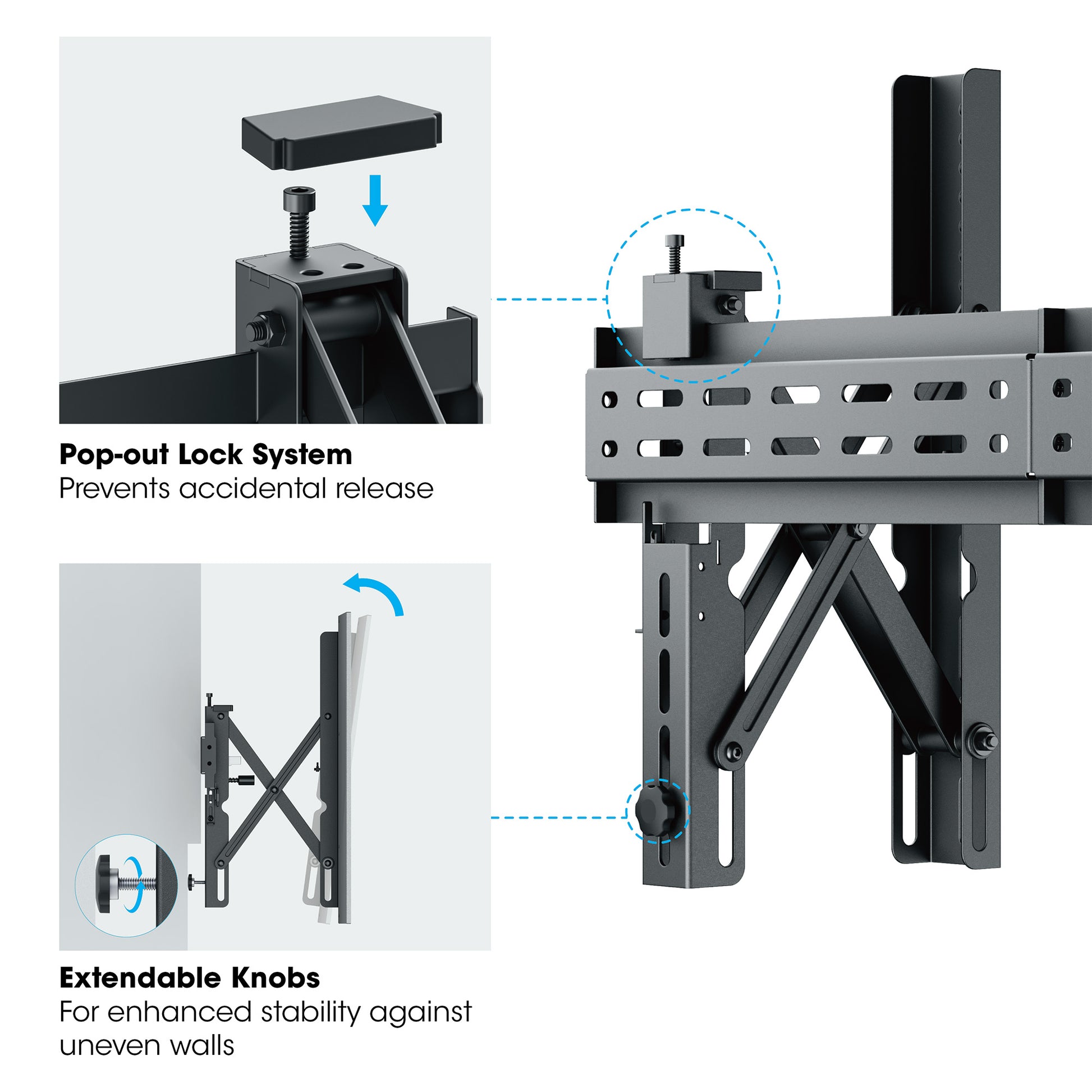

Pop-out lock system ensures secure positioning and prevents accidental release
Extendable knobs on the back for enhanced stability against uneven walls
Heavy-duty construction with 2 mm thick reinforced steel and powder coating

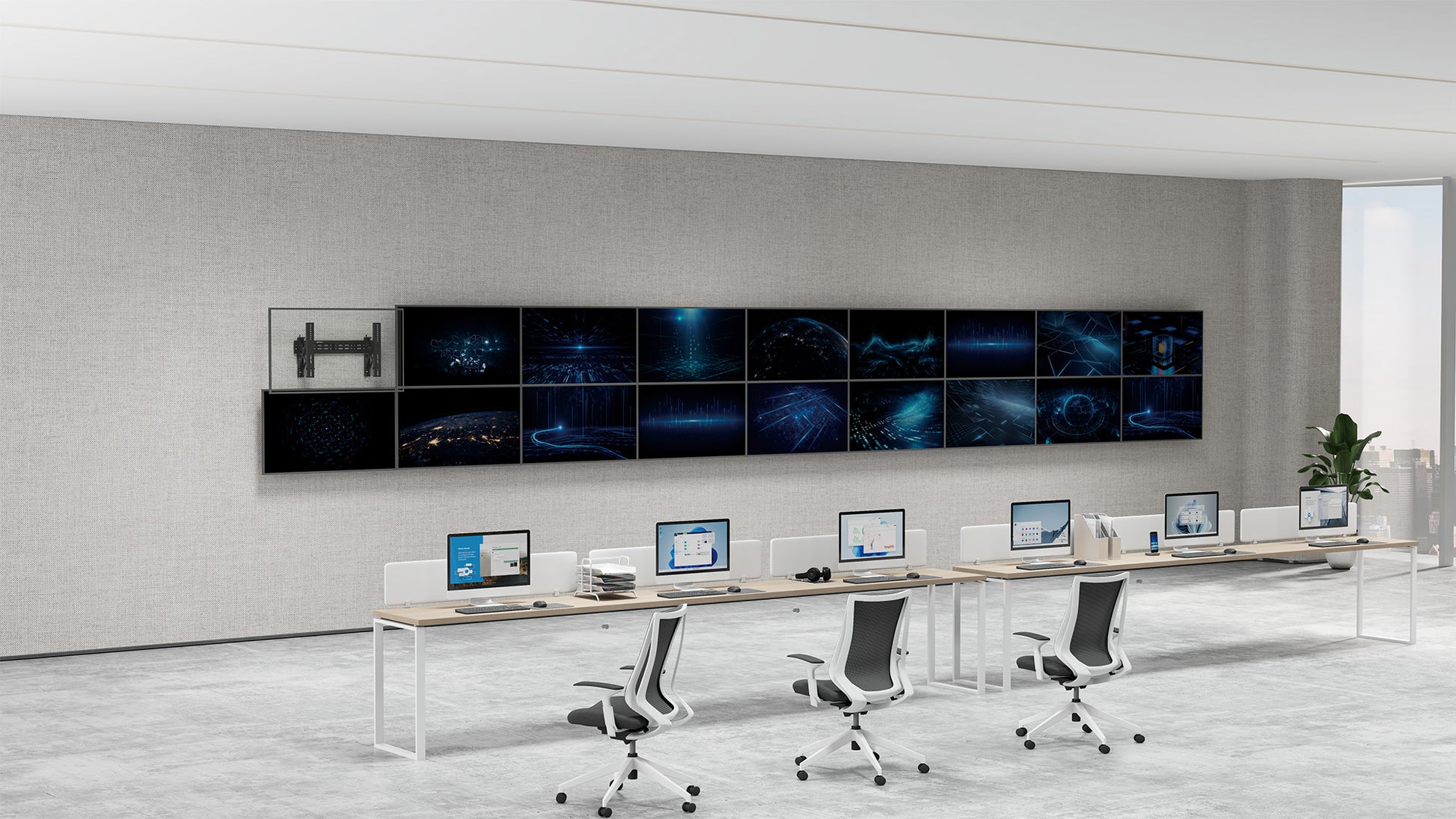

Ideal for public multi-screen presentations, digital signage, and menu boards in retail, education, hospitality, conference centers, lobbies, trade shows, and public transportation
Meets VESA standards 200x200 to 600x400 e.g. 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
Lifetime warranty

Certifications: RoHS, REACH
Designed for most 37" - 70" flat screens
Weight capacity: 70 kg (154 lbs.)
Post-leveling adjustment: +/-3°

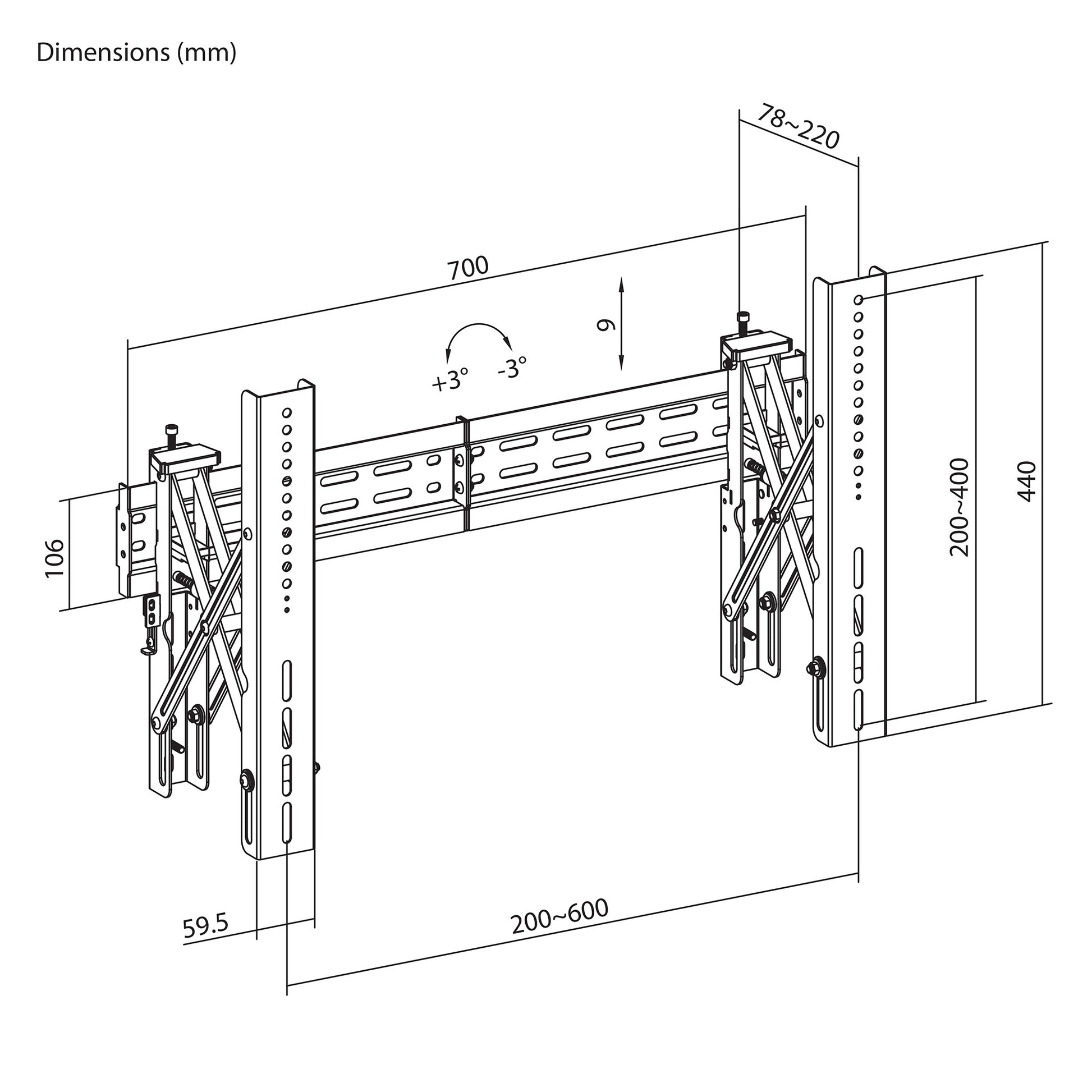

Dimensions (L x W x H): 700 x 440 x 220 mm (27.56 x 17.32 x 8.66 in.)
Net weight: 5.4 kg (11.91 lbs.)
Gross weight: 6 kg (13.23 lbs.)
Materials: steel
VESA standards: 200x200 to 600x400 e.g. 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
Adjustable Video Wall Mount with Pop-Out Design
Installation hardware with instructions
